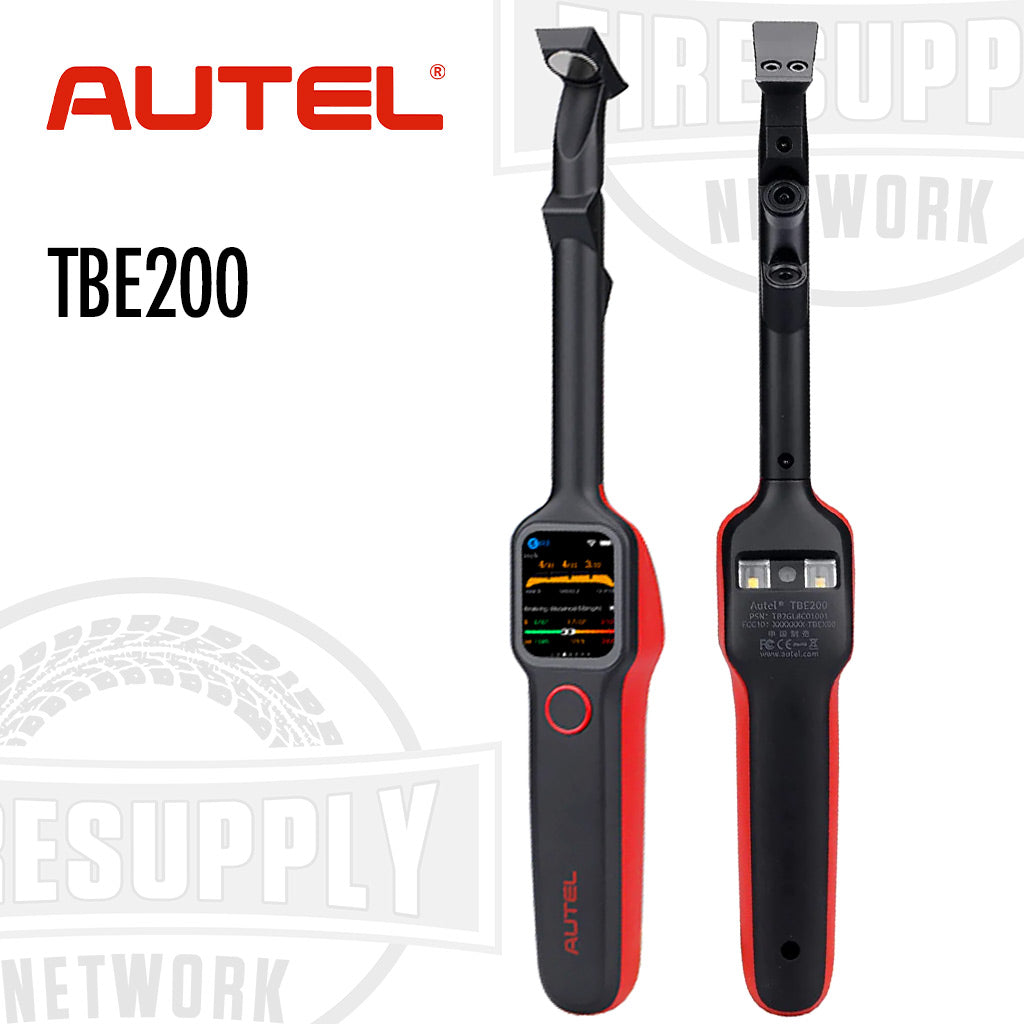

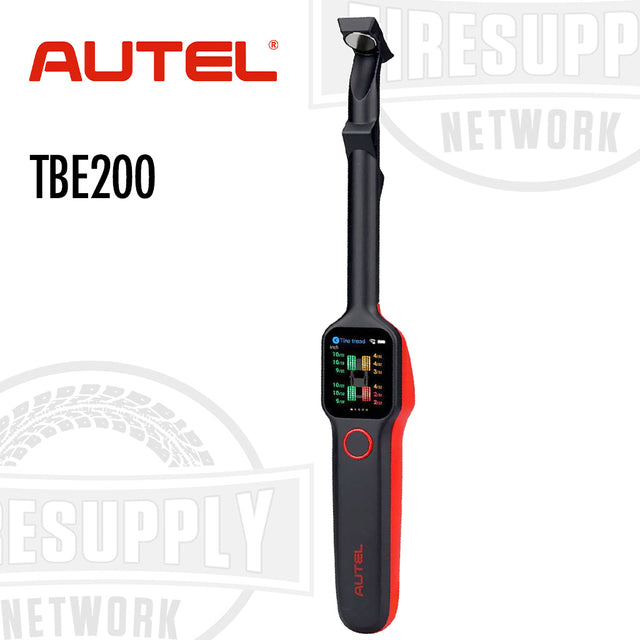

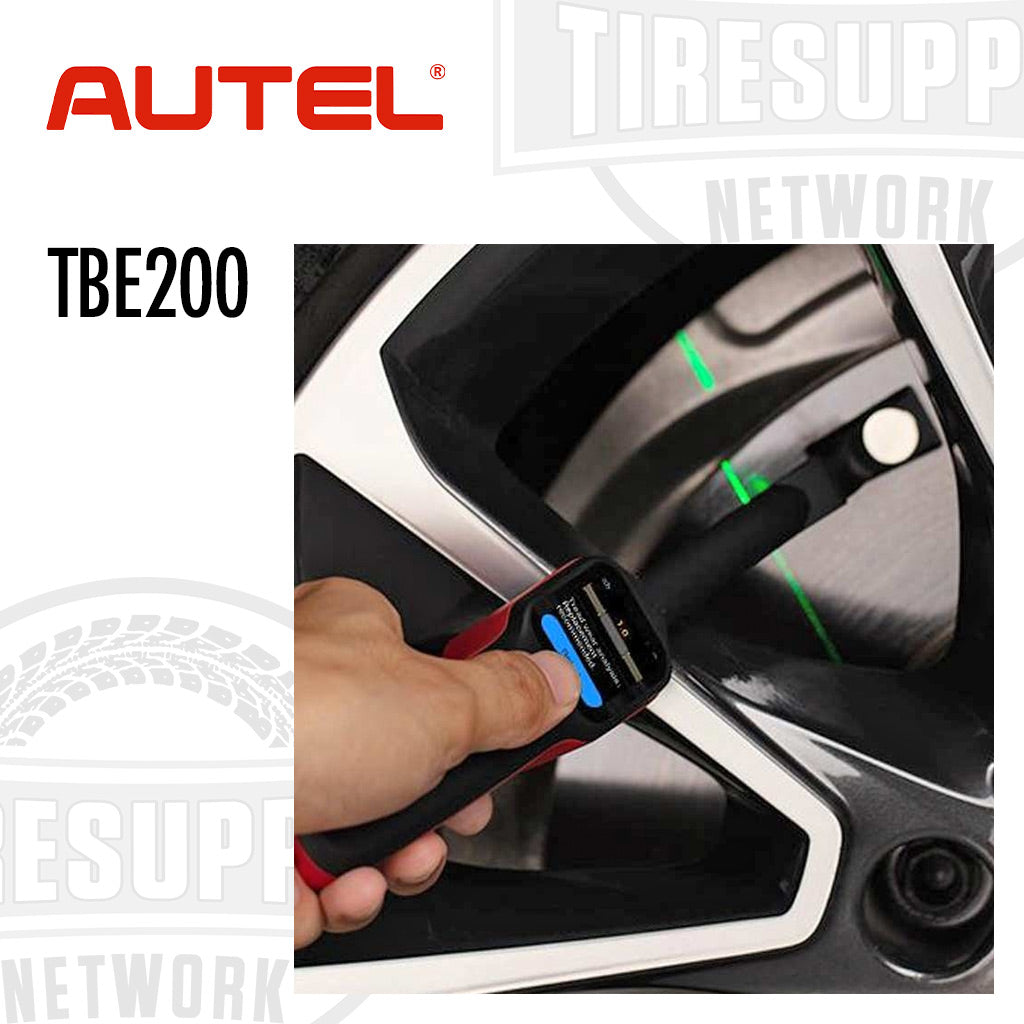

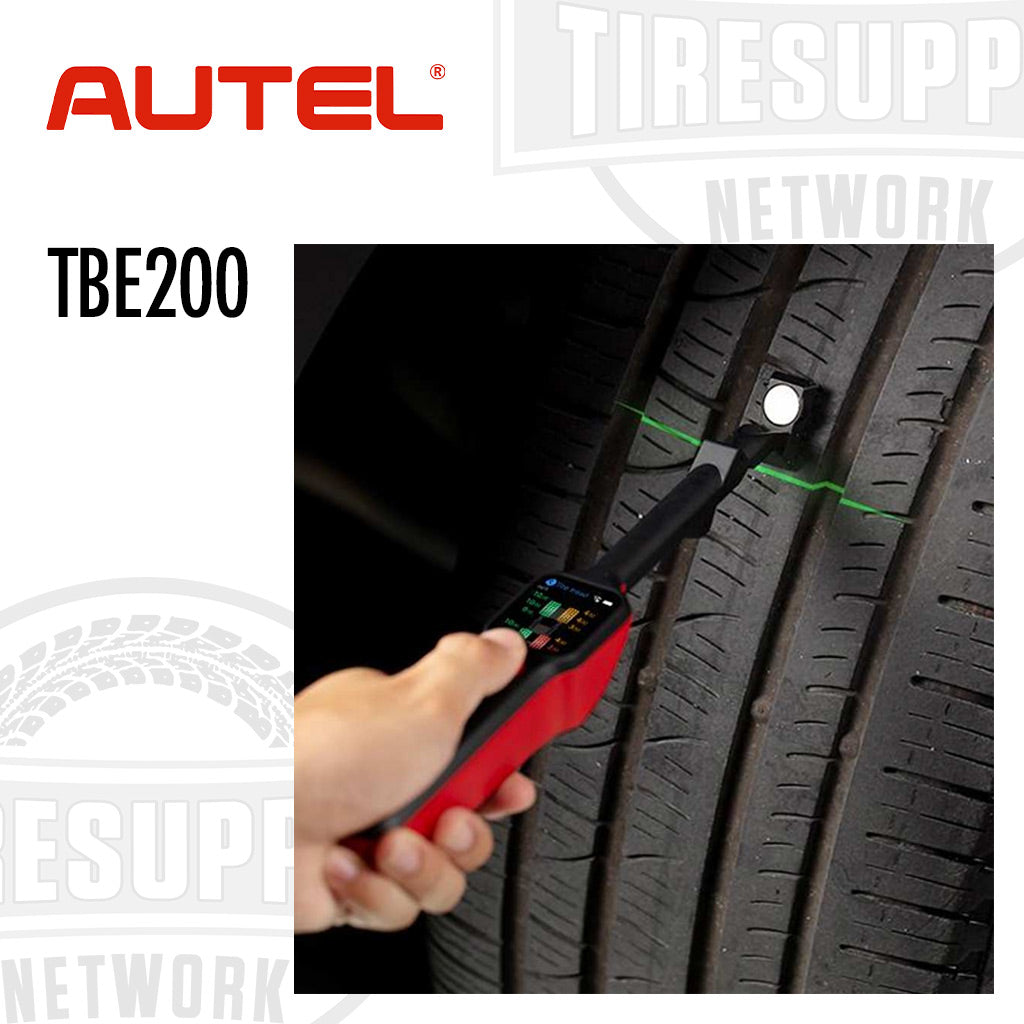

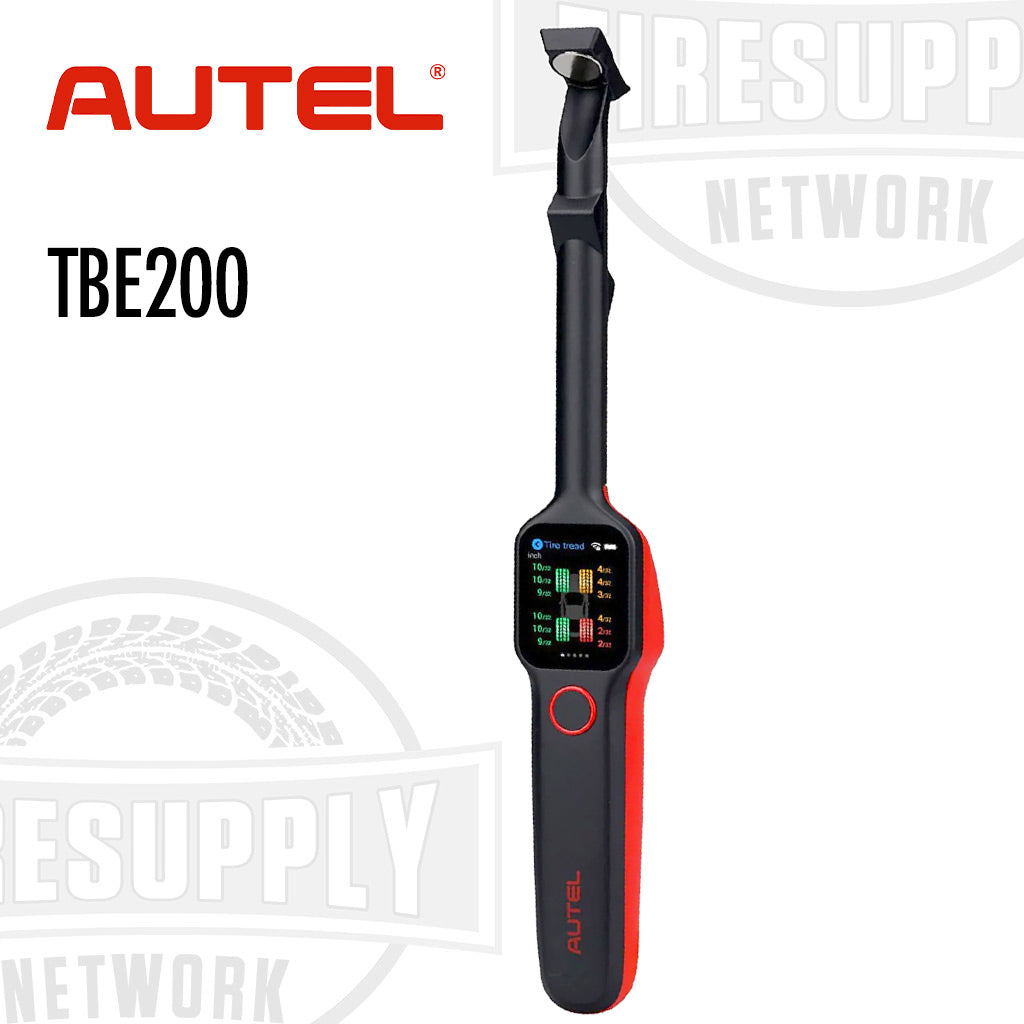

The MaxiTPMS TBE200 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements. Measure brake disc wear without having to remove tires. It features a 1.65” AMOLED super retina touchscreen, displaying measurement data curves in real-time.

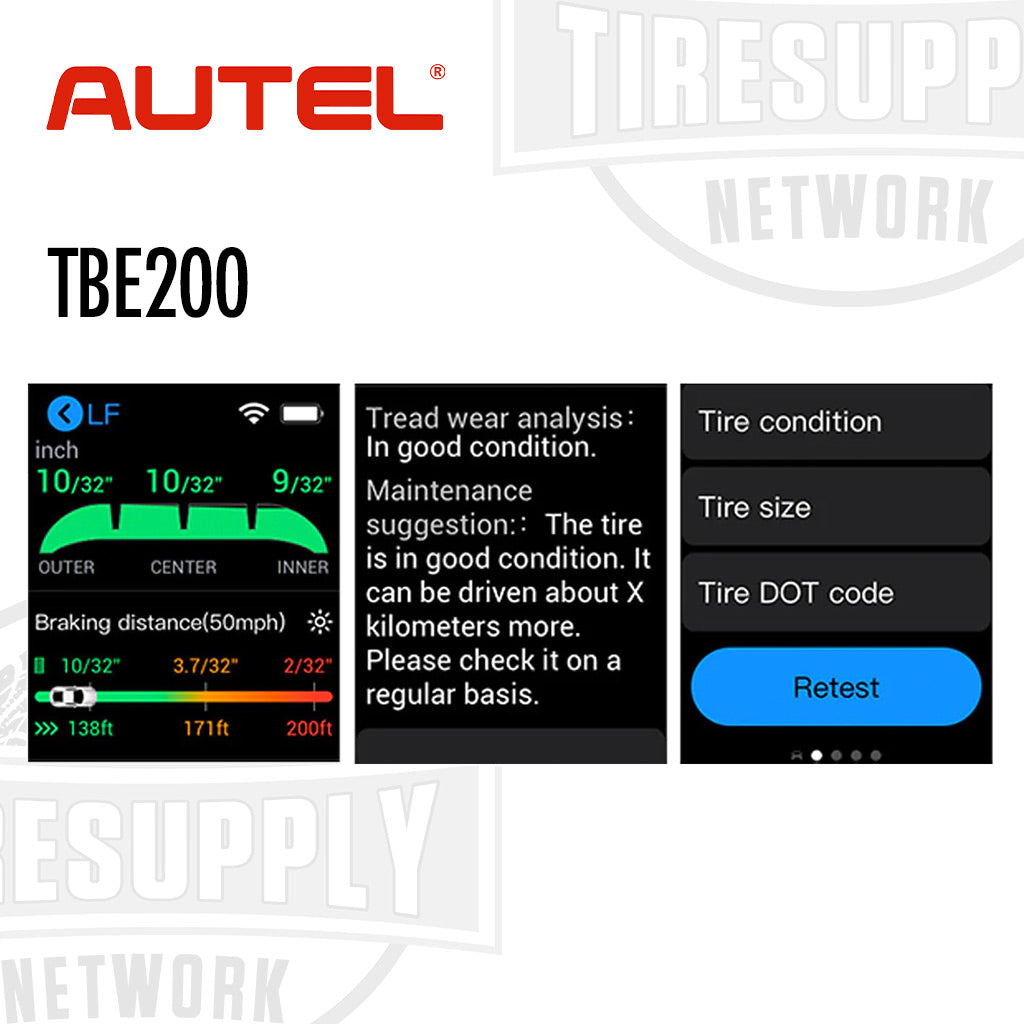

TBE200 provides uneven wear analysis and detailed replacement & maintenance suggestions for quick tire service. The TBE200 dual cameras enable users to document tire wear and damage and scan Tire Identification Number (TIN). Use the tool separately, or with the Autel MaxiTPMS ITS600 Advanced TPMS Service & Diagnostic Tablet Tool to view and print detailed TPMS reports.
Real-Time Tire Health Analysis

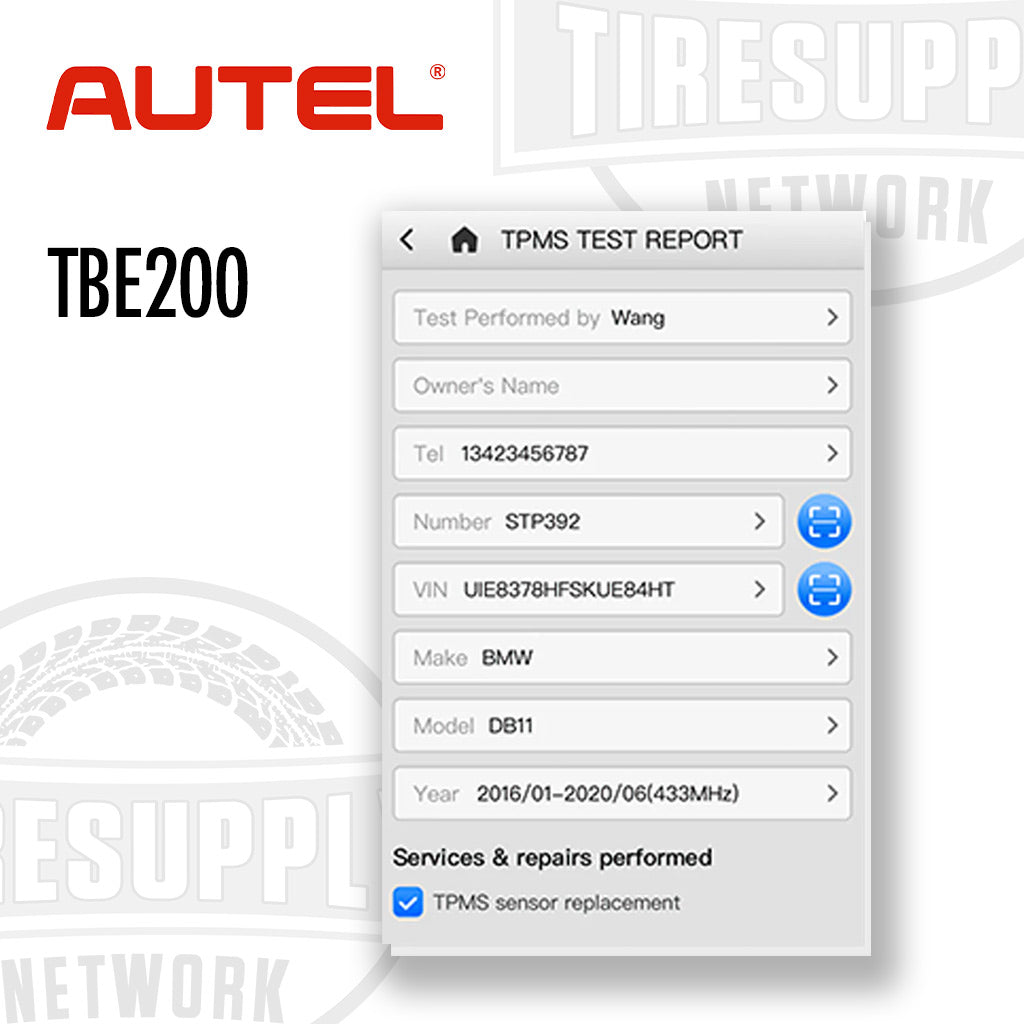

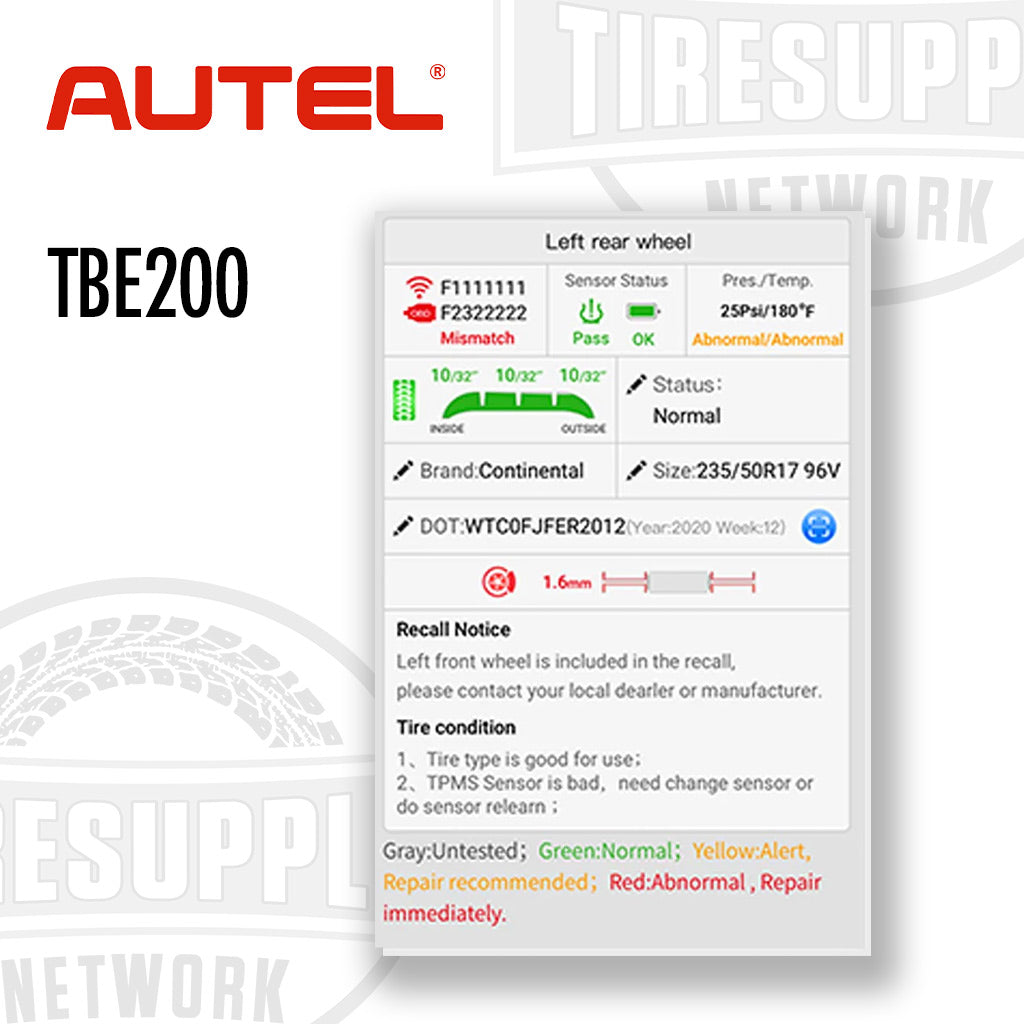

Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires Autel MaxiTPMS ITS600 Advanced TPMS Service & Diagnostic Tablet Tool).
Easy-to-Use QR Code Report Download & Sharing: Generate QR codes for tire tread depth and brake disc measurements to allow for easy report sharing & download via mobile phones or tablets.
|TECHNICAL DATA||MaxiTPMS TBE200|
|Processor||4x ARM Cortex-A35 (1.5 GHz)
||1.65″ AMOLED Capacitive Touchscreen with 348 x 442 Resolution
||CMOS WXGA, 1 Megapixel & 8 Megapixel, 30 fps
||WiFi; USB 2.0 Type C
||1GB RAM LPDDR3 & 4GB ROM
|Power & Battery
||3.7 V / 3000 mAh 18650 Lithium-Ion Battery; Charges via 5 V AC/DC Power Supply
|Tested Battery Life
||Around 8 Hours of Continuous Use
|Battery Charging Input||5 V / 1.5 A|
|Power Consumption||300 mA (AMOLED on with Brightness) at 3.7 V|
|Operating Temperature||14 to 113° F (-10° to 45° C)|
|Storage Temperature||-4° to 140° F (-20° to 60° C)|
|Dimensions (WxHxD)||11.14″ x 1.54″ x 1.32″ (283mm x 39mm x 33.5mm)|
|Weight||0.41 lbs (188 g)|
