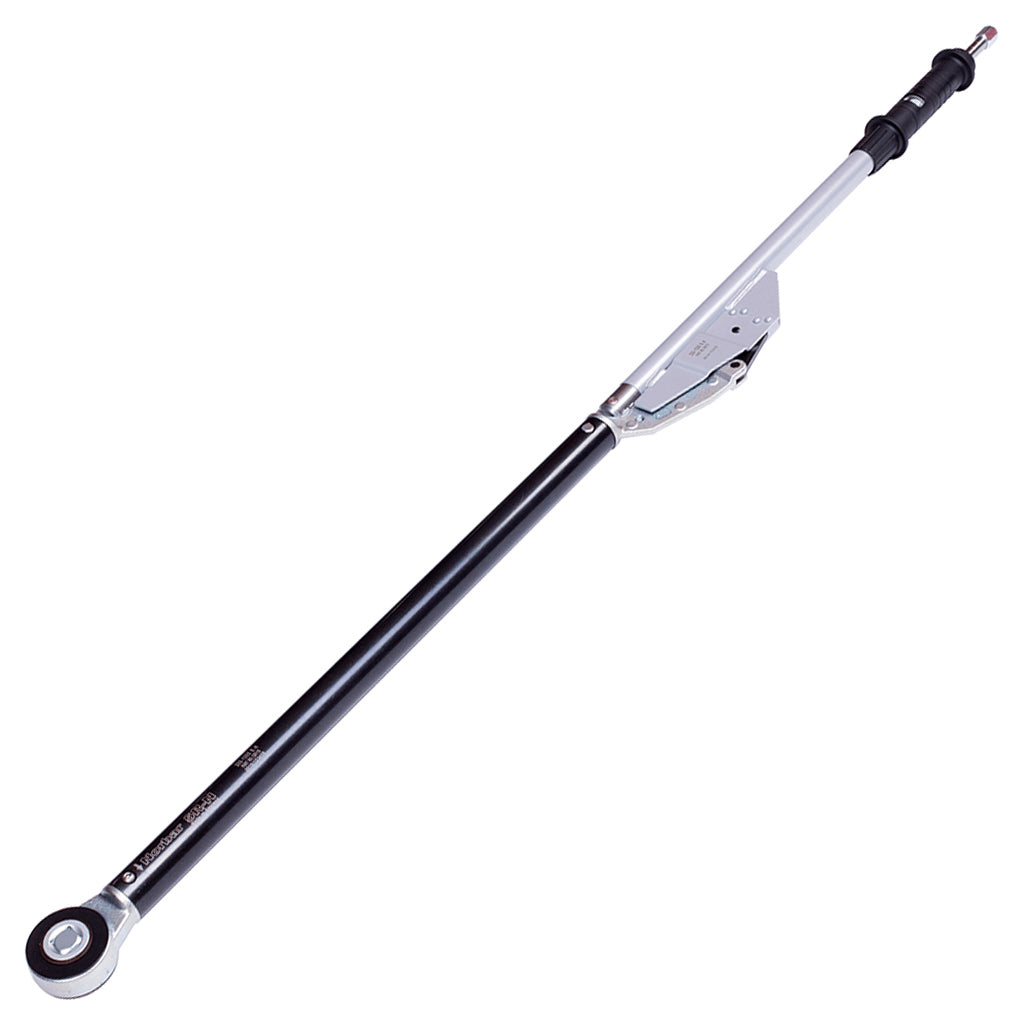

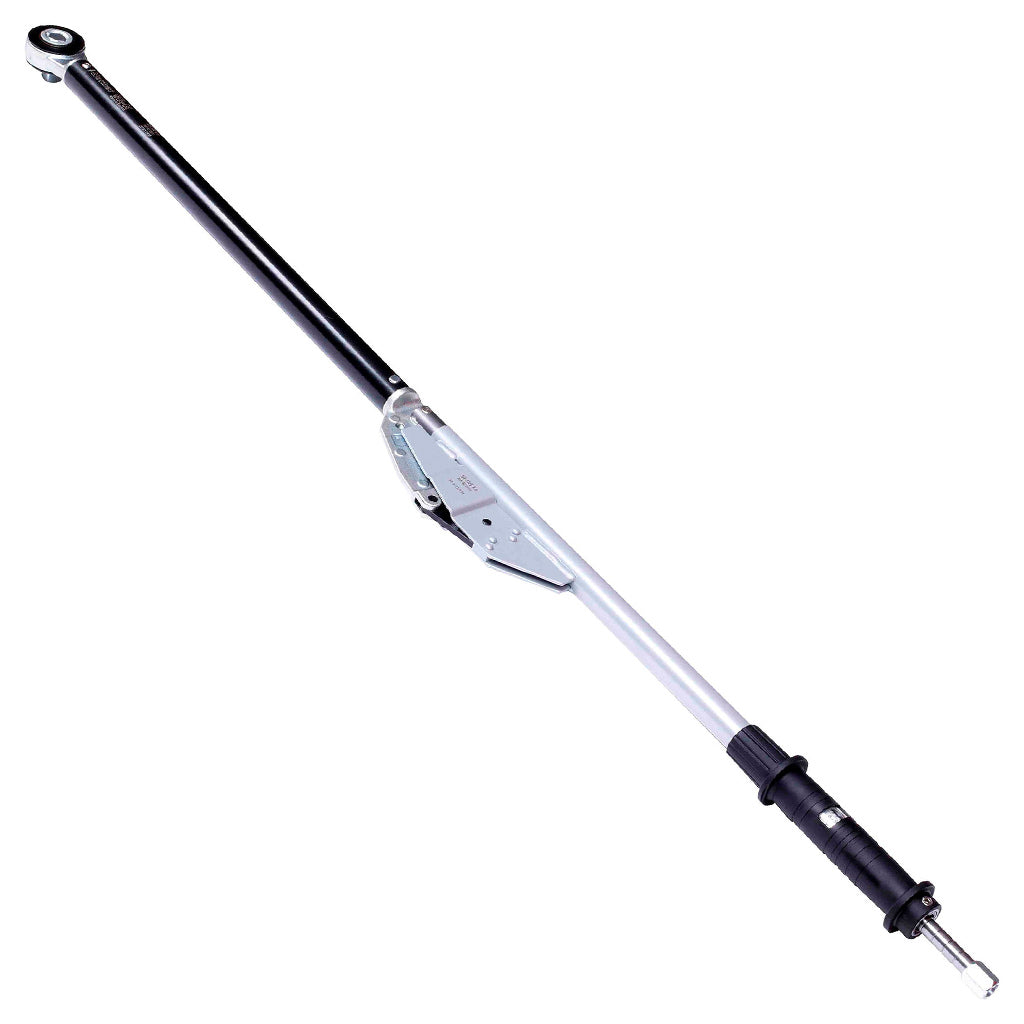

Norbar | Model 5R-N Breakback-Style 2-Piece 1″ Drive 200-750 ft-lbs Adjustable Torque Wrench (120115.01)
The Norbar wrench retains the original ‘Industrial’ wrench’s robustness and clear torque signal and improves on the scale for more accurate setting. Can be split into two parts for easy storage and economic shipping. Removal of calibrated nuts reduces calibration expense. Quick and easy torque adjustments. Operator handle designed to ‘guide’ the technicians hand into the proper position. Declaration of Conformance meets ISO 6789-1:2017 requirements.
Includes:
- Norbar 120115.01 Model 5R-N 1″ Drive 200-750 ft-lbs Torque Wrench

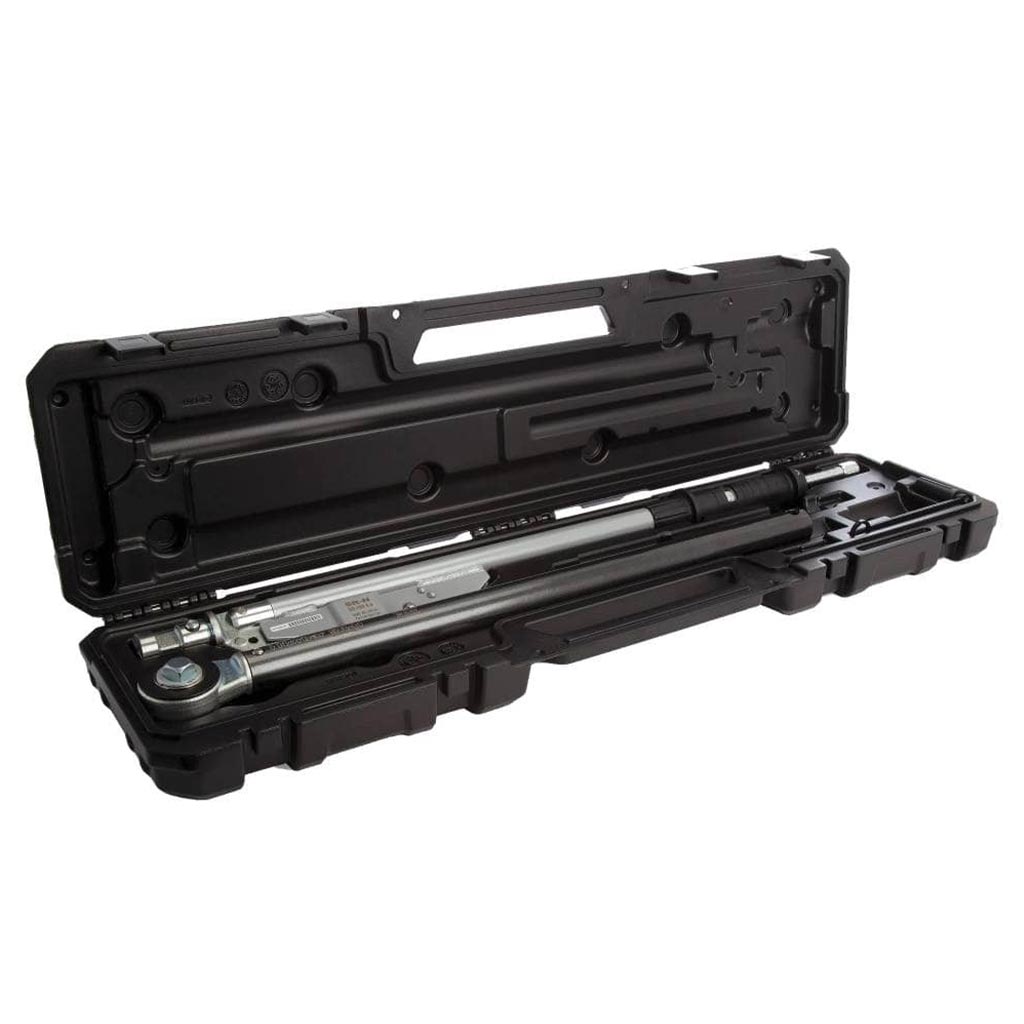

- Hardshell Protective Case
- Certificate of Calibration
Features:

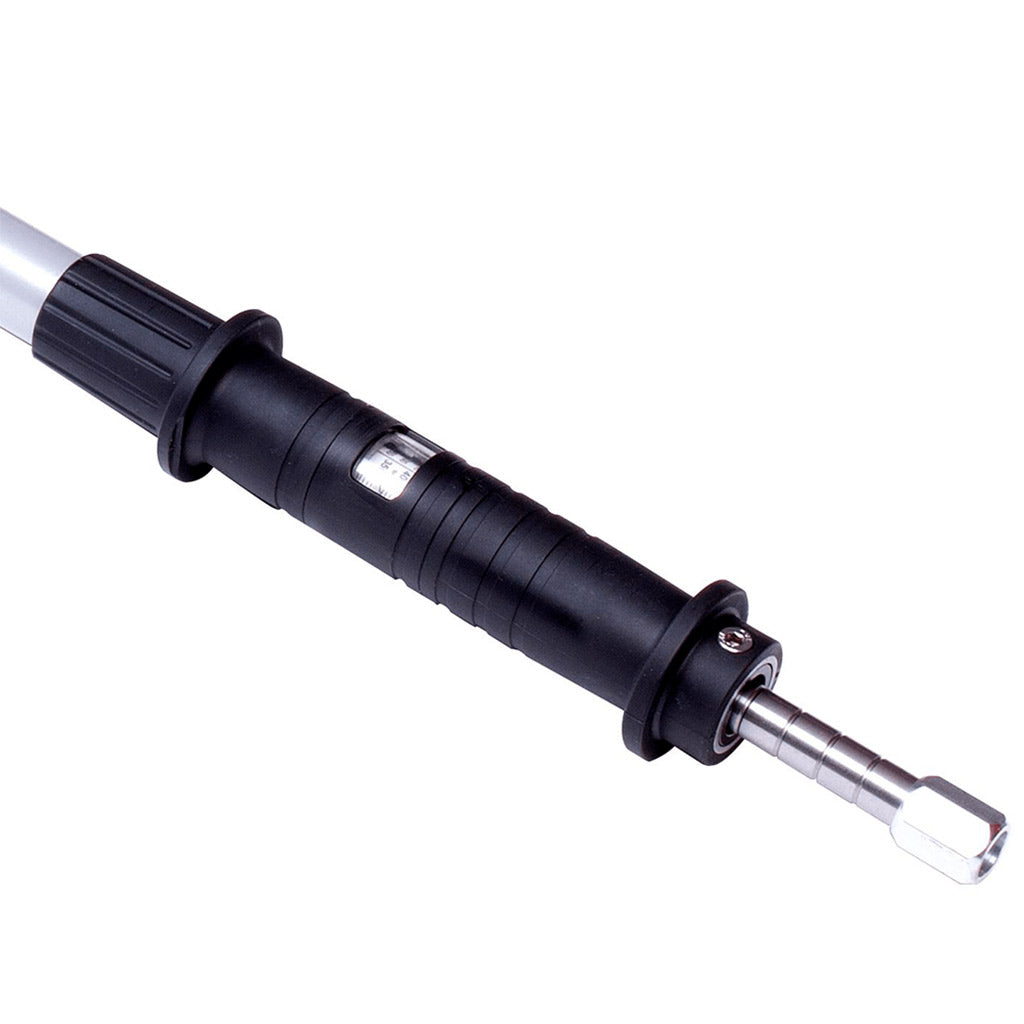

- Easy to read adjusting scale in the handle/easily replaceable paper scale
- Smaller carrying case for easier transport
- Split design assembly allows for easy, behind-the-seat storage in service vehicles

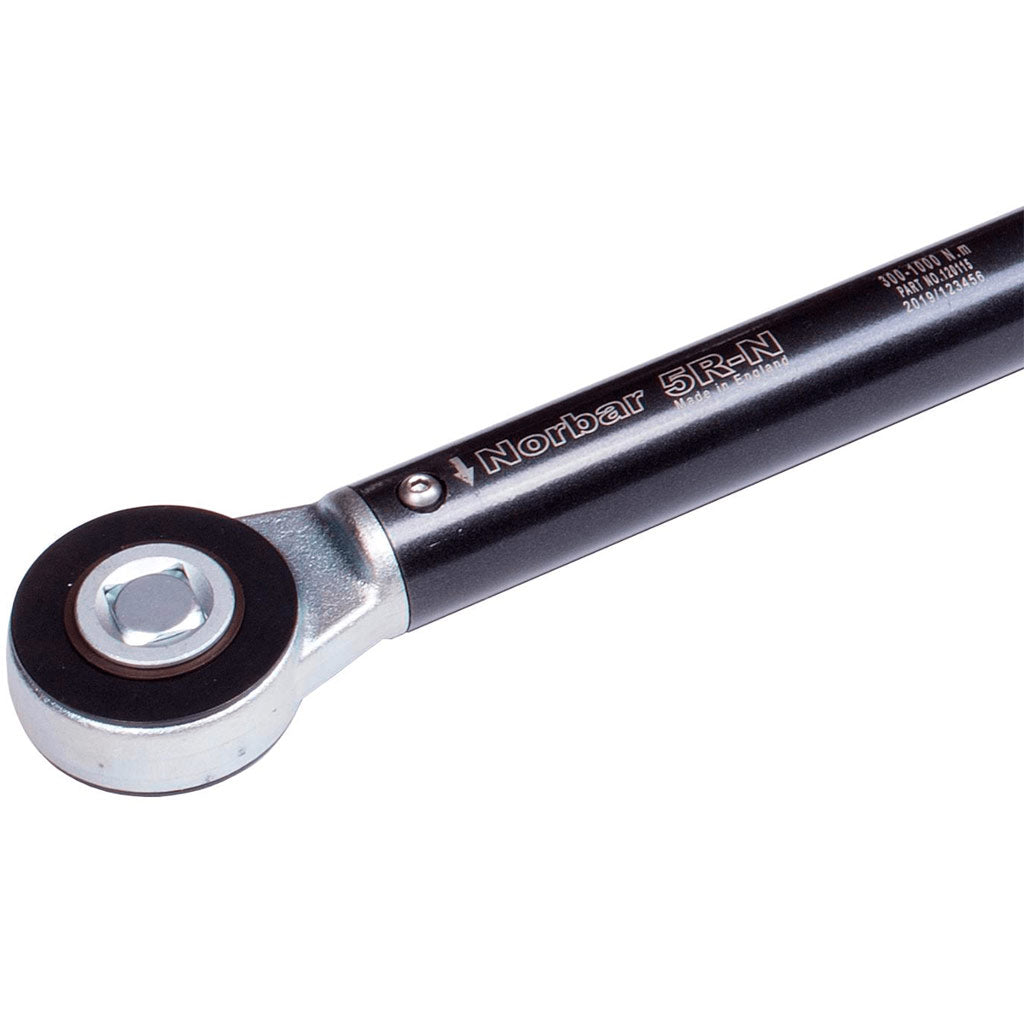

- Push-through ratchet allows two direction torquing
- Replaceable ratchet assembly for worn/damaged heads, meaning fewer wrenches scrapped
- Easy to read scale is shielded from dust, dirt and spray

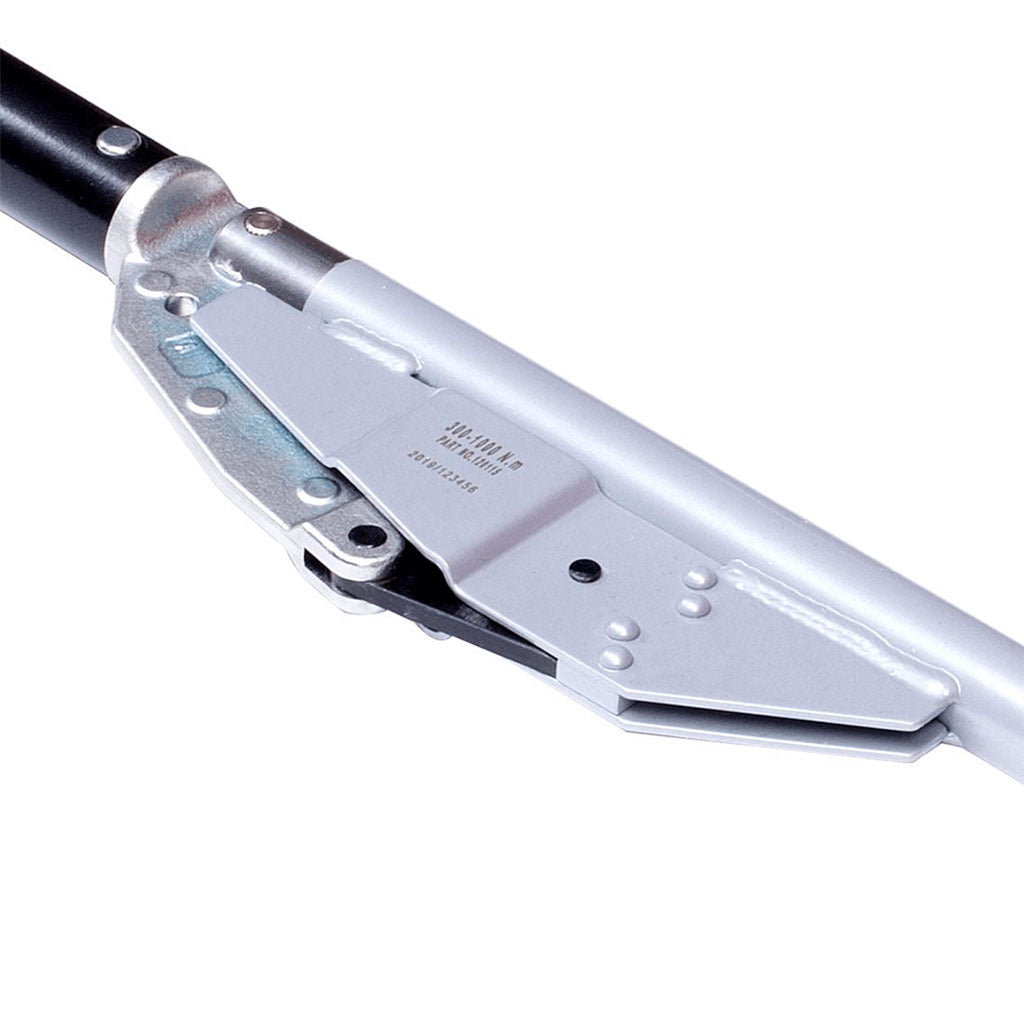

- Unique profiled cam and reaction plate - gives much clearer ' torque break point' reducing the possibility of over torquing
- Robust construction gives accurate results to ±4% even in arduous working conditions
- Easy to set accurately
- Designed to be cost effectively serviced
- New handle - more comfortable and guides operator's hand to correct position
- Supplied with a Declaration of Conformance, which meets the requirements of ISO 6789-1:2017
Specifications:
| Norbar Part Number | 120115.01 |
| Norbar Model Number | 5R-N |
| Drive Size/Type | 1″ Square |
| Scale | Dual Measurement (ft-lbs and Nm) |
| Scale Increments | 10 ft-lbs (20 Nm) |
| Torque Range | 200 - 750 ft-lbs (300 - 1,000 Nm) |
| Accuracy | ±4% |
| Ratchet Teeth | 36 |
| Ratchet Type | Push-Through |
| EAN Bar Code | 5060207566322 |
| NATO Number | N/A |
| Package Dimensions | 38.19″ x 10.24″ x 3.74″ (970 mm x 260 mm x 95 mm) |
| Weight | 17.42 lbs (7.9 kg) |
