Chicago Pneumatic  |  SKU: CP8609-CT

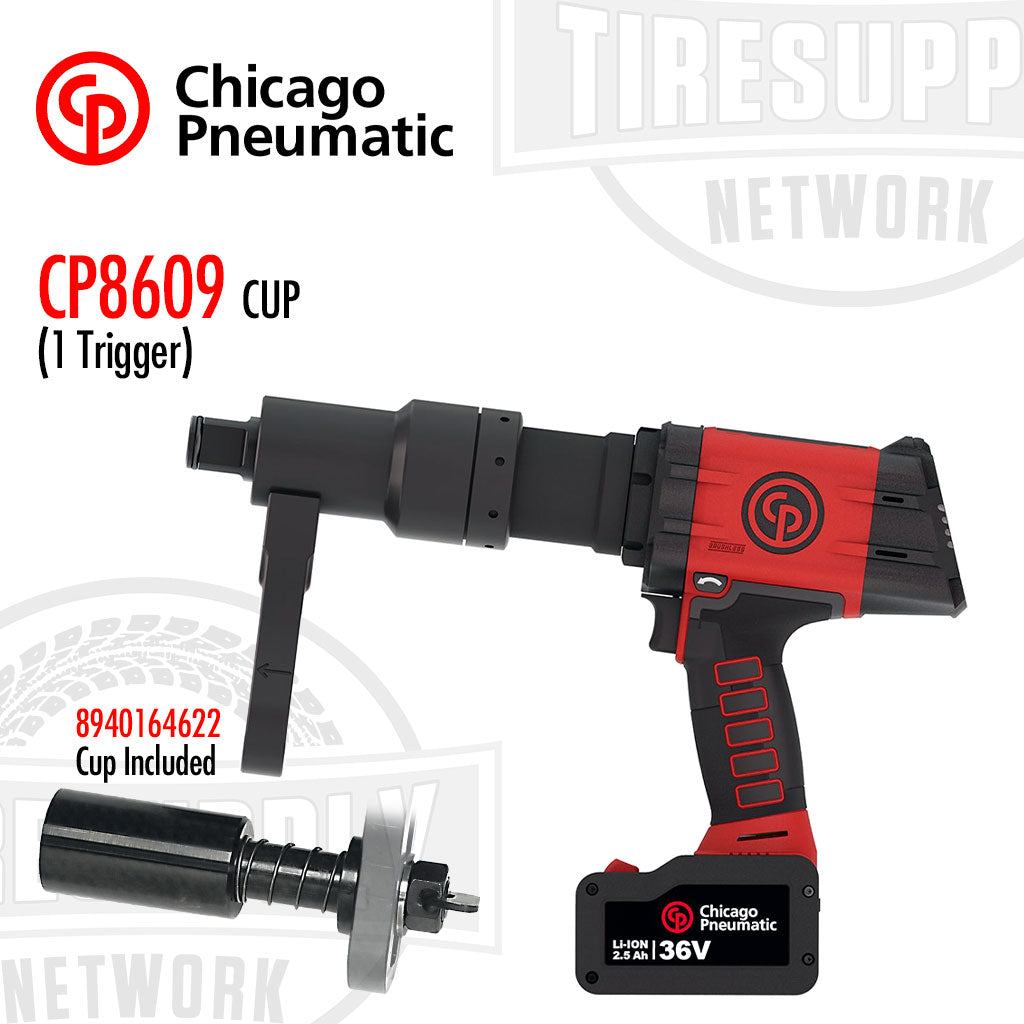

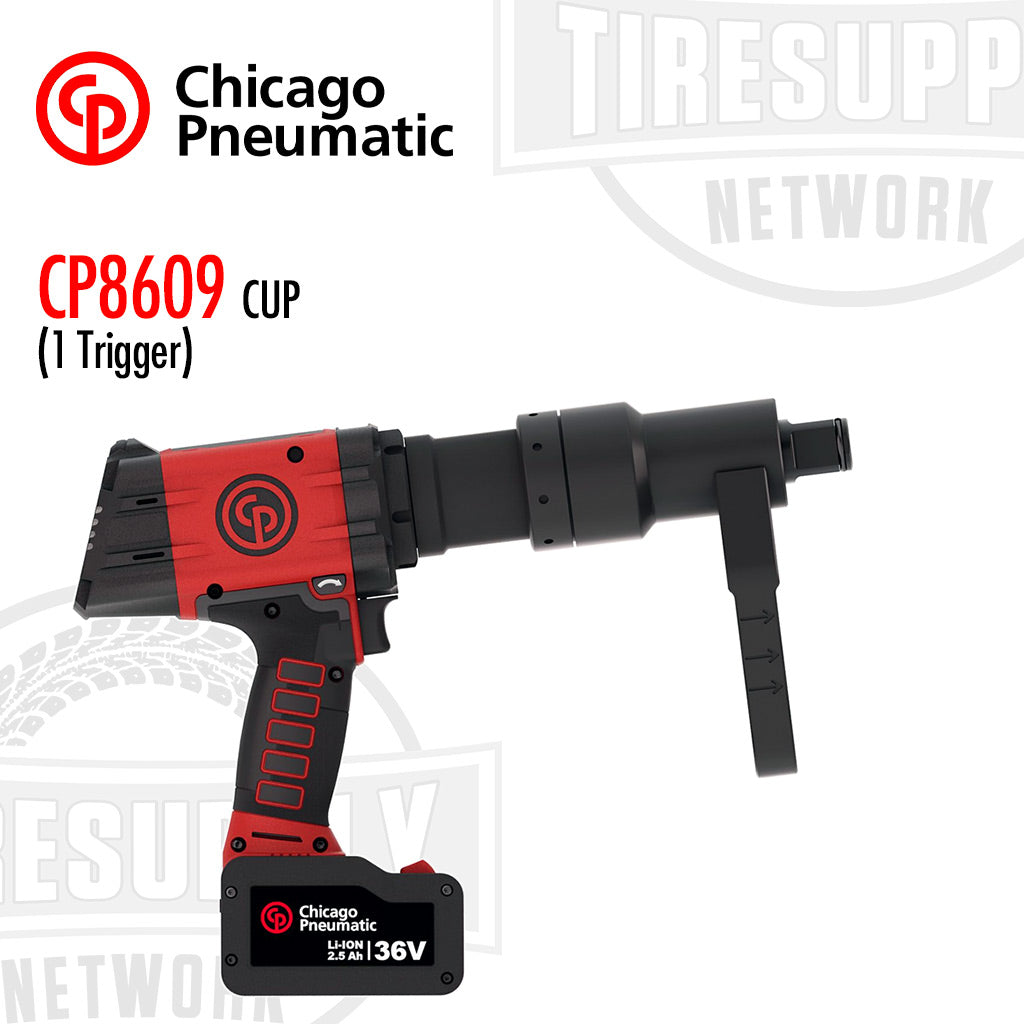

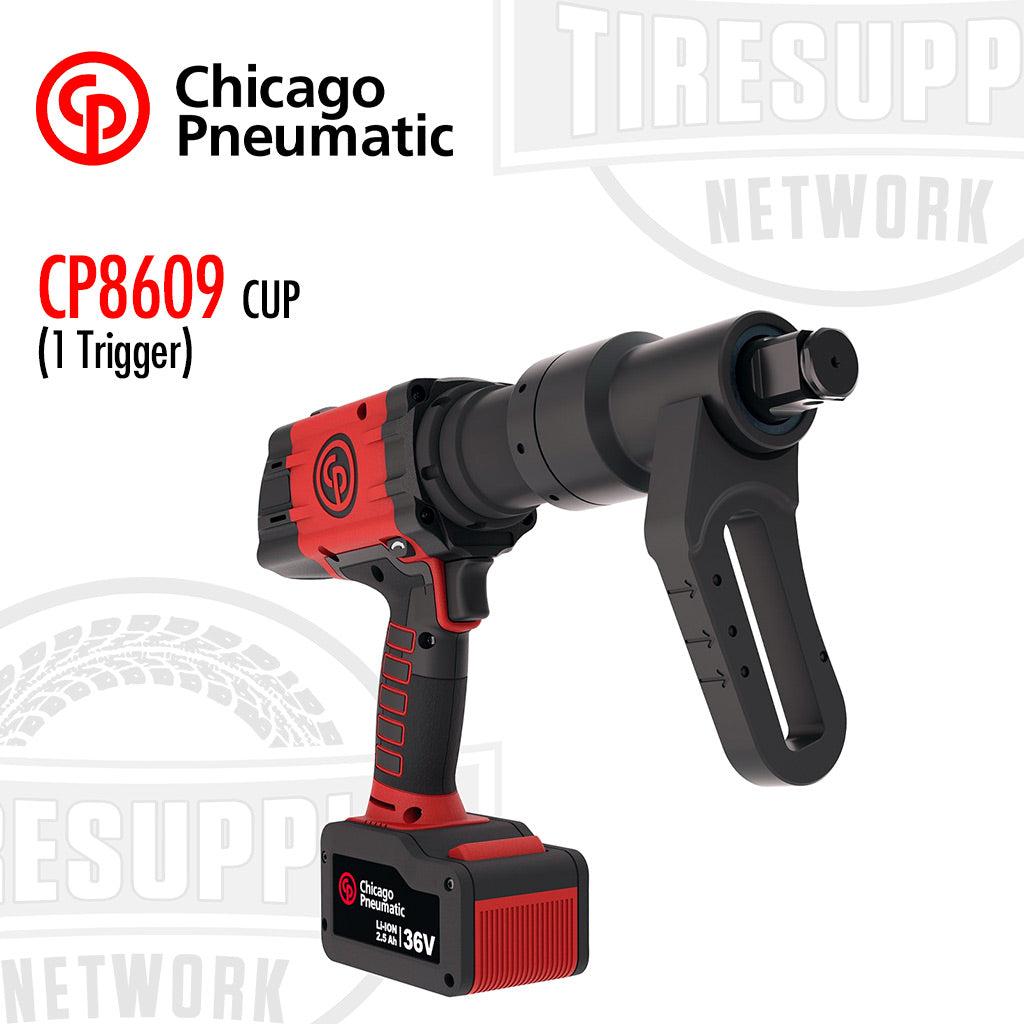

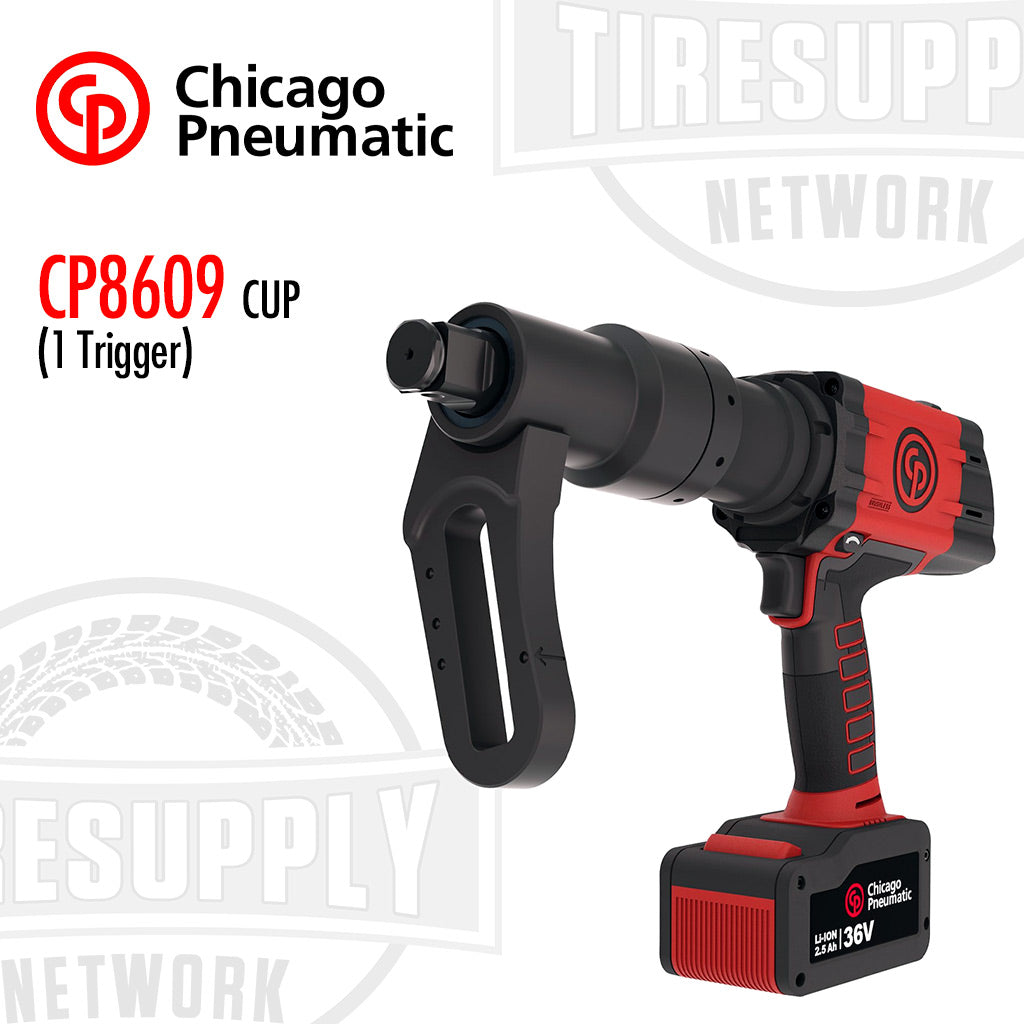

Chicago Pneumatic | 1" Battery Torque Wrench 36V 2.5AH - Cup 1 Trigger (CP8609*)

$12,247.50

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

As low as $170.10 for 72 months Finance Now!

Version

Chicago Pneumatic | 1" Battery Torque Wrench 36V 2.5AH - Cup 1 Trigger (CP8609*)

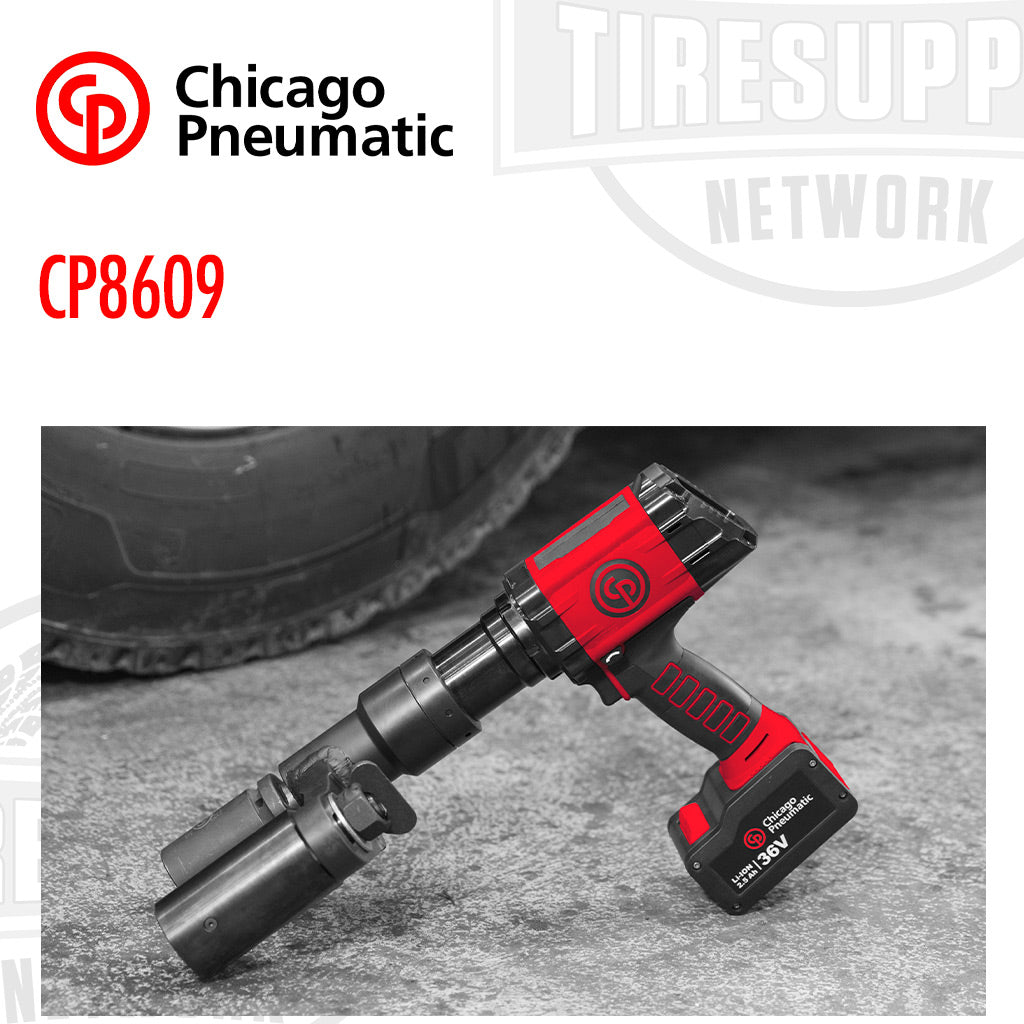

CP8609 eBlueTork is a precise, durable and easy-to-handle battery nutrunner designed for buses and trucks tire changing market. Thanks to its lightweight and long-lasting battery, it allows an extended operating use. This series also includes different types of reaction arms and versions to cover a wide range of customers' needs. Combined with CPLinQ app (availability depending on chosen version), it is possible to set-up torque or angle targets from the app to increase process control. When job is done, tightenings report can be sent from CPLinQ app to ensure traceability.

The 4 versions of the CP8609 Cup 1 Trigger:

  • Stand Alone - CP8609-CT

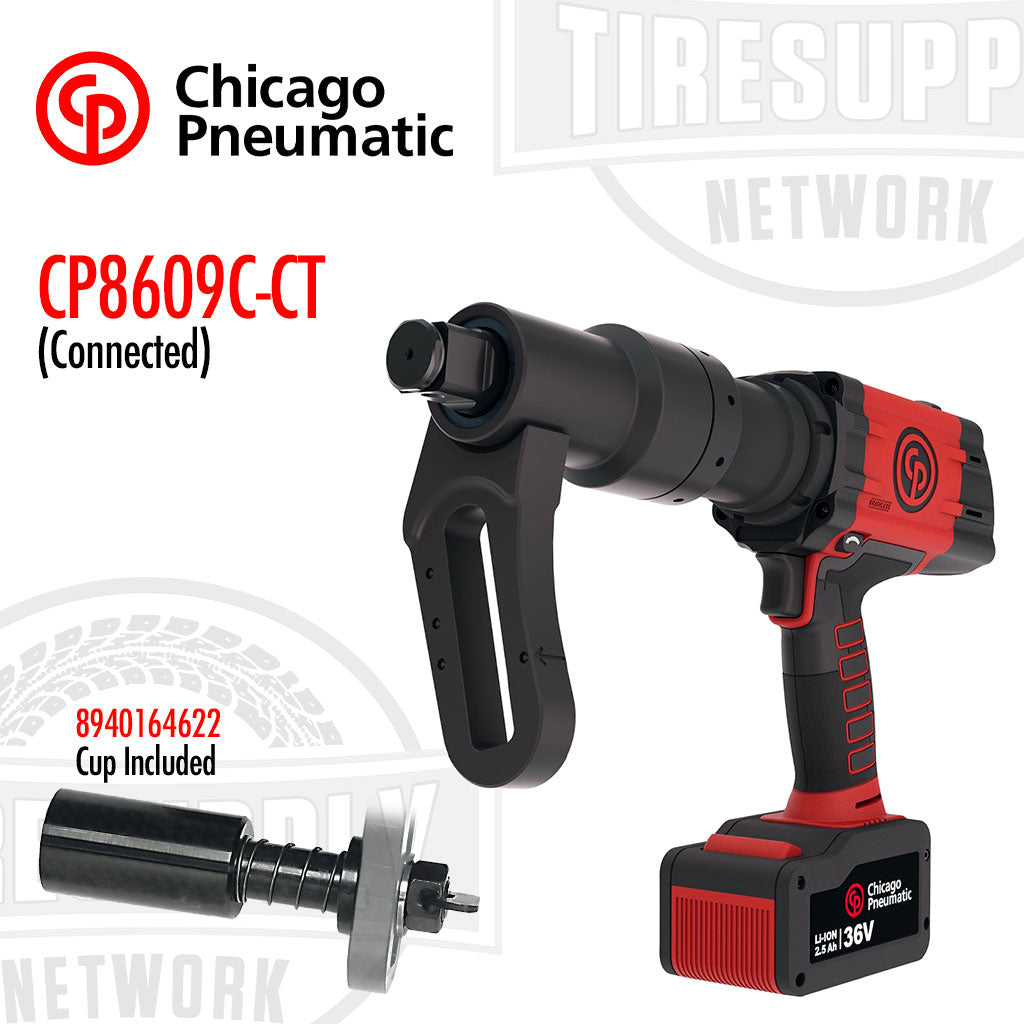

  • Connected - CP8609C-CT
  • Connected Quality - CP8609CQ-CT
  • Torque Check - CP8609TC-CT

INCLUDED WITH EACH CP8609*-CT:
+  2 Batteries
+  1 Charger
+  1 Power Cord
+  1 Manual
+  1 Calibration certificate
+  1 Plastic case

BENEFITS:
+  High precision (+/-4%) for safe tightening
+  Fast and long-lasting gearbox dedicated to wheel tightening
+ Extended mobility with lightweight and compact battery
+  Automatic release reaction arm

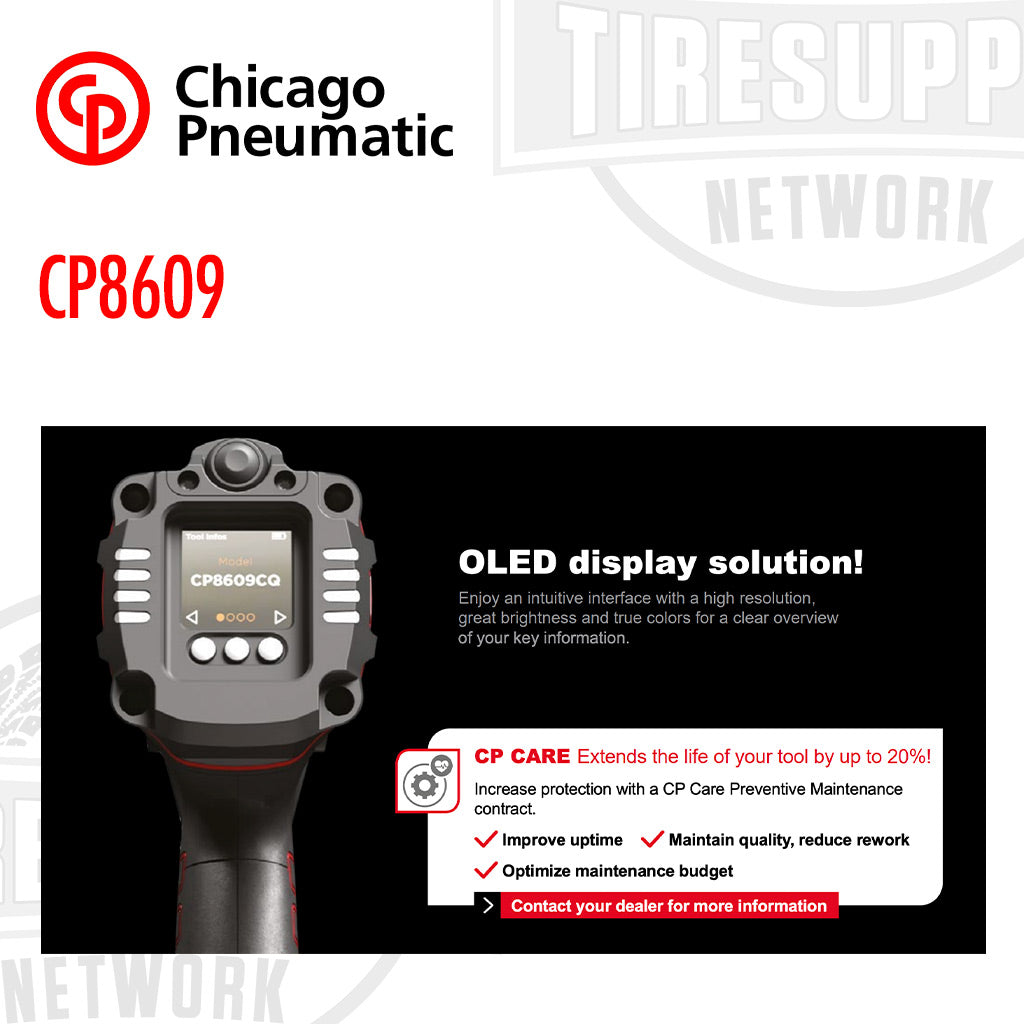

+  Intuitive handling either on OLED Digital screen of the tool or via CPLinQ app

KEEP CONTROL, GUARANTEE QUALITY!

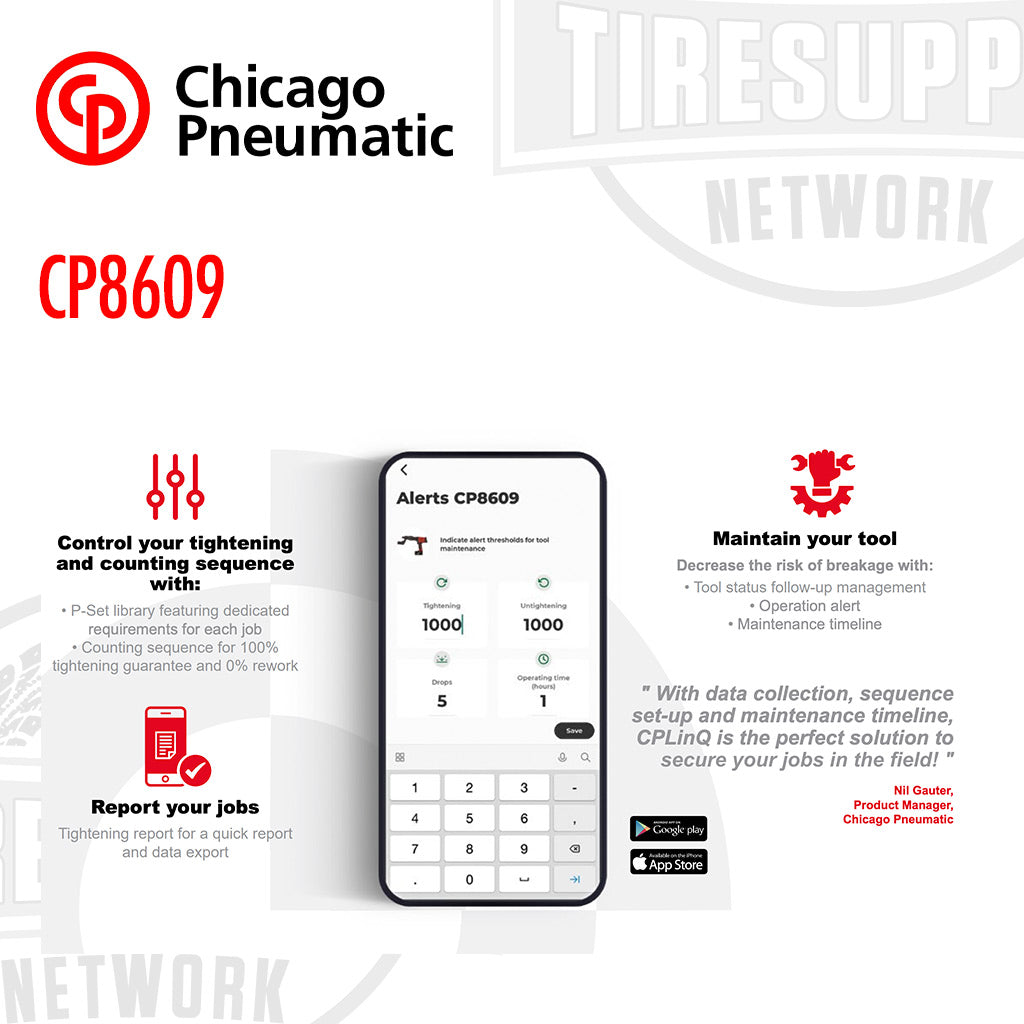

CPLinQ* is an application specifically dedicated for managers looking to control processes and quality in the field to further improve productivity.
CPLinQ - Designed for ease of use.
+ Save time on every operation
+ Decrease erros and rework
+ Get back to service faster
+ Reinforce company quality standards
+ *CPLinQ is available for C, CQ and TC versions only

    MASTERING HEAVY TRUCK AND BUS SAFETY SPECIFICATIONS!

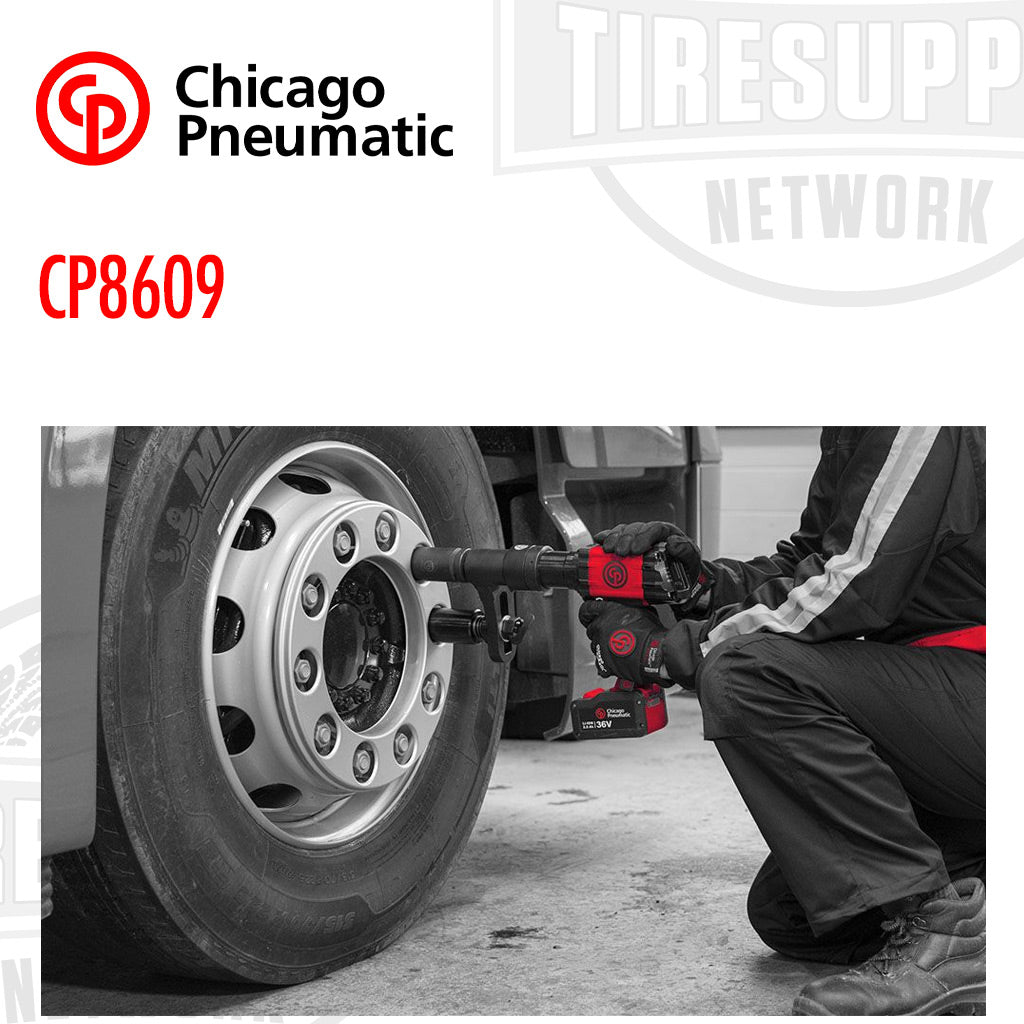

    Introducing the CP8609 eBlueTork battery-powered torque wrenches, crafted to revolutionize the safety of the heavy truck and bus industry.
    + Increase technician safety to reduce the risk of fatigue, discomfort and injury on the road and in the workshop.
    + Increase wheel off safety to get passengers to their destination safely.
    + Reliability to ensure real-time torque service records for control and process quality in the workshop.

    SUITABLE FOR ALL HEAVY VEHICLES
    + Delivery and Construction
    + Buses
    + Safety Vehicles
    + Waste Management

    EASE OF USE WITH NO COMPROMISE TO SAFETY
    Automatic release reaction arm
    Second start button - for operator safety
    Torque check function - to control nut loosening

    MAXIMUM PRODUCTIVITY
    High performance and precision - Torque and angle tightening
    Control and process quality in the field - High tightening accuracy, P-Set torque library
    Only one operator - No manual torque wrench required

    VERSION BLADE CUP EXTENDED CUP
    Stand Alone - 1 Trigger CP8609-BT CP8609-CT CP8609-xCT
    Connected - 1 Trigger CP8609C-BT CP8609C-CT CP8609C-xCT
    Connected Quality - 1 Trigger CP8609QC-BT CP8609QC-CT CP8609QC-xCT
    Torque Check - 1 Trigger CP8609TC-BT CP8609TC-CT CP8609TC-xCT
    SPECIFICATIONS


    Square Drive 1" 1" 1"
    Accuracy 9 (6 sigma)* +/-4% +/-4% +/-4%
    Min/Max Torque (Nm) 300-900 300-900 300-900
    Min/Max Torque (ft. lbs) 220-665 220-665 220-665
    Nominal Working Torque (Nm) 390-720 390-720 390-720
    Nominal Working Torque (ft. lbs) 293-532 293-532 293-532
    Max speed all torque (rpm) 15 15 15
    Weight - Battery, reaction arm included (kg) 7.1

    8.1 (w standard cup)

    7.8 (w Japanese type cup)

    9.3 (w standard cup)

    9.0 (w Japanese type cup)
    Weight - Battery, reaction arm included (lbs) 15.6

    17.8 (w standard cup)

    17.2 (w Japanese type cup)

    20.6 (w standard cup)

    19.9 (w Japanese type cup)
    Sound pressure (dB(A)) 62 62 62
    Vibration (m/s2) <2.5 <2.5 <2.5
    Number of cycles by battery 500 500 500
    Dimensions (H x L x W) mm 285 x 380 x 77 285 x 380 x 77 285 x 495 x 77
    Dimensions (H x L x W) inches 11.22"x 14.96"x 3.03" 11.22"x 14.96"x 3.03" 11.22"x 19.49"x 3.03"

      * Based on hard joint 15* at nominal torque

      TECHNICAL SPECIFICATIONS:

       Design & Functions Stand Alone C - Connected CQ - Connected Quality TC - Torque Check
      Min Recommended Ambient Charging Temperature 0 C / 32 F 0 C / 32 F 0 C / 32 F 0 C / 32 F
      Max Recommended Ambient Charging Temperature 45 C / 113 F 45 C / 113 F 45 C / 113 F 45 C / 113 F
      Reversible Yes Yes Yes Yes
      Starting system Trigger Trigger Trigger Trigger
      Reaction bar type Blade included Blade included Blade included Blade included
      Handle Type Pistol Pistol Pistol Pistol
      Output Drive Size (in) 1" 1" 1" 1"
      Output Drive Type Sq Sq Sq Sq
      Output Retainer Type Dual Dual Dual Dual
      Joint Type Hard & Soft Hard & Soft Hard & Soft Hard & Soft
      Min Ambient Operating Temperature 0 C / 32 F 0 C / 32 F 0 C / 32 F 0 C / 32 F
      Max Ambient Operating Temperature 60 C / 140 F 60 C / 140 F 60 C / 140 F 60 C / 140 F
      Recommended Torque 720Nm / 531 ft/lbs 720Nm / 531 ft/lbs 720Nm / 531 ft/lbs 720Nm / 531 ft/lbs
      Torque Control System Shut off current control Shut off current control Shut off current control Shut off current control
      Suspension option Optional Optional Optional Optional
      Power Weight Ratio 150 Nm/kg 150 Nm/kg 150 Nm/kg 150 Nm/kg
      Weight with Reaction Arm

      		6.3 kg / 13.8 ft/lb
      Weight without Reaction Arm

      		5.8 kg / 12.7 ft/lb
      Vibration (m/s2) <2.5 <2.5 <2.5 <2.5
      Adjustment Digital Digital Digital Digital
      Main Material Type Steel Steel Steel Steel
      Accuracy +/-4% +/-4% +/-4% +/-4%
      Sound Power (dba) <83 <83 <83 <83
      Battery Voltage 36V 36V 36V 36V
      Battery Capacity 2.5 Ah 2.5 Ah 2.5 Ah 2.5 Ah
      Battery Weight 0.8 kg /1.76 lb 0.8 kg /1.76 lb 0.8 kg /1.76 lb 0.8 kg /1.76 lb



       ADDITONAL INFORMATION:
      		Stand Alone C - Connected CQ - Connected Quality TC - Torque Check
      Performance Digital OLED display X X X X

      		Automatic release reaction arm X X X X

      		Torque Control X X X X
      Safety Double safety button (second start safety trigger) X X X X

      		Tool lock & finder
      		X X X
      Connectivity CPLinQ application
      		X X X
      Tool Maintenance Tool status follow-up management
      		X X X

      		Operation alert
      		X X X

      		Maintenance timeline
      		X X X
      Job Control Angle control
      		X X X

      		P-Set library
      		X X X

      		Counting sequence P-Set torque or angle

      		X X
      Report Counting sequence report

      		X X

      		Application report

      		X X
      Process Control Torque check


      		X

      		Counting sequence P-set Torque Check


      		X

      		Torque Check report


      		X



      ACCESSORIES:


      		 Description Part #
      		Spring Loaded Cup 8940164622
      Japanese Type Cup 8940167401
      Suspension Yoke 8940166654
      Battery 36V (Li-ion, 36V 2.5Ah) 8940176068
      Charger Universal 18-36V 8910476069
      CP86 Series Protective Cover 6152112130
