R140i

Rotary | Swing Arm Tire Changer (R140i)

Join CLUB5 at Tire Supply Network and Save 5% on EVERY Order! > Learn more

Choose Motor: Electric
Choose Helper Arm (Required): None

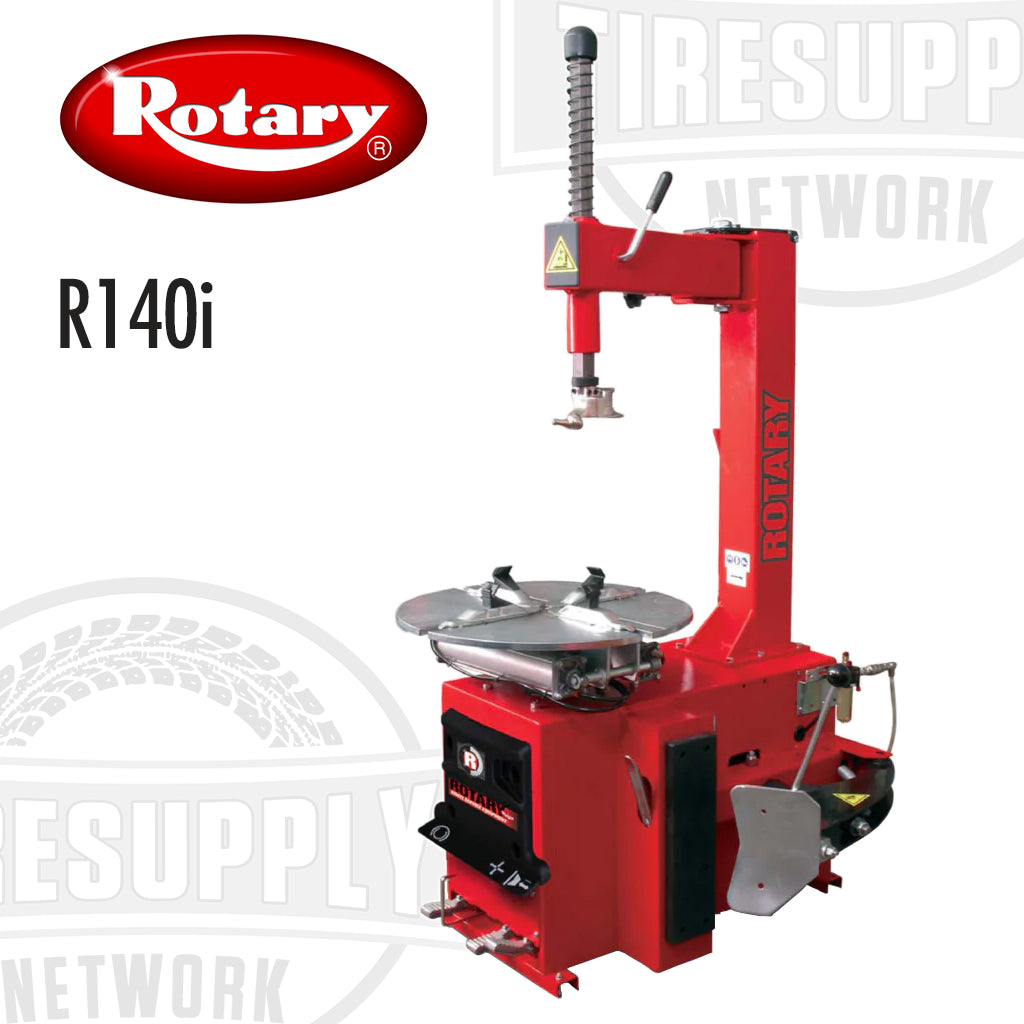

Rotary | Swing Arm Tire Changer (R140i)

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

Bundle & Save: Buy a helper arm with your tire changer purchase now and save up to 15% on the price of the arm (if purchased separately). Simply add the helper arm option to your cart to purchase the bundle.

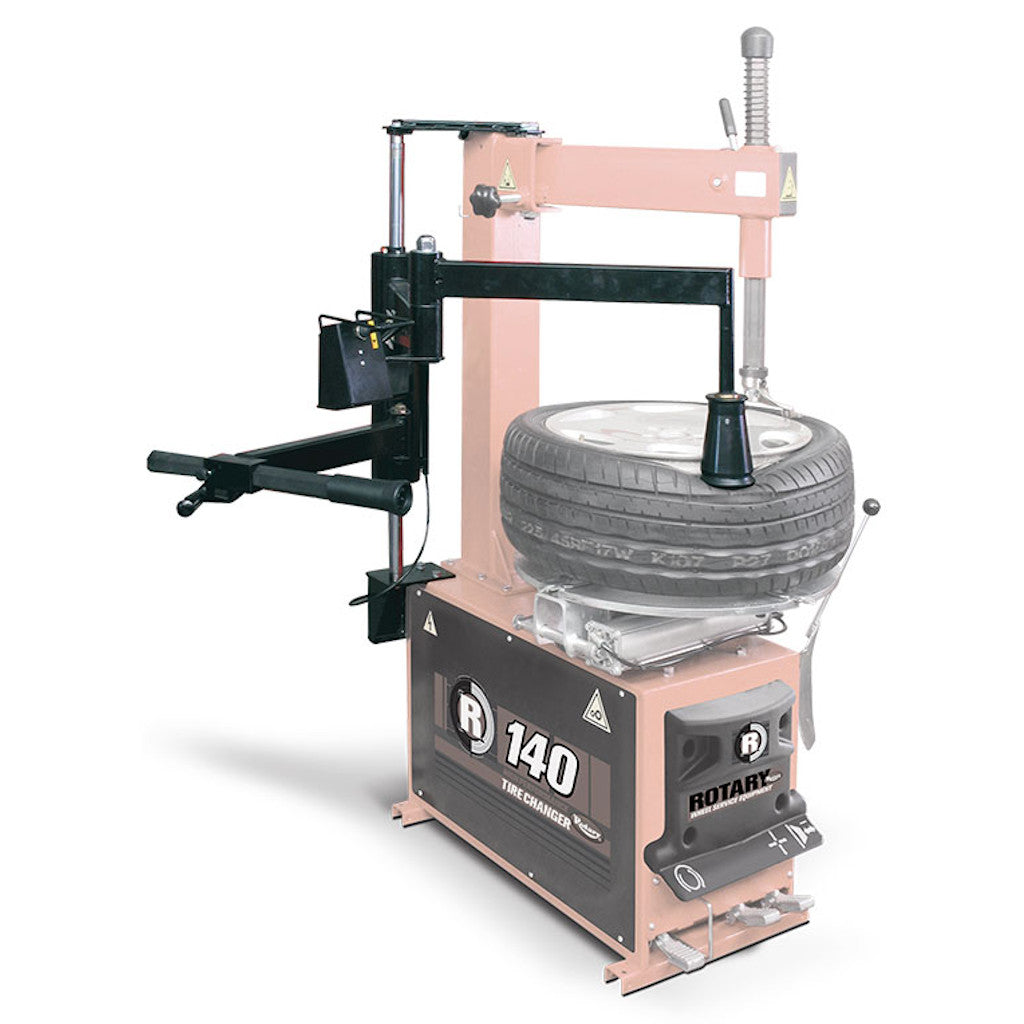

The Rotary PLUS91N Helper Arm Upgrade Option is an air-driven attachment with following arm and lower bead roller for the R140i Swing Arm Tire Changer. This top-pressing bead tool and tire lifting device is designed to handle large and special tires.

Heavy duty swing arm structure guarantees proper working conditions for every job. The exclusive 110v single speed motor provides needed torque and the rigid self-centering chuck with a wide clamping range handles a variety of needs. Equipped with a galvanized, double-operating bead breaker cylinder.

  • Standard Swing Arm Changer
  • Top Quality at an Entry Level Price
  • 22″ Outside Clamping
  • 24″ Inside Clamping
  • Tire Diameters of 40″

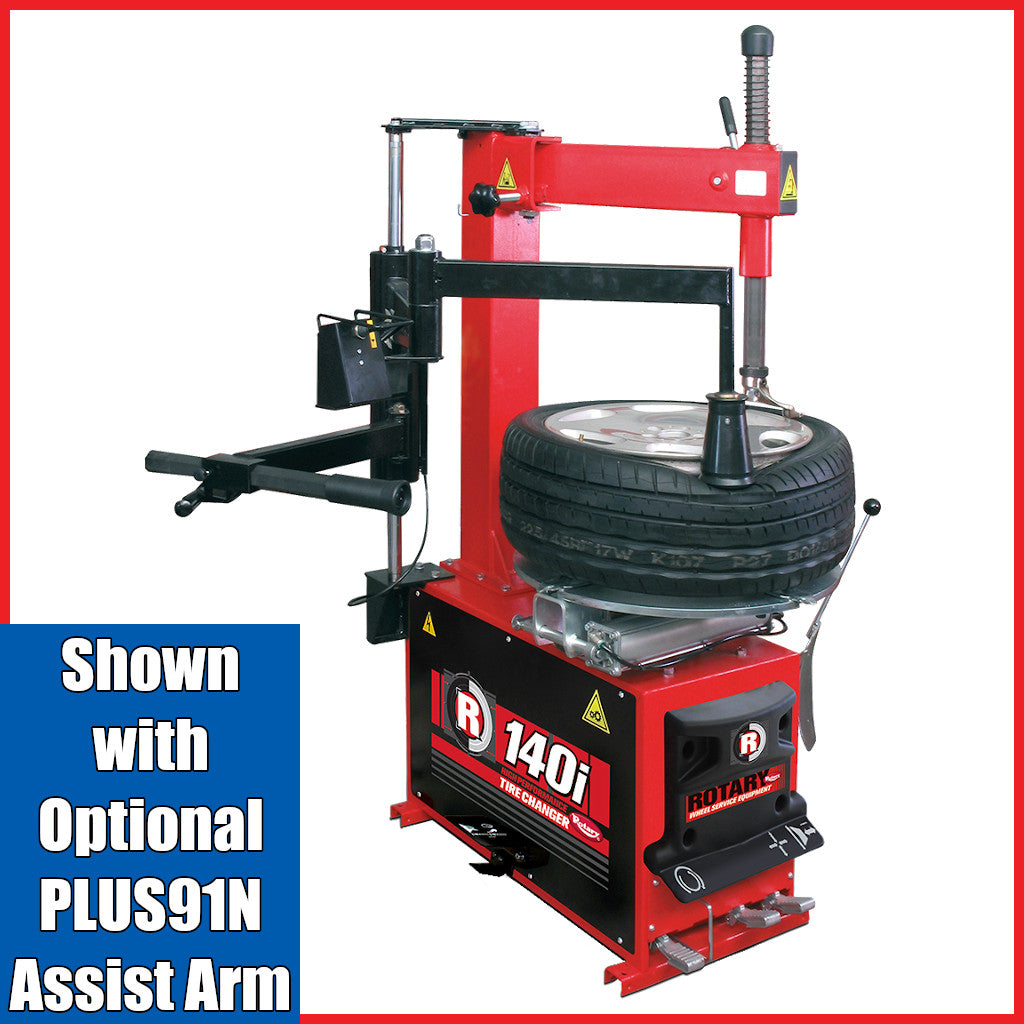

  • Shown with optional helper arm
  • Made in Italy

Other Features:

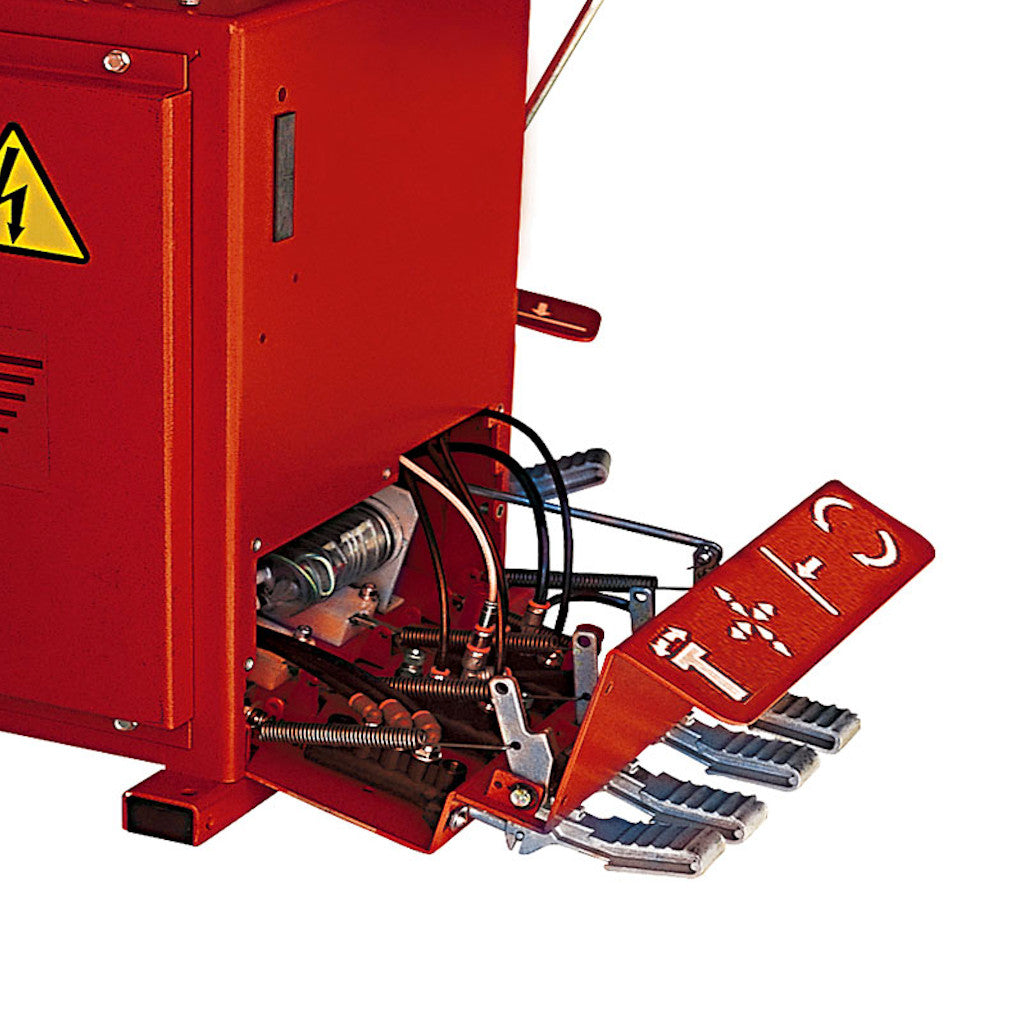

  • Removable pedal unit for easy maintenance.
  • Galvanized cylinder with double-acting bead breaker designed to protect alloy rims.
  • Optional helper arm for bead top pressing and tire lift for large and special tires.

Standard Equipment:

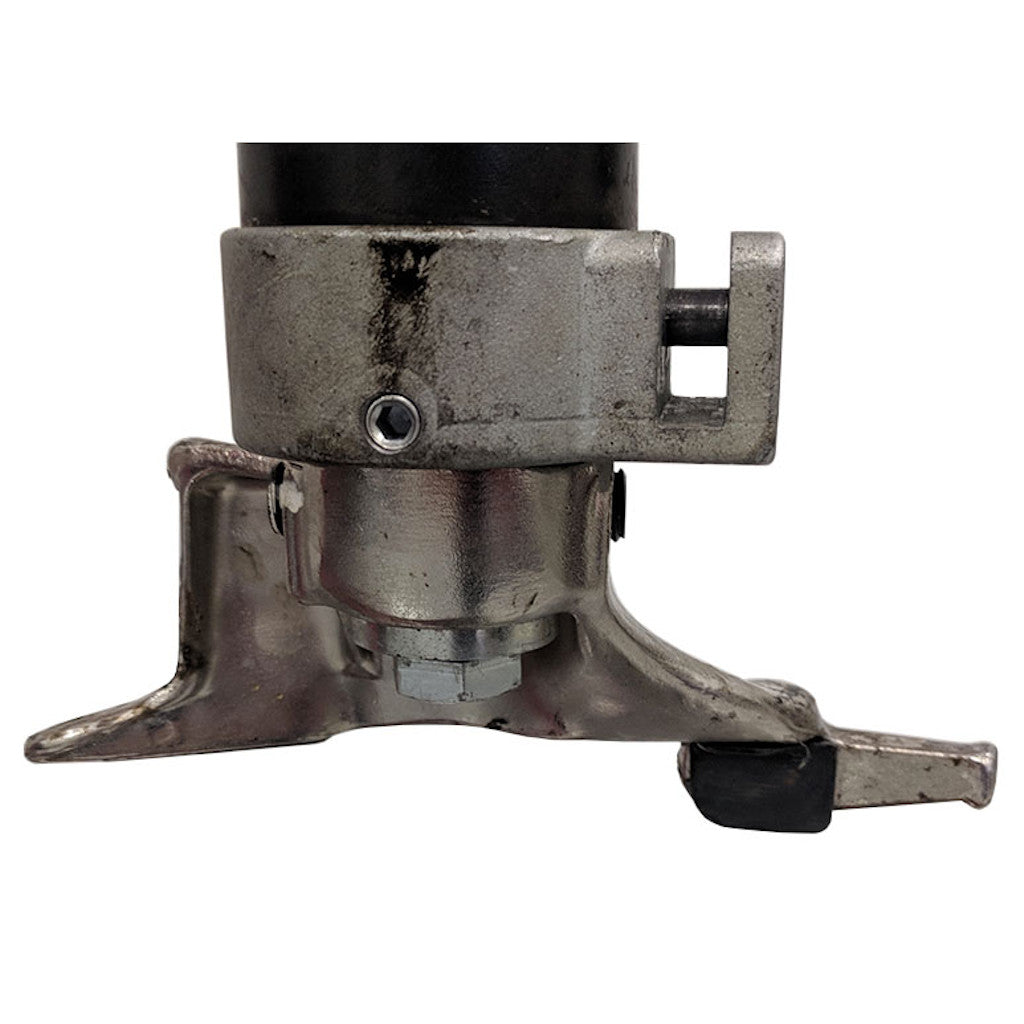

  • Rotary VSG800A60 Plastic Tool Head with Support
  • Tire paste lubricant and brush

Warranty: 3 years on parts, 1 year on labor

TECHNICAL DATA R140i
Internal Clamping 13” - 24.5”
Outer Clamping 11” - 22”
Maximum Wheel Diameter 40.5” (1030 mm)
Maximum Wheel Width 12” (305 mm)
Maximum Bead Breaker Opening 15” (380 mm)
Bead Breaker Cylinder Power at 145 psi 6,745 lbs/force
Rotation Speed 7.3 rpm
Maximum Torque Turntable 885 ft/lbs (1200 Nm)
Power Supply 110v / 60 Hz / 1 Ph

Compliance and Restrictions
