RAVAmerica  |  SKU: Motion 1

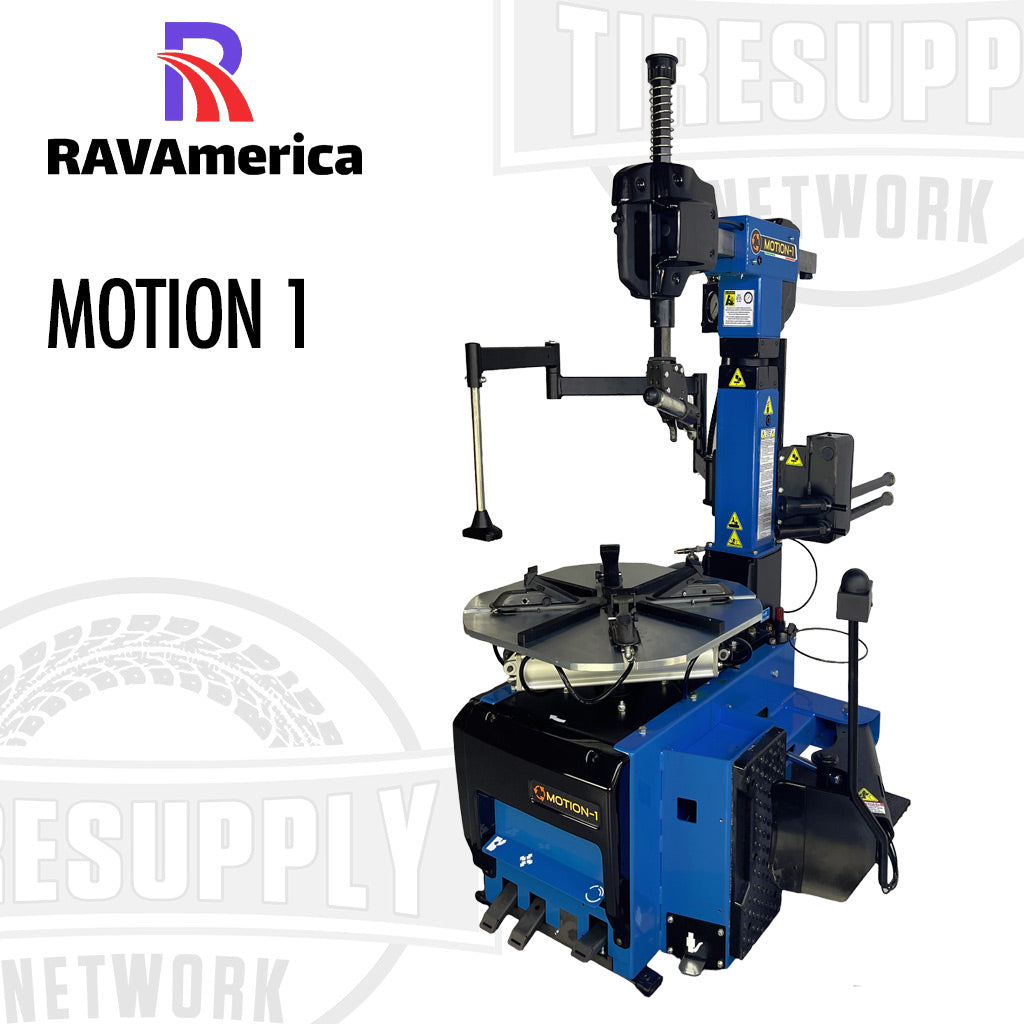

RAVAmerica | Automatic Swing Arm Tire Changer (Motion 1)

Sale price $7,995.00 Regular price $8,883.33

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

As low as $111.04 for 72 months Finance Now!


Package


RAVAmerica | Automatic Swing Arm Tire Changer (Motion 1)

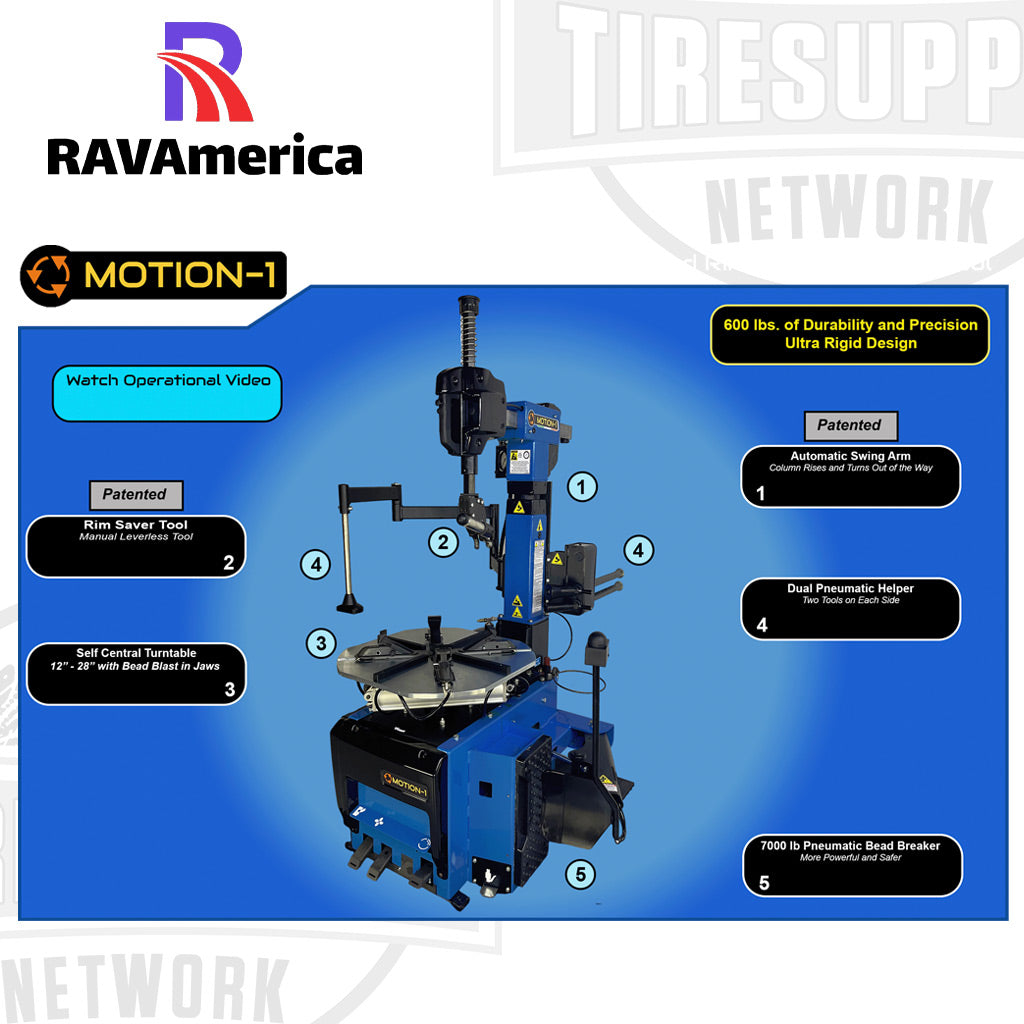

Automatic Swing Arm tire changer for auto and VAN, with two-speed motor inverter single-phase motor, equipped with an electric bead breaker integrated in the machine body, controlled by an independent single-phase variable speed inverter. Helicoidal motion of the vertical column. Manual descent of the working arm.. Fit and finish is superb with overall quality unmatched. This is the tire changer for the workshop who is looking to select only the very best.

RAV branded models that are approved for the North American market come with a 2 year parts warranty not including wear items, consumer items, or batteries.

Motion 1 Includes:
  1. 3001057 - Beed Blade Protection
  2. 3005001 - Tape-a-Weight Removal Tool
  3. 20010237 - Set 4 Grippers Protections
  4. 3+3 Protection - For Leverless Tool
Enhanced Package Includes:
  1. 3001057 - Beed Blade Protection
  2. 3005001 - Tape-a-Weight Removal Tool
  3. 20010237 - Set 4 Grippers Protections
  4. 3+3 Protection - For Leverless Tool
  5. Patented Rim Saver Leverless Tool
Specifications:
Operating capacity 11"- 28"
External clamping 11" - 28"
Internal clamping 14" - 26"
Max. tire diameter 44" (1110 mm)
Max. wheel width 12" (320 mm)
Turntable speed 7 / 14 rpm
Electric power supply 1 ph-0.75 KW (1.0 Hp) 200/230V - 50/60 Hz
Working pressure 116 - 145 psi (8-10 Bar)
Net weight 600 lb
Compliance and Restrictions:
