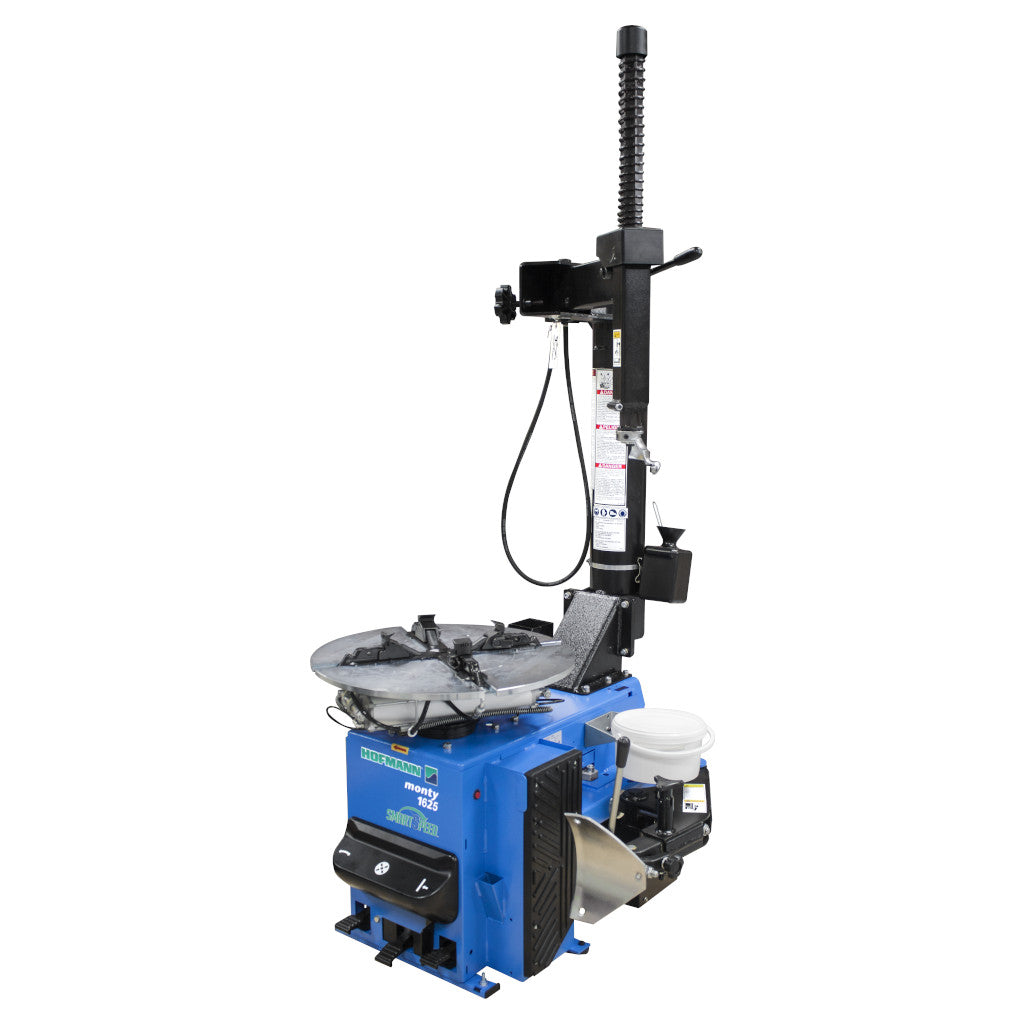

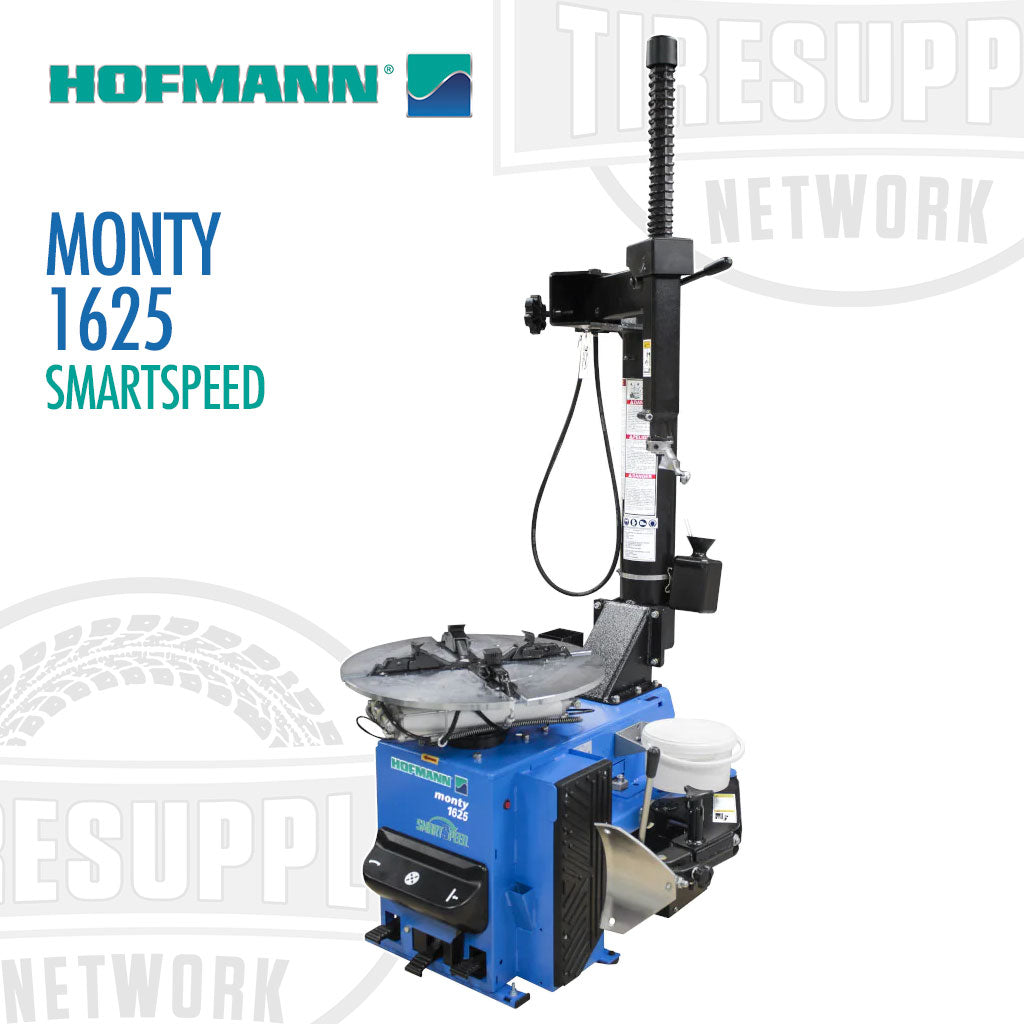

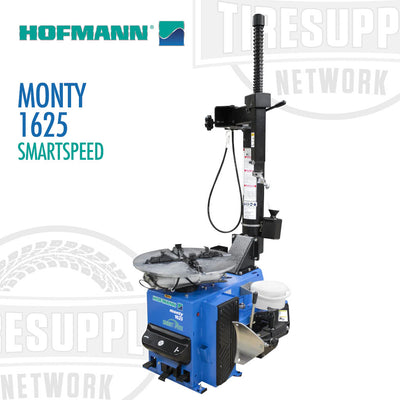

Hofmann | Monty 1625 SmartSpeed Swing-Arm Tire Changer (EEWH748B)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
The Monty 1625 tire changer is designed for high-volume tire shops, multi-bay repair shops, and car dealerships. The Monty 1625 series swing-arm tire changers feature a 24" outer-wheel clamping standard (28" with optional adapters). These tire changers feature a four-jaw clamping chuck which is self-centering and clamps wheels with either a 26" inner or 24" outer diameter.
smartSpeed Model:
- Automatically minimizes damage to tires

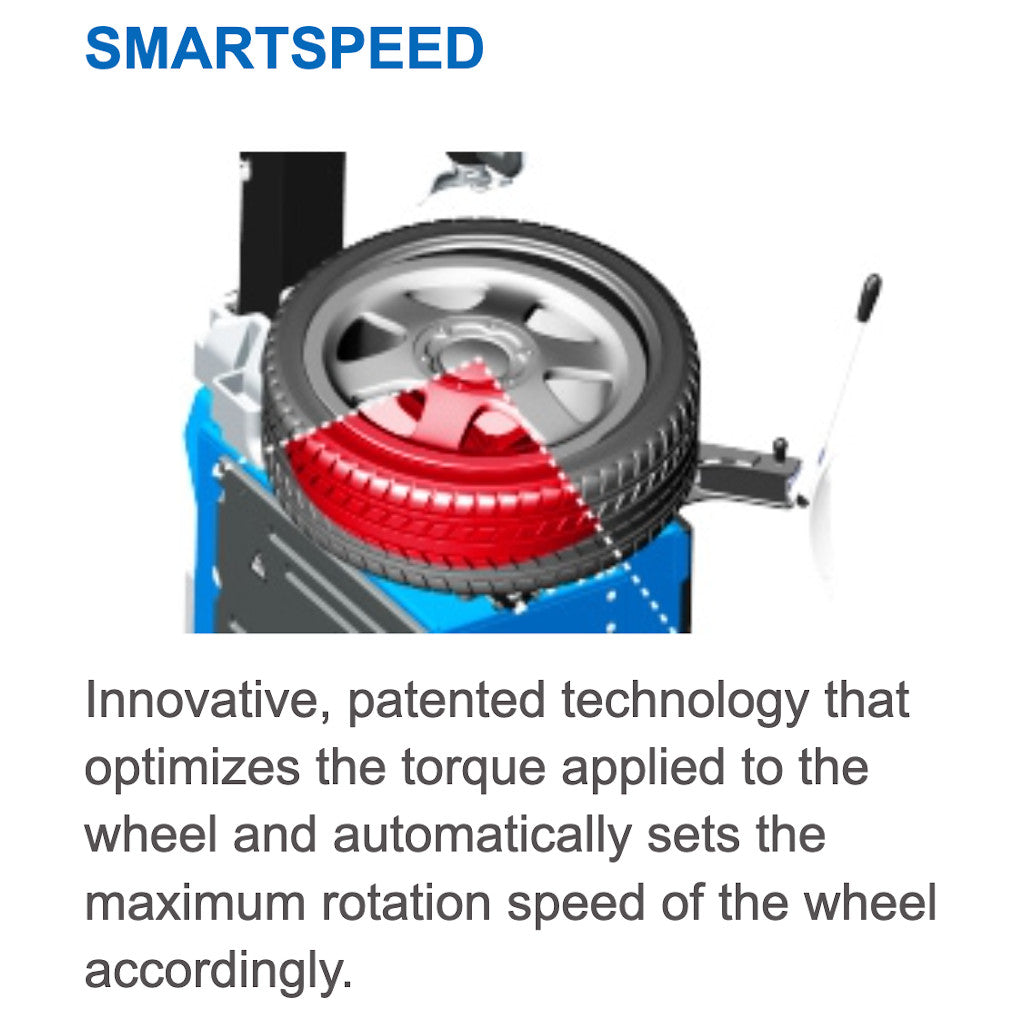

- Innovative, patented technology that optimizes the torque applied to the wheel and automatically sets the maximum rotation speed of the wheel
- Variable from 7 to 18 RPM offering the highest possible speed for maximum productivity
Accommodates Large Wheel & Tire Assemblies: Allowing for a tire diameter of 50" on the Monty 1625 (42" on Monty 1625EM), and outer-wheel diameters of 24". The Monty 1625/1625EM can handle wheel and tire assemblies found on cars and light trucks.
Dual Wheel Clamping Cylinders: Dual pneumatic clamping cylinders control all four clamping jaws, eliminating damage to wheels due to slippage.
Four-Jaw Clamping Chuck: Self-centering and clamps wheels with either 26" inner or 24" outer diameter.

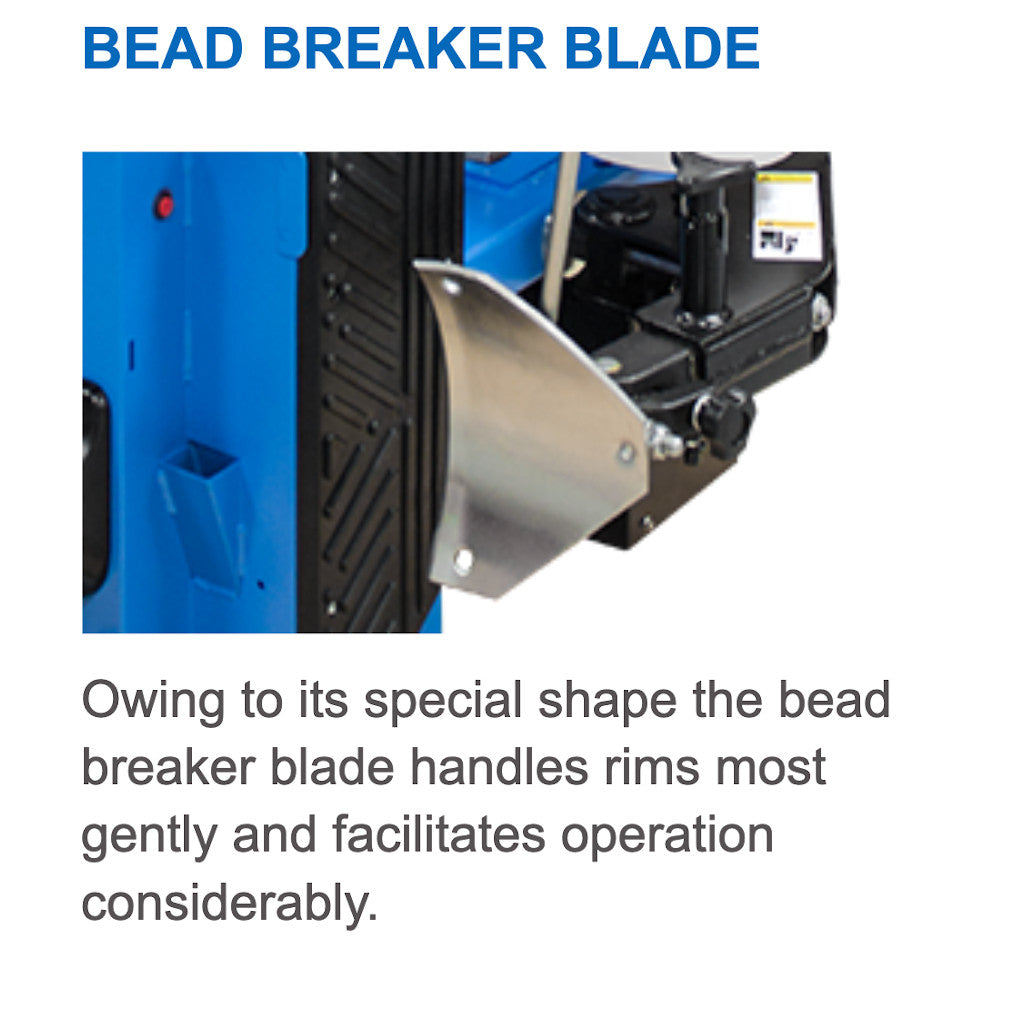

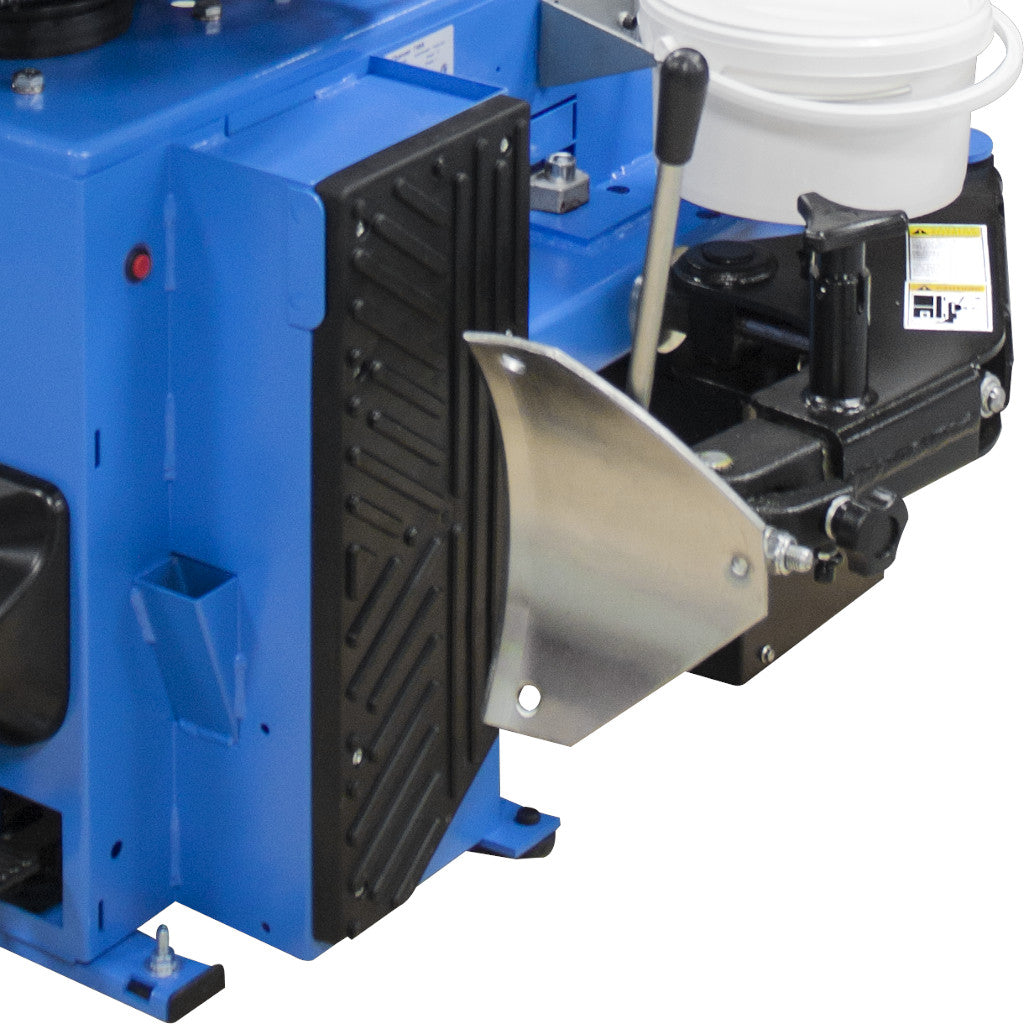

Multi-Position Bead Breaker: 6,000 lbs of power at the bead shovel and a range of up to 18" wide. The two-stage pneumatic cylinder provides precise power and can be toggled with the foot pedal as needed.
Powerful Tire Inflation System: Powerful air blast operated by the foot pedal. Each movable jaw is precisely set to the exact position under the wheel to seal the tire bead.
Built To Last: Heavy, solid 1/2" thick steel clamping table. Rugged steel-reinforced chassis. Rust-proof air cylinders and valves. Compressed air lubricator and regulator on-board.
| Technical Data | Monty 1625 with smartSpeed |
| Hofmann Part Number | EEWH748B |
| Overall Wheel Clamping Diameter | 10″ - 26″ (25 - 66 cm) |
| Inner Wheel Clamping Diameter | 12″ - 26″ (30 - 66 cm) |
| Outer Wheel Clamping Diameter | 10″ - 24″ (25 - 61 cm) |
| Bead Breaker Range | 2″ - 18″ (5 - 46 cm) |
| Bead Loosening Power | 6000 lbs (2722 kg) |
| Maximum Wheel Width | 15″ (38 cm) |
| Maximum Outer Tire Diameter | 50″ (127 cm) |
| Shipping Weight | 620 lbs (281 kg) |
| smartSpeed Power Requirements | 230 V, 1 Ph, 60 Hz, 16 Amp |
| smartSpeed Revolution Speed | 7-14 CW, 7 CCW |
