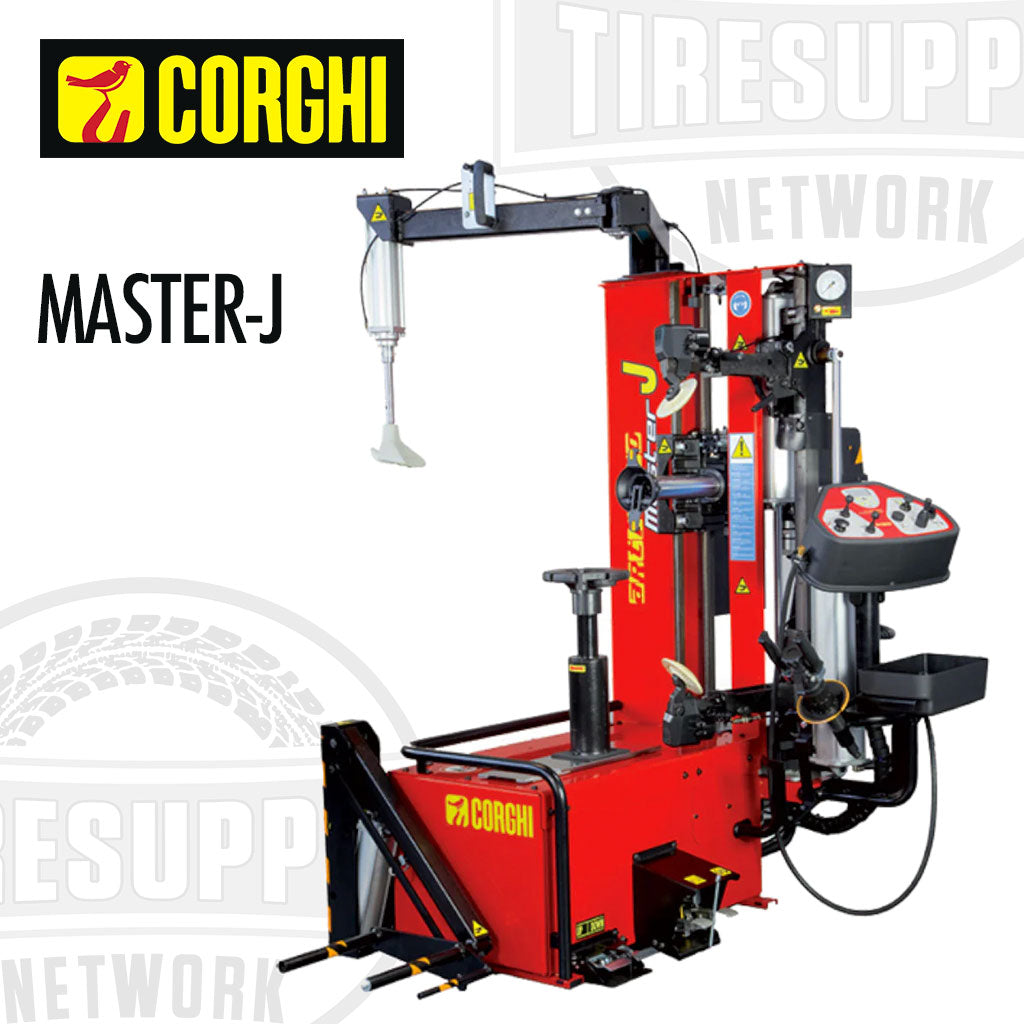

Corghi | Artiglio Master J Touchless Electric Tire Changer with BPT Helper Assist Arm (MASTER-J)

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Corghi | Artiglio Master J Touchless Electric Tire Changer with BPT Helper Assist Arm (MASTER-J)

*** Additional 1st Quarter Promo *** >>> Click Here to View the Details

Direct from Corghi -  Get 10% cash rebate on the higher of two items when you purchase a combination of two of the following: ALL machines, helper arms, and related accessories. Simply download the rebate form below, fill it out, and submit it within 2 weeks of purchase.

CLICK HERE for complete details and to access the Corghi 2024 Cash Rebate form.

PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.

PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

Since 2001, the year our “Leva la leva” technology was introduced, many hurried to chase after us, presenting their own solutions. They called their solutions "no lever", or "leverless", or the "automatic lever system". The truth is, however, that no one has been able to copy the patented “Leva la leva” system with the “SMART Corghi System” device, the only existing solution that:

  • NEVER TOUCHES THE RIM, during any working phase
  • Annuls all tension on the tire during the tire demounting/mounting phases

This is the difference between Corghi and the others. Artiglio Master J has this technology at its core. A perfect synthesis between tested constructive quality, unique technological solutions, and a competitive price represents the ideal machine and a perfect balance for an investment. Since 2001, this has guaranteed our customers a technological advantage that has remained unmatched over time. NOT ALL LEVA LA LEVA SOLUTIONS ARE EQUAL!

Features:

  • Available in electric only.
  • Ergonomic and Multifunctional Consoles with a display that makes it possible to electronically set the rim diameter and obtain the positioning of the work tools in a quick, practical and safe manner. Divided into three distinct work areas, it makes it easier to immediately recognize movements and makes the system easier to use for the operator.
  • Dynamic Bead Breaking Device with dual specular bead breaker disc. The radial positioning of the discs is made easier by an automatism that is able to prevent any manual positioning by the operator.
  • Controlled Penetration (Patent Pending) Precision, rapidity and repeatability are guaranteed by the patented bead breaking system and by the perfectly synchronized and symmetrical motions of the two discs.
  • Bead Demounting and Mounting Tool with automatic bead searching and Smart Corghi System demounting movement able to reduce the tension on the tire without ever touching the rim.
  • Automatic location of the tire bead, with no contact with the rim itself, regardless of its shape.
  • Safe and Universal Wheel Clamping: The axial mounting turntable ensures rapid clamping while permitting bead-breaking on both sides without having to turn the wheel itself. The constant working height (reverse rims excluded) has been optimized for ideal operator ergonomics with all wheel types.
  • Axial mounting turntable allows quick, secure wheel clamping and bead breaking on both sides with no need to turn the wheel over (wheel is clamped on the machine just once).
  • Rapid bottom bead demounting procedure with bead breaker disc (particularly useful with stiff sidewalls).
  • Bead depressor with adjustable working height. Depressor shape is ideal for RFT tires. Standard in all versions.
  • Fixed Work Position: Pedals, consoles, tray and wheel loading on the same side and a constant working height to obtain perfectly ergonomic movements.
  • Effortless Operation: A wheel lifter for effortlessly placing wheels of any type onto the turntable.
  • Pick-up rim kit.
  • Universal flange for closed rims and for rims with the central hole of the rim with thin or delicate edges.
  • Reverse wheel flange.
  • TI system Kit.
  • Warranty: 2 years parts, 1 year labor
      Technical Data Artiglio Master J
      Corghi Part Number 0-11116234/0000
      Wheel Dimension Range
      Rim Diameter 12″ - 26″
      Maximum Tire Diameter 43″ (1100 mm)
      Maximum Tire Width 14″ (360 mm)
      Tire Types Processed Conventional, Low Profile, and Run Flat
      Turntable
      Clamping Mechanical / Manual
      Drive System 2-Speed Moto-Inverter
      Rotation Torque 811 ft/lbs (1100 Nm)
      Rotation Speed 7 - 18 rpm
      Bead Breaker
      Maximum Bead Breaking Range 18″ (457 mm)
      Bead Breaker Stroke 17.7″ (450 mm)
      Bead Breaking Force 1708 lbf (7600 N)
      Wheel Loading/Unloading
      Operation Pneumatic
      Maximum Wheel Weight 187 lbs (85 kg)
      Power Supply
      Electric 1 Ph 230 V - 0.98 kW, 50 Hz
      Electric 1 Ph (alternative) 110 V - 0.98 kW, 60 Hz
      Minimum Pneumatic Operating Pressure 116 psi (8 bar)
      Weight (with bead depressor and wheel lifter) 882 lbs (400 kg)
      Dimensions (L x D x H) 49″ x 59″ x 72.5″ (1240 x 1500 x 1840 mm)
