A9824TIE

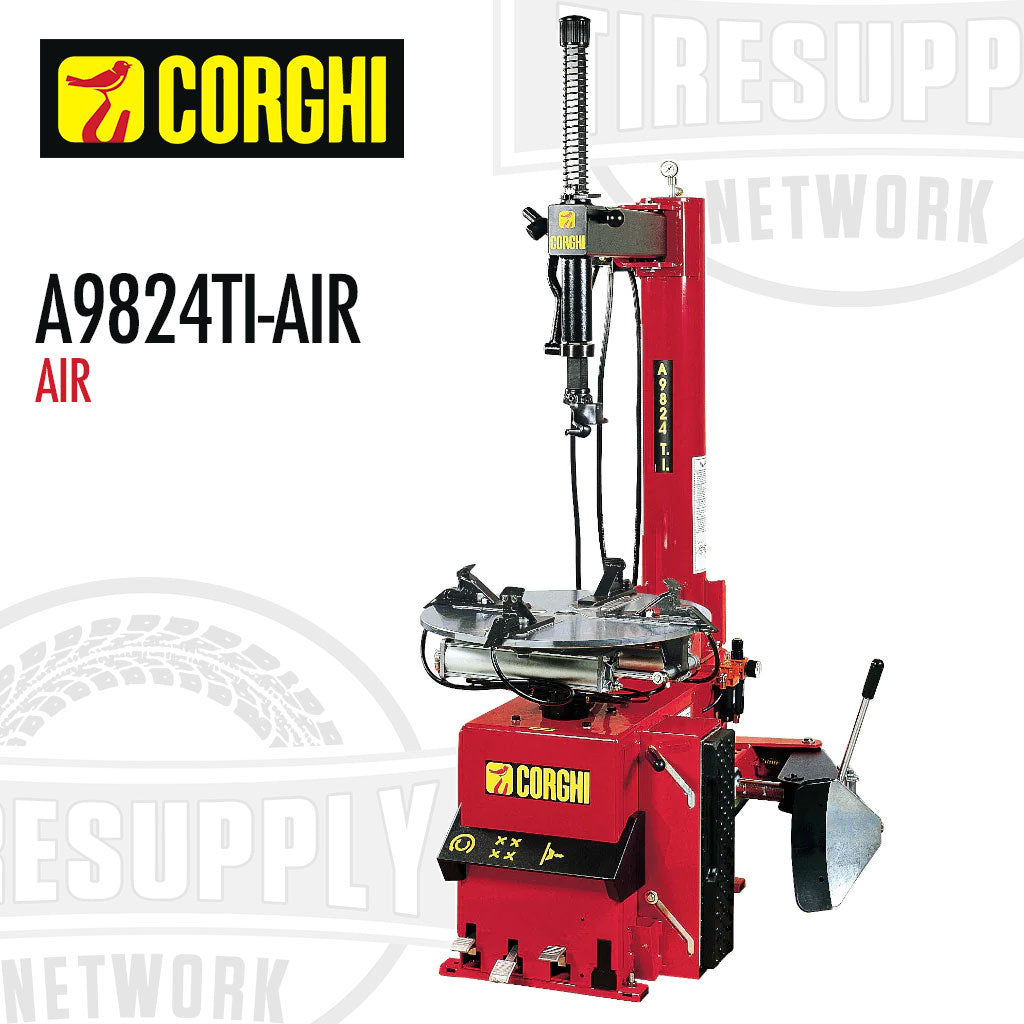

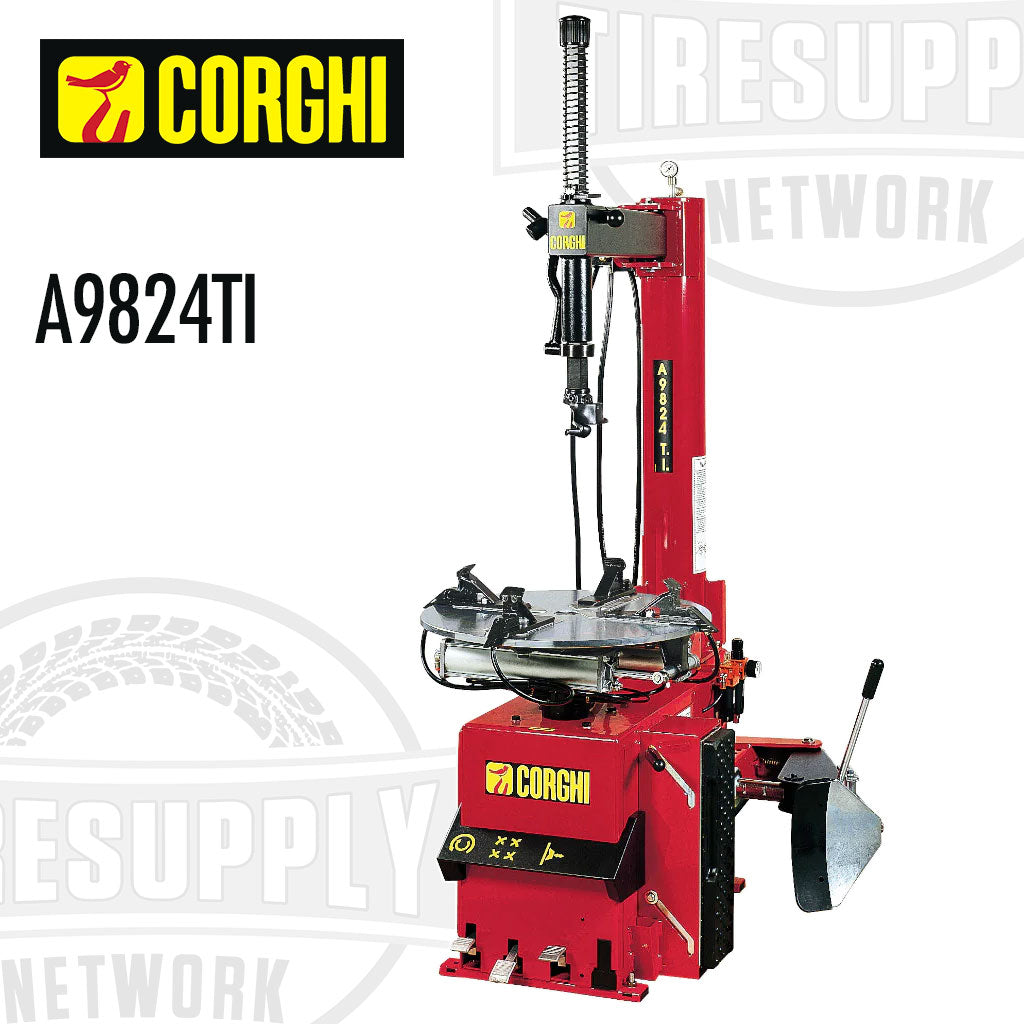

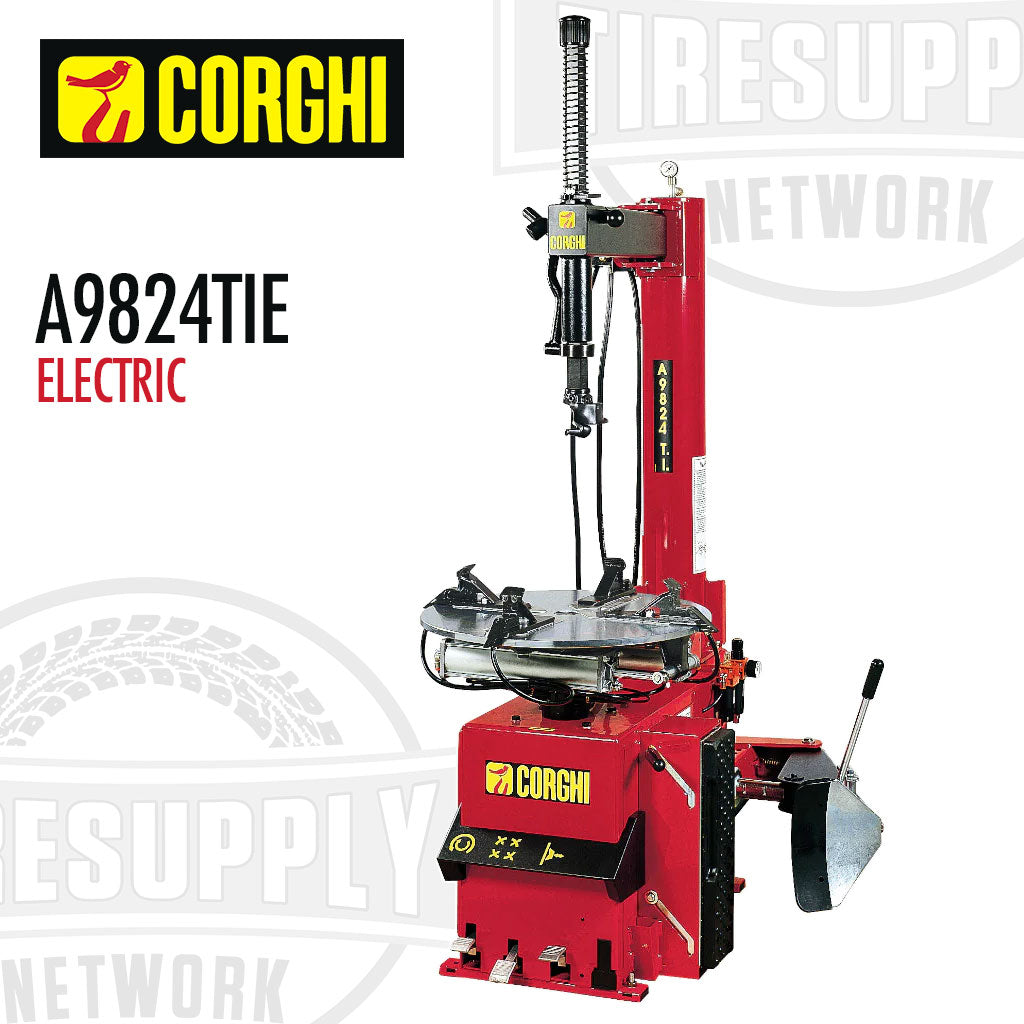

Corghi | Swing Arm Tire Changer - Choose Electric or Air Motor (A9824TI)

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Choose Motor Option: Electric Motor

Corghi | Swing Arm Tire Changer - Choose Electric or Air Motor (A9824TI)

*** Additional 2nd Quarter Promo *** >>> Click Here to View the Details

 Direct from Corghi -  Get 10% cash rebate on the higher of two items when you purchase a combination of two of the following: ALL machines, helper arms, and related accessories. Simply download the rebate form below, fill it out, and submit it within 2 weeks of purchase.

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

Series Passenger, Light Truck Tire Changers

The 2 Speed A9824TI high performance swing arm tire changer boasts superior quality teamed with a sleek design and other unique features allow this machine to achieve speeds up to 50% faster than any other tire changer on the market in its price range. That's why Corghi was awarded ISO 9001 Quality Certification, industry's most coveted award. Run-flat certified by all major tire manufacturers.

Features:

  • Built-in table inflator with jets in the jaws
  • Unique mount/demount head does not touch the rim during operation
  • Locking handle locks head away from the rim
  • Powerful action bead-breaker blade follows bead to inside rim contour
  • Heavy-duty turntable rotates in either direction
  • Rebuildable stainless steel cylinders
  • Heavy-duty stainless steel turntable
  • Safe, fast, profitable, and affordable
  • Bead pressing lever
  • Upper arm assembly swings out of way
  • Available with electric or air motor
  • Warranty: 2 years parts, 1 year labor

Standard Accessories:

  • Lube bucket
  • Lube brush
  • Tire lever
  • Tire lever covers
  • M/D head bottom inserts
  • Set of jaw protectors
  • B/B blade protector
  • Air tank gauge assembly
  • Set of inserts
  • Bead pressing lever on machine
Technical Data A9824TI
Corghi Part Number (Electric Motor) 0-11101764/00
Corghi Part Number (Air Motor) 0-11101705/00
External Rim Size 10″ - 24″
Optional with Adapter 8″ - 28″
Internal Rim Size 13″ - 26″
Voltage 1 Ph - 110 V - 60 Hz or Air
Rim Width 3.5″ - 14″
Maximum Tire Diameter 47″
Air Pressure 150 psi
Bead Breaker Power at Shoe 3500 lbs
Torque 737 ft/lbs
Shipping Weight 608 lbs
