Coats | RC 55 Rim Clamp Tire Changer with RC Robo-Arm Helper Device - Electric or Air Motor (85609950*)
Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!
As low as $112.36 for 72 months Finance Now!
Coats | RC 55 Rim Clamp Tire Changer with RC Robo-Arm Helper Device - Electric or Air Motor (85609950*) - Electric is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description

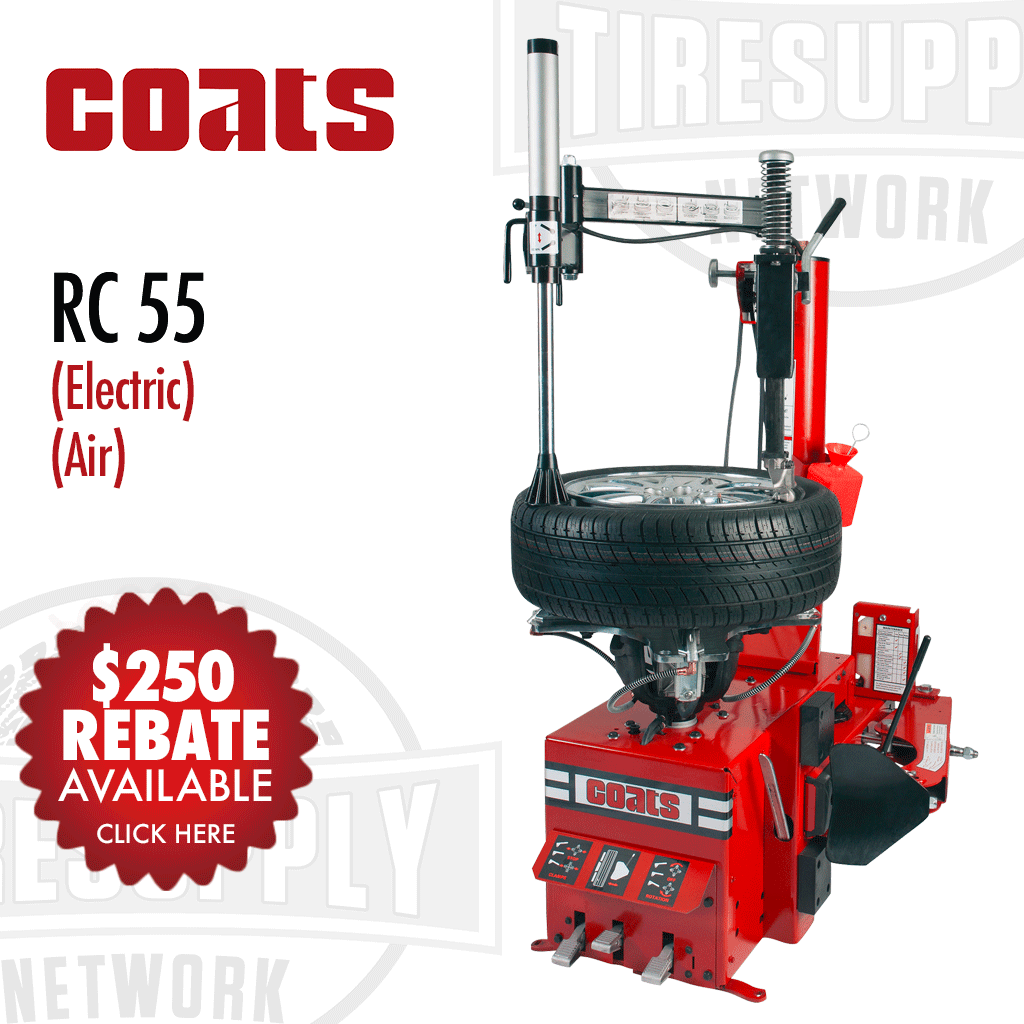

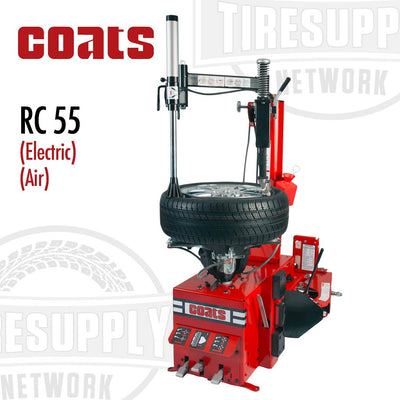

Coats RC 55 Rim Clamp Tire Changer with RC Robo-Arm Helper Device - Choose Electric (8560995001) or Air Motor (85609950)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
SEMA REBATE PROMOTION - OCTOBER 1 - NOVEMBER 30, 2025
The Coats RC Series Rim Clamp tire changers are built upon the high standards of the legendary Coats Rim Clamp tire changer. The RC Robo-Arm® keeps the top bead in the drop center during mounting, allowing technicians to change difficult wheels with ease.

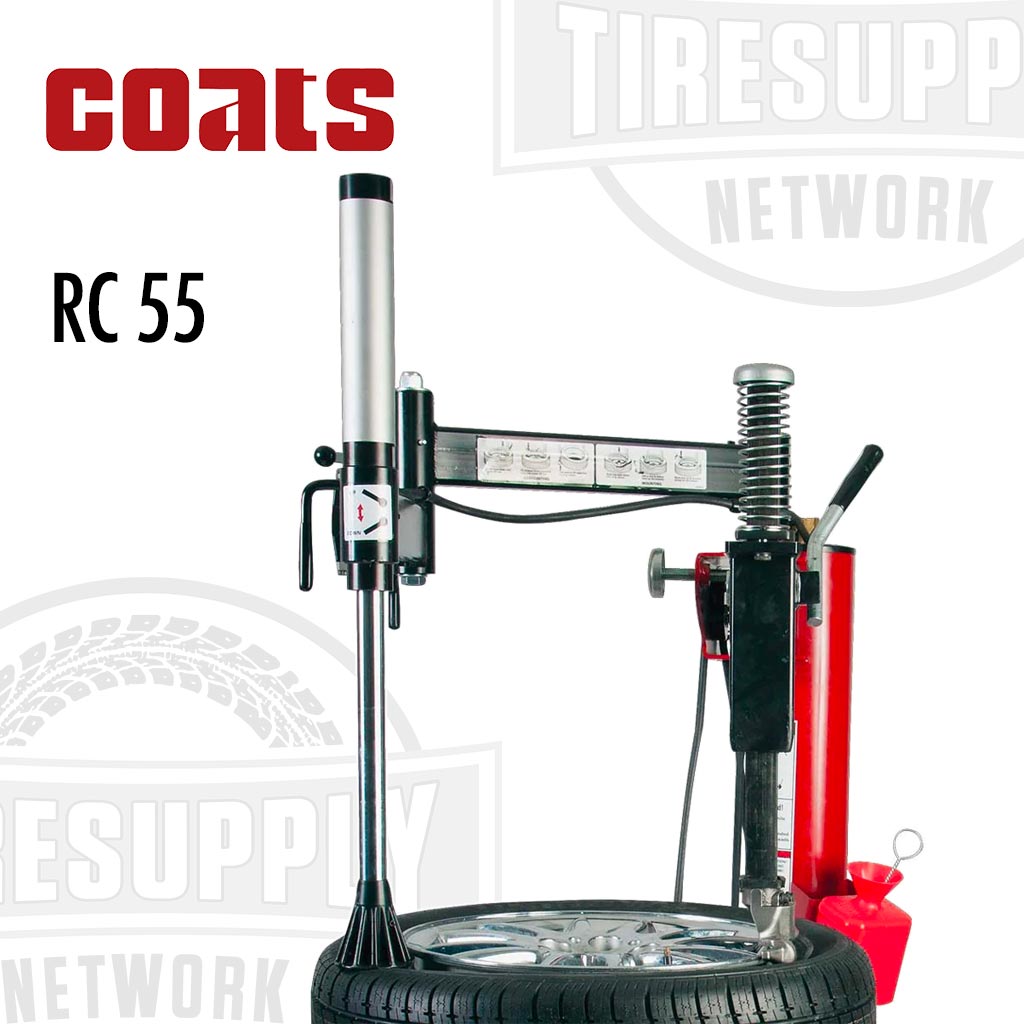

RC Robo-Arm® Helper Device: Allows technicians to efficiently change difficult wheel applications, such as low-profile wheels and run-flat tires.
Built-In Bead Sealing Jets: Quickly seals beads while tabletop inflation provides a faster workflow.

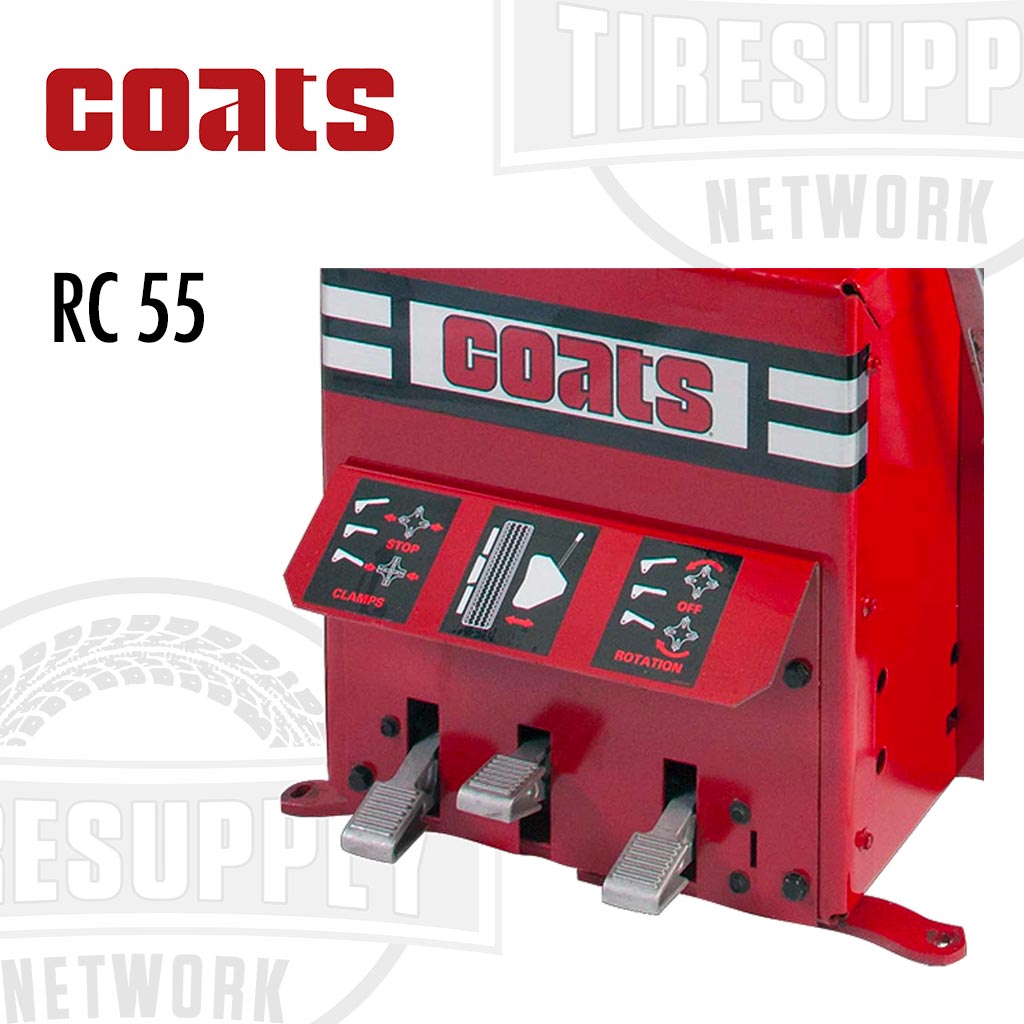

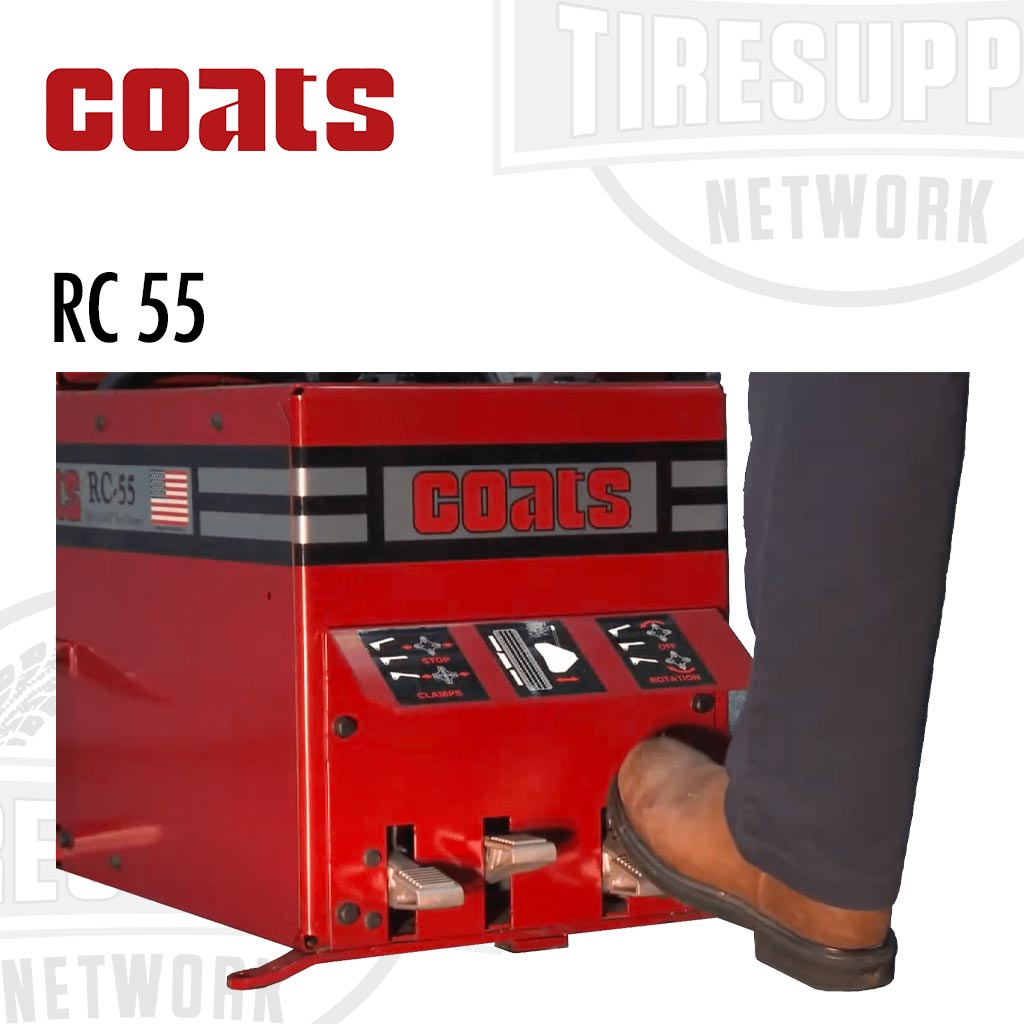

Conveniently Placed Foot Pedals: Provide precise control over every step of the changing process. The pedals are ideally placed for fluid technician movements while mounting and demounting tires.
Inflation Gauge: The easy-to-read gauge accurately displays tire pressure and includes a damage resistant Lexan faceplate. You can easily inflate from 0 to 60 PSI, with a built-in pressure limiter, ensuring technician safety.
Compact Chassis: The machine fits easily into limited space applications with its small footprint.
Manual Swing Arm: The Manual Swing Arm is easily adjusted so that the Coats Duckhead® Mount/Demount Tool is properly fitted to the tire rim. This will reduce the risk of damage when mounting and demounting the tire.
Included Accessories:
- (2) Coats 8182961 Duckhead® Mount/Demount Tool Inserts
Specifications:
Coats Part Number | Electric Model: 8560995001, Air Model: 85609950 |
Wheel Handled |
Alloy and Steel for Car and Light Truck |
Rim Diameter |
6″ - 24″ External |
Maximum Tire Diameter |
50″ |
Maximum Rim Width |
10.5″ |
Bead Loosening System |
Foot Controlled, Up to 10.5″ Wide |

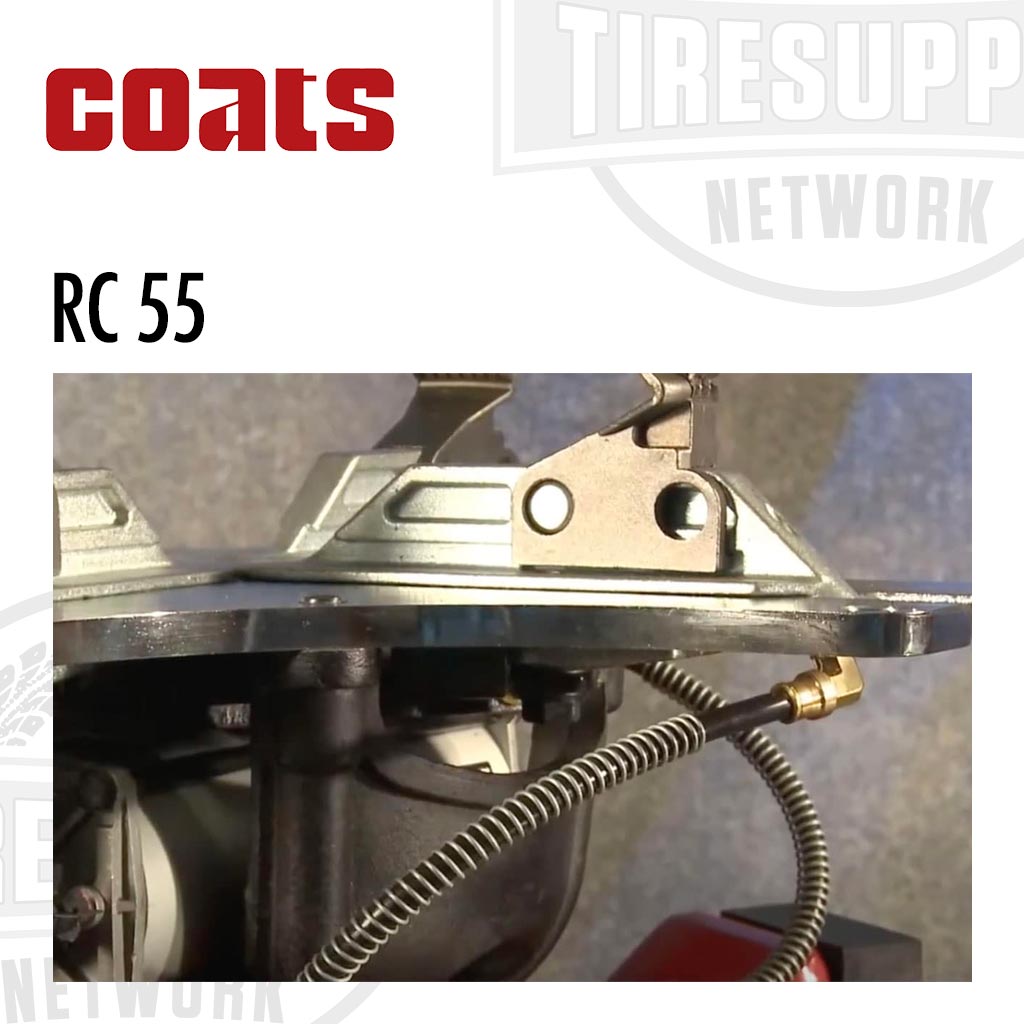

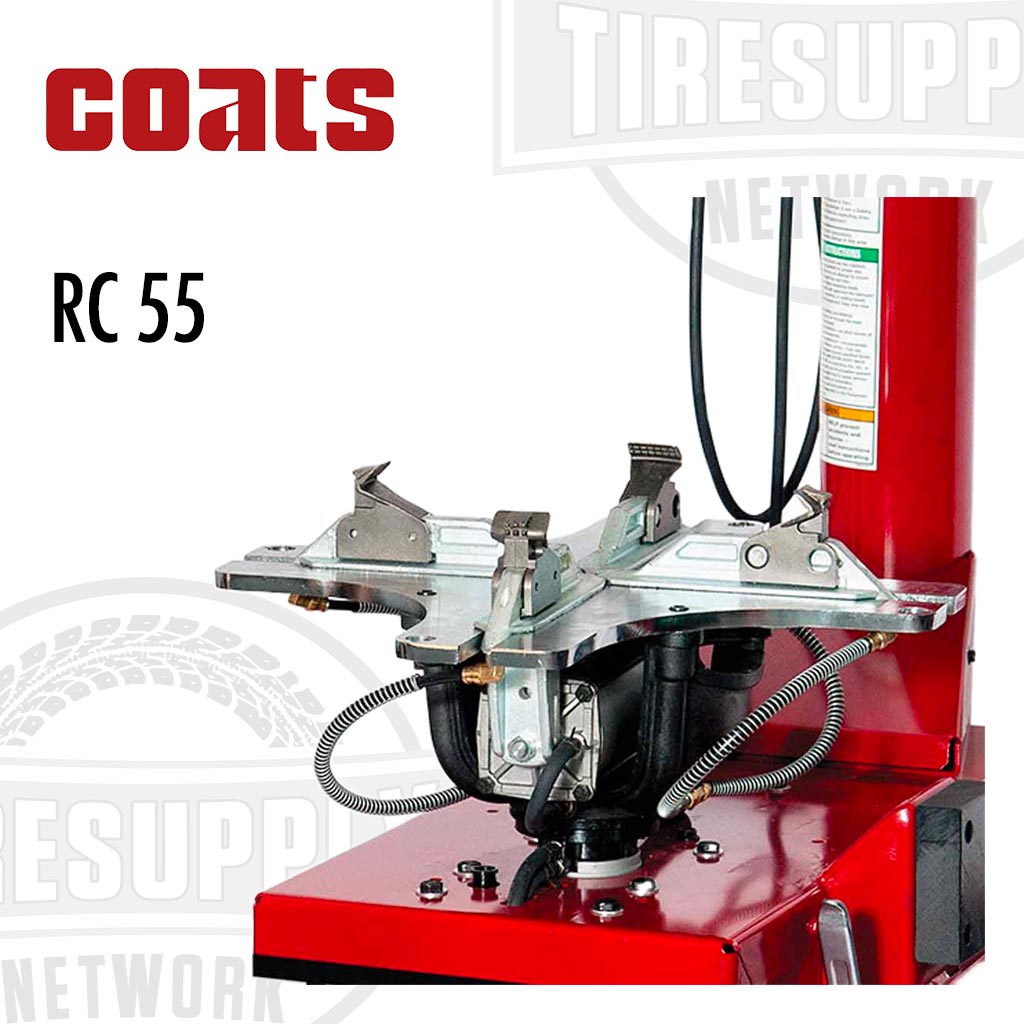

Wheel Clamping System |
4 Clamps, Air Cylinder Operated |
Mount/Demount Mechanism |
Swings for Better Access and Durability |
Helper Devices |
RC Robo-Arm |
Bead Seating Air Volume |
3.4 Gallons in Tower |
Inflation Gauge |
0 - 60 psi |
Air Supply Gauge |
0 - 300 psi |
Air Drive System |
1.5 HP Air Motor, 110 - 175 psi, 15 scfm (Air Model Only) |
Electric Drive System | 1 HP Electric Motor, 115 V, 60 Hz, 15 Amp (Electric Model Only) |
Footprint (WxDxH) | 35″ x 44″ x 72″ |
Weight | 620 lbs |
Warranty | 1 Year Parts, 6 Months Labor |
Need replacement parts? Call or email us and we can special order them for you!
Compliance and Restrictions:
⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
