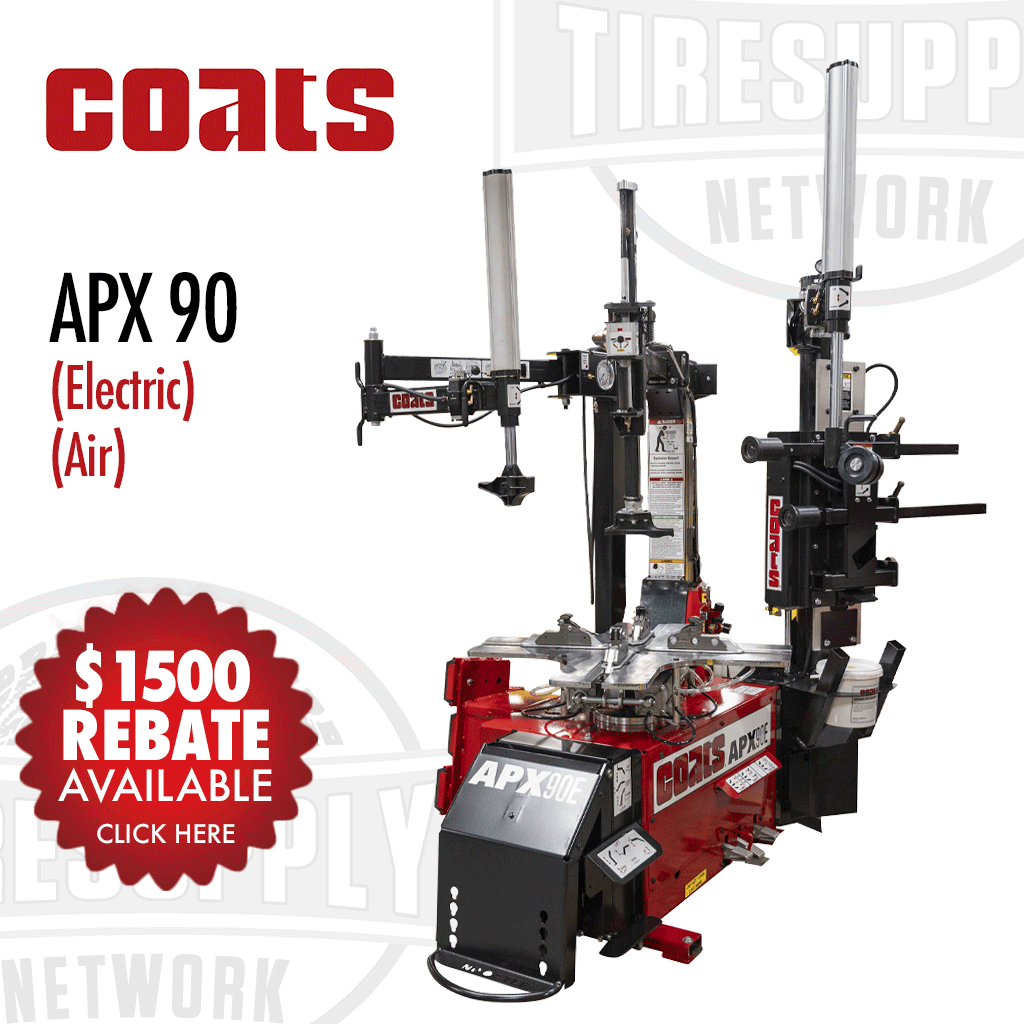

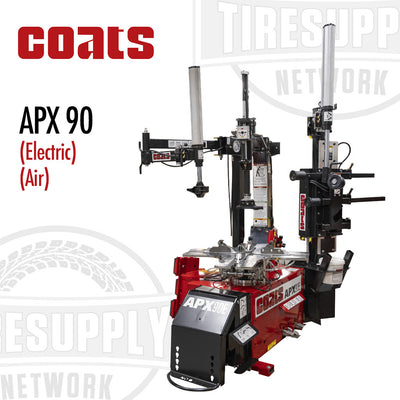

Coats APX 90 Rim Clamp Tire Changer with Robo-Arm & Robo-Roller Helper Devices - Choose Electric (APX90-220V) or Air Motor (APX90-A)
PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
APX90 ALL-IN-ONE RIM CLAMP® TIRE CHANGER.The Tire Changer Platform For The Future
Built-In Wheel Lift: The integrated wheel lift raises heavy assemblies to tabletop height, reducing operator effort, muscle strain, and the risk of wheel damage while improving control.
Large Clamping Capacity: Large clamping capacity to externally clamp wheels up to 30″ or as small as 9″ in diameter to maximize service flexibility, without special adapters.
RoboRoller® and Robo-Arm®: The Robo-Roller® comes installed, and it is used on the toughest of tires to help keep the following bead in the drop center. The Robo-Arm® helper device applies pressure to create bead lock and hold top bead in drop center when mounting.
Increasing Shop Productivity: When your customers entrust you with their expensive wheels, you need an APX 90 that you can count on to do the job safely and without worry. Technicians can focus on the customer rather than complex training.
Included Accessories:
- 8000491 Applicator Lube
- 8106259 Bottle Lube
- 8183710 Paste Lube
- 85009048 Paste Lube Bracket & Brush
- 8181354 Tool Lift
- 85000783 LiftTool Socks - (Qty 10)
- 8183606 Bead Loosener Shoe Socks - (Qty 2)
- 8185770 Duckhead® Roller

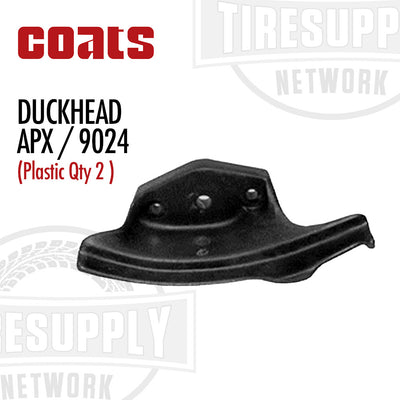

- 85000269 Duckhead® Mount/Demount Tool, NYLN, 2/PKG
- 85607787 GripMax® Plus Clamps - (Qty 4)
Specifications:
| Coats Model Number | APX 90 |
| Coats Part Number |
85000222 : Electric 220V 850002221 : Air |
| Wheel Handled |
Steel, Alloy and High-Performance |
| Rim Diameter |
9″ - 30″ External |
| Maximum Tire Diameter |
44″ Max |
| Maximum Rim Width |
16″ Max |
| Bead Loosening Width |
Hand Actuated |
| Wheel Clamping System |
4 Clamps, Air Cylinder Operated |
| Mount/Demount Mechanism | Tilt-back with Automatic Safety Lock |
| Helper Devices |
Robo-Arm®, RoboRoller®, Horizontal Power Rollers, Duckhead® Roller, Wheel Lift |
| Bead Seating Air Volume |
5.7 Gallons in Tower |
| Inflation Gauge | 0-60 psi |
| Air Supply Gauge | 0-300 psi |
| Air Drive System |
1.5 HP Air Motor, 110-175 psi, 15 scfm (Air model Only) |
| Electric Drive System | 2 HP High Torque, 110V Single Phase, 25 amp |
| Footprint (WxHxD) | 53″w x 88″h x 68″d |
| Ship Weight | 1510 lbs |
| Warranty | 3 Year Parts, 6 Months Labor |
Need replacement parts? Call or email us and we can special order them for you!
