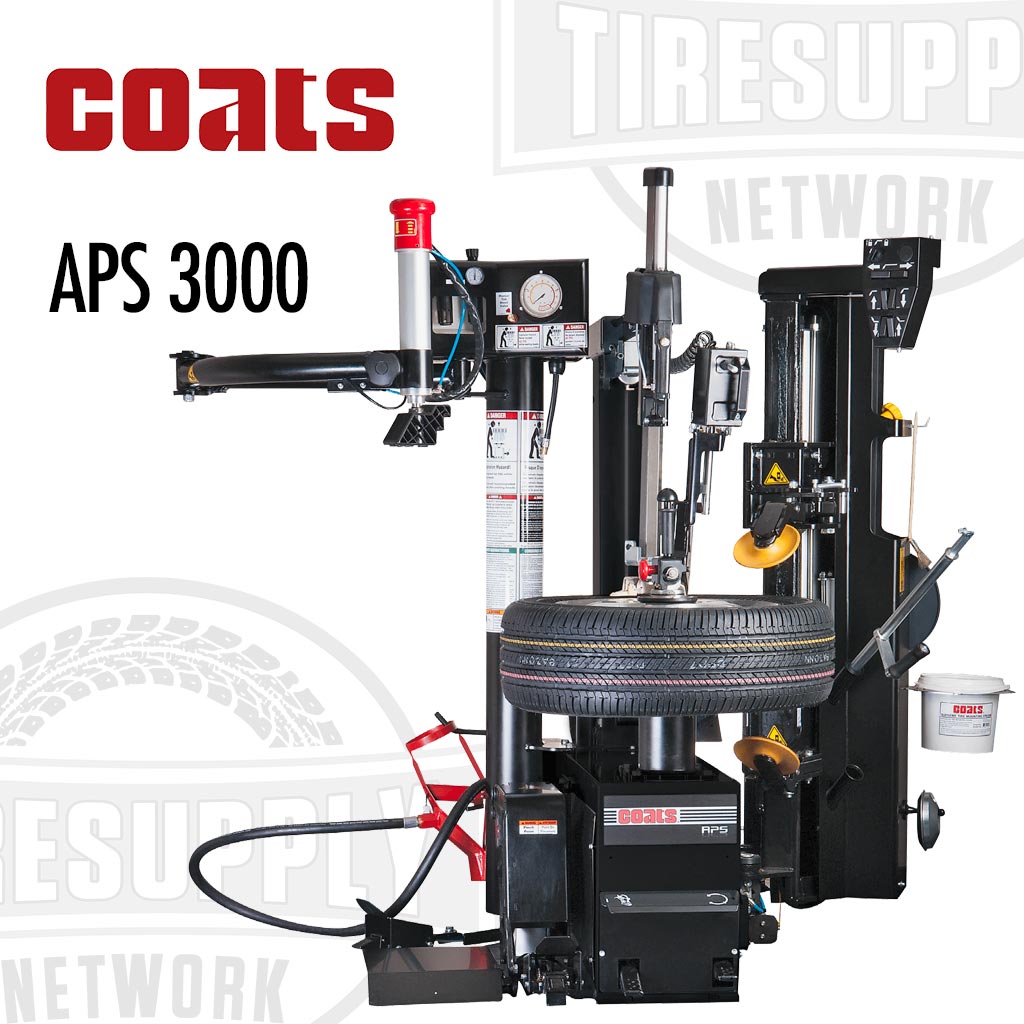

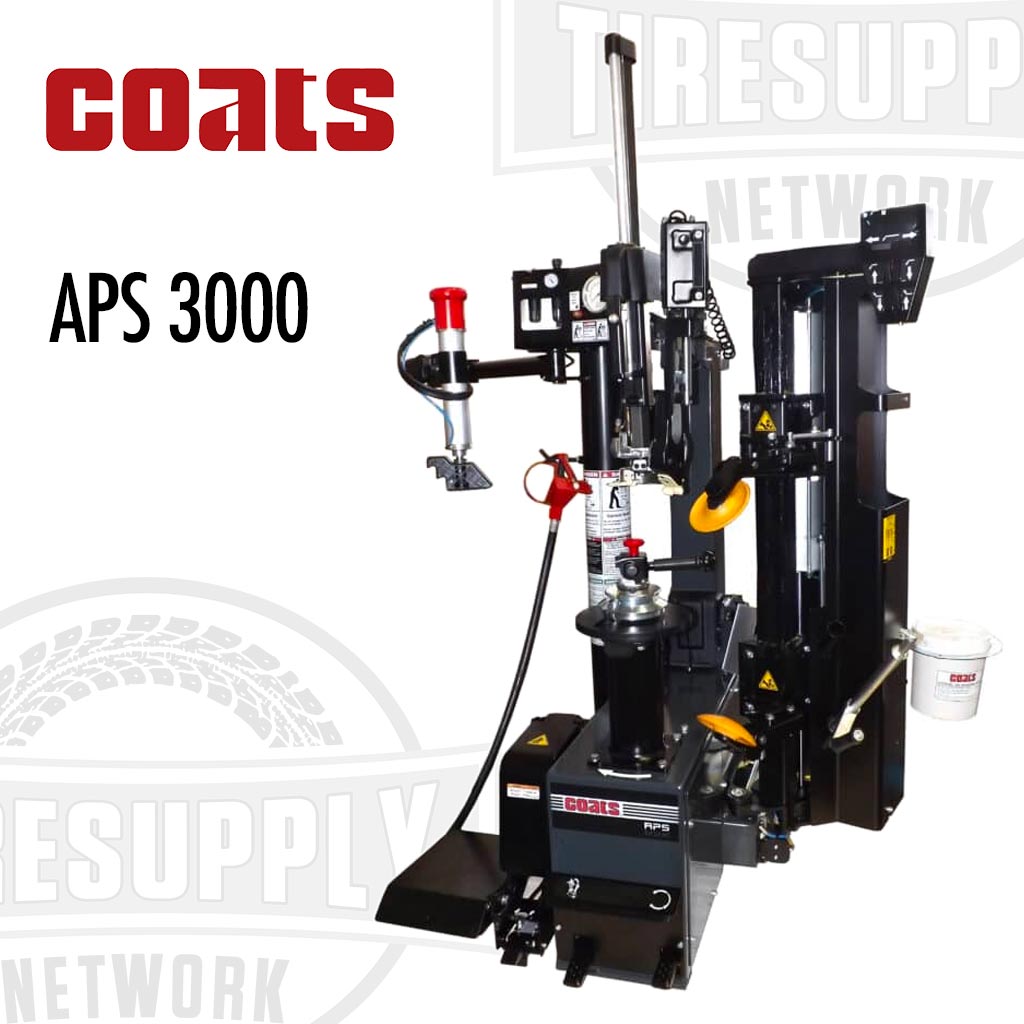

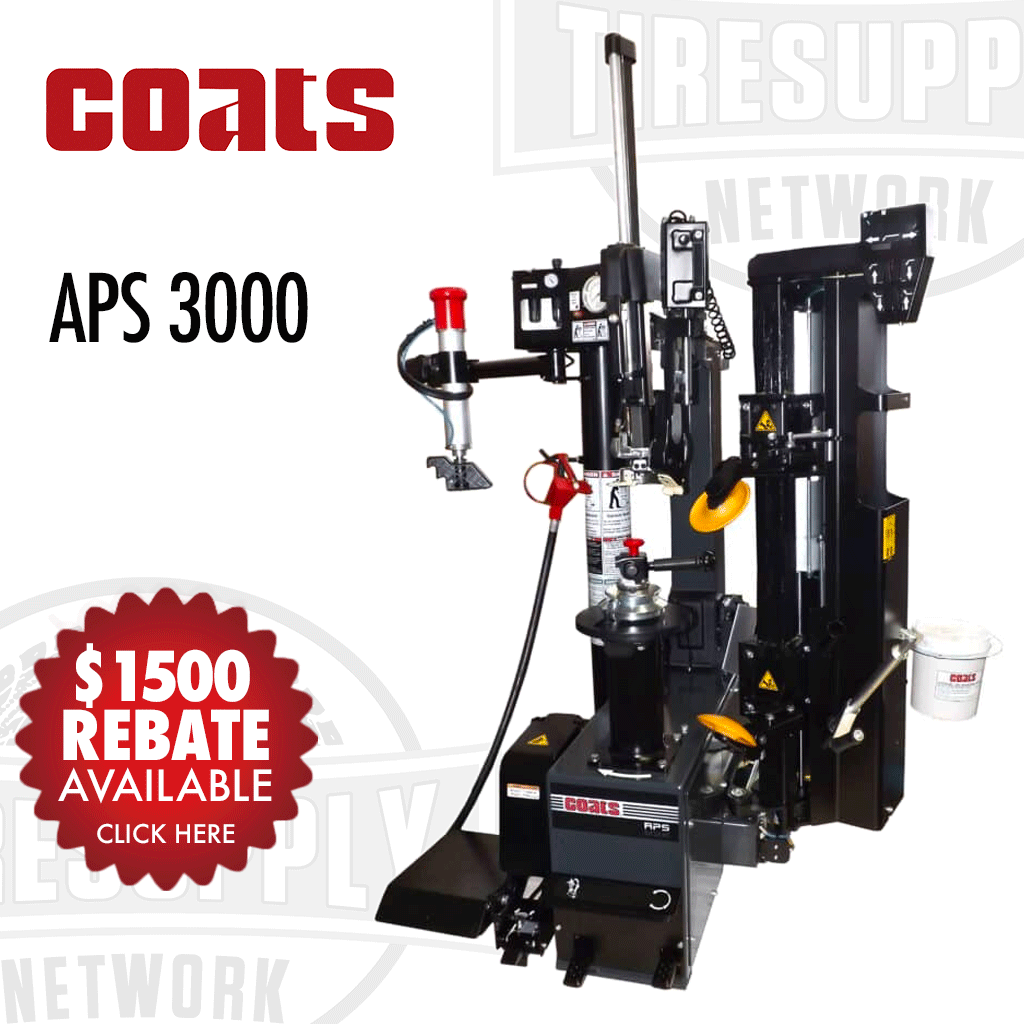

Coats | APS 3000 Leverless Tilt-Back Tire Changer with Auto-Retracting Robo-Arm Helper Device (800APS3000)

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Coats | APS 3000 Leverless Tilt-Back Tire Changer with Auto-Retracting Robo-Arm Helper Device (800APS3000)

PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

When every step counts, top shops trust Coats to deliver the industry's most advanced tire changing and wheel balancing systems. Purpose-built for premier service without the risk of wheel damage, the APS 3000 delivers high-end performance that reflects your commitment to service excellence.

Our APS tire changers share core elements with many of our other products, but we’ve added advanced innovation as you move up the line. That’s why a Coats APS tire changer is the ideal machine for custom or specialty wheels and run-flat tires, and specifically designed to handle expensive and delicate wheels.

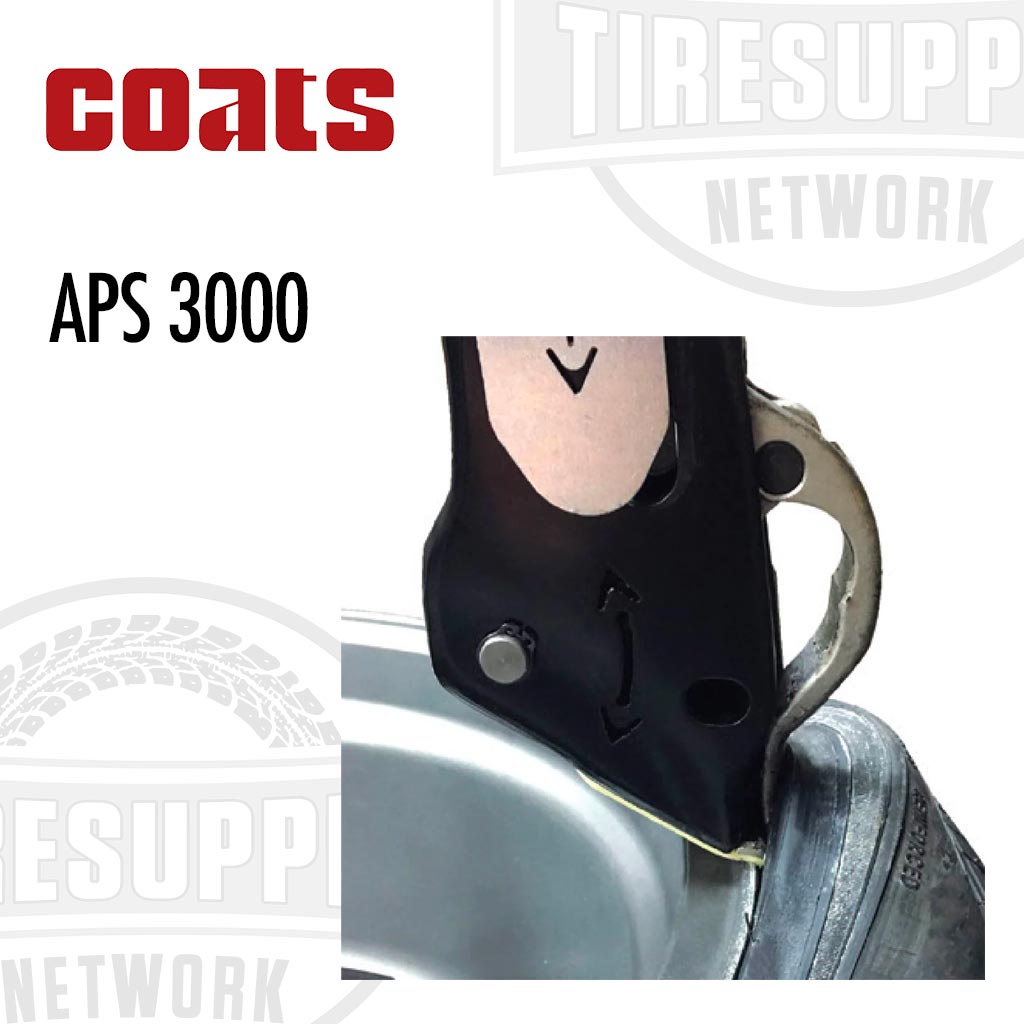

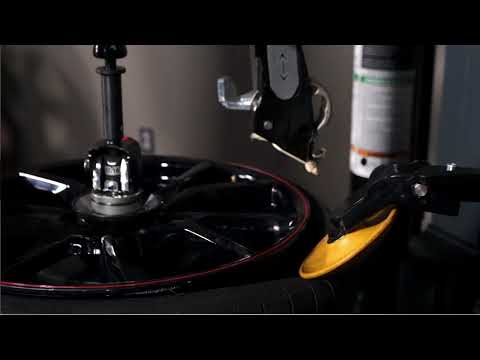

Leverless Duckhead with Auto-Offset: Bead lifting tool eliminates traditional tire tools, and automatically offsets from the rim to prevent wheel damage.

Tilt-Back Tower: Provides operator more room to work and holds tool position automatically.

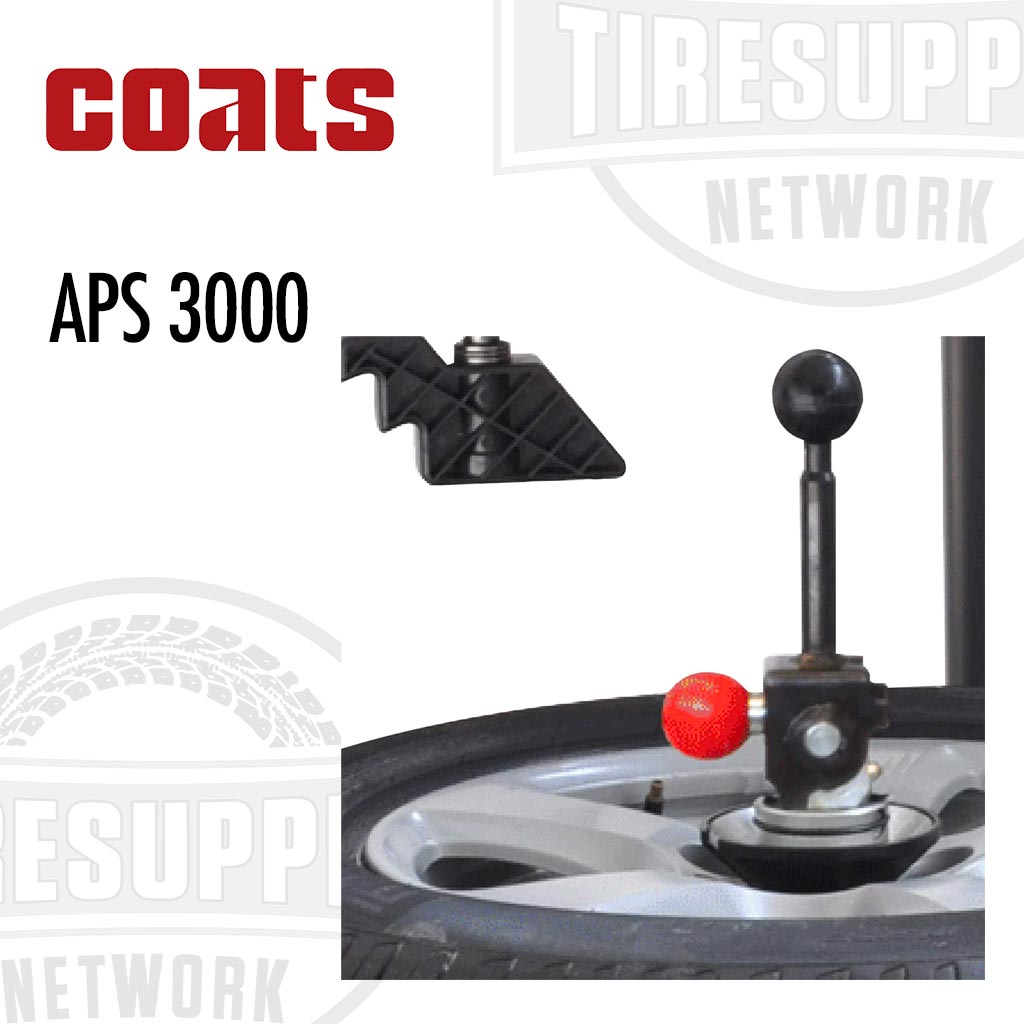

Center Post Design: Center post clamping system with Smart Lock cam quickly locks wheels into place with minimal effort.

Auto-Retracting Robo-Arm: Device assists in efficiently changing low profile or run flat tires and automatically swings back to home position after use to stay out of the operators way.

Integrated Wheel Lift: Lifts heavy assemblies reducing both damage risk to expensive wheels and back strain.

Two-Speed Electric Motor: The two-speed electric motor provides total control with the option to maximize shop efficiency based on application difficulty.

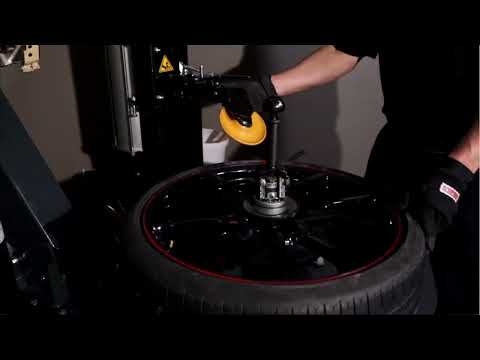

Upper and Lower Bead Loosener and Roller Discs: Individually Operated Power Rollers provide easy bead loosening and assistance with mounting - also demounts lower bead without a tire tool.

Manual Locking System: Manual locking system allows for fast and easy wheel clamping.

Included Accessories:

  • (2) Coats 89231517 Table Top Pad
  • Coats 82041474 Adjustment Knob for Smart Lock
  • Coats 83040730 Plastic Cone (70mm)
  • (2) Coats 83019057 Plastic Protectors for Smart Lock Centering Cone
  • Coats 83032133 Pin Extensions (Medium - 33mm)
  • (2) Coats 83031335 Pin Extensions (Large - 72mm)
  • Coats 89231518 Positioning Pin Bootie
  • Coats 89237711 Manual Bead Depressor
  • (3) Coats 89231515 Plastic Protectors for Mount/Demount Tool
  • Coats 8183710 Paste Lube Bucket
  • Coats 85000850 Paste Lube Brush
  • Coats 83032475 Light Truck Cone - 5.86" center bore
  • Coats 89242832 Reverse Mount Adaptor

                      Specifications:

                      Coats Part Number 800APS3000
                      Clamping Range
                      12″ - 34″
                      Maximum Tire Diameter
                      47″
                      Maximum Rim Width
                      16″
                      Operating Pressure 115 - 145 psi
                      Bead Loosening System
                      Roller Disc
                      Wheel Clamping System
                      Manual
                      Mount/Demount Mechanism
                      Leverless/Tilt-Back
                      Helper Devices
                      Robo-Arm, Bead Loosener Discs
                      Bead Seating Air Volume
                      On Machine
                      Inflation Gauge
                      Standard
                      Air Supply Gauge
                      Standard
                      Electric Drive System 230V, 50/60 Hz, 1 ph, 20A

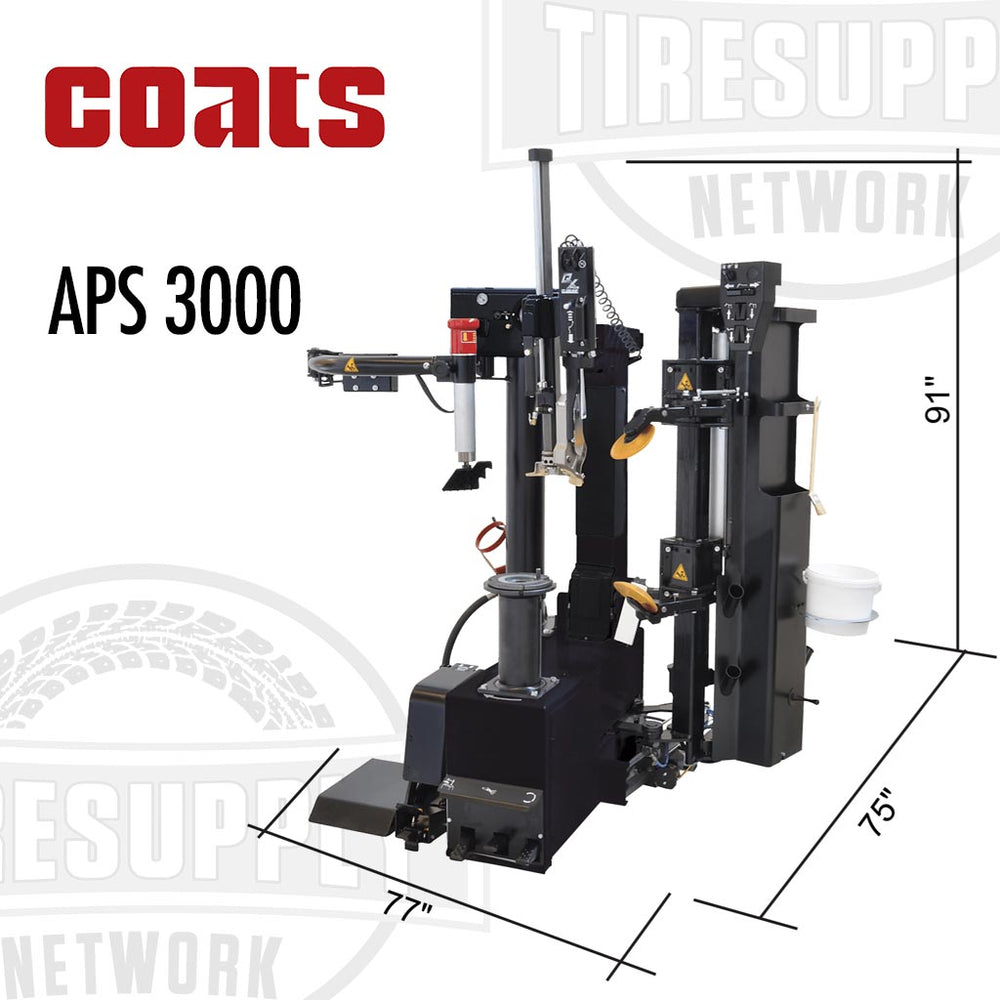

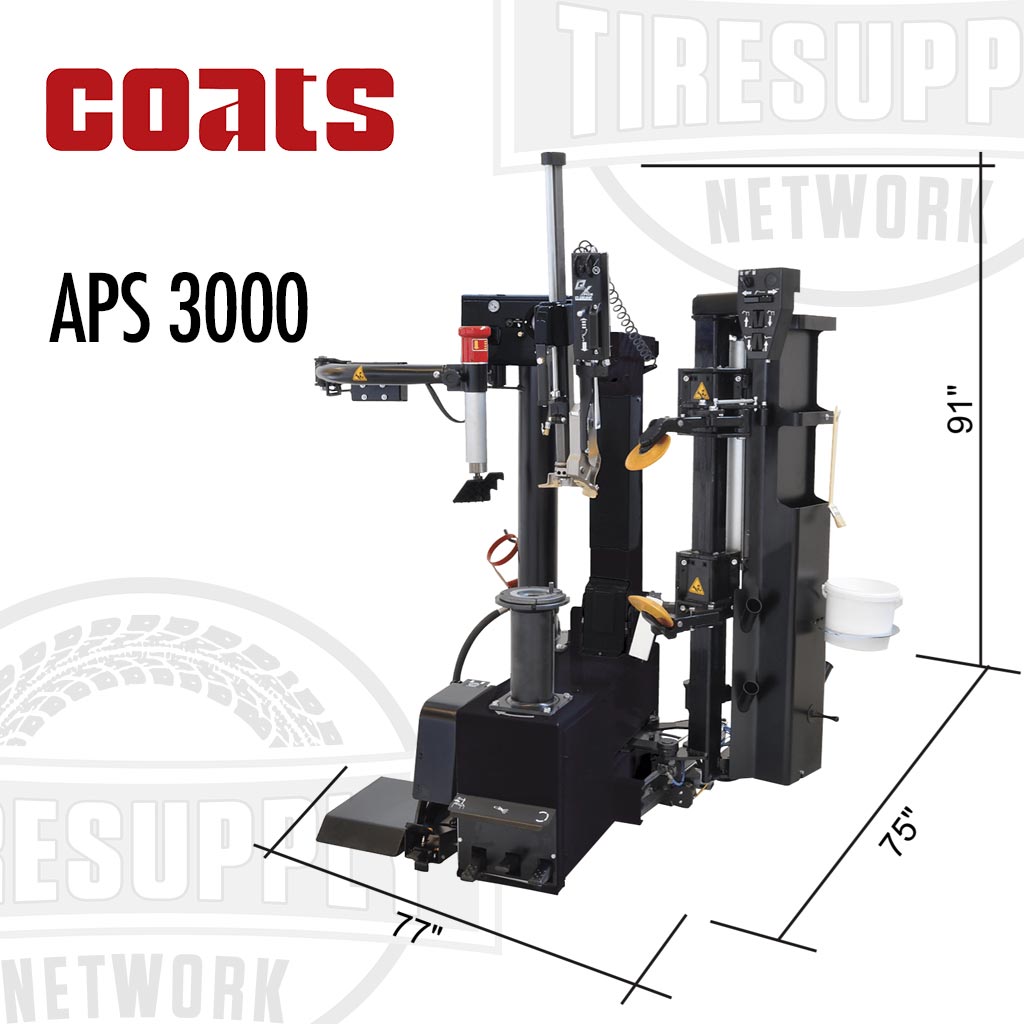

                      Footprint (WxDxH) 77″ x 75″ x 90″
                      Weight 940 lbs
                      Warranty 1 Year Parts, 6 Months Labor


                       Need replacement parts? Call or email us and we can special order them for you!
