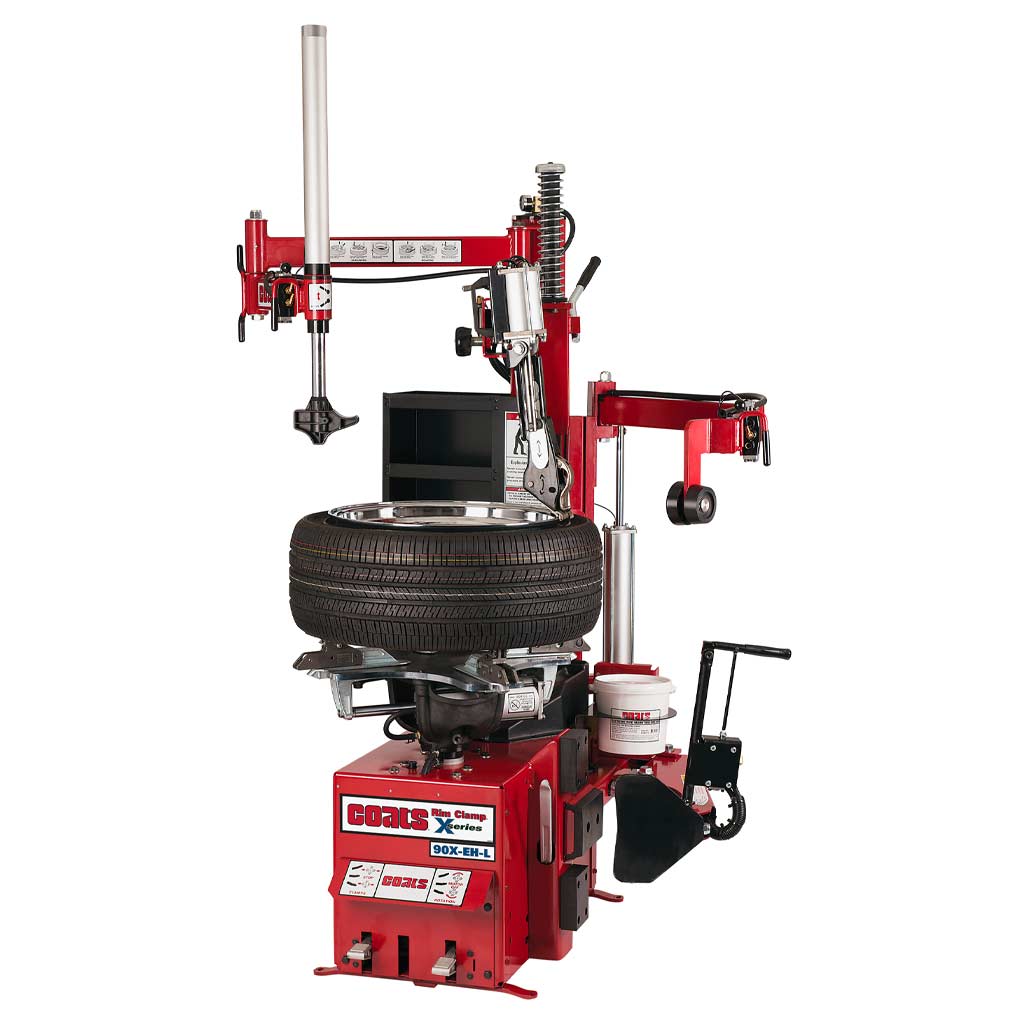

Coats 90X Rim Clamp Tire Changer with Robo-Arm Helper Device - Choose Electric or Air Motor
PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
Built with all of the features that the industry leading X-Series platform has to offer, the 90X handles any job easily. The Coats® Rim Clamp® tire changer has become the industry standard due to its legacy of durability, reliability, and upgradability. The X-Series® is an upgraded version of the Coats Rim Clamp changer you’ve always known and trusted with new features to make it the best platform in the business, operating with the speed you expect from a swing arm tire changer.

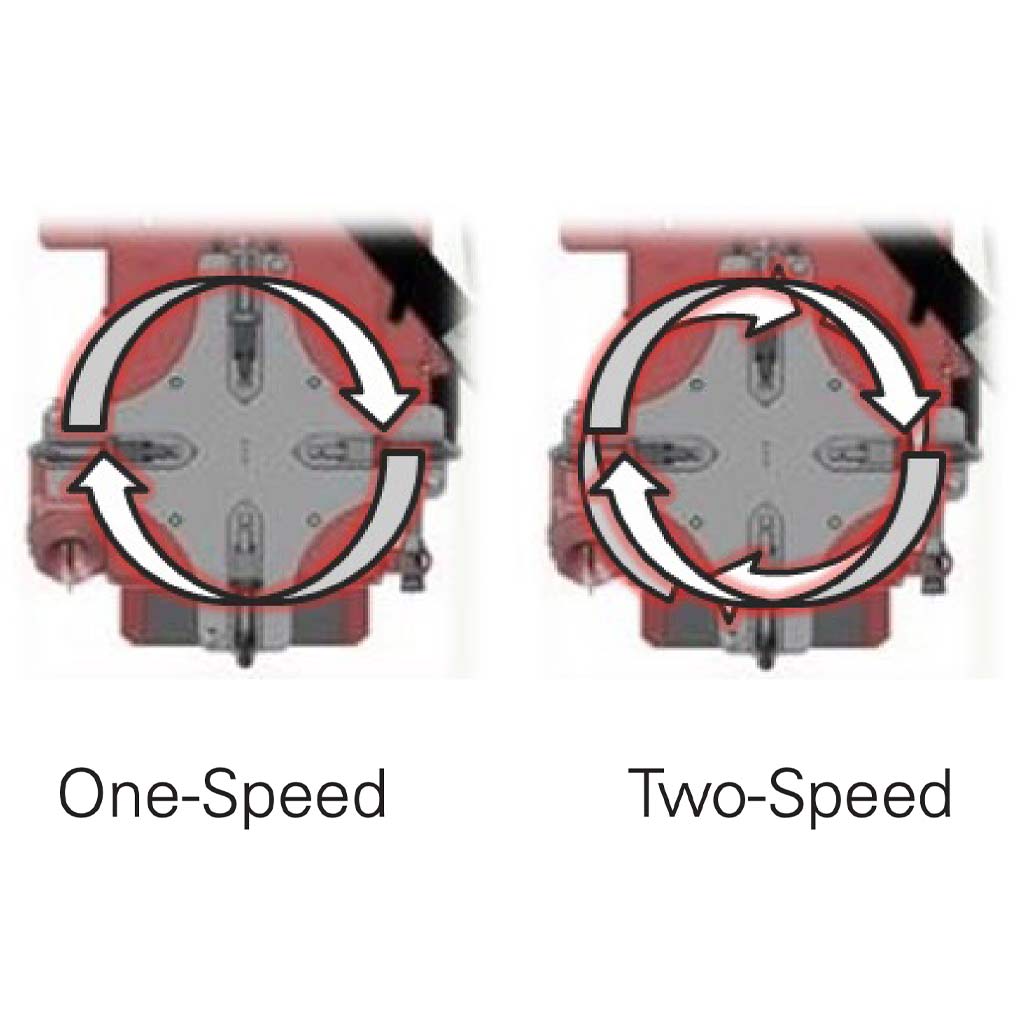

2-Speed 110V Electric Motor: The two-speed electric motor provides total control with the option to maximize shop efficiency based on application difficulty.

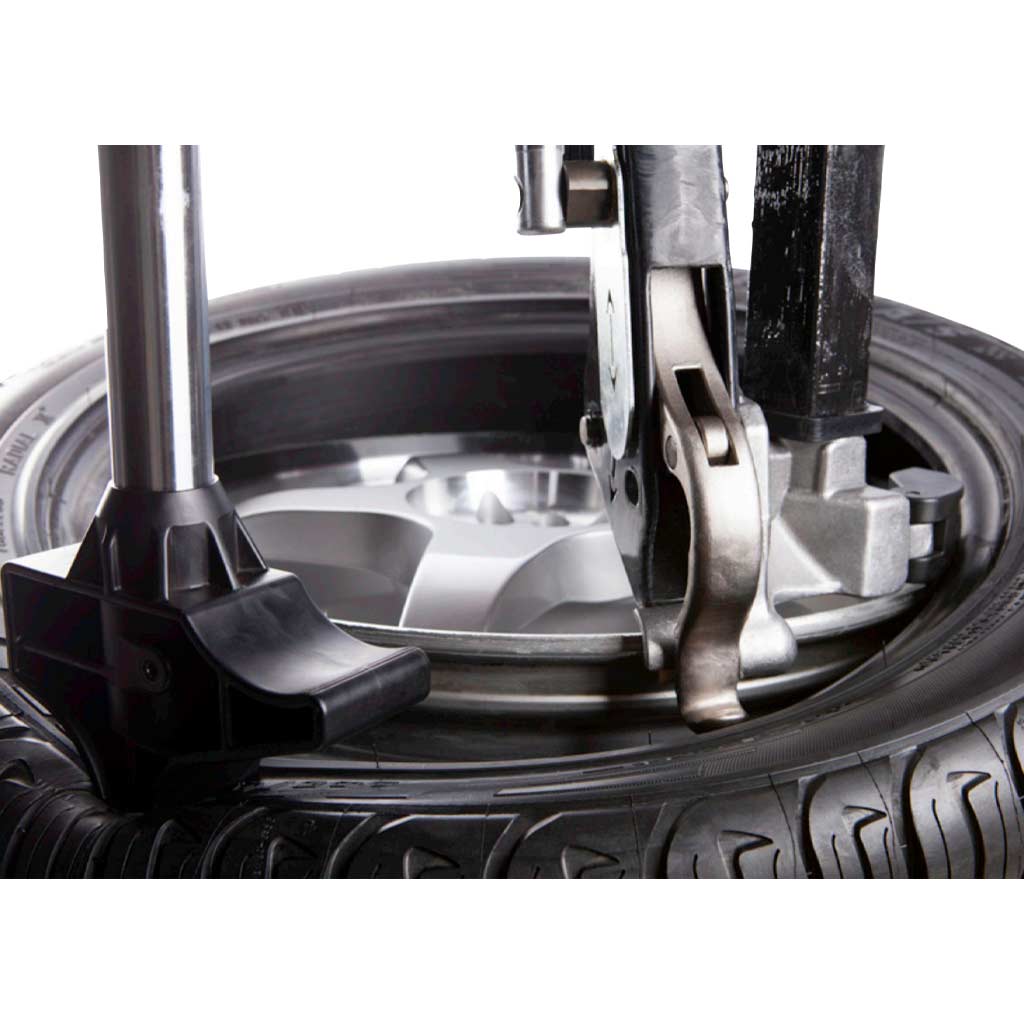

Leverless Duckhead® Mount/Demount Tool: This feature acts as a traditional helper device and eliminates traditional tire tools that can mar the surface due to application difficulty.

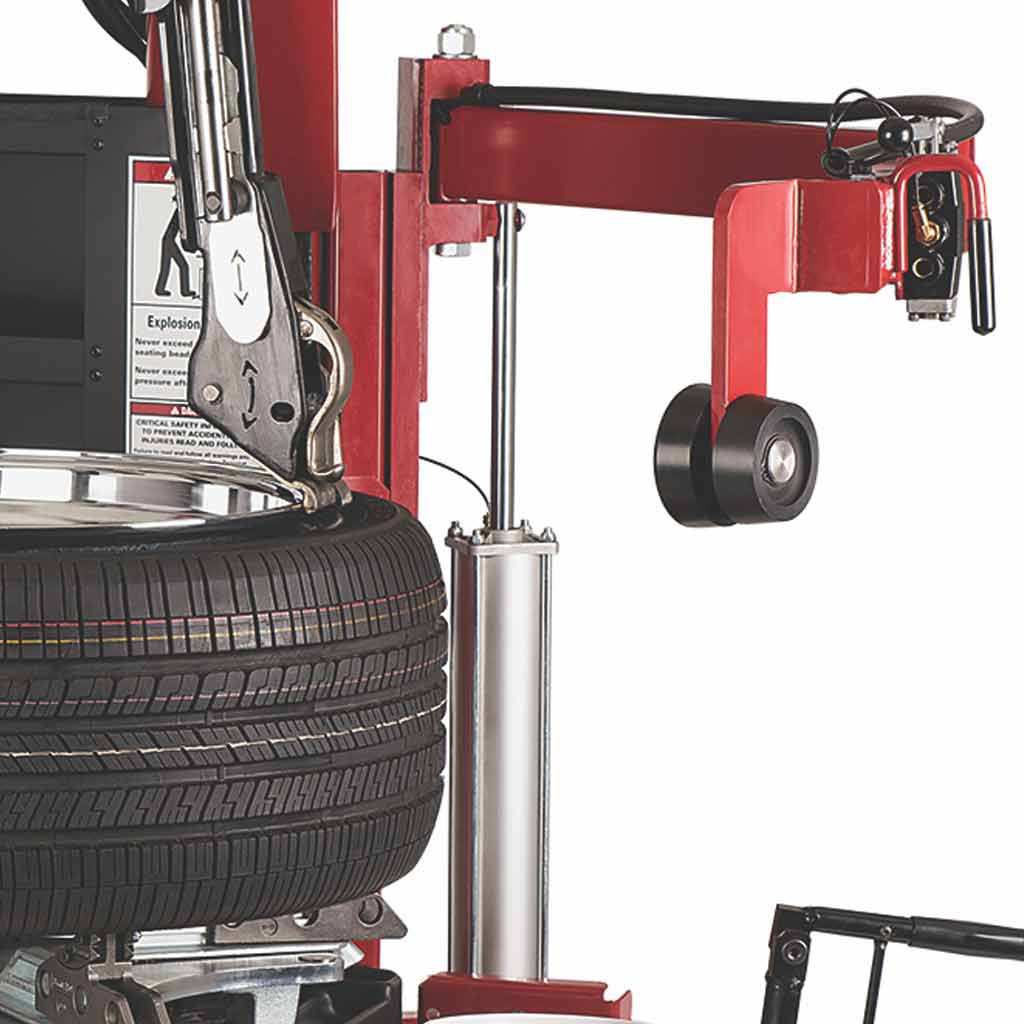

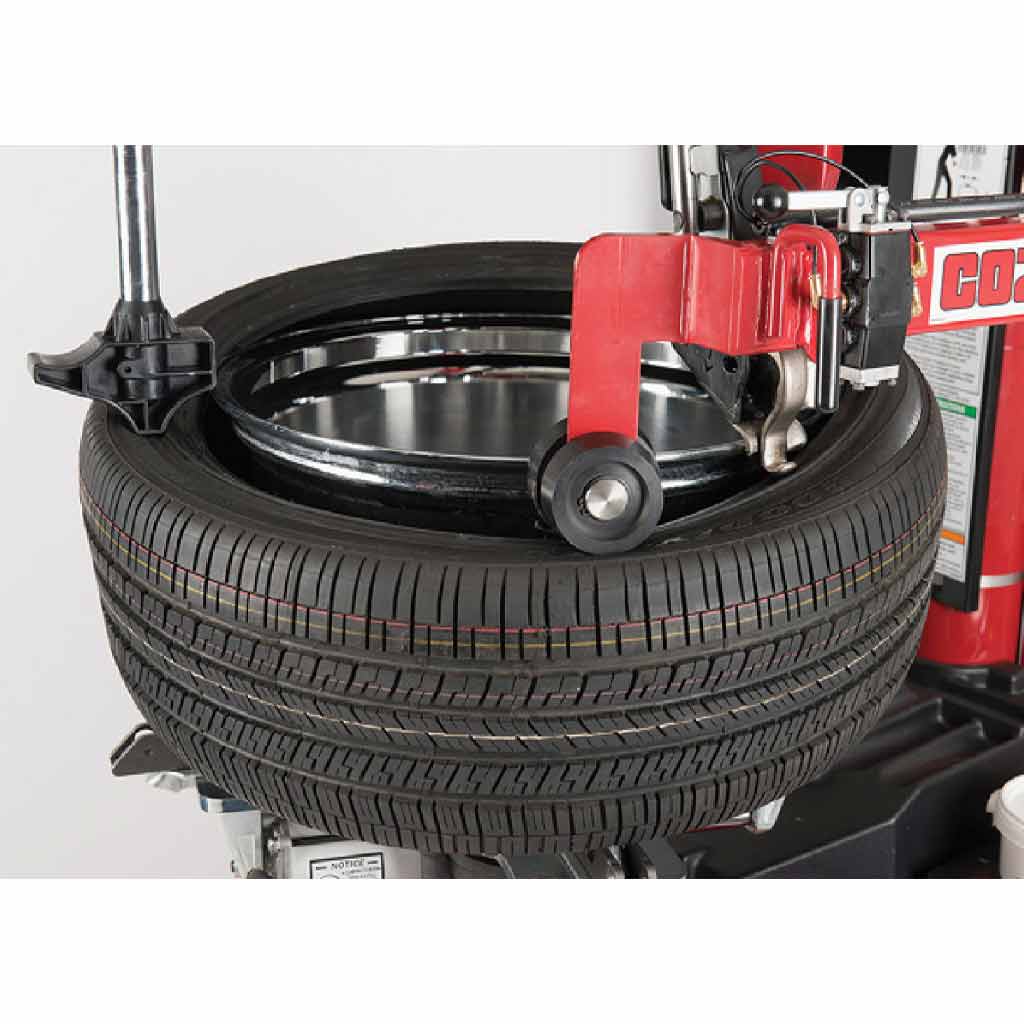

RoboRoller™ Powered Assist: The RoboRoller provides additional power when mounting difficult tire assemblies by preventing the bead from rolling back over the mount tool.
Single Point Bead Sealer: This feature concentrates air flow to seal the beads more efficiently and eliminates excessive maintenance.

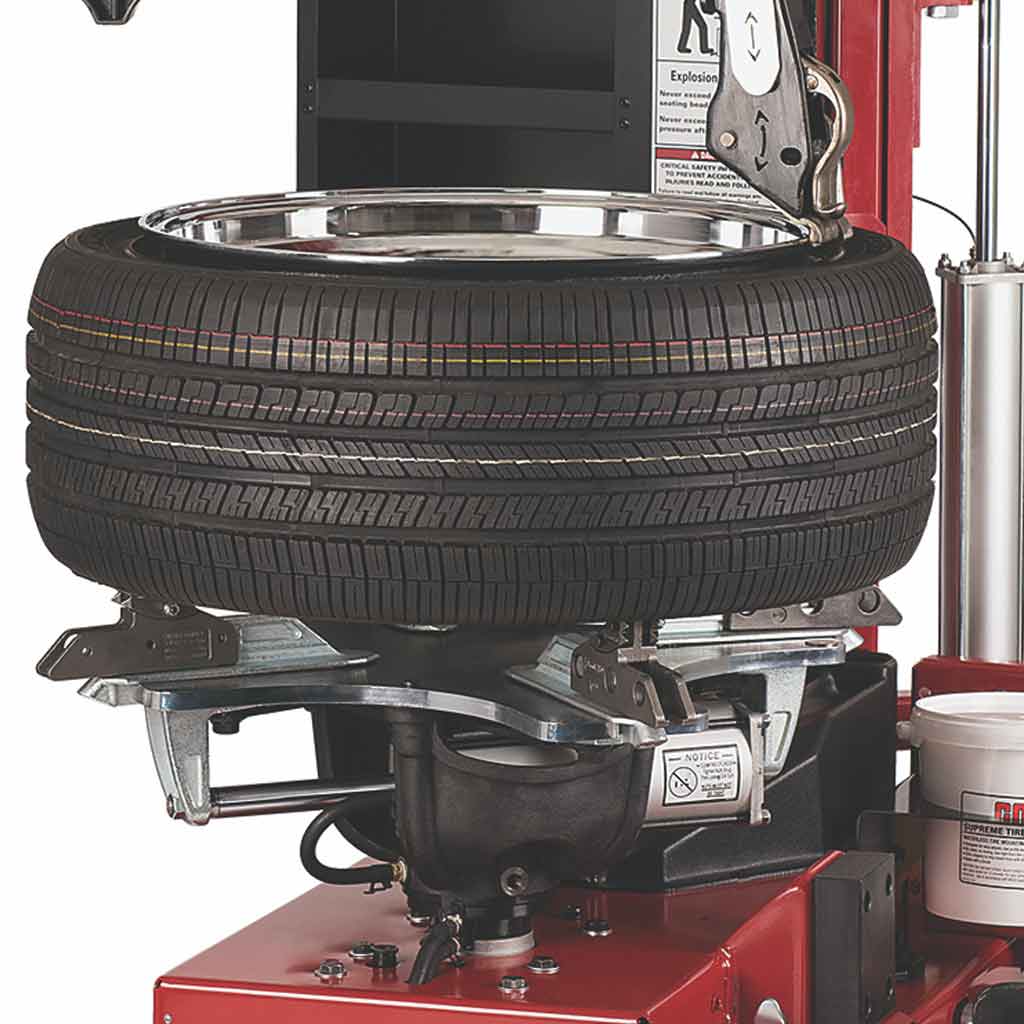

Grip-Max® Plus Clamps: Offers twice the slip resistance than the traditional clamps and built in rim protectors eliminate metal on metal contact.

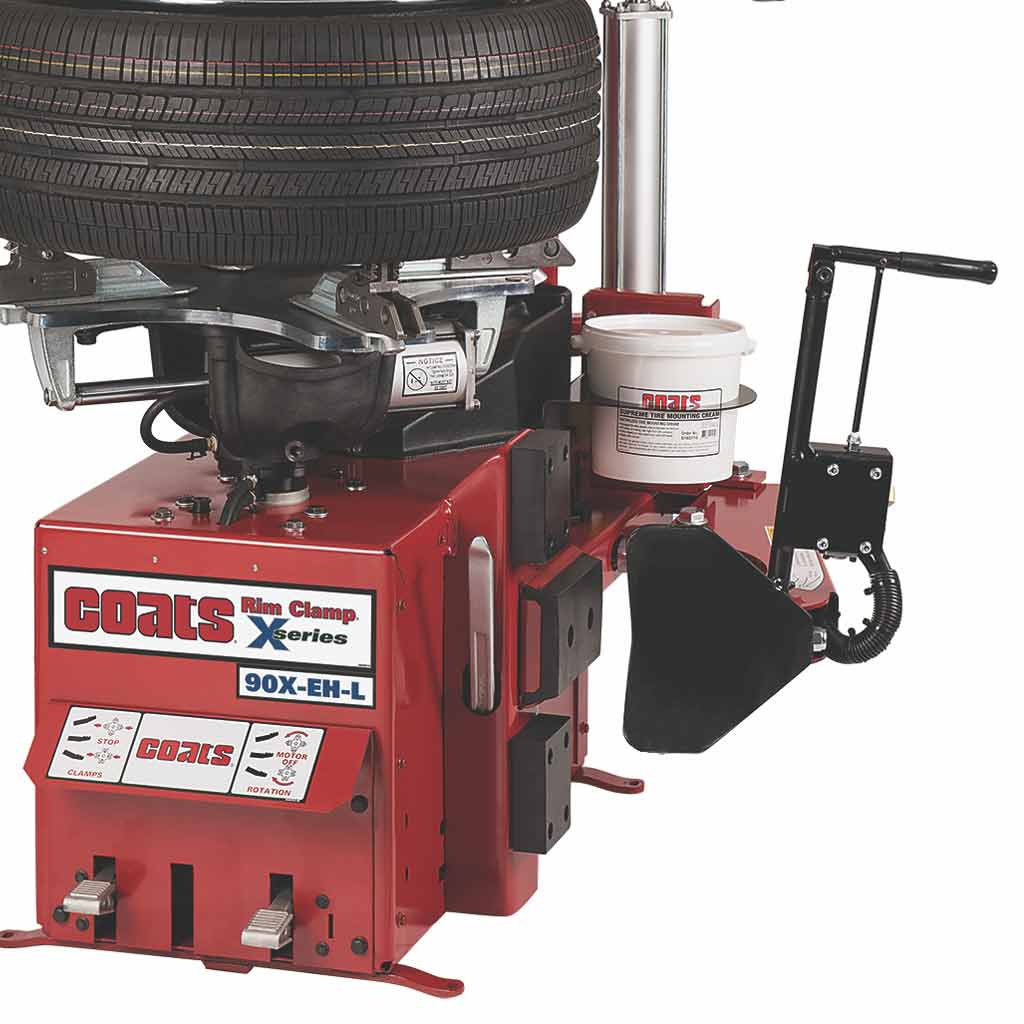

Hand-Actuated Bead Loosener: Technician has point of use controls, increasing productivity and reducing risk of wheel damage.
Included Accessories:
- Coats 8183606 Bead Loosener Shoe Socks - 2
- Coats 85009048 Paste Lube Bracket & Brush
- Coats 8183710 Paste Lube
- Coats 85607787 Grip-Max® Plus Clamps - 4 (6" - 24")
- Coats 85607986 Grip-Max® Plus Extended Clamps - 4 (16" - 28")
- Coats 8560716108 Grip-Max® Plus Grips - 8
- Coats 85610105 Premium Storage Cabinet
- Coats 89233409 Leverless Duckhead® mount/demount tool plastic inserts
Specifications:
| Coats Part Number | Electric Model: 80090XEHL, Air Model: 80090XAHL |
| Wheel Handled |
Alloy and Steel for Car and Light Truck |
| Rim Diameter |
6″ - 28″ External |
| Maximum Tire Diameter |
50″ |
| Maximum Rim Width |
14″ |
| Bead Loosening System |
Hand or Foot Controlled, Up to 14″ Wide |
| Wheel Clamping System |
4 Clamps, Air Cylinder Operated |
| Mount/Demount Mechanism |
Swings Away for Better Access and Durability |
| Helper Devices |

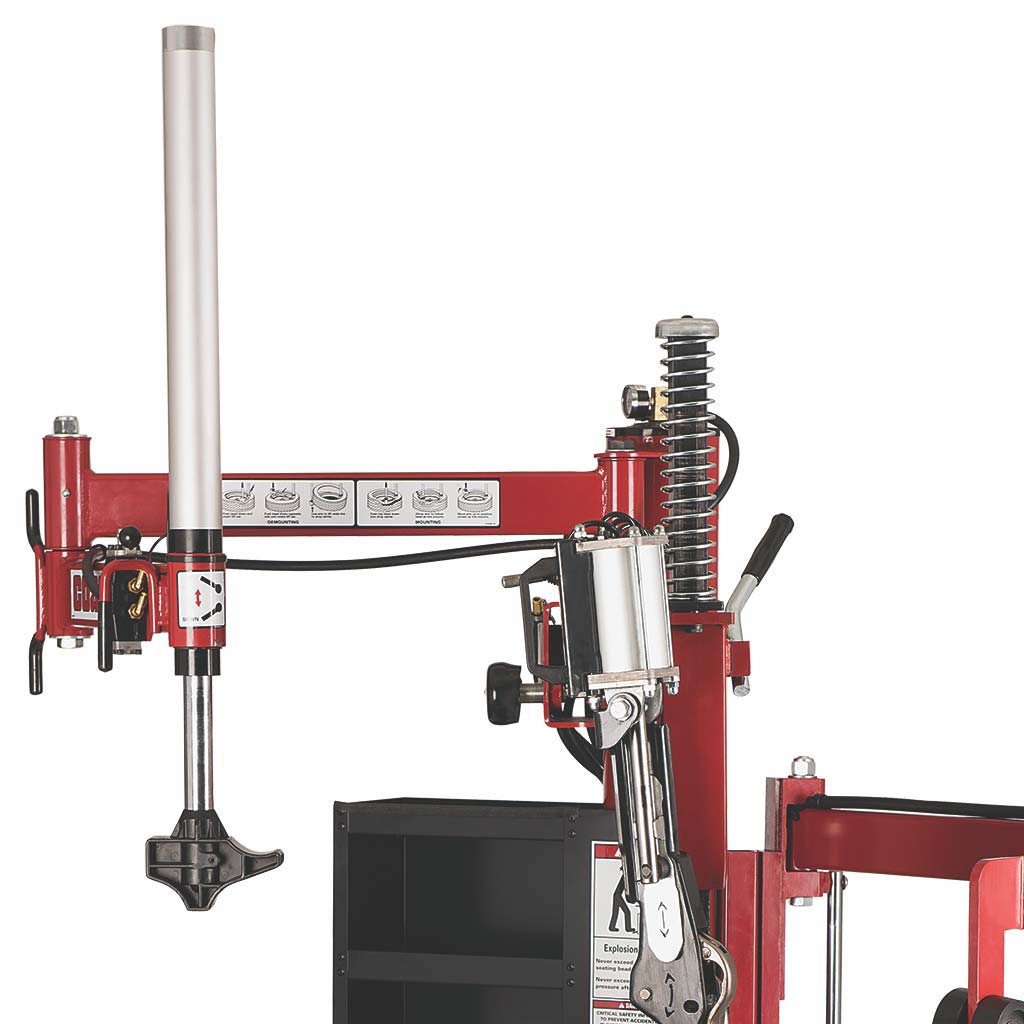

Robo-Arm (18″ of Automated Vertical Stroke), RoboRoller Leverless Bead Lifter |
| Bead Seating Air Volume |
Vertical 5.4 Gallons in Tower |
| Inflation Gauge |
0 - 60 psi |
| Air Supply Gauge |
0 - 300 psi |
| Air Drive System |
1.5 HP Air Motor, 110 - 175 psi, 15 scfm (Air Model Only) |
| Electric Drive System | 1 HP, 2-Speed Electric Motor, 115 V, 60 Hz, 15 Amp (Electric Model Only) |
| Footprint (WxDxH) | 49″ x 48″ x 85″ |
| Weight | 800 lbs |
| Warranty | 3 Year Parts, 6 Months Labor |
Need replacement parts? Call or email us and we can special order them for you!
