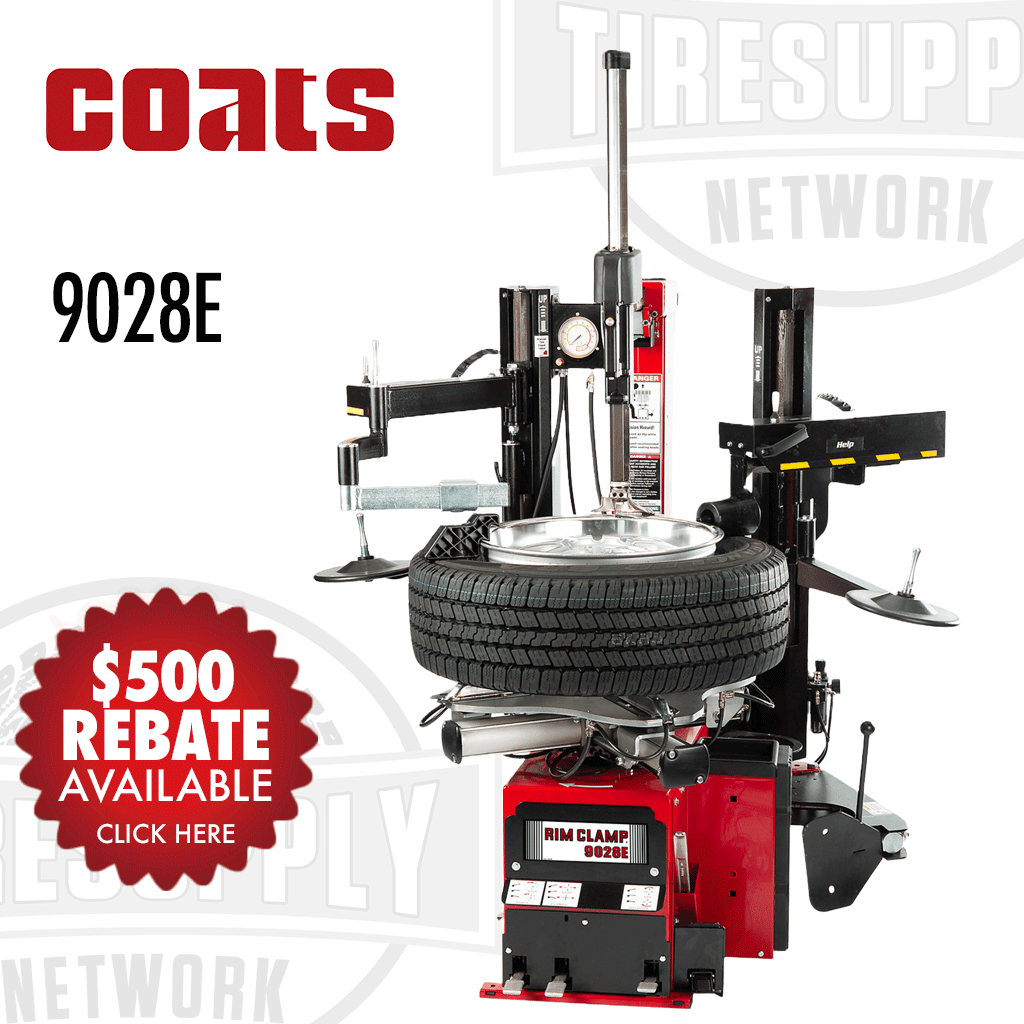

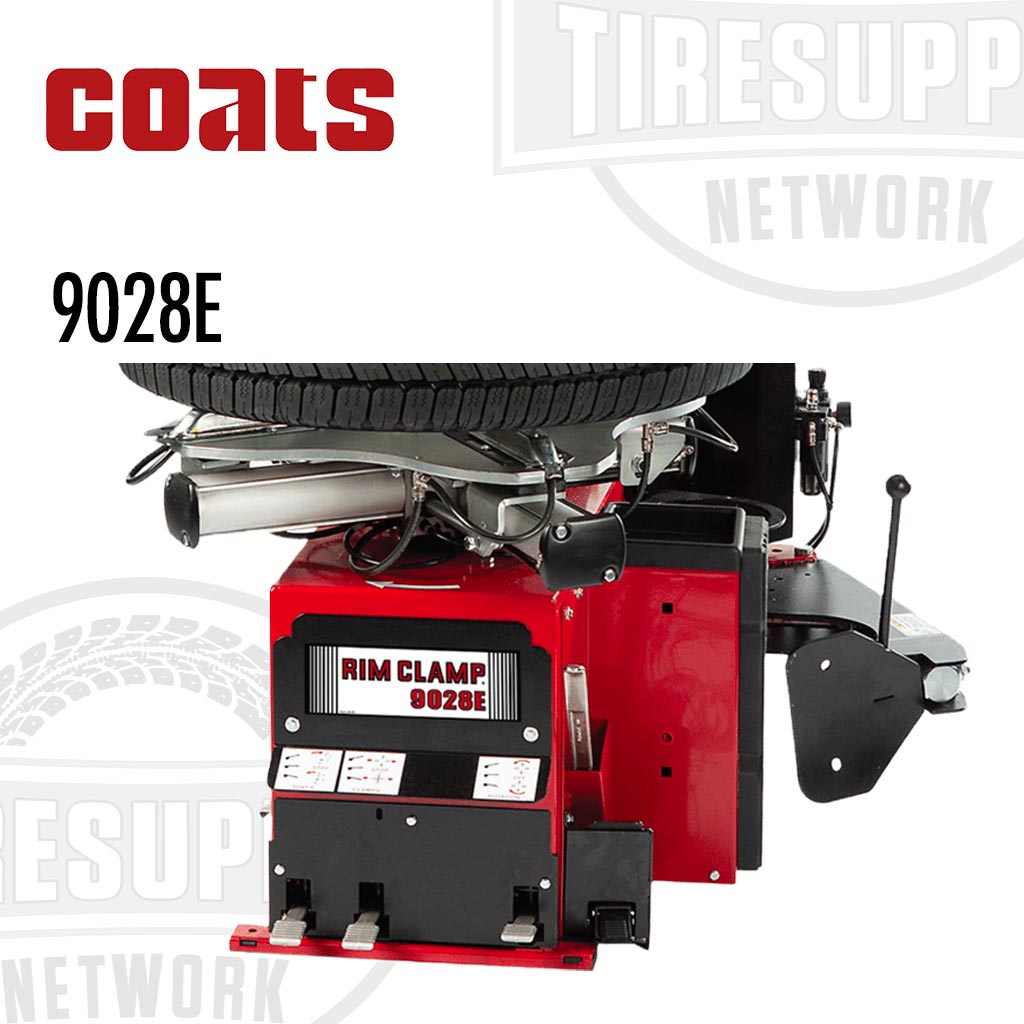

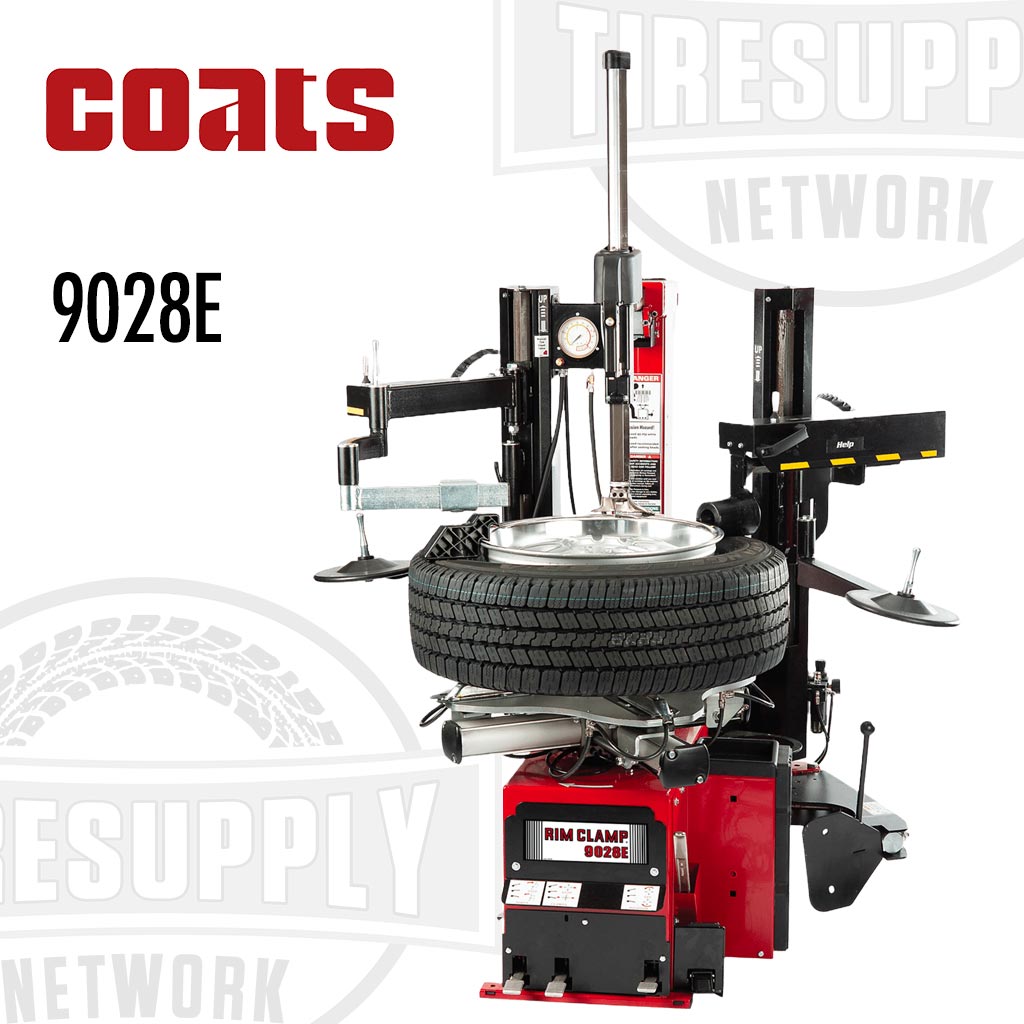

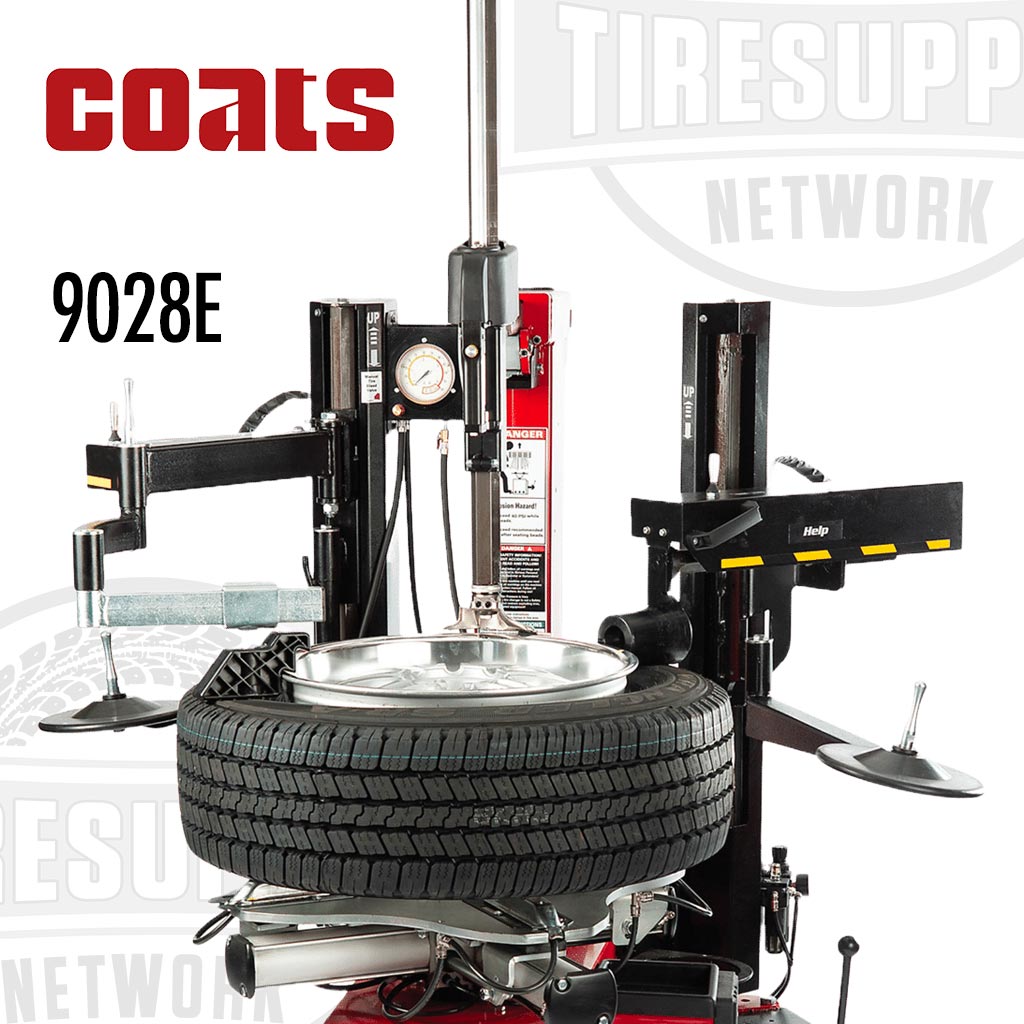

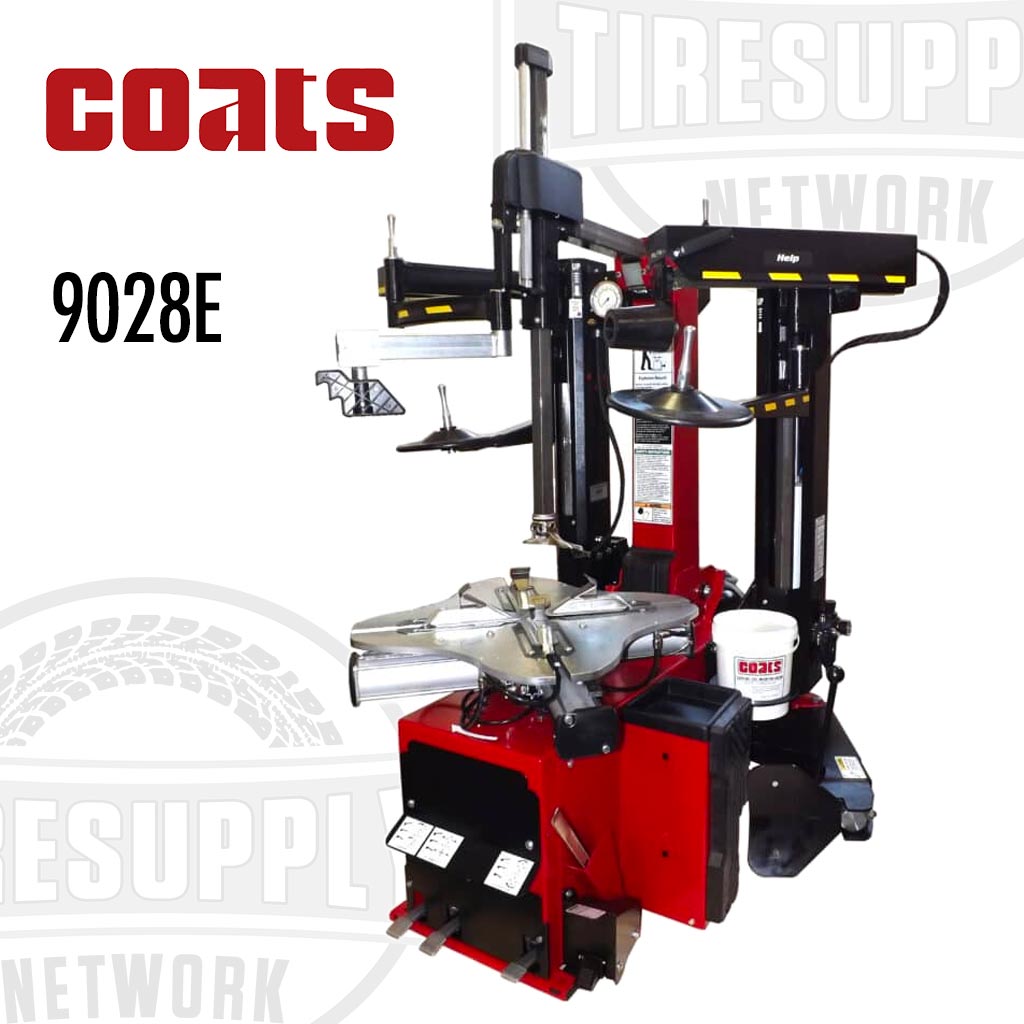

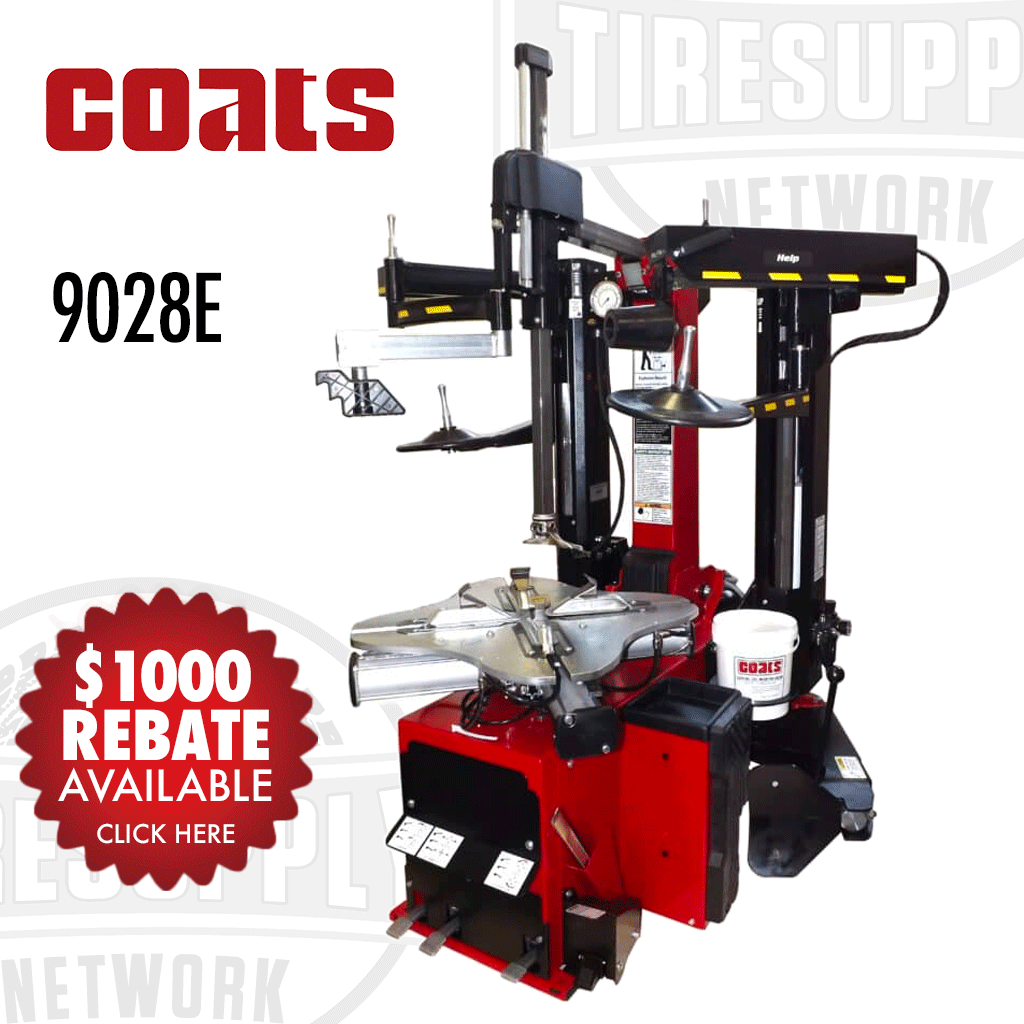

Coats 9028E Tilt-Back Rim Clamp Tire Changer with Robo-Arm Helper Device (8009028)
PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
The newest model in the Coats line of tilt-back tire changers! The new Coats 9028E Tire Changer gives your shop the powerful capabilities it needs to take on the toughest tire service challenges with minimal effort and maximum efficiency.
Tilt-Back Tower: Angled for no interference on second bead removal. Now tilts farther for more clearance.
Power Devices: Robo-Arm® Helper Device and swing-in rollers speed up floor-to-floor times and reduce operator fatigue.
Power Taper Roller: Powered Roller allows easy bead and rim lubrication, and assists in mounting run-flat and low profile tires.
Clamps Wheels Externally Up to 28″: Wheels keep getting bigger and more expensive. The Coats 9028E allows you to change tires on oversized wheels while providing complete protection. You can service the expanding market for custom alloy wheels.
Improved Bead Loosener Action: Cam operated bead loosener ensures contact with wider tires at the proper angles. Minimizes risk of wheel damage.
Power Devices that do 90% of the Work: Power taper rollers, pneumatic drop center, and swing-in rollers handle approximately 90% of the effort required to change even the toughest tires. Technicians can concentrate on efficiency
Included Accessories:
- Coats 85000850 Paste Lube Brush
- Coats 8183710 Paste Lube Bucket
- Coats 89219196 Bead Shovel Plastic Protectors
- (6) Coats 89209612 Clamp Plastic Protectors
- (2) Coats 89219195 Bead Lever Plastic Protectors
- Coats 89210961 Plastic Mounting Tool Kit
- (6) Coats 89209611 Plastic Protectors for Mount/Demount Tool
- Coats 89236146 Duckhead® Plastic Protectors
- Coats 83006970 Bead Lifting Lever
- (4) Coats 8185590 Clamp Extensions
Specifications:
| Coats Part Number | 8009028 |
| Wheel Handled |
Alloy and Steel for Car and Light Truck |
| Rim Diameter |
10″ - 28″ External |
| Maximum Tire Diameter |
47″ |
| Maximum Tire Width |
14″ |
| Bead Loosening System |
Foot Controlled, Up to 14″ Wide |
| Wheel Clamping System |
4 Cylinder Geared Actuation |
| Mount/Demount Mechanism |
Automatic Tilt-Back |
| Helper Devices |
Lower Bead Lifting Roller Disc (left and right), Upper Bead Roller (right side), Bead Pressing Arm (left side) |
| Bead Seating Air Volume |
Vertical 5.3 Gallons in Tower |
| Inflation Gauge |
0 - 60 psi |
| Air Supply Gauge |
0 - 230 psi |
| Electric Drive System | 125 V, 60 Hz, 30 Amp, NEMA L5-30P |
| Footprint (WxDxH) | 79″ x 76″ x 86″ |
| Weight | 988 lbs |
| Warranty | 1 Year Parts, 6 Months Labor |
Need replacement parts? Call or email us and we can special order them for you!
