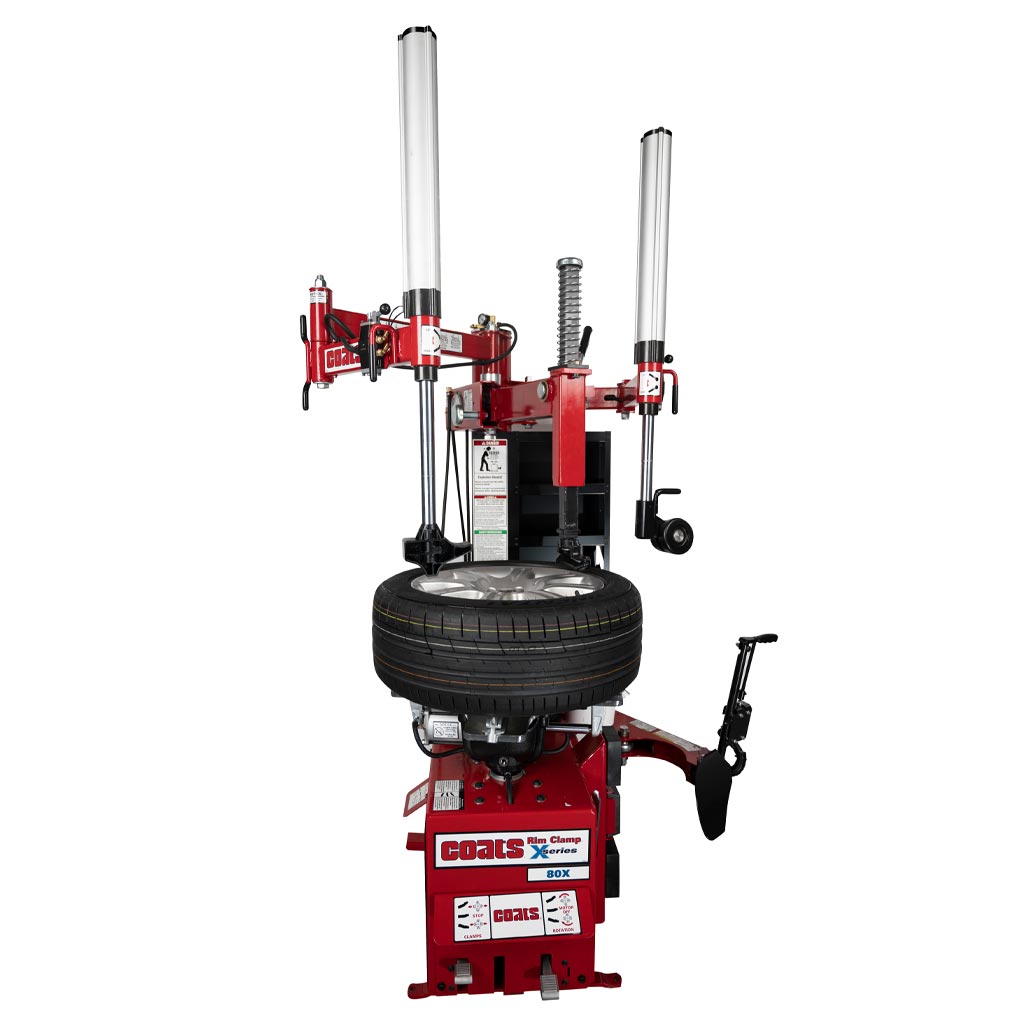

Coats 80X Rim Clamp Tire Changer with Robo-Arm Helper Device - Choose Electric or Air Motor
PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
The Best Just Got Better! The Coats® Rim Clamp® tire changer has become the industry standard due to its legacy of durability, reliability, and upgradability. The X-Series® is an upgraded version of the Coats Rim Clamp changer you have always known and trusted with new features to make it the best platform in the business, operating with the speed you expect from a swing arm tire changer.
Upgraded Chassis Design: Wheel and tire service is a hard business. Get a tire changer that can take the abuse. 80X features a brand new chassis designed especially for high-volume, high-duty cycle tire shops that need to go the extra mile.
220V, 2 Horsepower Electric Motor: The completely redesigned Coats 80X features a rugged 220V, 2 horsepower motor that can power through tough assemblies from low profiles to trucks and off-road mud tires.

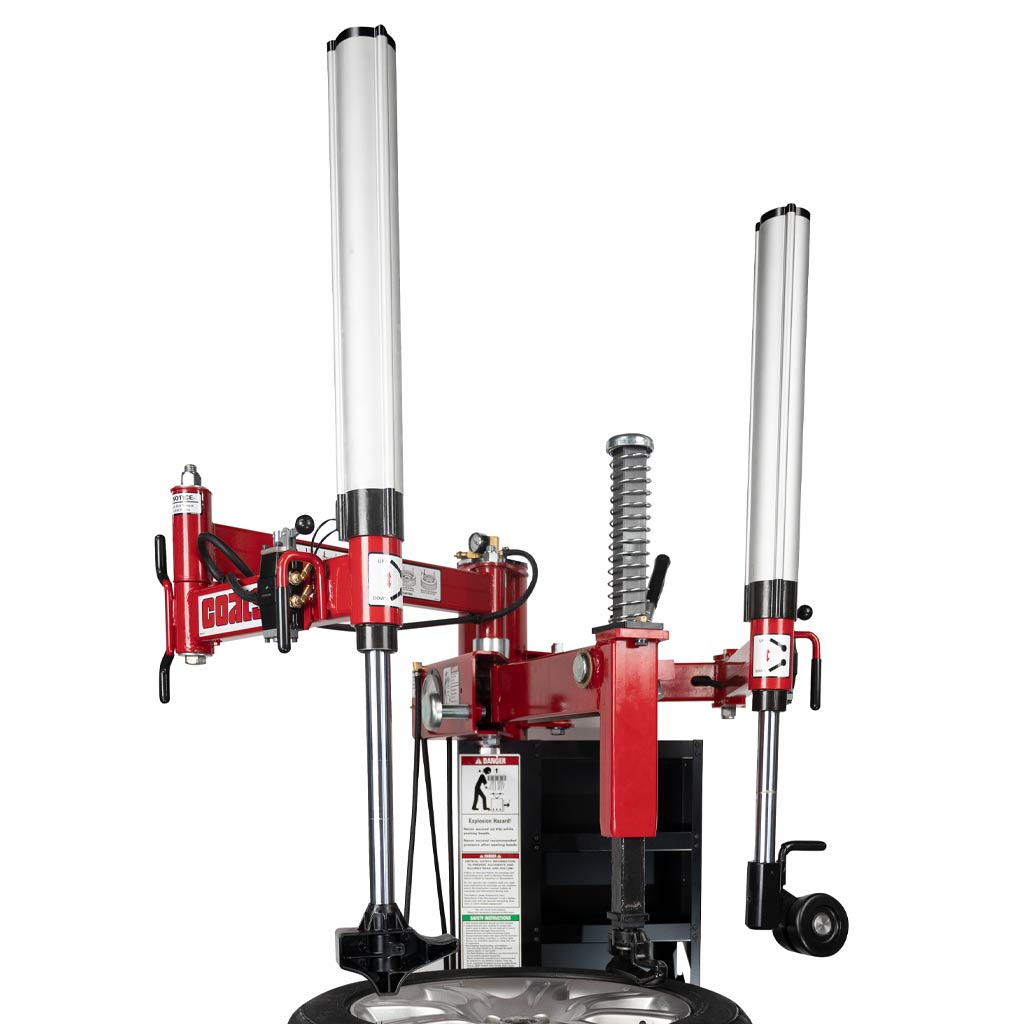

Patented Robo-Arm® Helper Device: Helper device assists in efficiently changing low profile or run flat tires.
RoboRollerTM Powered Assist Arm: Air powered, articulating roller arm provides direct pressure on the bead to prevent it from rolling back over the mounting tool.
Single Point Bead Sealer: Concentrates air flow to seal beads more efficiently and eliminates excessive maintenance.
Included Accessories:
- (2) Coats 8183606 Bead Loosener Shoe Socks
- Coats 85009048 Paste Lube Bracket & Brush
- Coats 8184432 Grey High Spoke Duckhead® Mount/Demount Tool
- (2) Coats 8182961 Duckhead® Mount/Demount Tool Inserts
- (4) Coats 85611029 GripMax 2.0 Clamps
- Coats 8184126EX Steel Clamps
- (10) Coats 85000783 Lift Tool Socks
- Coats 85610105 Premium Storage Cabinet
Specifications:
| Coats Part Number | Electric Model: 80080XEH220, Air Model: 80080XAH3 |
| Wheel Handled |
Alloy and Steel for Car and Light Truck |
| Rim Diameter |
6″ - 24″ External |
| Maximum Tire Diameter |
50″ |
| Maximum Rim Width |
14″ |
| Bead Loosening System |
Hand Controlled, Up to 14″ Wide |
| Wheel Clamping System |
4 Clamps, Air Cylinder Operated |
| Mount/Demount Mechanism |
Swings Away for Better Access and Durability |
| Helper Devices |
Robo-Arm (18″ of Automated Vertical Stroke), RoboRoller |
| Bead Seating Air Volume |
5.4 Gallons in Tower |
| Inflation Gauge |
0 - 60 psi |
| Air Supply Gauge |
0 - 300 psi |
| Air Drive System |
1.5 HP Air Motor, 110 - 175 psi, 15 scfm (Air Model Only) |
| Electric Drive System | 2 HP Electric Motor, 220 V, 60 Hz, 14 Amp (Electric Model Only) |
| Footprint (WxDxH) | 49″ x 48″ x 85″ |
| Weight | 700 lbs |
| Warranty | 3 Year Parts, 6 Months Labor |
Need replacement parts? Call or email us and we can special order them for you!
