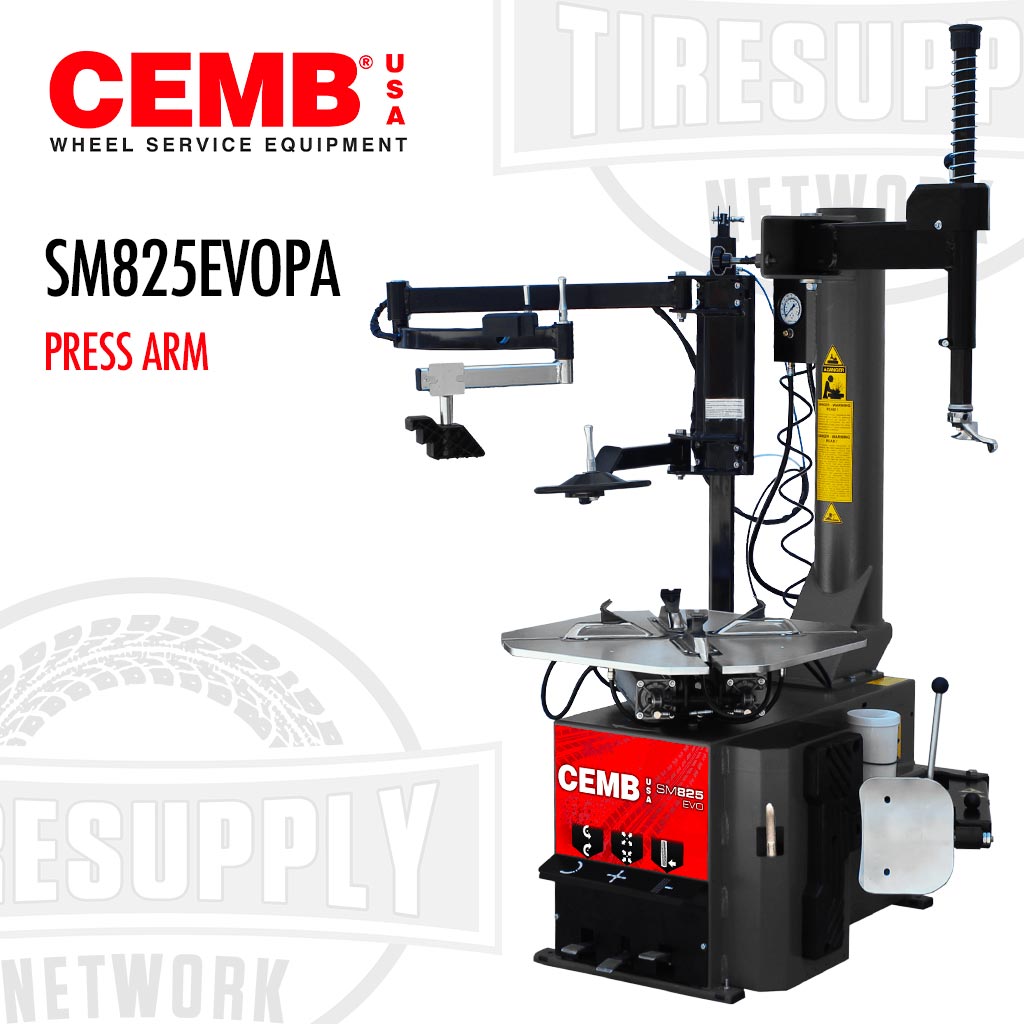

CEMB | Space Saving Press Arm Tire Changer (SM825EVOPA)
The Press Arm (SM825EVOPA) is a great place to start for general service of the majority of OEM fitments and many custom tires and wheels. These durable machines are equipped with basic features, intended for mid-volume use.
Key Features:
- Mounting Head
- Table Top Clamping
- High Performance Press Arm
- Two Stage Inflation
- Bead Breaker Shovel
- Air Powered Optional
Standard Features:
- A high-performing press arm system to handle stiff side wall tires and custom wheels
- Features dual table clamping cylinders with value-added specifications for protection of alloy wheels and outside clamping from 13″-24″ wheels
- Dual-stage inflation system with safety limiter and bead sealing inflation jets built into the clamping jaws
- Custom mount/demount head features replaceable plastic inserts to protect wheels
- Powerful, multi-angle adjustable bad breaker shovel loosens the most difficult tires and wheels
- Requires compressed air and 100V. Air-powered motor is also available
Technical Specs:
| Power Supply | 110V, 1ph |
| Air Pressure |
145psi (10bar) |
| Rim Diameter (Ext.) | 12" - 24" |
| Tire Diameter: | 44" |
| Max. Wheel Width: | 15" |
| Turn Table Speed: |
8 - 15 rpm |
| Shipping Weight: | 630 lbs. (286 kg) |
| Dimensions: (W) x (H) x (D) | 44.8" x 68.8" x 37.2" |
| Warranty: | 2 Years Parts / 1 Year Labor |
