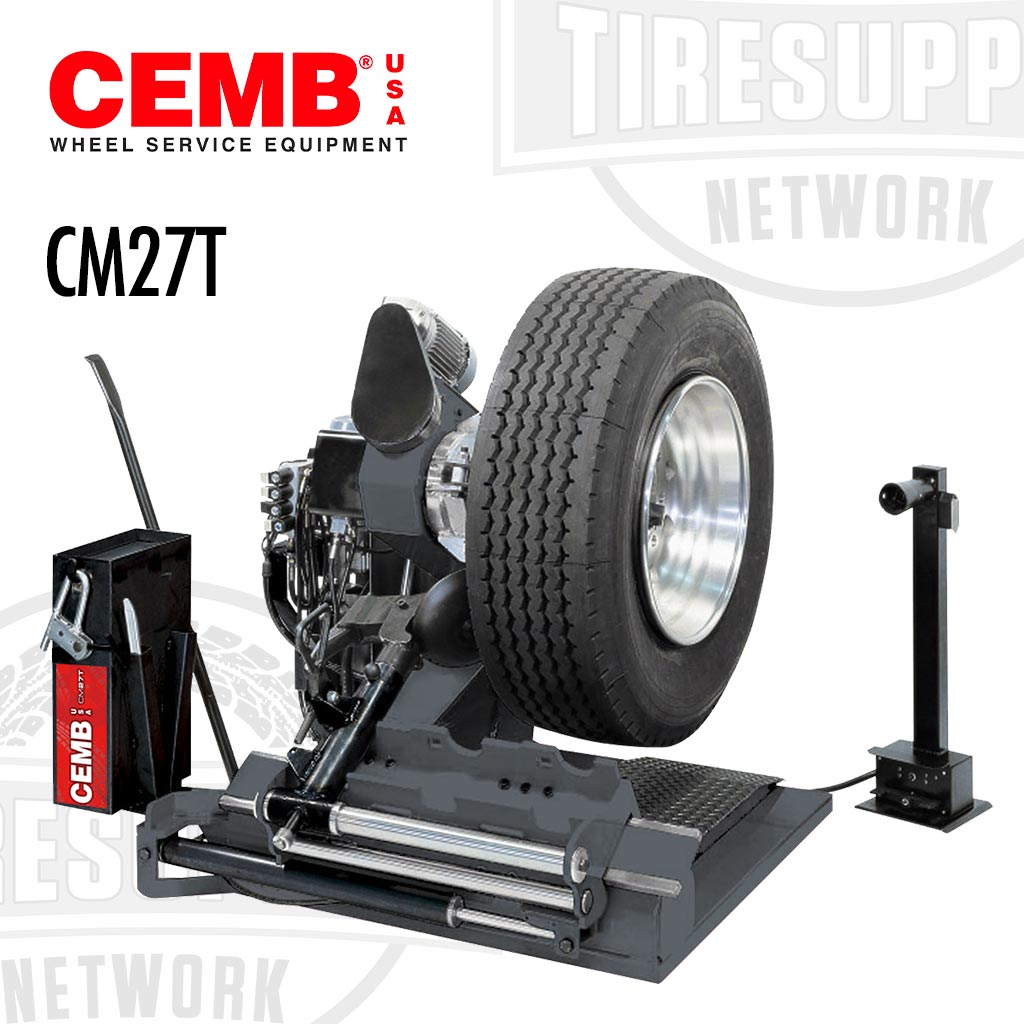

CEMB | Heavy Duty Truck & Bus Tire Changer (CM27T)
The CM27T is perfectly suited for tube and tubeless type tires used on over-the-road Class 8 commercial trucks and some off-road tractor tires and rims. The pivoting four-jaw clamping chuck aids as a wheel lift. Prevents liabilities of manual truck tire changing by allowing the machine to perform all the heavy lifting and service work.
Key Features:
- Self-centering wheel clamping from 13”-27” diameter and tire diameters to 63”. Nominal HD truck wheel service ranges from 15” to 24.5” rims
- All operation controlled from a portable control unit to gain access to multiple areas around the tire and wheel during service. Aids in tire bead lubrication, demounting and mounting
- Bi-directional rotation of the clamping system works with an adjustable bead loosening roller force of over 4100 LbF. (1860 KgF)
- Heavy duty 220v, 1 ph. 50/60 Hz high torque motor
- Final assembly and tested in the USA
Technical Specs:
| Power Supply | 220V, 1ph |
| Air Pressure |
0-1885psi (0-130bar) |
| Rim Diameter (Ext.) | 13" - 27" |
| Tire Diameter: | 63" (1600mm) |
| Max. Wheel Width: | 30" (780mm) |
| Bead Breaker Force: |
4100 lbs (1860kg) |
| Shipping Weight: | 1415 lbs. (640 kg) |
| Dimensions Min: (W) x (H) x (D) | 56" x 35" x 61" |
| Dimensions Max: (W) x (H) x (D) | 69" x 50" x 68.5" |
| Warranty: | 2 Years Parts / 1 Year Labor |
