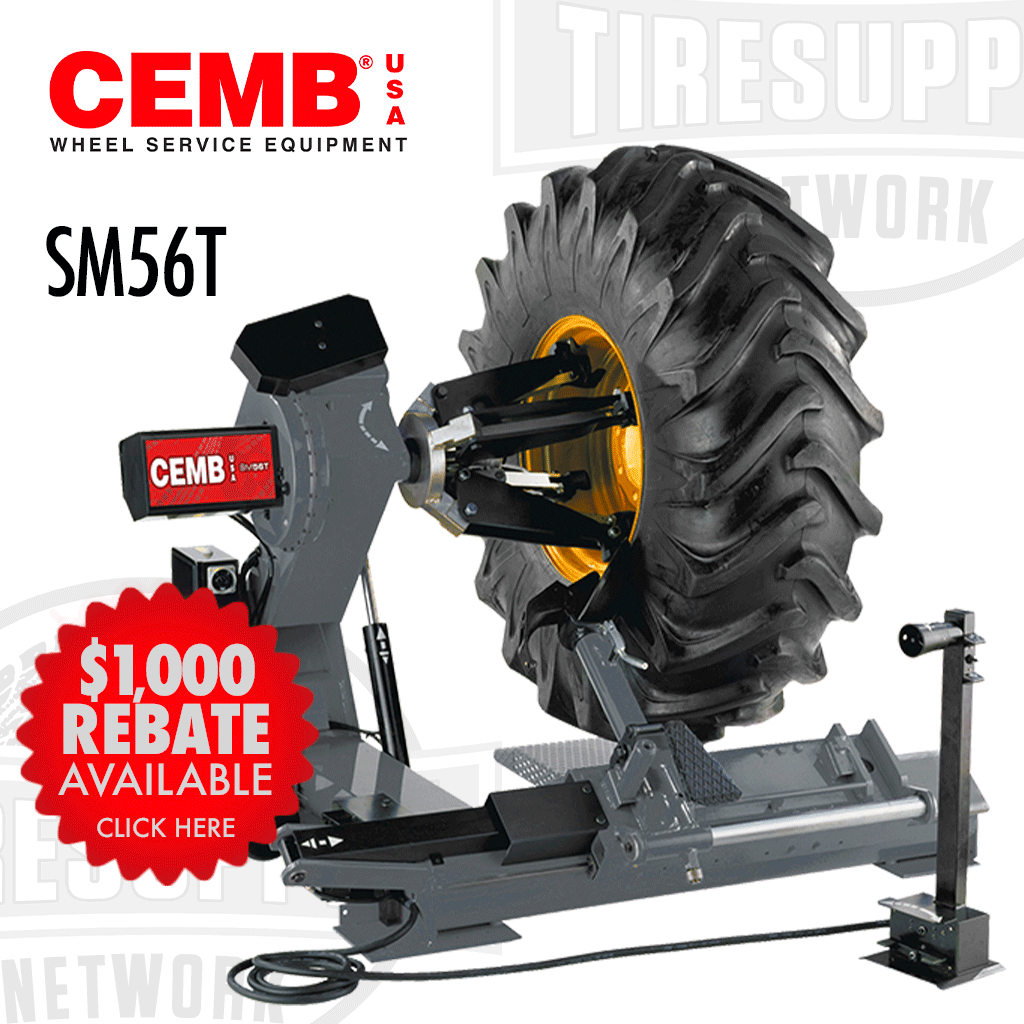

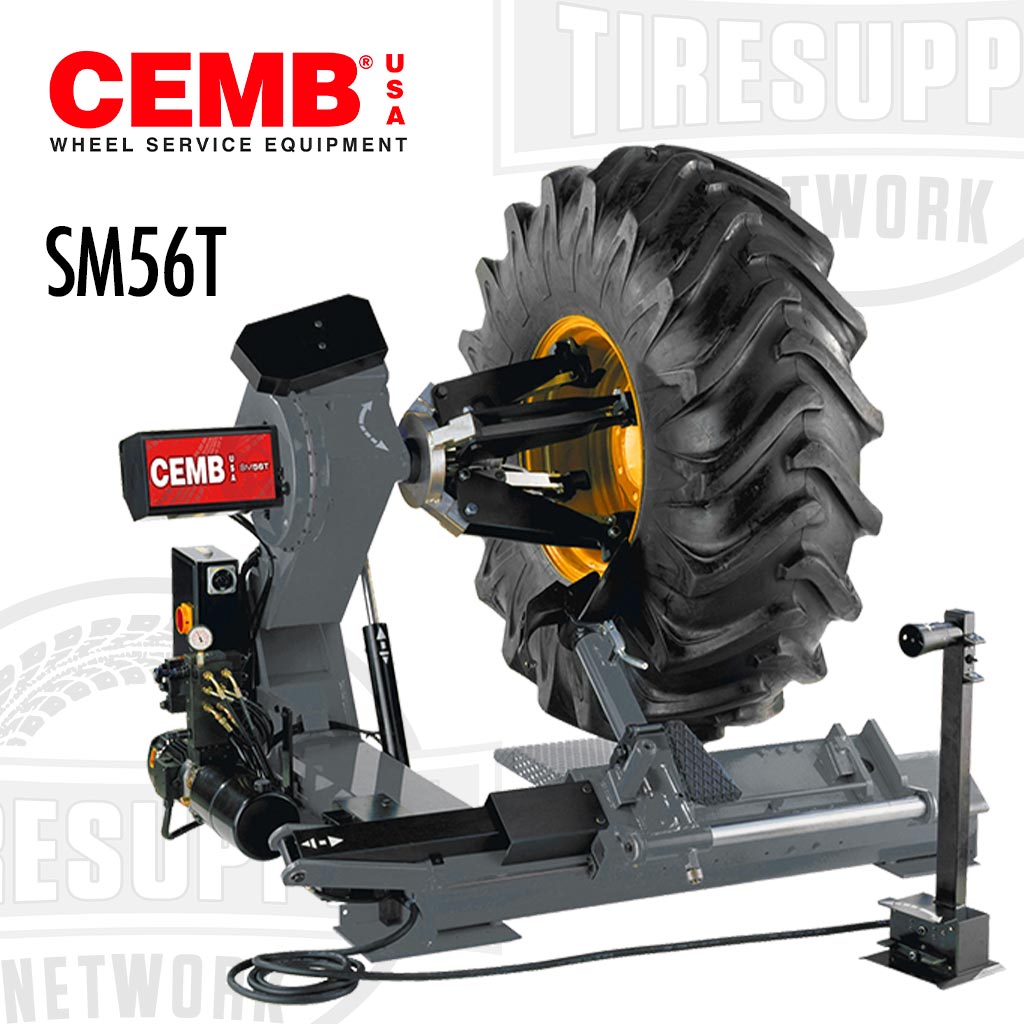

CEMB | Heavy Duty Off-Road Tractor Tire Changer (SM56T)
A heavy-duty off-road tractor tire changer with wheel clamping range from 14”-46”, maximum tire diameter of 90” and maximum tire width 42”. Perfectly suited for tube and tubeless tires used on heavier off-road farm and commercial use tractors.
Key Features:
- Self-centering wheel clamping from 14”-46” diameter and tire diameters to 90”
- Utilizes a self-centering four jaw clamping jaw drive system which doubles as a wheel lift
- All operation controlled from a portable control unit to gain access to multiple areas around the tire and wheel during service. Aids in tire bead lubrication, demounting and mounting
- Bi-directional rotation of the clamping system works with an adjustable bead loosening roller force of over 4100 LbF. (1860 KgF)
- Operated with a simple to use hand-held control unit
- Heavy duty 220v, 3 ph. 50/60 Hz high torque motor
- Final assembly and tested in the USA
Technical Specs:
| Power Supply | 220V, 3ph |
| Air Pressure |
0-1885psi (0-130bar) |
| Rim Diameter (Ext.) | 14" - 46" |
| Tire Diameter: | 90.5" (2300mm) |
| Max. Wheel Width: | 42" (1067mm) |
| Bead Breaker Force: |
6000 lbs (2721kg) |
| Shipping Weight: | 2000 lbs. (907 kg) |
| Dimensions Min: (W) x (H) x (D) | 56.3" x 33.6" x 61" |
| Dimensions Max: (W) x (H) x (D) | 68.9" x 50" x 68.5" |
| Warranty: | 2 Years Parts / 1 Year Labor |
Compliance and Restrictions
