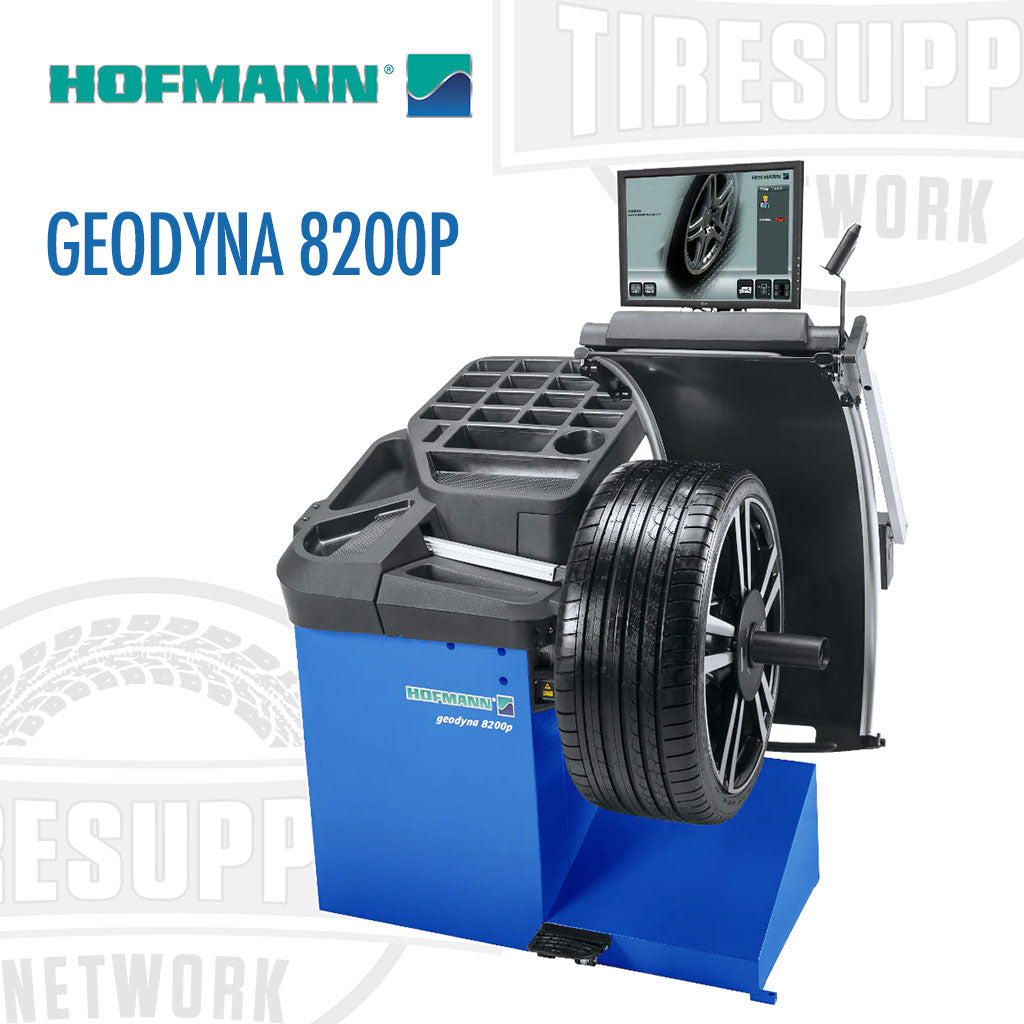

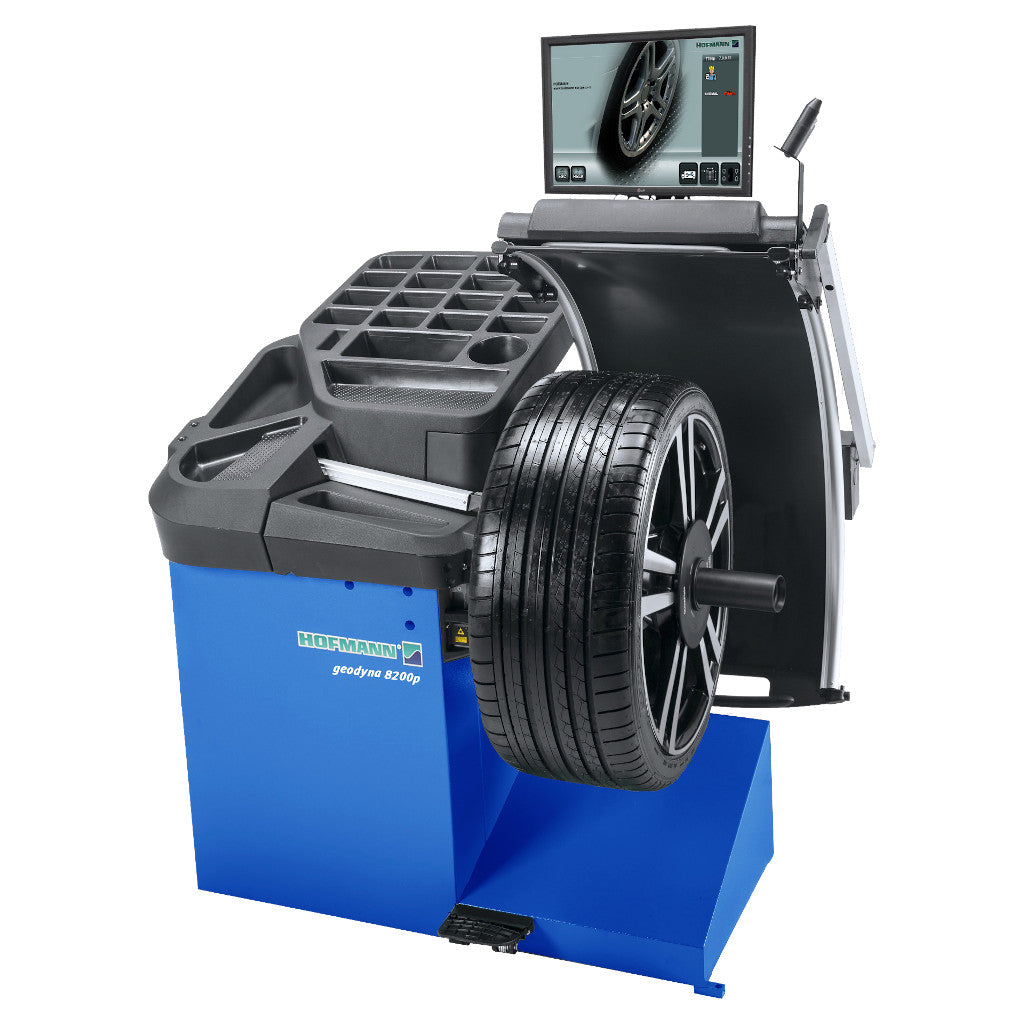

Hofmann Geodyna 8200P Wheel Balancer with Non-Contact Data Entry & Diagnostic Functions

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Hofmann Geodyna 8200P Wheel Balancer with Non-Contact Data Entry & Diagnostic Functions

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

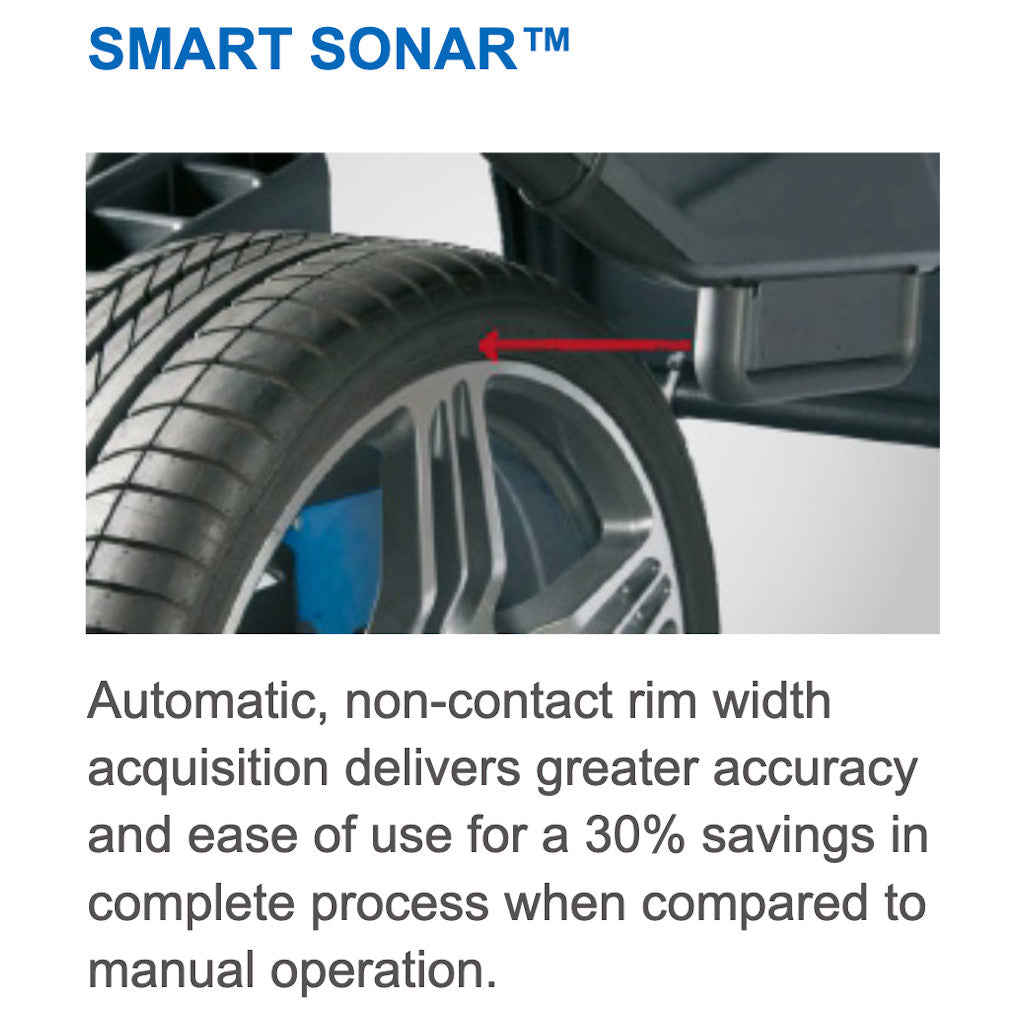

A video wheel balancer for cars and light trucks, the Geodyna 8200 series feature fully automatic data entry via scanner and Smart Sonar, the Power Clamp electromechanical clamping system, the pinpoint easyWEIGHT laser and touchscreen interface for unequaled productivity and unbeatable performance.

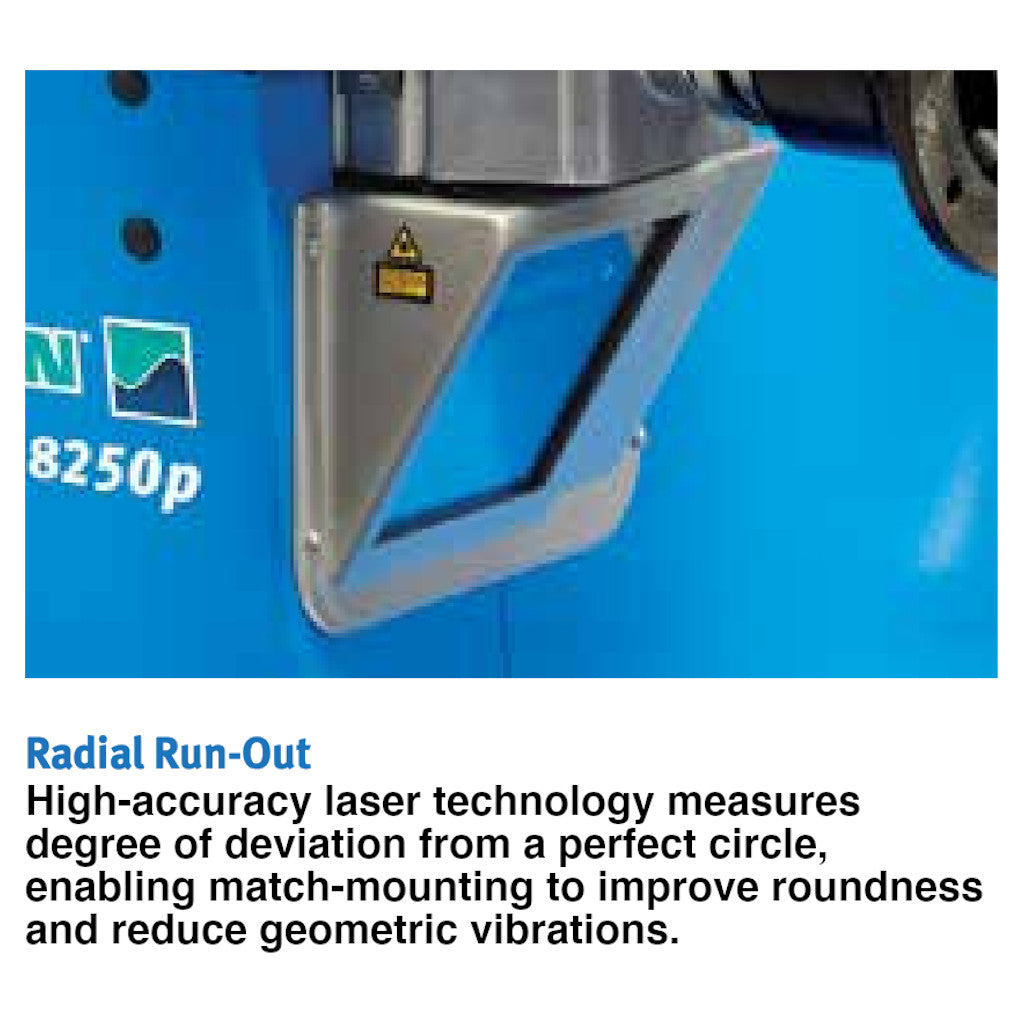

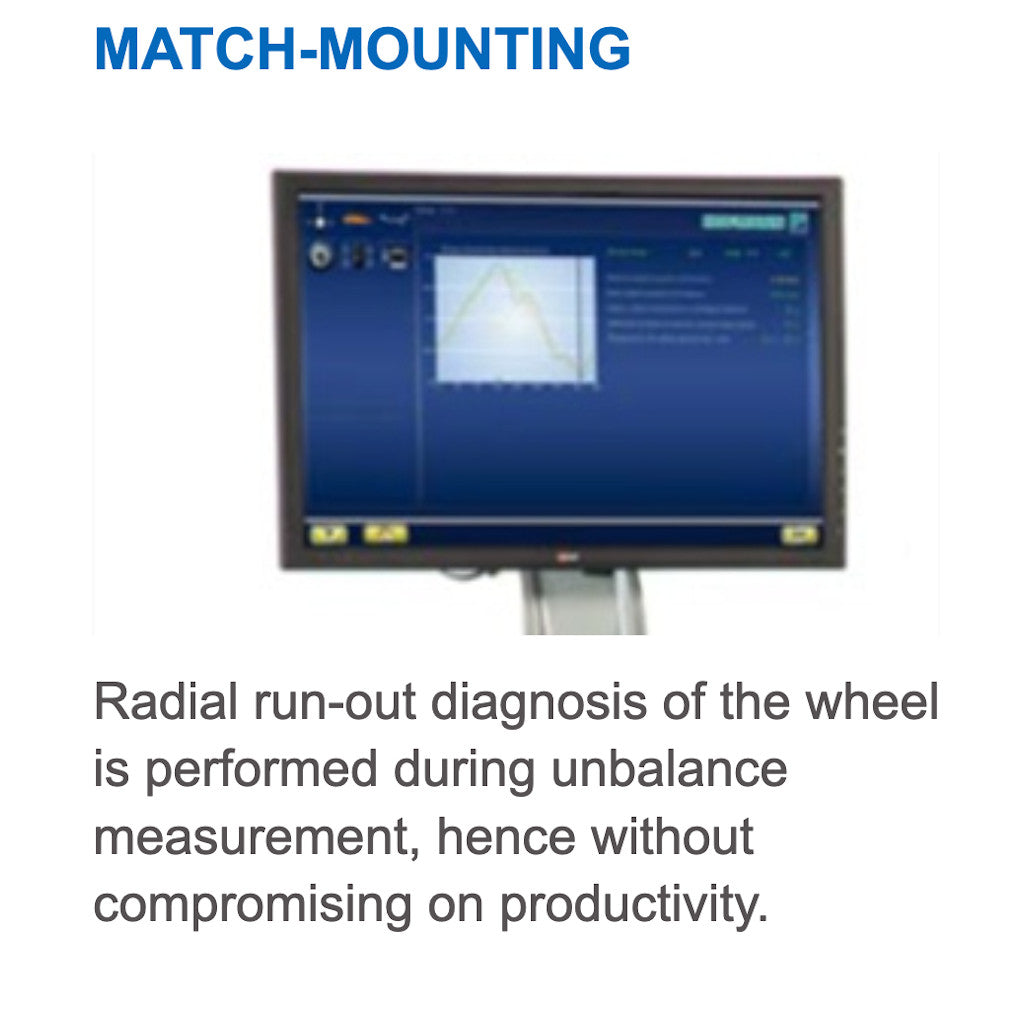

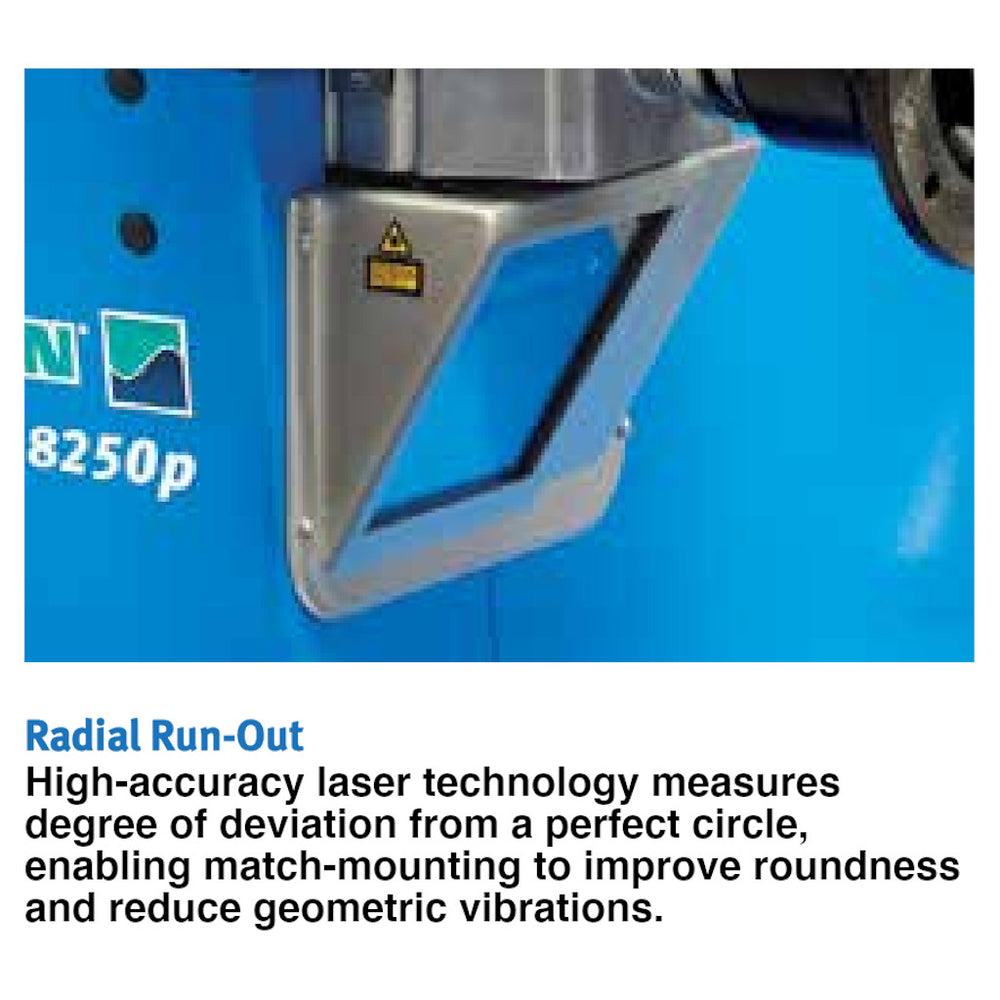

Radial Run-Out: High-accuracy laser technology measures degree of deviation from a perfect circle, enabling match-mounting to improve roundness and reduce geometric vibrations.

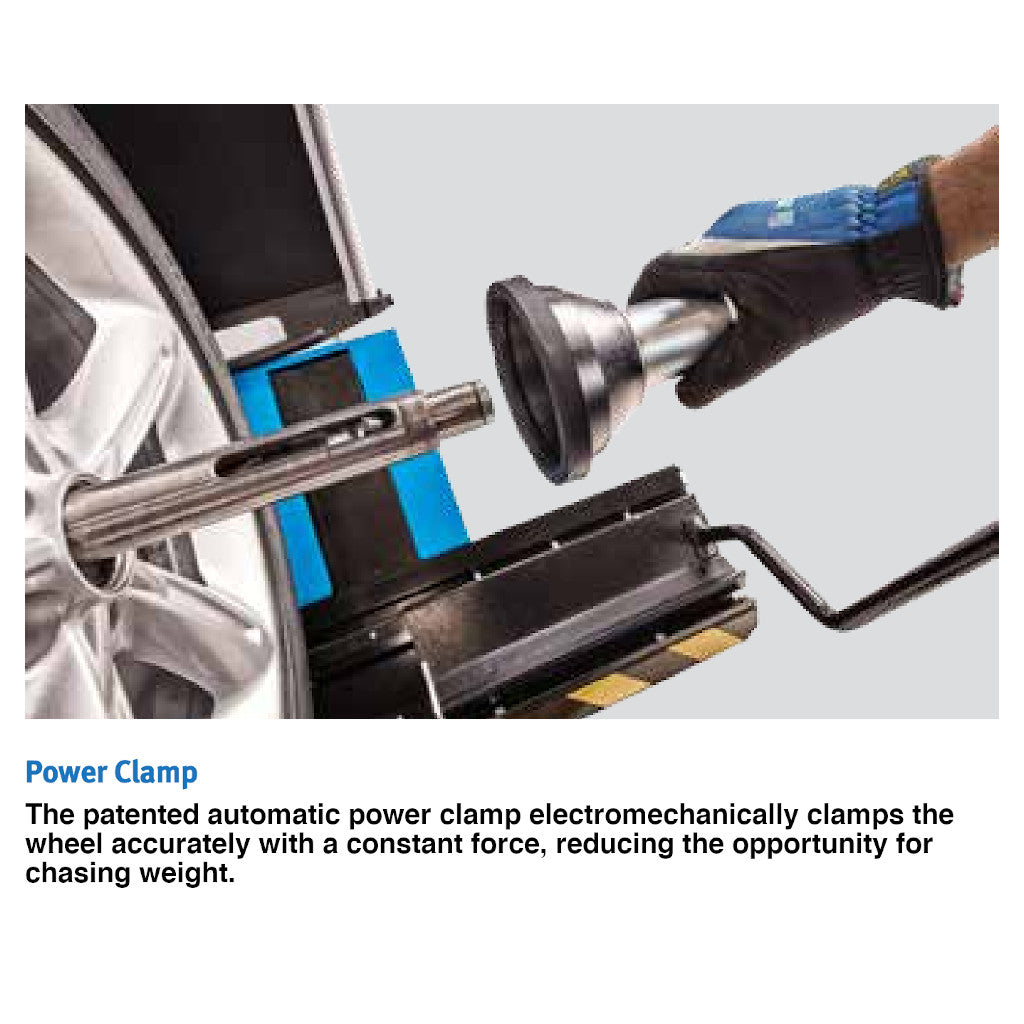

Power Clamp: The patented automatic power clamp electromechanically clamps the wheel accurately with a constant force, reducing the opportunity for chasing weight.

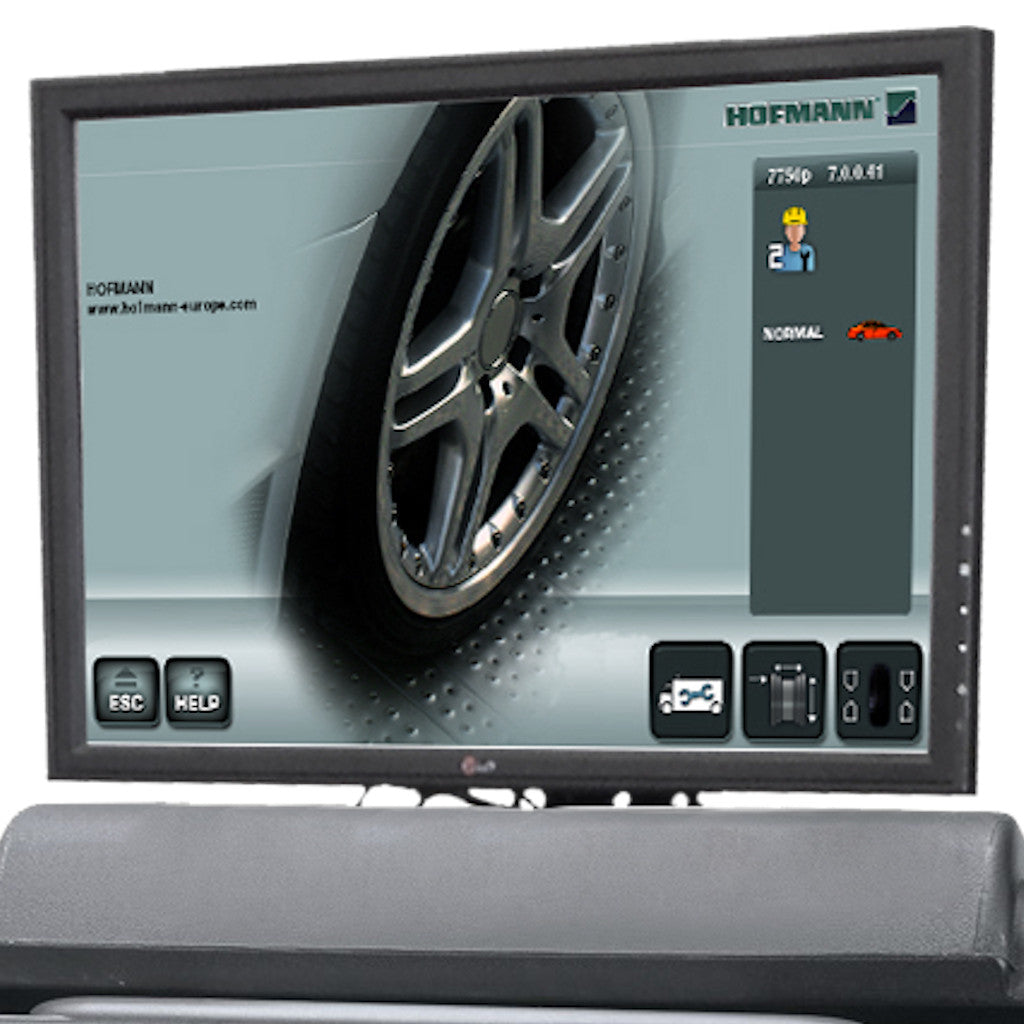

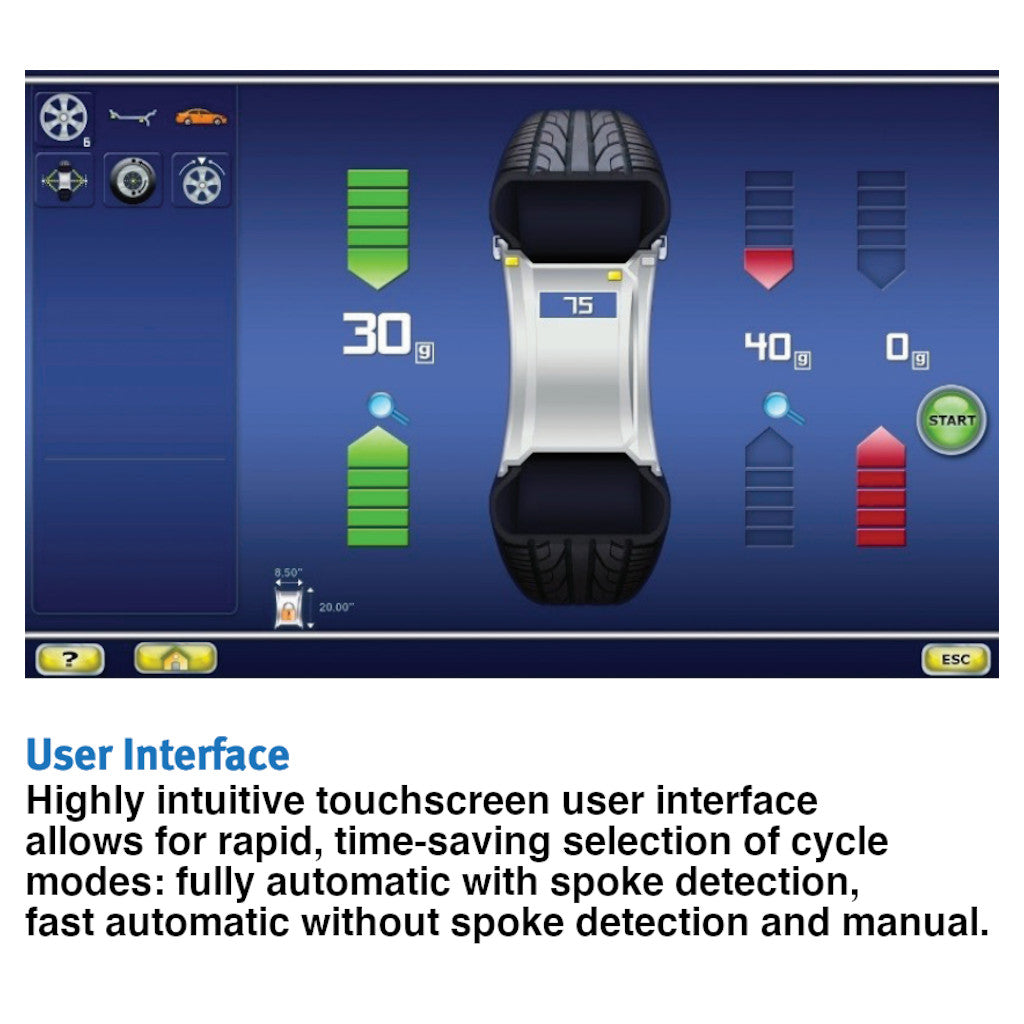

User Interface: Highly intuitive touchscreen user interface allows for rapid, time-saving selection of cycle modes: fully automatic with spoke detection, fast automatic without spoke detection and manual.

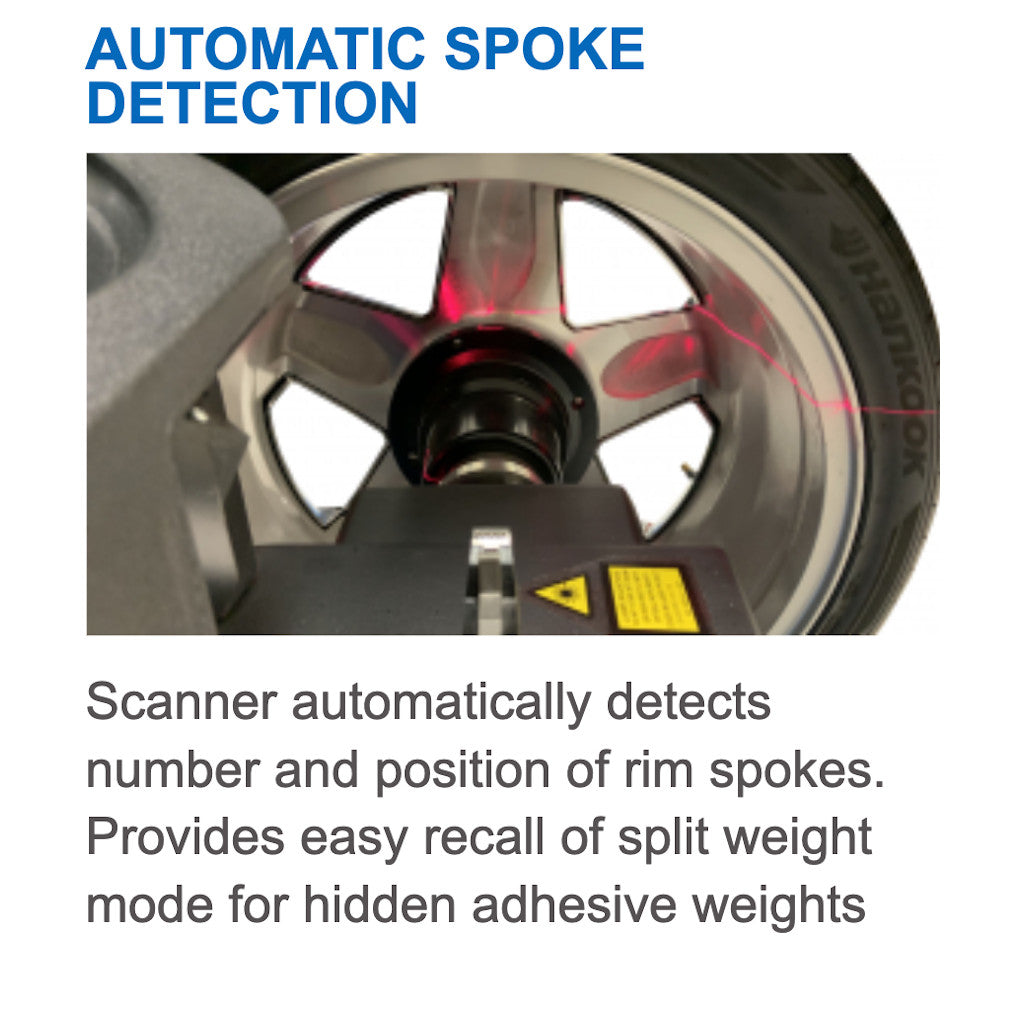

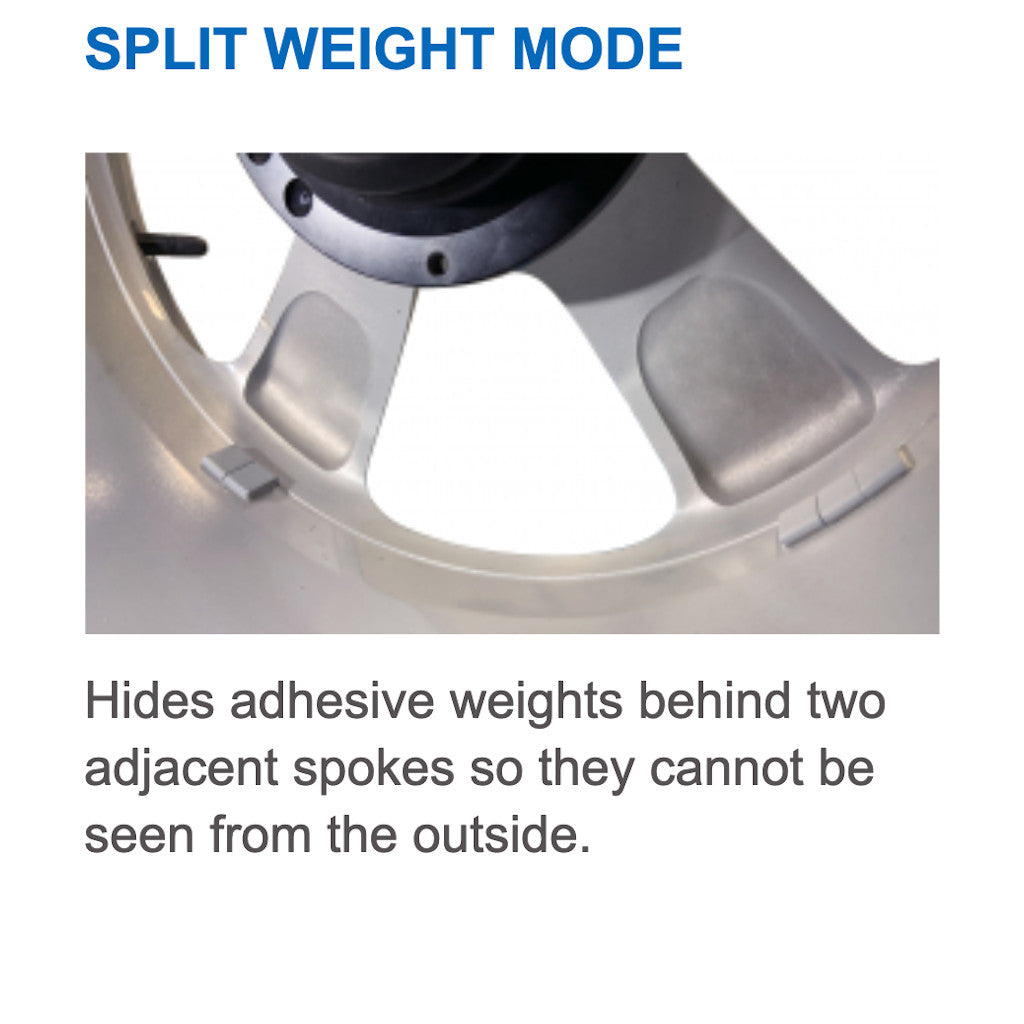

Automatic Spoke Detection: Scanner automatically detects number and position of rim spokes. Provides easy recall of split weight mode for hidden adhesive weights by simply pressing an icon on the screen.

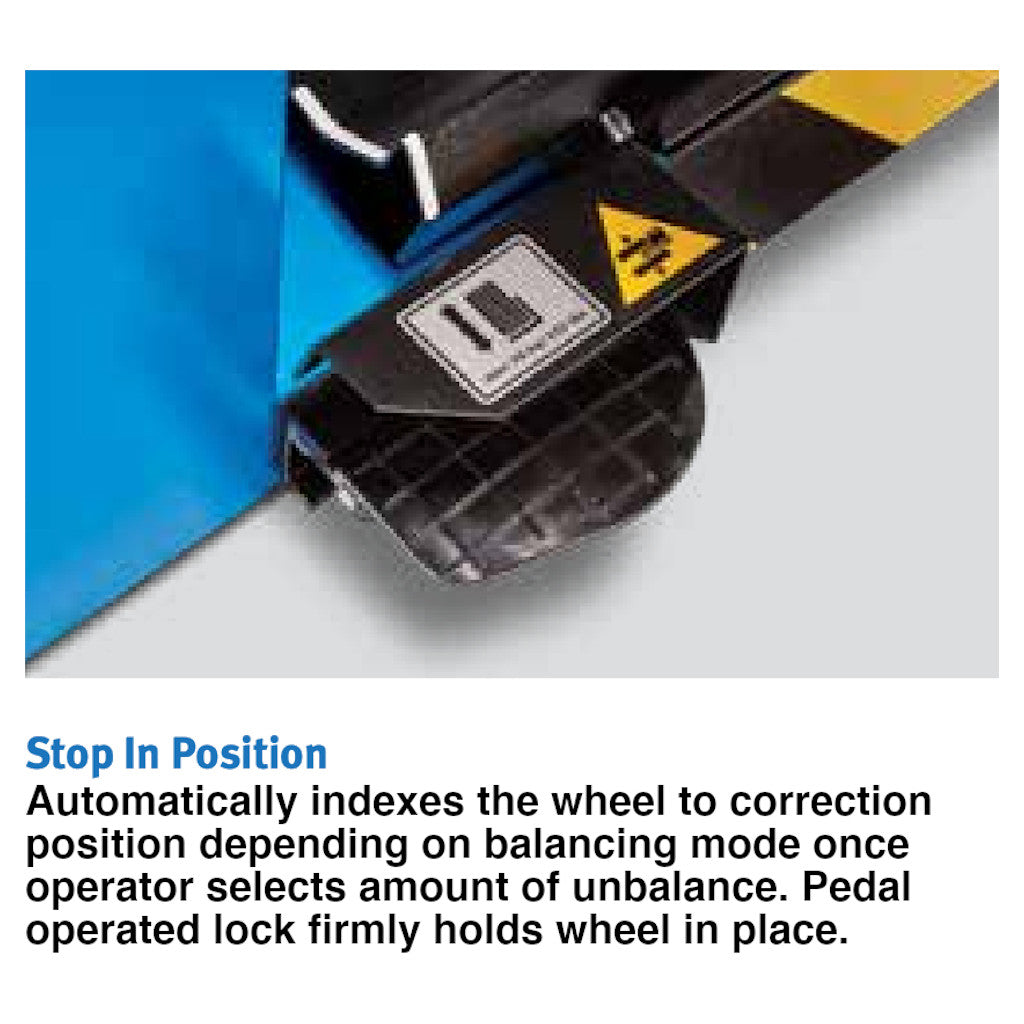

Stop In Position: Automatically indexes the wheel to correction position depending on balancing.

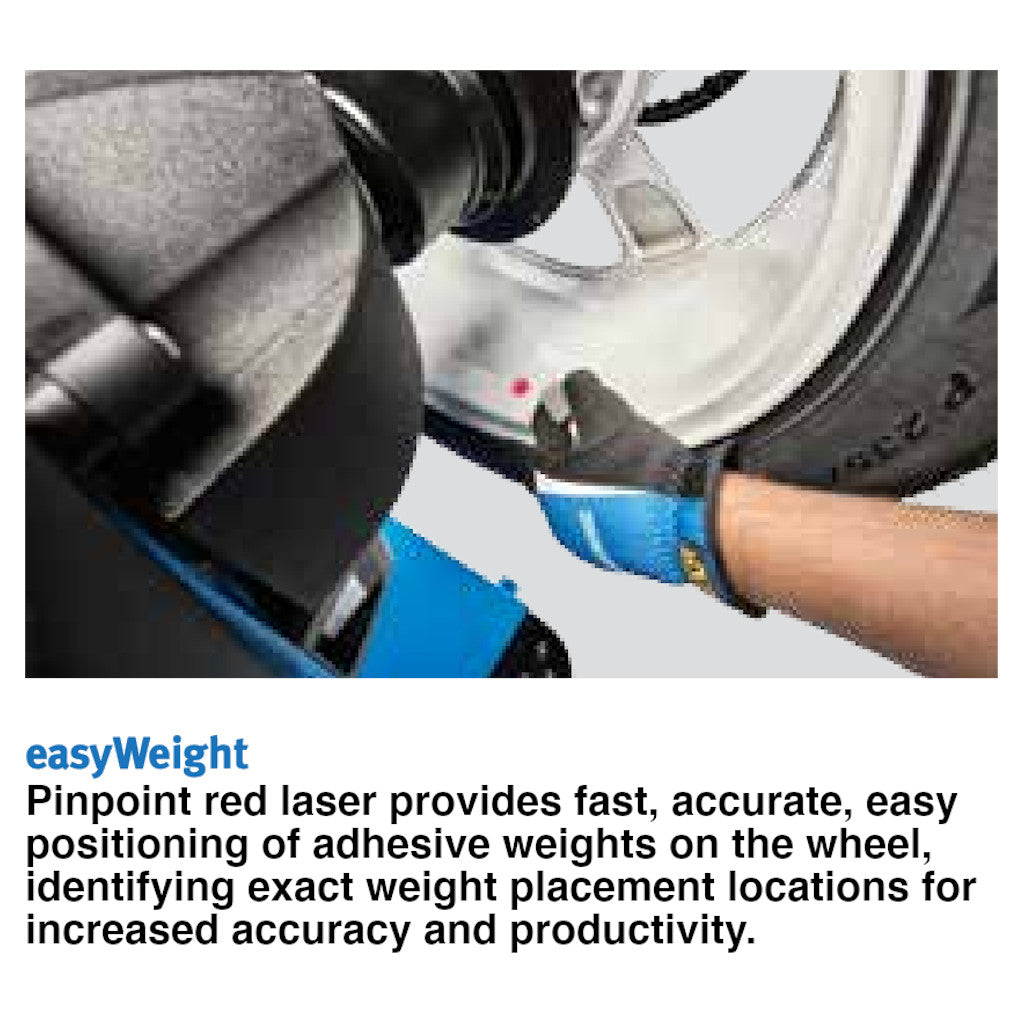

easyWEIGHT: Pinpoint red laser provides fast, accurate, easy positioning of adhesive weights on the wheel, identifying exact weight placement locations for increased accuracy and productivity.

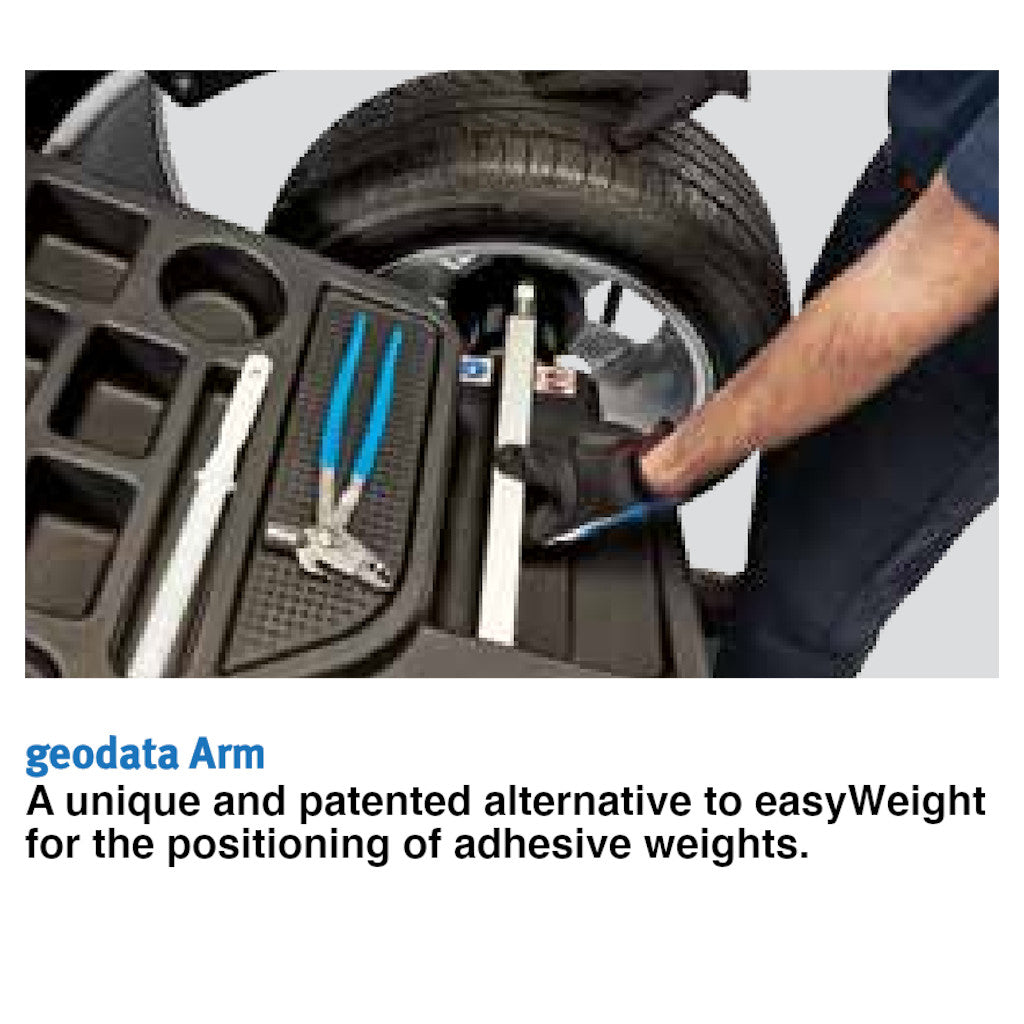

Geodata Arm: A unique and patented alternative to easyWeight for the positioning of adhesive weights.

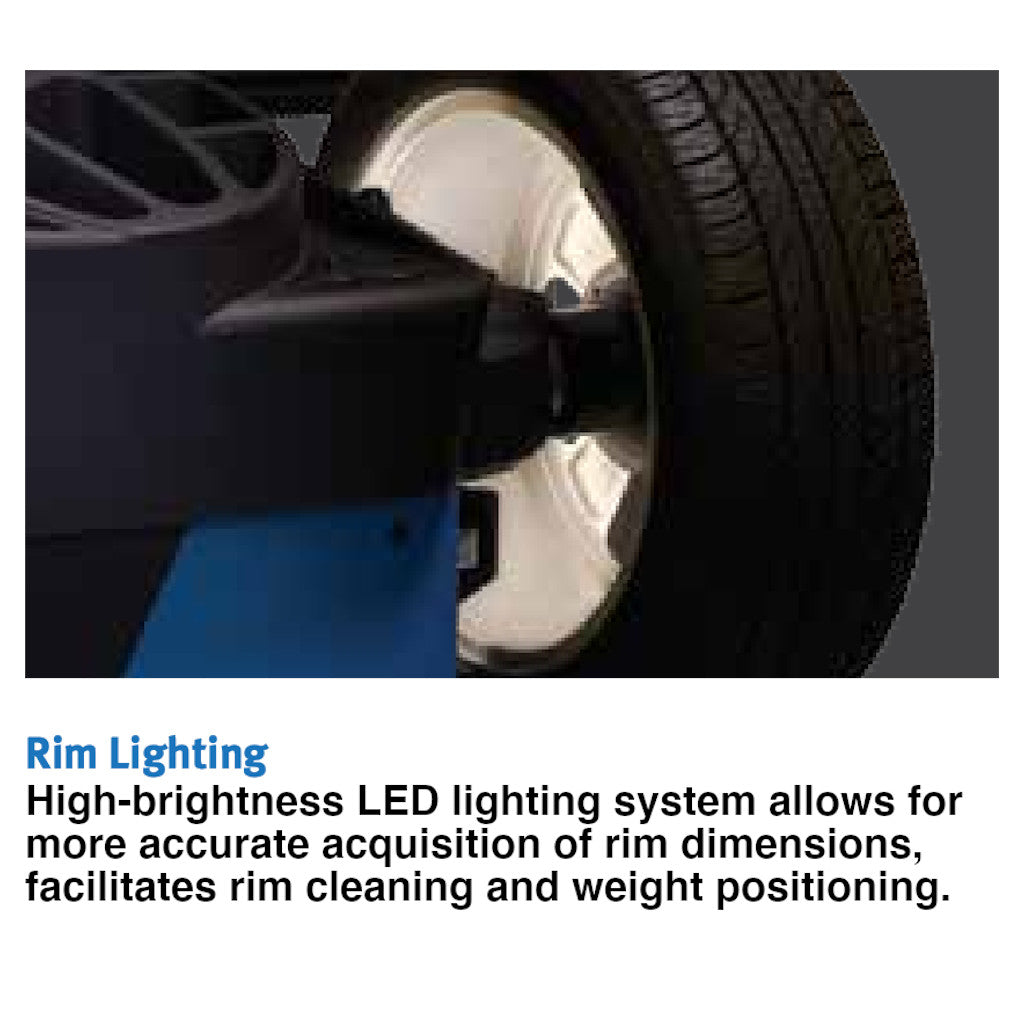

Rim Lighting: High-brightness LED lighting system allows for more accurate acquisition of rim dimensions, facilitates rim cleaning and weight positioning.

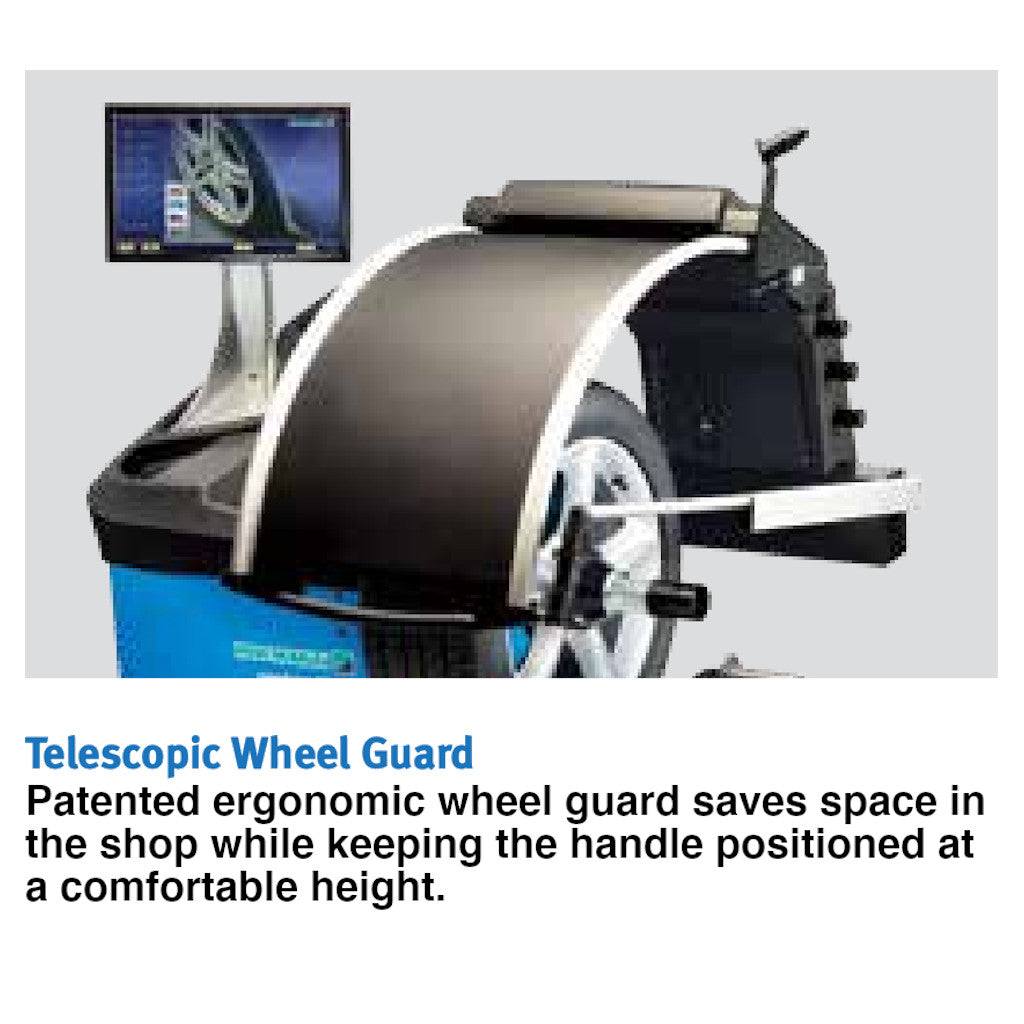

Telescopic Wheel Guard: Patented ergonomic wheel guard saves space in the shop while keeping the handle positioned at a comfortable height.

EZ-Collets Mobile App: Helps service technicians identify the best tools for their wheel balancing jobs. Using the EZ-Collets mobile app, service professionals can select a vehicle to find and compare options for the best collet, flange, or quick plate for the wheel. The app also provides information about the tire and rim for the vehicle.

The EZ-Collets app is free to download through the Apple and Google stores and requires user email activation.

Accessories Included:

  • Spacer Ring
  • Universal Drum
  • Universal Drum Cushion
  • Large Cone (96Mm–116 Mm)
  • Medium Cone (72 Mm–99 Mm)
  • Small Cone (42 Mm–77 Mm)
  • Rim Width Calipers
  • User Calibration Weight
  • Weight Pliers
  • Kit of 4 Pegs to be Mounted to the Left Side
      TECHNICAL DATA Geodyna 8200P
      Hofmann Part Number EEWB766BE5
      Vehicles Supported Cars, Light Trucks, SUVs
      Measuring Speed Less than 200 rpm
      Balancing Accuracy 0.035 oz / 1g
      Angular Resolution 0.7°
      Start/Stop Balancing Time (Wheel 195/65R15) 6.5 seconds
      Check Spin 4.5 seconds
      With Automatic Data Entry 7.5 seconds
      With Automatic Data Entry & Spoke Counting 10.5 seconds
      Manual Data Entry
      Rim Diameter Range 8″ - 32″ (203 - 813 mm)
      Offset Range 1″ - 20″
      Rim Width Range 1″ - 20″
      Semi-Automatic Data Entry (SAPE)
      Rim Diameter Range 8″ - 30″
      Offset Range 1″ - 20″
      Rim Width Range 1″ - 20″
      SAPE Working Range 0″ - 10.55″ (0 - 268 mm)
      Automatic Data Entry (Scanner / smartSonar)
      Rim Diameter Range 14″ - 26″
      Rim Width Range 3″ - 15.8″
      Scanner Offset Range 4.7″ - 16.3″
      Automatic Spoke Counting Yes
      smartSonar Operation Conditions: Rim Diameter Range 14″ - 26″
      Maximum Wheel Dimensions
      Maximum Wheel Diameter 42″ (1067 mm)
      Maximum Wheel Width 3″ - 20″ (76.2 - 508 mm)
      Maximum Wheel Weight 154 lbs (70 kg)
      Additional Specifications
      Diameter of Shaft 40 mm

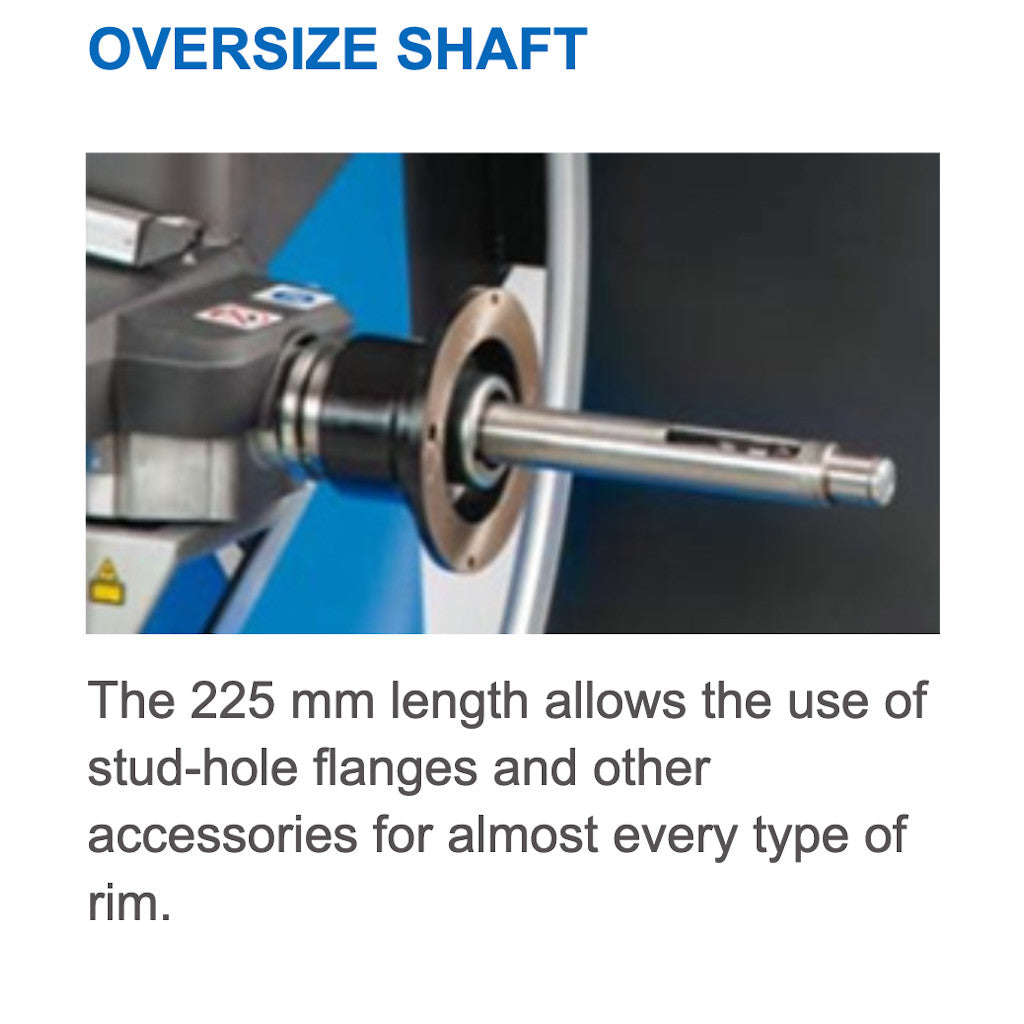

      Length of Shaft 8.86″ (225 mm)
      Balancer Flange Offset 10.55″ (268 mm)
      Wheel Braking After Measurements Automatic
      Power Requirements 230 V, 1 Ph, 50/60 Hz, 4 Amp
      Dimensions (Wheel Guard Open) 76.4″ L x 40.2″ W x 61.8″ H
      Shipping Dimensions 70.1″ L x 47.2″ W x 72.8″ H
      Net Weight 297 lbs (135 kg)
      Software Features
      Radial Run-Out Yes
      Rim Run-Out Yes
      Match Mounting Yes
      Multiple User Capability Yes (9 Users)
      Stop In Position Yes
      Auto Stop System (Weight Arm) Yes
      Rim Lighting Yes
      Split Weight Yes
      Minimization Yes
      Optimization Yes
      Job Counter Yes
