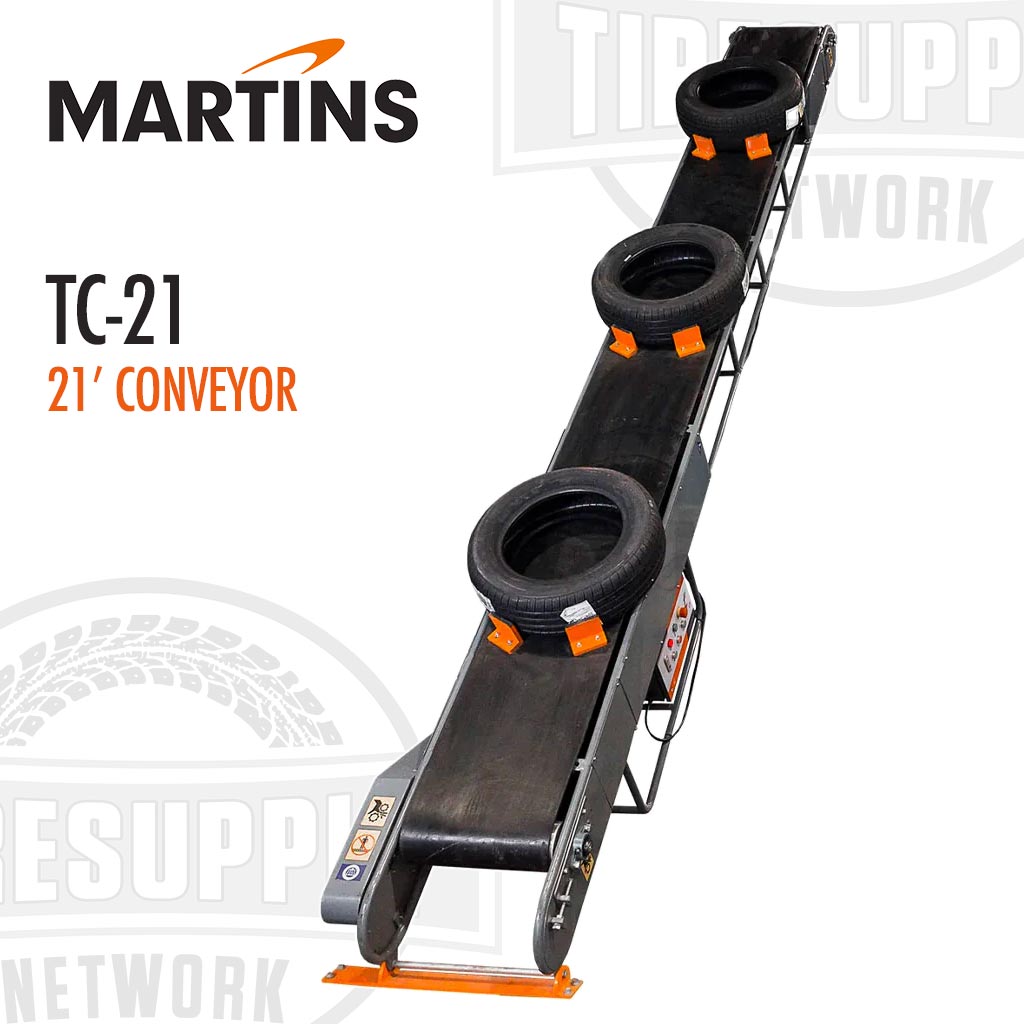

Martins | Floor-to-Floor 21′ Tire Conveyor (TC-21)

Martins Industries | Floor-to-Floor 21′ Tire Conveyor (TC-21)

PLEASE NOTE: This item will ship directly from the manufacturer.

This is a special order item. It is made to order and will require an extended lead time. Should you require a lead time estimate, please contact us via phone or email. Thank you.

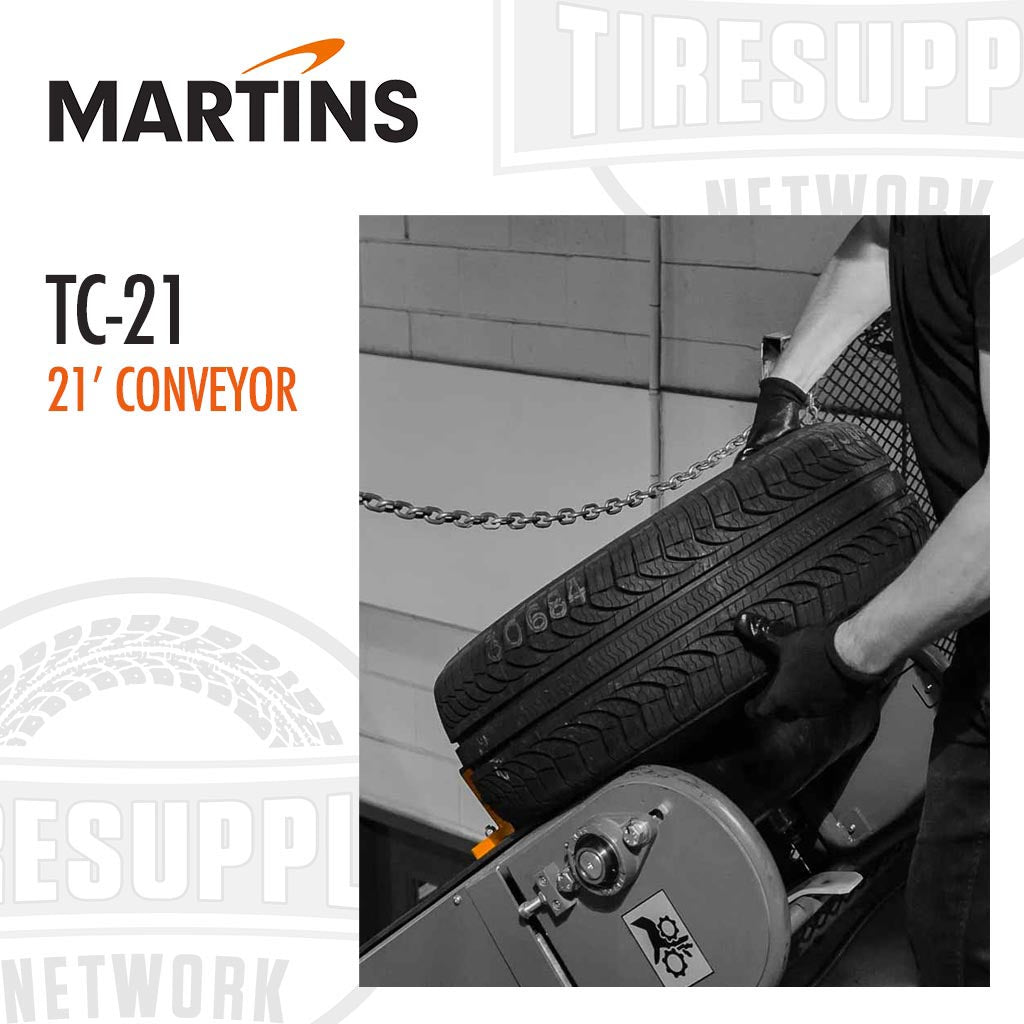

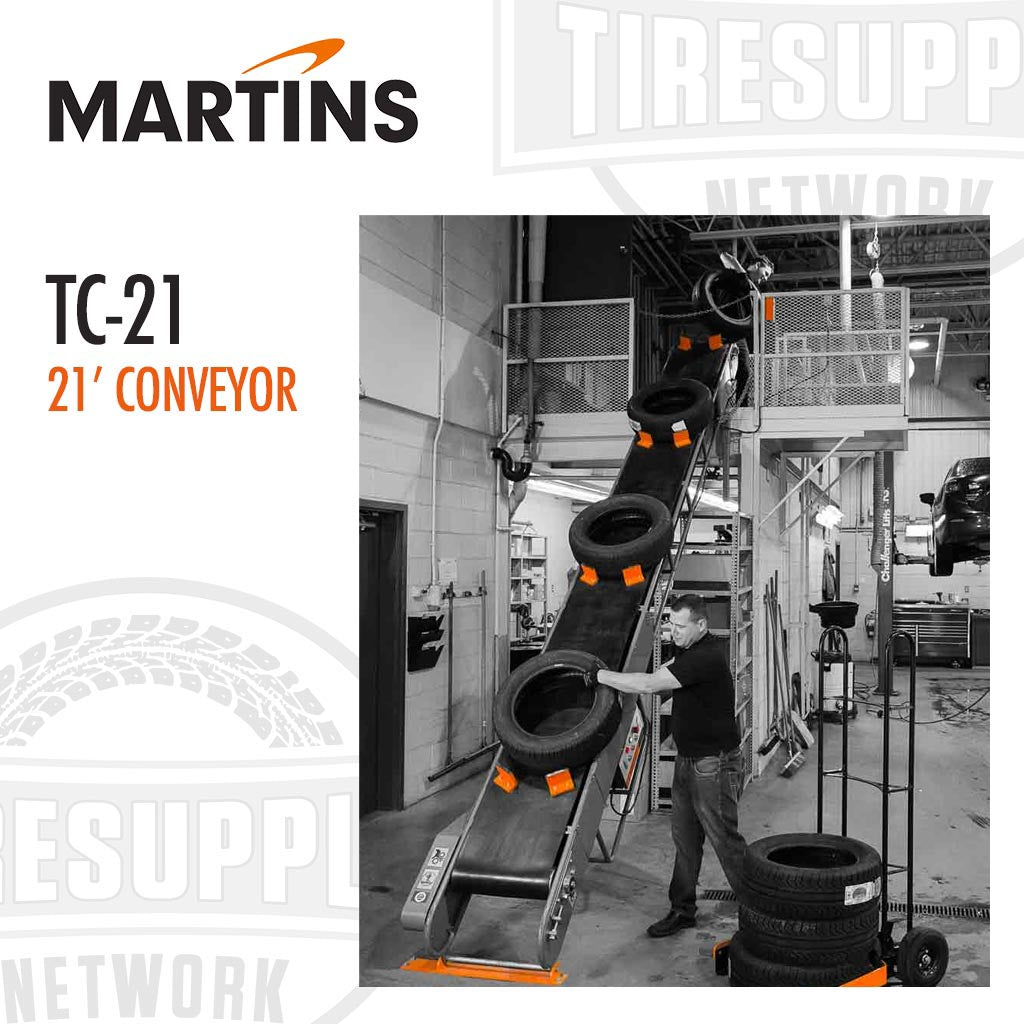

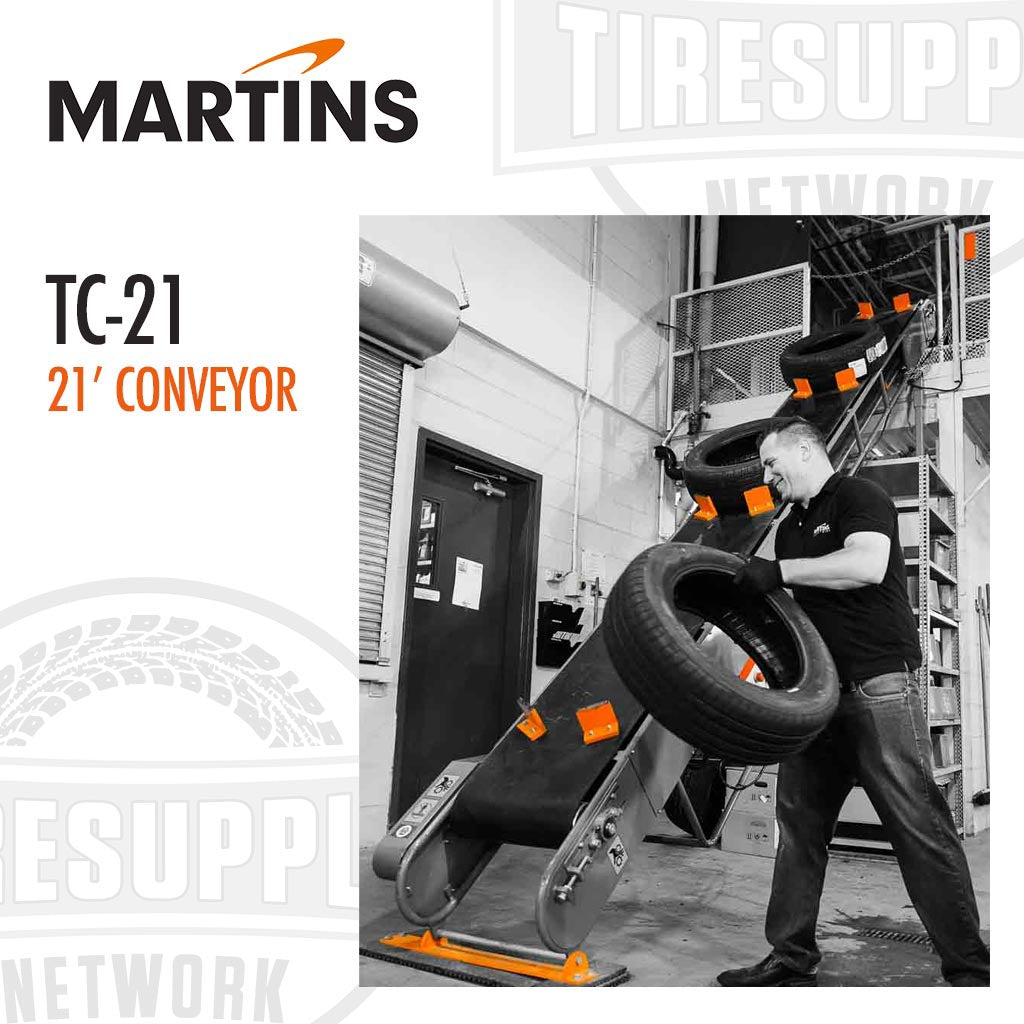

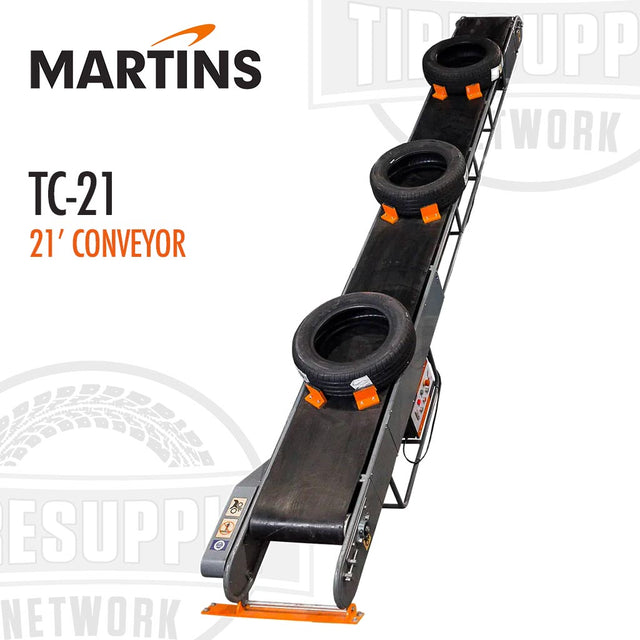

Increase your tire handling productivity with the Plug & Play Tire Conveyor. It’s raised base, firmly anchored to the ground, provides ergonomic working height and therefore prevents injuries from handling tires, wheels and tire/wheel assemblies. Two control boxes are at arms reach at the bottom and top of the conveyor; the latter is supplied with a power cable which allows it to be installed anywhere in your tire warehouse or shop within a radius of 10′. Powered by a 2 HP motor with magnetic brakes, the Floor-to-Floor 21′ Tire Conveyor will maintain your passenger car, SUV & light truck tires perfectly still when stopped.

*Also available in 15′, 18′, and 24′

Features:

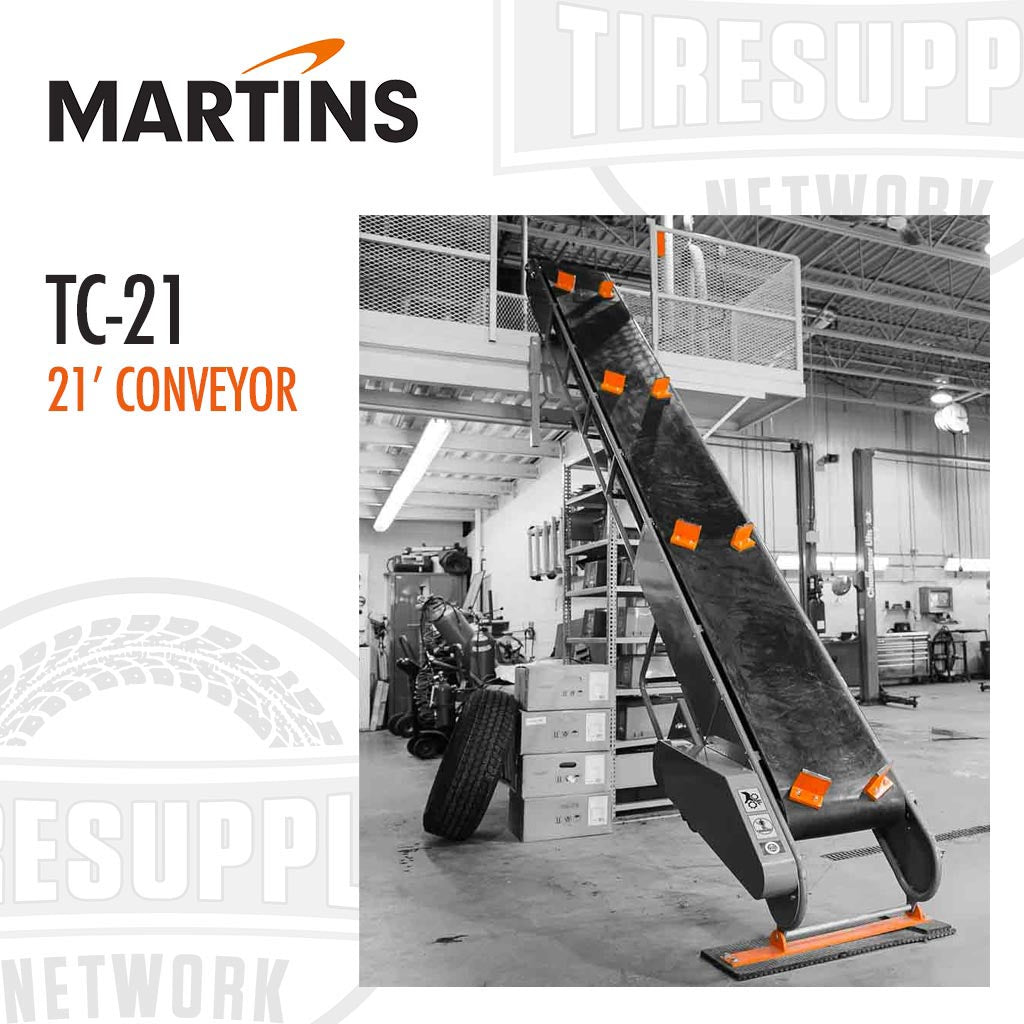

• Speed up tire handling up to and down from your mezzanine at a rhythm as fast as 12 tires per minute
• Tough enough for all your tire/wheel assemblies — Heavy duty rubber belt that can support up to 500 lbs

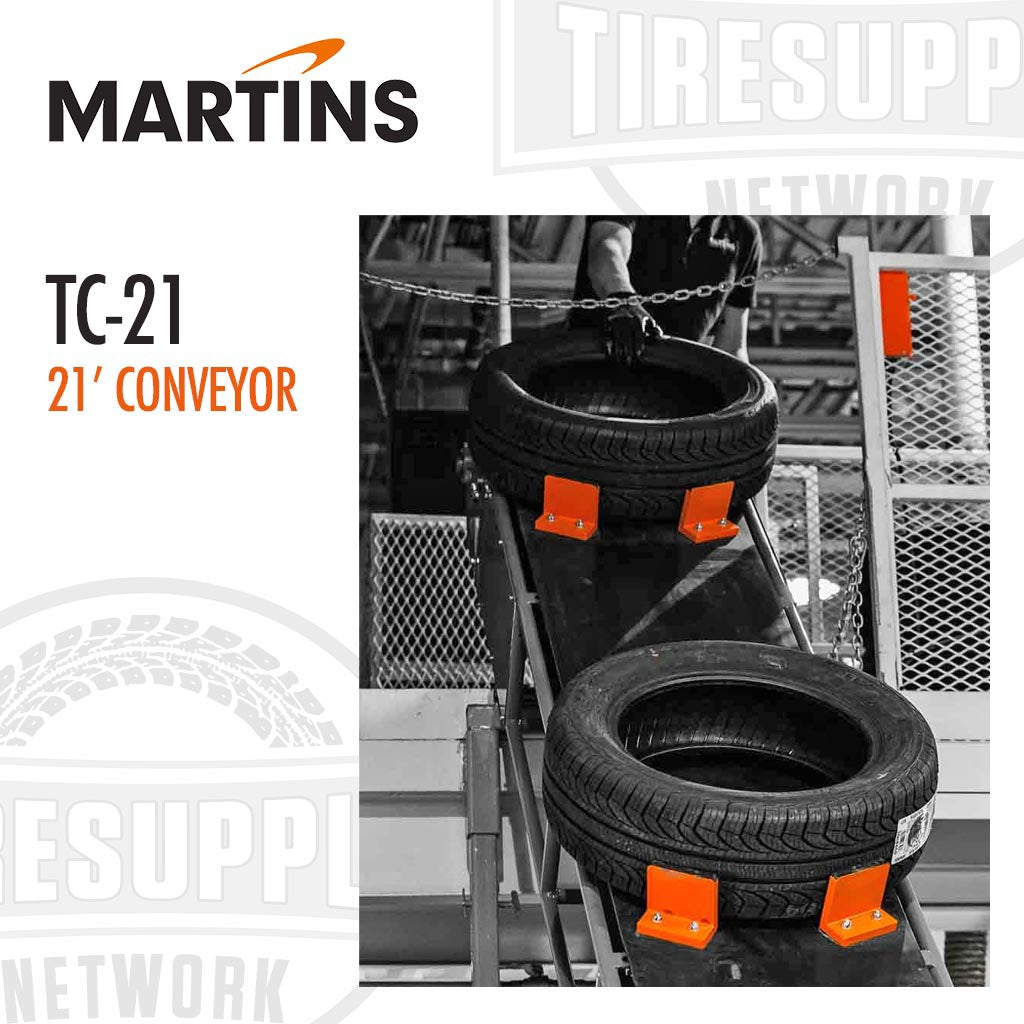

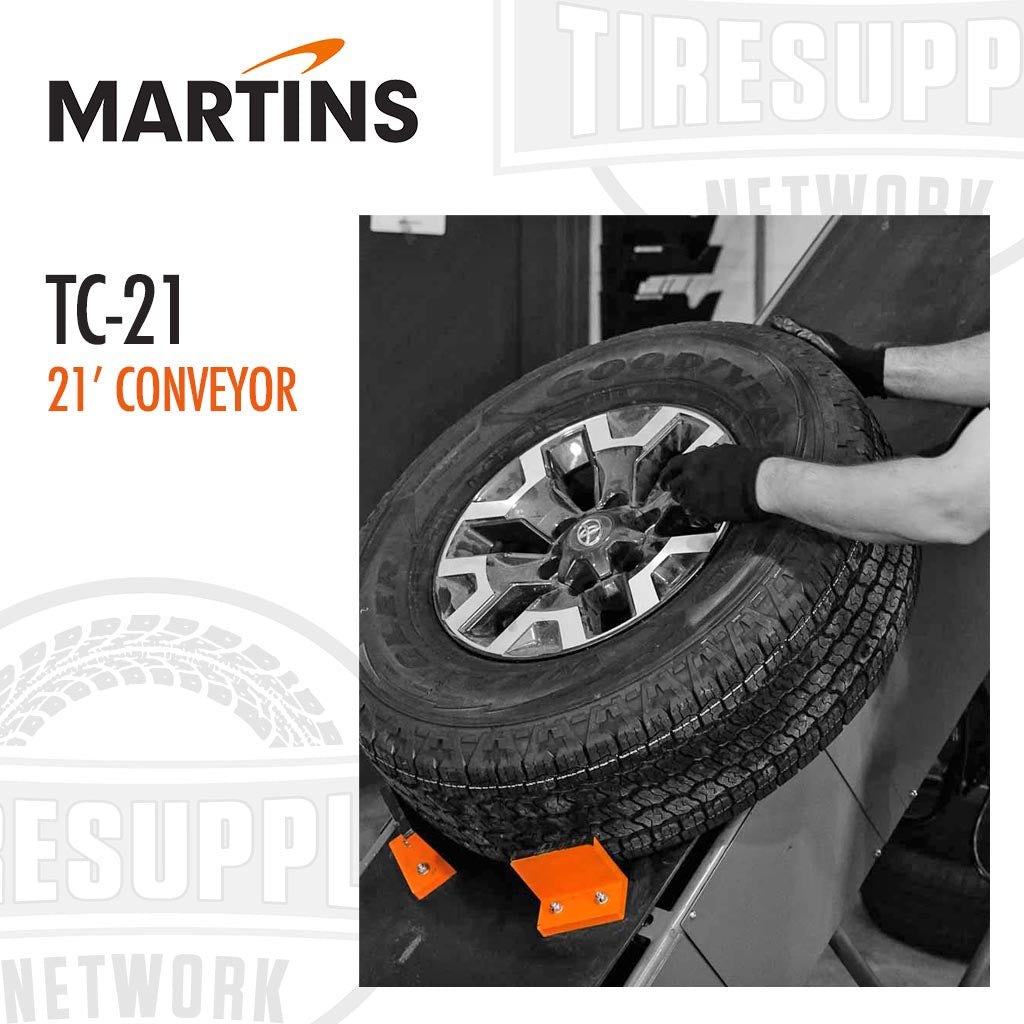

• Angled PVC cleats for a maximum stability of your passenger car, SUV & light truck tires on the conveyor

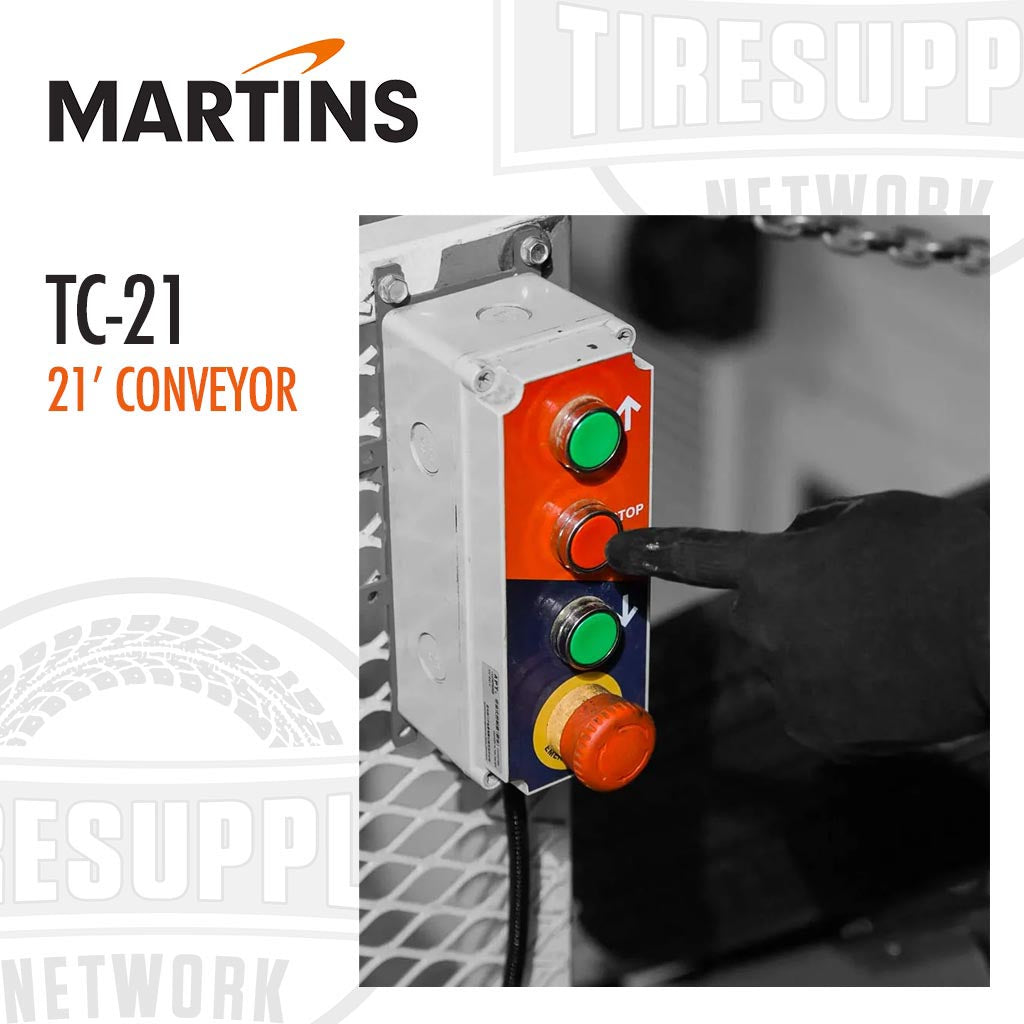

• Control box at both ends of the tire conveyor — On, Off, Reverse & Emergency stop
• Requires no maintenance with its sealed precision ball bearing

Included:

• Rubber Belt - 2 ply, 3/8″
• PVC Cleats

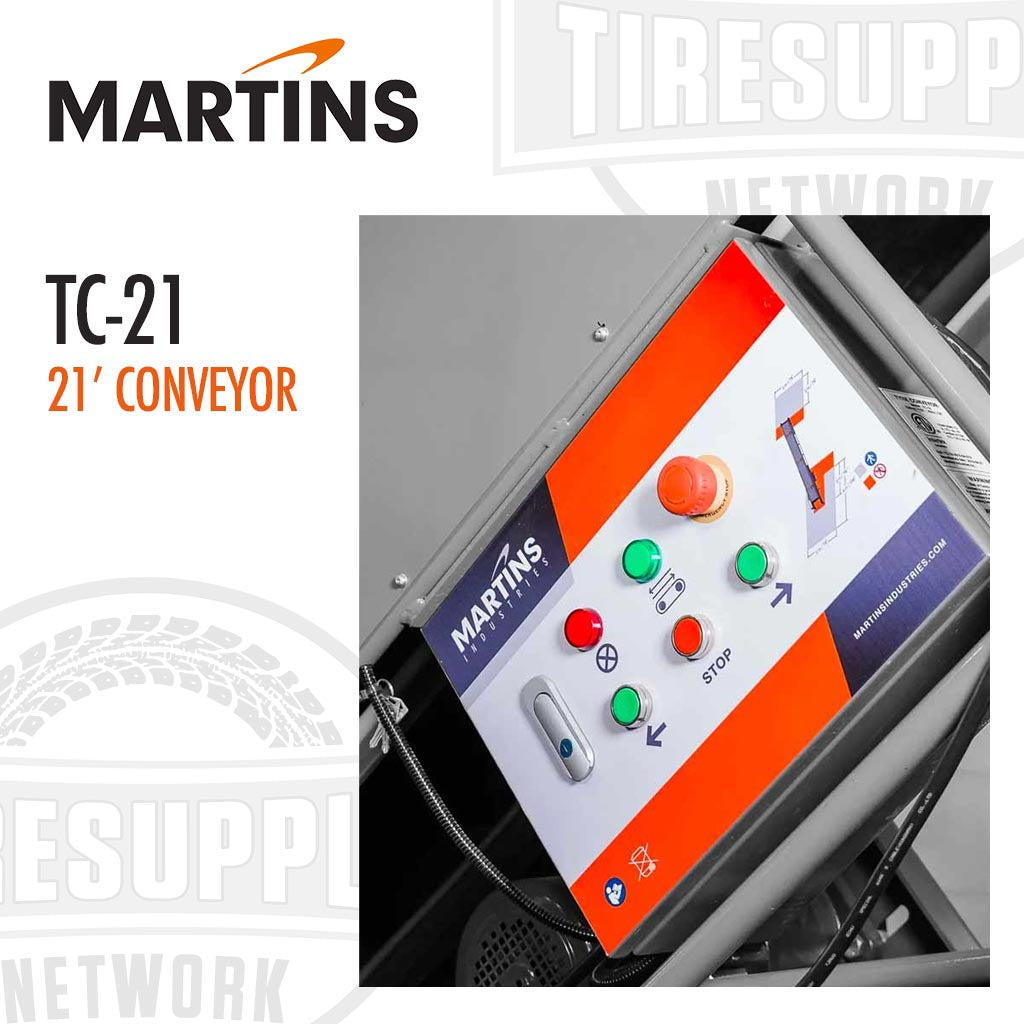

• Main Control Box
• Secondary Control Box with 10′ Power Cable
• 2-HP Motor with Magnetic Brakes
• User Manual

Specifications:

• Product Dimensions (LxWxH): 250″ x 29.5″ x 11″
• Net Weight: 875 lbs
• Controls: On / Off / Reverse / Emergency Stop at Each End
• Certifications: CE, cETLus, UKCA, CSA Z432-16
• Load Capacity: 500 lbs
• Speed: 17.7 m/min
• Distance Between Cleats Center-to-Center: 60″
• Belt Material: Rubber
• Belt Width: 18″
• Belt Thickness: 3/8″
• Bearing Type: Sealed Precision Ball Bearing (No Maintenance)
• Energy Type: Electricity
• Motor: 2 HP
• Amp: 12
• Hertz: 60
• Phase: 1
• Volt: 230
• Watts: 1500
• Warranty: 1 Year
• Materials: Steel
• Finish: Powder Coated Paint UV Resistant
• Color: Gray & Orange
