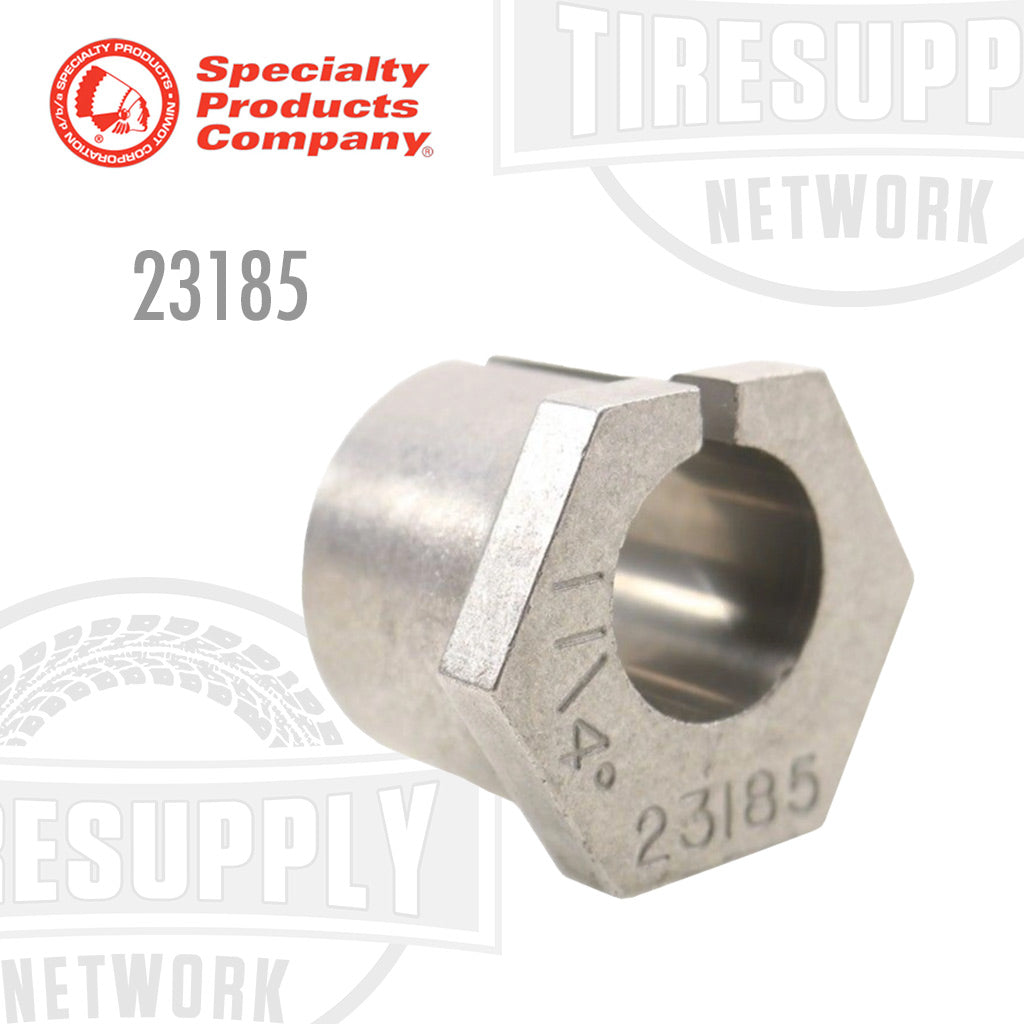

Specialty | Camber/Caster Sleeve (1 1/4°) (23185)

Specialty | Camber/Caster Sleeve (1 1/4°) (23185)

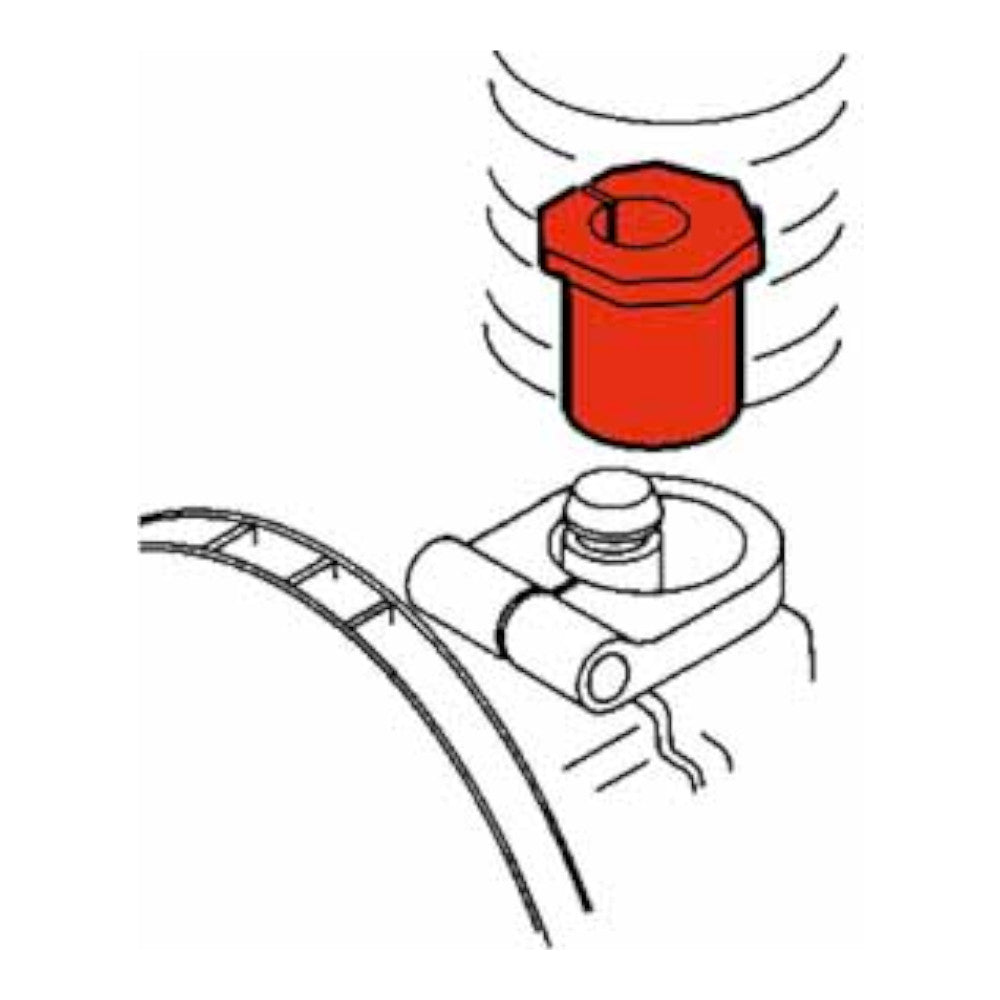

These popular sleeves are widely used to adjust caster and/ or camber on many Ford and Mazda RWD & 4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Use a sleeve puller (Part #77880 or Part #88830) to remove the existing sleeve. To split camber and caster adjustment, rotate sleeve 45°. Save time during alignment, use (Part #23199) zero degree sleeve to determine initial readings, then install correct sleeve. Note: Sleeves adjust to a smaller degree on Ford and Mazda 4WD light trucks/SUVS.

Specifications

• RWD Adjustments Total Change: 1.25°
• 4WD Adjustments Total Change: .90°
• Installation time: 0.5 hr/side
• Required: 1 per wheel

Applications

• Ford RWD:
  • 1990 - 90 Bronco II (Late 90-Dana 35)
  • 1992 & Up E150, E250, E350, E450
  • 2000 - 05 Excursion
  • 1987 - 96 F150
  • 1998 - 13 F250, F350 Twin I-Beam
  • 1987 - 98 F250, F350
• Ford RWD/4WD:
  • 1991 - 94 Explorer
  • 1990 - 97 Ranger
• Mazda:
  • 1994 - 97 B-Series Pickup
  • 1991 - 94 Navajo
