Specialty  |  SKU: 23182

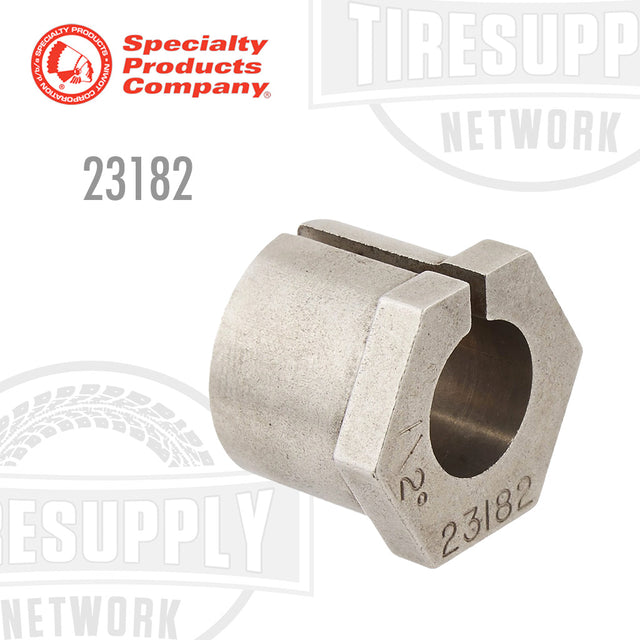

Specialty | Camber/Caster Sleeve (1/2°) (23182)

Regular price $13.99

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!




  • Specialty | Camber/Caster Sleeve (1/2°) (23182)

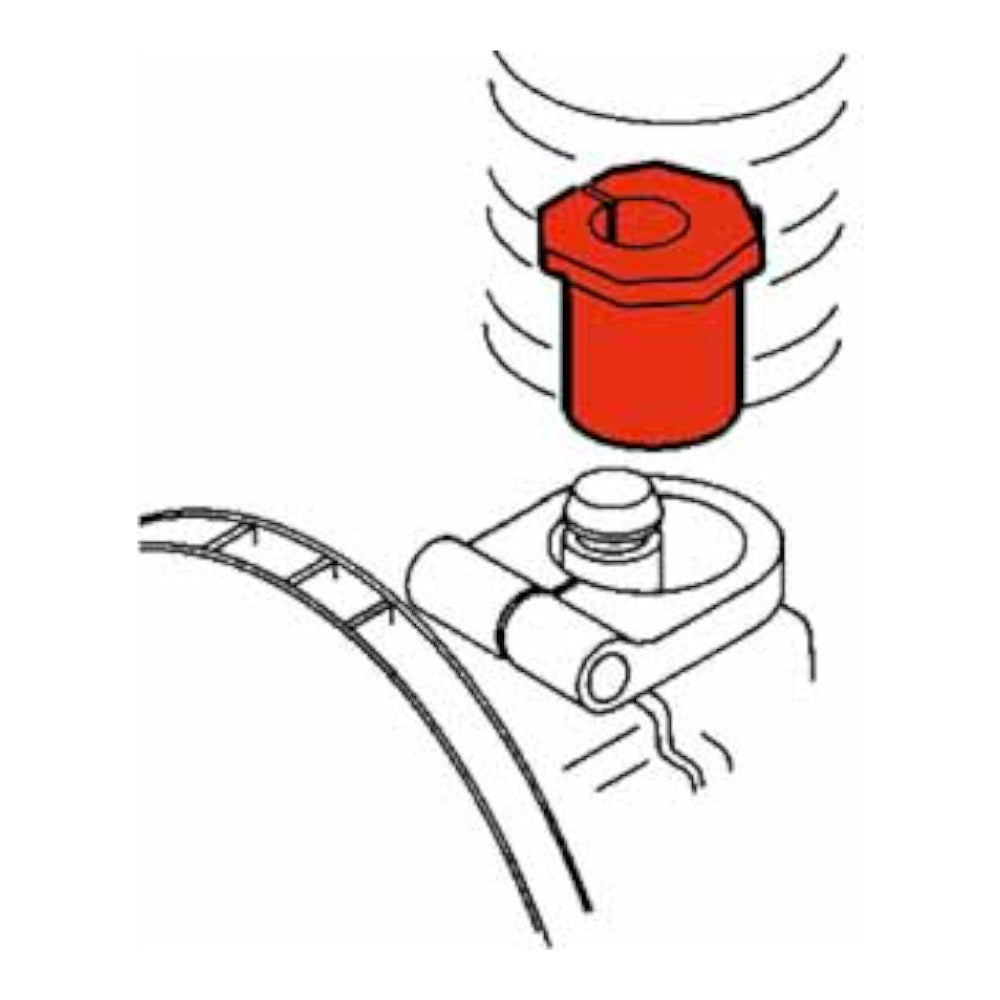

    These popular sleeves are widely used to adjust caster and/ or camber on many Ford and Mazda RWD & 4WD trucks. To install, simply loosen and remove upper ball joint pinch bolt. Remove top snap ring if one is present. Use a sleeve puller (Part #77880 or Part #88830) to remove the existing sleeve. To split camber and caster adjustment, rotate sleeve 45°. Save time during alignment, use (Part #23199) zero degree sleeve to determine initial readings, then install correct sleeve. Note: Sleeves adjust to a smaller degree on Ford and Mazda 4WD light trucks/SUVS.

    Specifications

    • RWD Adjustments Total Change: .50°
    • 4WD Adjustments Total Change: .40°
    • Installation time: 0.5 hr/side
    • Required: 1 per wheel

    Applications

    • Ford RWD:
      • 1990 - 90 Bronco II (Late 90-Dana 35)
      • 1992 & Up E150, E250, E350, E450
      • 2000 - 05 Excursion
      • 1987 - 96 F150
      • 1998 - 13 F250, F350 Twin I-Beam
      • 1987 - 98 F250, F350
    • Ford RWD/4WD:
      • 1991 - 94 Explorer
      • 1990 - 97 Ranger
    • Mazda:
      • 1994 - 97 B-Series Pickup
      • 1991 - 94 Navajo
