RAVAmerica  |  SKU: Motion 3

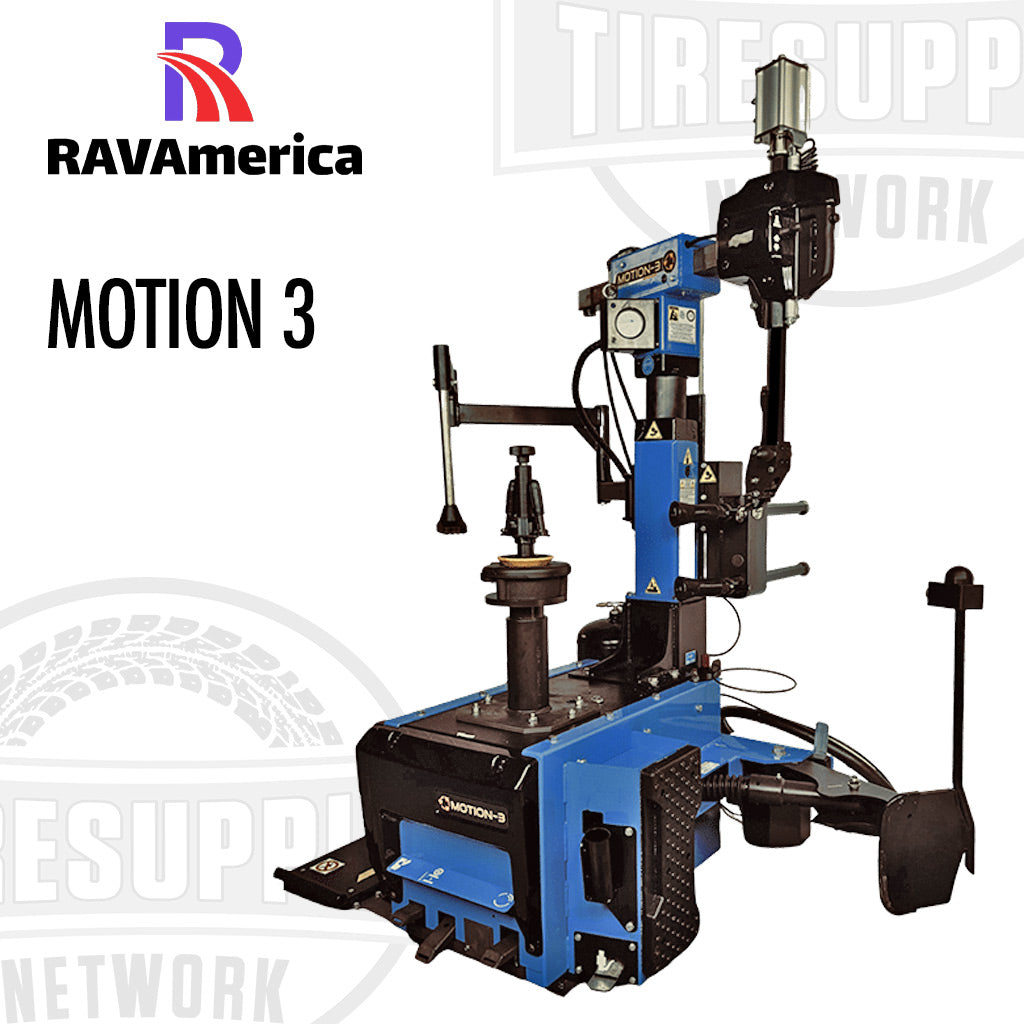

RAVAmerica | Leverless Automatic Tire Changer (Motion 3)

Sale price $12,950.00 Regular price $14,388.89

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

As low as $179.86 for 72 months Finance Now!


Package


RAVAmerica | Leverless Automatic Tire Changer (Motion 3)

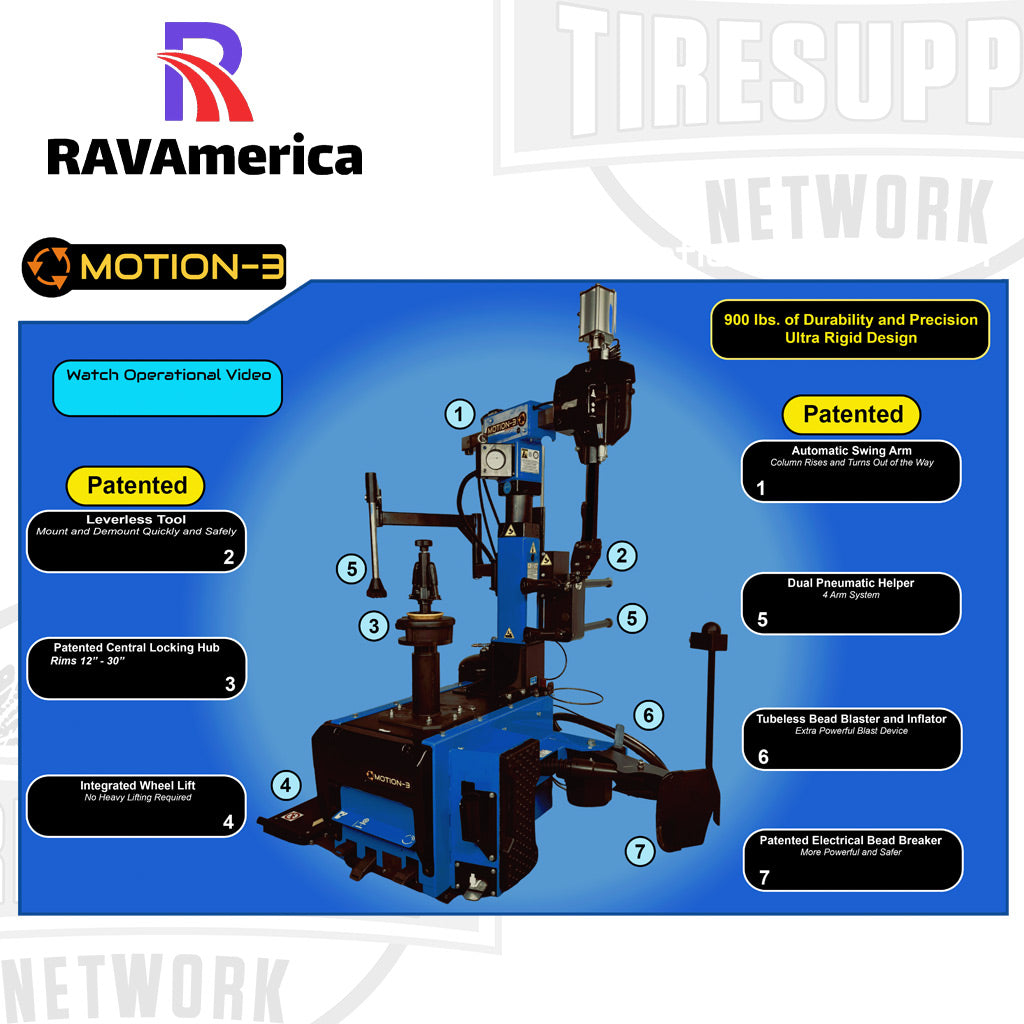

Premium Leverless Automatic tire changer with center post mounting equipped with a ground breaking electric bead breaker for faster action and more power. The space-saving Automatic Swing Arm feature is superior to all other designs in terms of rigidity, precision, and speed. With a press of the foot pedal, the ultra rigid center post rises and turns 90 degrees swinging the patented tool out of the way. The 4 arm dual help device is positioned on both sides of the column giving help exactly where help is needed. Fit and finish is superb with overall quality unmatched. This is the tire changer for the workshop who is looking to select only the very best.

RAV branded models that are approved for the North American market come with a 2 year parts warranty not including wear items, consumer items, or batteries.

Motion 3 Includes:
  • 30010577 - Beed Blade Protection
  • 3005001 - Tape-a-Weight Removal Tool
  • 30010234 - Bead Pressing Clamp
  • 3005116 - Rim Edge Plastic Protection
  • Small Iron Cone 42 - 78 mm
  • 3 Protections For Cone 41 - 118 mm
  • 3+3 Protection - For Leverless Tool
  • Integrated Pneumatic Wheel Lift
  • 200115124 - Tubeless Air Blast Inflator
Motion 3 Plus Includes:
  • 2002206 - Roller Plate
  • 20012319 - Adapter for Reverse and Closed Center Wheel
  • 20012310 - Truck Cone & Spacer 115 - 195 mm
  • 20012322 - 3 Cone Set
  • 30015104 - CBF Double Sided Cone 120 - 170 mm
Specifications:
Operating capacity 12” - 30”
Max. tire diameter 43" (1100 mm)
Max. wheel width 13" (340 mm)
Central post rotation speed 7/14 rpm
Noise level <70±3 dB(A)
Electric power supply 1 ph - 0.75 KW (1.0 Hp) 200/230V - 50/60 Hz
Working pressure 116-145 psi (8 - 10 Bar)
Net weight 926 lbs. (420 kg)
Wheel locking Manual ring nut
Inflating device Foot controlled
Max. inflating pressure 50 PSI (3,5 bar)
Compliance and Restrictions:
