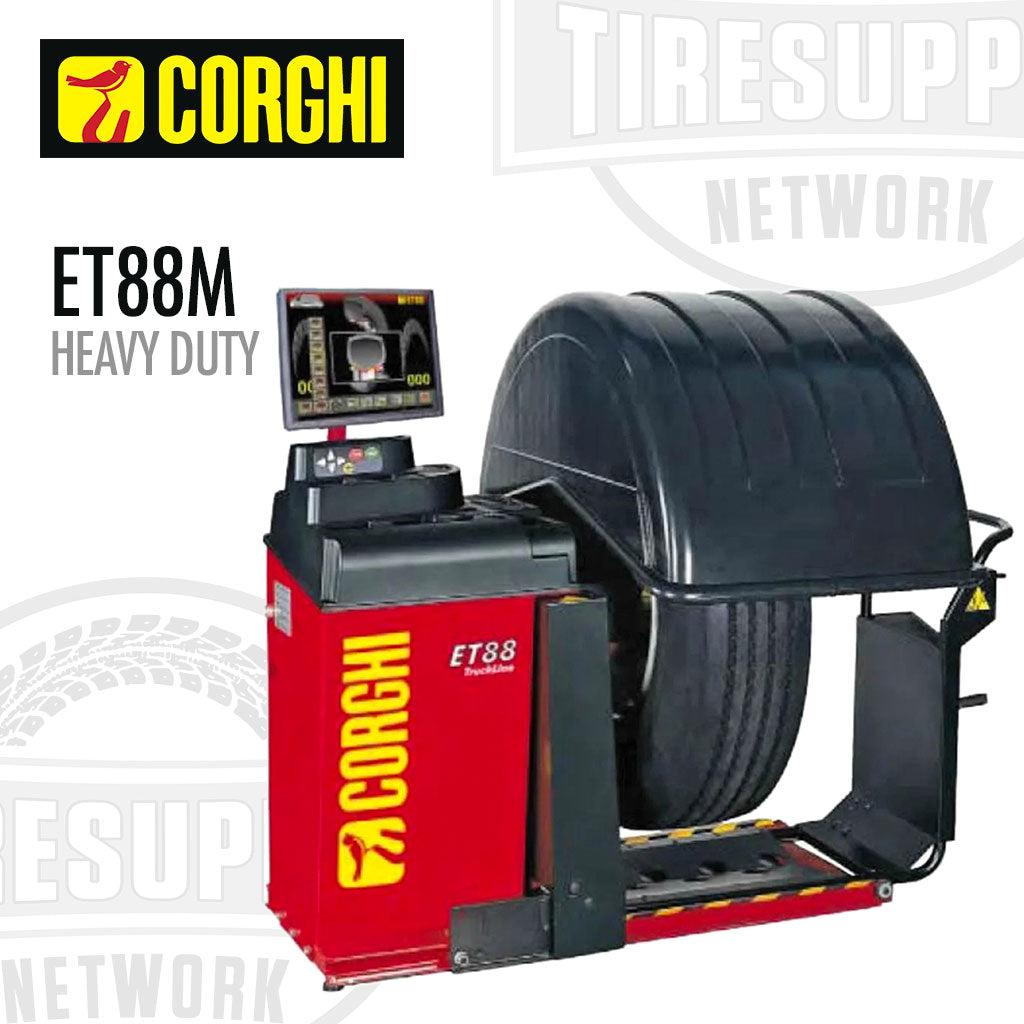

Corghi | Heavy Duty Truck Wheel Balancer w/Lift - 110V, 1Ph (ET88M)
2024 4th Quarter Rebate: 10% Cash Back!
10% Cash Back Rebate direct from Corghi on ALL Machines, Helper Arms & related Accessories. Based on Availability - Hurry Now and Get Cash for the Holidays! > Details Here
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
The electronic wheel balancers with demounted wheel ET88 and ET77 Truckline have been created to meet the requirements of the professional working mainly on truck and bus wheels. These wheel balancers allow you to work with confidence on the wheels of vans, cars and off-roads using the relative programs and accessories.
Low balancing speed, optimization of average balancing speed, 7 ALU truck and car programs, automatic acquisition of wheel/machine distance, adhesive weight application device, stunning user-friendly graphic interface, automatic weight application position search, visual wheel wobble inspection, automatic identification of fitted wheel (truck/car), OPT FLASH and 200kg lift with safety handle: these characteristics, together with its original design, place the ET88 at the top-of-the-range.
FEATURES:
- 19” LCD Widescreen Monitor
- Graphics to learn how to use the machine quickly and easily. Simple and intuitive keypad for entering data and selecting programmes. Interactive help.
- Intergrated Pneumatic Lift
- The pneumatic lifter is built-in, it has an ergonomic control system which means that wheels weighing up to 200 kg can be managed without efforts.The pneumatic brake slows the wheel when measuring is finished and locks the shaft making it easier to apply the balancing.
- Automatic Sensor
- Automatic sensor for measuring the distance of the wheel and for attaching the adhesive weights in the Alu P programmes. Alu 1 P, Alu 2 P programmes: used for balancing alloy rims with maximum precision that need both weights to be attached on the inside.
- Shift Plane Program
- “Shift Planes” program (in Alu P) for use of weights in multiples of five grams, with no need for partial cuts (Corghi Patent)
- Hidden Weight Program
- “Hidden weight” program (in ALU P) which subdivides the adhesive balancing weight for the outside into two equivalent weights positioned behind the spokes of the rim.
Warranty: 2 years parts, 1 year labor
TECHNICAL SPECS:
| Power Supply | 230V / 1Ph / 50Hz |
| Power Draw | 320W |
| Shaft Diameter | 46mm |
| Pneumatic Air Supply | 6 / 15 bar |
| Noise Level When Running | < 70dB (A) |
| Machine Weight | 563 lbs |
| CAR WHEEL PARAMETERS | |
| Readout Accuracy | 1 gr |
| Max Unbalanced Value Calculated | 999gr |
| Rim Diameter | 7" / 30" |
| Rim Width | 1.5" / 22" |
| Max Wheel Weight | 441 lbs |
| Average Measuring Time | 6 sec |
| TRUCK WHEEL PARAMETERS | |
| Readout Accuracy | 1 gr |
| Max Unbalanced Value Calculated | 1999 gr |
| Rim Diameter | 12" / 30" |
| Rim Width | 4" / 22" |
| Max Wheel Weight | 441 lbs |
| Average Measuring Time | 18 sec |
