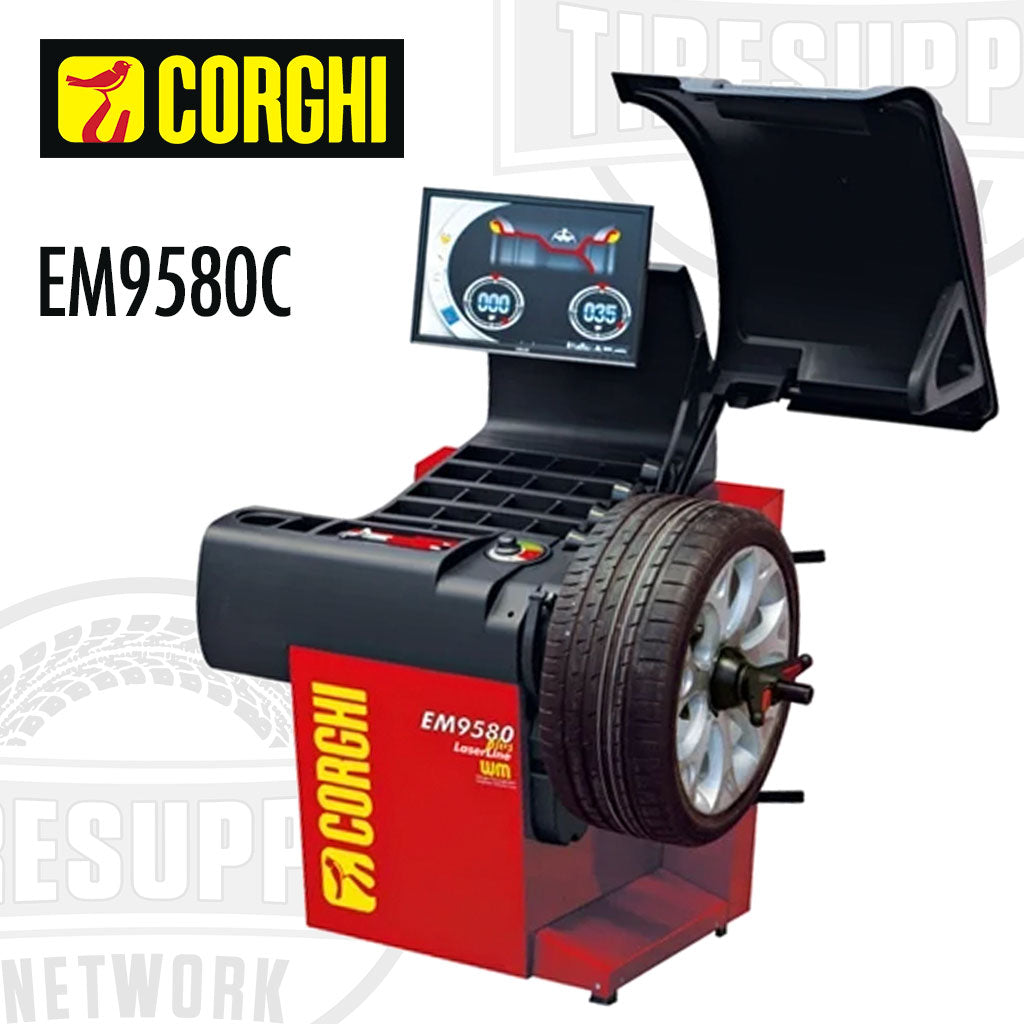

Balancing with monitor, compact and essential with professional performances. SMART-ARM: electronic input of wheel diameter and distance with FSP function which automatically activates the balancing programs, avoiding keypad selection. AWD automatic sensor (Auto width Device) for contactless measurement of wheel width. Quick and intuitive sensitivity calibration.
Features:
- Smart Arm Plus: FSP and laserblade function
- RPA LED Light:Automatic positioning and led illuminator
- LaserLine:Application of adhesive counterweights
- AWD (Optional): AWD - Auto width device
- WiNut: Wireless automatic clamping system
- Weight tray and navi system keyboard
-
Program for the Professional:
- Weight Management
- Optional Flash: Imbalance Optimization
- Easy Cal
- AWC: Auto Width Calculation
- USB Update:USB Ports
- PR Zero: Inclined front side and space-saving wheel guard
- Warranty: 2 years parts, 1 year labor
SMART ARM
New digital gauge for the acquisition of the diameter and distance with the FSP (Fast Selection Program) function and new integrated LaserBlade pointer: the FSP function automatically activates the balancing program avoiding selection via the keypad, while the LaserBlade pointer (inside the measuring arm) guides the operator in choosing the level within the alloy rim without any errors and with extremely good visibility.
AUTOMATIC POSITIONING AND LED LIGHT
At the end of the spin the wheel is braked and automatically brought to the balancing position. The integrated LED light illuminates the work area to facilitate rim cleaning and application of the counterweights.
APPLICATION OF ADHESIVE COUNTERWEIGHTS
The adhesive counterweights can be positioned extremely rapidly using the laser pointer at 6 o’clock (laser line system) or by using the weight tray clip.
AWD MEASURING SENSOR
AWD automatic sensor (Auto width Device) for contactless measurement of wheel width (optional).
AVAILABLE WHEEL CLAMPING
Winut - Simply press the button on the sleeve to lock quicker and with less effort than before. No need to use your foot to operate the automatic clamping system. New electromechanical system which reduces working times and increases centring precision (EM9580 C), or manual wheel clamping with quick ring (EM9580).
WEIGHT TRAY AND NAVI SYSTEM KEYBOARD

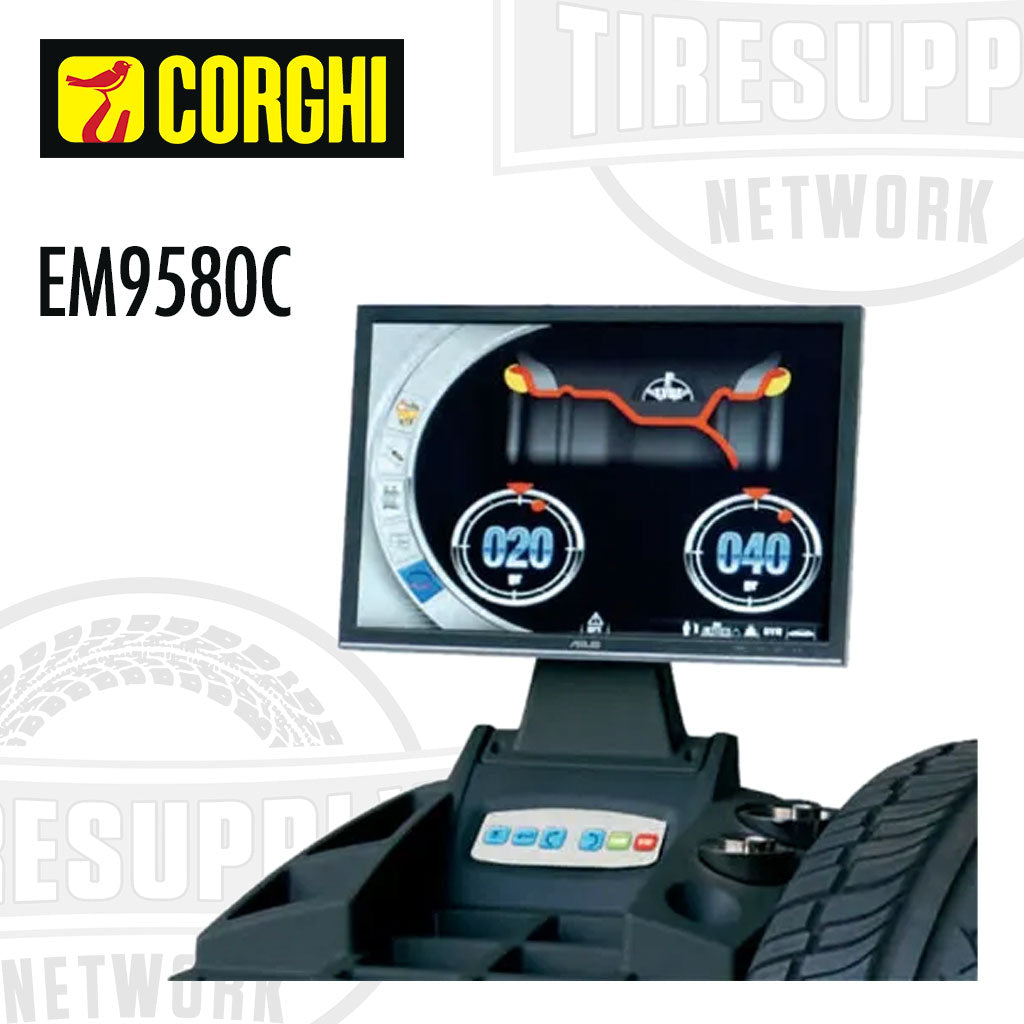

Weight tray ergonomic and functional, it features many large trays to house all different types of counterweights and the various tools. NaviSystem. Controls and menu navigation are quick and easy. Just a click to directly access each program.
PROGRAM FOR THE PROFESSIONAL
Every program for the professional: OPT FLASH, HIDDEN WEIGHT, SPLIT WEIGHT, MULTI OPERATOR, visualized on the widescreen monitor with high-resolution graphics and user interface. Hidden Weight - Keeps rims looking great by dividing the external side balancing adhesive weight into two equivalent weights applied in hidden locations behind the spokes. Optional Flash- Minimizes road noise by allowing the operator to alter the position of the tyre on the rim in order to optimize quietness. Weight Management - Special program collection including LESS WEIGHT which reduces work times (20%) and the amount of counterweights used (30%), increasing the economic benefits and environmental protection. Auto Width Calculation (AWC) - Reduced wheel data entry times thanks to the AWC function which suggests the most probable width value (in the absence of the AWD measuring sensor).
USB PORTS
USB ports for connection to peripheral devices and easy software upgrading.
INCLINED FRONT PART
Inclined front part to improve operator access to the inside of the rim.
SPACE-SAVING WHEEL CASING
Space saving wheel guard (patented) designet to allow the positioning along the wall, it alsoo permits to hold wheels up to 44” (1.118 mm) maximum diameter.
WHEEL LIFTER (Optional)
Predisposed for direct connection to the new TT-0 wheel lifter which eliminates operator effort, speeds up routine operations and ensures perfect centring.
Technical Data:
- Power supply: 115/230 V - 1 Ph - 50/60 Hz
- Total power absorption: 400 W
- Spin speed: 75-85-98 rpm
- Max unbalance value calculated: 999 g / 35.3 oz
- Unbalance measurement accuracy: 1 g / 0.0353 oz
- Average measurement time: 5.5 sec
- Shaft diameter: 40 mm / 1.57"
- Rim width setting range: 1.5"/20"
- Rim diameter setting range: 1"/35"
- Rim diameter measurement range: 10"/28"
- Max wheel width (with guard): 600 mm / 23.6"
- Max wheel diameter (with guard): 1118 mm / 44"
- Max wheel/machine distance: 275 mm / 10.82"
- WINUT device operation frequency: 2.4 GHz
- Maximum power of the radio frequency signal: 100 mW
- Max wheel weight (ground fastened): 85 kg / 165 lbs
- Machine weight (w/o accessories): 140 kg / 310 lbs
- Dimensions: 1453 mm x 894 mm x 11858 mm / 60" x 51" x 66"
