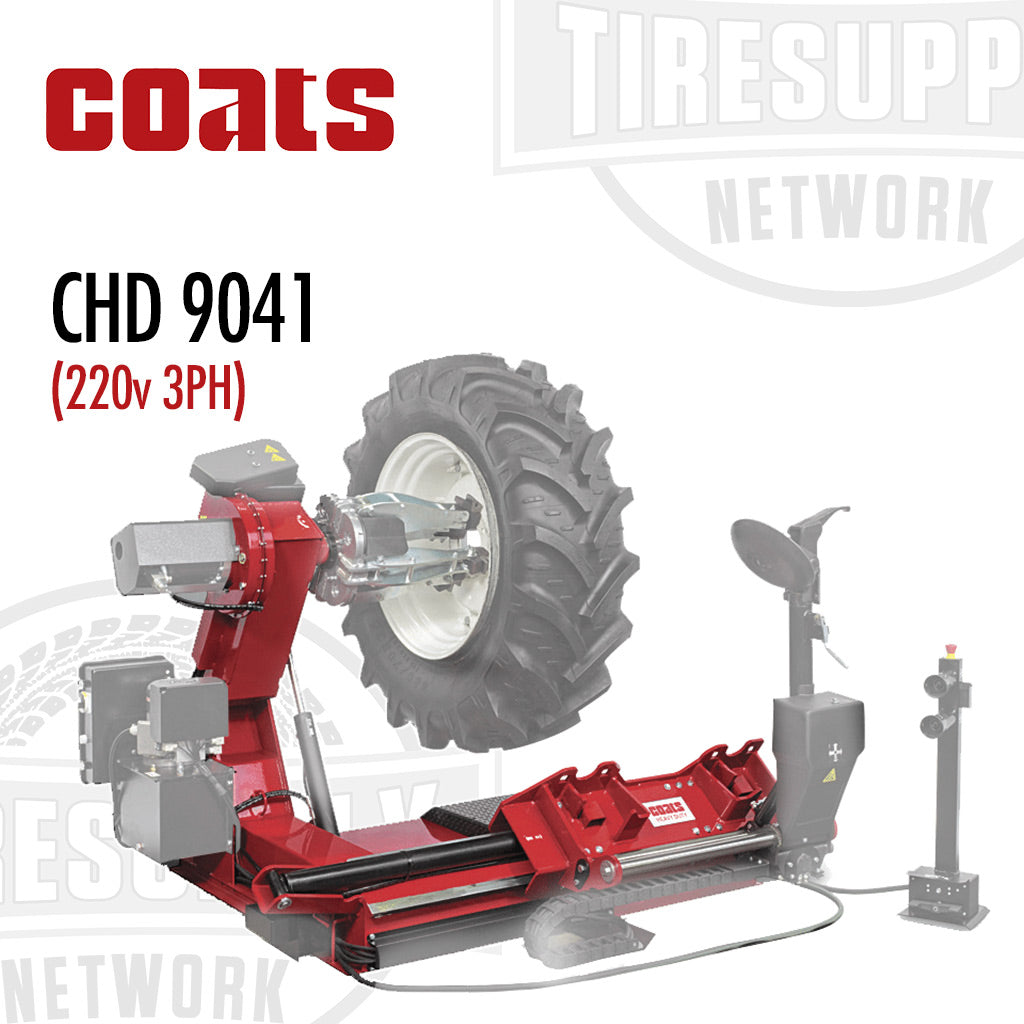

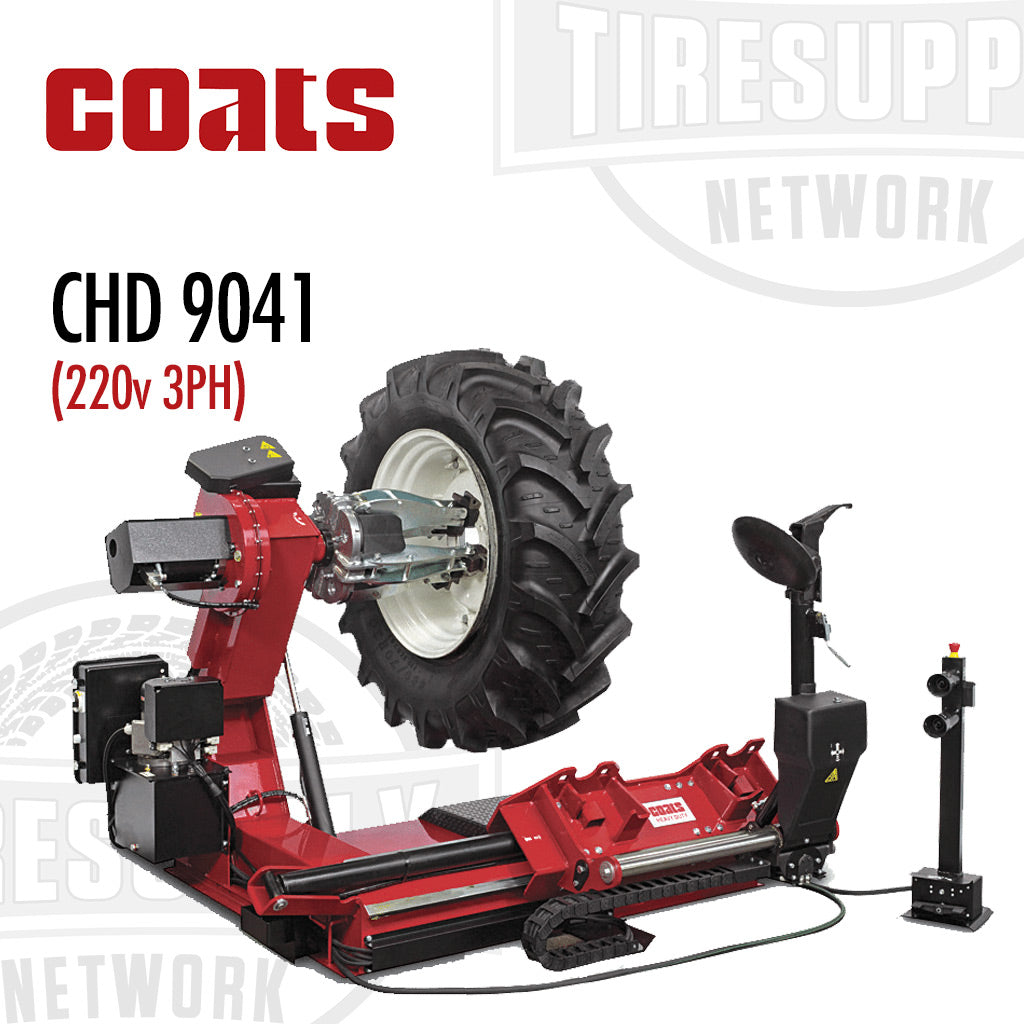

Coats | CHD 9041 Heavy Duty Tire Changer - Electric 220v 3PH (CHD9041-220V3)
PLEASE NOTE:Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
A great solution for moderate to high volume shops and fleets where fitments vary widely, including agricultural applications.
- Extended capacity four-jaw chuck, which allows for use on a massive range of applications
- Open frame design for easy wheel movement
- Handles rims from 14” to 46” (up to 56” with clamp extensions) and tires up to 90.5” in diameter and 42” wide

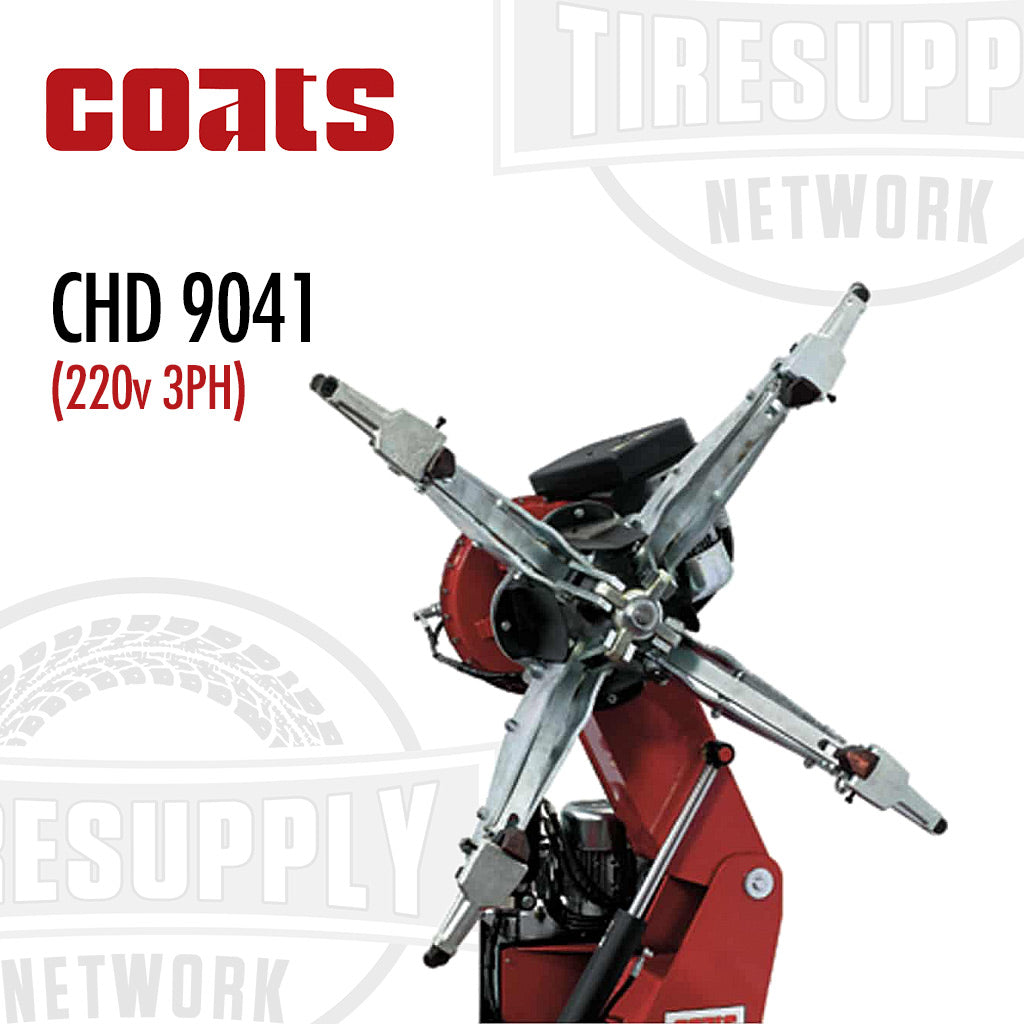

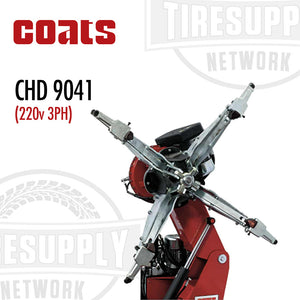

Hydraulic Clamping Chuck: Extended capacity four-jaw chuck, which allows for use on a massive range of applications.

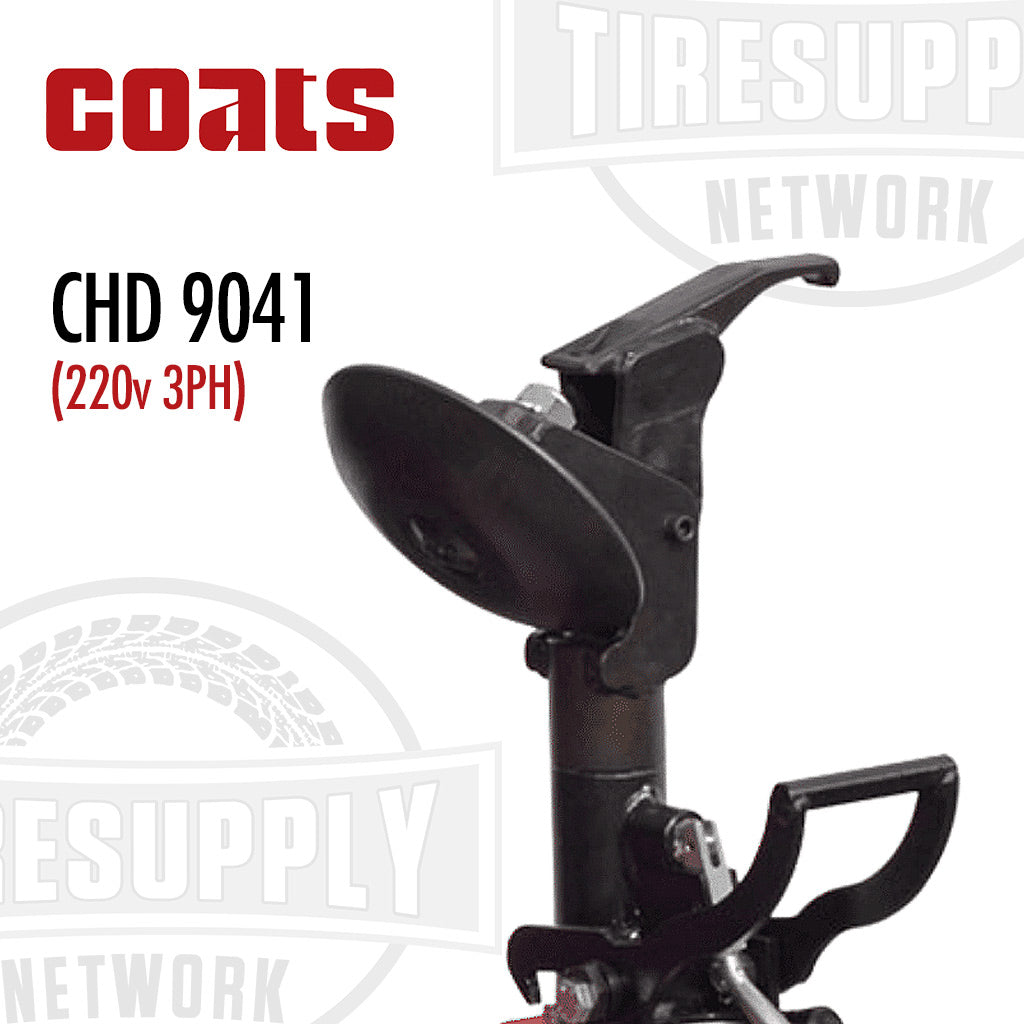

Manually Controlled Tool Head: Use the manually controlled tool head to assist with the mounting and demounting of tough applications.
Sturdy, Solid Frame: The solid, single piece frame is for added capacity and dependability, and the open frame is designed for easy wheel movement.
The All-Around Solution: A great solution for moderate to high volume shops and fleets where fitments vary widely, including agricultural applications.
Specifications:
| Description | 220v 3PH: 8009041 |
| Max Tire Diameter | 90.5" (2300mm) |
| Max Tire Width | 42" (1065mm) |
| Rim Diameter Range | 14"-46" (47"-56" w/ clamping extensions) |
| Electric Specifications | 208-230VAC, 3ph, 60Hz, 15Amp |
| Hydraulic Motor Power | 2.0HP (1.5kW) |
| Chuck Rotation Motor Power | 1.7-2.4 HP (1.3-1.8 kW) |
| Max Chuck Torque | 5262 ft/lbs (3881 Nm) |
| Clamping Power | 10,362 lbs (4700 kg) |
| Chuck Rotation Speed | 5-11 rpm |
| Max Wheel Weight | 3300 lbs (1500 kg) |
| Acoustic Pressure | <70dBA |
| Single Piece Frame w/ Solid Floor-Plate | No |
| Tool Arm Positioning | Manual |
| Tool Head Positioning | Manual |
| Footprint (WxDxH) | 88″w x 59″h x 79″d |
| Weight | 1698 lbs (770 kg) |
| Warranty | 1 Year Parts, 90 Days Labor |
Standard & Optional Accessories:
| Description | Part #1 | 4730 | 6330 | 9041 | 9043 | 9551 |
| Small Double Tool | 9209552 | O | S | N/A | N/A | N/A |
| Large Double Tool | N/A | N/A | S | S | S ** | |
| Allow Tubeless Roller | 9299274 | N/A | N/A | O | O | O |
| Plastic Tubeless Roller | 9209546 | S | O | N/A | N/A | N/A |
| Bead Lifting Guide Bar (for agricultural tires) | 9299269 | N/A | O | O | O | O |
| Large Tire Bar | 6601002 | 0 * | S | S | S | S |
| Small Tire Bar | 3001061 | 0 * | S | S | S | S |
| Single G-Clamp (for steel wheels) | 2001059 | S | S | S | S | S |
| Single G-Clamp (for alloy wheels) | 9299271 | 0 | O | O | O | O |
| Pair of G-Clamps (for bead loosening on tube tires with rim ring) | 9299273 | N/A | N/A | O | O | O |
| Set of 4 clamping protectors (for allow wheels) | 9299272 | N/A | O | O | O | O |
| Set of 4 clamping extensions 47"- 56" | 929970 | N/A | N/A | O | O | O |
| Radio Remote Control Set | 9299234 | N/A | N/A | N/A | N/A | O |
| Set of Clamping Cones and Hub Nut | S | N/A | N/A | N/A | N/A | |
| * (Included w/ 9209552) | ||||||
| ** (Remote Operated) |
Need replacement parts? Call or email us and we can special order them for you!
