Chicago Pneumatic | SKU: CP-7763-6

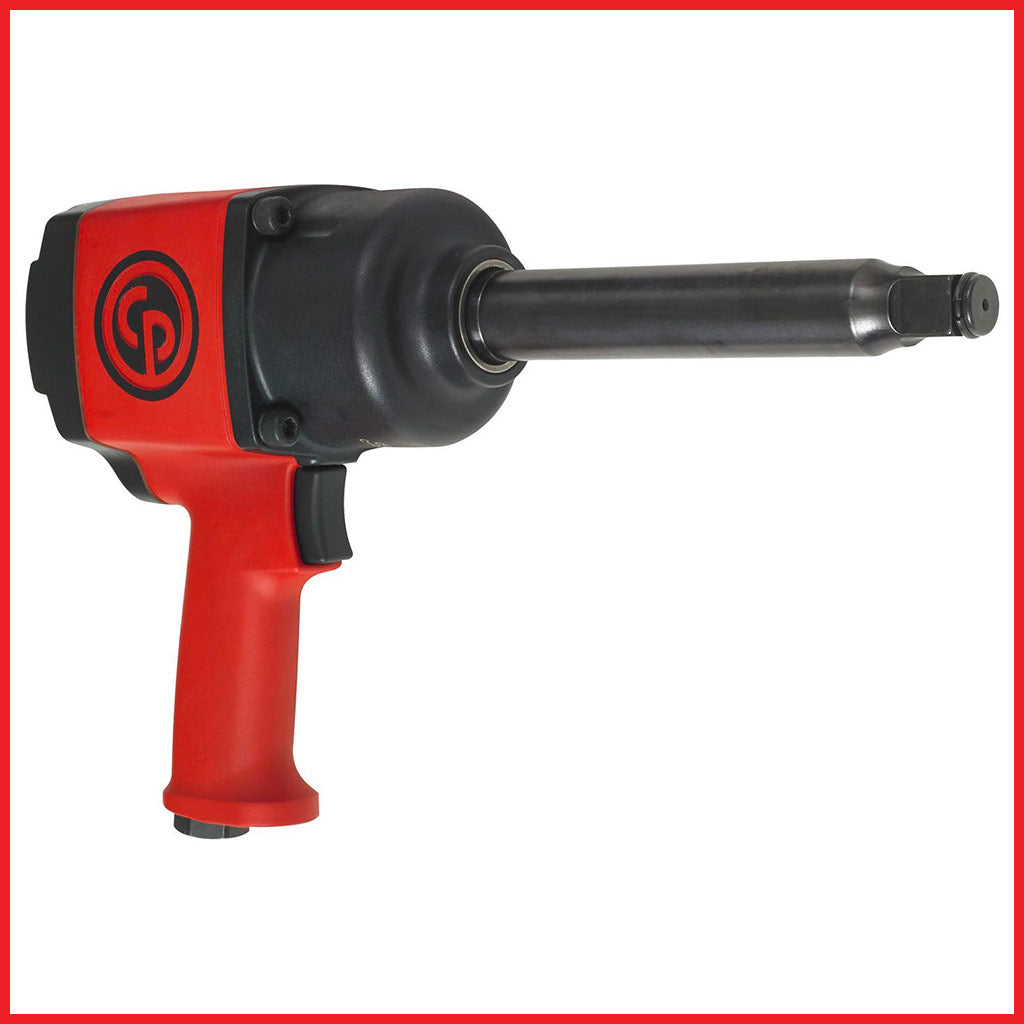

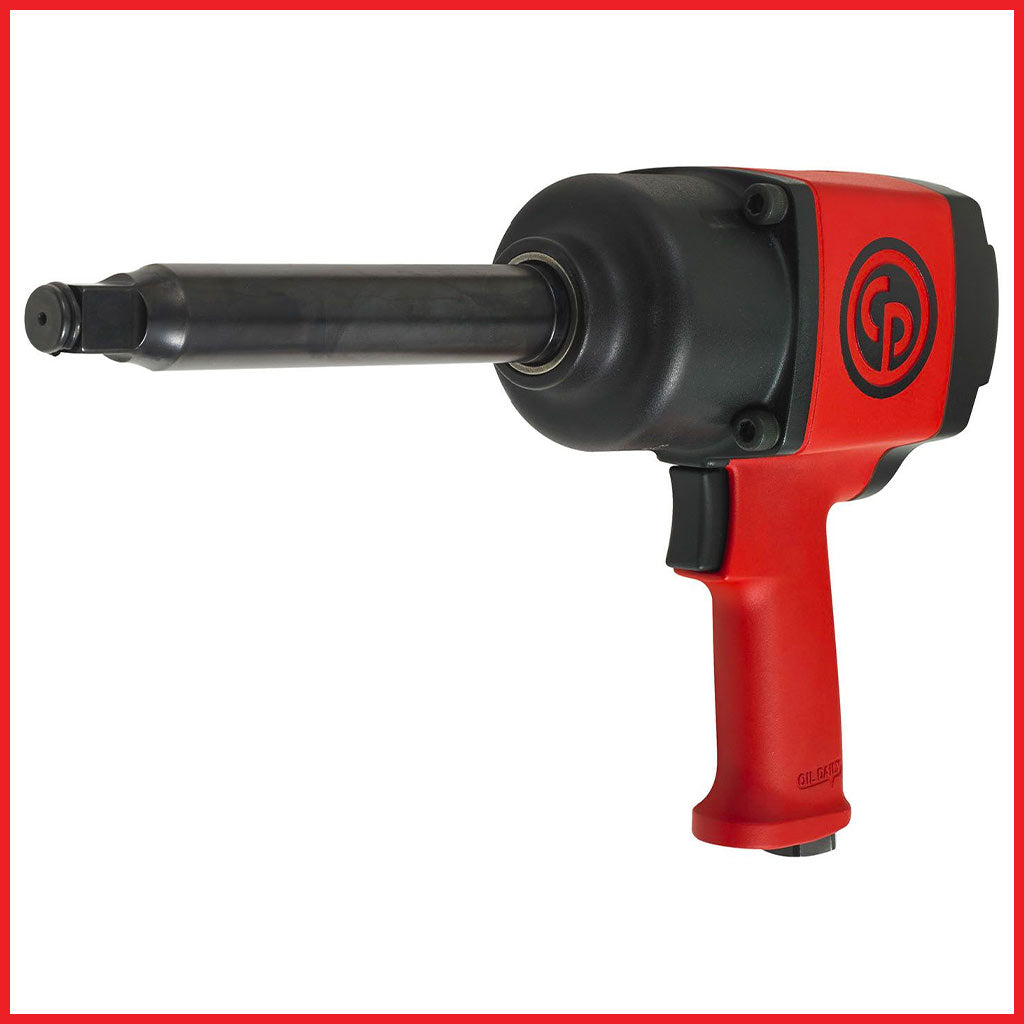

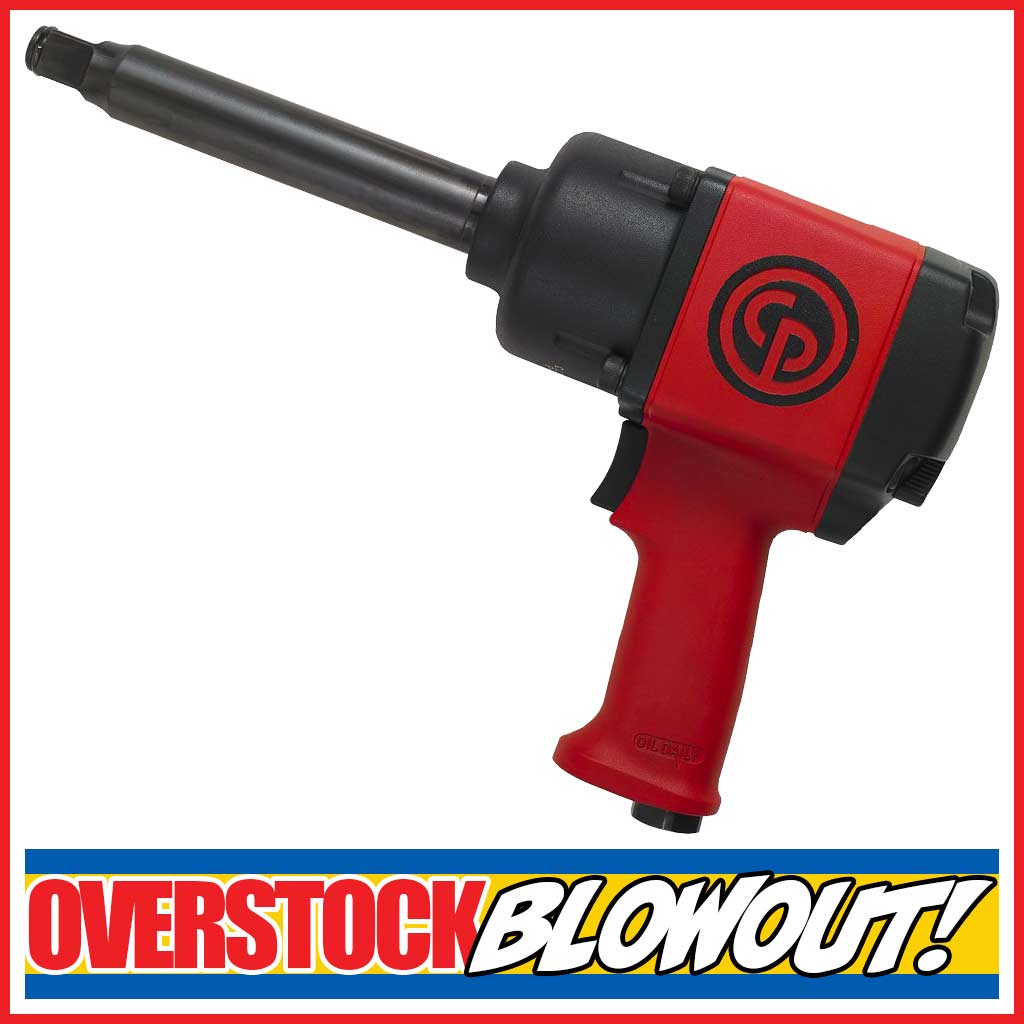

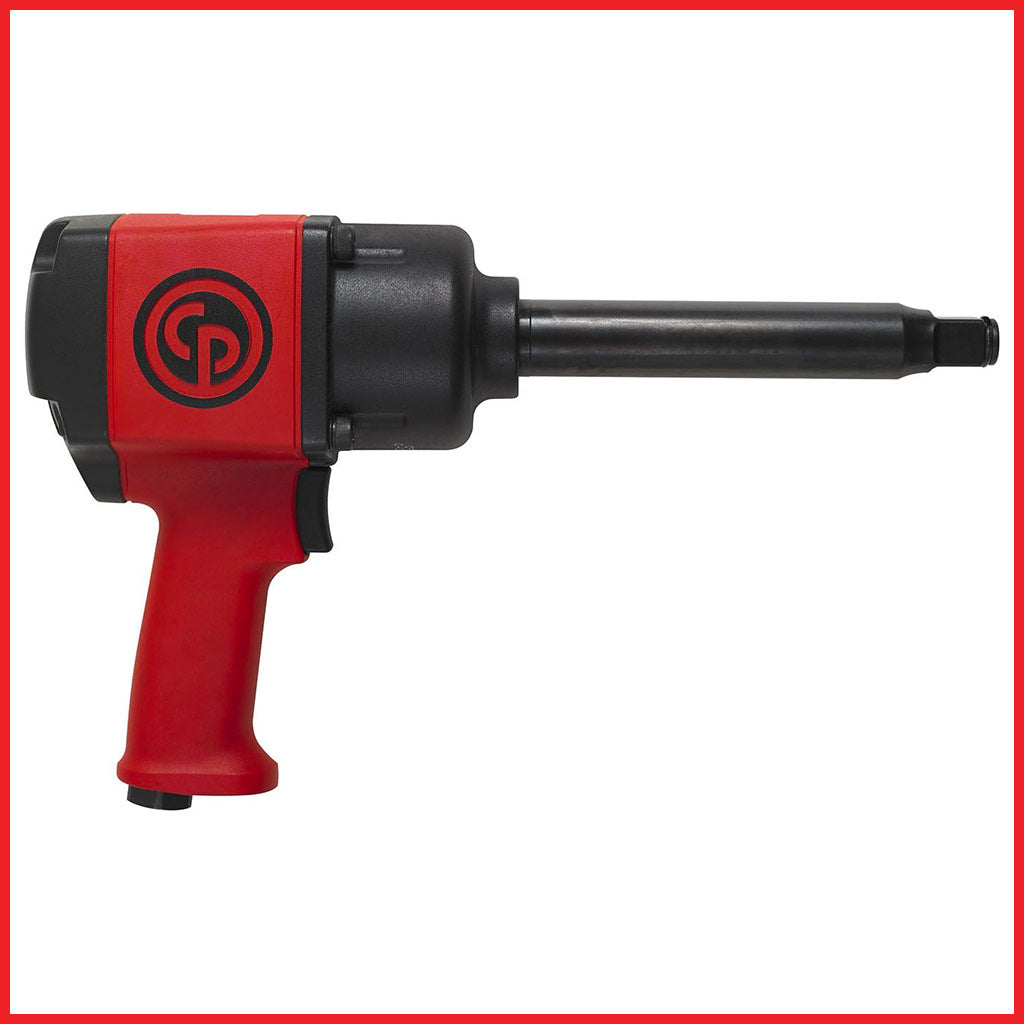

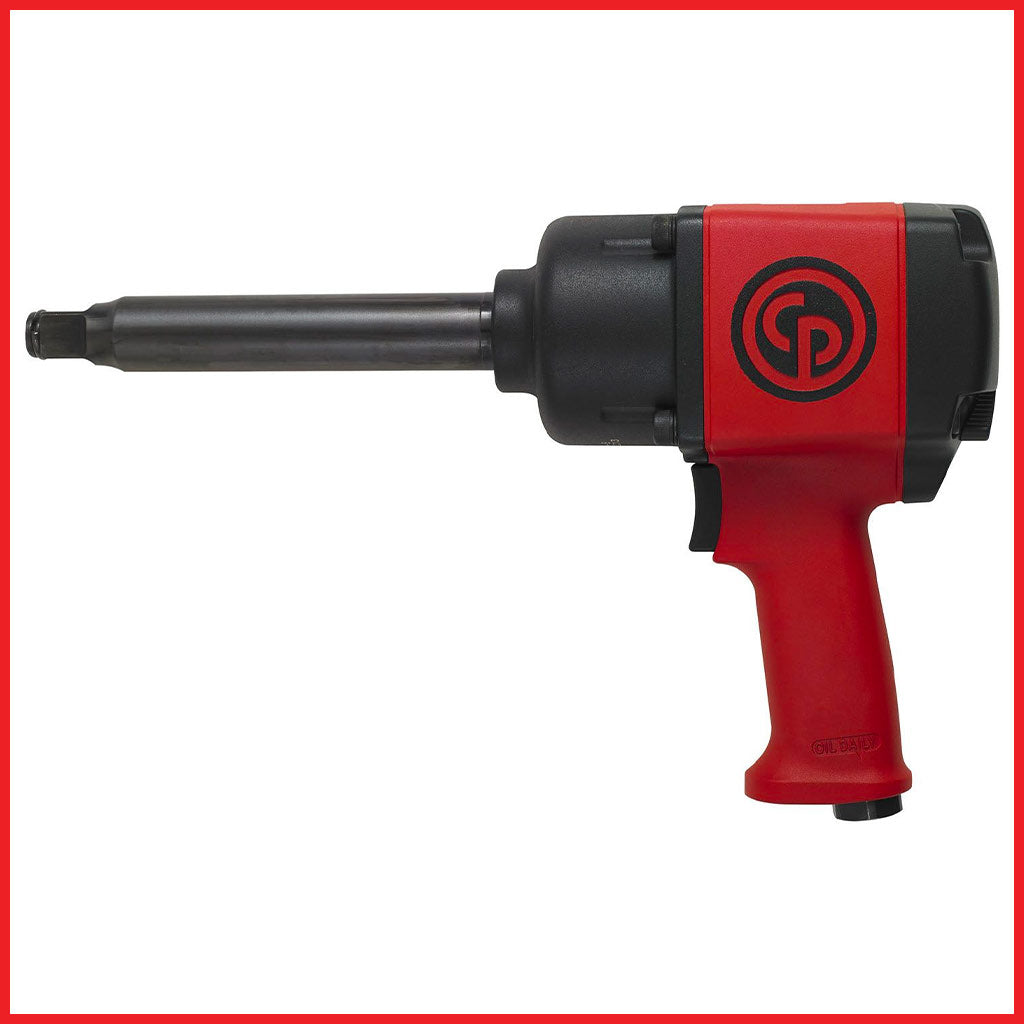

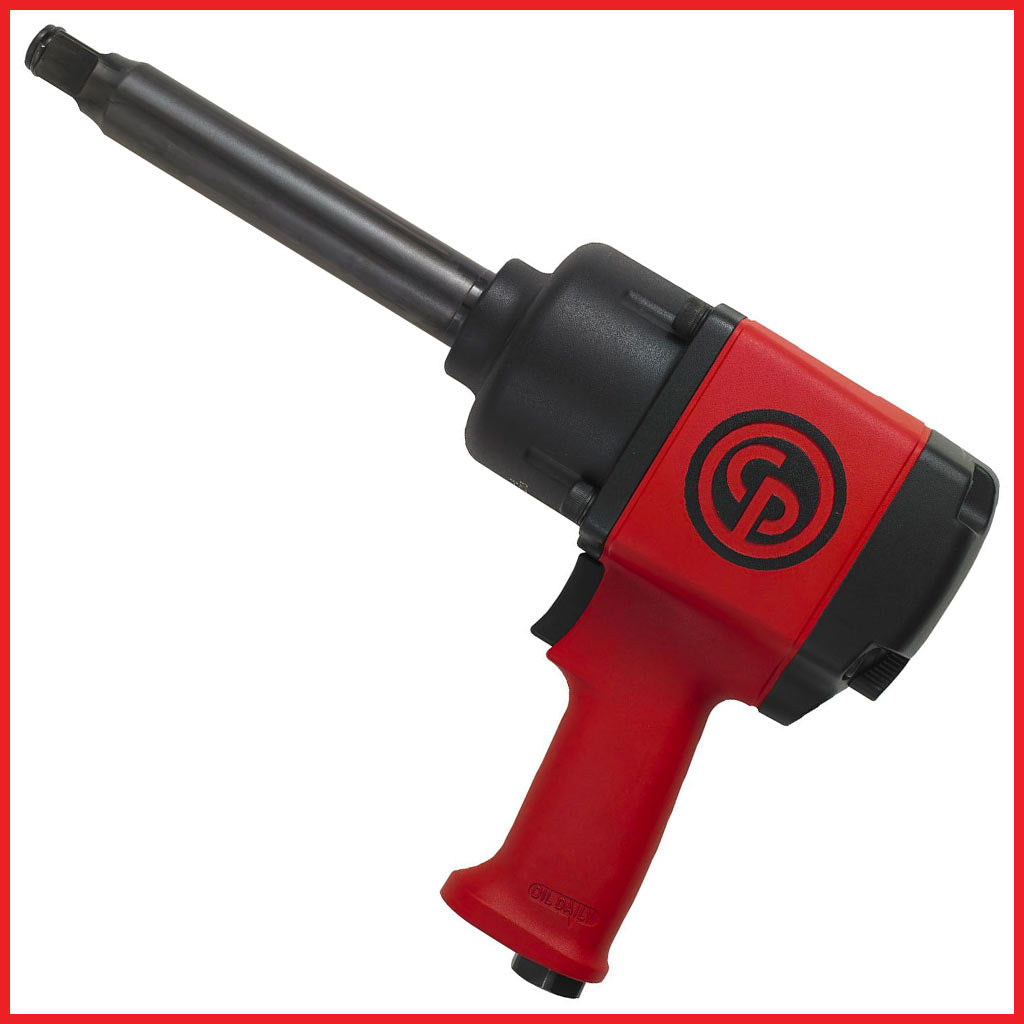

Chicago Pneumatic | Impact Wrench 3/4″ Drive with 6″ Extended Anvil (CP-7763-6)

Name: Chicago Pneumatic | Impact Wrench 3/4″ Drive with 6″ Extended Anvil (CP-7763-6)
Brand: Chicago Pneumatic
SKU: CP-7763-6
Price: 550.85 USD
Availability: OutOfStock

$550.85 $579.99

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

Chicago Pneumatic | Impact Wrench 3/4″ Drive with 6″ Extended Anvil (CP-7763-6)

The CP7763 Series impact wrench 3/4″ square drive delivers reverse torque up to 1,630 Nm / 1,200 ft-lbs. Designed for general maintenance and tire changing, its twin hammer impact mechanism and its composite housing offer high durability in bolting & unbolting applications while also being lightweight and compact.

Features:

Composite housing and twin hammer impact mechanism for high durability
A lightweight and compact tool in a composite motor housing that offers greater comfort
Equipped with intuitive Forward / Reverse lever for easy operation
Power regulator for a controlled approach
6″ Extended Anvil

Specifications:

Chicago Pneumatic Model Number	CP7763-6
Chicago Pneumatic Part Number	8941 0776 36
Handle Type	Pistol
Square Drive	3/4"
Working Torque Range (fwd)	100-950 (136-1,288 Nm)
Maximum Torque (reserse)	1200 ft.lbs (1630 Nm)
Free Speed	6300 rpm
Blows Per Minute	900
Net Weight	13.85 lbs. (6.28 kg)
Power/Weight Ratio	86.6 ft.lb/lb (259.1 Nm/kg)
Length	15" (381 mm)
Side to Center	1.8" (35mm)
Average Air Consumption	7.5 cfm (3.5 l/s)
Actual Air Consumption	30 cfm (14.2 l/s)
Minimum Hose Size	1/2" (13 mm)
Noise Level	96 db(A)
Sound Power	107 db(A)
Vibration (ISO-8662-7)	9 m/s²
Vibration α (ISO-28927-2)	10.4 m/s²
Vibration K (ISO-28927-2)	4.2 m/s²
Socket Retainer	Dual
Clutch Type	Twin Hammer
