ESCO | 10″ Stroke Giant Tire Bead Breaker Head (10104)
The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.
Features:

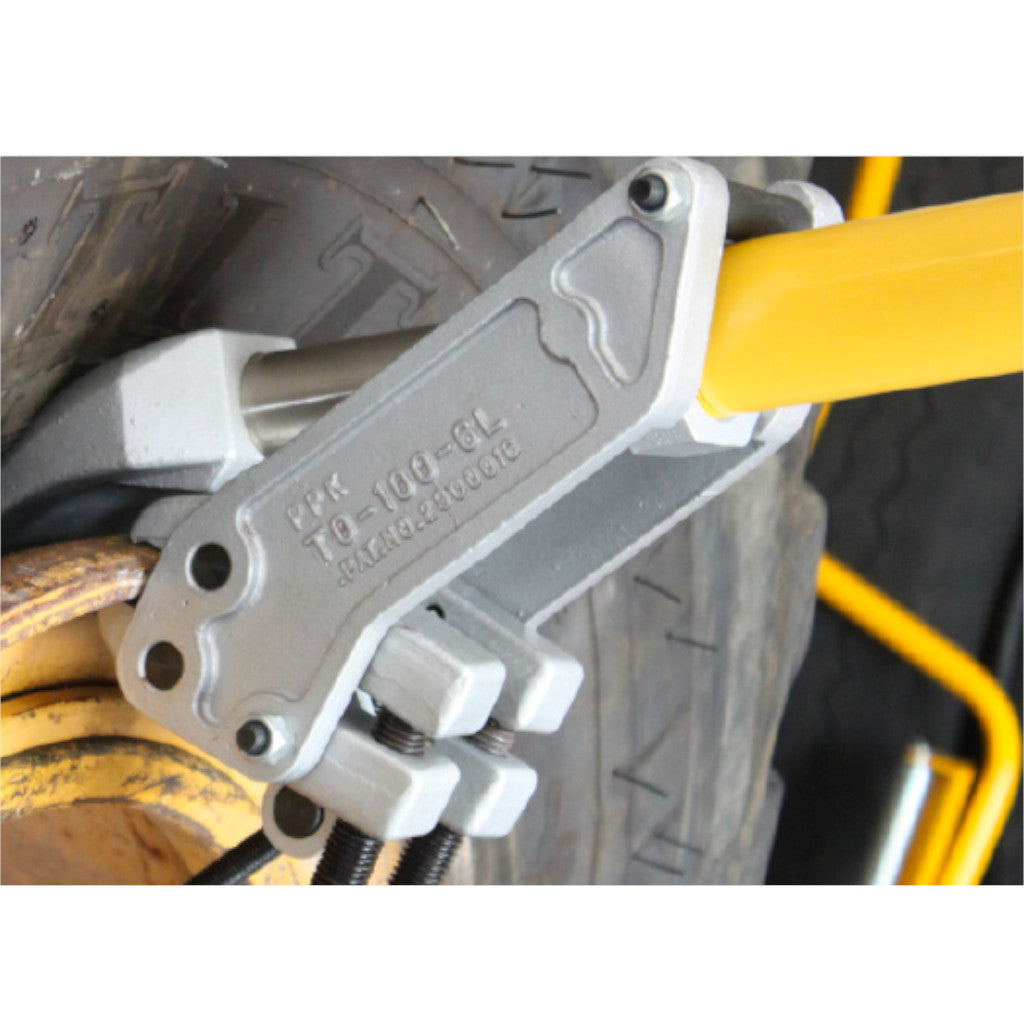

- Use on 5-piece rims 25″ to 51″ without pry bar/bead loosening pockets.
- Replaces Goodyear TO-100-HA. Stroke: 10″ (254 mm)

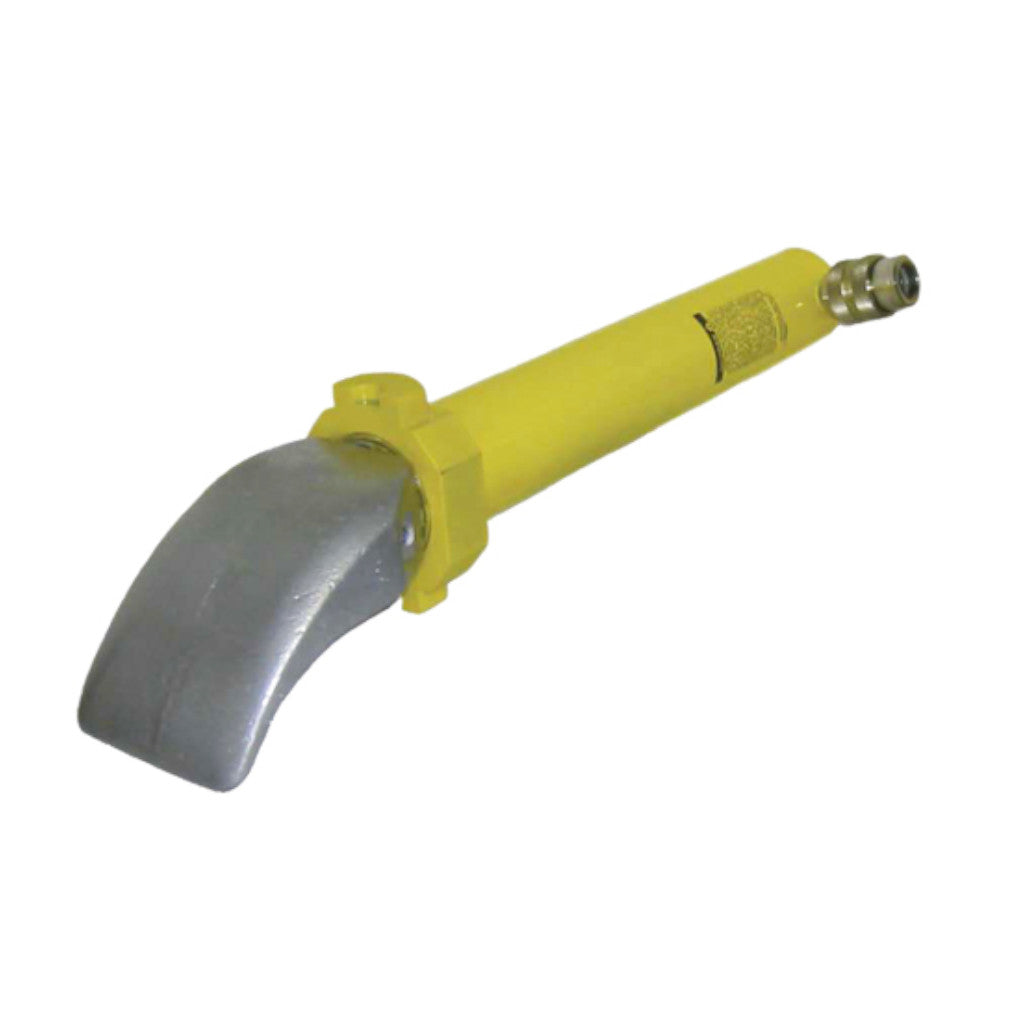

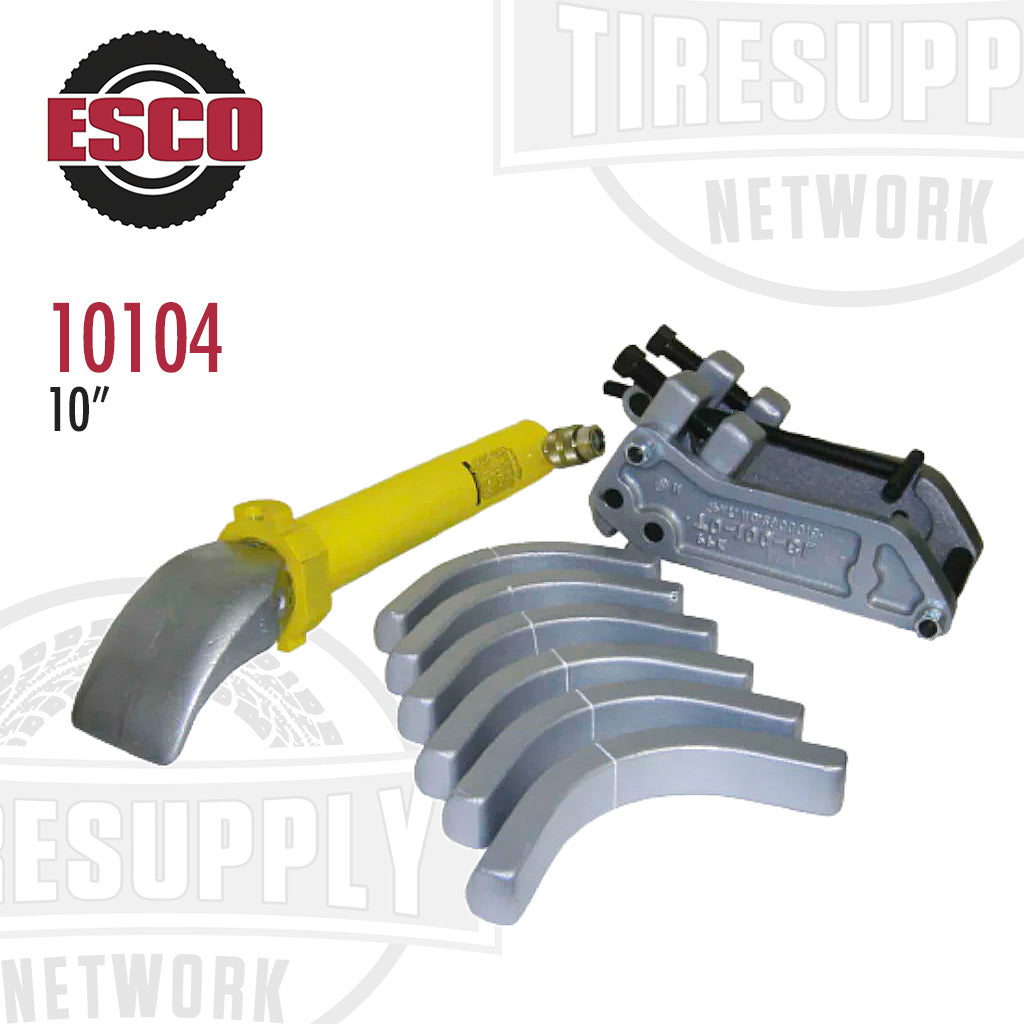

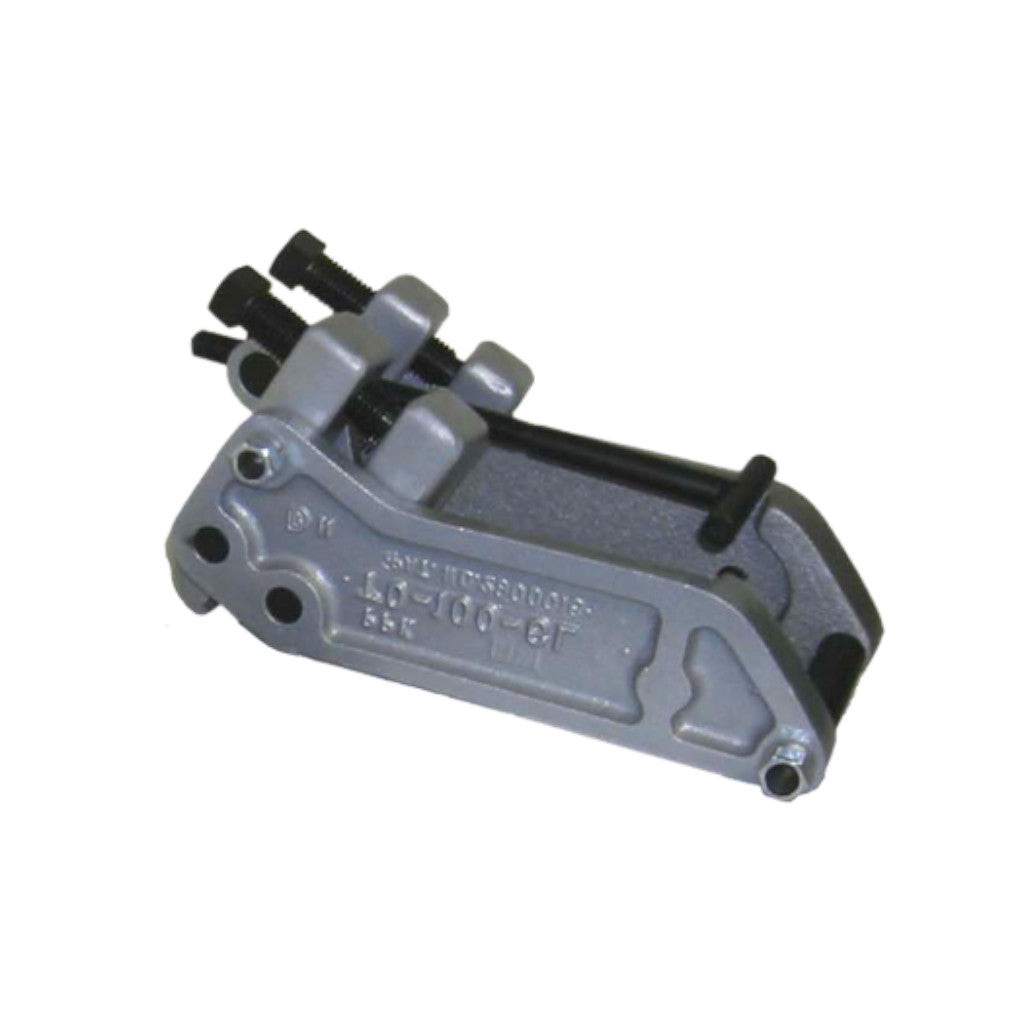

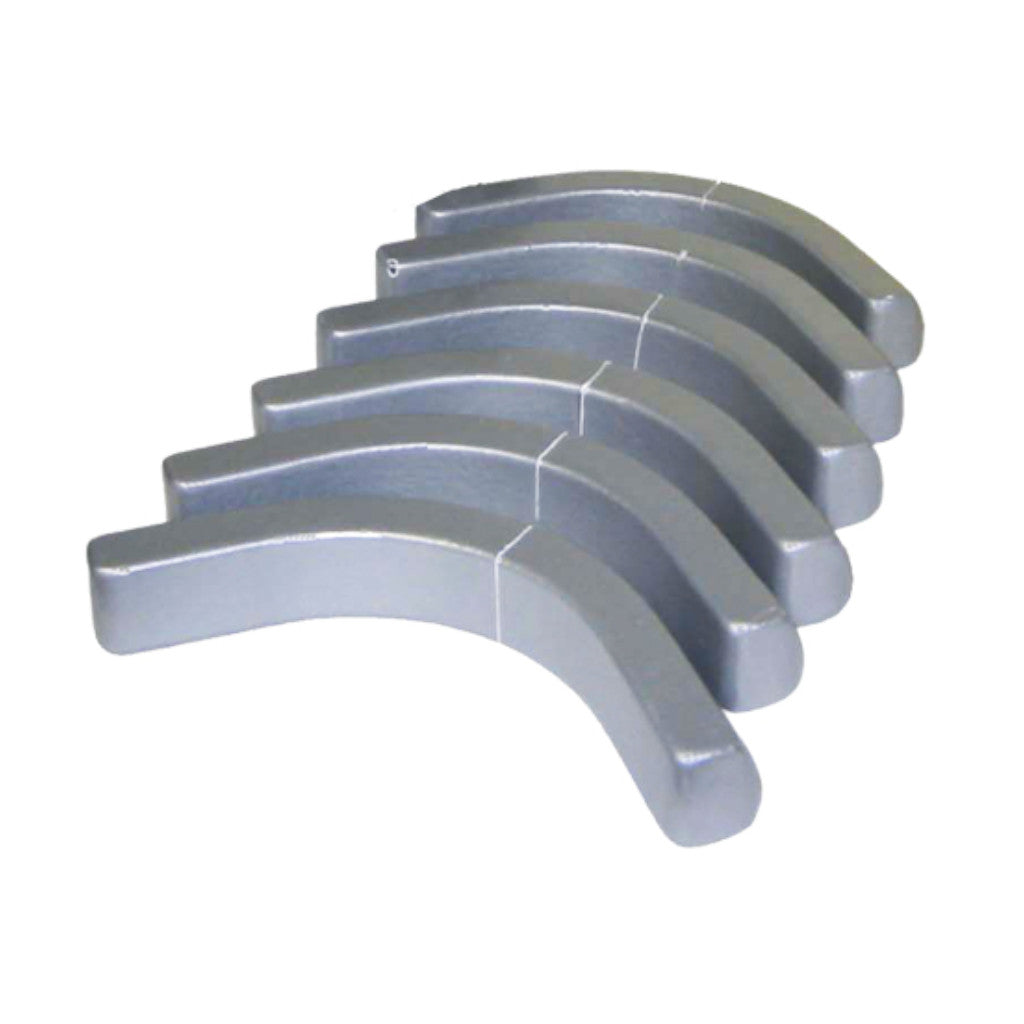

- Includes ESCO Model #10216 ram assembly, ESCO Model #10215 frame assembly, and wedges.
Specifications:
- Ram Tonnage: 10 Tons
- Stroke: 10″ (254 mm)
- Maximum Pressure: 10,000 PSI
- Length: 23″ (584 mm)
- Width: 10″ (254 mm)
- Weight: 68 lbs (31 kg)
