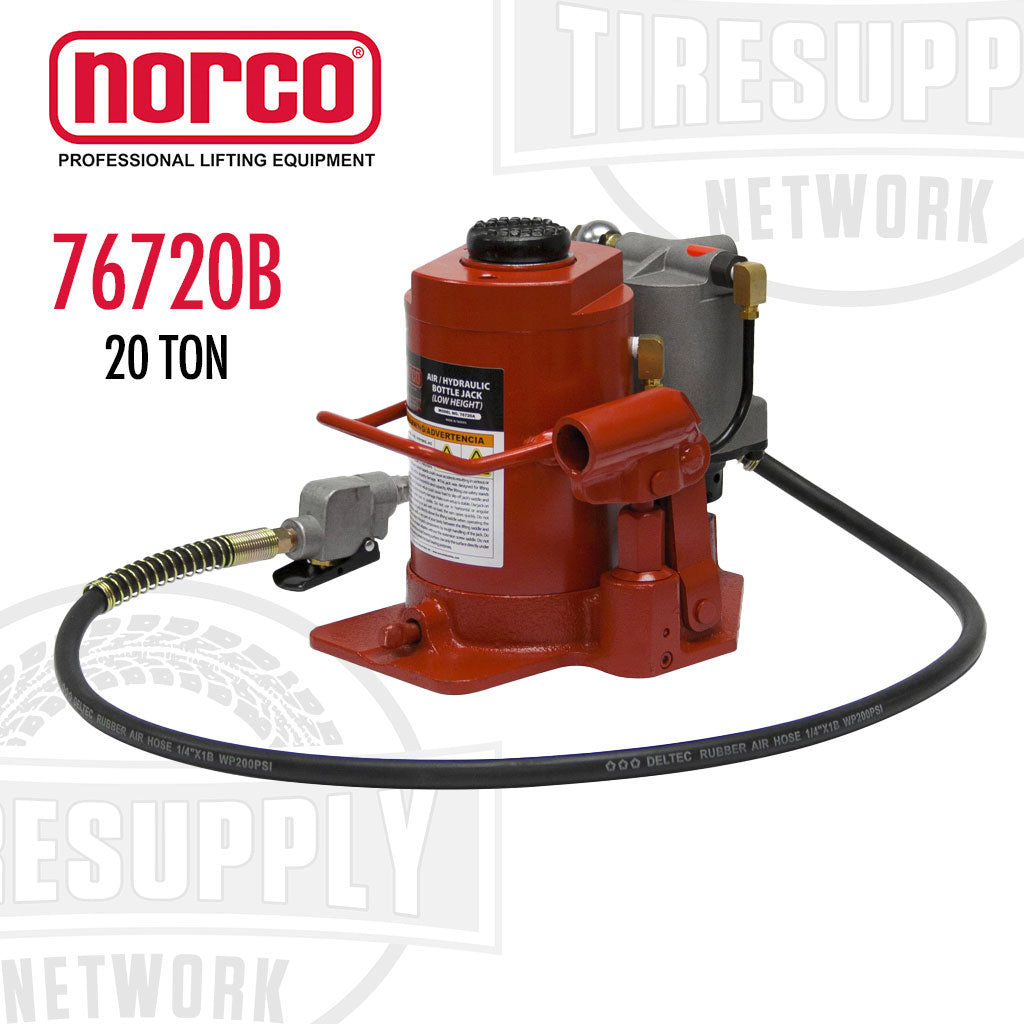

Norco | 20 Ton Bottle Jack Low Air/Hydraulic (76720B)

Norco | 20 Ton Bottle Jack Low Air/Hydraulic (76720B)

Intended Use:

For use in heavy duty trucks, farm equipment, building construction, construction and mining equipment, mobile home set-up and oil field applications.

Features:

• Fast efficient air pump reduces lifting time and has a built-in relief mechanism which prevents the jack from being used beyond its maximum capacity.
• Convenient push button air valve connected to an in-line filter prevents contaminates from entering the air/hydraulic system.
• Unique design allows for manual operation when air is not available.
• Two piece zinc plated handle.
• Parkerized coating on pump piston, extension screw and extension adapters and chrome coated ram offer protection against rust.
• Longer wear life due to internally machined oil passages, smooth bearing surfaces and close tolerances.
• Safety oil by-pass system prevents the ram from being overextended and causing damage to the cylinder.
• Carrying handle.

Dimensions:

• Low Lift Height 8.25"
• High Lift Height 14.5"
• Stroke 4"
• Screw Extension 2.25"
• Base Size 7.5" x 9.25"
• P.S.I. Range 100-130
• Shipping Weight 34 lbs.

Compliance and Restrictions

⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
