ESCO | K Rechargeable Automatic Digital LCD 4-Way Tire Inflator Gauge (10963)

ESCO | K Rechargeable Automatic Digital LCD 4-Way Tire Inflator Gauge (10963)

The ESCO Automatic Handheld Tire Inflator with 4-Way Inflation System (Model #10963-K) is a truly portable automatic inflator/deflator capable of inflating up to four tires at a time, powered by a rechargeable Lithium-Ion battery, lasting up to an impressive 15 hours (continuous use). Connect to airline, set the required pressure and then let this automatic inflator do the rest. Housed in a tough ABS case, has (4) 6 ft. hoses and inflates up to 174 psi at an astonishing 88 cfm (2,500 L/min) @ 182 psi. The inflator also has two programmable pre-set buttons for setting the common pressures quickly and easily. With OPS (Over Pressure Setting) making it ideal for mobile fitting for truck, car and earthmoving equipment.

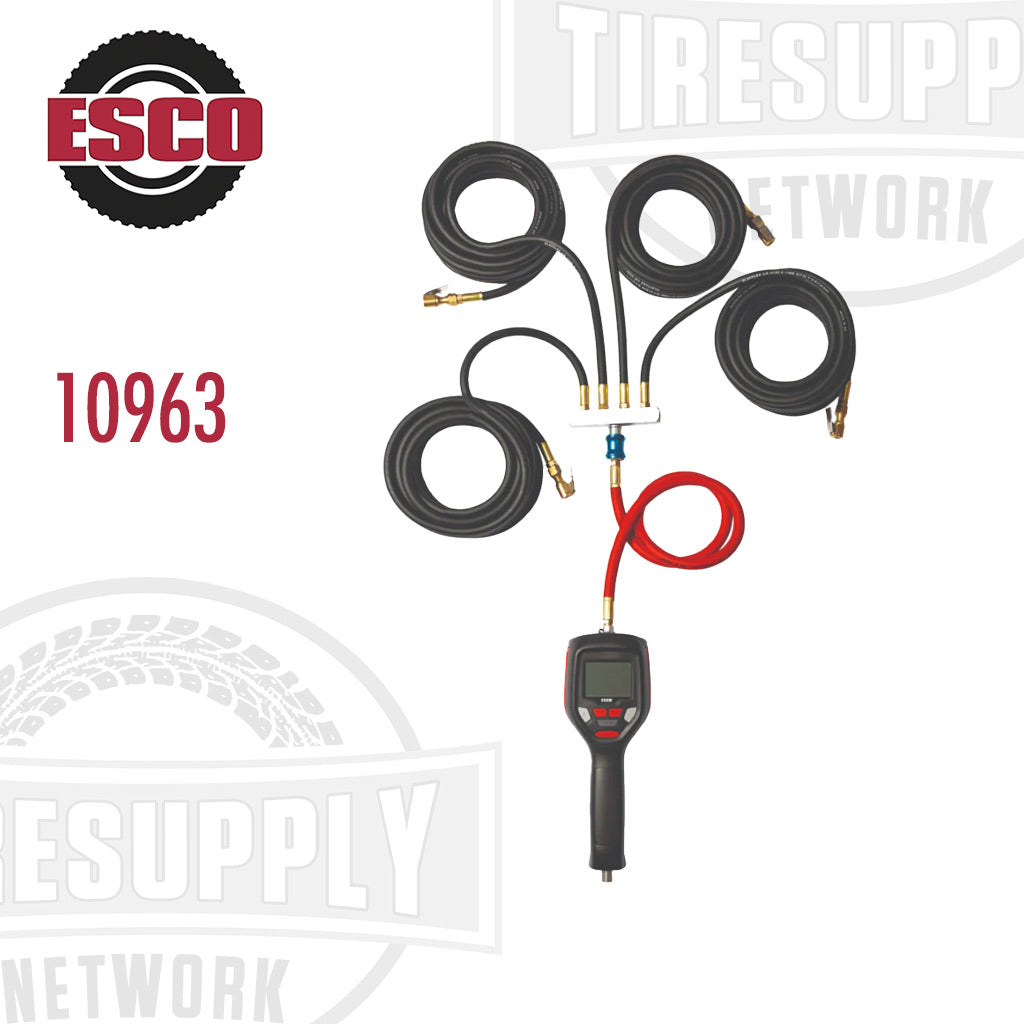

The Automatic Handheld Tire Inflator Unit includes the following items:

• Model 10963 – Automatic Handheld Rechargeable Tire Inflator
• Model 10966 – Four-Way Manifold (4) 6 ft. Hoses

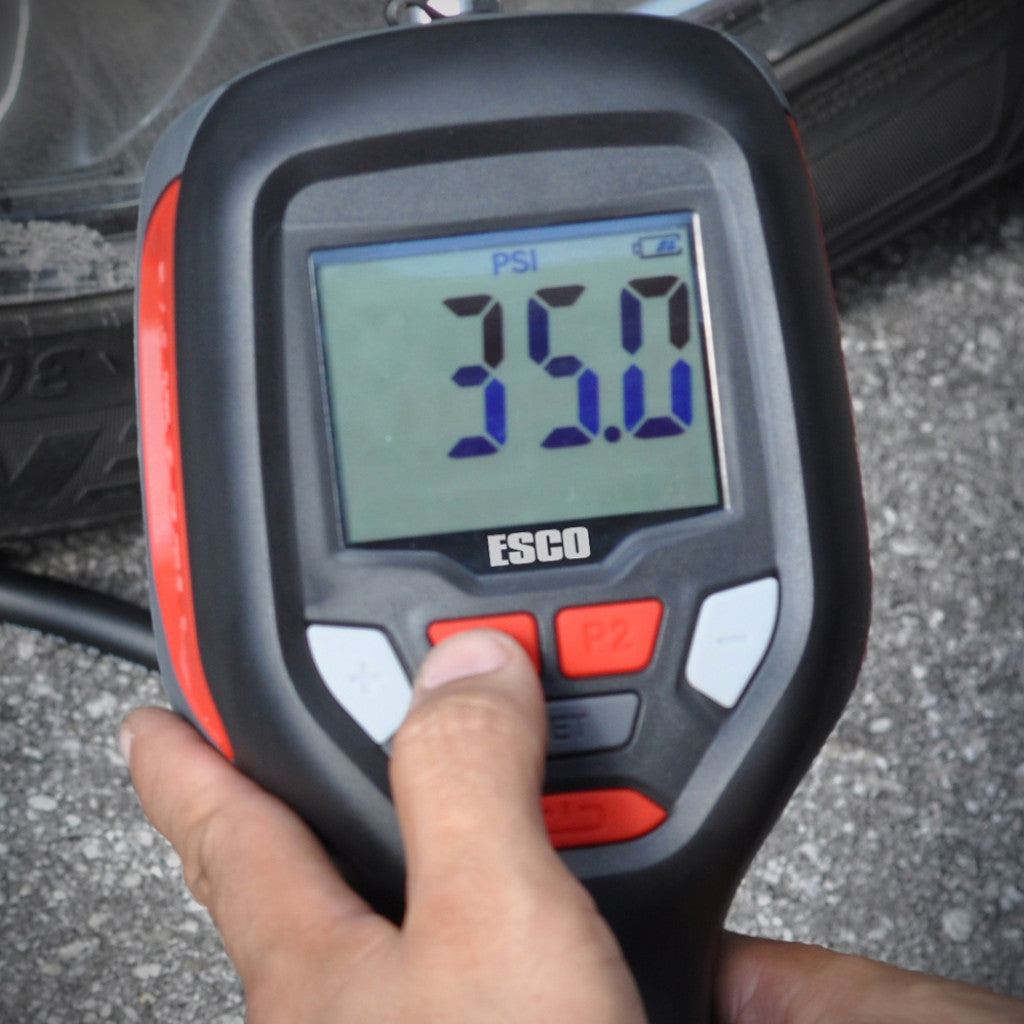

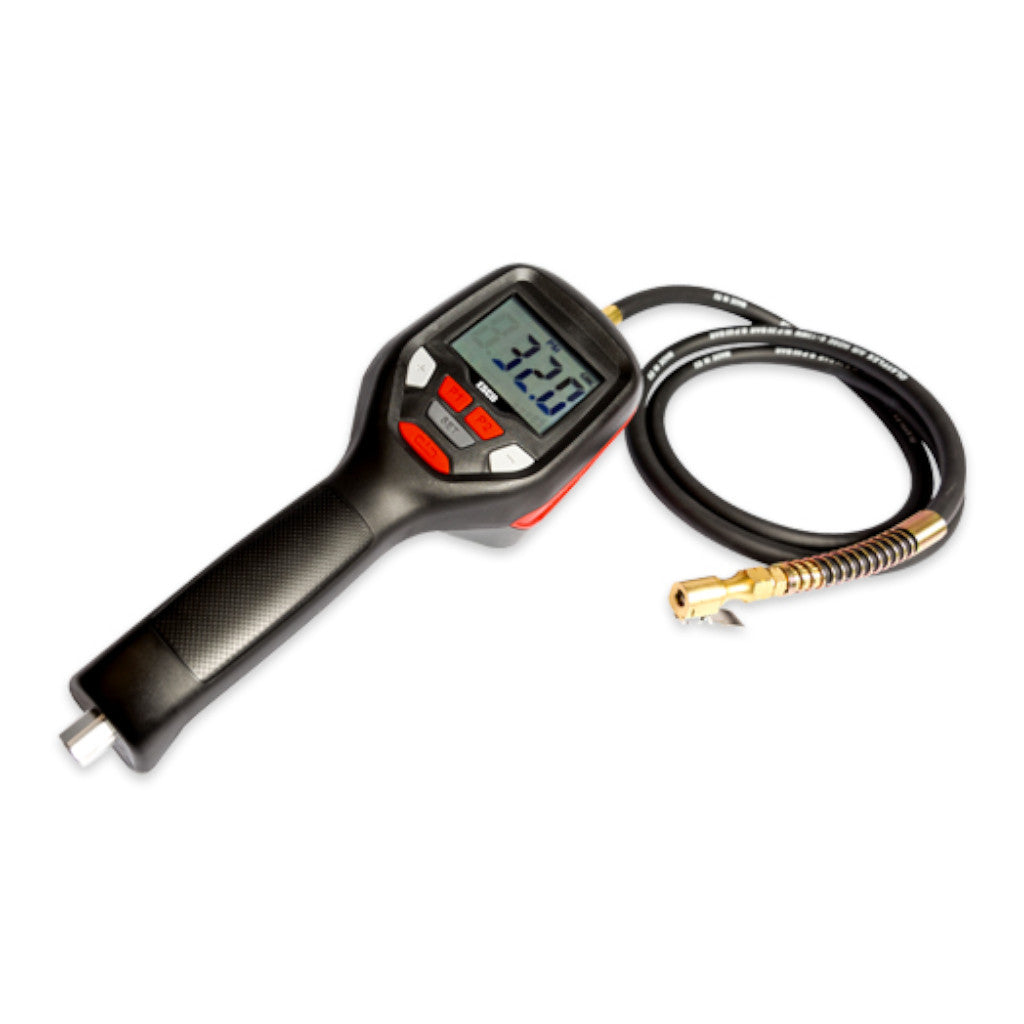

ESCO 10963 Rechargeable Automatic Digital LCD Tire Inflator Gauge

Features:

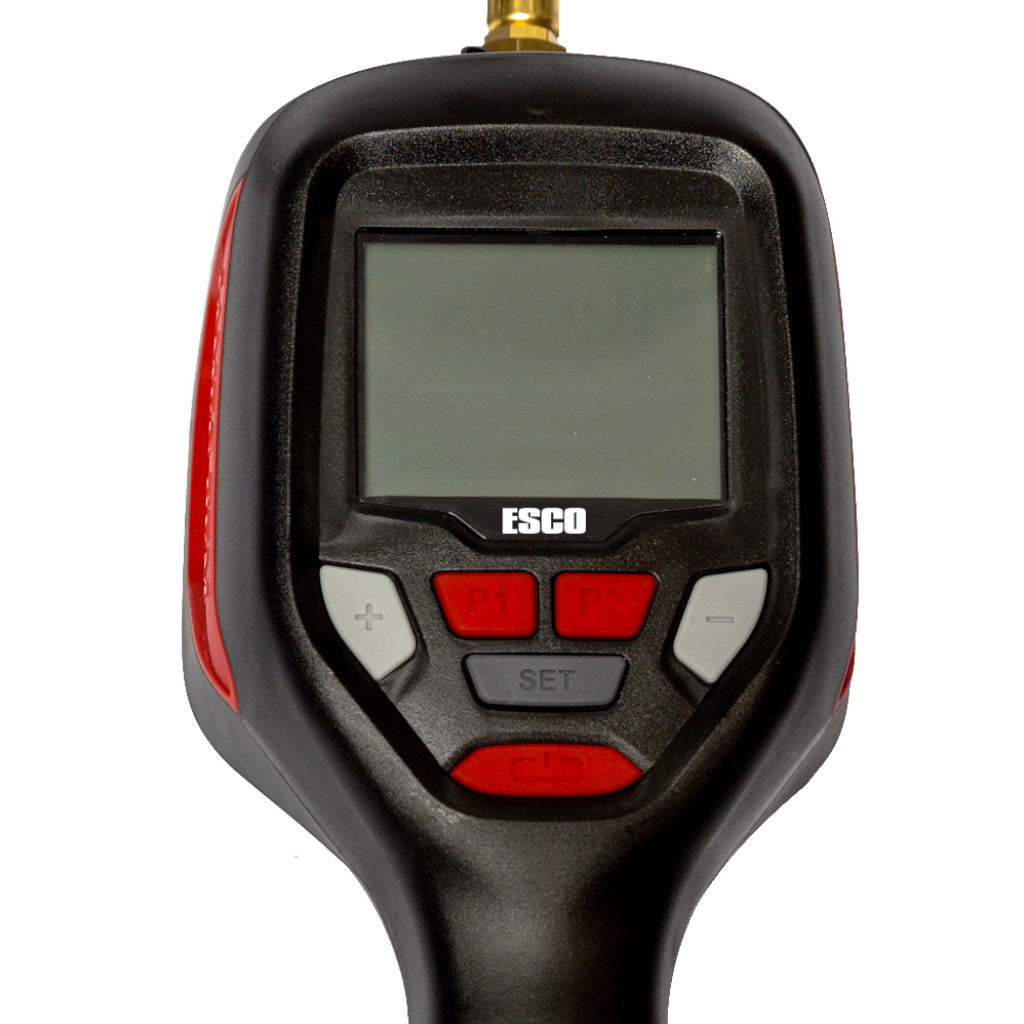

• Large Backlit Digital Display
• Two programmable Pre-set buttons
• Tough poly carbonate / ABS body
• Multi-scale gauge: PSI, bar, kPa, kgF
• Wire Sheathed Hose – Eliminates Hose Kinking
• Rechargeable Battery – Includes AC adaptor for charging
• Includes Calibration Certification

Specifications:

• Reader Unit: 2 3/8″ x 1 3/4″ (60 mm x 44 mm)
• Chuck Type: Clip-On
• Chuck Style: Single Straight
• Scale: 0-174 psi, 0.5-12 bar, 1200 Kpa

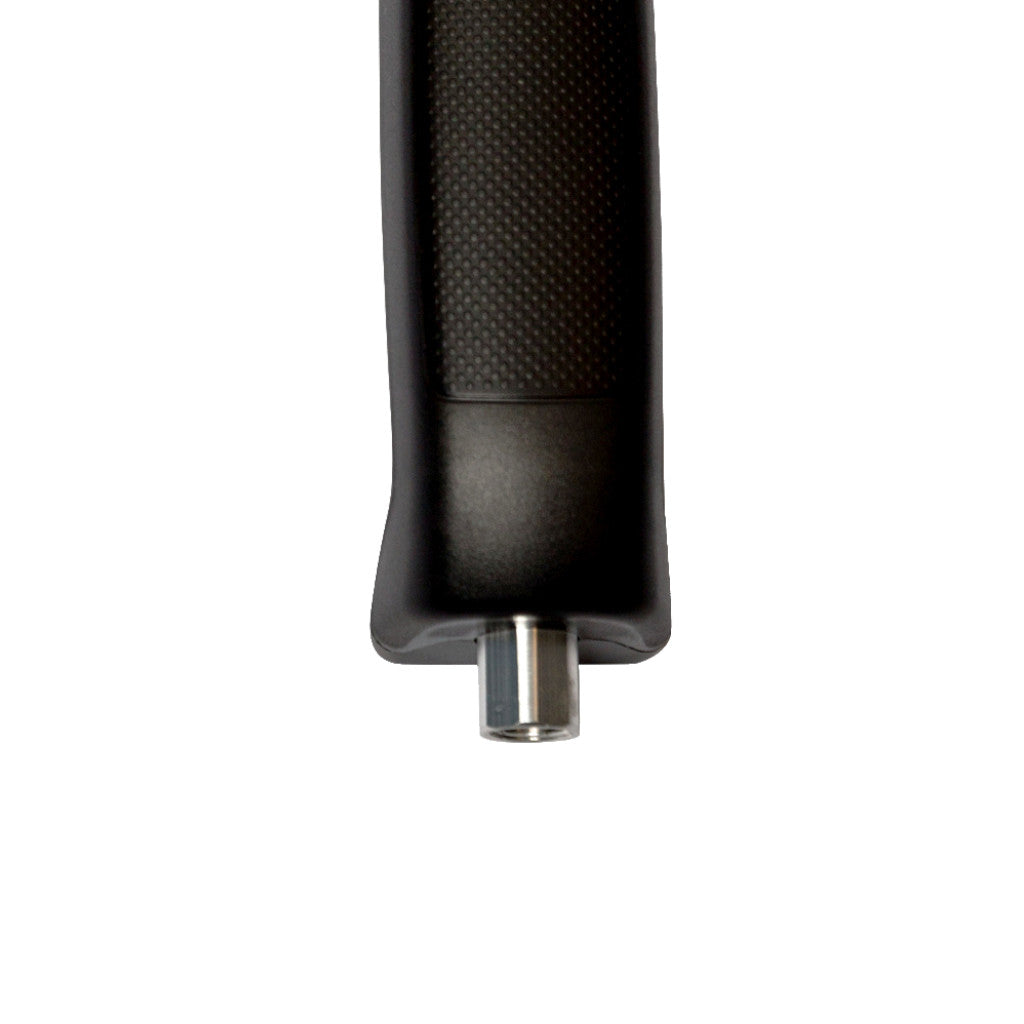

• Inlet Size: 1/4″ NPT
• Hose Length: 5′ (1.5 m)
• Dimensions (L x W x H): 15″ x 5″ x 5.3″ (380 mm x 125 mm x 135 mm)
• Weight: 4.5 lbs (2 kg)
• Accuracy: ± 0.3 psi @ 25-75 psi
• Operation: Inflate, Deflate, Measure
• Supply Pressure Maximum: 182 psi (12.55 bar)
• Inflation Flow: 88.29 cfm (2500 L/min) @ 182 psi

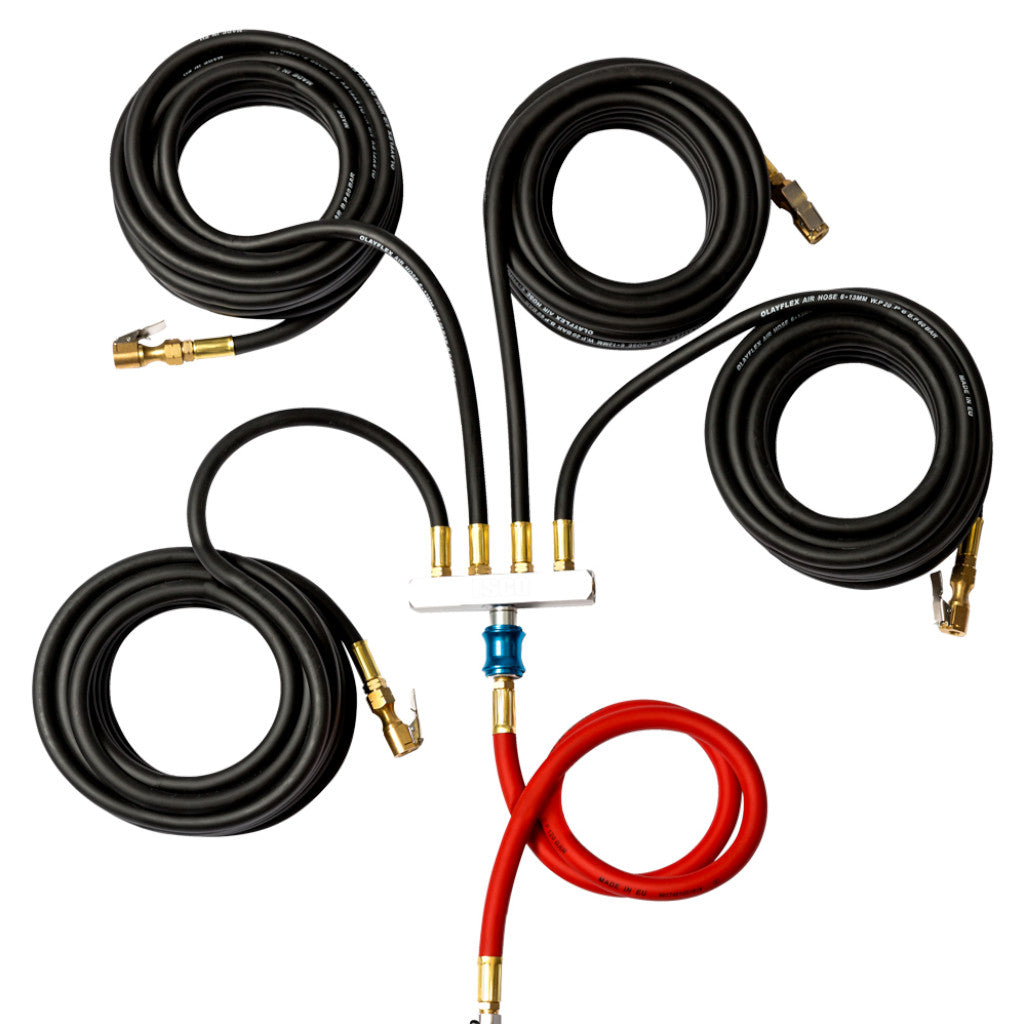

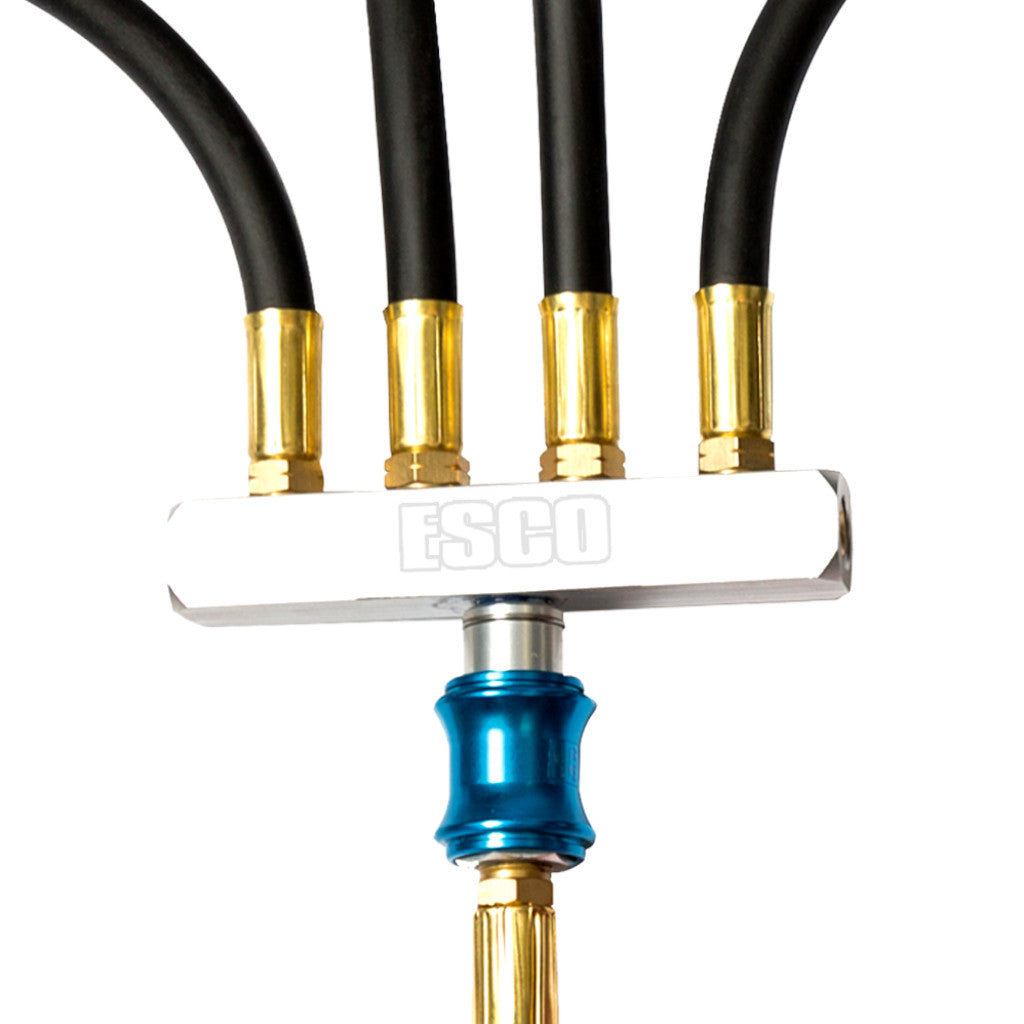

ESCO 10966 4-Way Manifold and 4 Hoses - 6′ Length with Clip-On Air Chucks

Features:

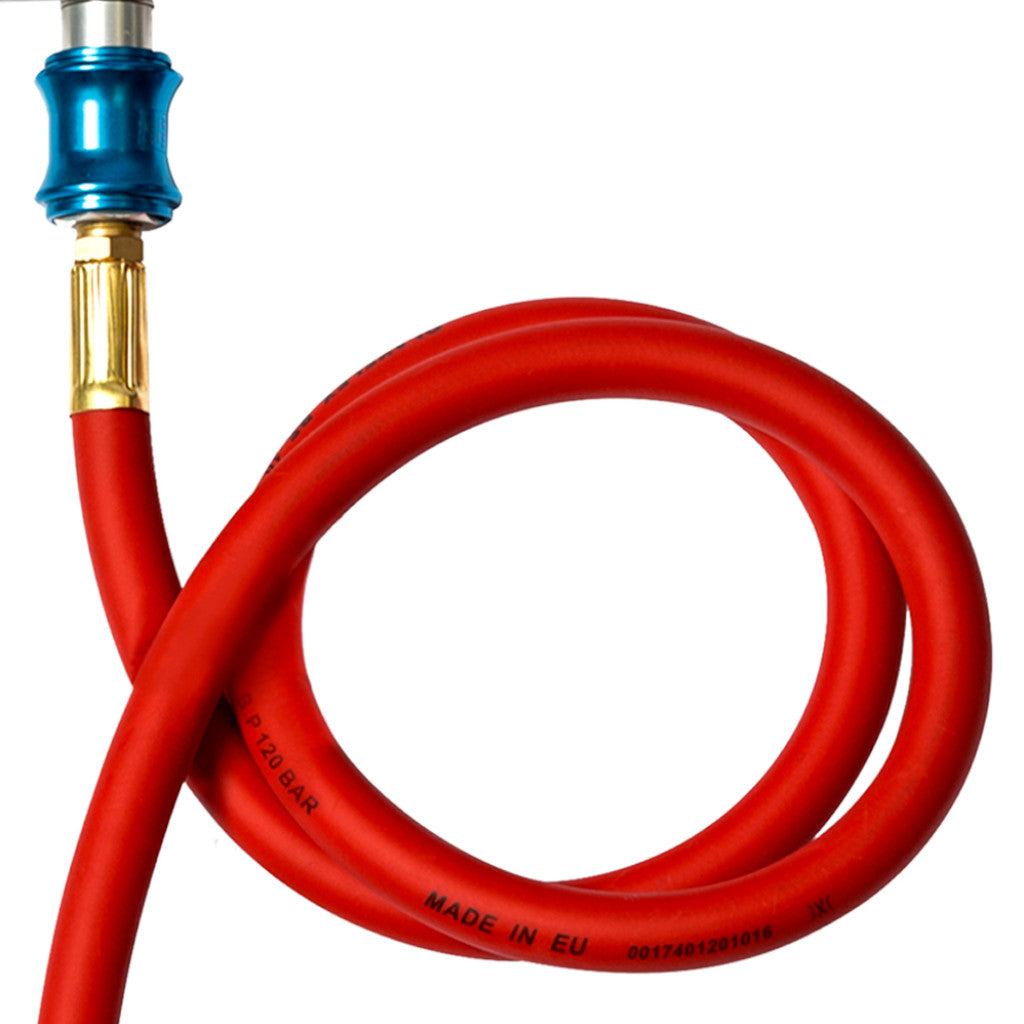

• Quick coupler connects directly to the auto digital inflator
• Slide valve turns the air supply ON/OFF to start inflation

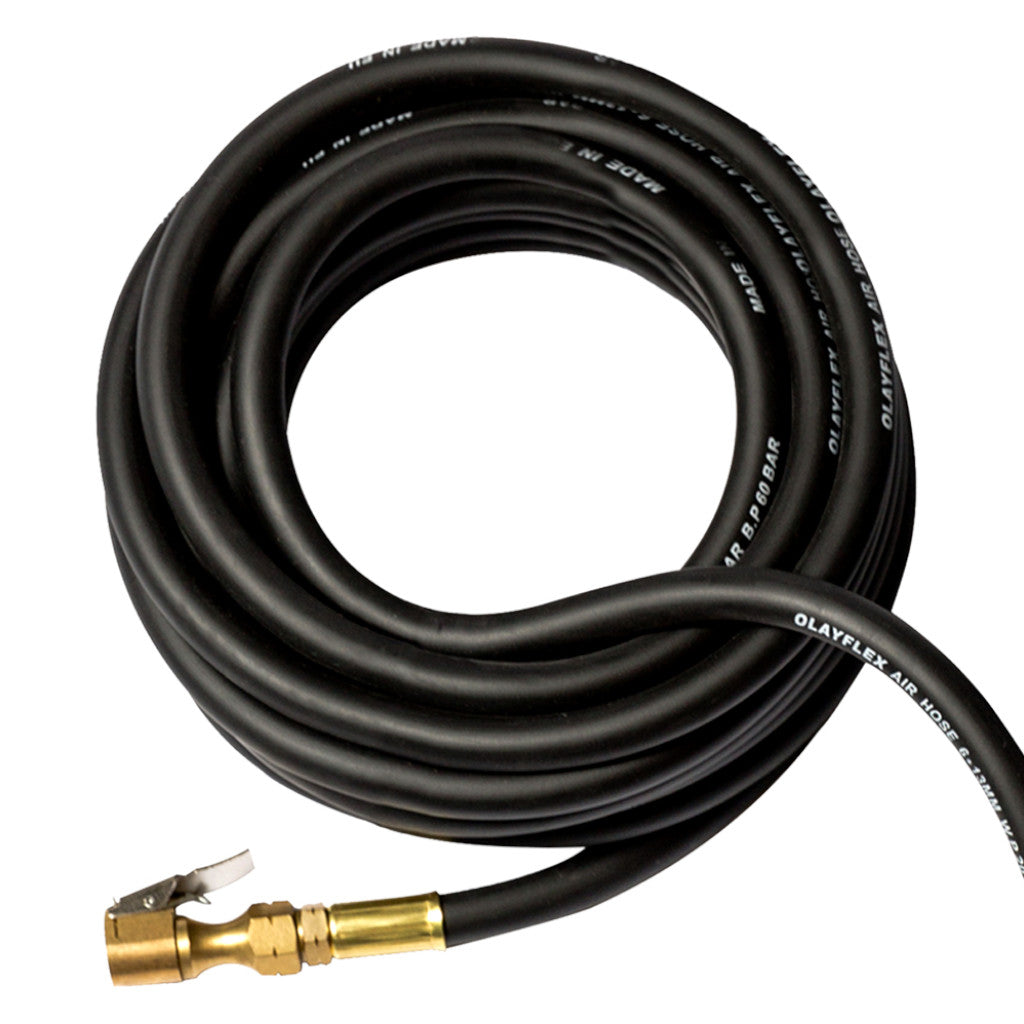

• Includes all hoses & connections – (4) 6 ft. hoses with clip on air chucks
• Built with high quality components and parts – capable of withstanding daily use

Specifications:

• Hose Length: 6′ (1.83 m)
• Chuck Style: Clip-On
