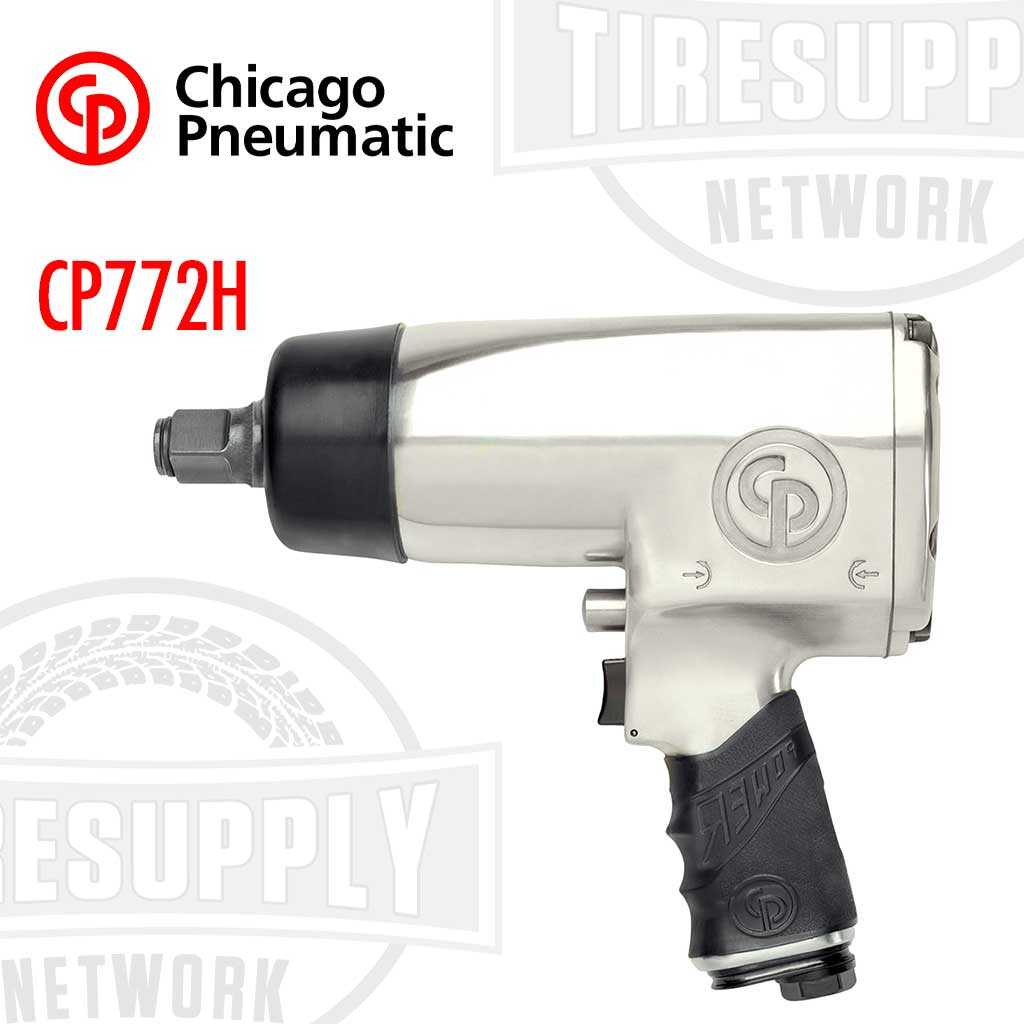

Chicago Pneumatic | 3/4" Drive Impact Wrench (CP772H)
Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!
Chicago Pneumatic | 3/4" Drive Impact Wrench (CP772H) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Chicago Pneumatic | 3/4" Drive Impact Wrench (CP772H)
Description
Description
Chicago Pneumatic | 3/4" Drive Impact Wrench (CP772H)
Benefits
- General Maintenance
- Smooth operation thanks to the DYNA-PACT clutch
- Comfortable use thanks to low noise and vibration levels
- Good durability
Features
- 3/4" impact wrench with ring retainer
- DYNA-PACT oil bath clutch
- One-handed reverse button with 4 settings of power
- Comfortable handle grip
- 360° air inlet swivel
| Specification | CP772H |
|---|---|
| Square Drive | 3/4" |
| Working Torque Range (fwd) | 150-700 (203-949 Nm) |
| Maximum Torque (reserse) | 1000 ft.lbs (1356 Nm) |
| Free Speed | 4200 rpm |
| Blows Per Minute | 900 |
| Net Weight | 10.5 lbs. (4.76 kg) |
| Power/Weight Ratio | 95.2 ft.lb/lb (284.9 Nm/kg) |
| Length | 9.63" (245 mm) |
| Average Air Consumption | 6 cfm (2.8 l/s) |
| Actual Air Consumption | 24 cfm (11.3 l/s) |
| Minimum Hose Size | 1/2" (13 mm) |
| Noise Level | 96 db(A) |
| Sound Power | 107 db(A) |
| Vibration (ISO-8662-7) | 4.9 m/s² |
| Vibration α (ISO-28927-2) | 5.8 m/s² |
| Vibration K (ISO-28927-2) | 2 m/s² |
| Socket Retainer | Friction Ring |
| Clutch Type |
Pin Clutch - Oil Bath |
Compliance and Restrictions
⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
