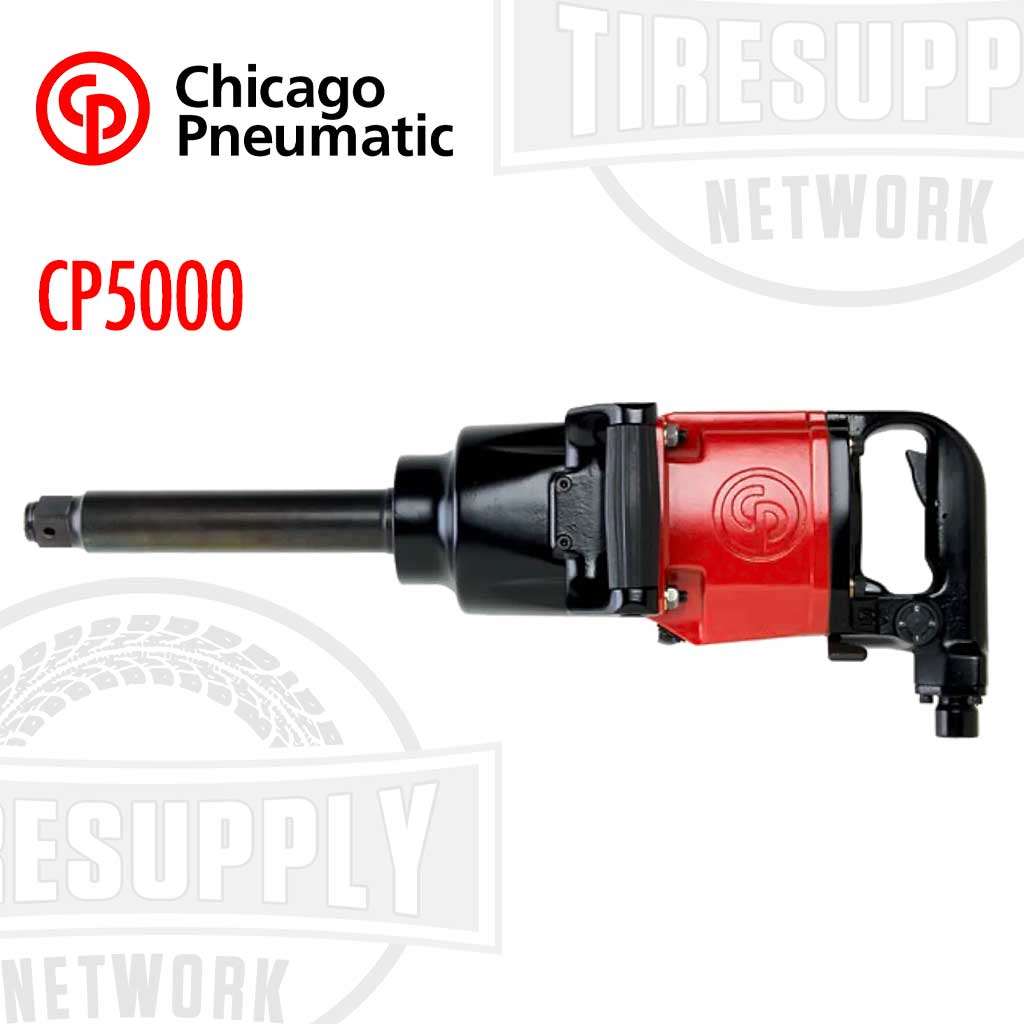

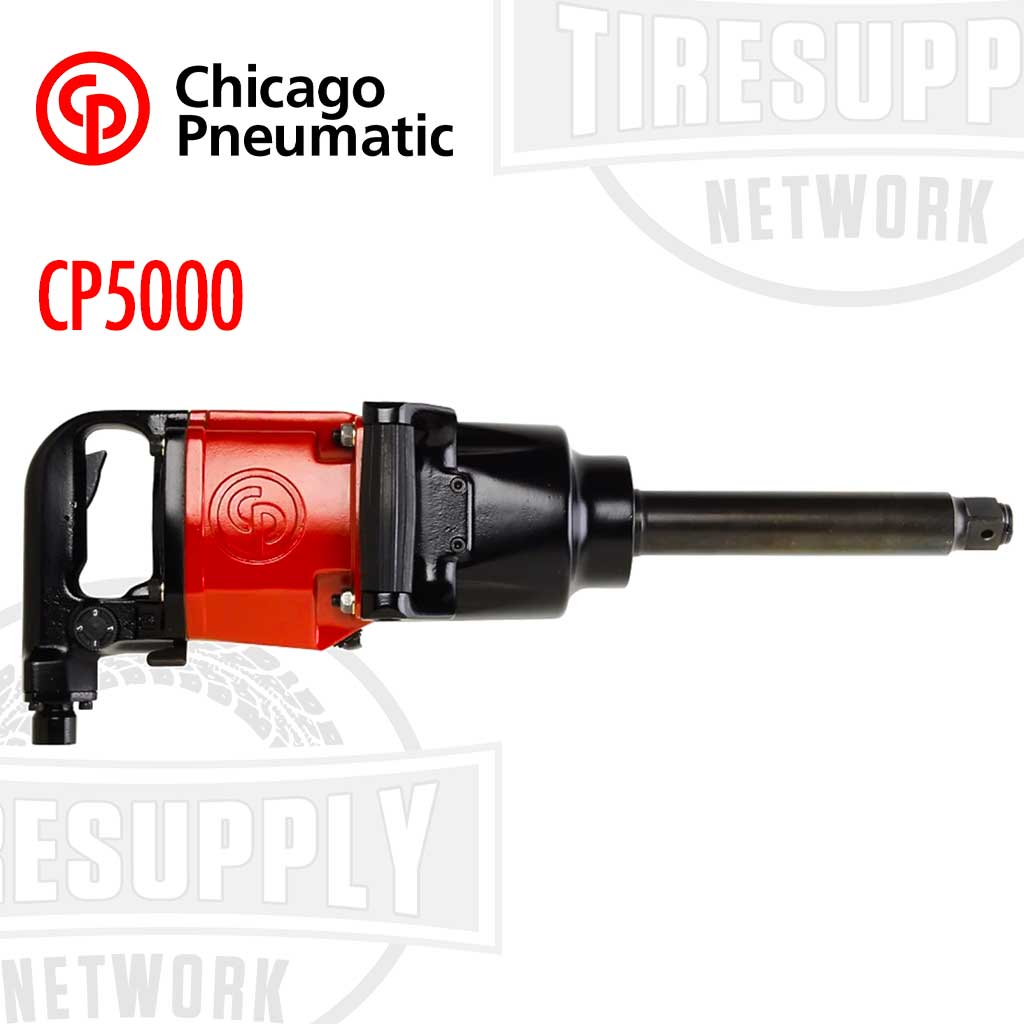

Chicago Pneumatic 1" Drive Impact Wrench (CP5000)
Benefits
- Our strongest and most powerful 1" impact with an extended anvil
- Operator productivity
- Convenient reverse valve for ease of use
- Ideal for high volume tire work on trucks, buses, and heavy equipment
Features
- 1" impact wrench
- Rocking dog clutch
- 1550 ft.lbs (2100Nm) maximum torque in reverse
- 4-position power settings throttle for ease of use
- Convenient reverse valve
- Dedicated lever for forward & reverse
- Plus 7" extended anvil
| Specification | CP5000 |
|---|---|
| Handle Type | D-Handle Inside Trigger |
| Square Drive | 1" |
| Working Torque Range (fwd) | 185-2,065 (240-2,800 Nm) |
| Maximum Torque (reserse) | 2500 ft.lbs (3390 Nm) |
| Free Speed | 3700 rpm |
| Blows Per Minute | 540 |
| Net Weight | 35.71 (16.2 kg) |
| Power/Weight Ratio | 70 ft.lb/lb (209.3 Nm/kg) |
| Length | 22.5" (572 mm) |
| Average Air Consumption | 11.88 cfm (5.6 l/s) |
| Actual Air Consumption | 52 cfm (25 l/s) |
| Minimum Hose Size | 1/2" (13 mm) |
| Noise Level | 103 db(A) |
| Sound Power | 114 db(A) |
| Vibration (ISO-8662-7) | 8.9 m/s² |
| Vibration α (ISO-28927-2) | 8.5 m/s² |
| Vibration K (ISO-28927-2) | 2.6 m/s² |
| Socket Retainer | Dual |
| Clutch Type | Pinless Rocking Dog |
