Hofmann | Geodyna 9000P Diagnostic Wheel Balancer with Touchscreen & 3D Camera Technology (EEWB771AP230)
PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
When the core of your tire service business comes from to the newest makes and models, you need a wheel balancer that can help your team achieve repeatable precision with maximum reliability at minimum effort. Hofmann Geodyna Premium

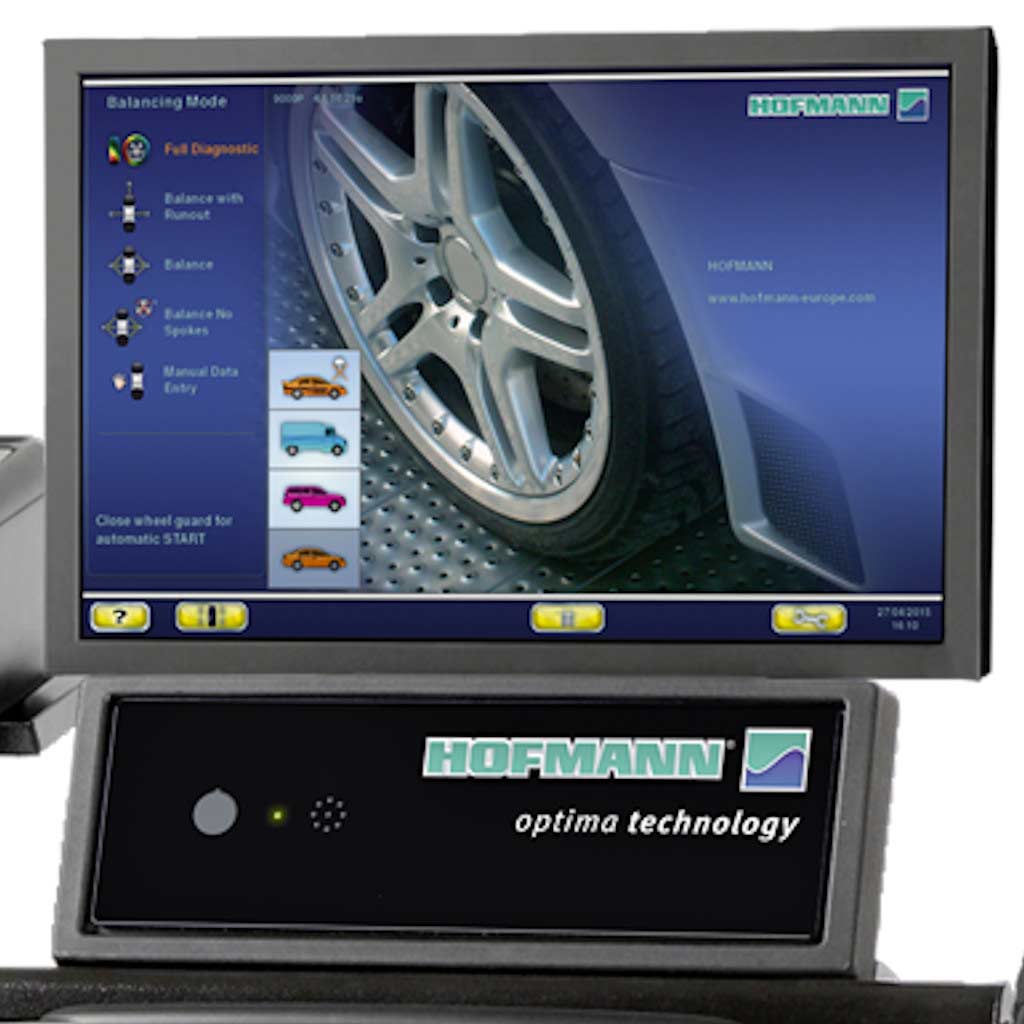

Service Wheel Balancers feature automatic data entry and balancing mode selection via scanner and smartSonar, with touchscreen user interfaces for faster, more intuitive setup and the ultimate in accuracy and performance.

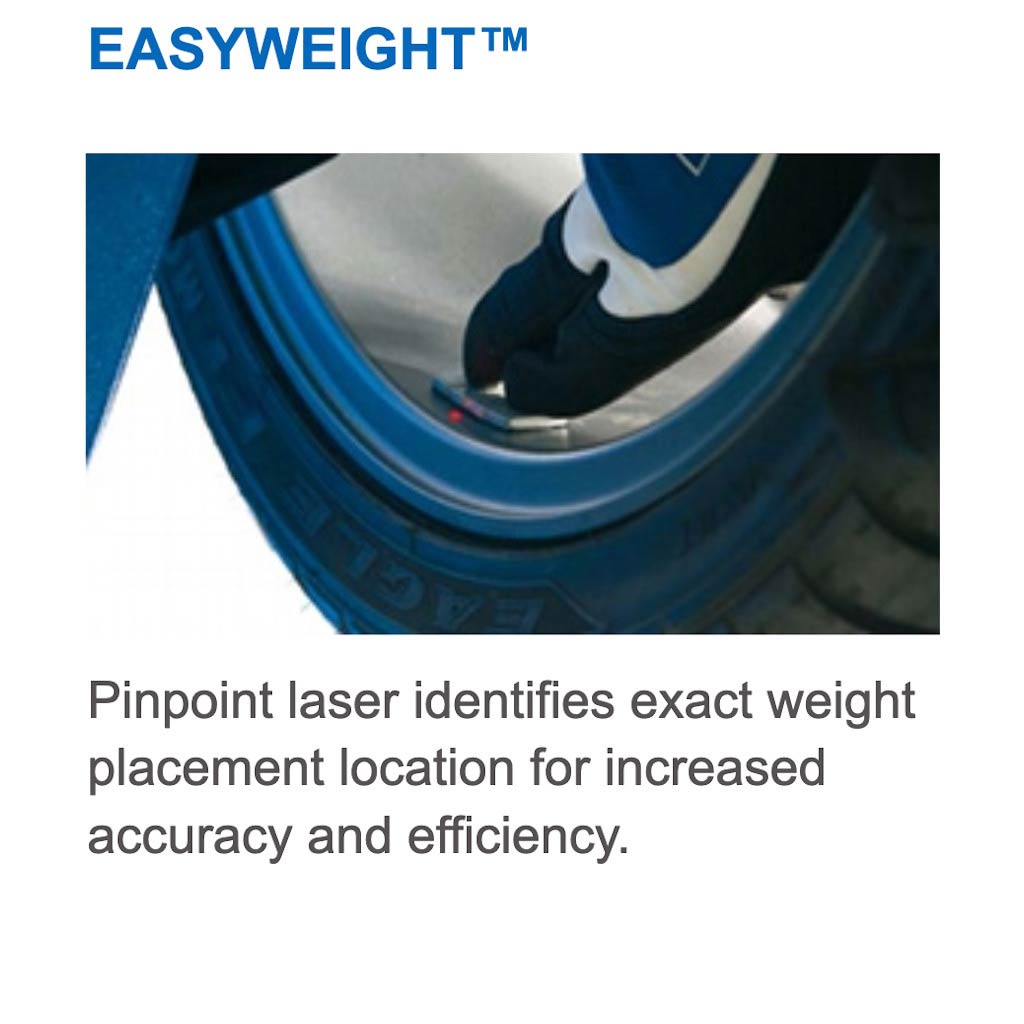

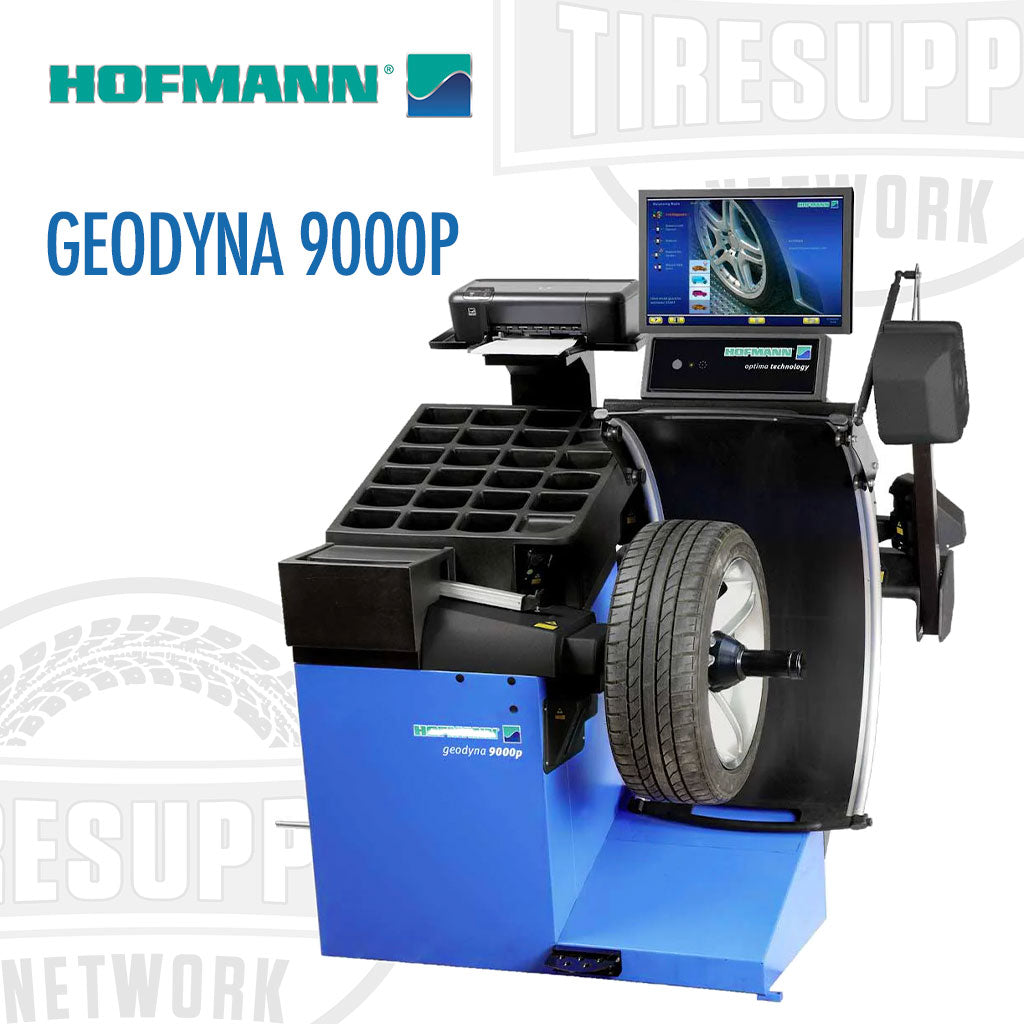

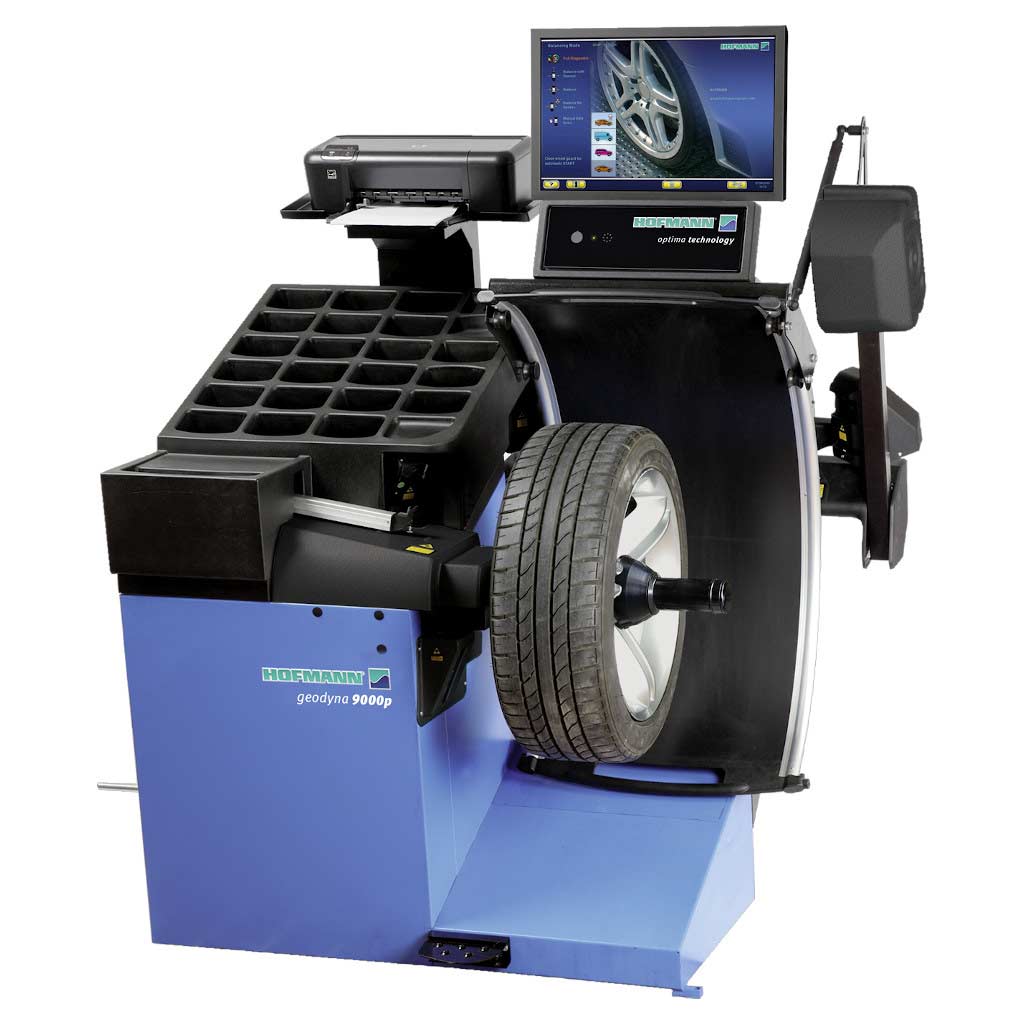

A video wheel balancer for cars and light trucks, the Geodyna 9000p features fully automatic non-contact acquisition of all data via 3D imaging technology and five high-resolution cameras, the Power Clamp clamping system, pinpoint easyWEIGHT laser, plus a touch screen interface for unequaled usability, performance and precision.
Diagnostic Features:
- Sidewall and Tread Analysis
- Alignment Pre-Checking
- Tread Depth Analysis
- Tire Wear-Out Prediction
- Tire Pull Index
- Run-Out Force Vectoring
Automatic Acquisition: Non-contact 3D imaging technology is virtually error-proof: just clamp the wheel, close the guard and let the Geodyna 9000p do the rest. Automatic and non-contact detection of wheel dimensions, balancing mode, number and position of spokes, amount and position of weights, lateral and radial run-out of tire and rim, match mounting and geometric issues.

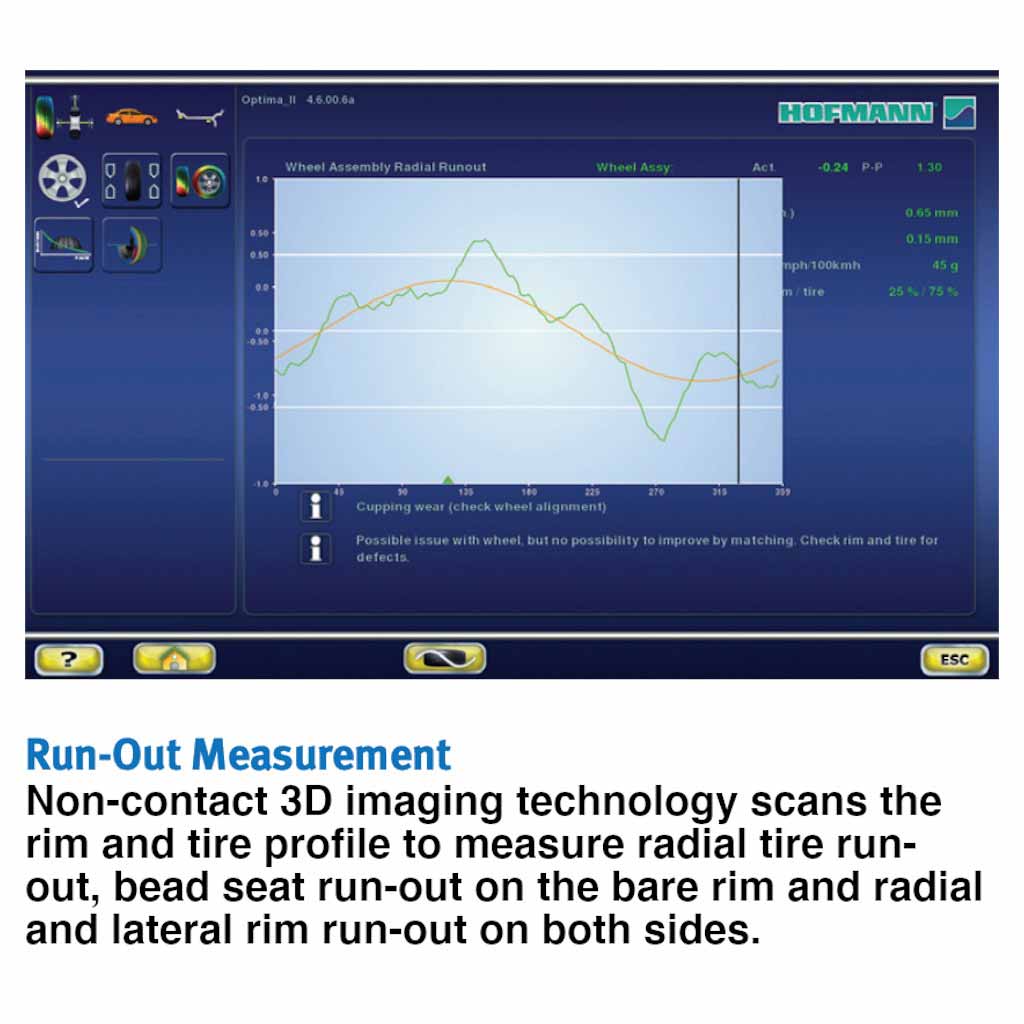

Run-Out Measurement: Non-contact 3D imaging technology scans the rim and tire profile to measure radial tire run-out, bead seat run-out on the bare rim and radial and lateral rim run-out on both sides.

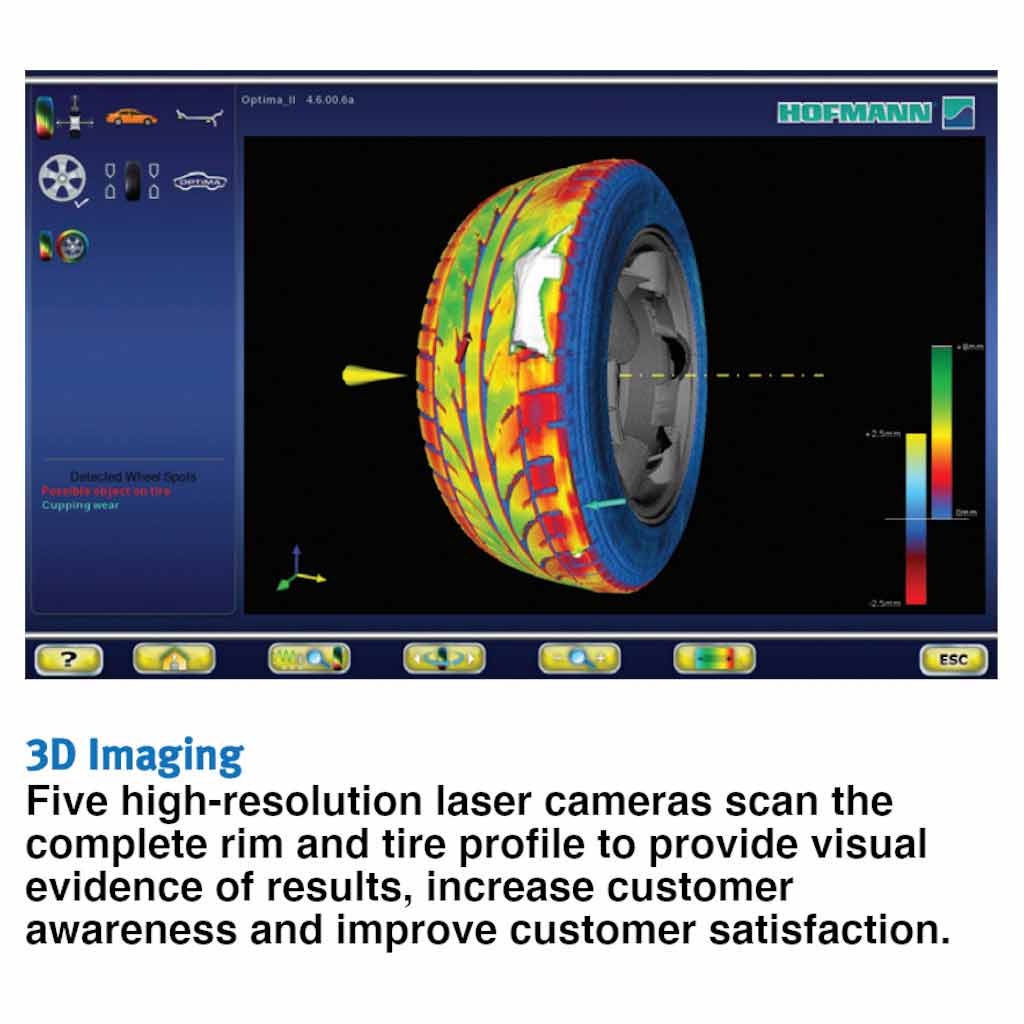

3D Imaging: Five high-resolution laser cameras scan the complete rim and tire profile to provide visual evidence of results, increase customer awareness and improve customer satisfaction.

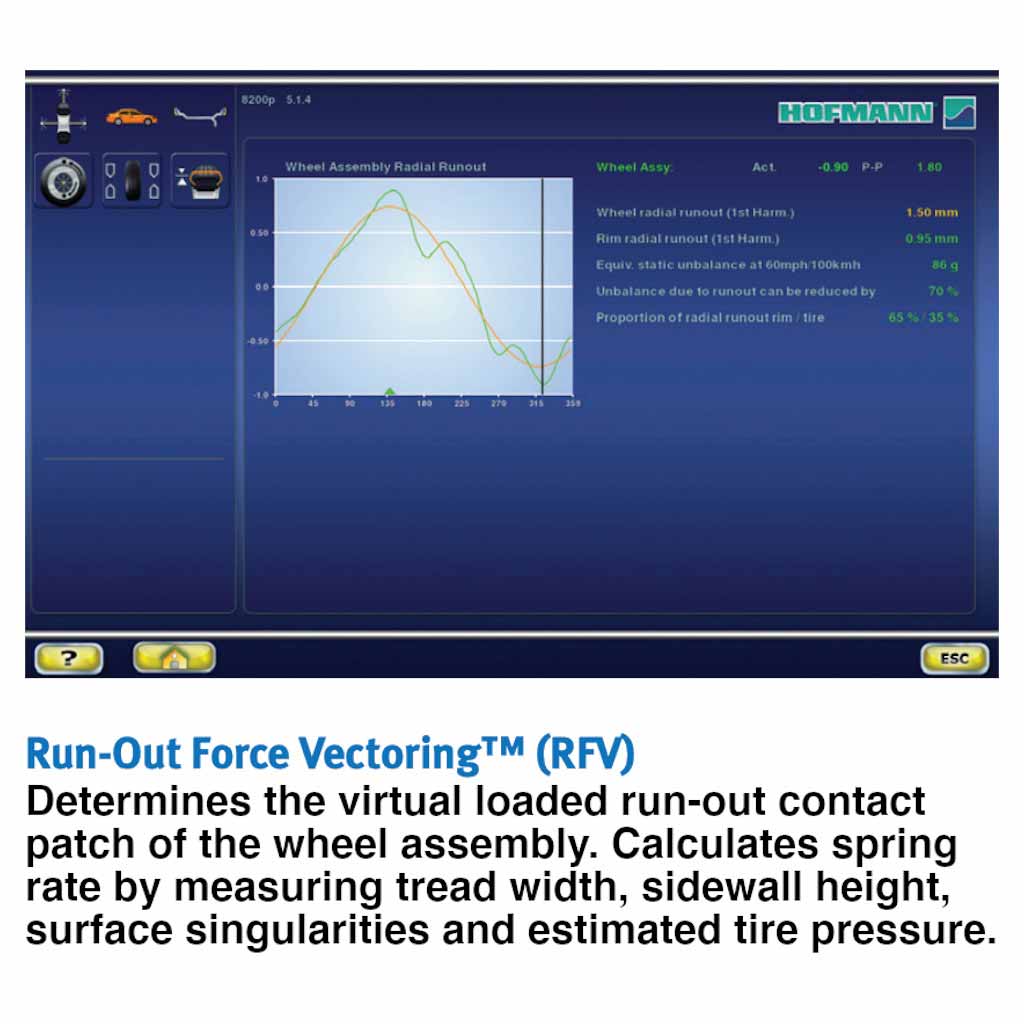

Run-Out Force Vectoring (RFV): Determines the virtual loaded run-out contact patch of the wheel assembly and calculates the spring rate by measuring tread width, sidewall height, surface singularities and estimated tire pressure.

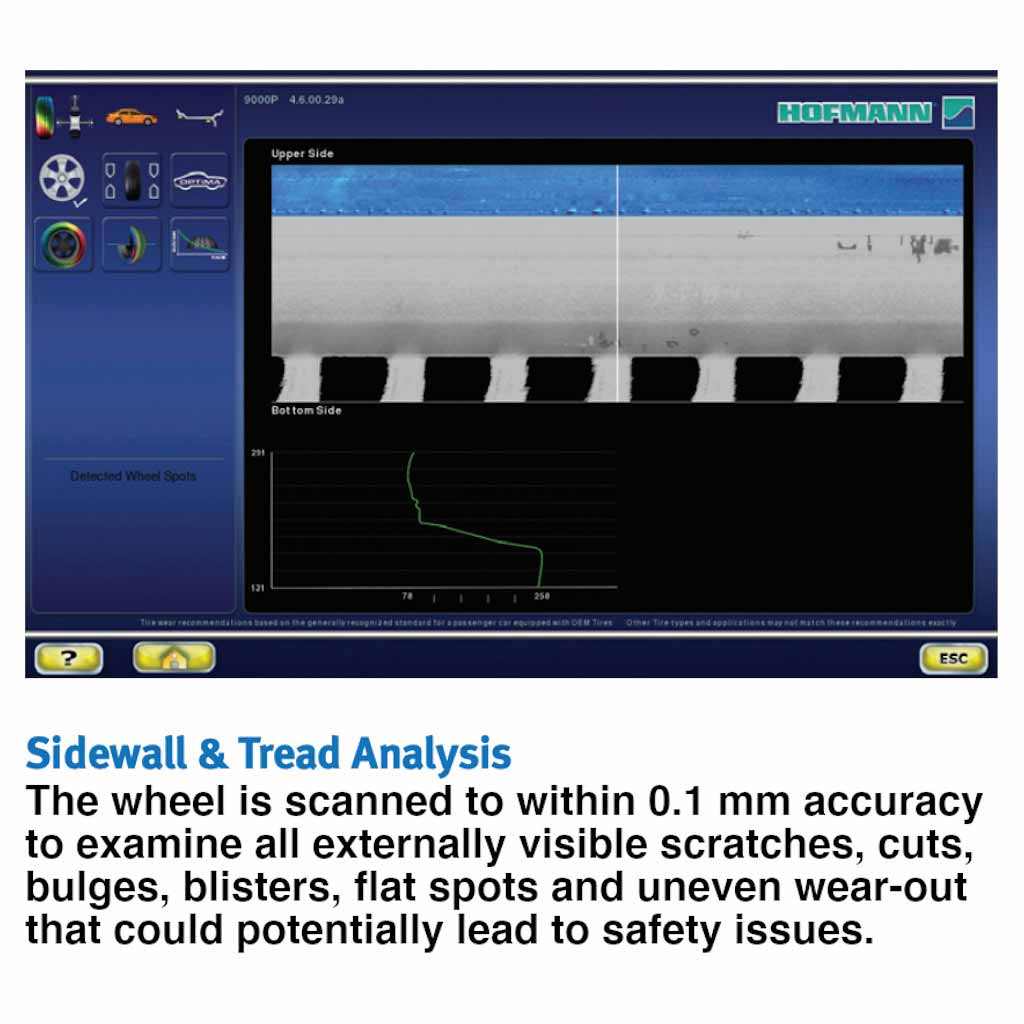

Sidewall & Tread Analysis: The wheel is scanned to within 0.1 mm accuracy to examine all externally visible scratches, cuts, bulges, blisters, flat spots and uneven wear-out that could potentially lead to safety issues.

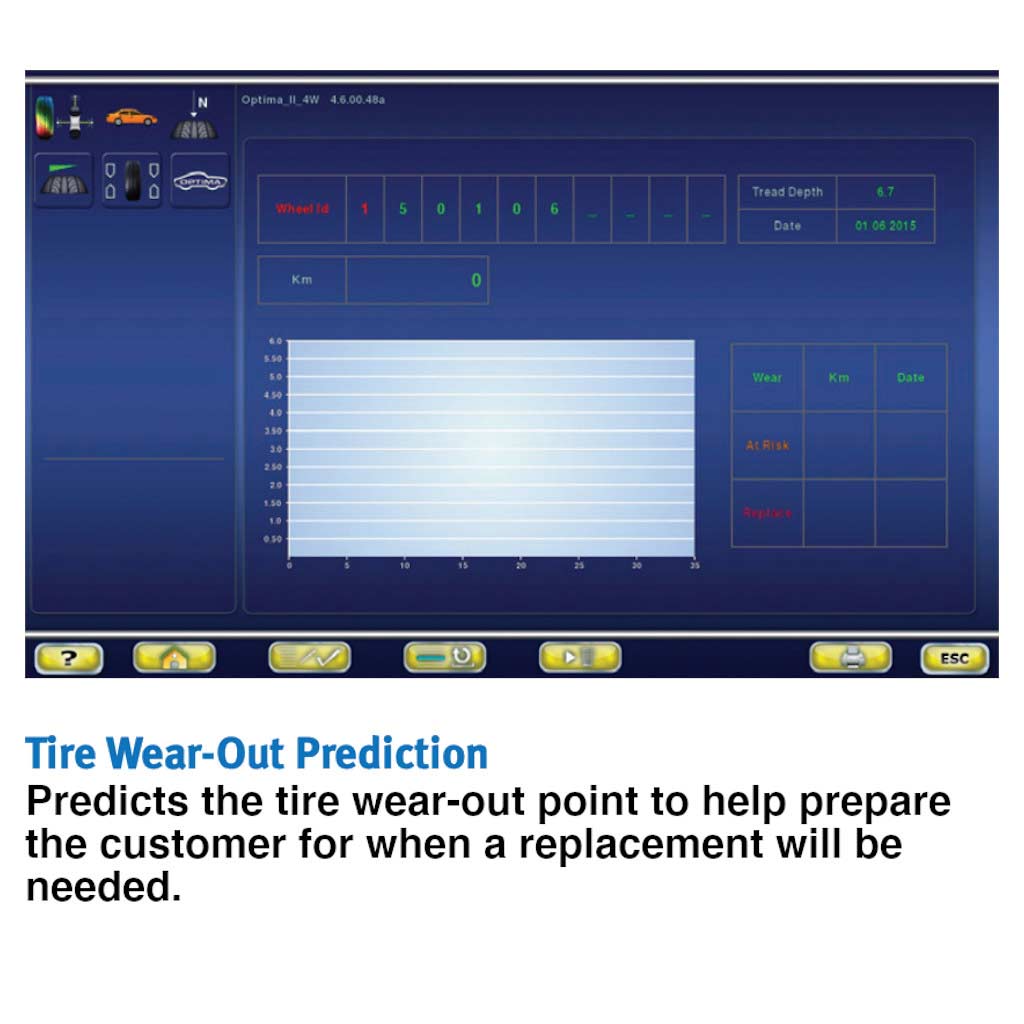

Tire Wear-Out Prediction: Predicts the tire wear-out point to help prepare the customer for when a replacement will be needed.

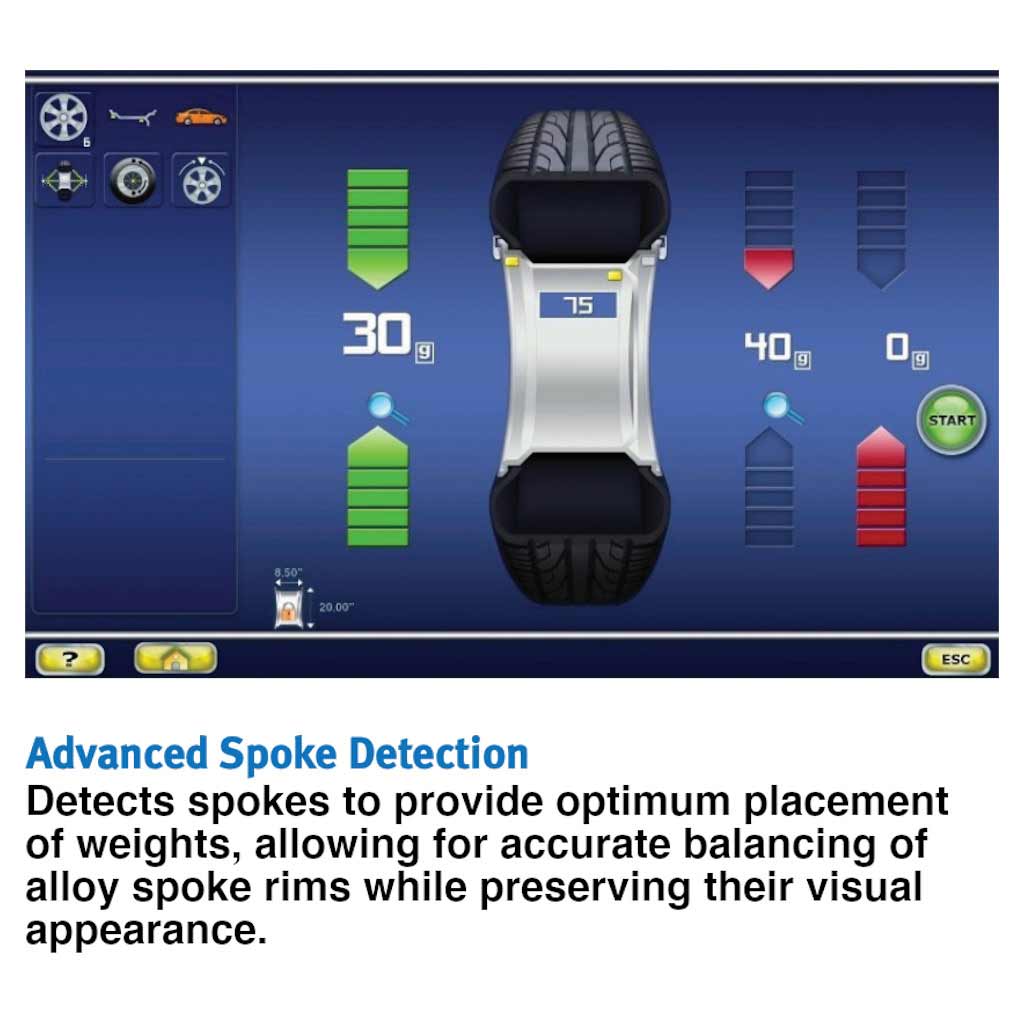

Advanced Spoke Detection: Detects spokes to provide optimum placement of weights, allowing for accurate balancing of alloy spoke rims while preserving their visual appearance.

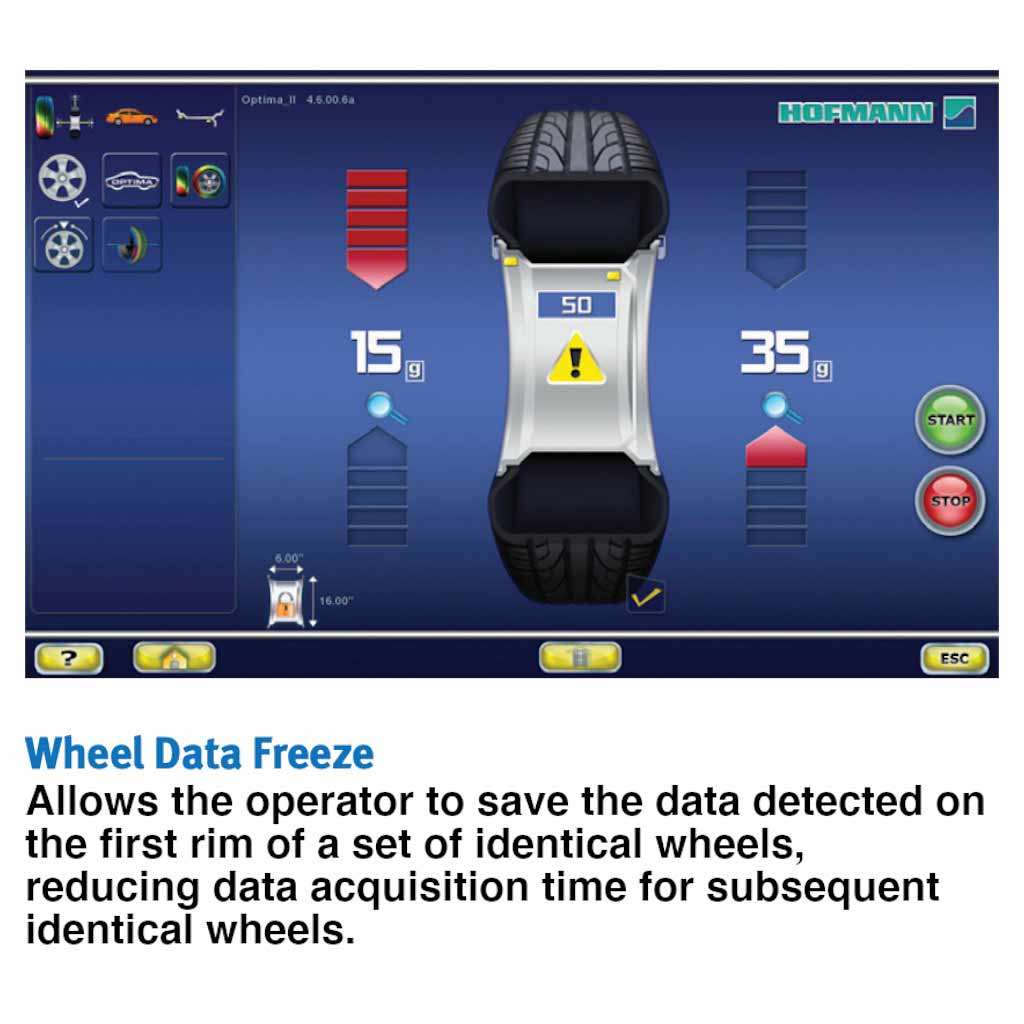

Wheel Data Freeze: Allows the operator to save the data detected on the first rim of a set of identical wheels, reducing data acquisition time for subsequent identical wheels.

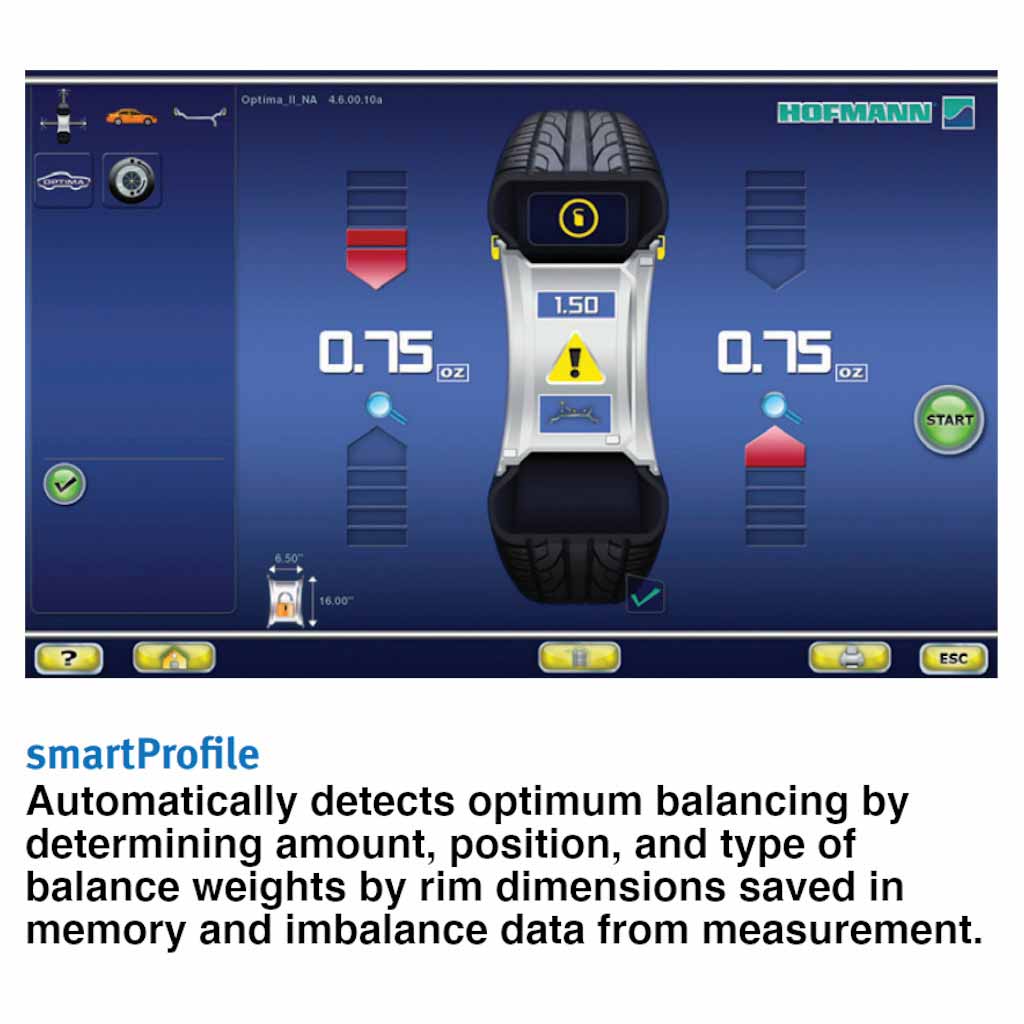

Smart Profile: Automatically detects optimum balancing program by determining the amount, position, and type of the balance weights on the basis of rim dimensions saved in memory and imbalance data determined during measurement.

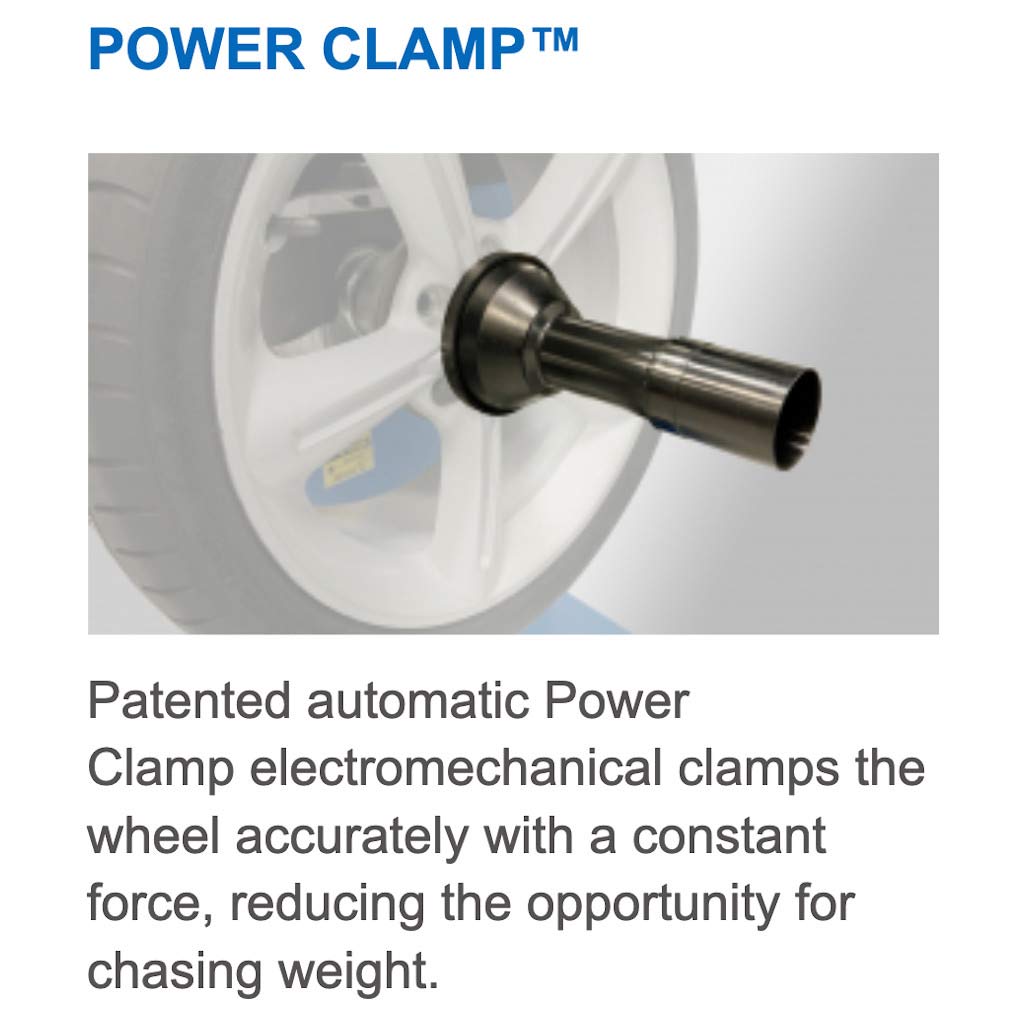

Patented Automatic Power Clamp: Ensures consistent and constant wheel-clamping force, ensuring accurate balance on all wheels.
EZ-Collets Mobile App: Helps service technicians identify the best tools for their wheel balancing jobs. Using the EZ-Collets mobile app, service professionals can select a vehicle to find and compare options for the best collet, flange, or quick plate for the wheel. The app also provides information about the tire and rim for the vehicle.
The EZ-Collets app is free to download through the Apple and Google stores and requires user email activation.
Accessories Included:
- Spacer Ring
- Universal Drum
- Universal Drum Cushion
- 4 Cone Set: 1.6"–3.0", 2.8"–3.9", 3.8"–4.0", 3.4"–5.4"
- Rim Width Calipers
- User Calibration Weight
- Weight Pliers
- Kit of 4 Pegs to be Mounted to the Left Side
TECHNICAL DATA | Geodyna 9000P |
Hofmann Part Number | EEWB771AP230 |
Vehicles Supported | Cars, Light Trucks, SUVs, Off-Road Vehicles |
Display Technology | 21.5″ - 16:9 Touchscreen |
Measuring Speed | Less then 200 rpm |
Balancing Accuracy | 0.035 oz / 1g |
Scanner Accuracy 1st Harmonic Run-Out | 0.039″ / 0.1 mm |
Scanner Accuracy Profiling | 0.195″ / 0.5 mm |
Angular Resolution | 0.7° |
Full Cycle Time (Wheel 225/40R18) | 24 seconds |
Check Spin | 8 seconds |
With Spoke Recognition | 23 seconds |
With Run-Out Measurements | 31 seconds |
Full Diagnostics | 66 seconds |
Manual Data Entry | |
Rim Diameter | 8″ - 30″ (203 - 762 mm) |
Automatic Data Entry | |
Rim Diameter | 15″ - 30″ (381 - 762 mm) |
Rim Width (Dynamic Balancing) | 3″ - 20″ (76.2 - 508 mm) |
Data Entry - Offset | Automatic, Non-Contact |
Data Entry - Rim Diameter | Automatic, Non-Contact |
Data Entry - Rim Width | Automatic, Non-Contact |
Maximum Wheel Dimensions | |
Maximum Wheel Diameter | 42″ (1067 mm) |
Maximum Wheel Width | 3″ - 20″ (76.2 - 508 mm) |
Maximum Wheel Weight | 154 lbs (70 kg) |
Additional Specifications | |
Diameter of Shaft | 40 mm |

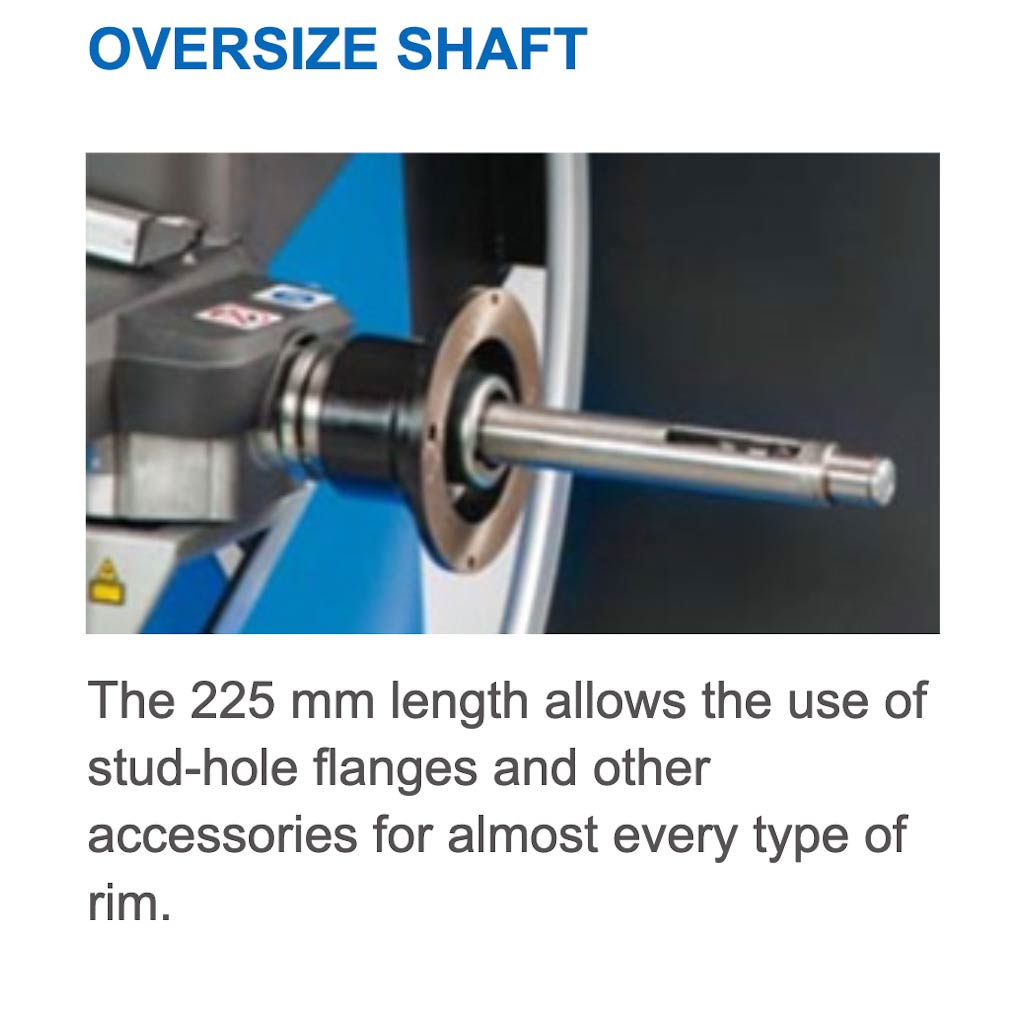

Length of Shaft | 8.86″ (225 mm) |
Balancer Flange Offset | 10.55″ (268 mm) |
Wheel Braking After Measurements | Automatic |
Power Requirements | 230 V, 1 Ph, 50/60 Hz, 4 Amp |
Dimensions (Wheel Guard Open) | 76.4″ L x 40.2″ W x 61.8″ H |
Shipping Dimensions | 70.1″ L x 47.2″ W x 72.8″ H |
Net Weight | 341 lbs (155 kg) |
Software Features | |
Balancing Program Selection | Automatic, Non-Contact Profiling of the Rim |
Spoke Position Detection | Automatic, Non-Contact |
Wheel Clamping | Automatic, Power-Clamp |
Cycle | Automatic, Start with Button or Wheel Guard |
Main Shaft Lock | Electromechanical (Pedal) |
Balancing Position Search | Automatic |
Clip-Weight Position | 12h |
Adhesive Weight Position | 5h |
ALU Modes | Automatic |

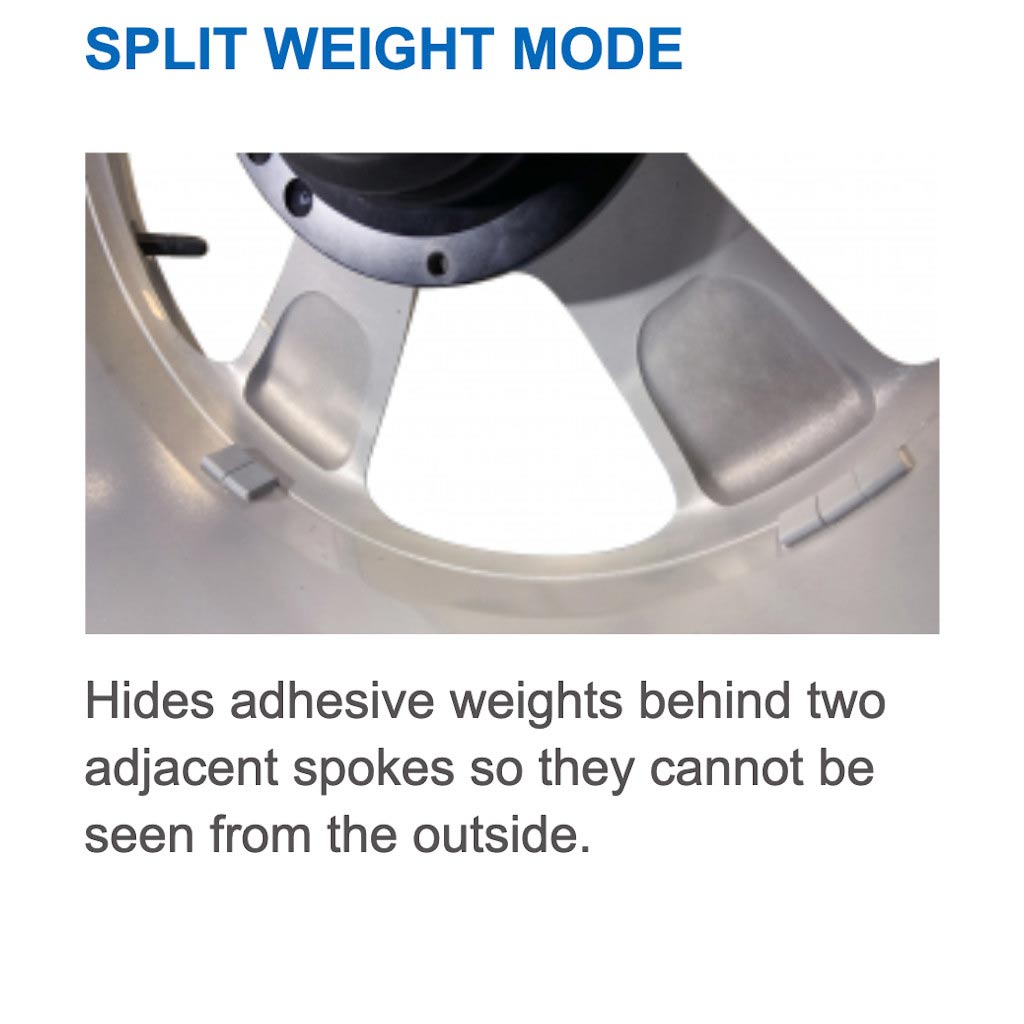

Split Weight Mode | Automatic, Non-Contact Spoke Detection |
Radial / Lateral Run-Out Detection | Automatic, Optima Mode |
Run-Out Matching Program | Yes |
Rim Diagnostic & Balancing | Yes, Bead Seat Run-Out |
Imbalance Optimization Program | Yes |
Sidewall & Tread Diagnostic | Automatic, Optima Full Only |
Tire Pull Measurement | Automatic, Non-Contact |
Tread Depth Measurement | Automatic, Non-Contact |
OptiLine | Standard |
Run-Out Force Vectoring (RFV) | Standard |
Self-Calibration | Yes |
Online Help | Yes |
Printout (8.5″ x 11″ A4 Printer Included) | Professional Reports & Screenshots |
