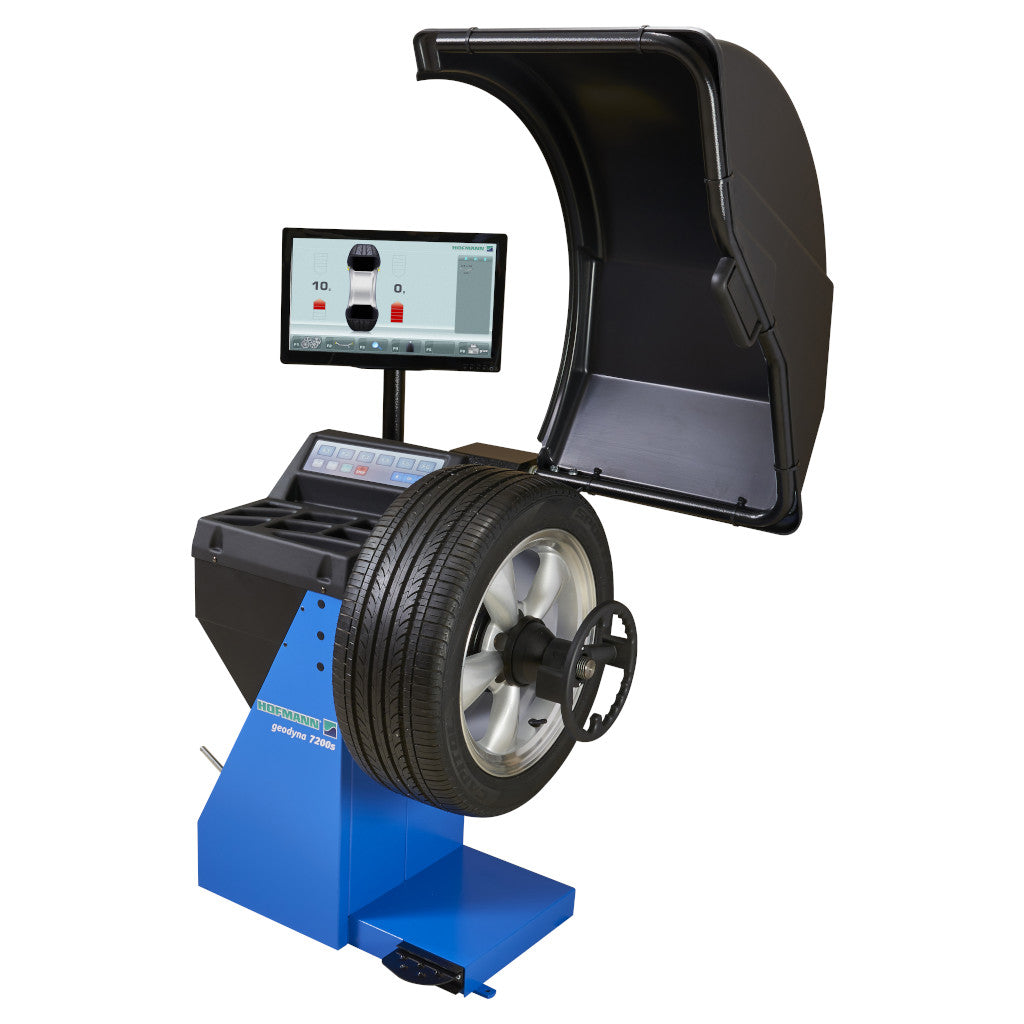

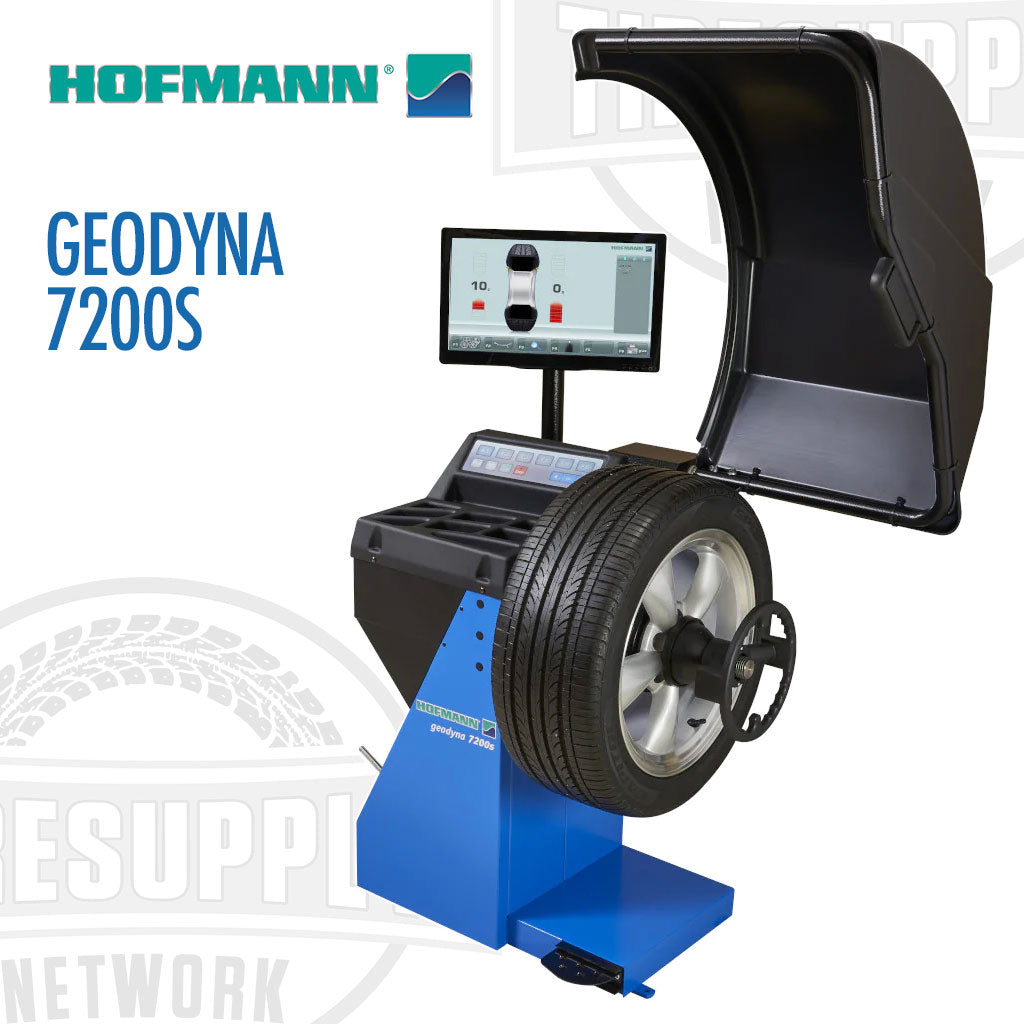

Hofmann | Geodyna 7200S Wheel Balancer with LCD Monitor (EEWB746AS)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

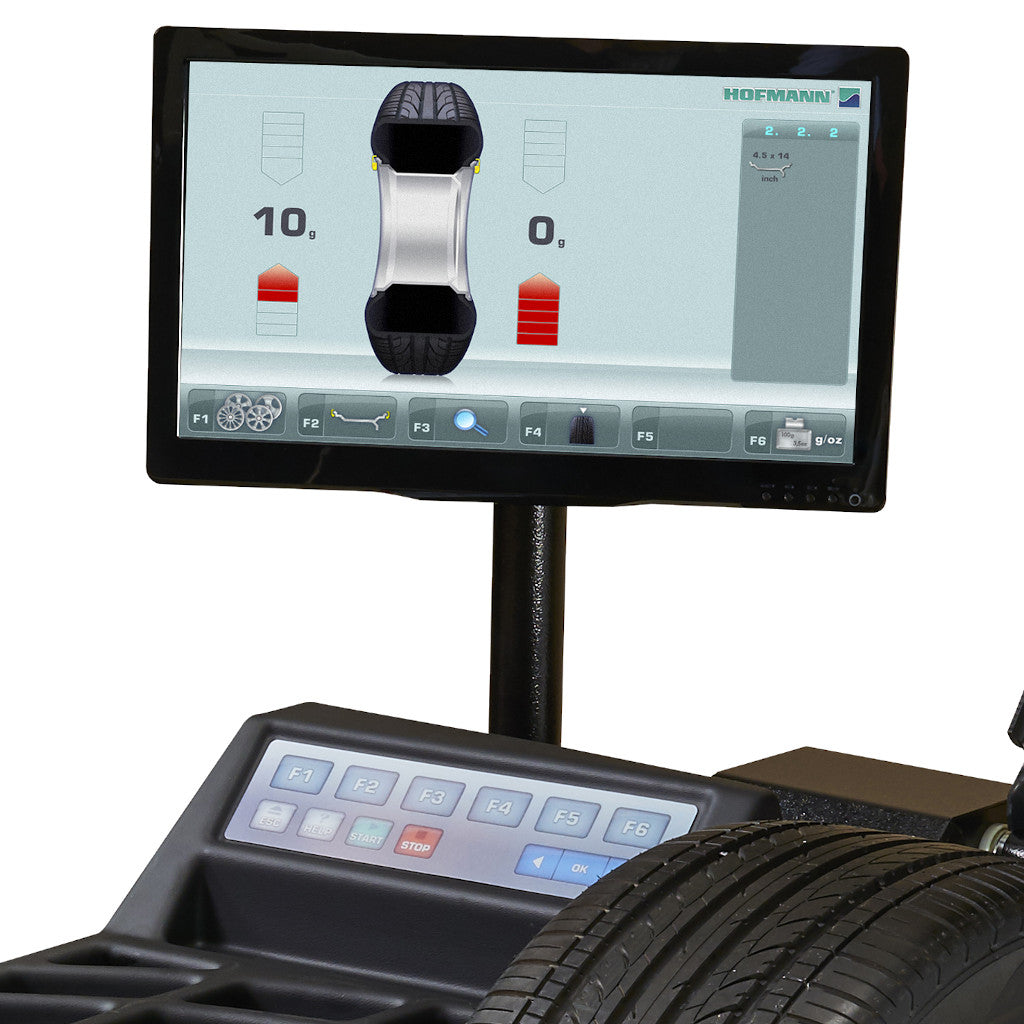

The Geodyna 7200S High Performance Wheel Balancing System is ideal for all shops - small footprint complimented by the video display provides high-end features in a compact design. In under ten seconds, the color display shows the location of any imbalance and identifies the optimal tape on or clip-on weight location. The fast spin cycle provides accurate measurement with minimum cycles for fast results.
Ideal For All Shops: Small footprint complimented by the video display provides high-end features in a compact design
Features:
- In under ten Seconds, the color display shows the location of any imbalance and identifies the optimal tape on or clip-on weight location
- The fast spin cycle provides accurate measurement with minimum cycles for fast results

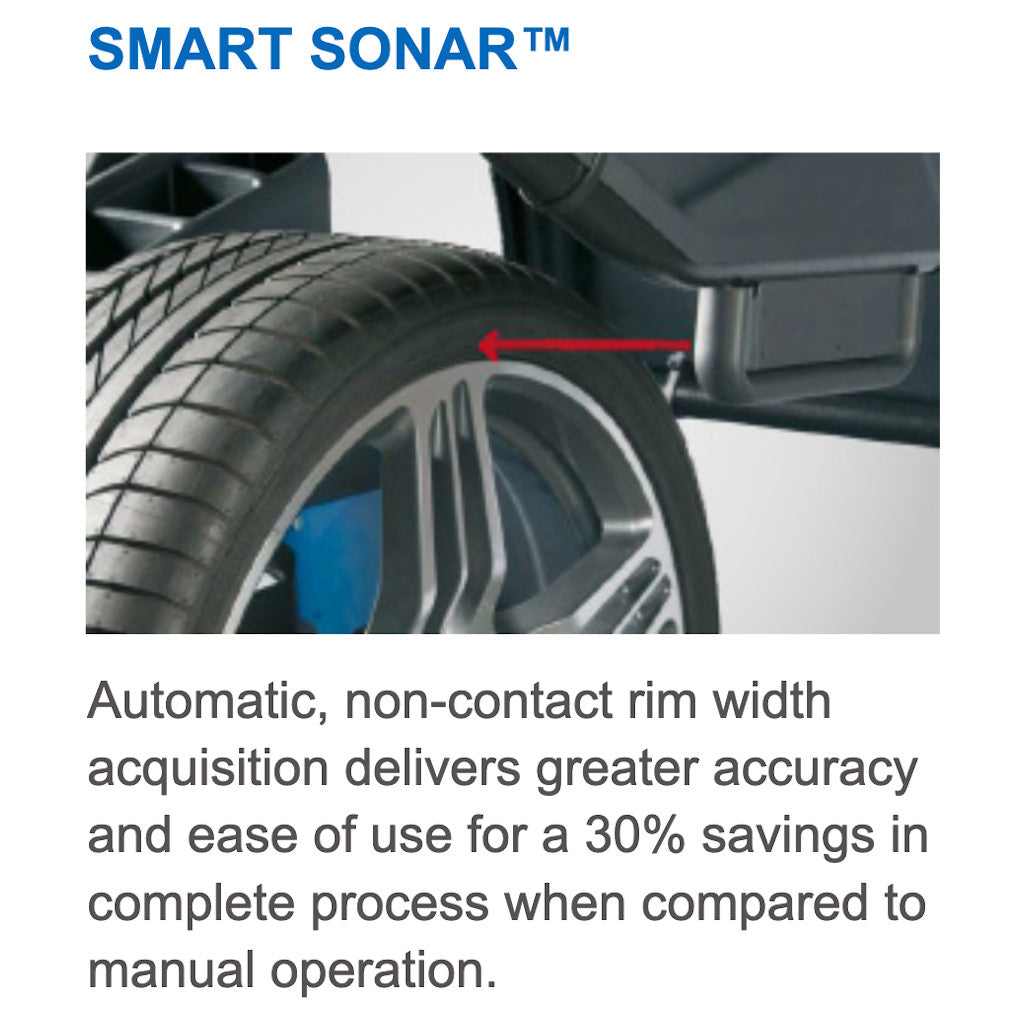

- smartSonar simplifies parameter entry

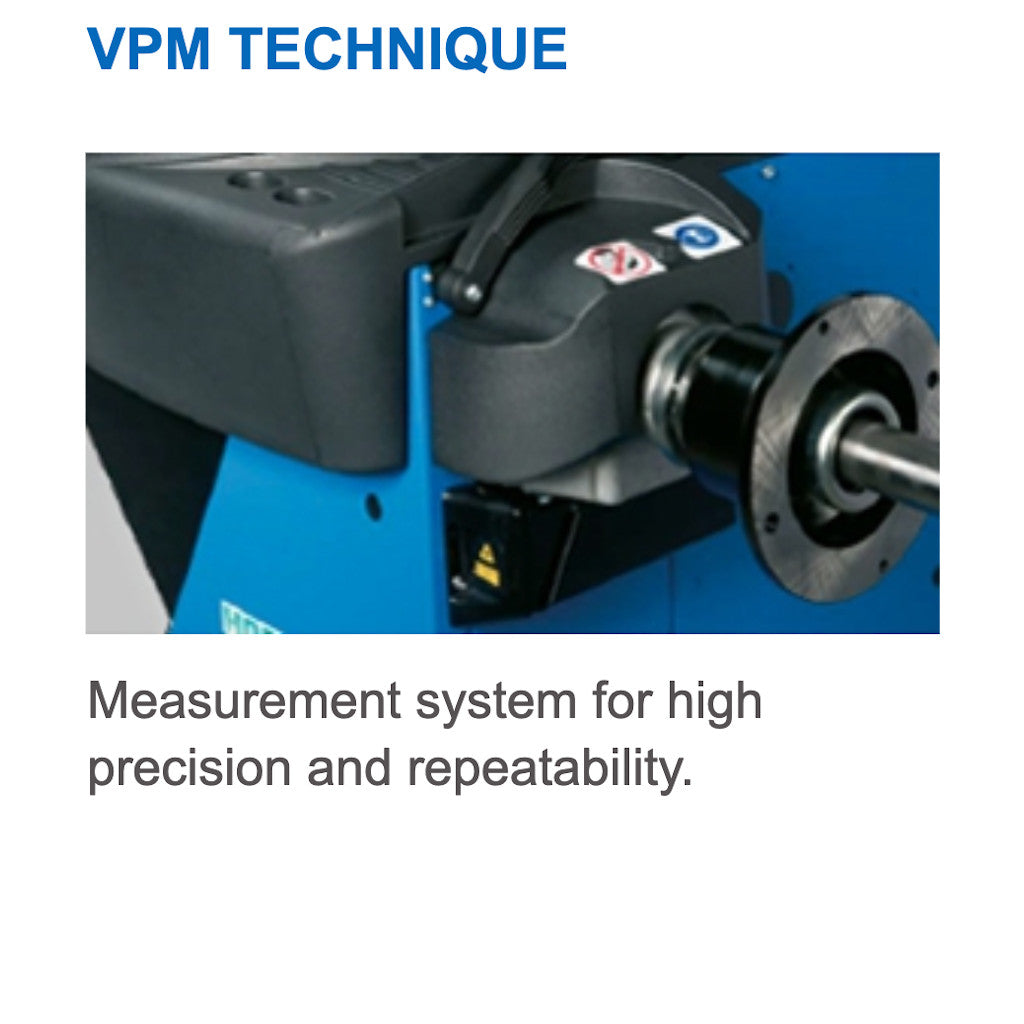

- Patented Virtual Plain Imaging (VPI) for precise measuring
- Hidden weight mode
- Automatic braking of the wheel after measurement
- Pedal operated main shaft lock
- Tire and wheel optimization program
- Compact dimensions for installation close to a wall

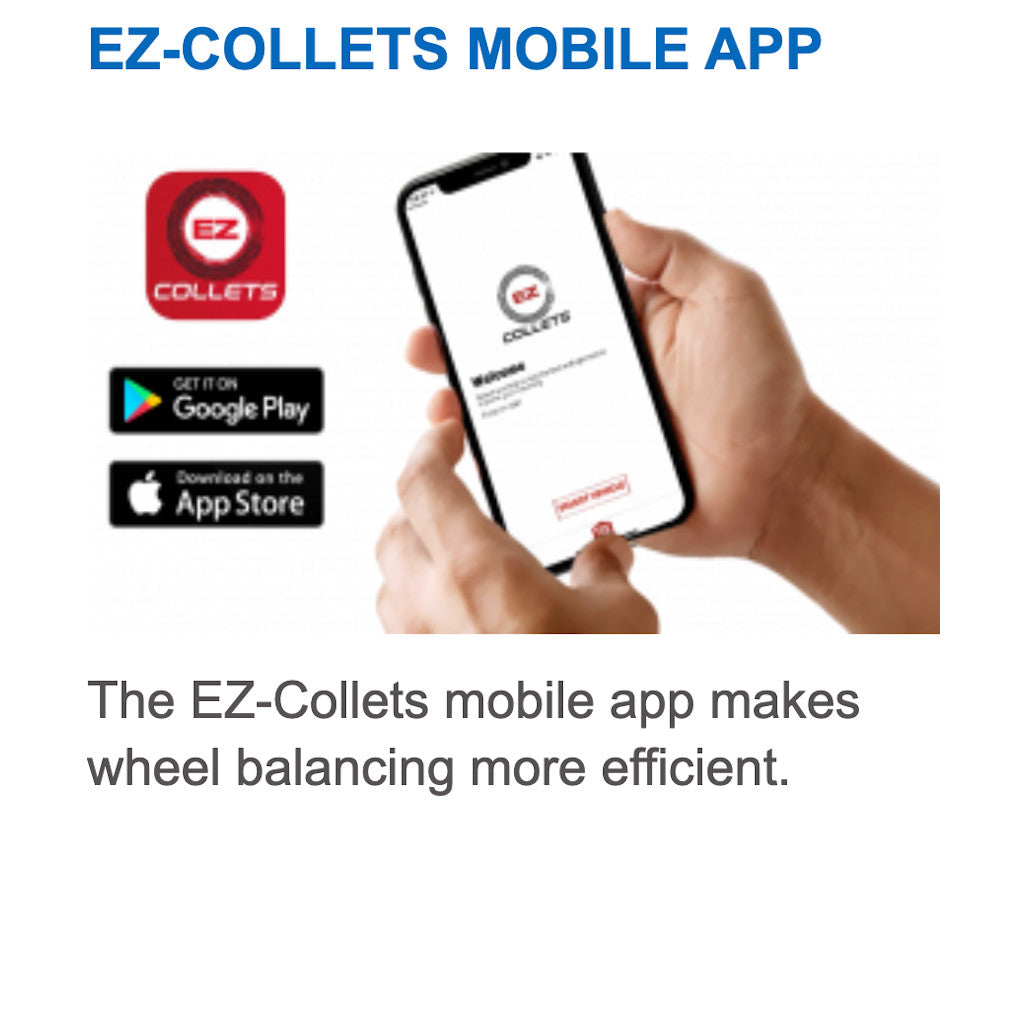

EZ-Collets Mobile App: Helps service technicians identify the best tools for their wheel balancing jobs. Using the EZ-Collets mobile app, service professionals can select a vehicle to find and compare options for the best collet, flange, or quick plate for the wheel. The app also provides information about the tire and rim for the vehicle.
The EZ-Collets app is free to download through the Apple and Google stores and requires user email activation.
Accessories Included:
- Calibration Weight and Spacer 2”
- Four Cone Set
- Quick Nut, Plastic Protection Cup
- Rim Width Calipers
- Weight Pliers
- Set of 4 Storage Pegs
| TECHNICAL DATA | Geodyna 7200S |
| Hofmann Part Number | EEWB746AS |
| Vehicles Supported | Cars, Light Trucks, SUVs, Off-Road Vehicles |
| Display Technology | Video Display |

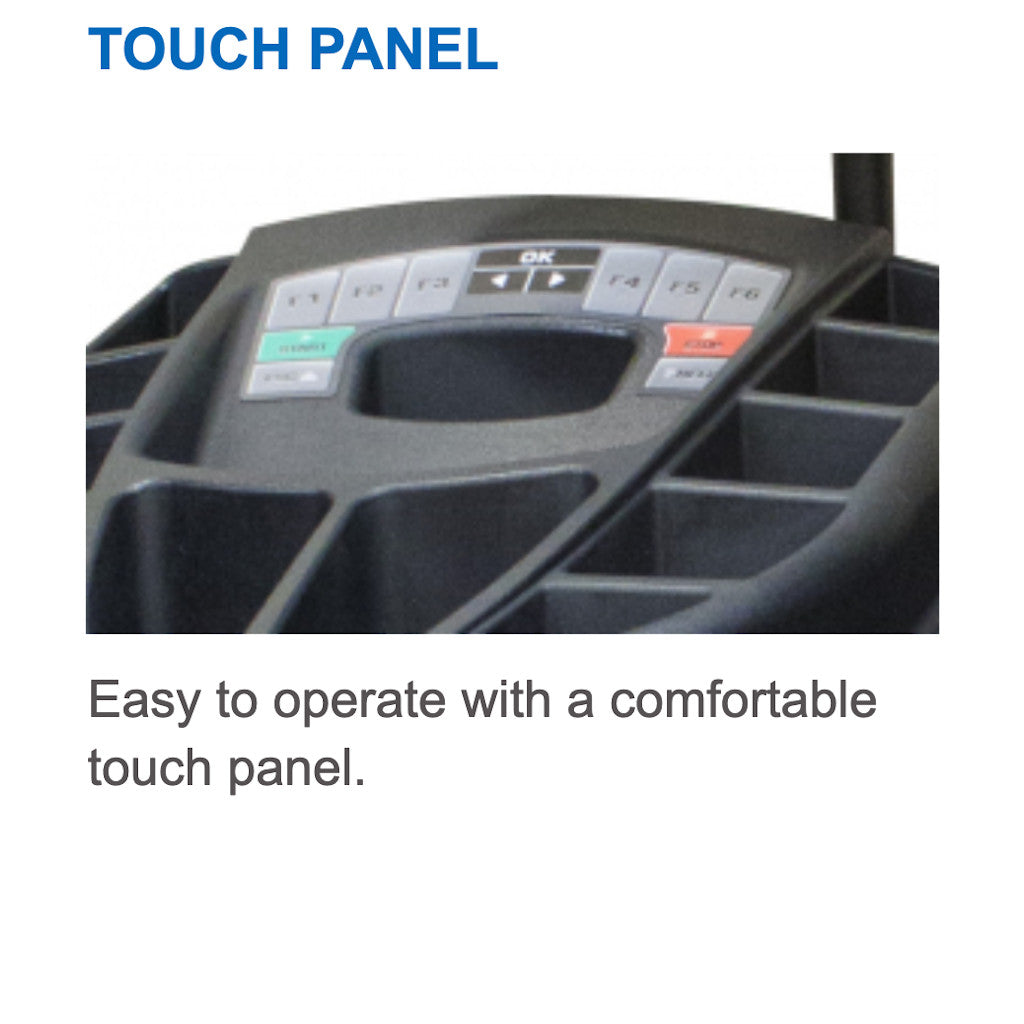

| User Interface | Touchscreen Integrated Weight Tray |
| Measuring Speed | Less than 200 rpm |
| Balancing Accuracy | 0.035 oz / 1g |
| Angular Resolution | ±0.35° |
| Start/Stop Time - Check Spin | 4.5 seconds |
| Wheel Clamping | Quick Nut |
| Manual Data Entry | |
| Rim Diameter Range | 8″ - 32″ (203 - 813 mm) |
| Offset Range | 1″ - 20″ |
| Rim Width Range | 1″ - 20″ |
| Semi-Automatic Data Entry (SAPE) | |

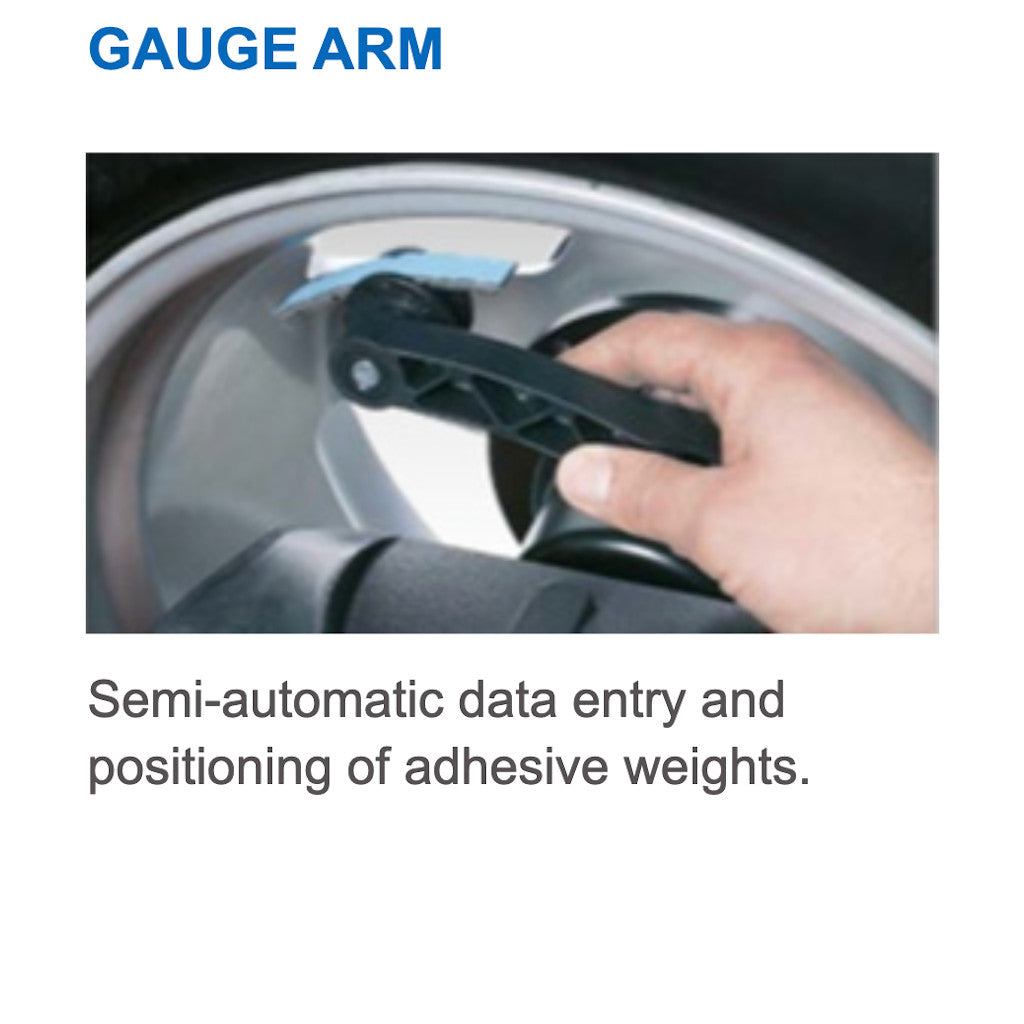

| Data Entry - Diameter & Offset | Semi-Automatic, Gauge Arm |
| Data Entry - Wheel Width | Automatic, Non-Contact smartSonar |
| Rim Diameter Range | 8″ - 25″ |
| Rim Width Range | 3″ - 15″ |
| smartSonar Rim Gauge | 13″ - 26″ |
| SAPE Working Range | 1.3″ - 10.9″ (33 - 278 mm) |
| Maximum Wheel Dimensions | |
| Maximum Wheel Diameter | 42″ (1067 mm) |
| Maximum Wheel Width | 3″ - 20″ (76.2 - 508 mm) |
| Maximum Wheel Weight | 154 lbs (70 kg) |
| Additional Specifications | |
| Diameter of Shaft | 40 mm |

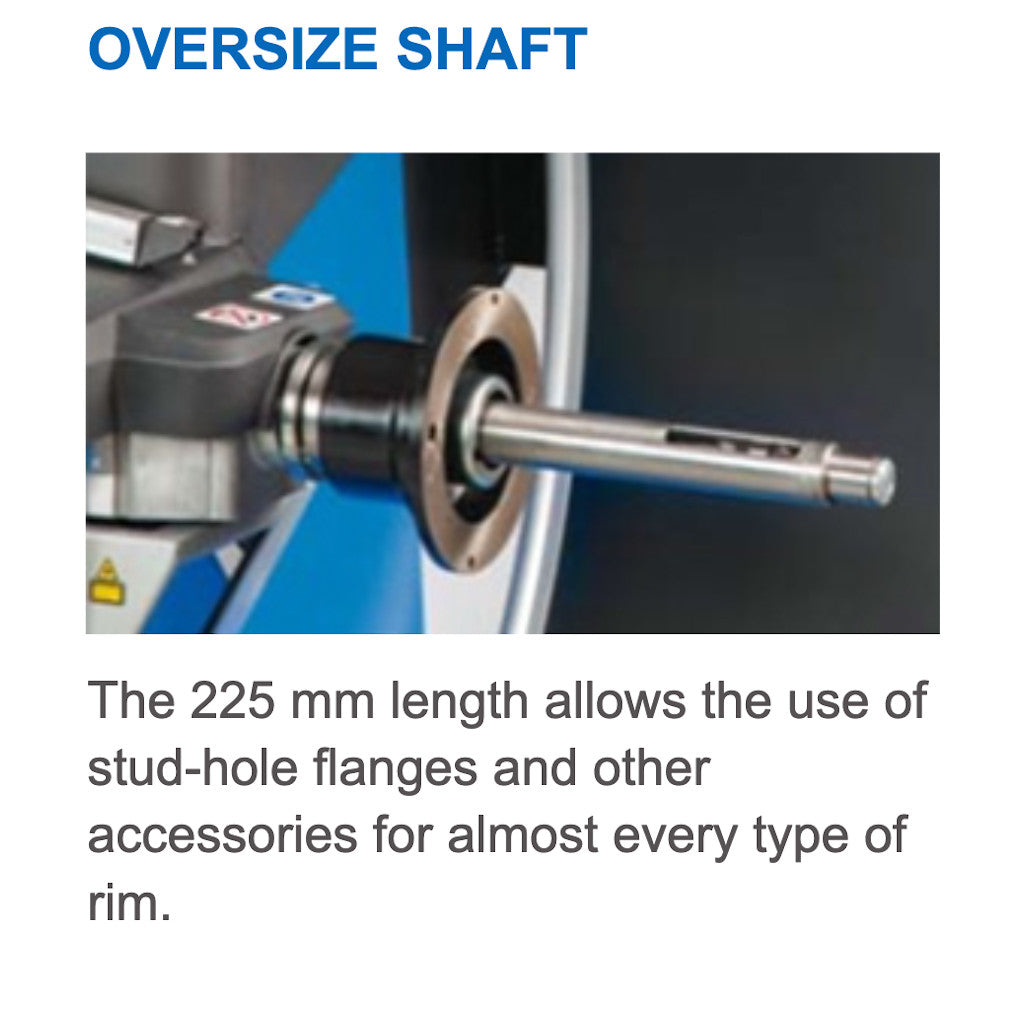

| Length of Shaft | 8.86″ (225 mm) |
| Main Shaft Lock | Mechanical |
| Wheel Braking After Measurements | Automatic |
| Power Requirements | 115 V, 1 Ph, 50/60 Hz, 5 Amp |
| Dimensions (Wheel Guard Open) | 40″ L x 31″ W x 72″ H |
| Net Weight | 220 lbs (100 kg) |
| Software Features | |
| Cycle Start | Automatic After Closing Wheel Guard |

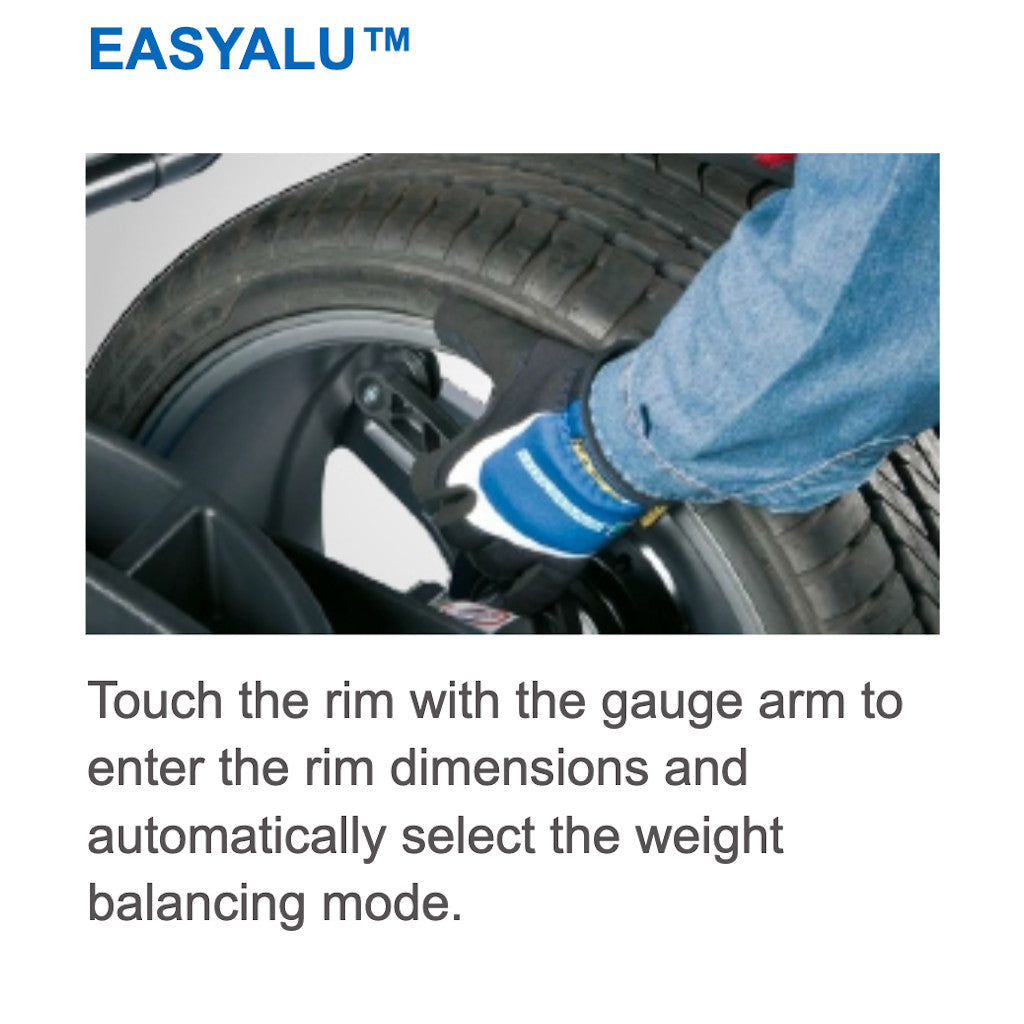

| Balancing Program Selection | Semi-Automatic, easyALU |
| Spoke Position Detection | Manual |
| Multiple User Capability | No |
| Stop In Position | No |
| Rim Lighting | No |

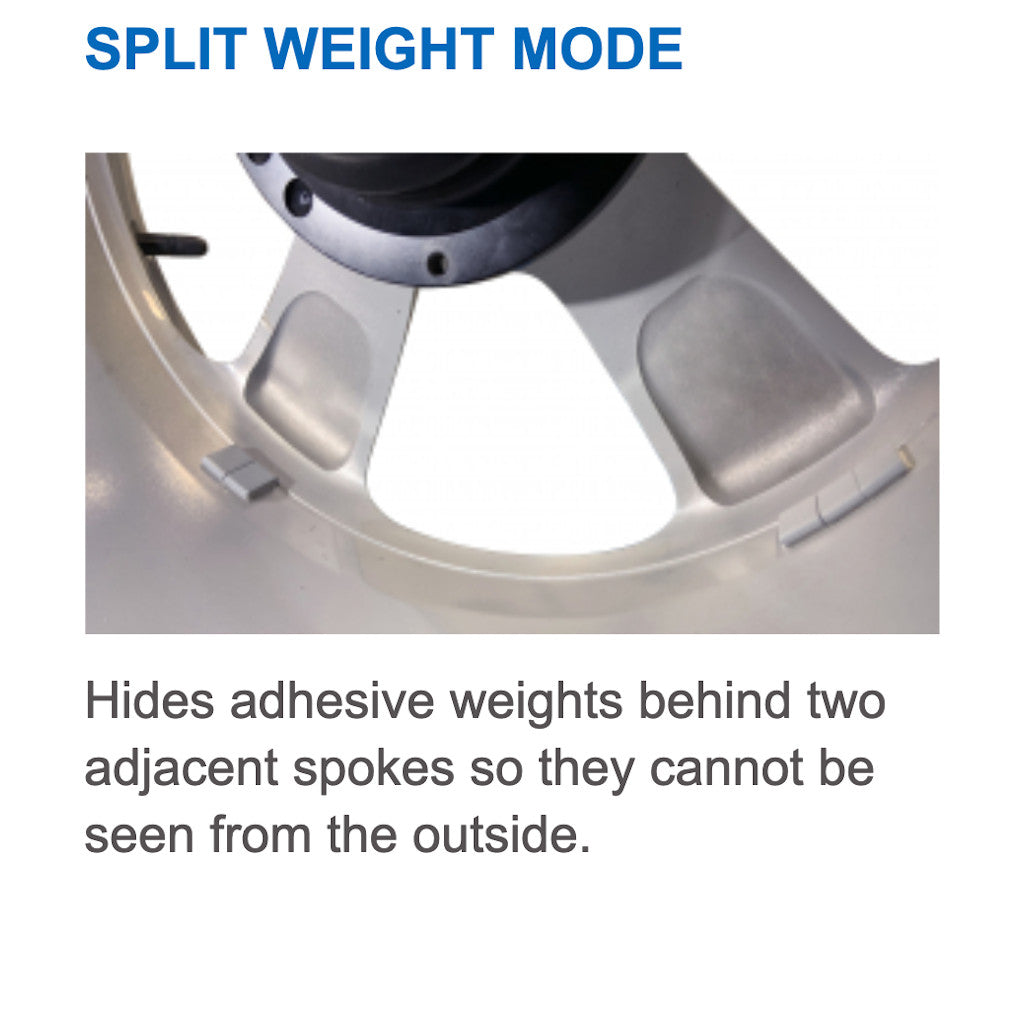

| Split Weight | Yes |
| Minimization | Yes |
| Optimization | Yes |
| Job Counter | Yes |
| Network | No |
