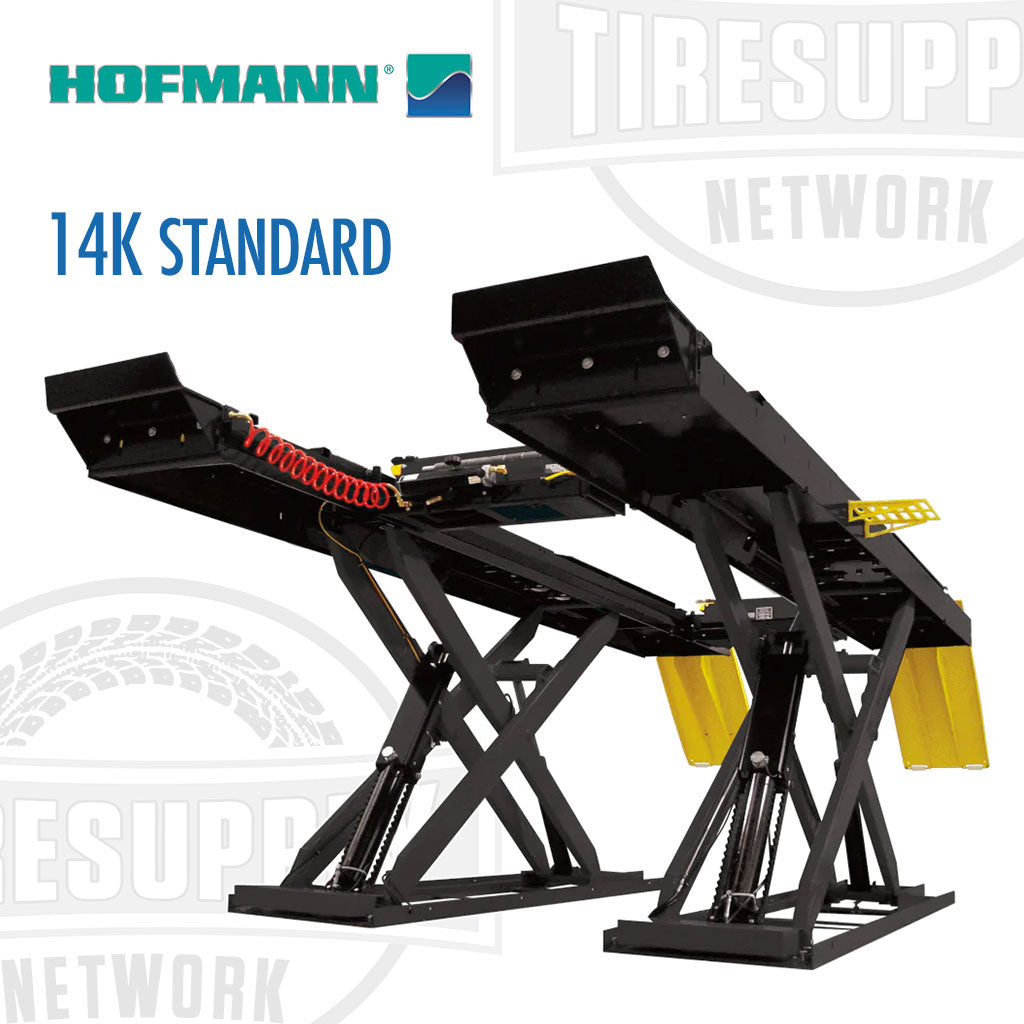

Hofmann | 14K Scissor Standard Bay Alignment Lift Package - Choose Surface or Flush Mount (EELR78*APKG)
PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.
PLEASE NOTE: Installation is NOT included on Vehicle Lifts and Alignment Lifts. If you need installation services, please contact us for an estimate.
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

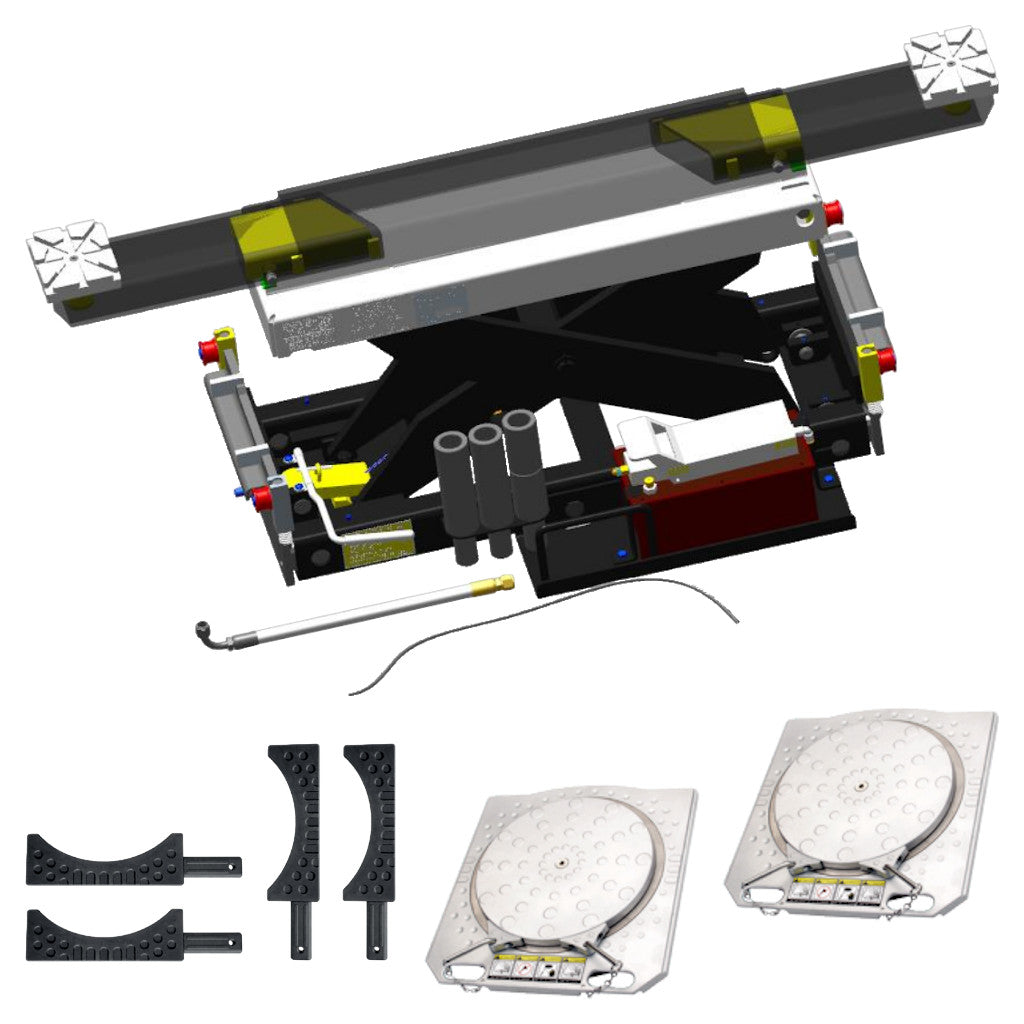

This Package Includes:

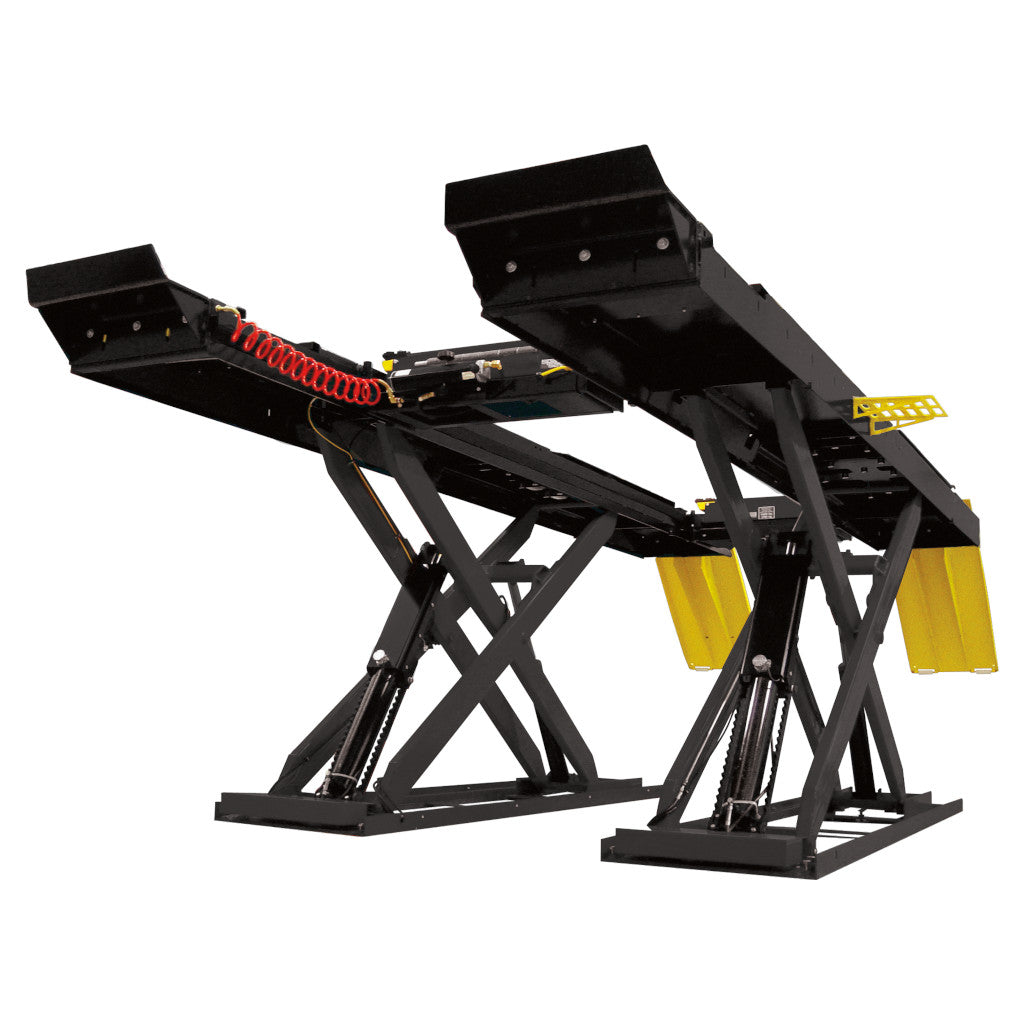

- (1) EELR787A (Surface Mount) Scissor Lift (14,000 lb capacity)
- OR
- (1) EEL788A (Flush Mount) Scissor Lift (14,000 lb capacity)

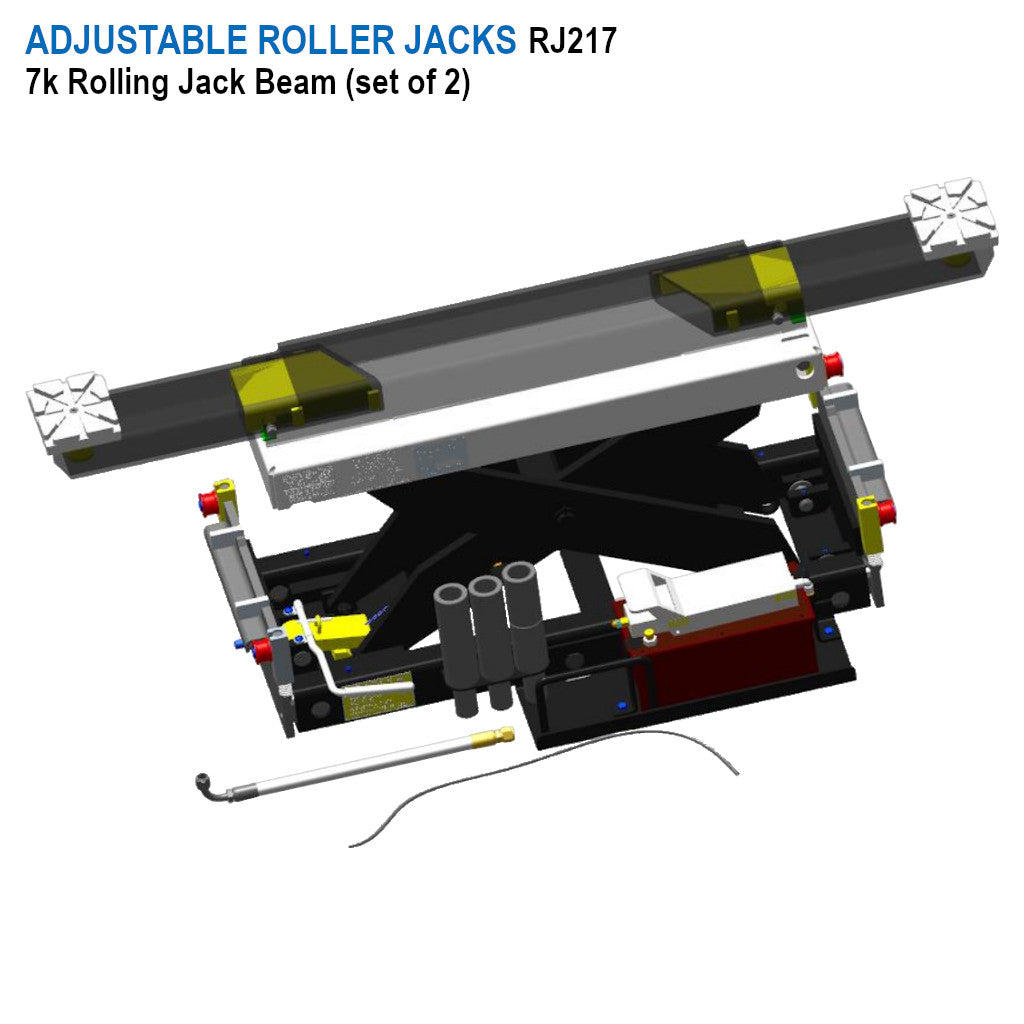

- (2) RJ217 Rolling Jacks (7,000 lb capacity each)

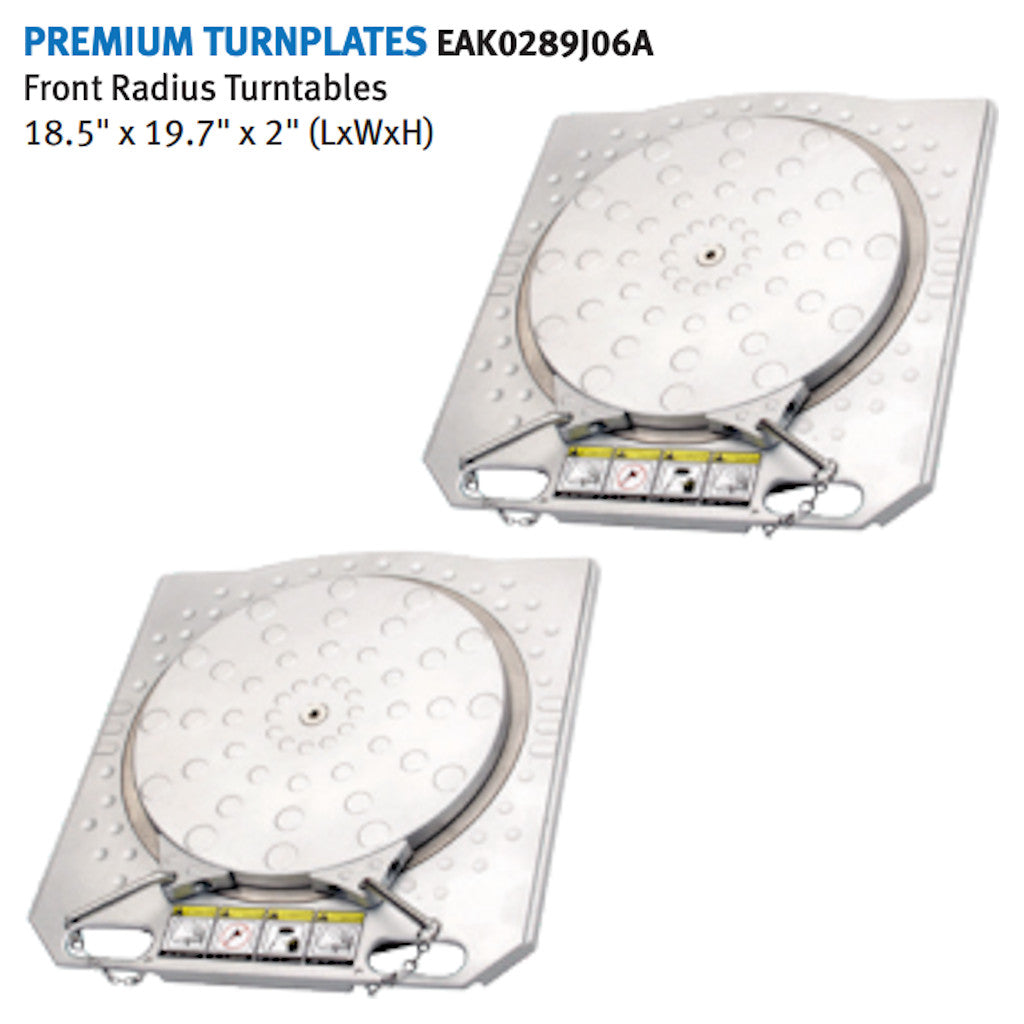

- (2) EAK0289J06A Premium Front Radius Turnplates

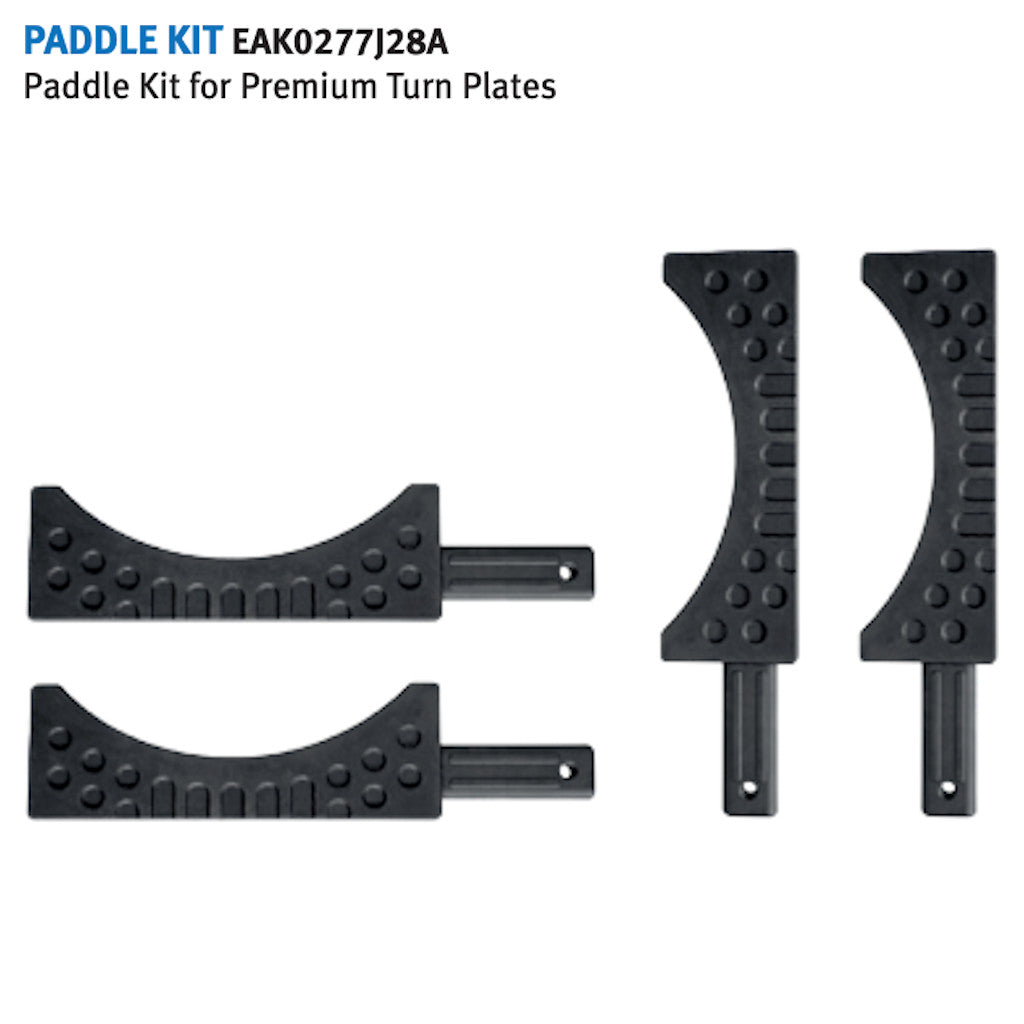

- (1) EAK0277J28A Rollback Paddle Kit
Hofmann Scissor Alignment Lifts are easy to operate, provide increased accessibility to alignment adjustment areas and are easy to load. Space saving design allows for up to five scissor lifts to fit into the same operating space as four 4-post lifts.
Features:
- Maintenance reduced rear slip plates use oversized, encapsulated bearings that roll upward to protect against environment debris
- Four hydraulic cylinders in a cross aligned arrangement provide secure lifting power and added safety
- Approach ramps are equipped with end sliders to minimize noise and reduce floor damage
- Adjustable maximum lift height suits locations with low ceilings
- On-board Filter/Regulator/Lubricator (FRL) provides clean and lubricated air to help reduce maintenance and protect pneumatic systems
Safety systems include:
- Mechanical locking with pneumatic safety lock release from the control console
- Flow sensing valves within the hydraulic control circuit
- Redundant hydraulic safety system with cross aligned hydraulic circuits
ALI Certified:
- All models have been tested and validated by an independent third party to the ANSI/ALI automotive lift standard, ALCTV-2011
| TECHNICAL DATA | 14k Scissor Alignment Lift Package |
| Hofmann Part Number | EELR787APKG |
| Maximum Capacity | 14000 lbs (6350 kg) |
| Overall Width | 92.5″ (234.95 cm) |
| Width Between Runways | 38″ (96.52 cm) |
| Overall Length | 270″ (685.8 cm) |
| 4 Wheel Alignment Wheelbase | 88″ - 155″ (223.52 cm - 393.70 cm) |
| 2 Wheel Alignment Wheelbase | 180″ (457 cm) |
| General Service Wheelbase | 194″ (492.8 cm) |
| Runway Surface Length | 210″ (533.4 cm) |
| Runway Surface Width | 26″ (66 cm) |
| Maximum Raised Height | 72″ (182.9 cm) |
| Minimum Lowered Height | 10″ (25.4 cm) |
| Lifting Time at Full Load | 75 to 85 seconds |
| Motor | 3 hp |
| Air Supply Requirements | 90 - 120 psi |
| Power Supply Requirements | 230 VAC, 50/60 Hz, 1 Ph, 20 Amp |
| Shipping Weight without Jacks | 6387 lbs (2897 kg) |
| Console Dimensions (DxWxH) | 16.5″ x 14.125″ x 45.75″ |
| TECHNICAL DATA | Rolling Jack |
| Hofmann Part Number | RJ217 |
| Capacity | 7000 lbs (3175 kg) |
| Minimum Arm Reach | 31″ (787 mm) |
| Maximum Arm Reach | 53″ (1346 mm) |
| Minimum Lowered Height | 1″ (25 mm) above deck surface |
| Maximum Raised Height | 12.75″ (324 mm) above deck surface |
| Air Supply Requirements | 90 - 120 psi (6 - 8 bar) |
| Maximum Operating Pressure | 5210 psi (359 bar) |
| Shipping Weight | 329 lbs (149 kg) |
| TECHNICAL DATA | Premium Front Radius Turnplates |
| Hofmann Part Number | EAK0289J06A |
| Dimensions (LxWxH) | 18.5″ x 19.7″ x 2″ |
