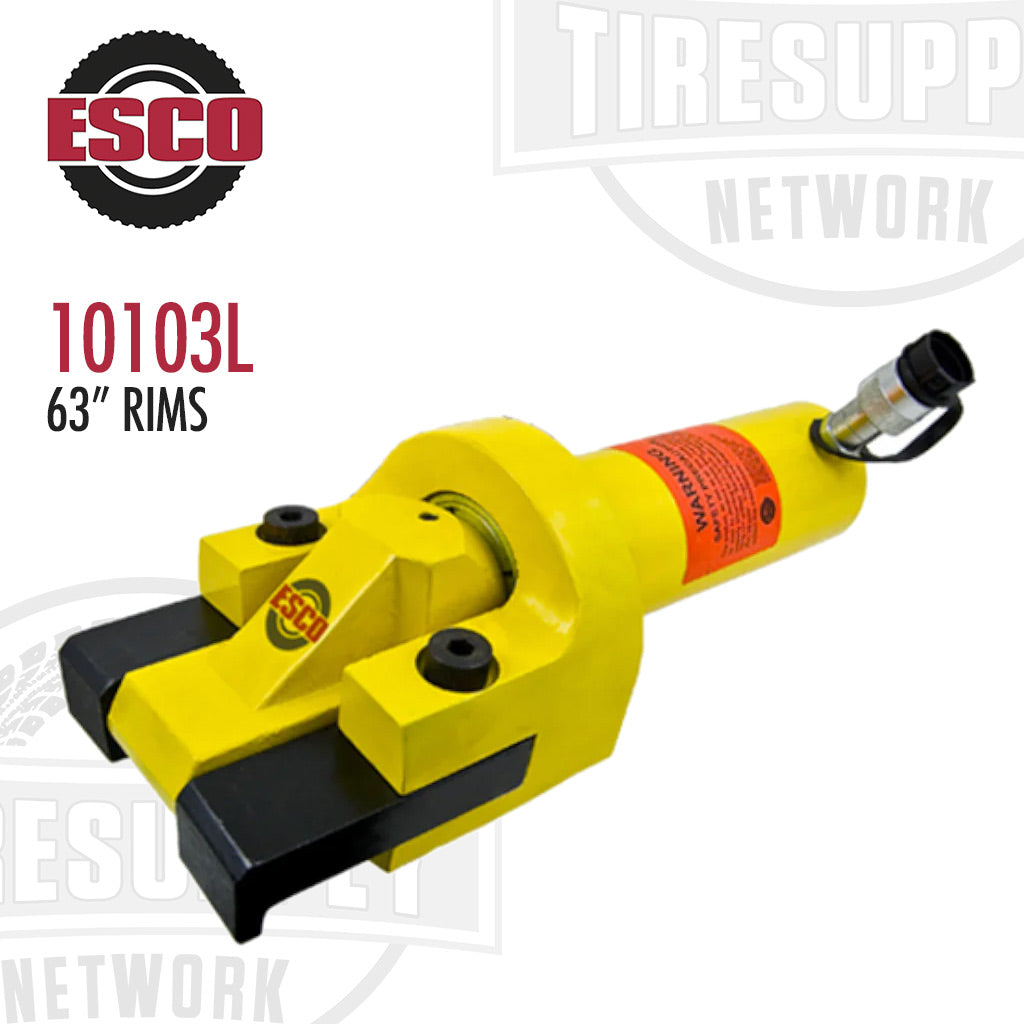

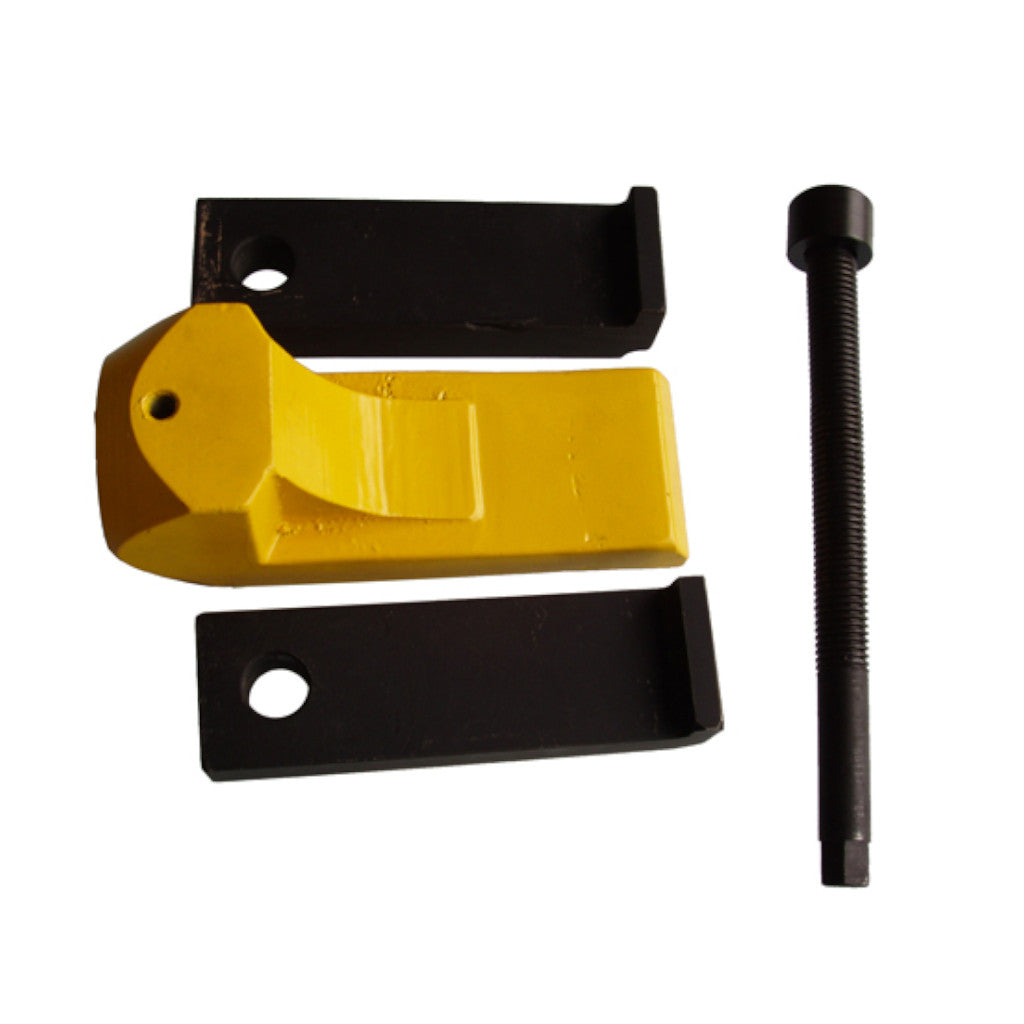

The ESCO 10103L Giant Tire Bead Breaker is the ESCO Model #10103 Bead Breaker with the ESCO Model #10627 Conversion Kit, which makes it capable of working on 63″ Rims.

Features:

• Use on 5-piece rims 39″, 45″, 51″, 57″, and 63″ wheel sizes.
• 25 tons of bead breaking force will break the toughest beads - 6″ stroke (152 mm)
• ESCO Model #10504 2-Gallon Air/Hydraulic Pump is recommended for operation.
• In some cases, you must first use ESCO Model #10105 or ESCO Model #10100 bead breaker to start the movement of the rim flange; Model #10103L can then be used.

Specifications:

• Ram Tonnage: 25 Tons
• Stroke: 6″ (152 mm)
• Maximum Pressure: 10,000 PSI
• Length: 16.5″ (419 mm)
• Width: 6.5″ (165 mm)
• Weight: 60 lbs (28 kg)

Compliance and Restrictions

⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
