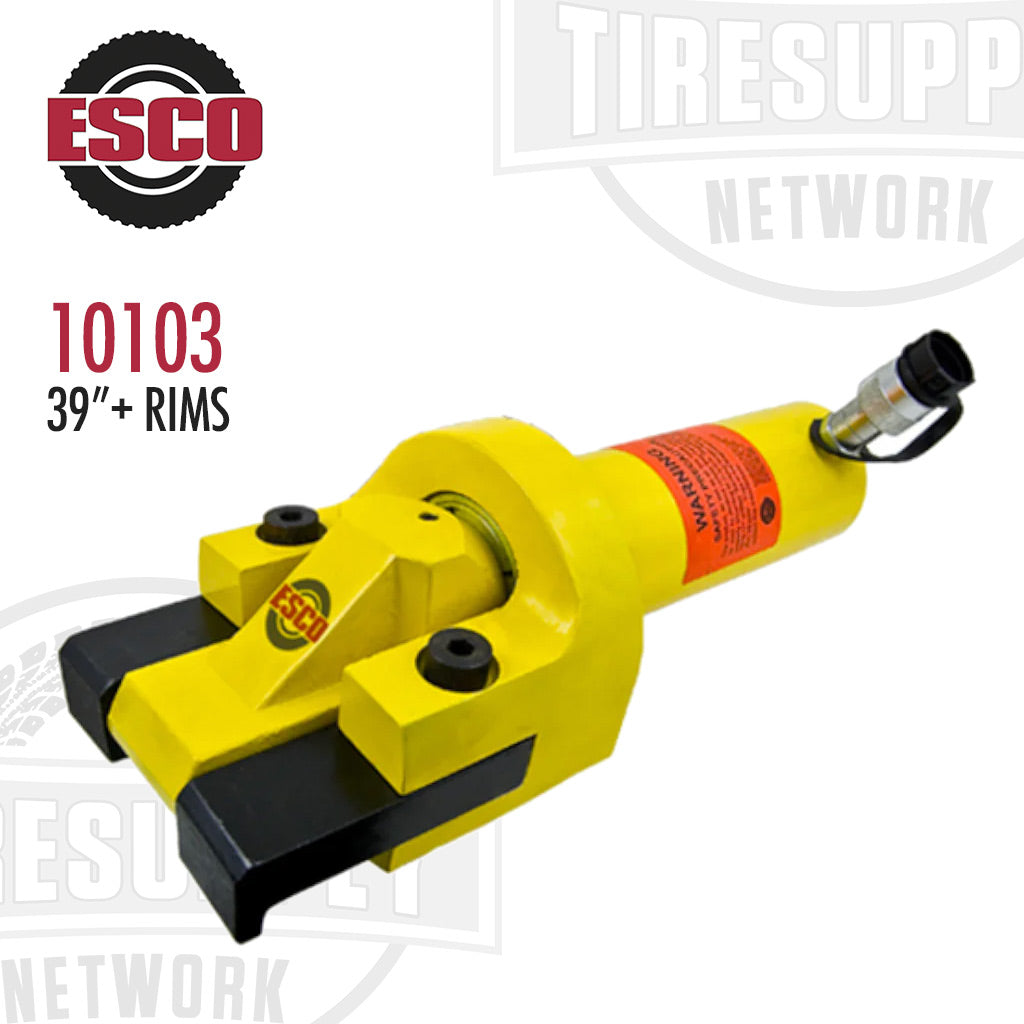

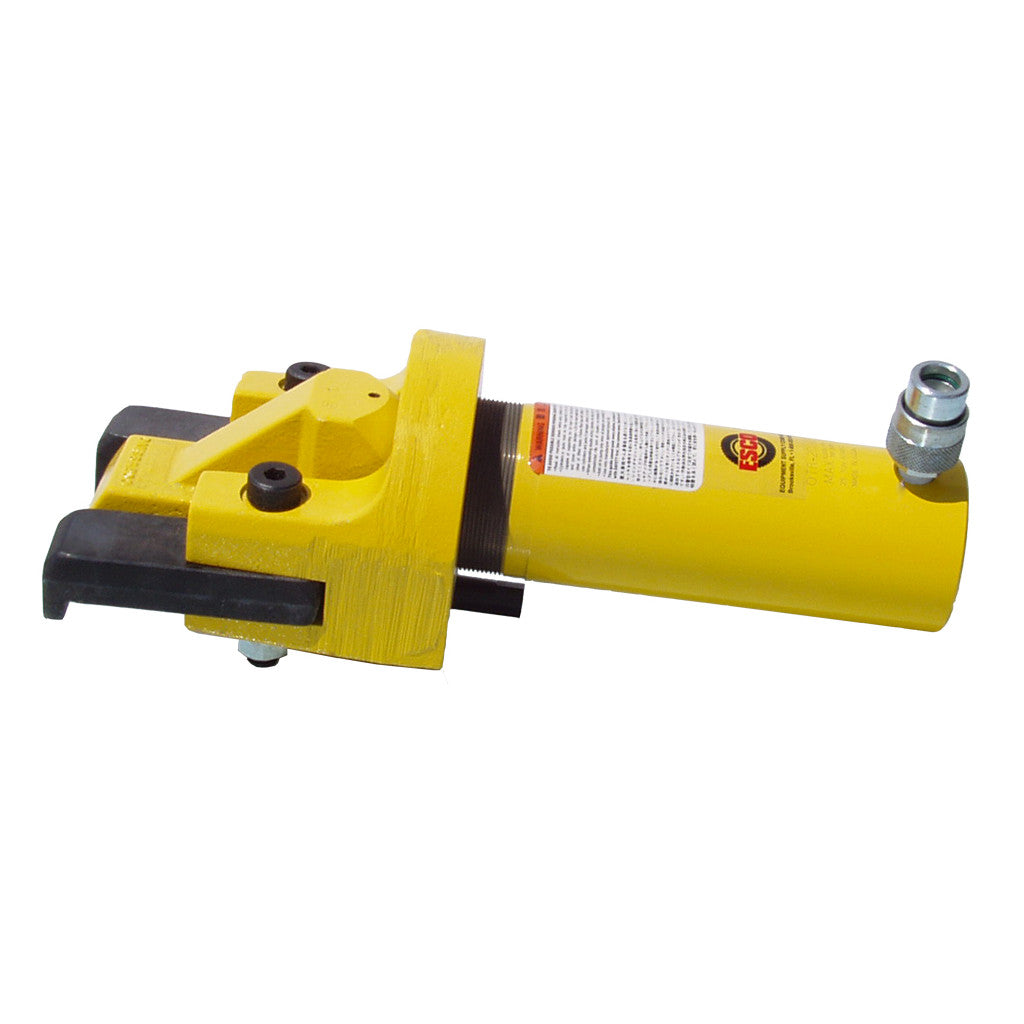

ESCO | Giant Tire Bead Breaker – For 39″ Rims and Larger (10103)

ESCO | Giant Tire Bead Breaker – For 39″ Rims and Larger (10103)

The ESCO Professional Bead Breaker Series have become a staple in the tire service industry for well over 30 years. ESCO provides a wide range of bead breakers that can handle rim sizes from the smallest to the largest of application.

Features:

• Use on 5-piece rims 39″ and larger.
• ESCO Model #10627 Kit converts the Model #10103 into ESCO Model #10103L, which is capable of Working on 63″ Rims.
• 25 tons of bead breaking force will break the toughest beads - 6″ stroke (152 mm)
• ESCO Model #10504 2-Gallon Air/Hydraulic Pump is recommended for operation.
• In some cases, you must first use ESCO Model #10105 or ESCO Model #10100 bead breaker to start the movement of the rim flange; Model #10103 can then be used.

Specifications:

• Ram Tonnage: 25 Tons
• Stroke: 6″ (152 mm)
• Maximum Pressure: 10,000 PSI
• Length: 16.5″ (419 mm)
• Width: 6.5″ (165 mm)
• Weight: 54 lbs (25 kg)

Compliance and Restrictions

⚠️WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
