Autel  |  SKU: MS909

Autel MS909 | MaxiSYS ADAS Advanced Diagnostic Tablet

$3,795.00

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

As low as $52.70 for 72 months Finance Now!

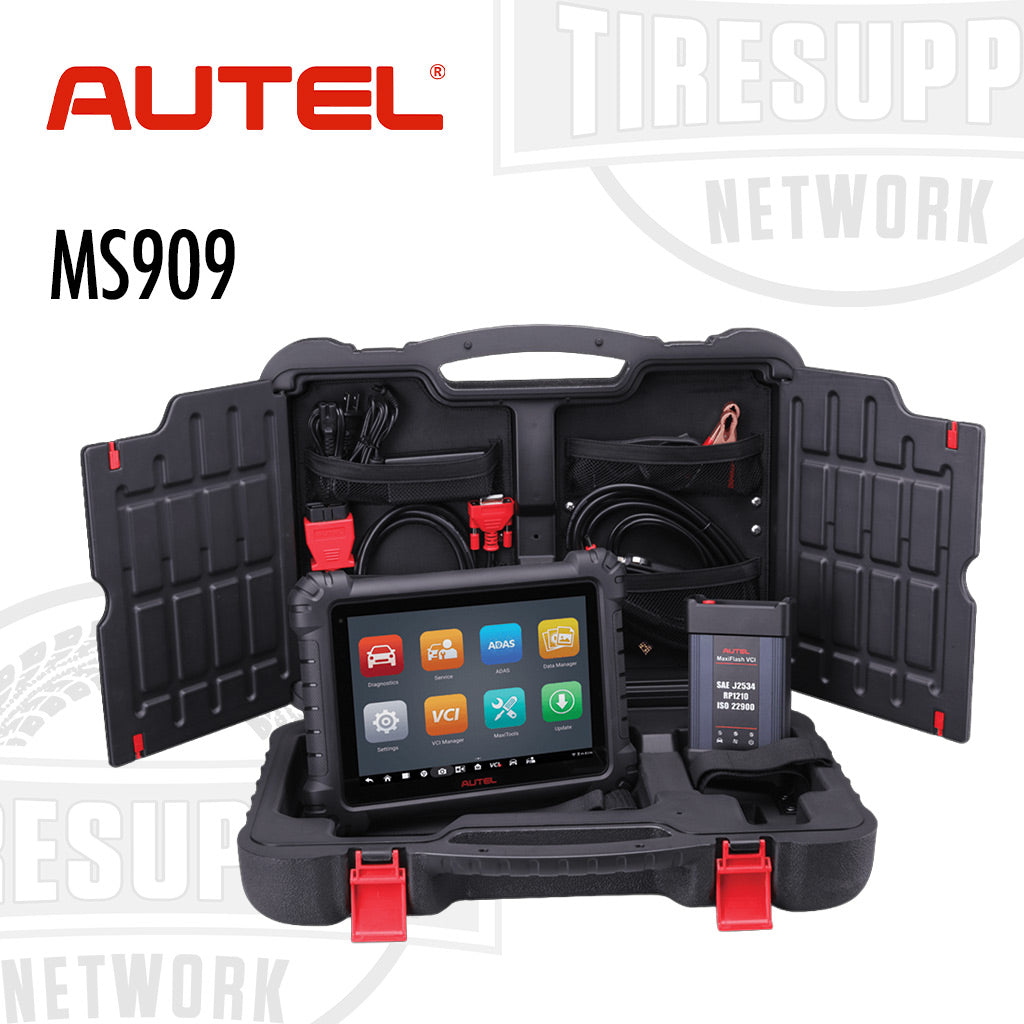

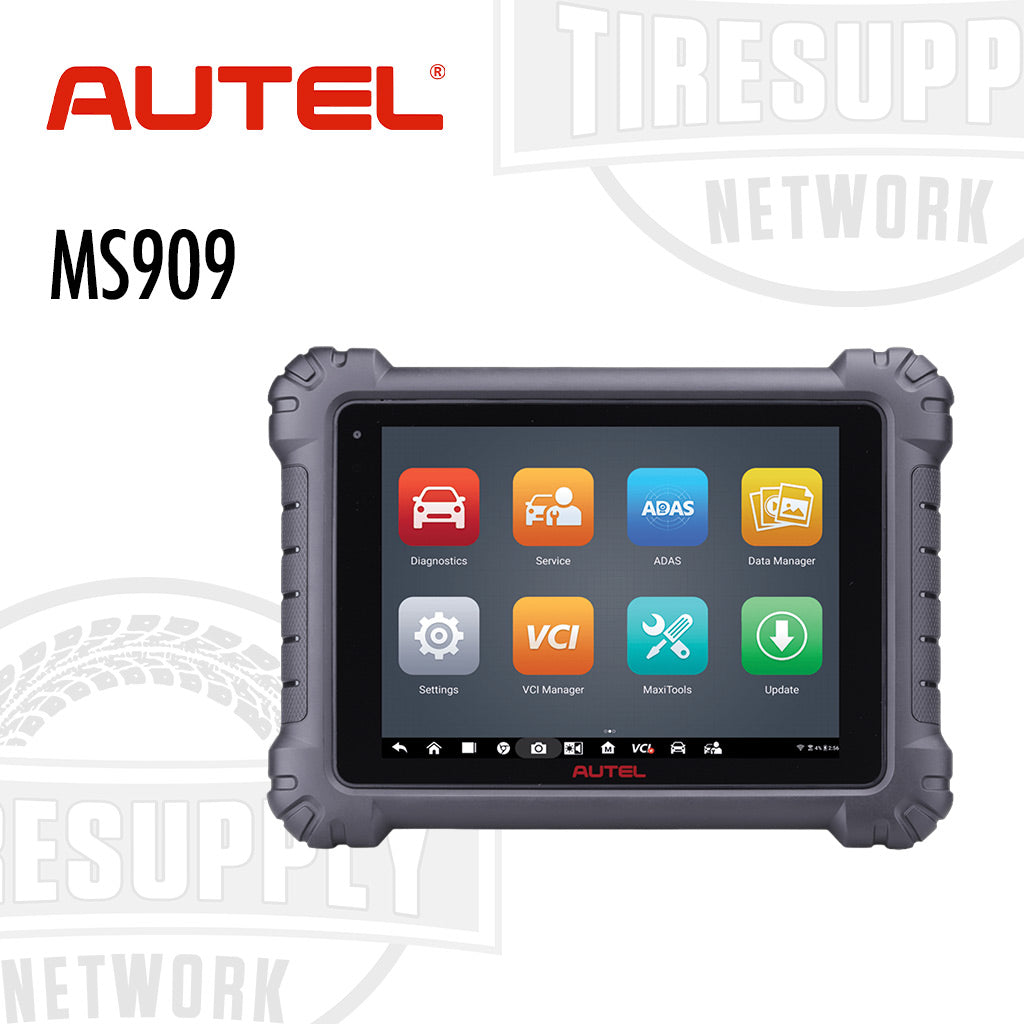

Autel MS909 MaxiSYS ADAS Advanced Diagnostic Tablet

The MS909 ADAS is a 9.7-inch advanced diagnostic tablet with ADAS calibration software. Powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), 128GB memory and features an advanced VCI supporting latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The MS909 features topology module mapping capability for supported vehicles. The MS909 features a rechargeable Lithium battery proving 8 hours of continues use, and front and rear cameras.

Features:
  • 9.7’’ Touchscreen (1536 x 2048) / Android 7.0
  • 2.3GHz+1.7GHz Octa-core Processor / 128GB Memory
  • New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
  • Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
  • License Plate Reader
  • ScanVIN: Barcode or Text Recognition with Camera
  • Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account
  • Includes Cables, MaxiFlash VCI, Carrying Case, 1YR Warranty & Software Subscription
  • Enhanced Diagnostic Reports: PreSCAN & PostSCAN
  • 15000mAh – 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera
Specifications:
Operating System Android 13
Processor Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory 4GB RAM & 256GB On-board Memory
Display 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity
  • WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO)
  • BT v.2.1 + EDR
  • GPS
  • USB 2.0 (TWO USB HOST Type A, ONE USB mini device)
  • HDMI 2.0
  • SD Card (Support up to 256GB)
Camera (rear)
  • Rear: 16 Megapixel, Autofocus with Flashlight
  • Front: 5.0 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output
  • Microphone
  • Dual Speakers
  • 3-Band 3.5 mm stereo/standard headset jac
Power and Battery
  • 15000mAH 3.8V lithium-polymer battery
  • Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/3A Adapter
Operating Temperature 0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature -10 °C to 60 °C (14 °F to 140 °F)
Dimensions (WxHxD) 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight 1.66kg (3.66 lb.)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
Compliance and Restrictions:
