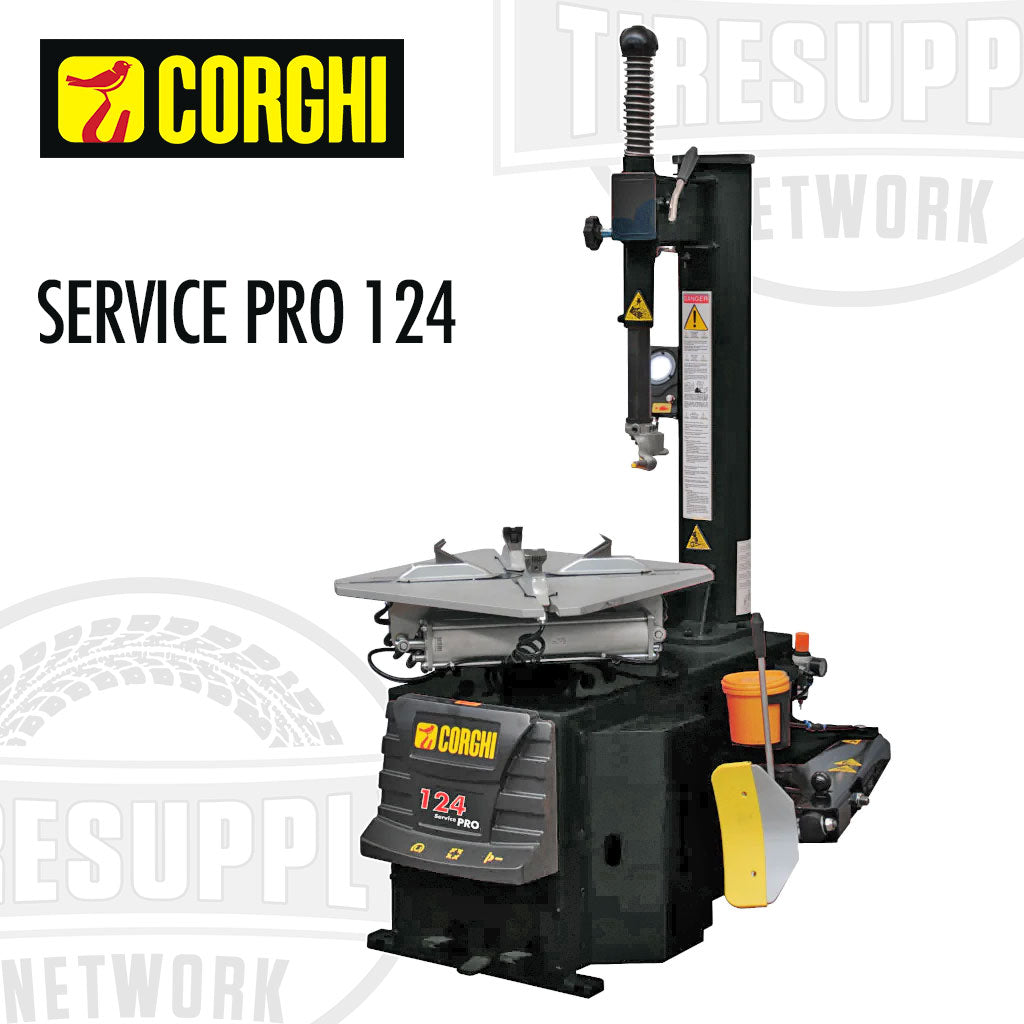

Corghi | Service Pro 124 Electric Swing Arm Tire Changer
2024 4th Quarter Rebate: 10% Cash Back!
10% Cash Back Rebate direct from Corghi on ALL Machines, Helper Arms & related Accessories. Based on Availability - Hurry Now and Get Cash for the Holidays! > Details Here
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
BUNDLE & SAVE: Buy a helper arm with your tire changer purchase now and save up to 10% on the price of the arm (if purchased separately). Simply add the "tire changer with helper arm" option to your cart to purchase the bundle.
Semi-Automatic swing-arm tire changer for rims up to 24”. Strong and reliable.

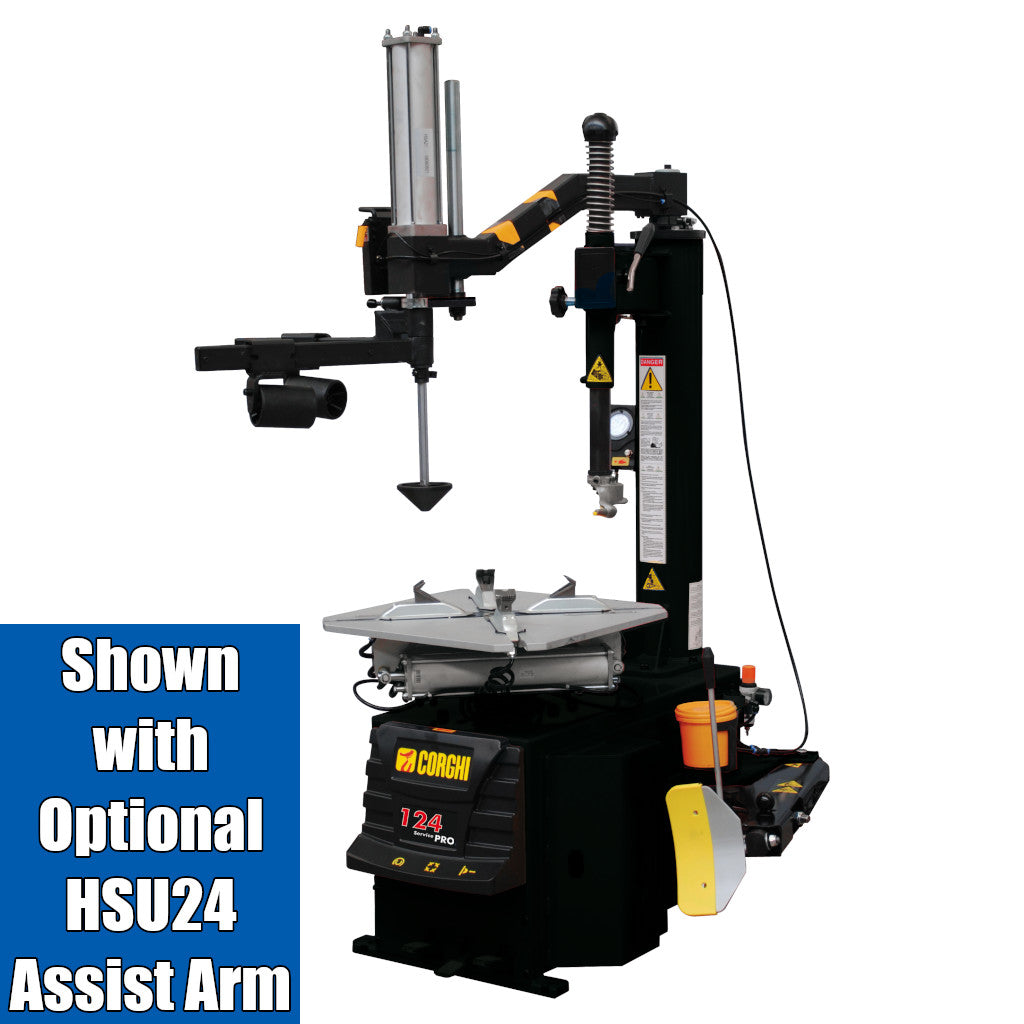

Helper Assist Arm Accessory Option: The helper arm is specifically designed for the Service Pro 124 to assist the operator in the tire changing process with its bead pressing functionality. The HSU24 is similar to helper arms for other Corghi tire changer models.
| Technical Data | Service Pro 124 |
| Corghi Part Number | 0-11901604/00 |
| Outside Clamp | 11″ - 24″ |
| Inside Clamp | 13″ - 26″ |
| Maximum Wheel Diameter | 47″ (1250 mm) |
| Tire Width | 3″ - 13″ |
| Bead-Breaking Opening | 13.4″ (340 mm) |
| Bead-Breaking Power | 3372 lbf (15000 N) |
| Working Air Pressure | 116 - 145 psi (8 - 10 bar) |
| Motor Power | 1.47 hp (1.1 kW) |
| Power Supply | 115 V / 60 Hz / 1 Ph |
| Chuck Rotation Speed | 6.5 rpm |
| Noise Level Running | less than 70 dB |
| Net Weight Machine | 527 lbs (239 kg) |
| Gross Weight Machine | 593 lbs (269 kg) |

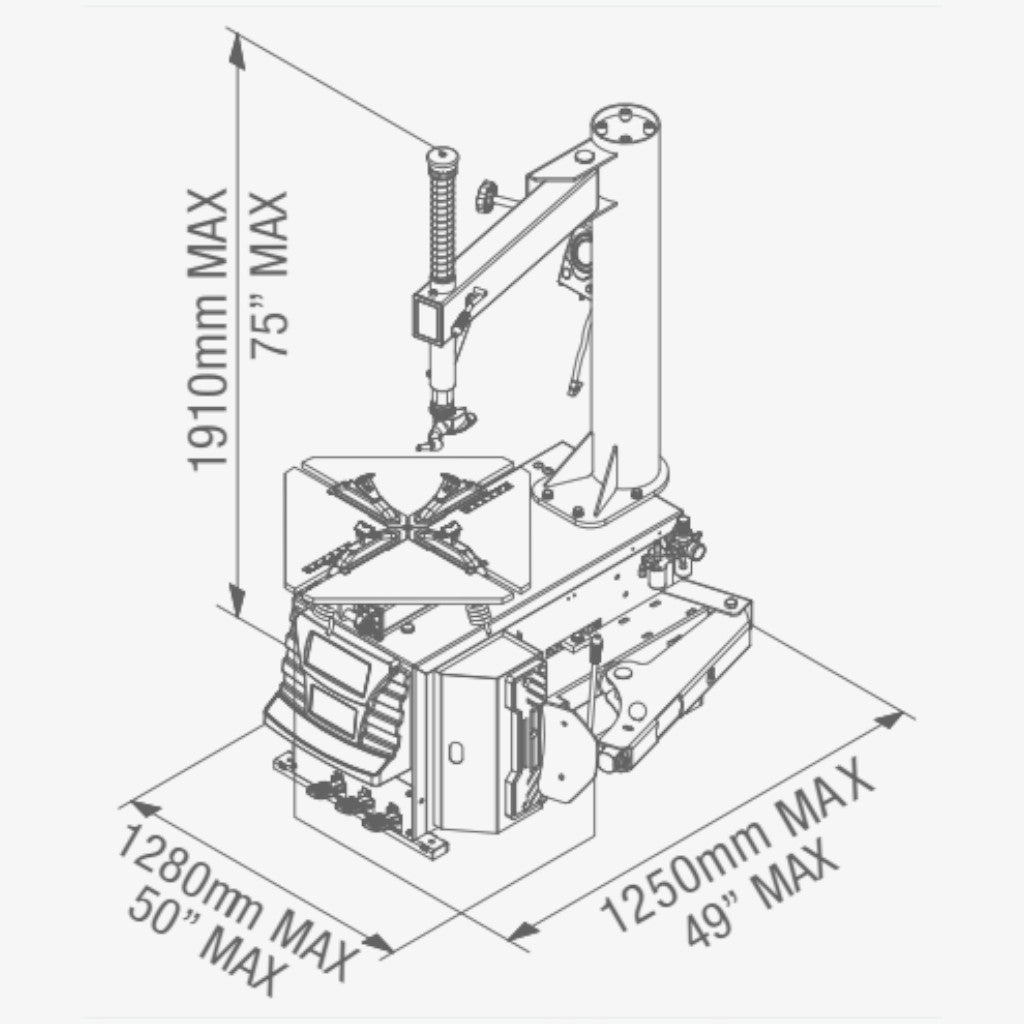

| Maximum Dimensions (L x D x H) | 50″ x 49″ x 75″ (1280 x 1250 x 1910 mm) |
