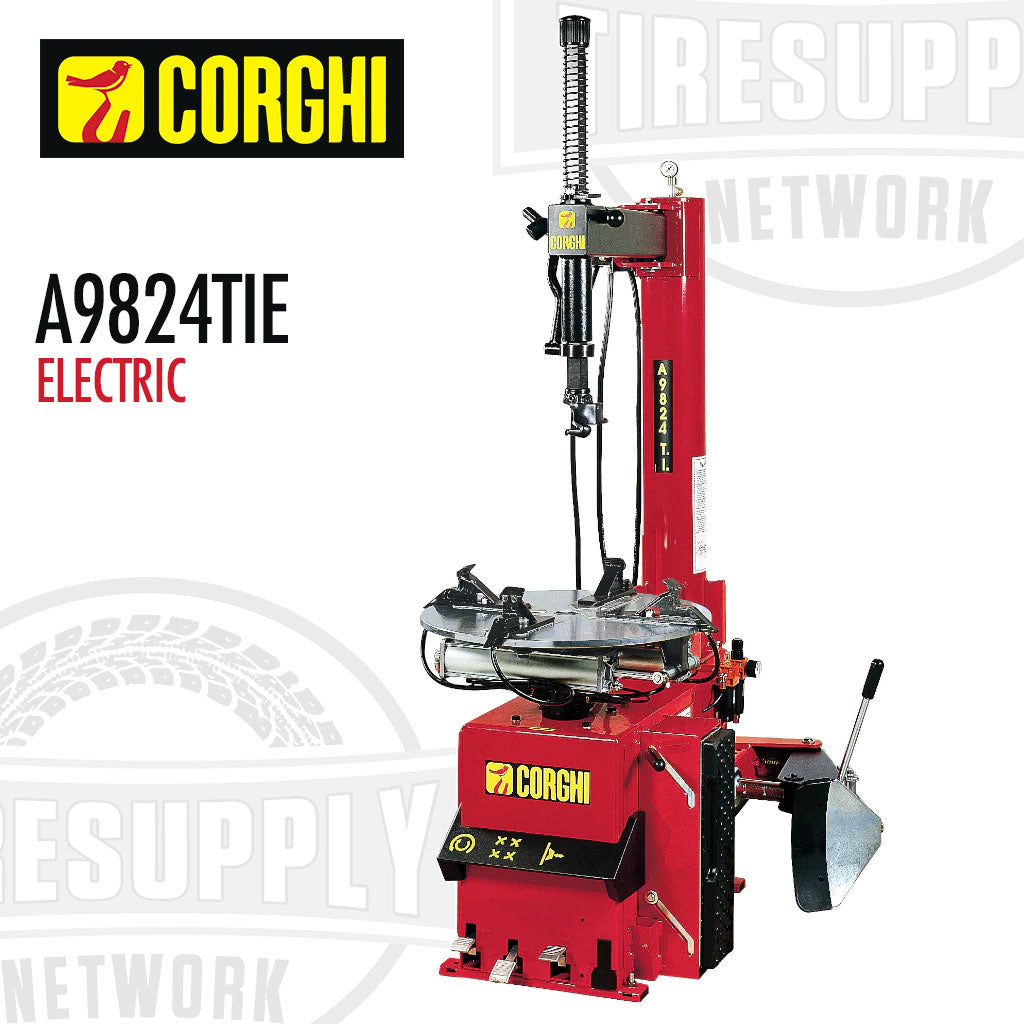

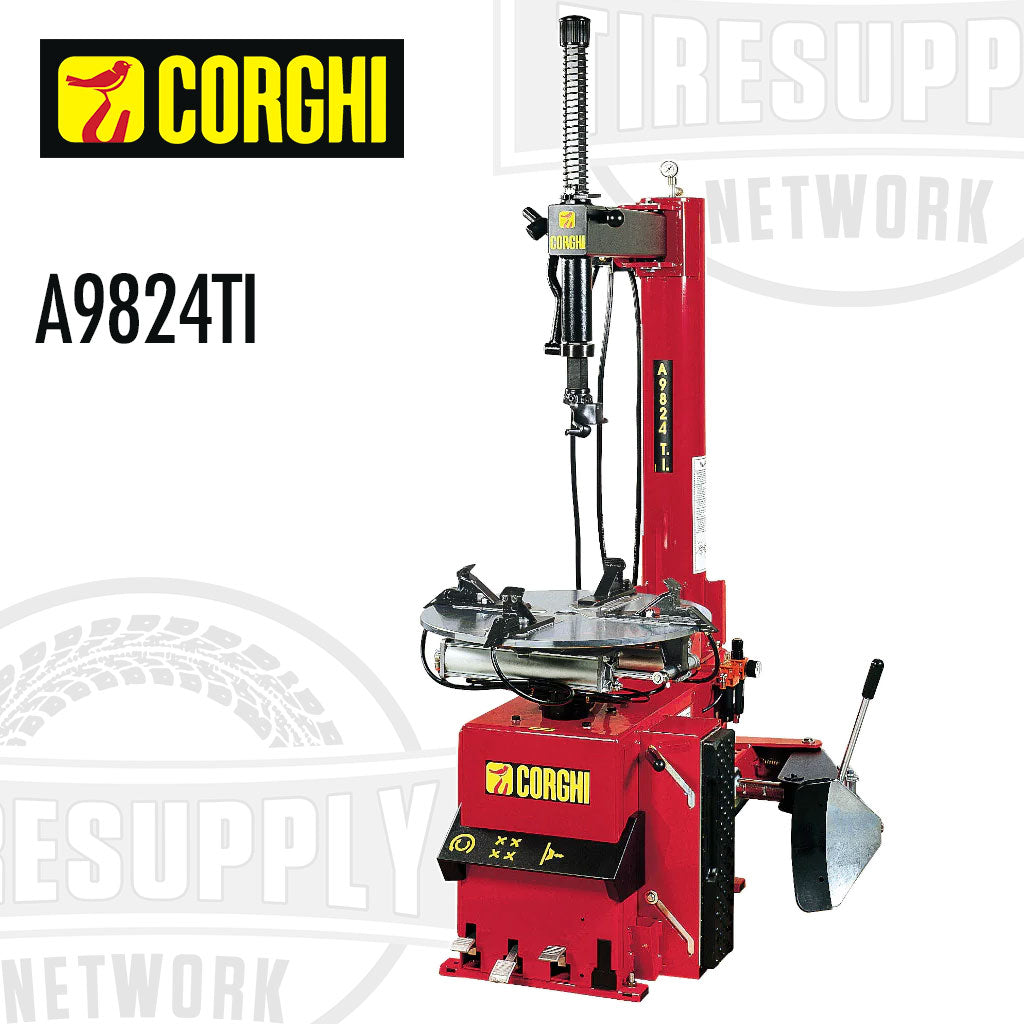

Corghi | Swing Arm Tire Changer - Choose Electric or Air Motor (A9824TI)
2024 4th Quarter Rebate: 10% Cash Back!
10% Cash Back Rebate direct from Corghi on ALL Machines, Helper Arms & related Accessories. Based on Availability - Hurry Now and Get Cash for the Holidays! > Details Here
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
Series Passenger, Light Truck Tire Changers
The 2 Speed A9824TI high performance swing arm tire changer boasts superior quality teamed with a sleek design and other unique features allow this machine to achieve speeds up to 50% faster than any other tire changer on the market in its price range. That's why Corghi was awarded ISO 9001 Quality Certification, industry's most coveted award. Run-flat certified by all major tire manufacturers.
Features:
- Built-in table inflator with jets in the jaws
- Unique mount/demount head does not touch the rim during operation
- Locking handle locks head away from the rim
- Powerful action bead-breaker blade follows bead to inside rim contour
- Heavy-duty turntable rotates in either direction
- Rebuildable stainless steel cylinders
- Heavy-duty stainless steel turntable
- Safe, fast, profitable, and affordable
- Bead pressing lever
- Upper arm assembly swings out of way

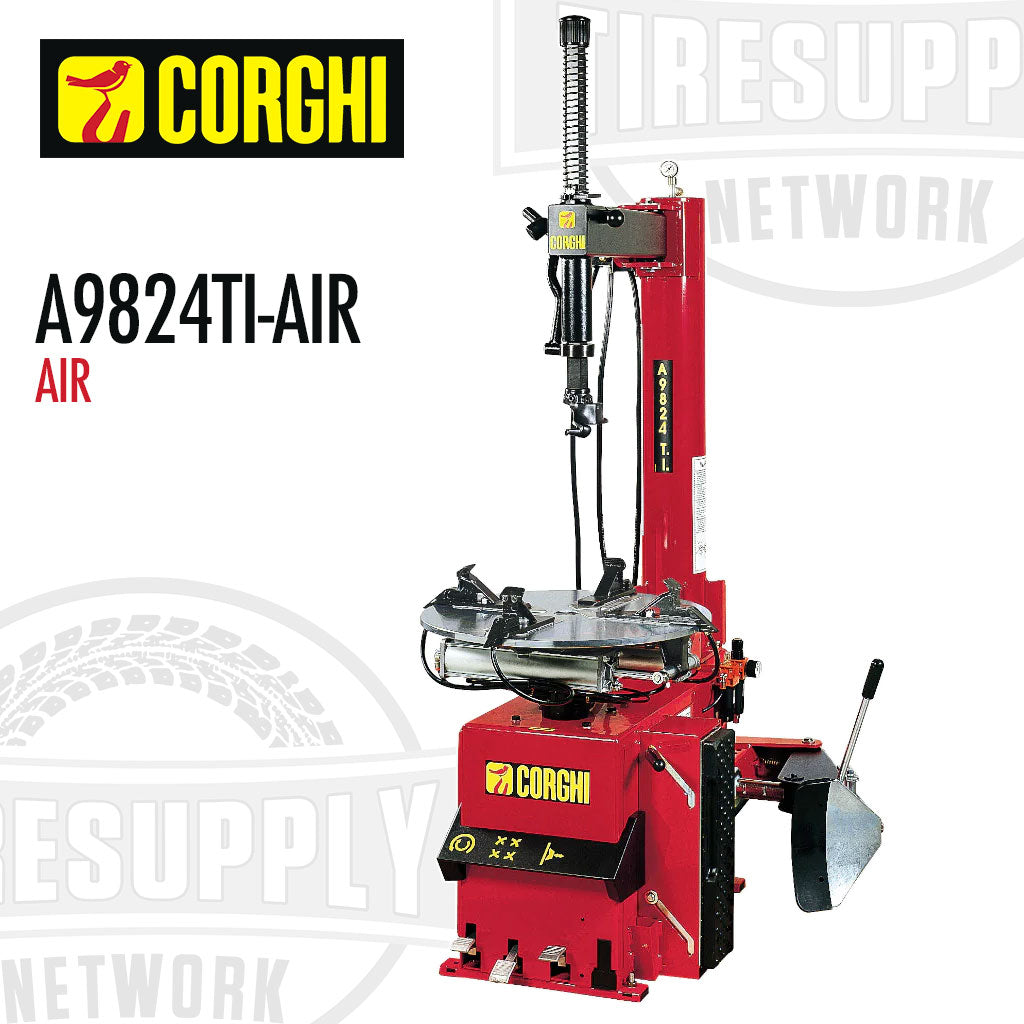

- Available with electric or air motor
- Warranty: 2 years parts, 1 year labor
Standard Accessories:
- Lube bucket
- Lube brush
- Tire lever
- Tire lever covers
- M/D head bottom inserts
- Set of jaw protectors
- B/B blade protector
- Air tank gauge assembly
- Set of inserts
- Bead pressing lever on machine
| Technical Data | A9824TI |
| Corghi Part Number (Electric Motor) | 0-11101764/00 |
| Corghi Part Number (Air Motor) | 0-11101705/00 |
| External Rim Size | 10″ - 24″ |
| Optional with Adapter | 8″ - 28″ |
| Internal Rim Size | 13″ - 26″ |
| Voltage | 1 Ph - 110 V - 60 Hz or Air |
| Rim Width | 3.5″ - 14″ |
| Maximum Tire Diameter | 47″ |
| Air Pressure | 150 psi |
| Bead Breaker Power at Shoe | 3500 lbs |
| Torque | 737 ft/lbs |
| Shipping Weight | 608 lbs |
