Corghi | Electric Tilt-Back Leverless Tire Changer with Helper Assist Arm (A2024LL)

Corghi | Electric Tilt-Back Leverless Tire Changer with Helper Assist Arm - (A2024LL) SP2000 or SP2300 PLUS

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

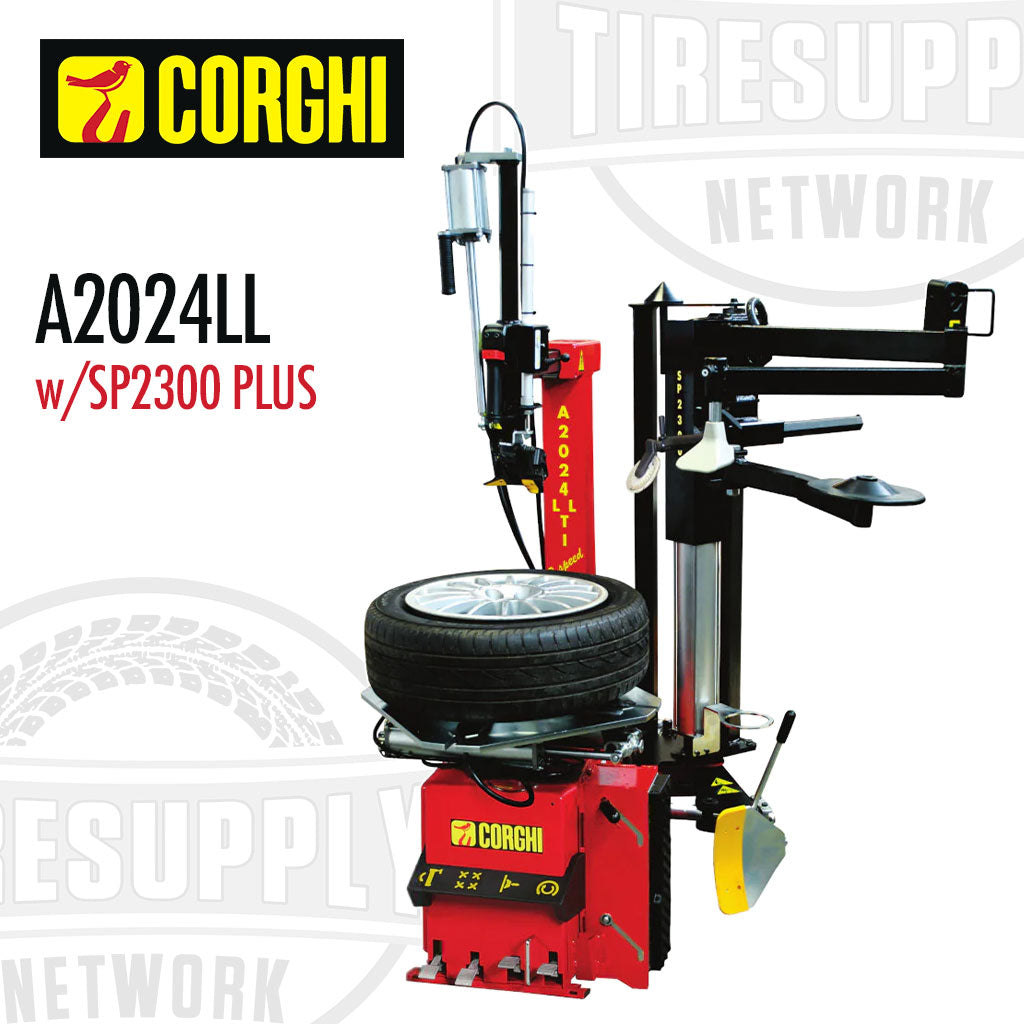

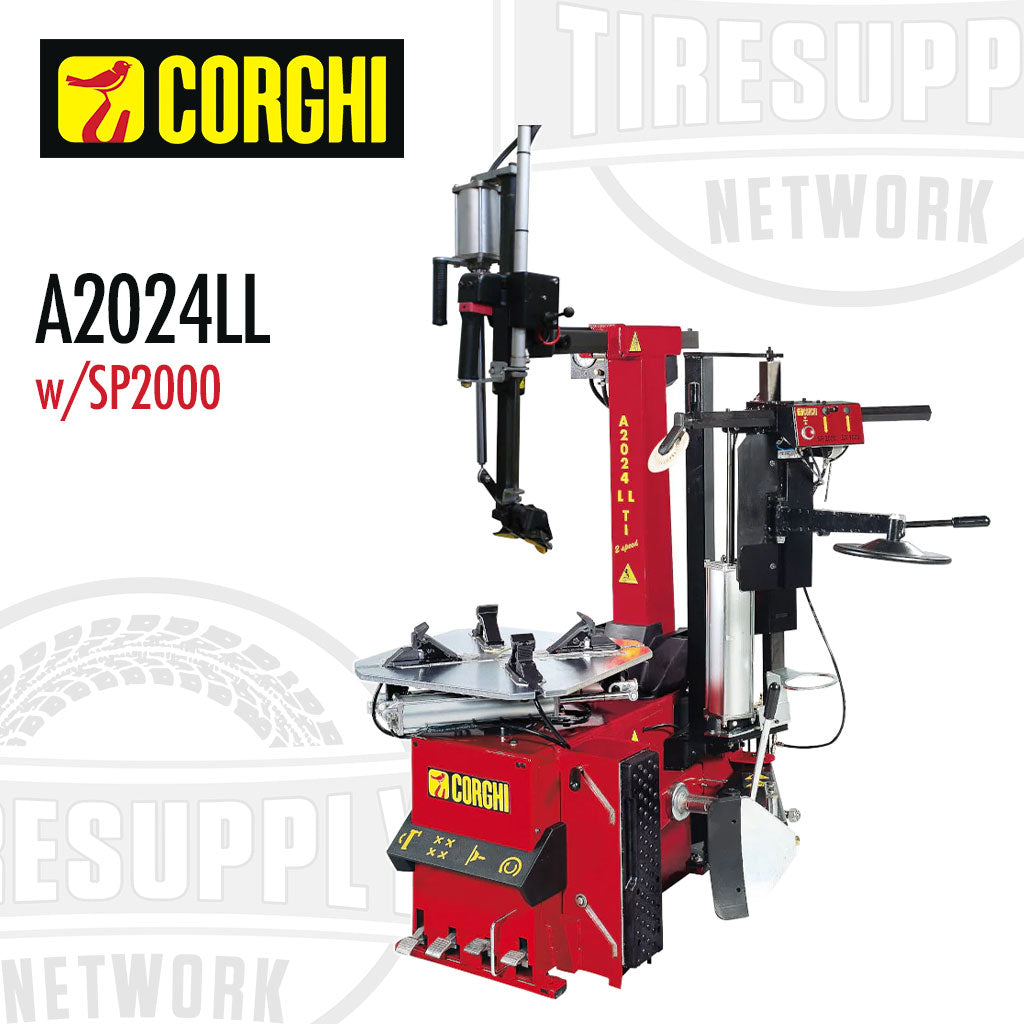

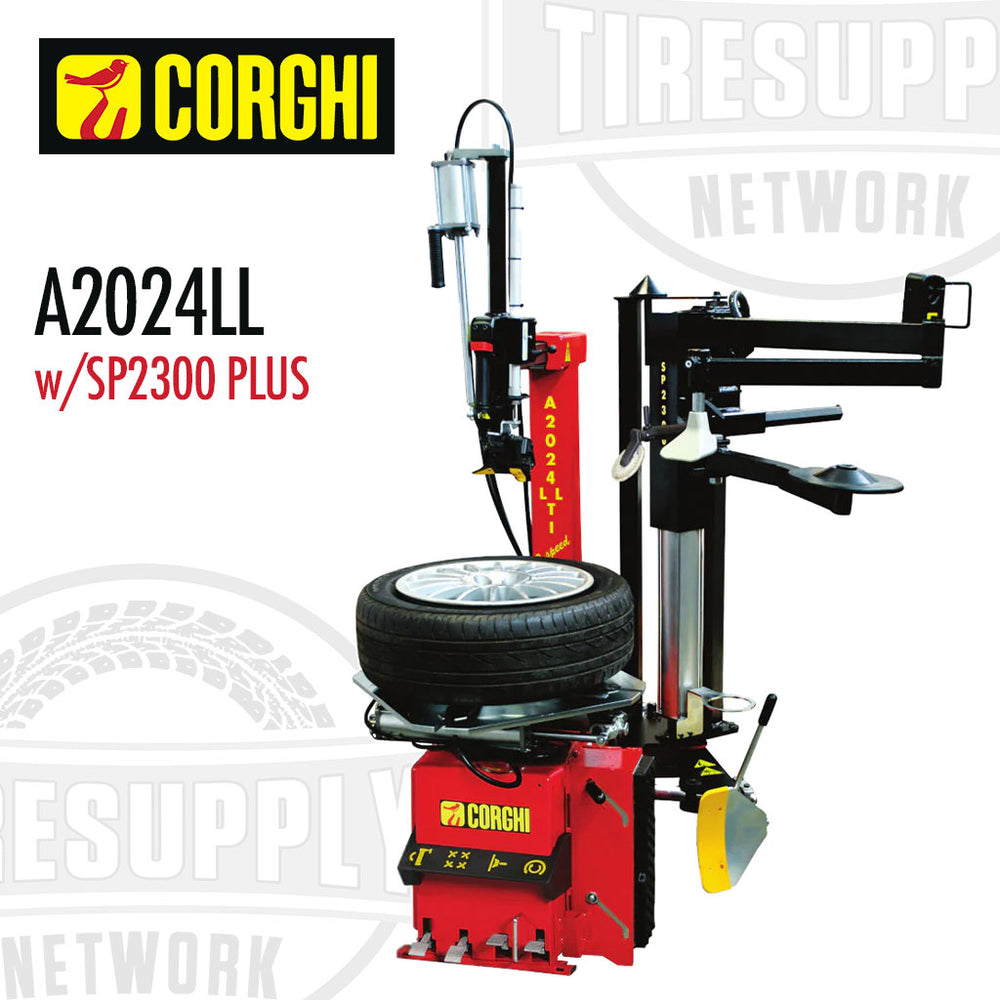

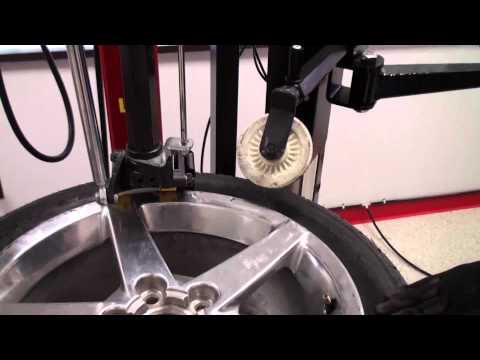

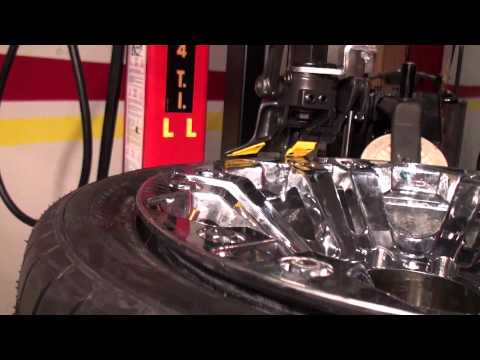

The Corghi A2024LL is an automatic tire changer with leverless technology. It comes with your choice of an SP2000 Helper Arm or an SP2300 Helper Arm because the arm is required to use the leverless system on the tire changer head. Scroll through the product pictures to see videos of each helper arm in action.

• For more information on the Corghi SP2000 Helper Assist Arm, CLICK HERE
• For more information on the Corghi SP2300 PLUS Helper Assist Arm, CLICK HERE

Corghi A2024LL Electric Tilt-Back Leverless Tire Changer details:

Features:

• Top bead demounting procedure head unit. The demounting procedure uses the same working movements but absolutely no effort is required from the operator thanks to the leverless technology incorporated in the mount/demount head (patented). The mounting procedure is exactly as before, and just as quick and convenient.
• Turntable system that allows the clamps to be moved to change the working range.
• Bead breaker shoe extension system useful for working on large-diameter wheels installed on the machine as standard
• Warranty: 2 years parts, 1 year labor

Technical Data:

• Turntable:
• Inside clamping capacity: 13" - 26"
• Outside clamping capacity: 10" - 24"
• Max tire diameter: 43"
• Max tire width: 14"
• Rotation torque: 885 ft lbs (1200 Nm)
• DV version rotation torque: 959 ft lbs (1300 Nm)
• Rotation speed: 8 rpm
• DV version rotation speed: 6 - 15 rpm
• Height above the ground: 27"
• Bead Breaker:
• Type: fixed arm with extending shoe
• Max opening: 380mm
• Shoe force: 15500 N
• Support: telescopic
• Power Supply:
• Electrical 1 Ph - 110/230 V - 0.75 kW
