CEMB  |  SKU: ER90EVO

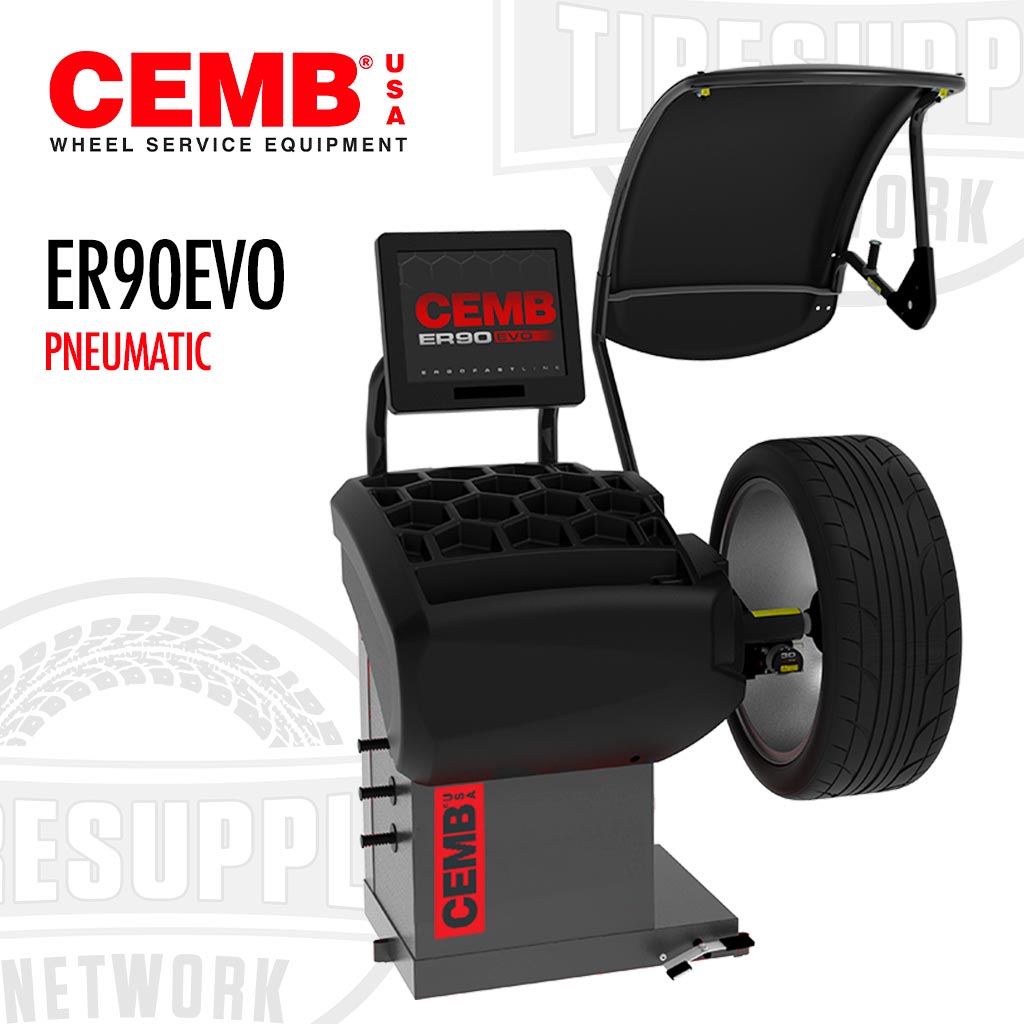

CEMB | Diagnostic RFV Fully Automatic OPB Wheel Balancer - Pneumatic (ER90EVO)

Sale price $12,499.00 Regular price $13,888.00

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

As low as $173.59 for 72 months Finance Now!




CEMB | Diagnostic RFV Fully Automatic OPB Wheel Balancer - Pneumatic (ER90EVO)

The new ER90 EVO automatically detects wheel data simply pressing one single touch button and after a few seconds gives a clear and accurate indication of exact position to place counterweights (clip-on and/or stick-on weights)

CEMB’s AutoAdaptive Mode software measures the wheel’s weight and dimensions and then recalculates the tolerance value so as to cancel any vibration perceived on the steering wheel, ensuring the greatest possible driving comfort.  CEMB’s OPB (One Plane Balancing) program, 3D Laser Scan and HubMatch,  clock the RFV highpoint of the assembly to the vehicle hub before mounting it at the 12 o’clock position. All these features guarantee significant time savings during the balancing process. Also included is a TDC Laser (Top Dead Center) for steel rims.

Key Features:

  • One Plane Balancing (OPB)
  • AutoAdaptive Mode
  • HubMatch®
  • Ergonomic Design
  • 3D Laser Scan
  • Side Laser
  • Automatic Positioning System

Standard Features:

  • Average 6-second cycle time includes automatic RFV* and wheel scanning performed during the balance cycle.
  • Dynamic AutoAdaptive OPB balancing automatically shifts to a single weight balance on over 70% of today’s wheels; gaining a 33%-time savings on every balance.
  • Made in Italy. Final assembly in USA.
  • 220V, 1ph. +AIR
  • Radial Force Vectoring

        Technical Specs:

        Power Supply 220V, 1ph Air
        Wheel Clamping Type Pneumatic
        Max. Rim Diameter 30" (765 mm)
        Max. Rim Width: 20" (510 mm)
        Max. Tire Diameter: 40" (1016 mm)
        Max. Wheel Weight: 165 lbs. (75 kg)
        Shipping Weight: 485 lbs. (220 kg)
        Dimensions: (W) x (H) x (D) 51.38" x 59" x 51.73"
        Warranty: 2 Years Parts / 1 Year Labor
