CEMB  |  SKU: ER100GT

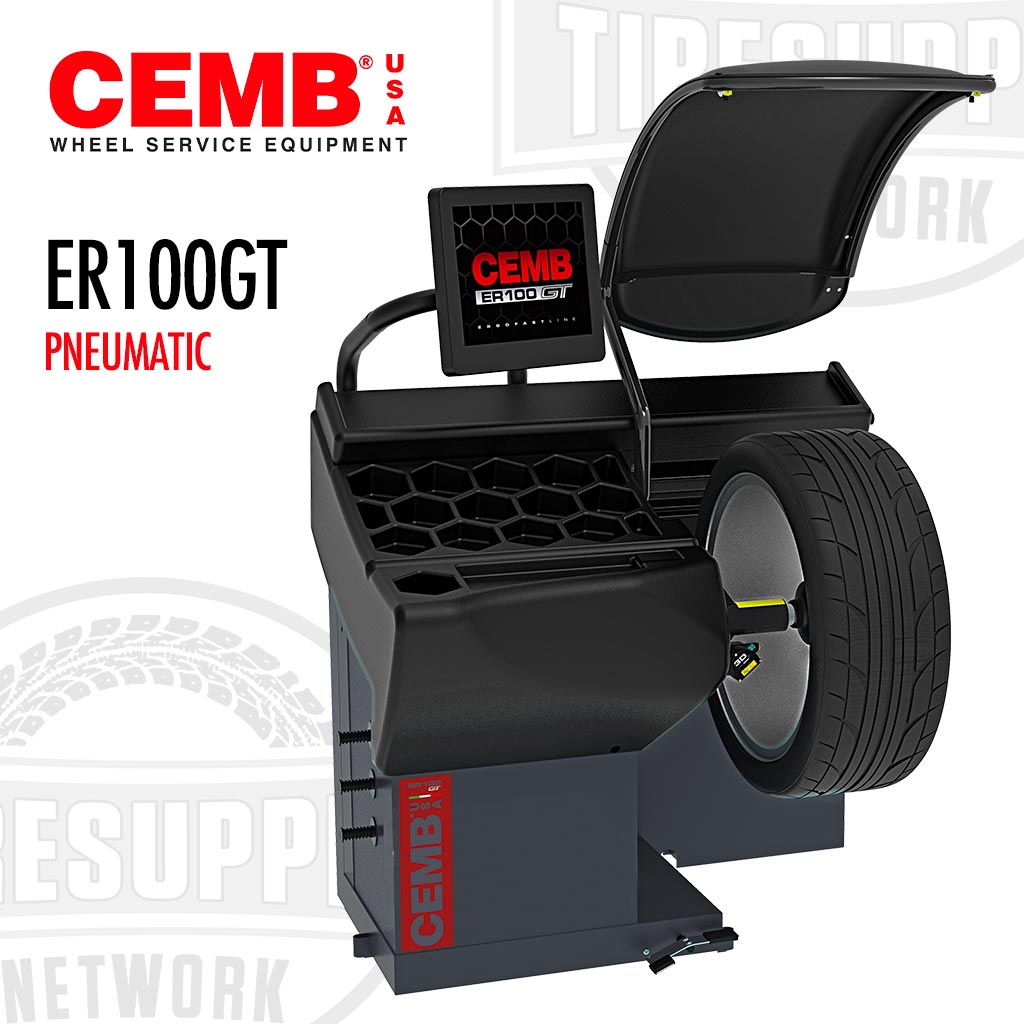

CEMB | Diagnostic RFV Automatic OPB Wheel Balancer - Pneumatic (ER100GT) HubMatch®

Sale price $16,999.00 Regular price $18,888.00

Join CLUB5 at Tire Supply Network & Save 5% on EVERY Order! Join Now!

As low as $236.09 for 72 months Finance Now!




CEMB | Diagnostic RFV Automatic OPB Wheel Balancer - Pneumatic (ER100GT) HubMatch®

Completely renewed, the ER100GT top-of-the-range wheel balancer, in a matter of seconds and without any manual intervention on behalf of the operator the machine automatically detects all wheel dimensions, unbalance, internal and external wheel and rim eccentricity, tread-depth and continuity.

Comes with CEMB’s innovative AutoAdaptive Mode software which acquires the wheel’s weight and dimensions and recalculates the tolerance value so as to cancel any vibration perceived on the steering wheel, ensuring the greatest possible driving comfort and, together with CEMB’s OPB (One Plane
Balancing) program, 3D Laser Scan and HubMatch, which clocks the RFV highpoint of the assembly to the vehicle hub before mounting it at the 12 o’clock position, guarantees significant time savings during the balancing process. Also includes TDC Laser (Top Dead Center) for steel rims.

Key Features:

  • One Plane Balancing (OPB)
  • AutoAdaptive Mode
  • Wheel Structure Analysis
  • HubMatch®
  • Ergonomic Design
  • 3D Laser Scan
  • Side Laser
  • Touch Screen
  • Automatic Positioning System

Standard Features:

  • Average 6-second cycle time includes automatic RFV* and wheel scanning performed during the balance cycle.
  • Dynamic AutoAdaptive OPB balancing automatically shifts to a single weight balance on over 70% of today’s wheels; gaining a 33%-time savings on every balance.
  • Made in Italy. Final assembly in USA.
  • 220V, 1ph. +AIR
  • Radial Force Vectoring

        Technical Specs:

        Power Supply 220V, 1ph Air
        Wheel Clamping Type Pneumatic
        Max. Rim Diameter 30" (765 mm)
        Max. Rim Width: 20" (510 mm)
        Max. Tire Diameter: 40" (1016 mm)
        Max. Wheel Weight: 165 lbs. (75 kg)
        Shipping Weight: 485 lbs. (220 kg)
        Dimensions: (W) x (H) x (D) 66" x 62" x 54"
        Warranty: 2 Years Parts / 1 Year Labor
