Autel | MaxiTPMS Advanced TPMS Service & Diagnostic Tablet Tool (ITS600)

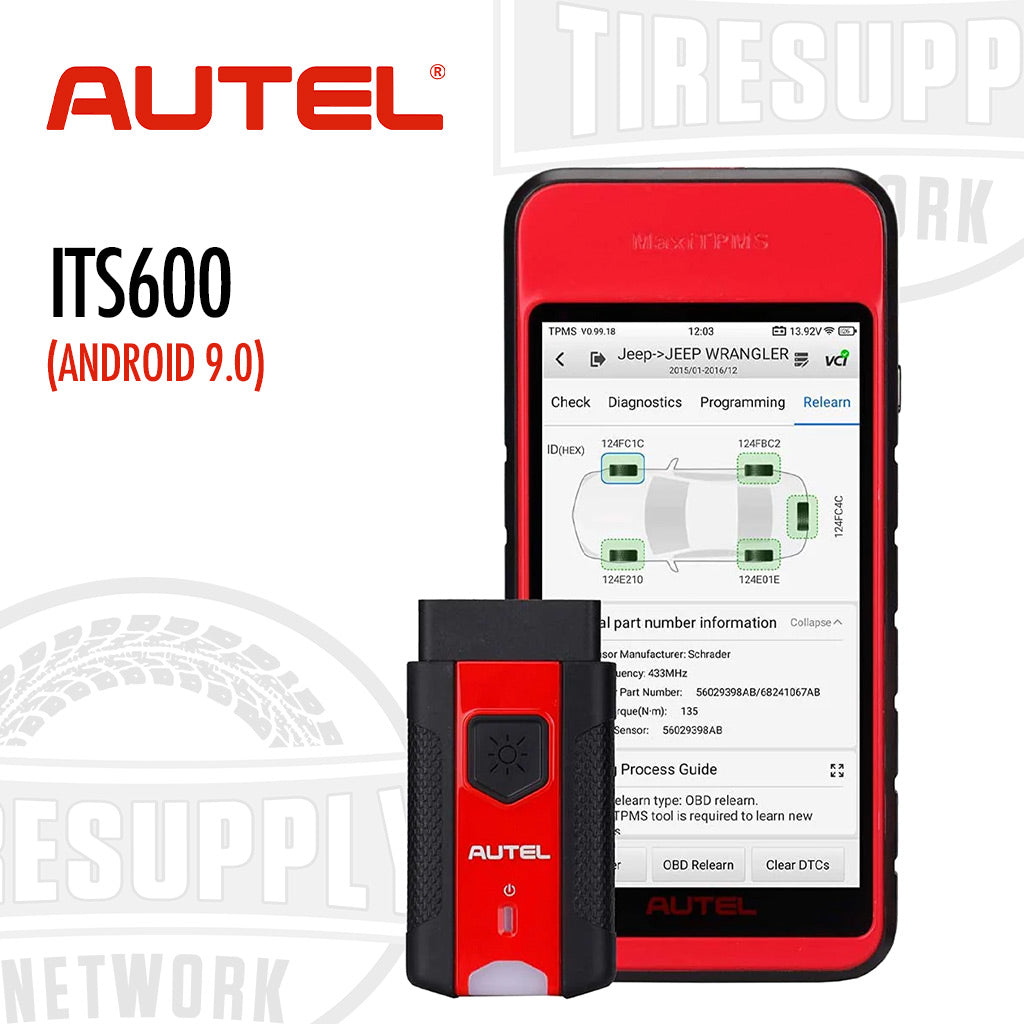

The MaxiTPMS ITS600 is a wireless, touchscreen Android-based tablet that offers complete TPMS diagnostics and service functions. The tablet features a 5.5-inch color display and Bluetooth vehicle communication interface (VCI).

Compatible with U.S, Asian and European TPMS-equipped vehicles, the ITS600 features an enhanced TPMS status screen, VINscan for rapid vehicle identification, four MX-Sensor programming options, OBDII relearn functionality and onscreen relearn instructions for all vehicles.

The ITS600 can activate, read and relearn all known sensors, perform TPMS system diagnostics and four common maintenance services. Additionally, it provides DOT number scan, tire expiration notice, and access to recall lookup.

The ITS600 is compatible with TBE200/TBE100 Tire Tread & Brake Disc Wear Analysis tool, sold separately. By providing an extensive series of tire-related features and functions, ITS600 is your ideal choice to complete TPMS and tire health work.

Includes FREE Wi-Fi software updates for the life of the tool.

Everything TPMS Solutions

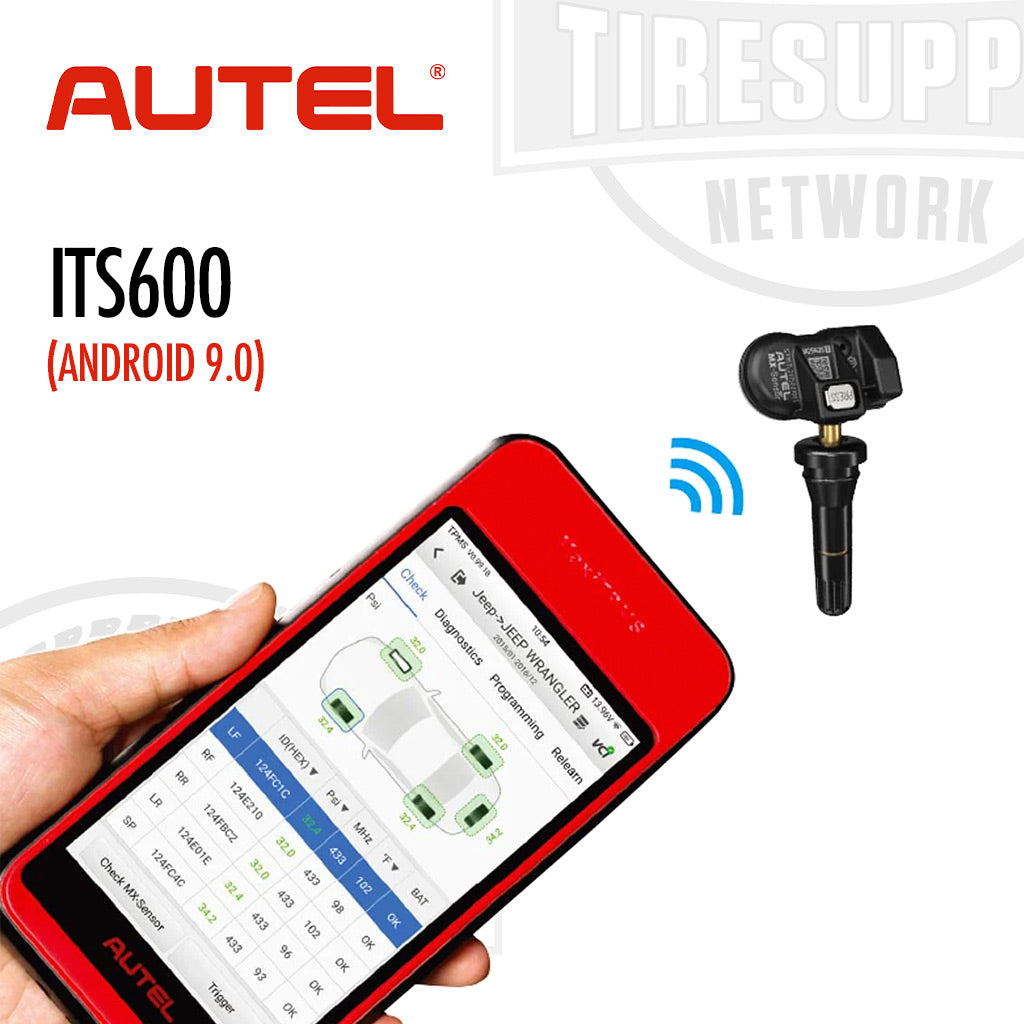

  • Activates, reads and relearns all known sensors
  • Enhanced, at-a-glance diagnostics status screen
  • Fast OBDII relearn for most vehicles
  • Program MX-Sensors to replace 99% of OE sensors
  • Copy By OBD sensor programming for faster service
  • Four MX-Sensor program modes; batch program up to 20 MX-Sensors
  • Includes wireless Bluetooth vehicle communication interface (VCI)
  • Tire pressure placard value reset
  • Read/Clear TPMS system codes & view live data

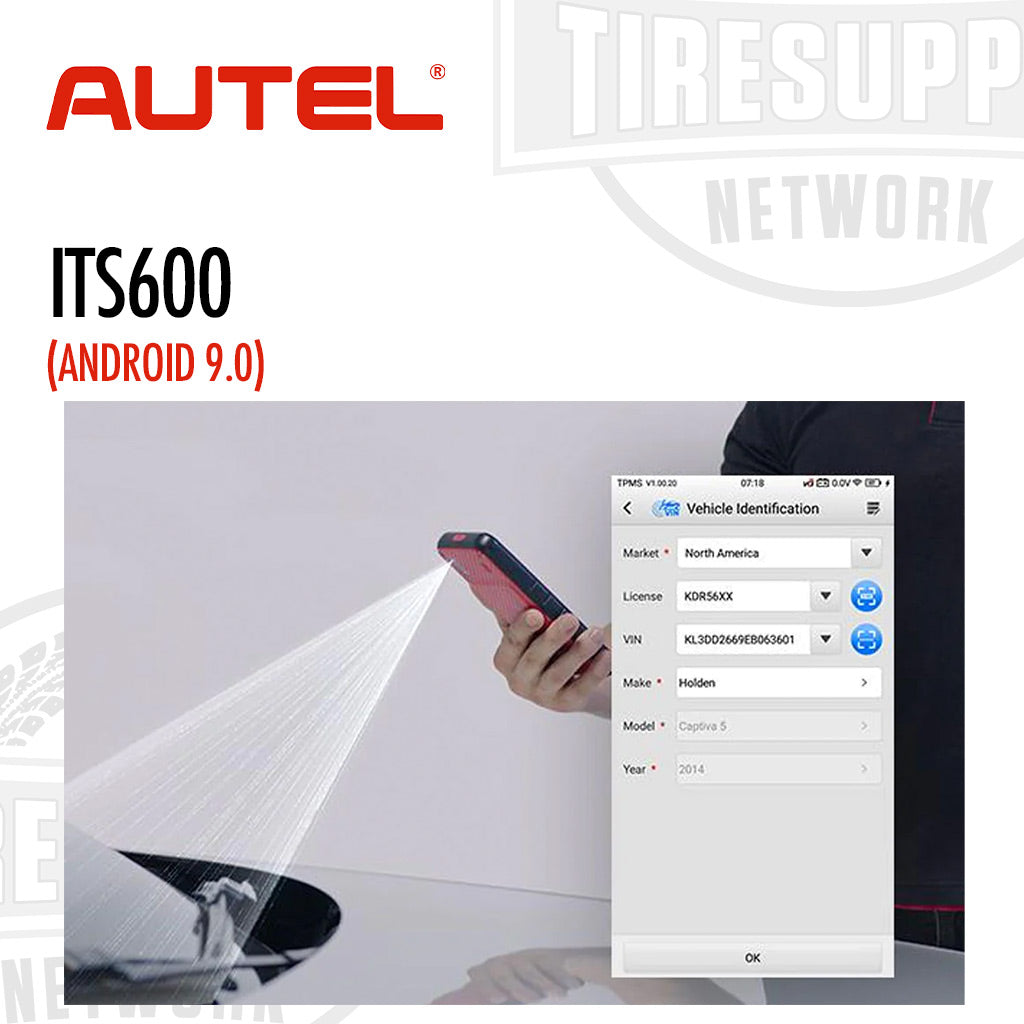

Quick Vehicle ID Technology

  • Rapid VIN acquisition via optical VINScan
  • QR Code Scan / Barcode Scan, Plate scan, Auto VIN detect and manual input
  • Identify MMY and sensor OE part number via VIN decoding

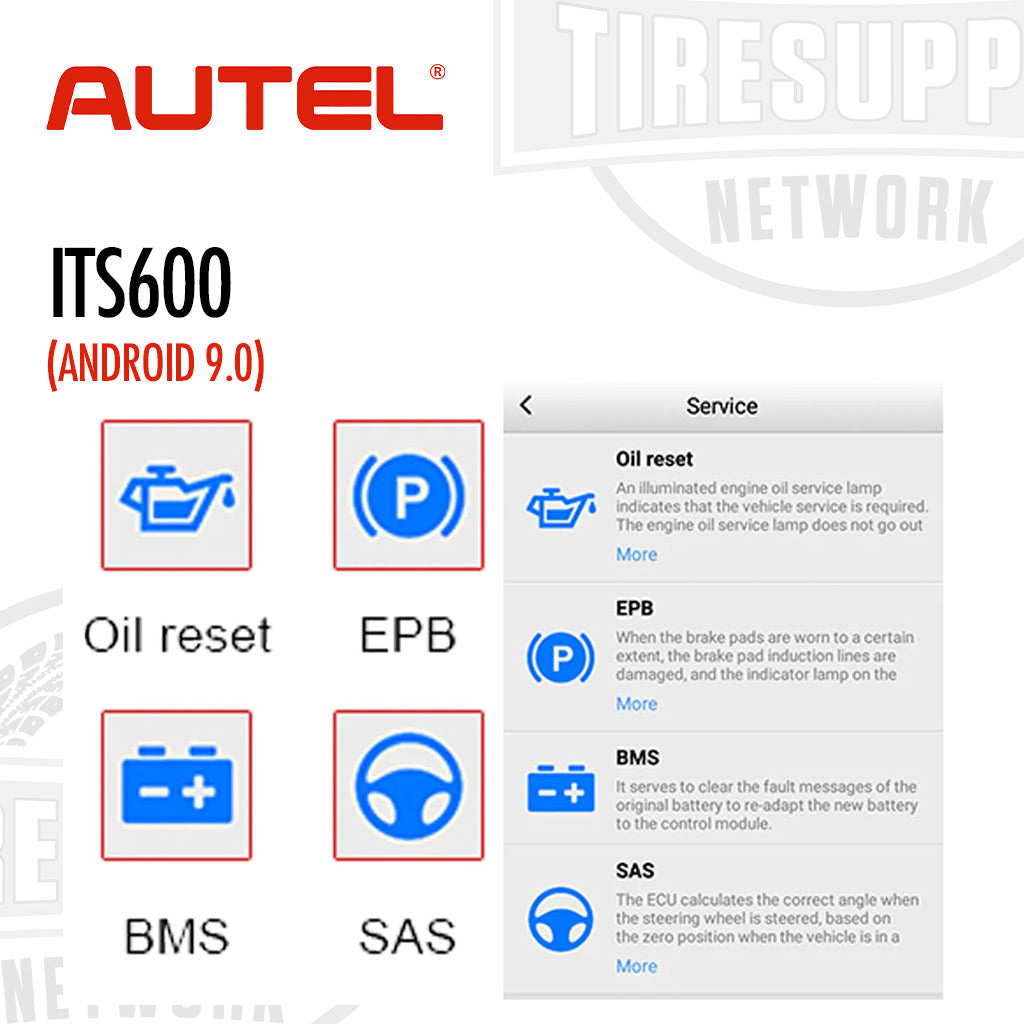

Diagnostics & Service

  • Oil light reset
  • Electronic brake service
  • Battery registration
  • Steering angle reset
  • Included service function updates are free for the life of the tool
  • All systems diagnostics and maintenance services software available with Pro Upgrade purchase


  • Quick & Easy Tire DOT Number Scan
  • Tire Expiration Notice
  • Tire Recall Lookup

Tread Depth & Brake Disc Wear

  • Precise laser measurement of tread depth & brake disc wear with purchase of Autel TBE100/TBE200
  • Comprehensive Test Report: TPMS health‚ Tread depth & brake disc wear characteristics & Repair tips

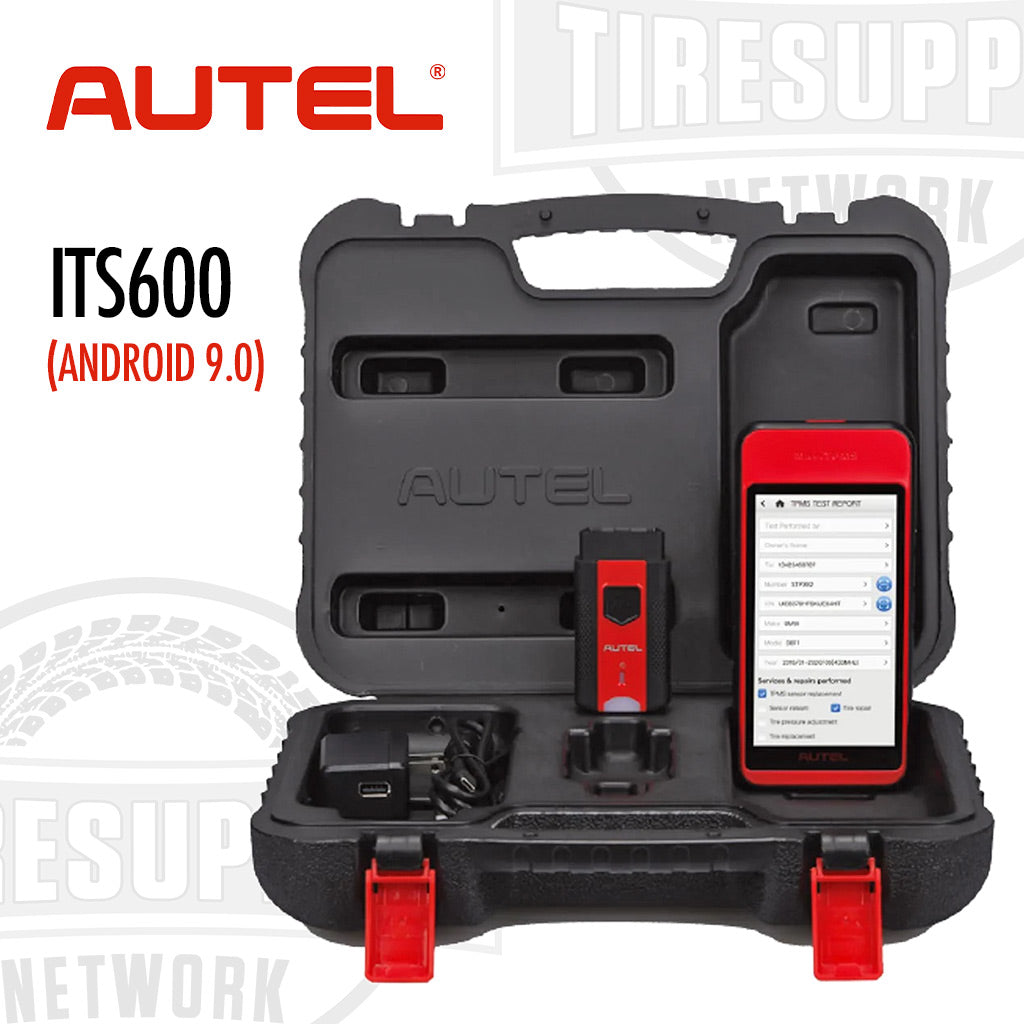

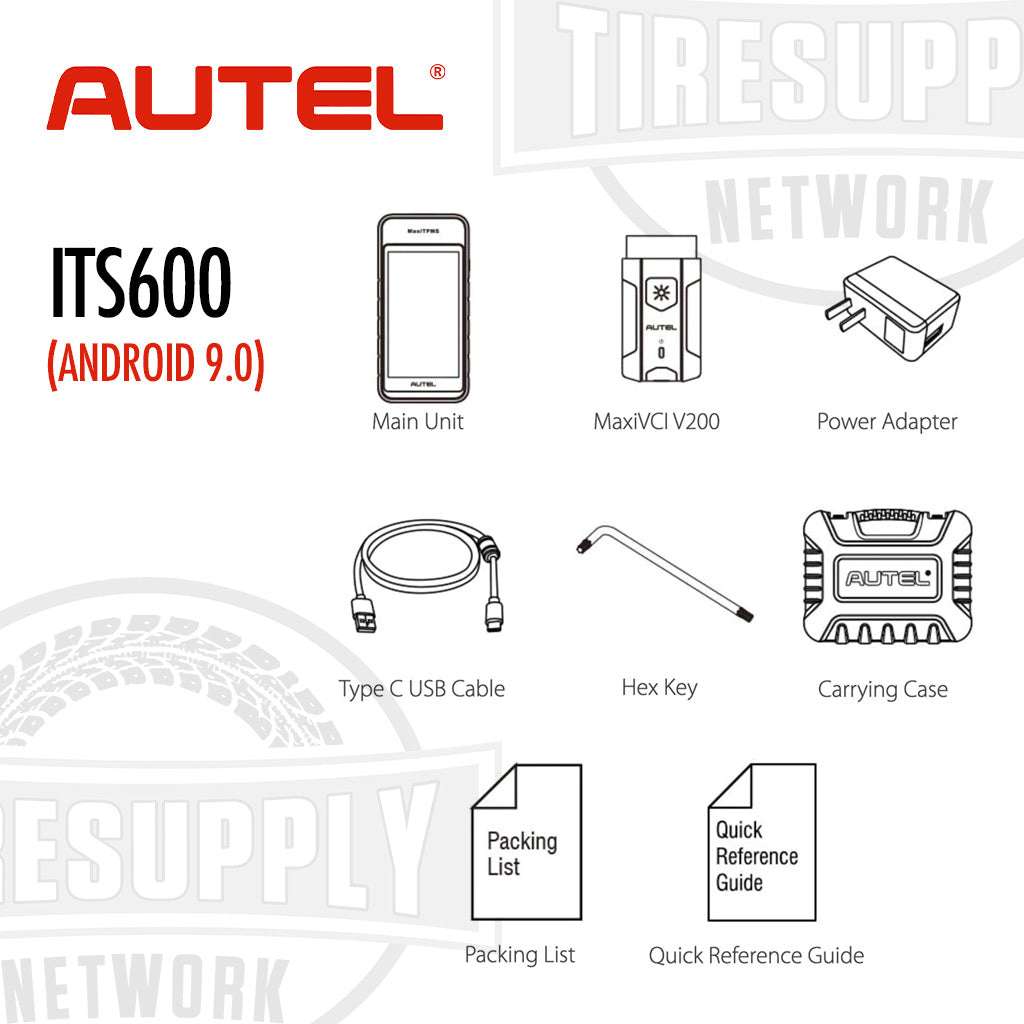

  • MaxiTPMS ITS600 Tool
  • MaxiVCI V200 Wireless OBDII Connector
  • Power Adapter
  • Type C USB Cable
  • Hex Key
  • Carrying Case
  • Packing List
  • Quick Reference Guide


    Operating System Android 9.0
    Processor Quad-Core Processor (1.5 GHz)
    5.5″ TFT LCD Touchscreen, 1280 x 720 pixels
    8 Megapixel
    WiFi 2.4G + 5G; a/b/g/n/ac; Bluetooth 4.0 + Bluetooth 2.0; CLASS I/II/III; USB 2.0 Type C
    64GB On-Board Memory / 1GB RAM / SD card up to 64GB (optional)
    Power Supply
    5000 mAh Lithium-Polymer Rechargeable Battery
    Audio Input/Output
    Microphone, Speaker
    Flashlight 1 Included
    Operating Temperature 14 to 122° F (-10° to 50° C)
    Storage Temperature -4° to 140° F (-20° to 60° C)
    Radio Reception 315 MHz and 433 MHz
    Size (HxWxD) 7.2″ x 3.5″ x 0.87″ (183mm x 89mm x 22mm)
    Weight 0.81 lbs (368 g)
    Warranty 1 Year
    Software Update FREE WiFi Software Updates for the Life of the Tool
