Coats | ProBalance (E900)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
SEMA REBATE PROMOTION - OCTOBER 1 - NOVEMBER 30, 2025
A High Performing Diagnostic Wheel Balancer for High Volume Shops. Every tire dealer needs wheel balancers they can count on – for measuring and correcting imbalances and creating smooth rides in passenger cars and light trucks.
Your Modern Workhorse

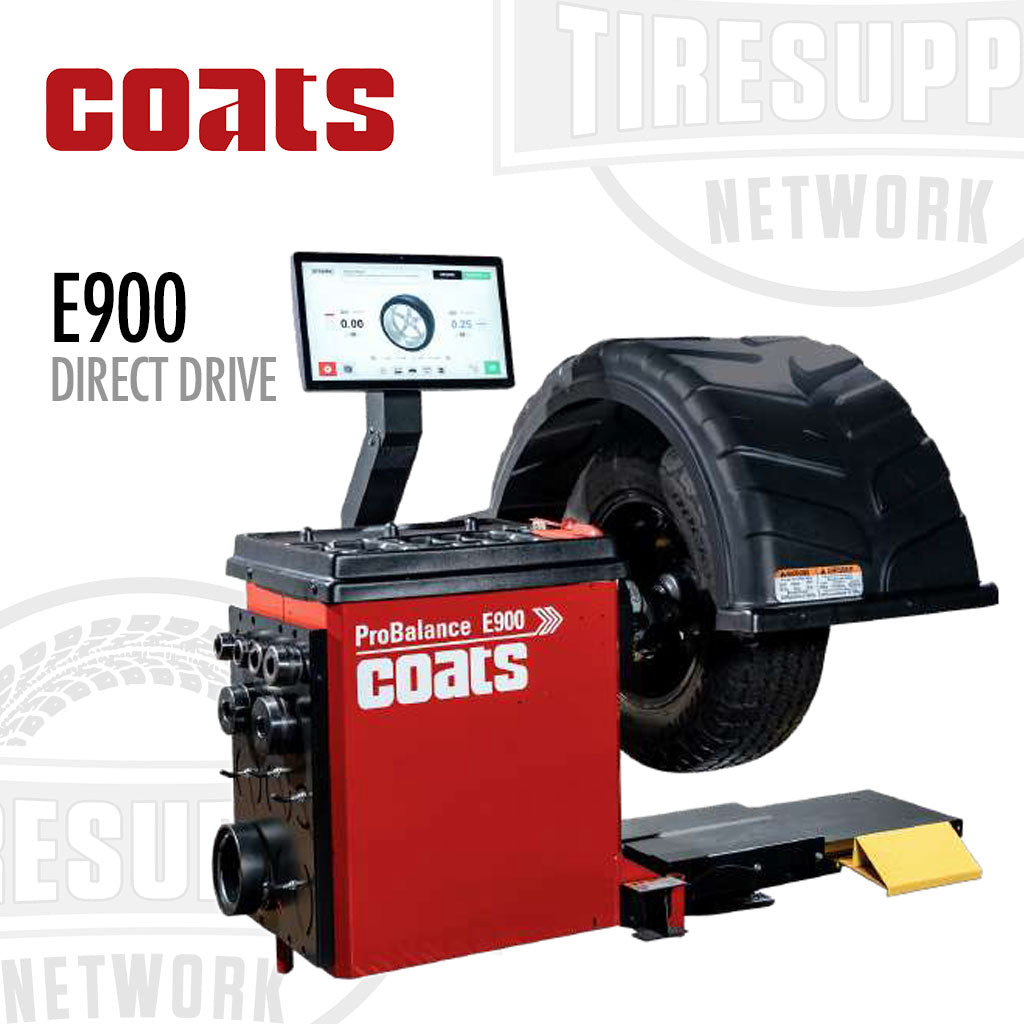

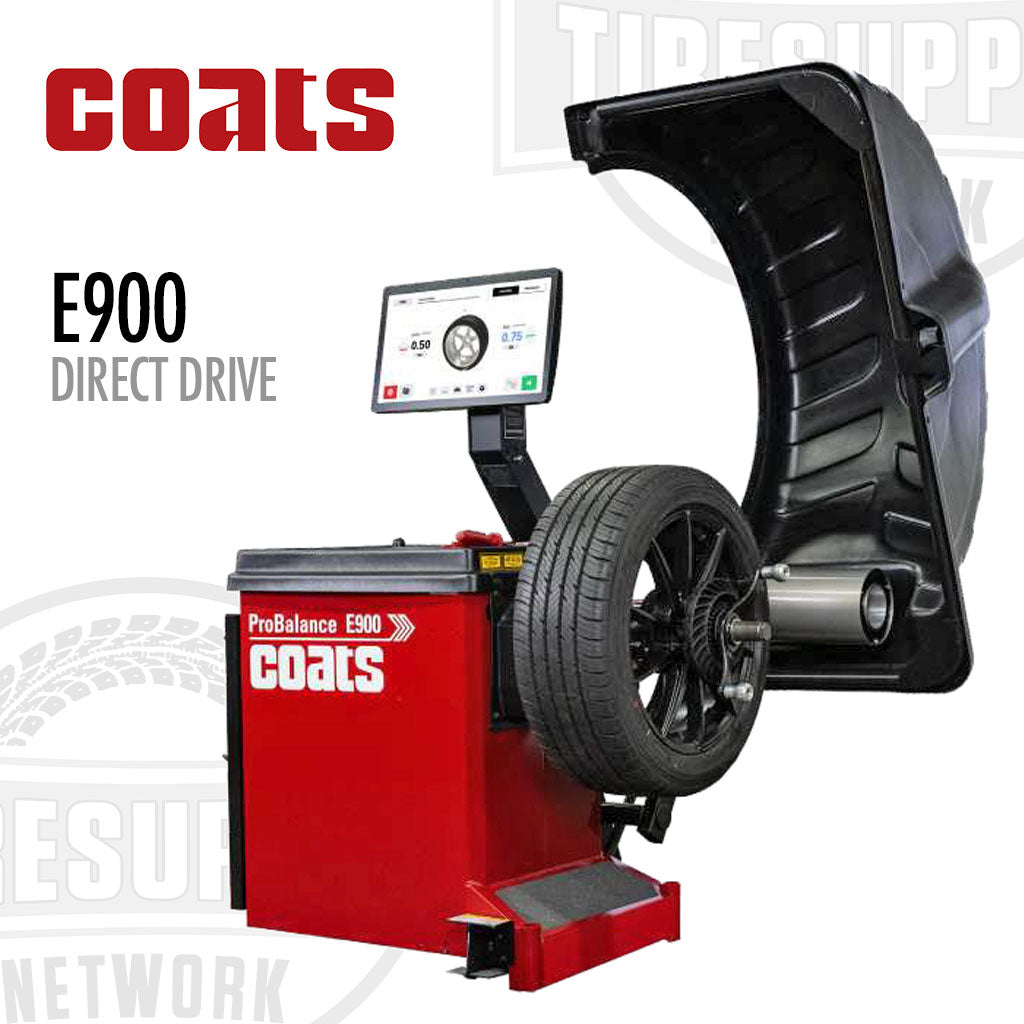

The Coats ProBalance™ E900 is a high performing direct drive wheel balancer with added ride quality diagnostics. It’s up to 10x faster than non-direct drive balancers, and the only premium wheel balancer on the market today with a 10-year warranty on the motor. It’s your modern workhorse.
Advanced Technology & Diagnostics
The technology built into the E900 is designed to let techs precisely balance wheels and test drive the wheel assembly on the balancer, assessing tire and wheel geometry to deliver a smoother ride and fewer customer returns for rework.
Direct Drive

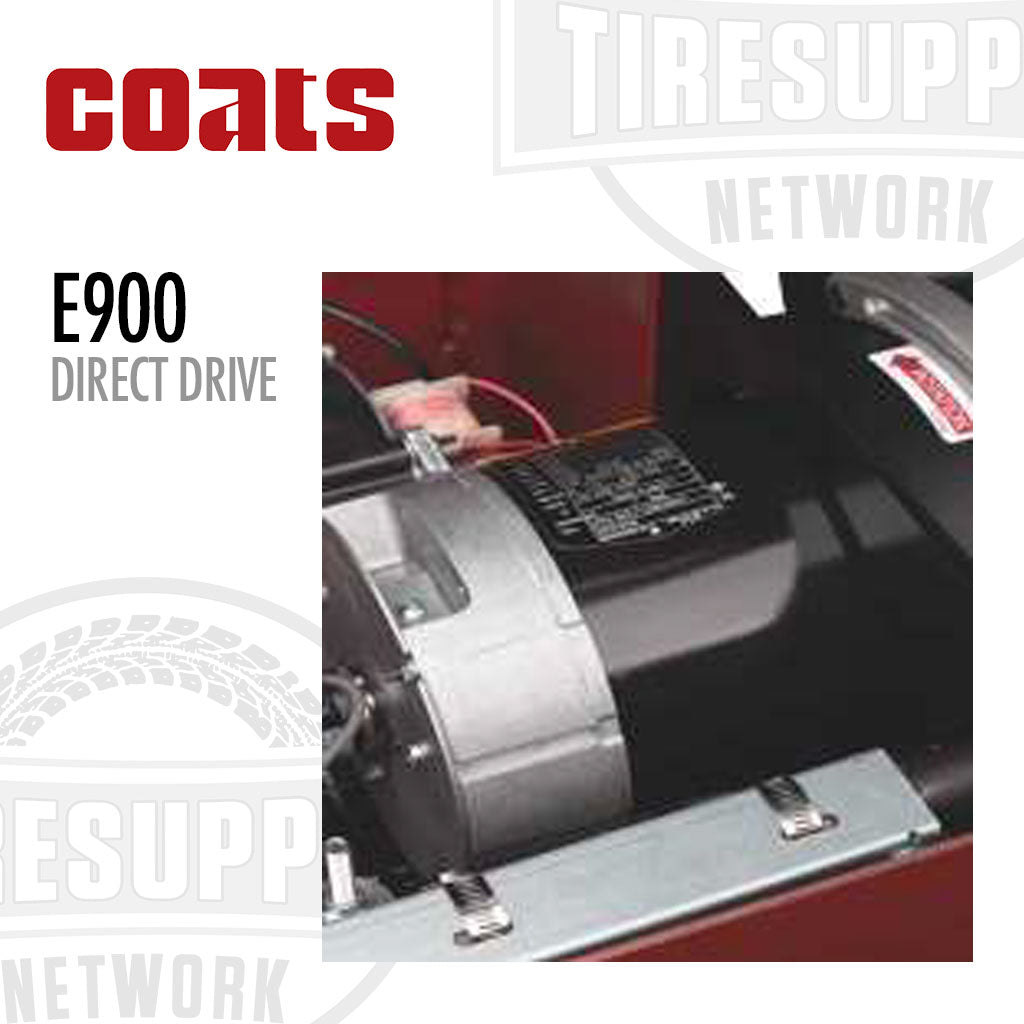

Technology that delivers a superior balancing result, the first time, every time, without frequent calibrations required by other manufacturers’ systems. The Direct Drive system integrates the wheel balancer motor and spindle into a single, factory prebalanced assembly with ZERO noise and a 10 year direct drive motor warranty.
Diagnostic Roller & ProMatch

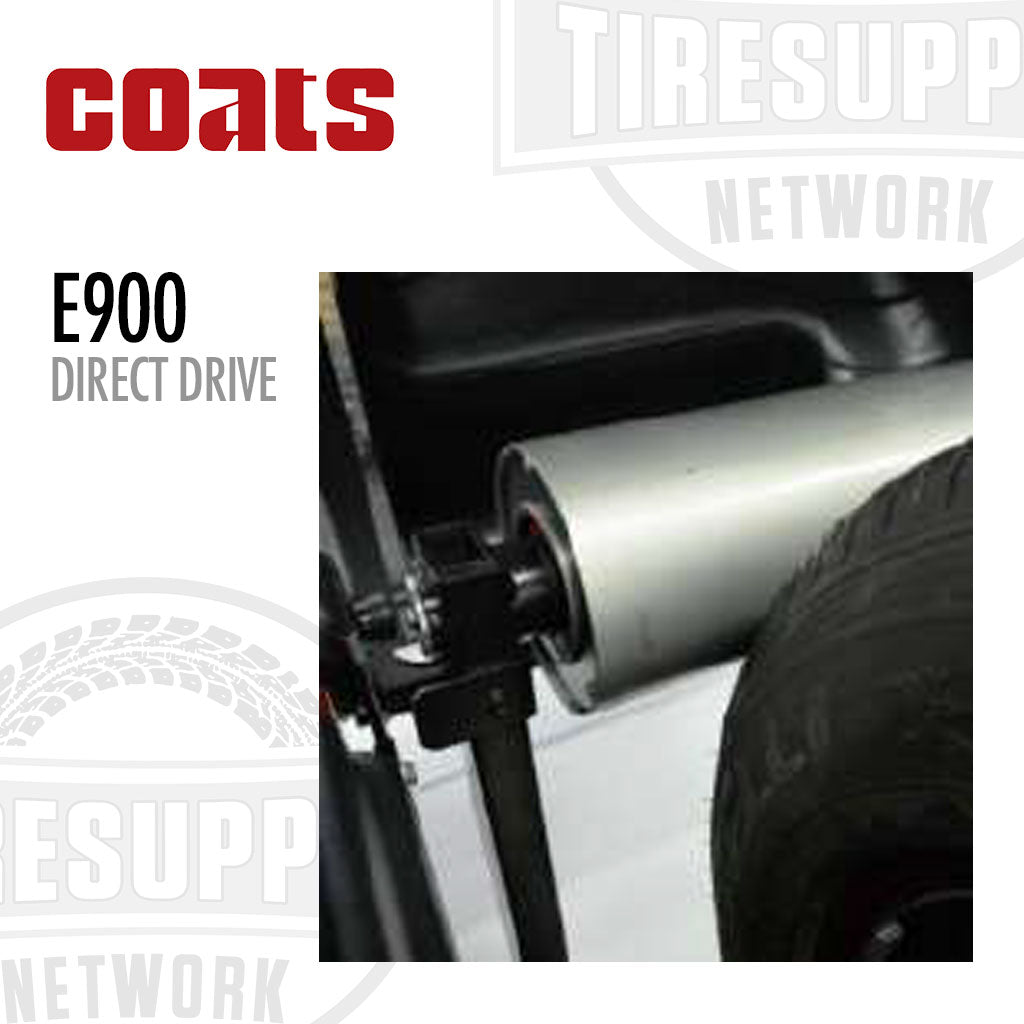

The E900 utilizes a diagnostic roller and ProMatch feature to measure radial runout and address wheel and tire shape and defect issues before weights are applied.
Smart Design, Ultimate Usability
The E900 touchscreen interface feels like you’re using a smart phone. It streamlines data collection, reducing the amount of manual input required for intensive areas like wheel diameter and width.
Built for Absolute Precision
The E900 is part of the ProBalance portfolio which is our full range of wheel balancers for passenger vehicles and light trucks with validated claims for durability, serviceability, ease of use, and uptime – and it’s the only one in the industry with a 10-year motor warranty. We were the first to innovate with direct drive technology.
Maximum Serviceability
The E900 is designed to be serviced by Coats Connect Service. Our service network is staffed coast to coast by our own factory-trained techs who are supported by central dispatch actively managing from call to completion. Plus, the E900 is equipped for digital connectivity and future, remote diagnostics and maintenance.
Complete your shop
We know tire changers and wheel balancers are mission critical technologies in your shop. Pair the ProBalance E900 with the Maxx 90 -- it’s our premium Maxx tire changer that tackles a wide array of wheel assemblies the same way, every time and makes the manual process of changing tires faster and easier for your techs.
Features
ProMatch Technology with Runout Diagnostics
ProMatch feature optimizes where the high spot of the tire and the low spot of the rim need to be marked, lined up, and mounted to minimize the vibrations caused by runout. With a diagnostic roller, the E900 measures radial runout and how “out-of-round” the wheel is. It addresses vibrations from wheel assembly shape and defect.
New Multi-Function Laser Module
The E900’s unique Multi-Function Laser Module takes distance and diameter measurements, indicates weight placement locations, and diagnoses rim defects that can impact ride quality. It’s one of the many ways we’ve made the E900 so fast and easy to use.
ProBalance Technology
ProBalance Technology is a unique balancing algorithm and unbalance correction methodology that solves a leading cause of comebacks: residual unbalance. ProBalance Technology works discreetly in the background of every balancing cycle to eliminate these unbalances that can generate unwanted vibration.
Stop, Lock, Index
The E900 balancer automatically servos and locks the spindle in place to the position that the weight need to be placed.
LED Barrel Lighting
5W LED lights up the barrel of the wheel when the hood is lifted, increasing visibility when applying weights.
Behind the Spoke Mode
Hide tape weights behind spokes for a better appearance on performance wheels.
Sonar Width Measure
Auto-measure width, leaving no room for data entry error, no mechanical maintenance, and faster cycle time.
Speed Thread Pedal
At the push of a foot pedal, techs no longer hand spin the hub nut to mount and demount the wheel from the balancer shaft, reducing the time needed to support heavy wheels and speeding up the entire balancing process
Specifications
Balancing Modes | 5 |
Wheel Diameter Range | 8”- 30” |
Wheel Width Range | 2” - 20” |
Maximum Tire Diameter | Up to 44” |
Maximum Tire Weight | 160 lbs. |
Shaft Diameter | 40 mm |
Footprint | 57”w x 55”d x 75”h |
Interface | Touchscreen |
Automatic Data Entry | Offset/Diameter/Width |
Electrical Requirements | 220v, 1ph or 220v, 3ph |
Warranty | 3 Year Parts, 6 Months Labor, 10 Year Direct Drive Motor Warranty |
Part Numbers | 800PROE900 - 1ph 800PROE90001 - 3ph |
Included Accessories
85608850 | Stud - Weight Tray (3) |
85609499 | Double Sided Collets (2.04”-5.20”) |
8309011 | Calipers |
85607780 | Premium Wheel Weight Hammer |
85610908 | Premium Hub Nut |
8112106 | Small Pressure Cup & Rubber Lip |
85608312 | No Mar Ring |
8112107 | Spring |
8113390 | Scraper |
85610715 | Side Shadow Board |
Optional Accessories
8200000400 | 3-Piece Adjustable Pinplate Set for 40mm Shaft |
8300000400 | Light Truck Kit for 40mm Shaft |
81141821 | Ford ULA 3 Degree Cone |
8113277C | Light Truck Cone Kit |
85009945 | Toyota Adapter Kit |
8112421 | Short Cone |
85611072 | Double Sided Mazda Collet |
800525AUTO16 | Auto Down Wheel Lift |
PLEASE NOTE: Contact us for optional accessories
Need replacement parts? Call or email us and we can special order them for you!
