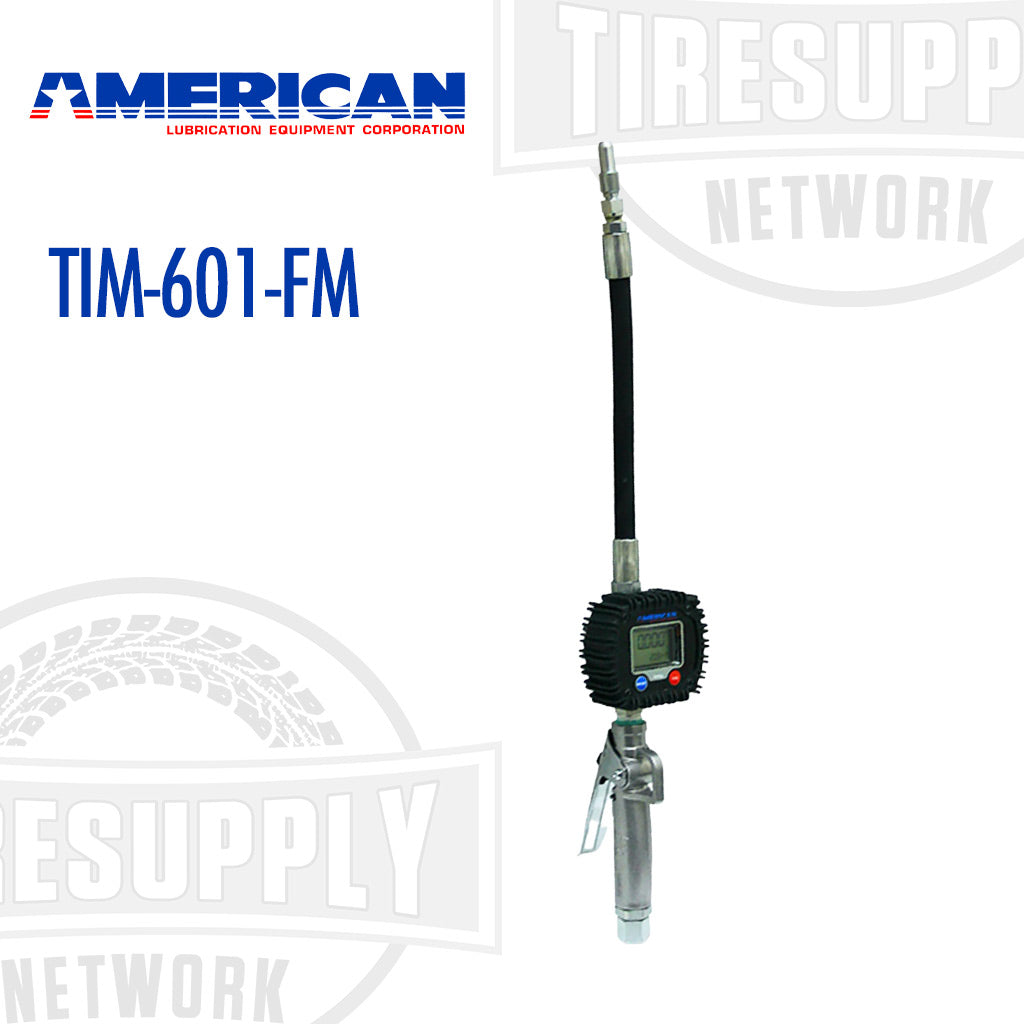

American Lubrication | Digital Meter with Flexible Extension & Manual Non-Drip Tip (TIM-601-FM)

American Lubrication | Digital Meter for Oils or ATF with Flexible Extension & Manual Non-Drip Tip (TIM-601-FM)

Features:

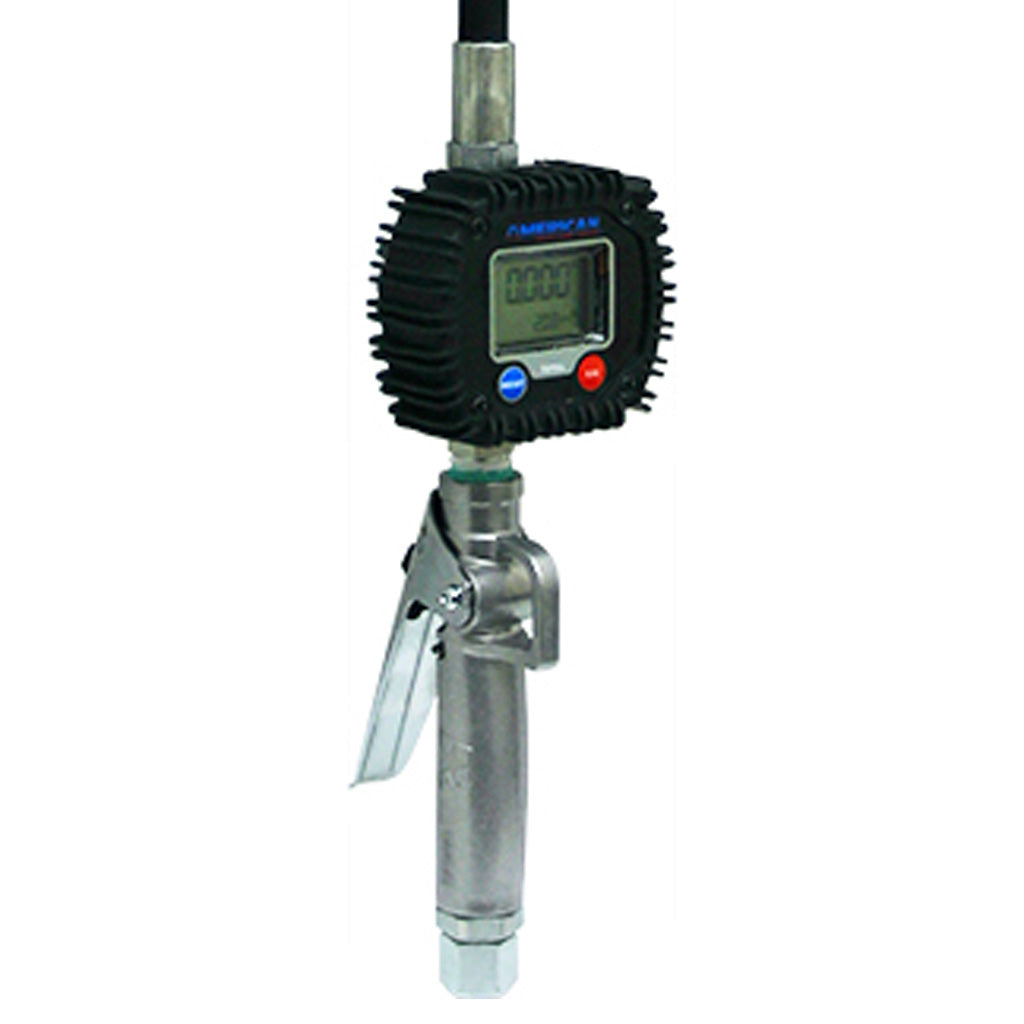

• Digital Metered Control Handle for Oils or Antifreeze

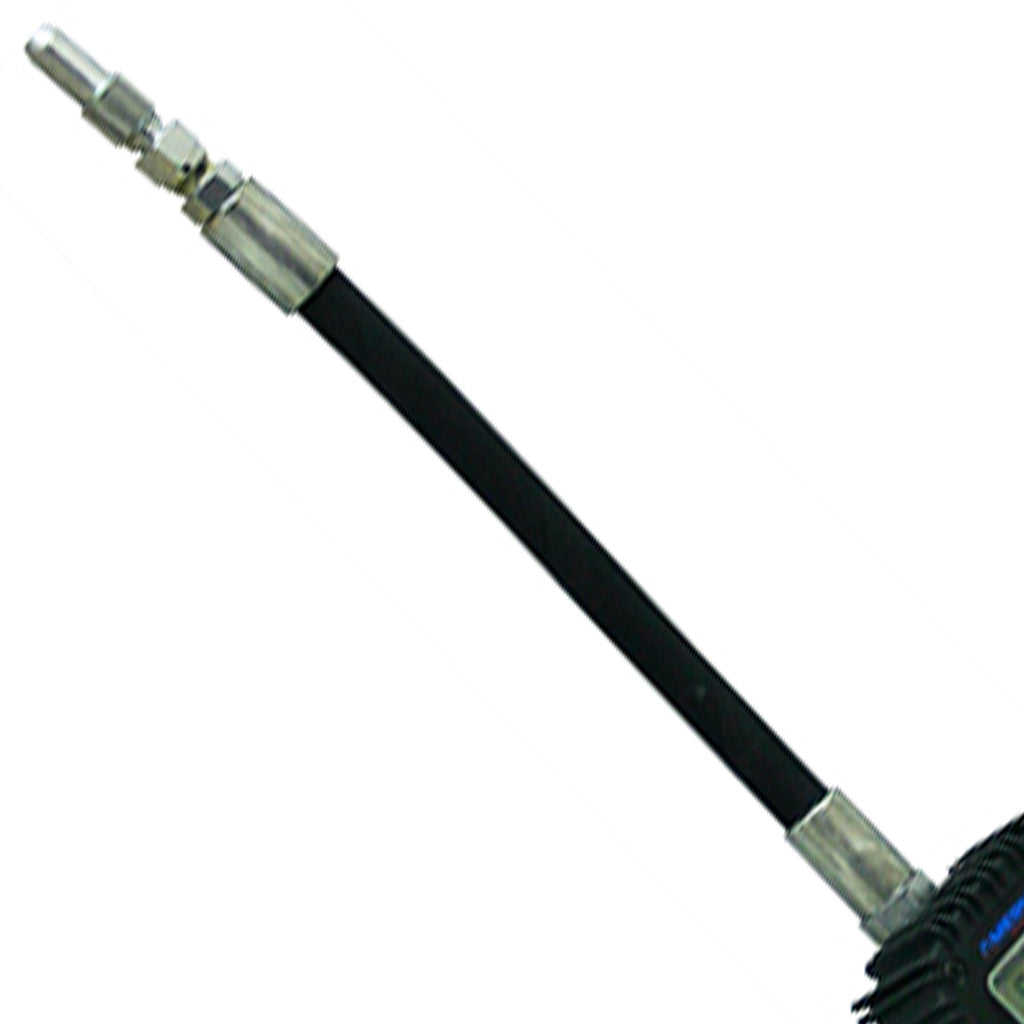

• Equipped with flexible extension and manual non-drip tip
• Meter body designed with field replaceable "plug and play" electronics and isolated fluid chamber
• 2.5 GPM flow

Compatibility:

• Automatic Transmission Fluid
• Gear Oil
• Hydraulic Oil
• Motor Oil
• Synthetic Oil

Includes:

• (1) Manual
• (1) Parts Breakdown
• (1) Filter Screen

Warranty: 3 years from purchase date for defects in material and workmanship, non-wear parts

Installation Recommendations:

• Plumbing: 1/2″ diameter. Keep plumbing, etc. away from heat sources
• Sealant: Teflon tape topped with petroleum compatible pipe dope (e.g., Gasoila)

Specifications:

• Working Pressure (Manual Tip): 0 PSI
• Maximum Pressure: 1,000 PSI
• Accuracy: ± 0.5%
• Working Flow Rate (Standard Tips): 2.5 GPM
• Working Flow Rate (High Flow Tips): 4 GPM
• Threads (Swivel): 1/2″-14 NPT (F). NOTE: Sealant required.
• Threads (Meter): 1/2″-14 NPT (F x F). NOTE: Sealant required. Do not over torque.
• Box Dimensions: 5″ x 5″ x 21″
• Weight: 4 lbs
