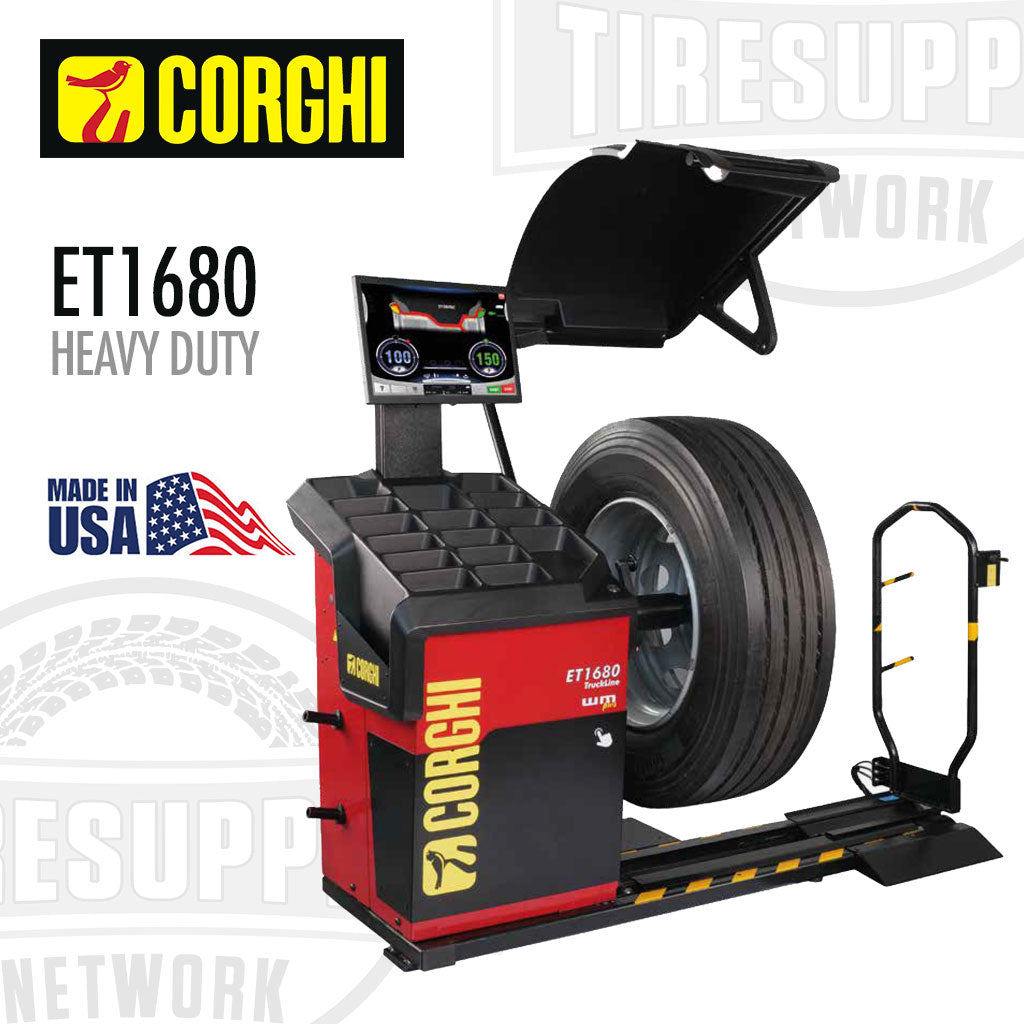

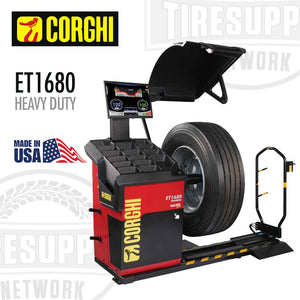

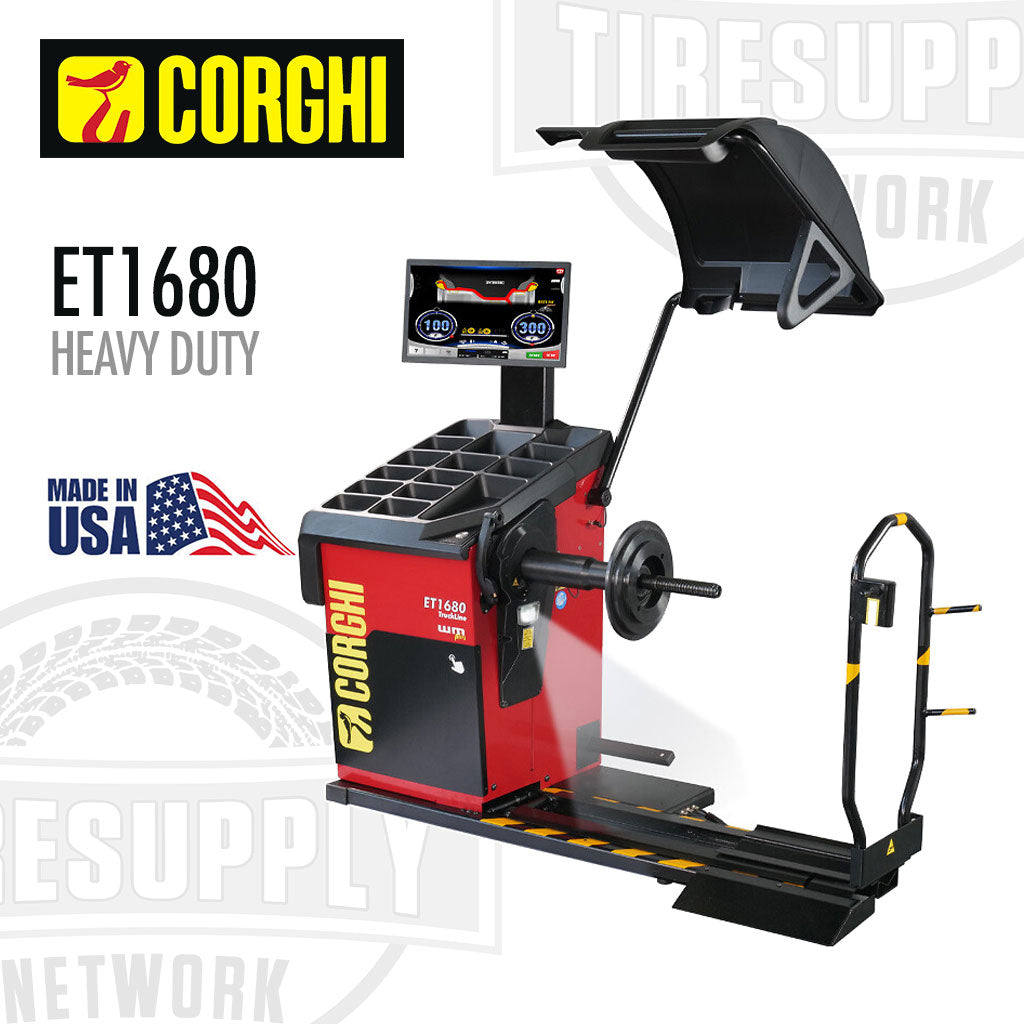

Corghi | TruckLine Touchscreen Wheel Balancer (ET1680)
PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.
A heavy-duty wheel balancer designed by MM Design for Corghi, the Nexion Group. Combining technology, safety, and aesthetics, it features a 22” touchscreen for intuitive operation, a weight tray with organized compartments, and a durable metal frame. A perfect balance of innovation and functionality.
FEATURES:
-
TOUCHSCREEN
- Large 22" touch-screen monitor with intuitive graphical user interface, for simplifying and speeding up program selection and balancing operations.
-
SMART ARM PLUS
- Intelligent system for measuring distance and wheel diameter up to 30", equipped with the Fast Selection Program (FSP) and the new LaserBlade pointer.
-
NEXT-GENERATION SPIN AND MEASURING SYSTEM
- Low-speed balancing cycle to reduce spin times, minimize any risks related to moving parts and save energy. It is suitable for all wheel types of heavy-duty, light, off-road and car vehicles, ensuring precision and reliability.
-
WIDE WEIGHT TRAY AND ONE-TOUCH MULTIFUNCTION BUTTON
- Rotational weight tray with multiple compartments to efficiently organize counterweights and tools. The tray features a one-touch button to facilitate the quick selection of work programs, improving the efficiency of operations.
-
DPA AND ELECTROMAGNETIC BRAKE
- The Direct Positioning (DPA) function automatically sets the wheel in the correct balancing position at the end of the spin cycle, eliminating intermediate stops. The electromagnetic brake simplifies the cleaning and application of the counterweights, making the mounting and demounting of the wheel more efficient and less tiring.
-

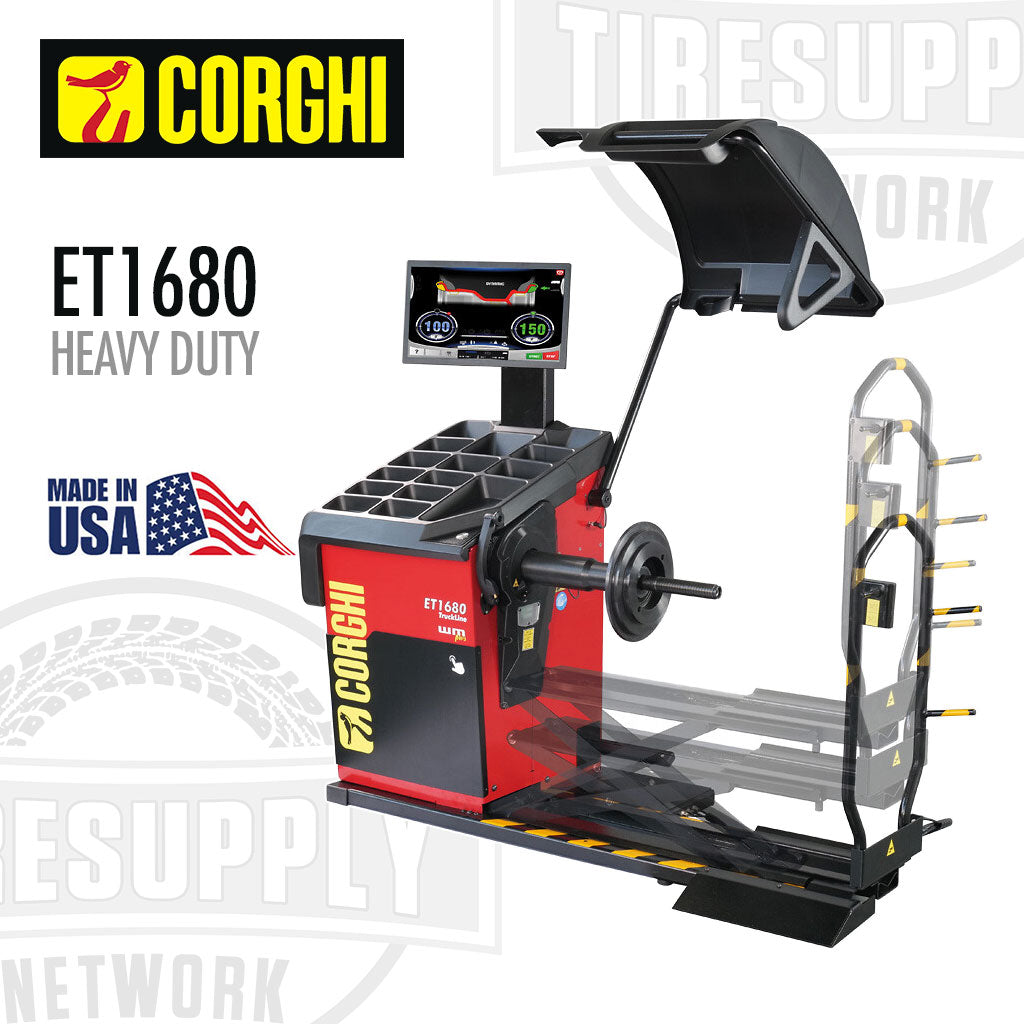

INTEGRATED WHEEL LIFTING SYSTEM
- Integrated low-profile pneumatic lifting system, manually operated without pedals. It easily lifts wheels of up to 300 kg, ensuring perfect centering. Ergonomic, robust and fast.
Warranty: 2 years parts, 1 year labor
TECHNICAL SPECS:
| Power Supply | 200 - 230V / 1Ph / 50 - 60Hz - 100 - 115V / 1Ph / 50 - 60Hz |
| Power Draw | 400W |
| Shaft Diameter | 46mm |
| Balancing speed | 100 rpm car / 80 rpm truck |
| Shaft diameter | 40 mm (1.57”) |
| Supply pressure | 8 - 12 bar (120 - 165 psi) |
| Average measurement time | 8 - 16 s |
| Balancing precision | 1 g car / 10 g truck |
| Settable rim width | 1.5” - 20” / 40 - 510 mm |
| Settable rim diameter | 10” - 30” / 265 - 765 mm |
| Maximum wheel weight (8 bar) | 300 kg (660 lb) |
| Maximum wheel diameter | 52” / 1321 mm |
| Machine weight | 260 kg (573 lb) |
