R5000HD

Rotary | CTA Pro 6-CCD Heavy Duty Commercial Truck Wheel Alignment System (R5000HD)

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Rotary | CTA Pro 6-CCD Heavy Duty Commercial Truck Wheel Alignment System (R5000HD)

PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

See significantly higher income production with much faster operating times without any loss of accuracy. Choose the R5000HD for your shop and add alignment to the offering of services you can provide today. Suited for larger commercial vehicles, the double inclometer allows caster adjustment without steering. No run out clamps enable the user to skip out of any compensation procedures. Special side supports allow housing and recharging the measuring head batteries.

This 6-CCD sensor wheel alignment system features Infra-red transmission among measuring heads. Bluetooth transmission between front measuring heads and control unit. Special side supports allow housing and recharging the measuring head batteries. Portable aligner console can be conveniently positioned anywhere in available bay space.

  • 6-CCD Sensor System

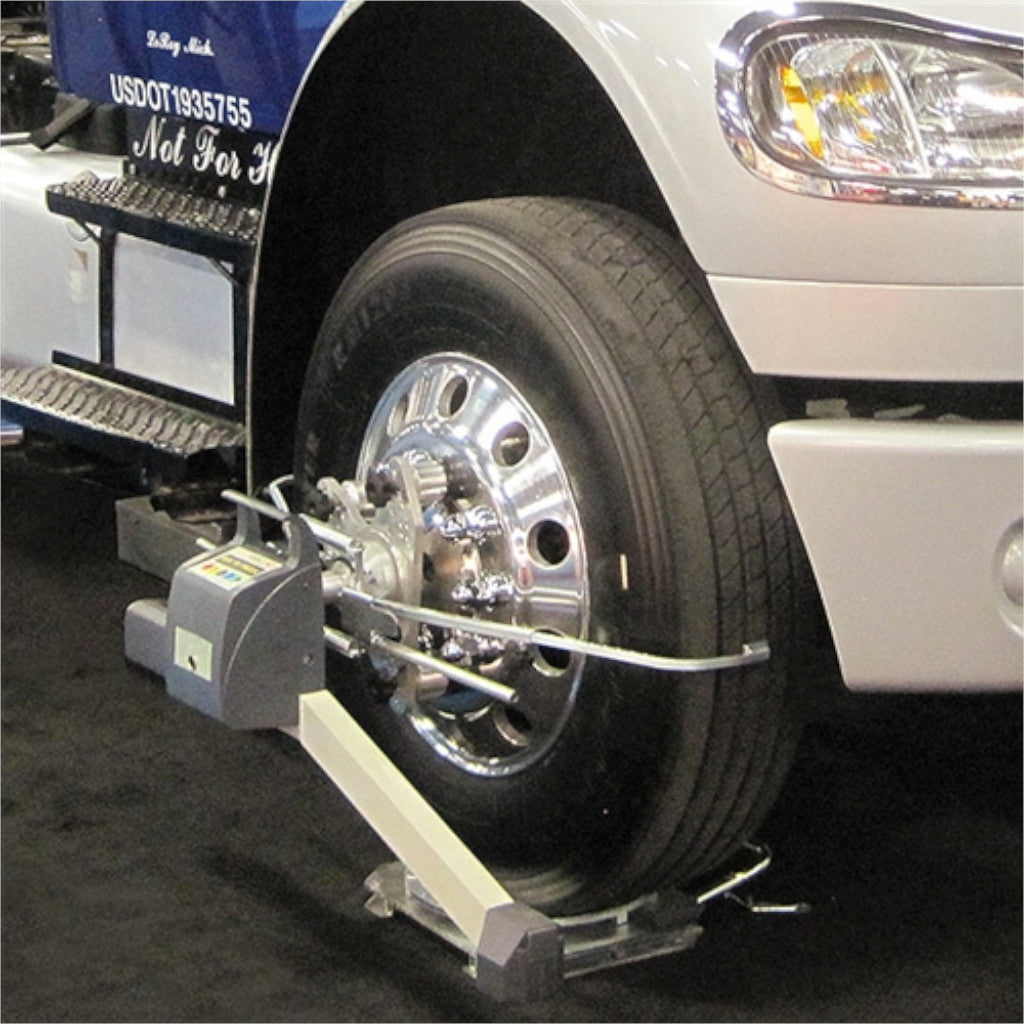

  • Standard Fast Clamps
  • Bluetooth Communication
  • No Run-out Compensation
  • 19″ Color Monitor
  • 4 LED Sensors
  • Made in Italy

Standard Equipment:

  • (1) control unit with PC, 19” monitor, keyboard, printer and battery charger

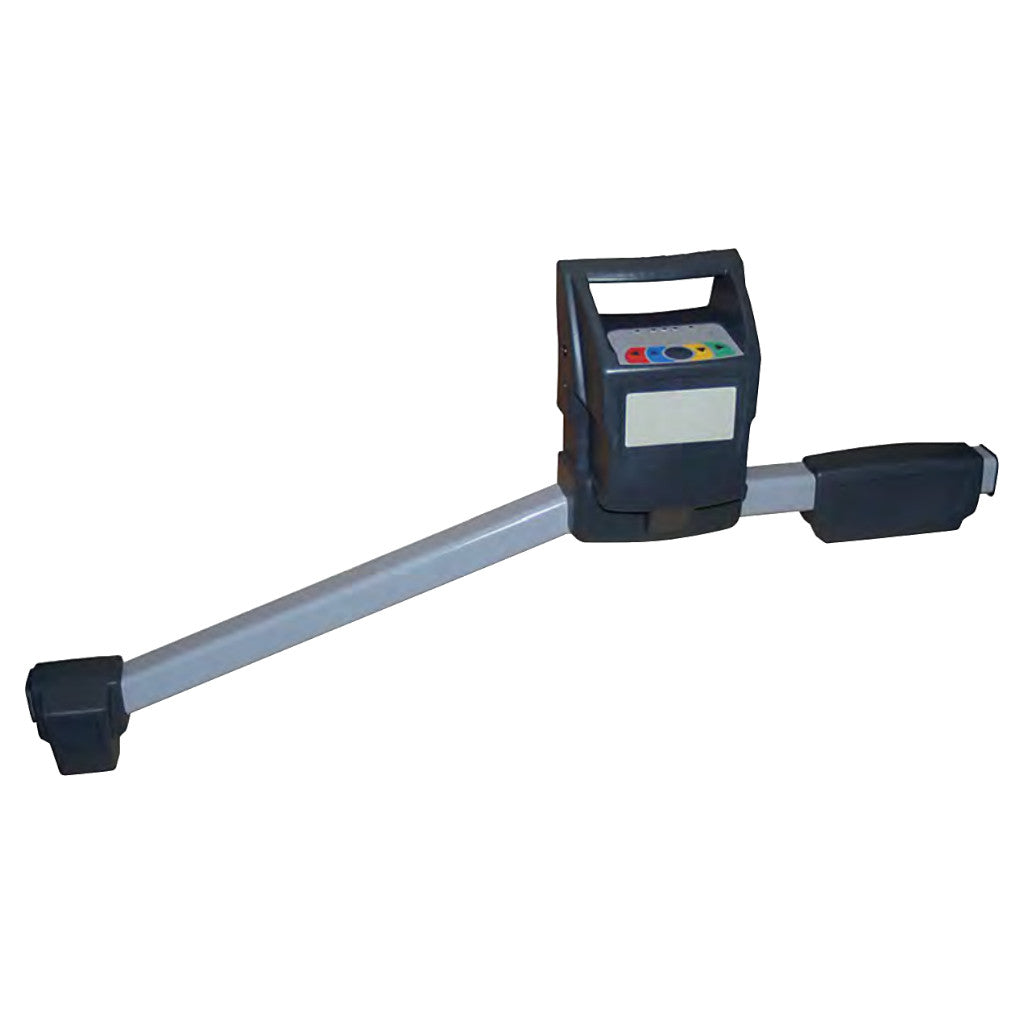

  • (2) front and rear measuring heads

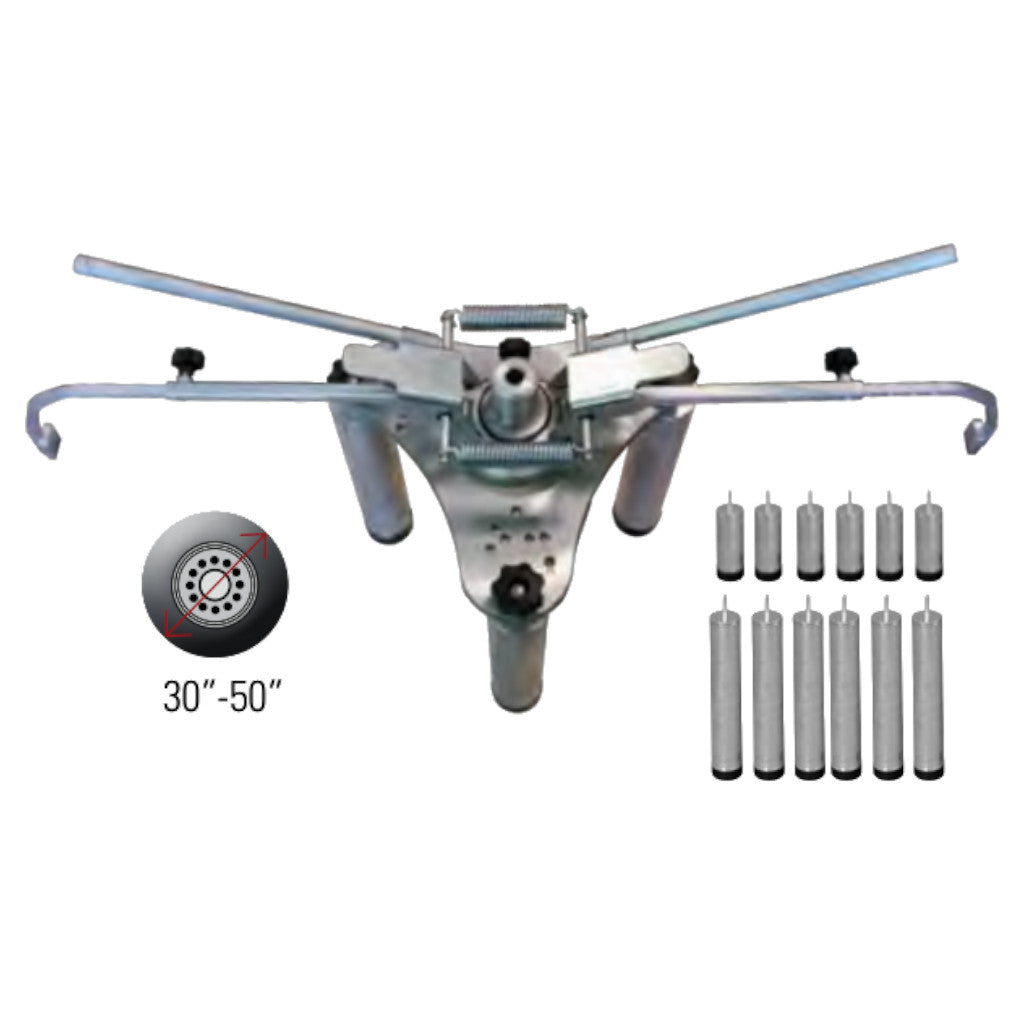

  • Set of 2 tire clamps / STDA92
  • (2) front turnplates / STDA29L
  • (1) brake pedal depressor
  • (1) steering wheel lock

      Warranty: 3 years on parts, 1 year on labor

      Specifications:

      • Power supply: 110v / 60 Hz / 1 PH
       Front Axle Accuracy Measuring Range Total Measuring Range
      Total Toe ±2′ ±2° ±20°
      Partial Toe ±1′ ±1° ±20° 30′
      Set-Back ±2′ ±2° ±5°
      Camber ±2′ ±3° ±10°
      Caster ±5′ ±10° ±18°
      King-Pin ±5′ ±10° ±18°
      Rear Axle Accuracy Measuring Range Total Measuring Range
      Total Toe ±2′ ±2° ±5°
      Partial Toe ±1′ ±1° ±20° 30′
      Set-Back ±2′ ±2° ±5°
      Camber ±2′ ±3° ±10°
      Thrust Angle ±2′ ±2° ±5°
