Rotary | Pro 8-CCD Wheel Alignment System (R1070)

PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

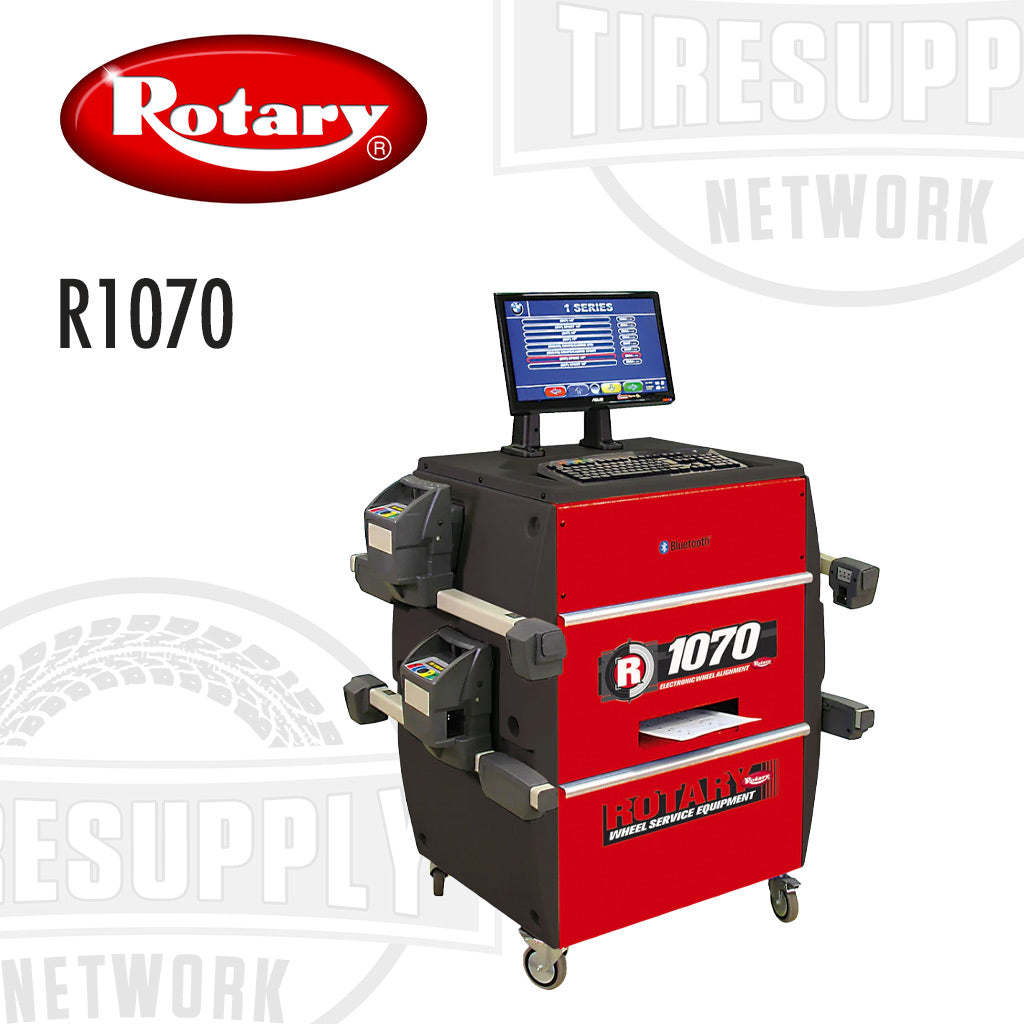

The 1070 wireless aligners is the total package when it comes to 3D wheel alignment. Simply access programs by selecting 5 command keys that guide the alignment tech through the step by step measuring process. It’s equipped with a powerful PC, an A4 printer and a robust mobile cabinet for attaching and charging the wheel clamps.

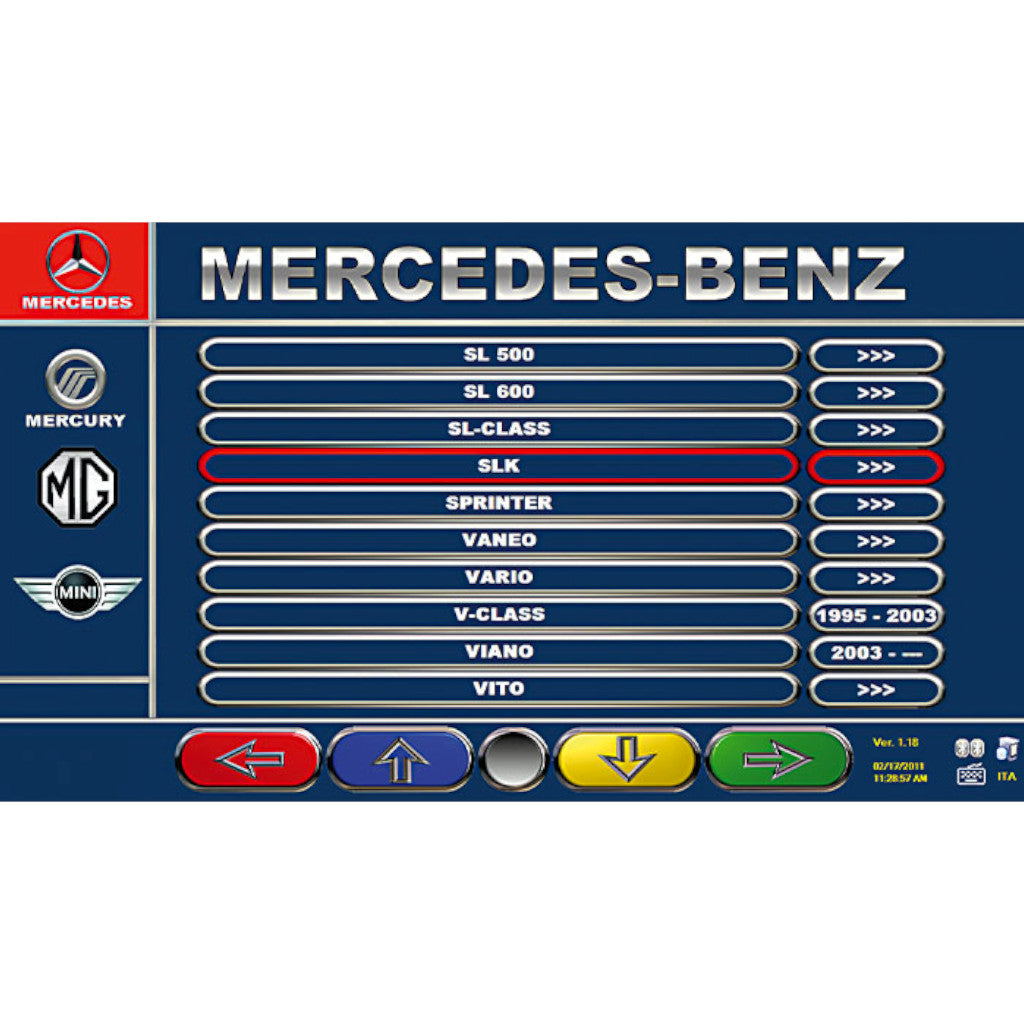

This 8-CCD sensor wheel alignment system uses infrared transmission among measuring heads and Bluetooth® communication between the front head and the control unit. Quickly enter vehicle information by model or VIN number and begin the process via a 3D animated workflow

  • Bluetooth Transmission
  • Quick Charge Supports
  • 8-CCD Sensors
  • Wheeled Control Unit
  • Safe Print Documentation
  • 3D Graphic Animation Interface
  • Made in Italy

Other Features:

  • Customer data bank for recording up to 20,000 jobs with search by customer name or vehicle plate number

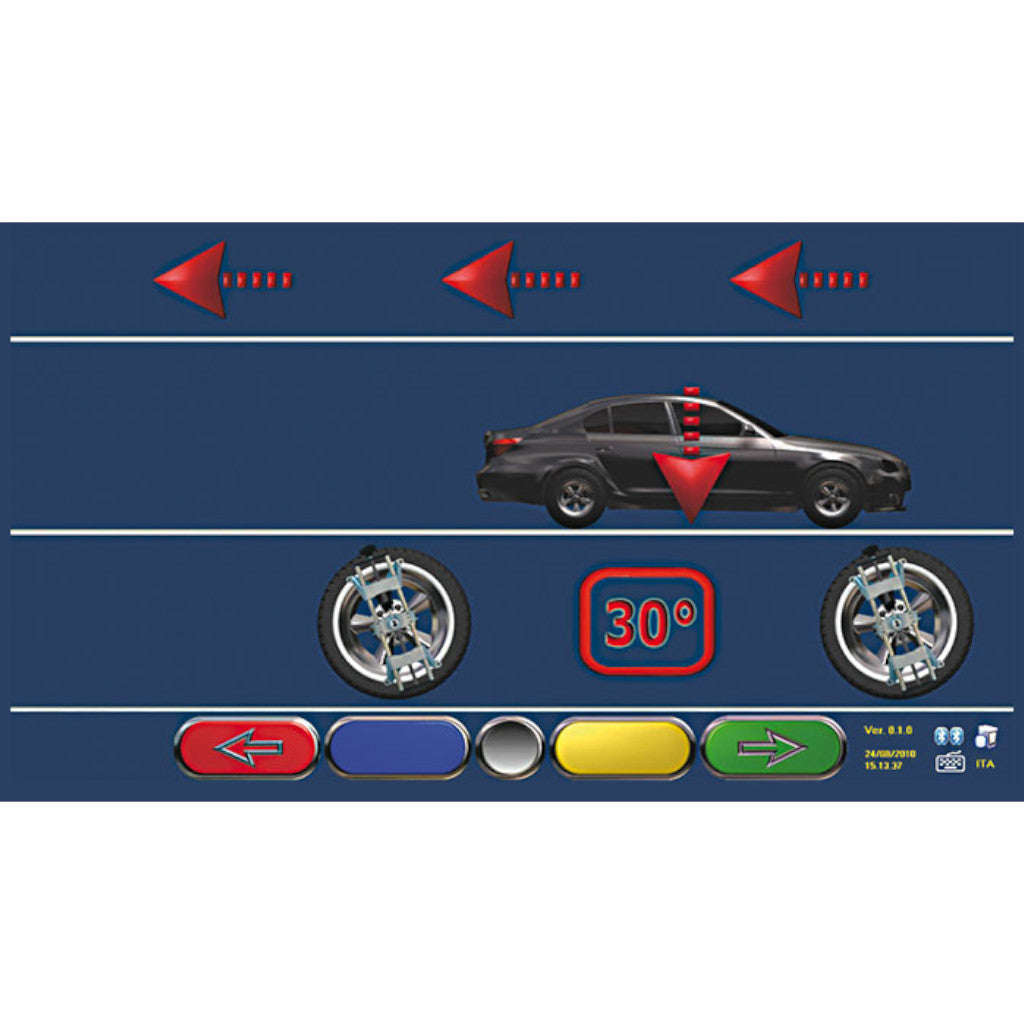

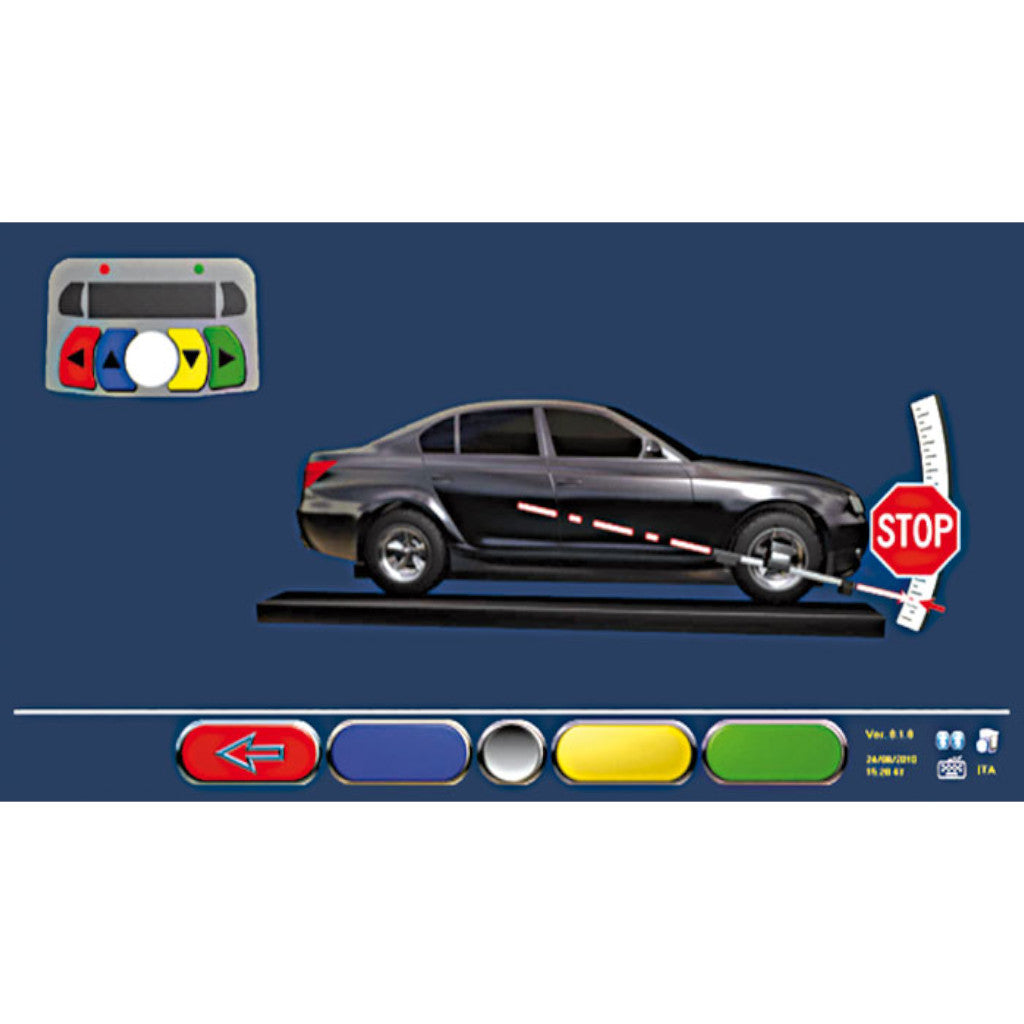

  • Quickly measure wheel run out by moving the vehicle only 30°
  • The Spoiler Program automatically activates to perform measurements on sport and tuned cars through a simple process
  • Data bank with more than 90,000 vehicle data sheets

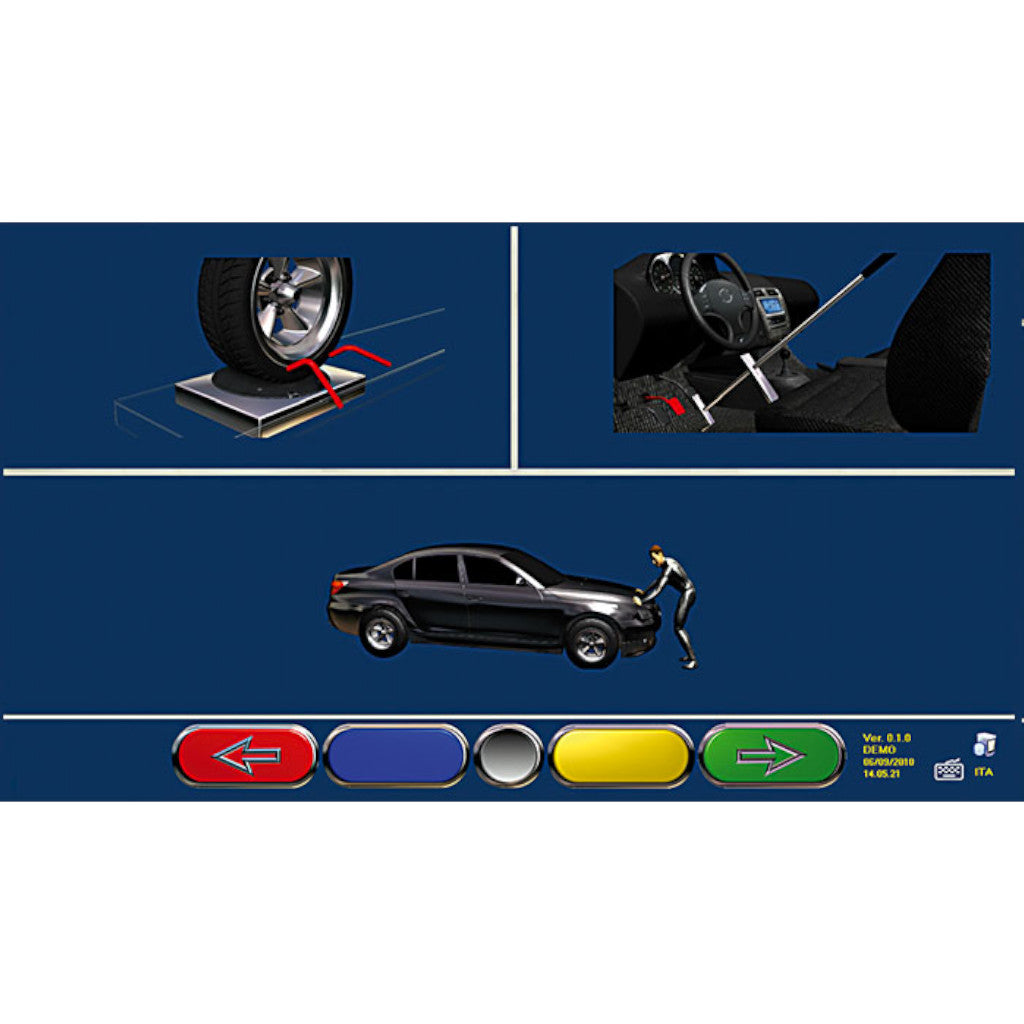

  • User’s instructions by animated graphics

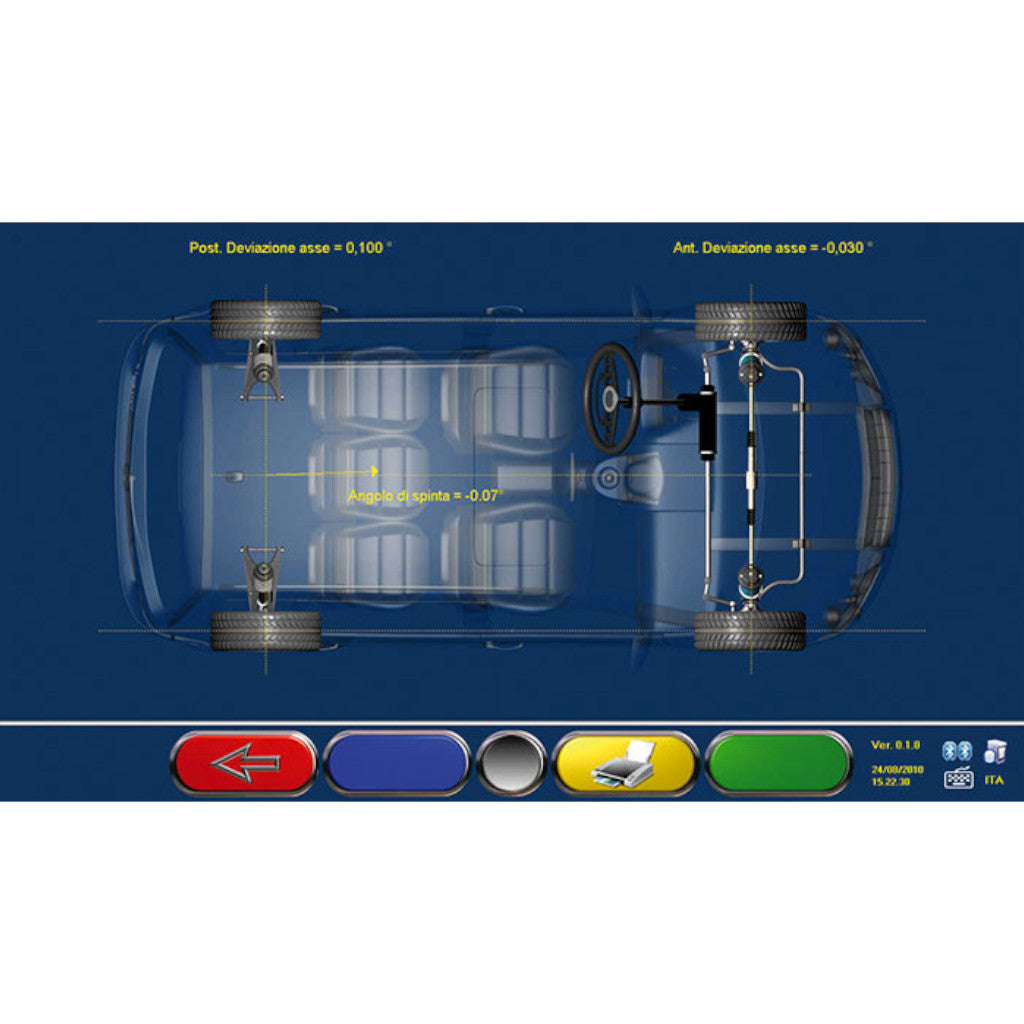

  • The quick measurement of axle set back, wheelbase and track-width, may highlight any errors in the vehicles body and chassis symmetry

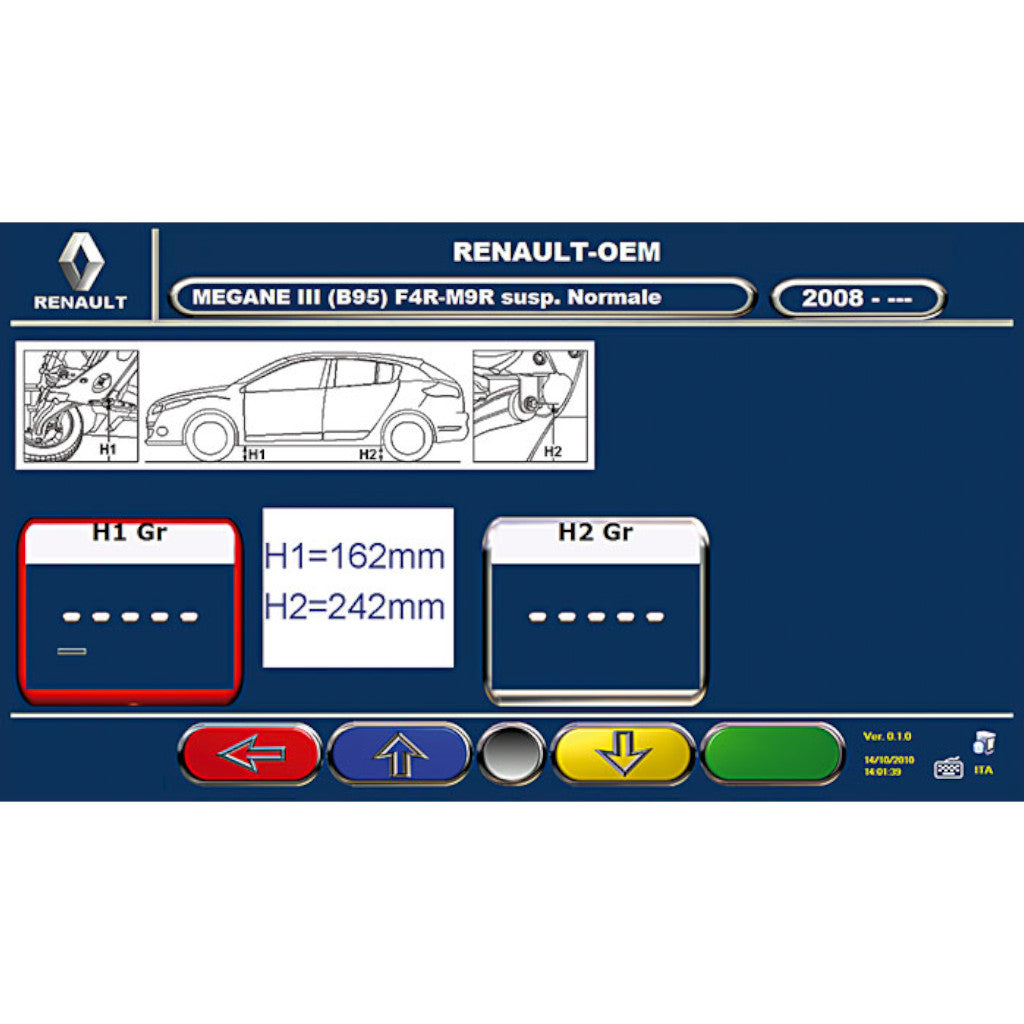

  • Dynamic data bank automatically modifies the alignment specifications based on chassis height

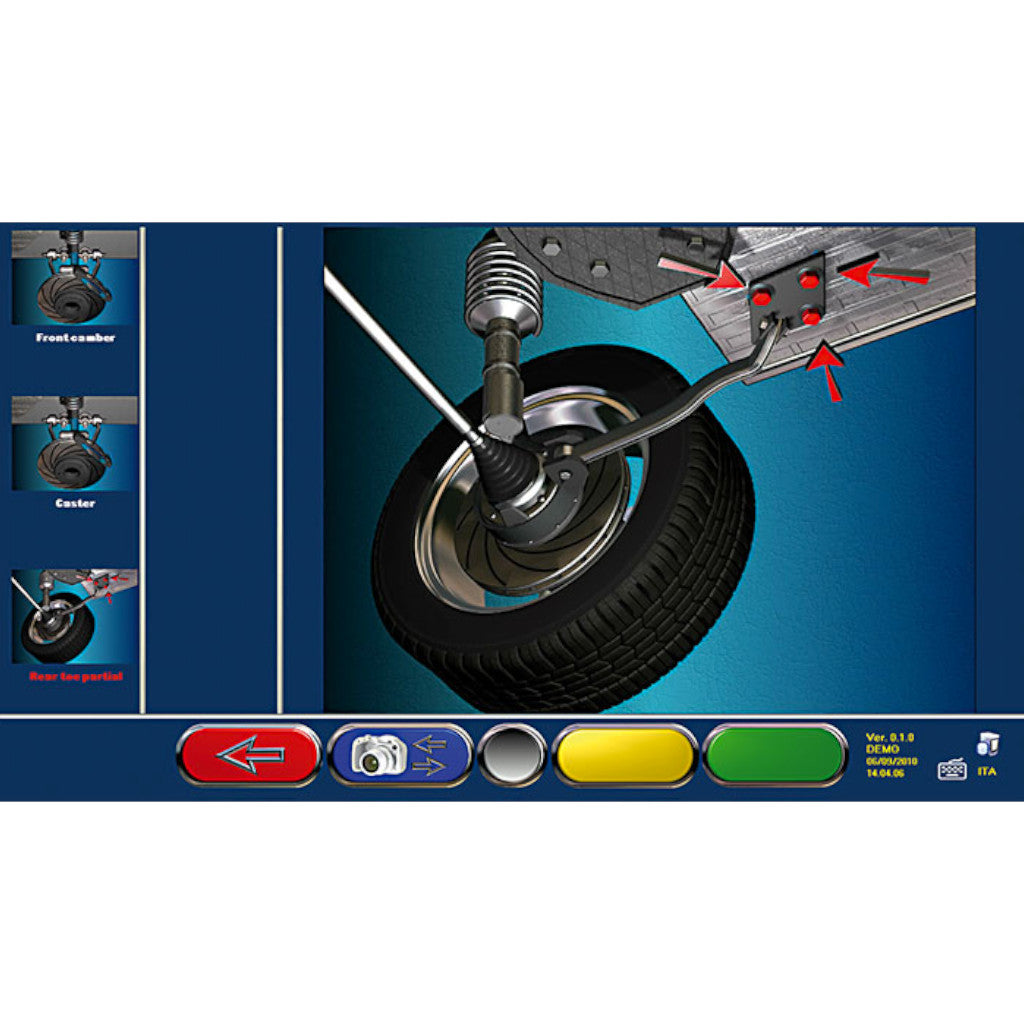

  • Precise display of the adjustment points

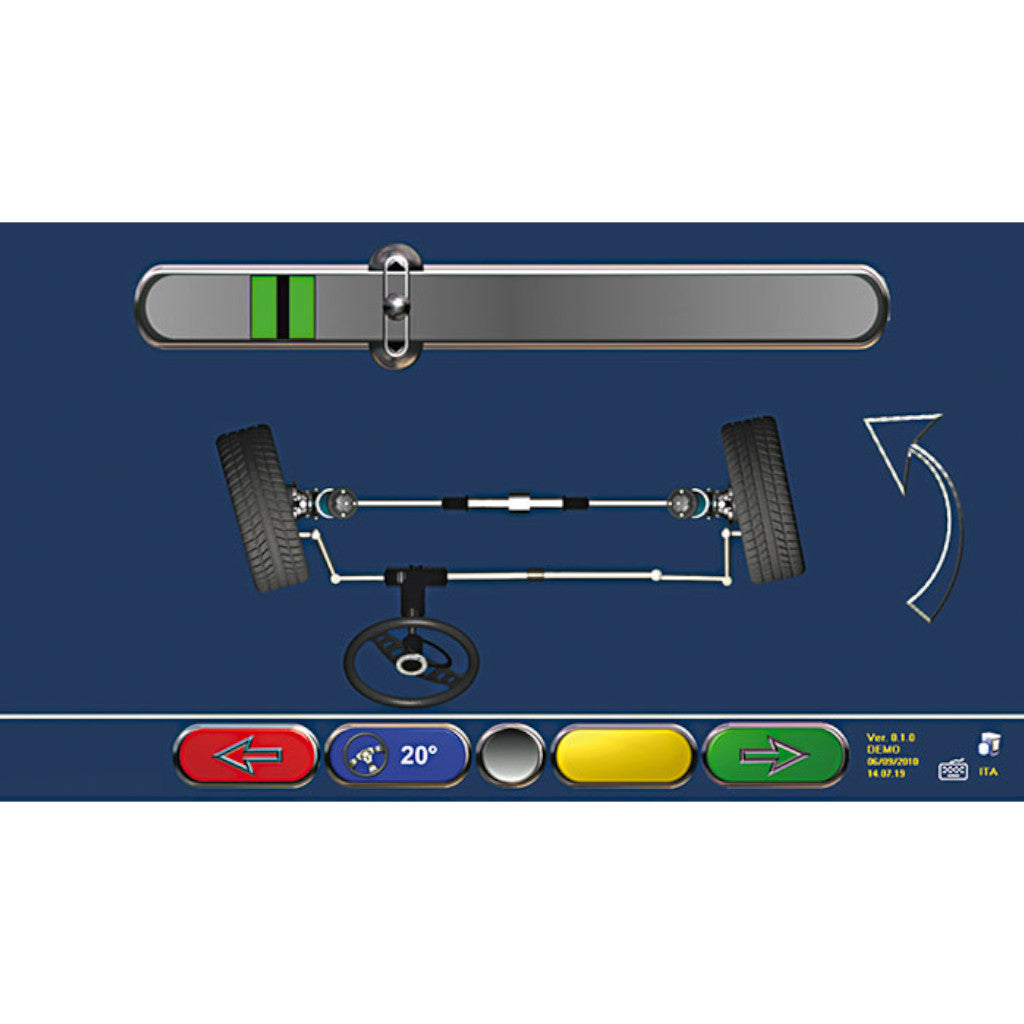

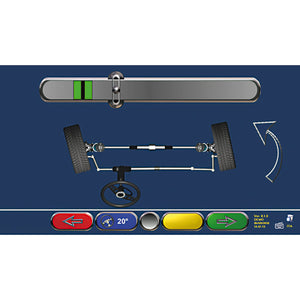

  • The steering procedure is carried out electronically through the CCD sensors, so the caster and king pin are measured with precision

Standard Equipment:

  • (1) control unit with PC, 19” monitor, keyboard, printer and battery charger

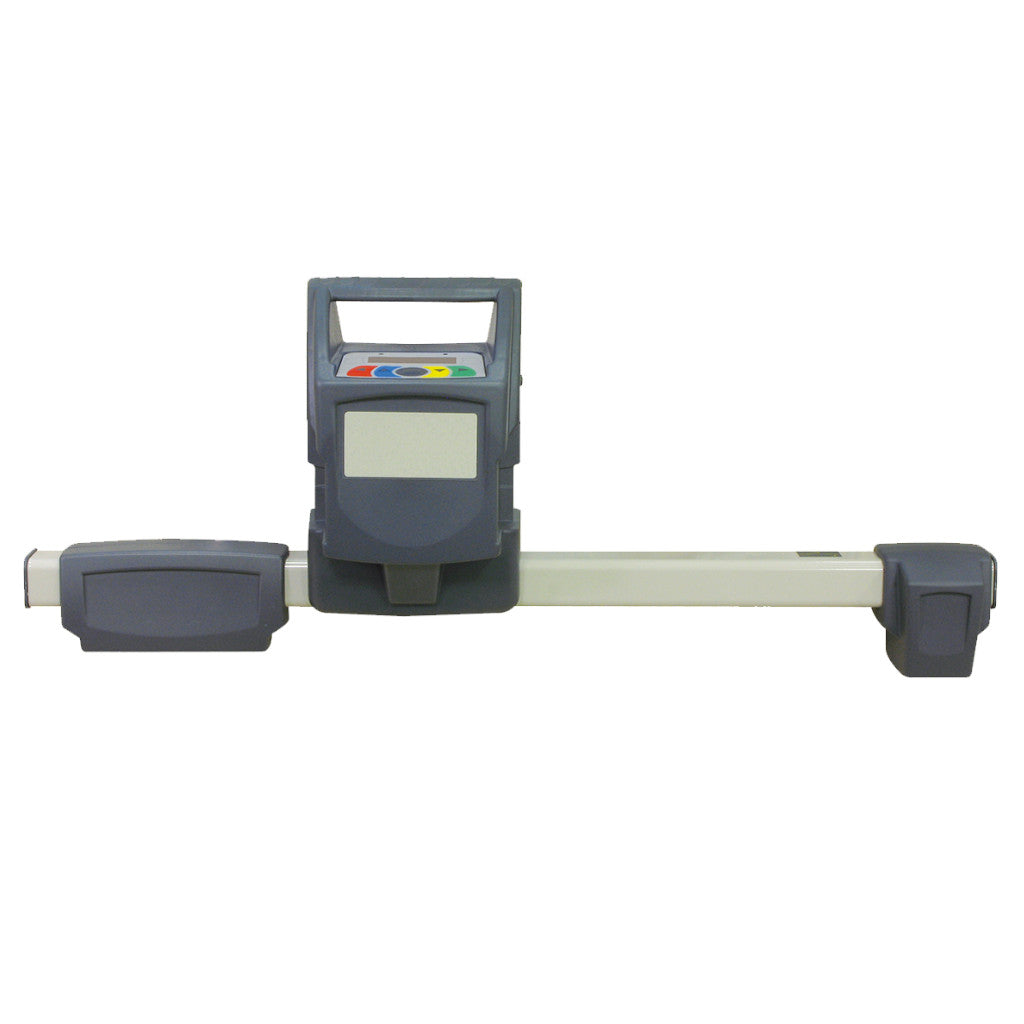

  • (2) front and rear measuring heads

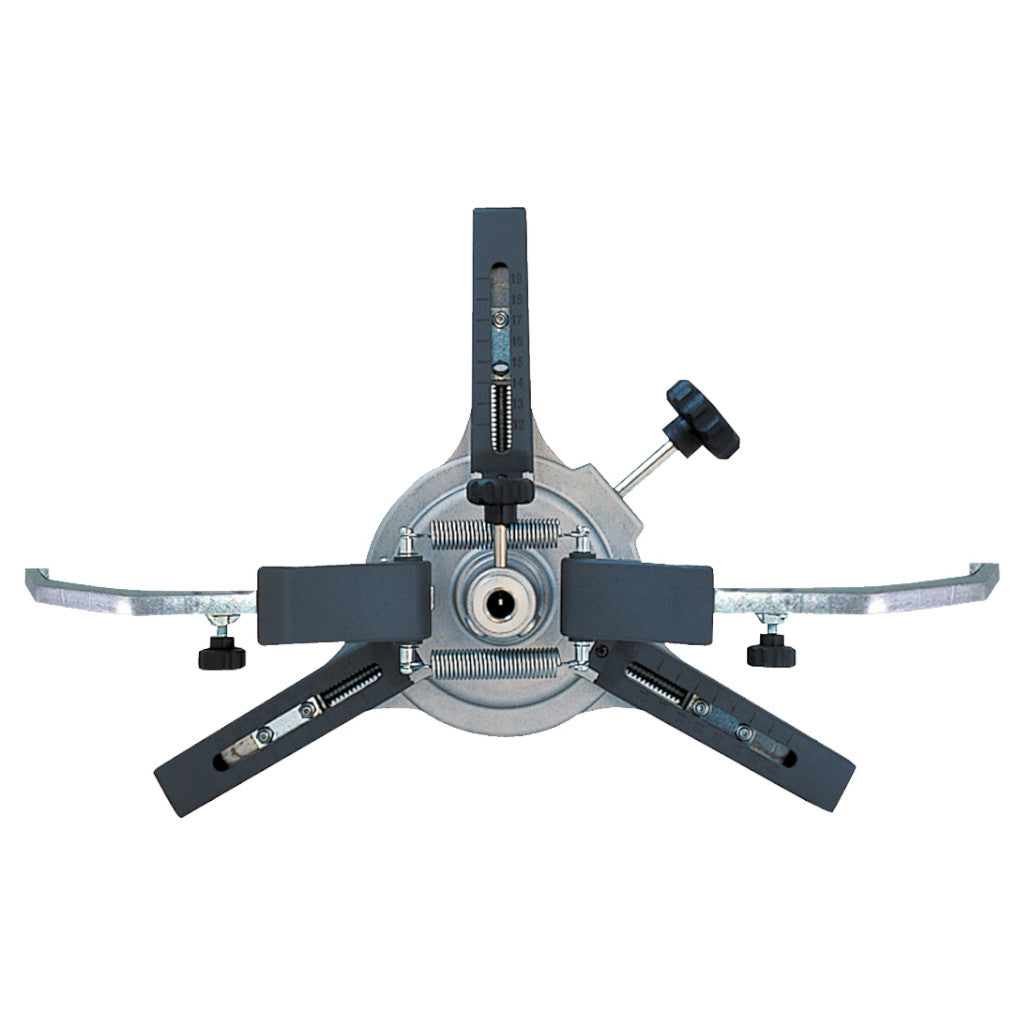

  • (4) 3-point STDA35E clamps with targets
  • Set of 6 extensions for dually wheels
  • (1) brake pedal depressor
  • (1) steering wheel lock
  • Instruction manual on USB drive

    Warranty: 3 years on parts, 1 year on labor


    • Power supply: 110v / 60 Hz / 1 PH
     Front Axle Accuracy Measuring Range Total Measuring Range
    Total Toe ±2′ ±2° ±20°
    Partial Toe ±1′ ±1° ±20°
    Set-Back ±2′ ±2° ±5°
    Camber ±2′ ±3° ±10°
    Caster ±5′ ±10° ±18°
    King-Pin ±5′ ±10° ±18°
    Rear Axle Accuracy Measuring Range Total Measuring Range
    Total Toe ±2′ ±2° ±20°
    Partial Toe ±1′ ±1° ±20°
    Set-Back ±2′ ±2° ±5°
    Camber ±2′ ±3° ±10°
    Thrust Angle ±2′ ±2° ±5°
