Rotary | Mobile Tablet-Operated Wheel Alignment System (R1065)

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

The 1065 Wheel Alignment System offers total drive wireless capability. No minimum bay size required so this system is ready to fit in your shop. Take the alignment tablet with you as you make assessments, adjustments and collect the necessary data to get the job done from anywhere in the bay.


  • Fast installation and set up
  • Can be used in multiple bays
  • Operate on any runway lift with alignment kit
  • Tablet Operated – (No “PC” Required)
  • Bluetooth Communication (No Cables)
  • 4 Sensors (2CCD Cameras Each)
  • Sensor Cart Charging Built-In
  • 4 Point Tire Clamps (2 pair)
  • Long-Lasting Batteries

Affordable tablet-operated, tower-free system provides the ultimate usage of shop space!

Handheld tablet connects via WIFI. Make assessments, adjust readings, and collect vehicle data anywhere in the bay.

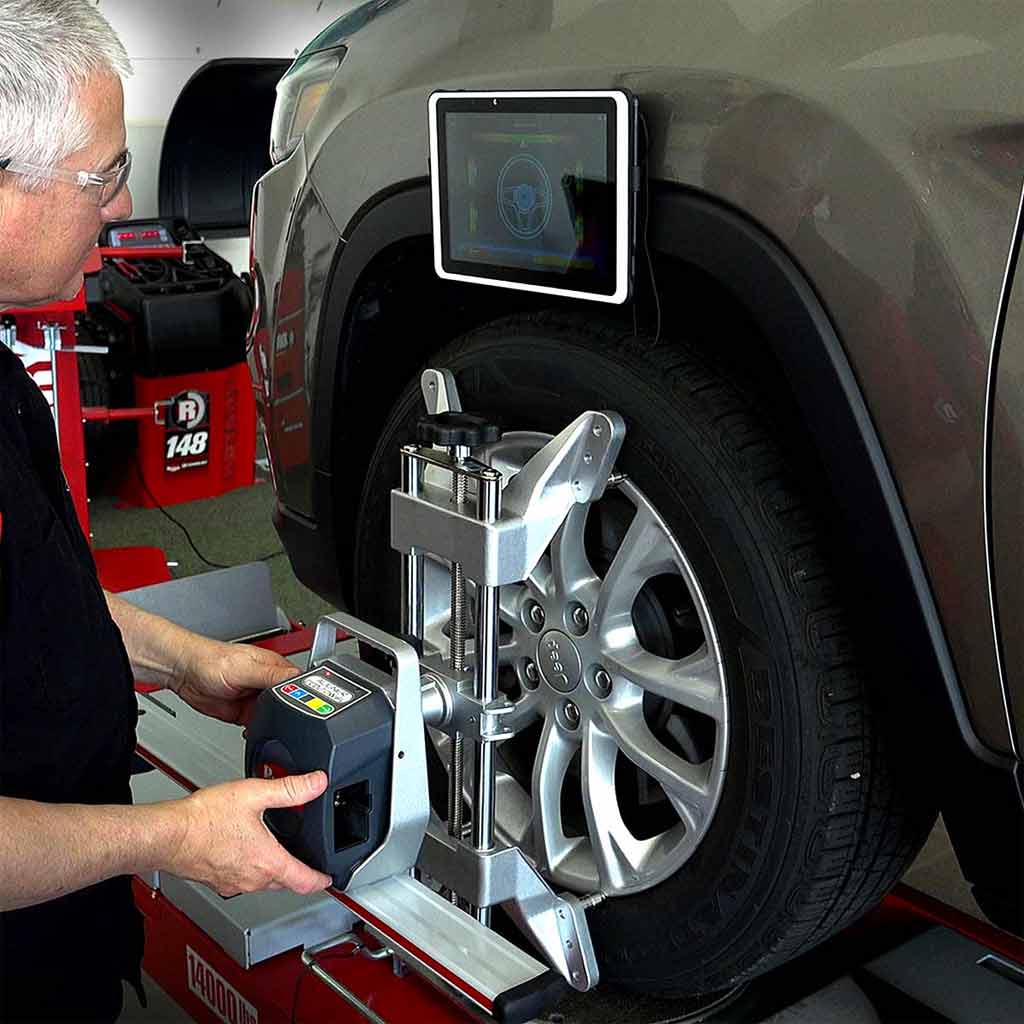

Always Have Live Readings While Making Adjustments: The standard magnet kit is adhered to the back of the tablet allowing positioning to the cart, directly to the lift or vehicle during the measuring processes.

Computer Free Alignment System: No computer software updates required.

Wireless Measuring Heads Communicate via Bluetooth: No cables or interruptions during alignment process.

No Minimum Bay Size Required: Wireless capability with the mobility to move from bay-to-bay with ease.

Personalized Alignment Report Emailed Directly to Customer: Insures customer satisfaction or print to a local WIFI printer.

Accurate 2-Step Run Out Process: The handheld tablet tells the operator when to stop, and when to roll forward during the run-out process. Eliminates any guessing and adds greater shop productivity.

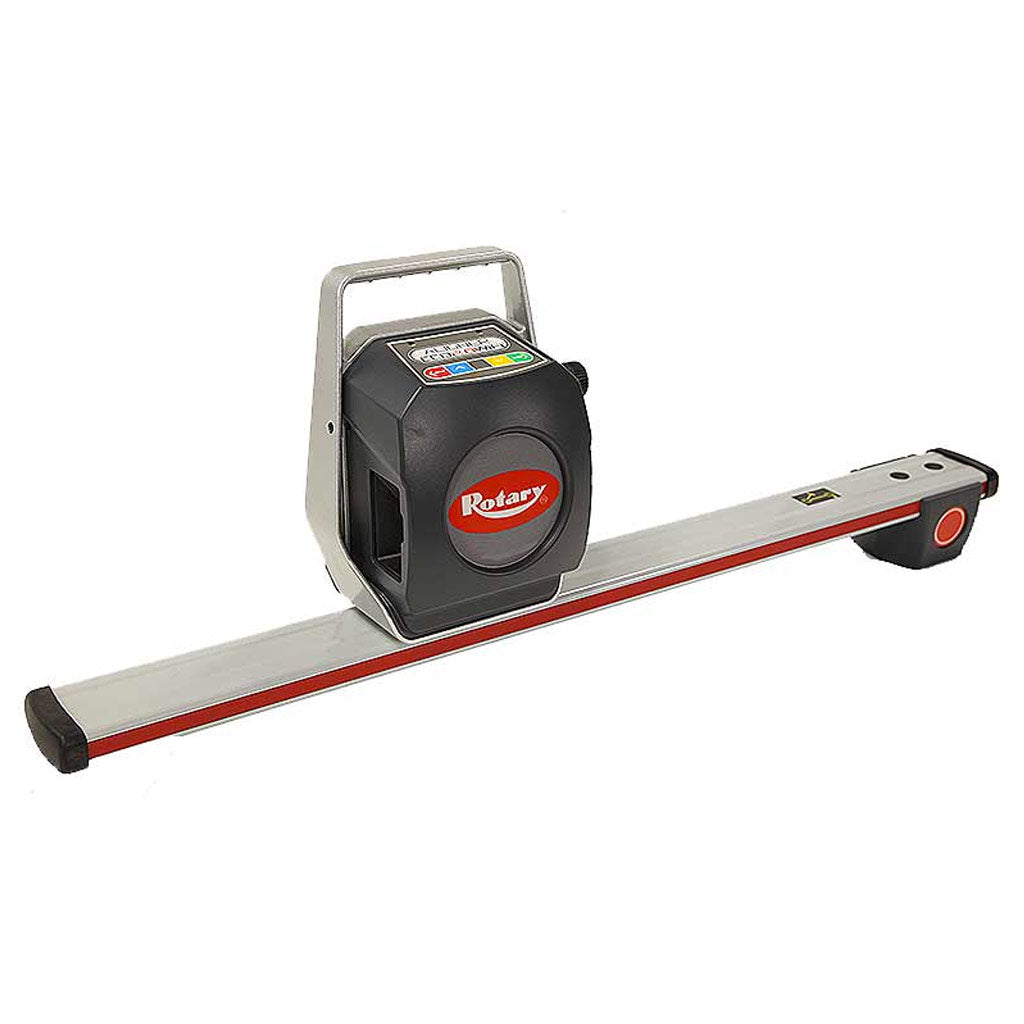

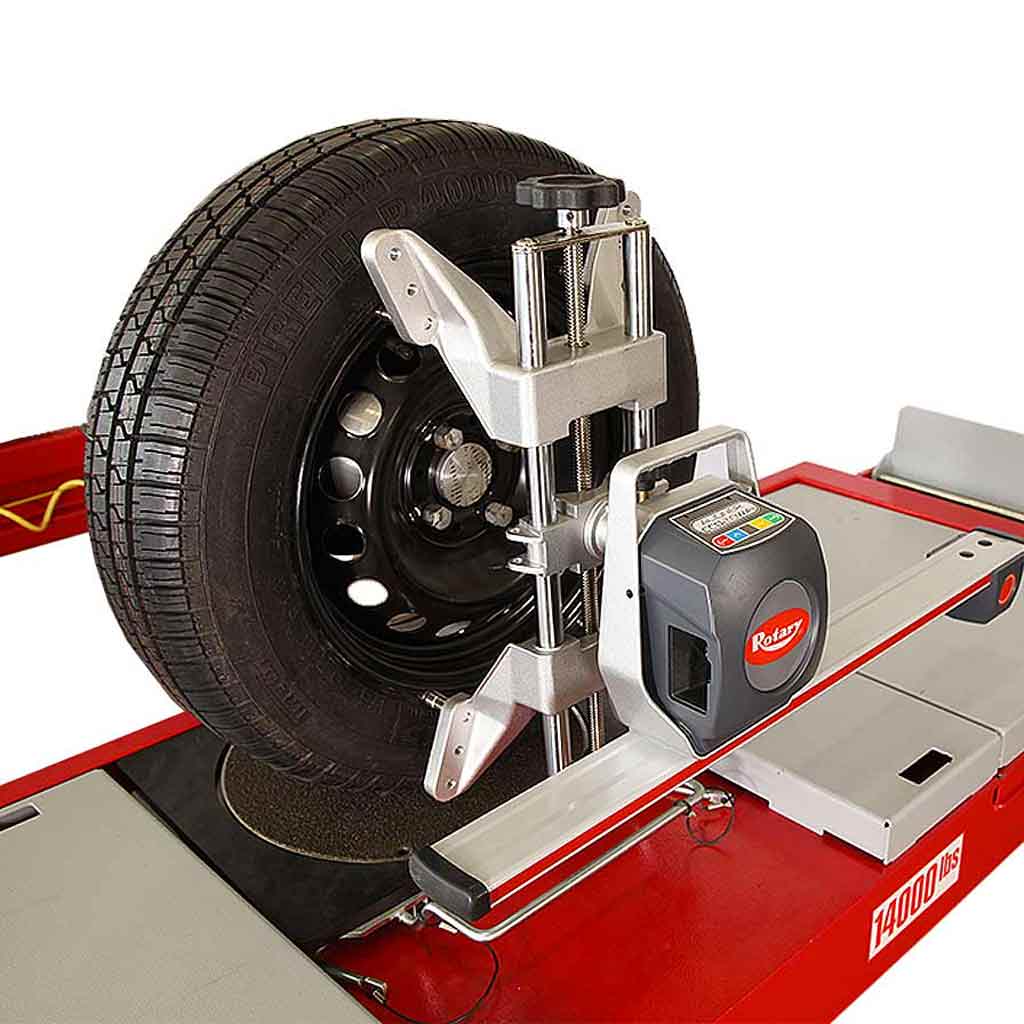

New Front & Rear Measuring Heads: State-of-the-art design for the wireless sensors. All the characteristics of both vehicle axles are measured by 4 CCD measuring heads. Each measuring head includes 2 CCD cameras.

Optical Alignment Unit: All measuring heads include a bearing on the shaft and the Right Rear includes an encoder to speed the Run Out process. The 4 measuring heads charge while stored on the cart.

Updated Animated Instructions & Graphics Guide the Alignment Process: Includes Spoiler Program for lowered vehicles – automatically activated to measure sport and tuned car bodies.

Standard Equipment:

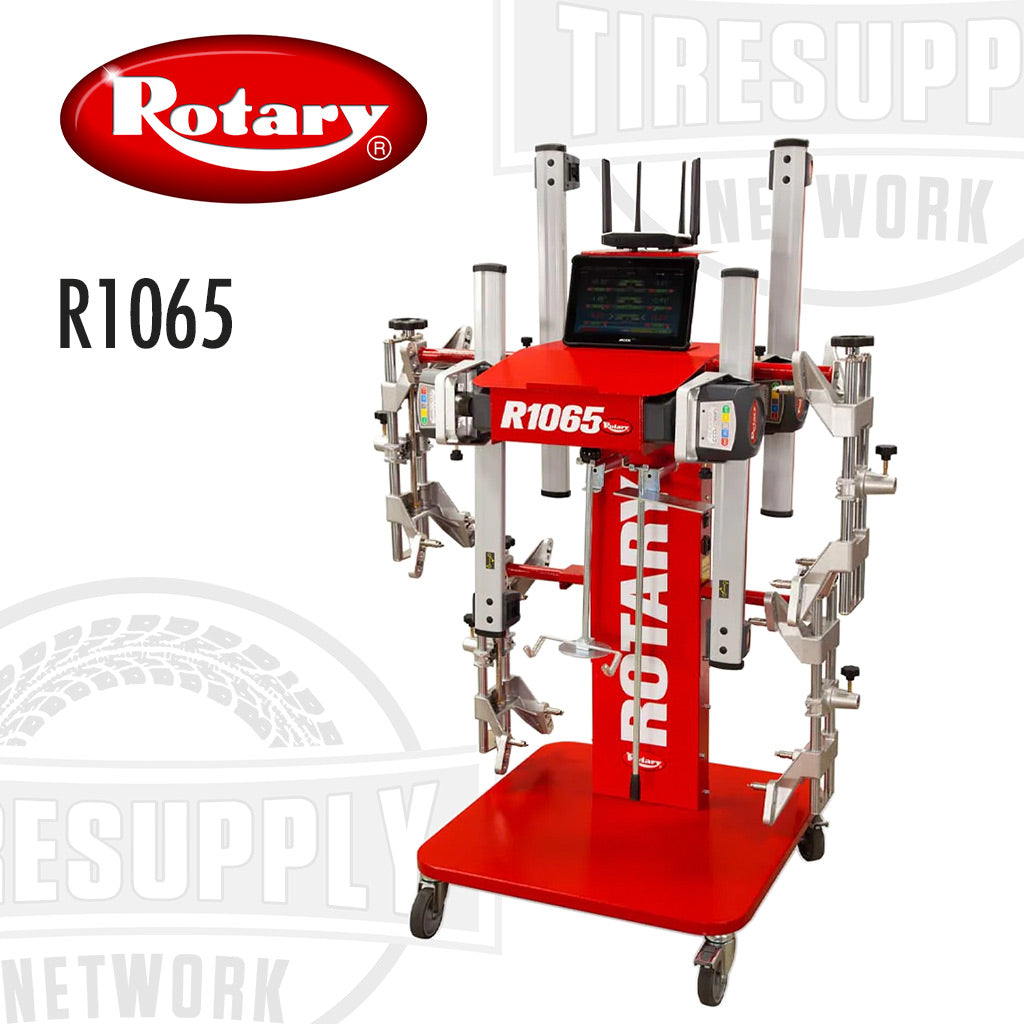

  • Mobile storage cart
  • 10″ Android tablet with router
  • (8) CCD camera system (4 sensors with 2 CCD cameras)
  • (4) STDA33EU 4-point wheel clamps
  • (1) brake pedal depressor
  • (1) steering wheel lock

        Warranty: 3 years on parts, 1 year on labor


        • Power supply: 110v / 60 Hz / 1 PH
         Front Axle Accuracy Measuring Range Total Measuring Range
        Total Toe ±3′ ±2° ±20°
        Partial Toe ±1′ 30″ ±1° ±20°
        Set-Back ±2′ ±2° ±5°
        Camber ±2′ ±3° ±10°
        Caster ±5′ ±10° ±18°
        King-Pin ±5′ ±10° ±18°
        Rear Axle Accuracy Measuring Range Total Measuring Range
        Total Toe ±3′ ±2° ±20°
        Partial Toe ±1′ 30″ ±1° ±20°
        Set-Back ±2′ ±2° ±5°
        Camber ±2′ ±3° ±10°
        Thrust Angle ±2′ ±2° ±5°
