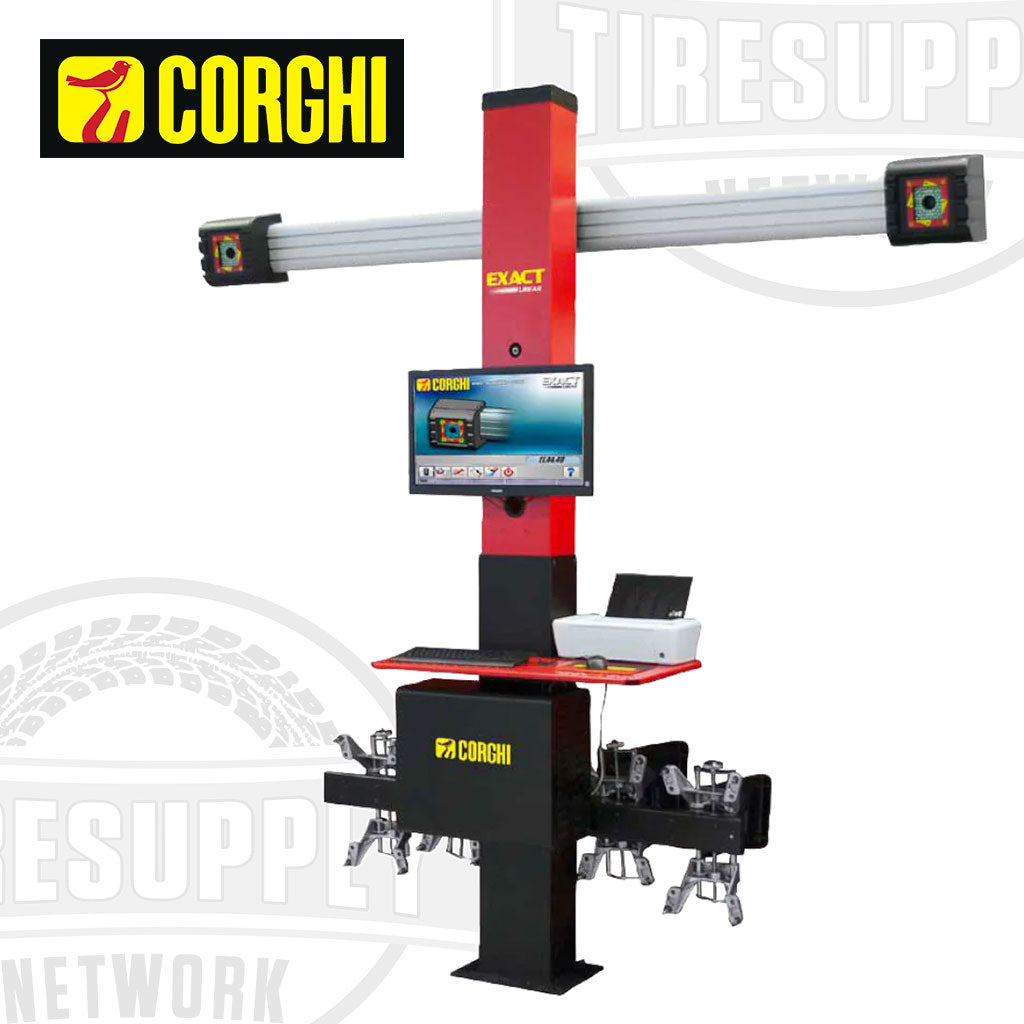

Corghi | Exact Linear Camera Wheel Alignment System

Join CLUB5 at Tire Supply Network and save 5% on EVERY order! Learn more

Corghi | Exact Linear Camera Wheel Alignment System

*** Additional 1st Quarter Promo *** >>> Click Here to View the Details

 Direct from Corghi -  Get 10% cash rebate on the higher of two items when you purchase a combination of two of the following: ALL machines, helper arms, and related accessories. Simply download the rebate form below, fill it out, and submit it within 2 weeks of purchase.

CLICK HERE for complete details and to access the Corghi 2024 Cash Rebate form.

PLEASE NOTE: Sales tax MUST be paid on this item. We will contact you after purchase for sales tax payment.

PLEASE NOTE: Additional verification may be necessary for delivery of your equipment order. A customer service representative may call you to assist in finalizing your purchase.

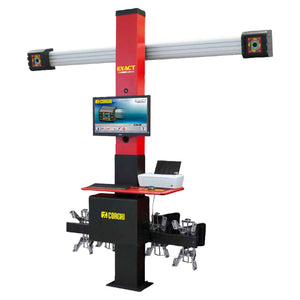

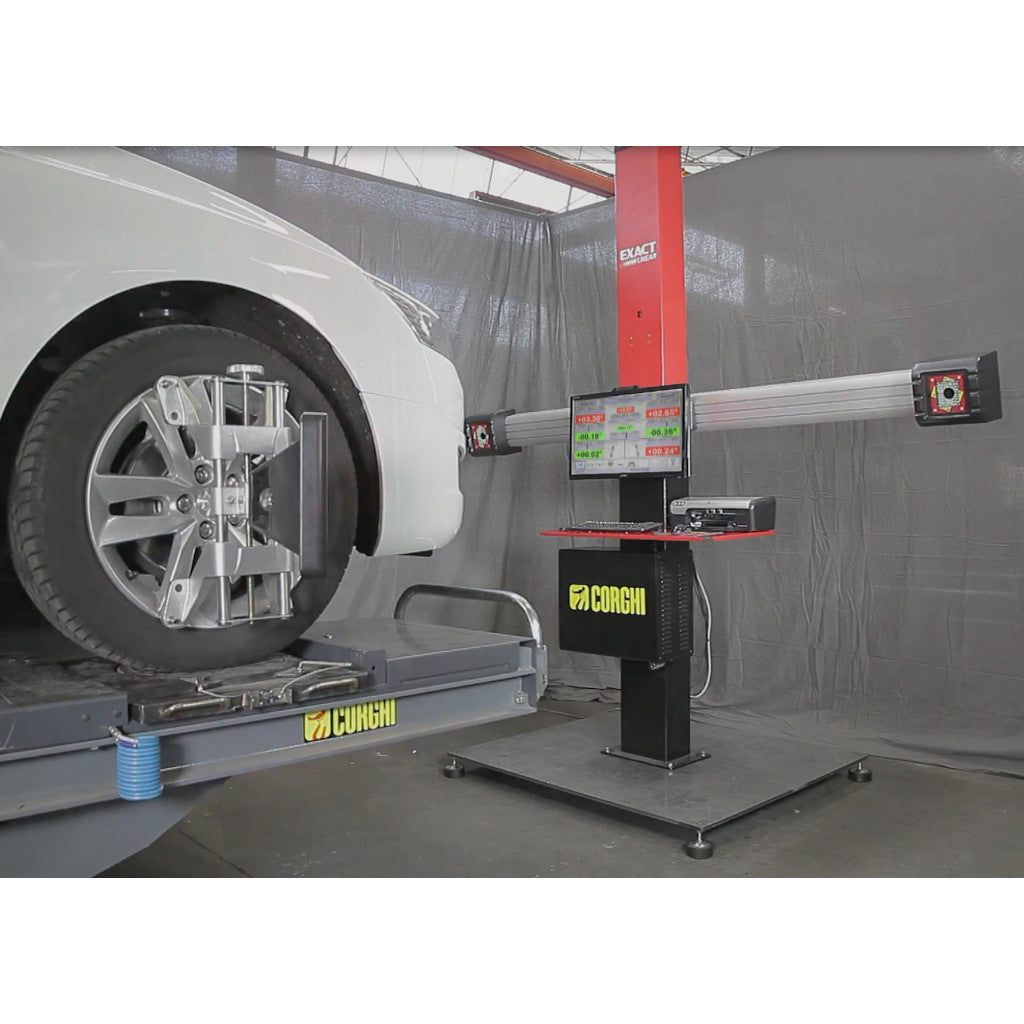

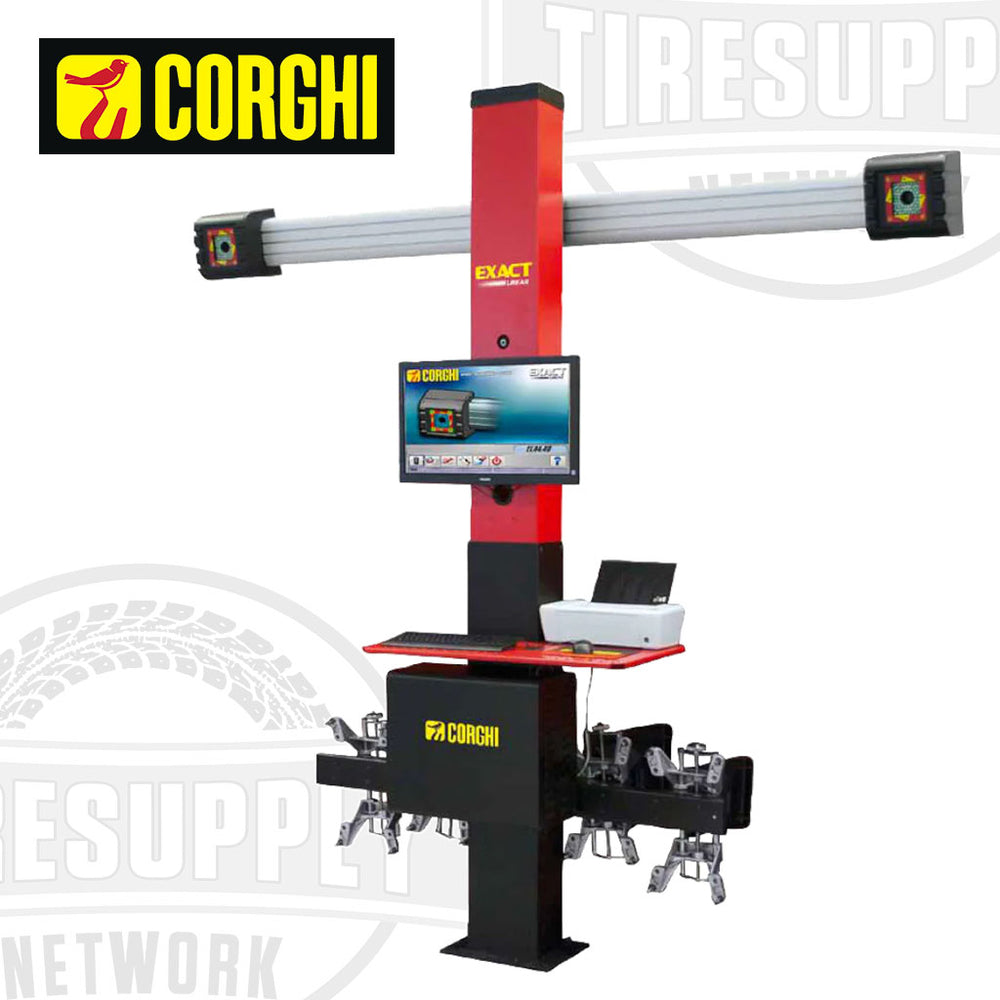

Camera wheel alignment technology. Entry level pricing with top range specifications. Small investment with a big turnover.

Fast • Easy • Precise • Reliable • Complete • Quality at affordable prices

Features:

  • Ergonomic worktop.
  • Practical trolley for clamp and sensor holder (optional).

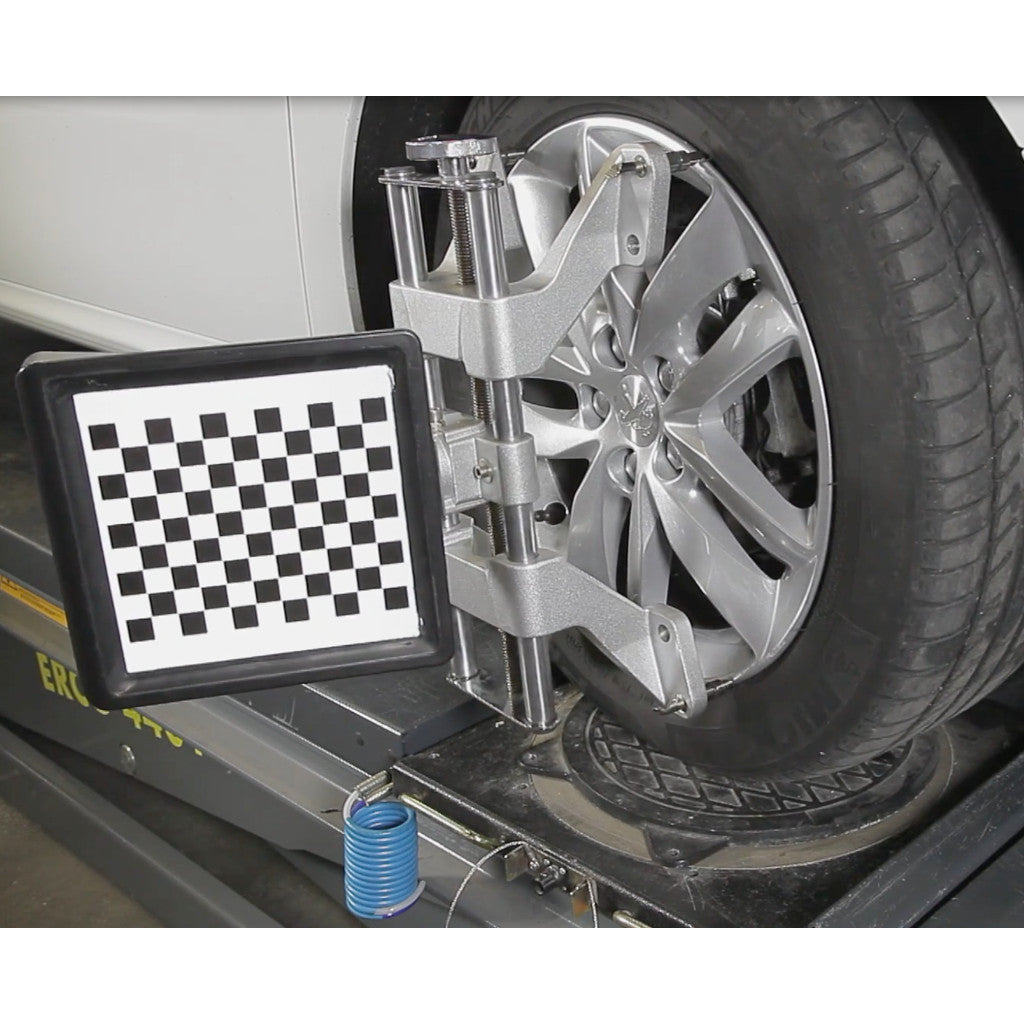

  • Unique High resolution 80 x 80 and 80 x 90 target board.

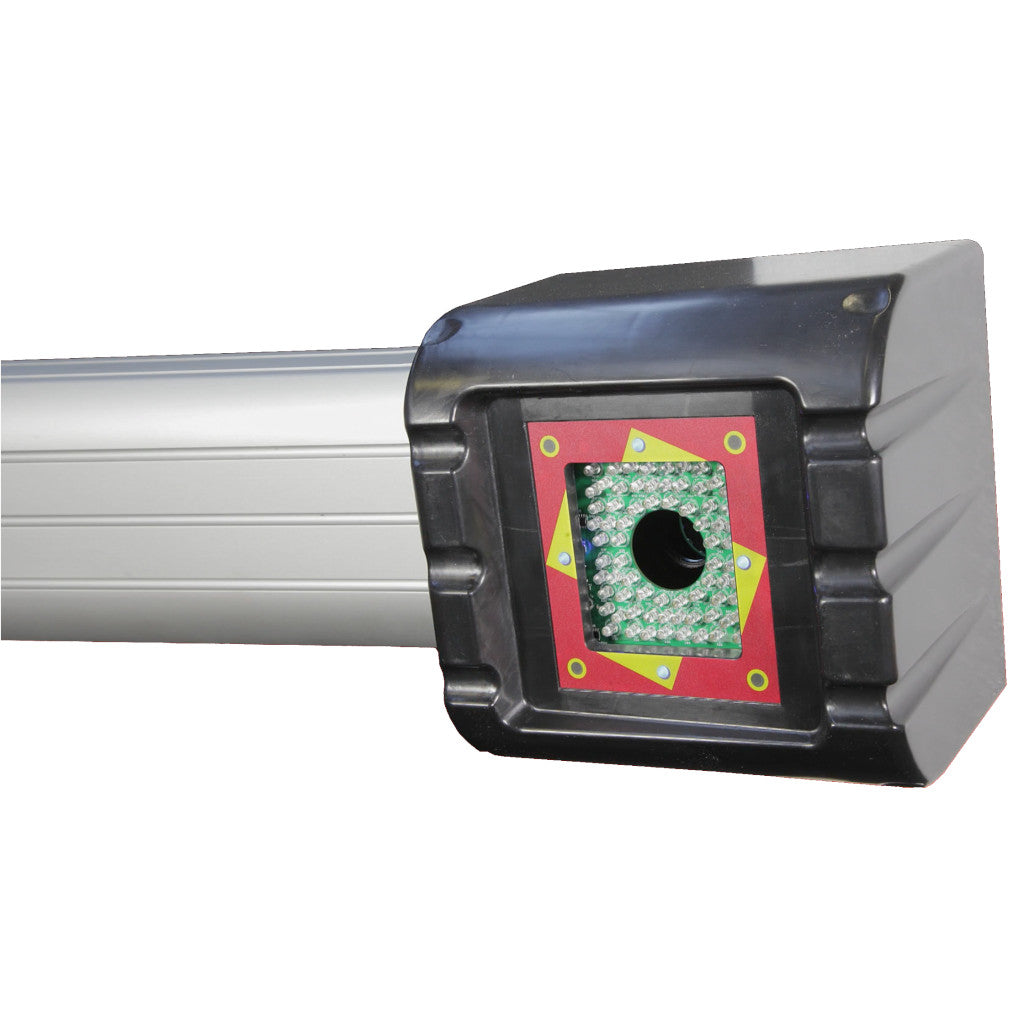

  • Next generation camera with high resolution HiQ lenses.

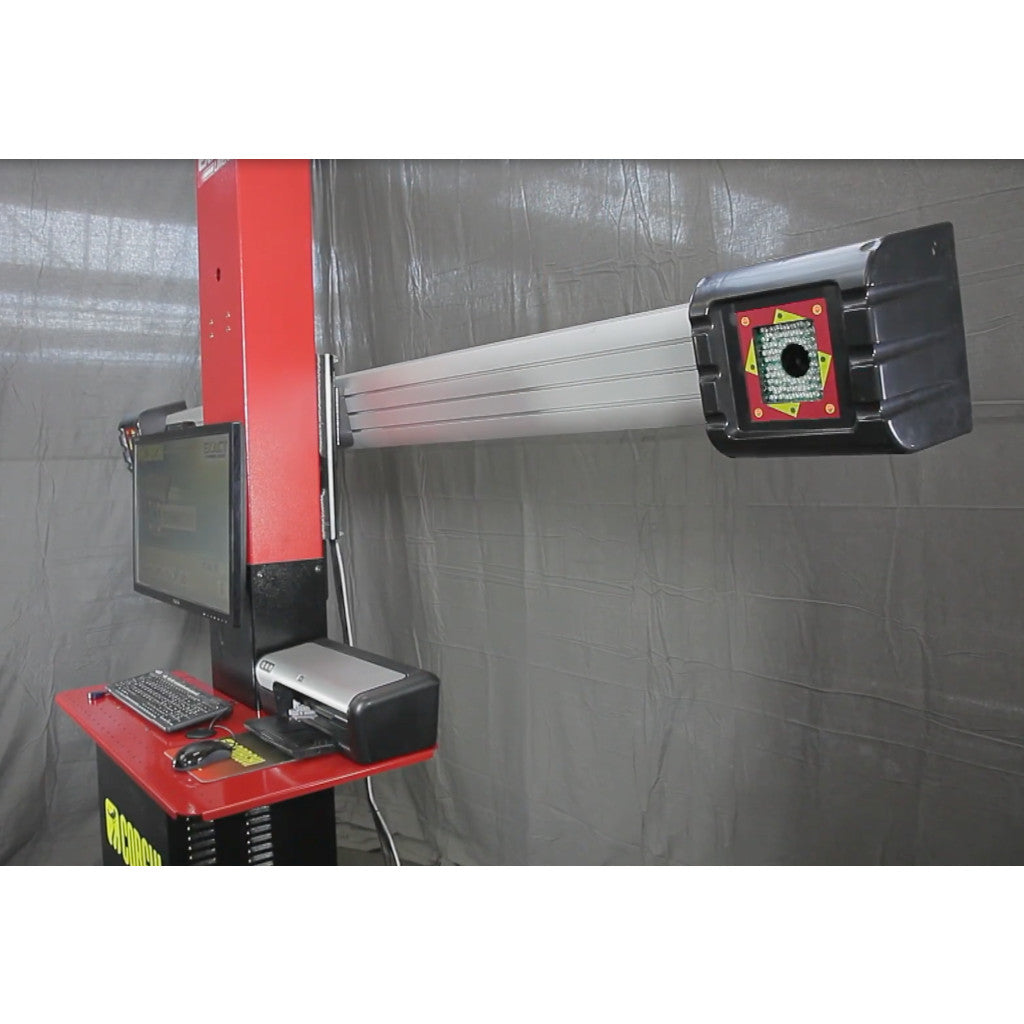

  • Camera movement kit allows the operator to work from pit level to over 2.00 meters by pressing a key on the keyboard. Fast and easy (optional).

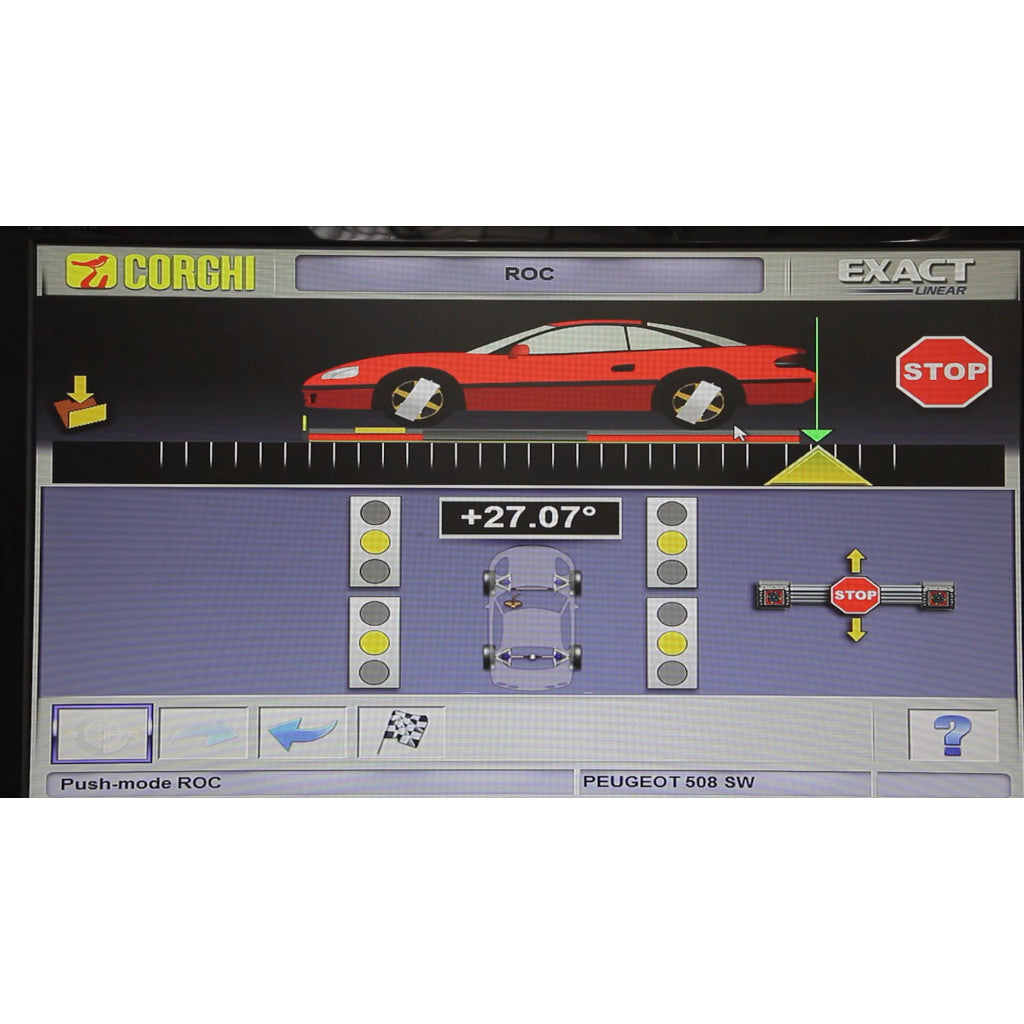

  • Drive on assistant for safe maneuvering in the workshop without additional operator or mirror.

Software:

  • User friendly graphics. Icon based EXACT software. Easy to learn, fast to select

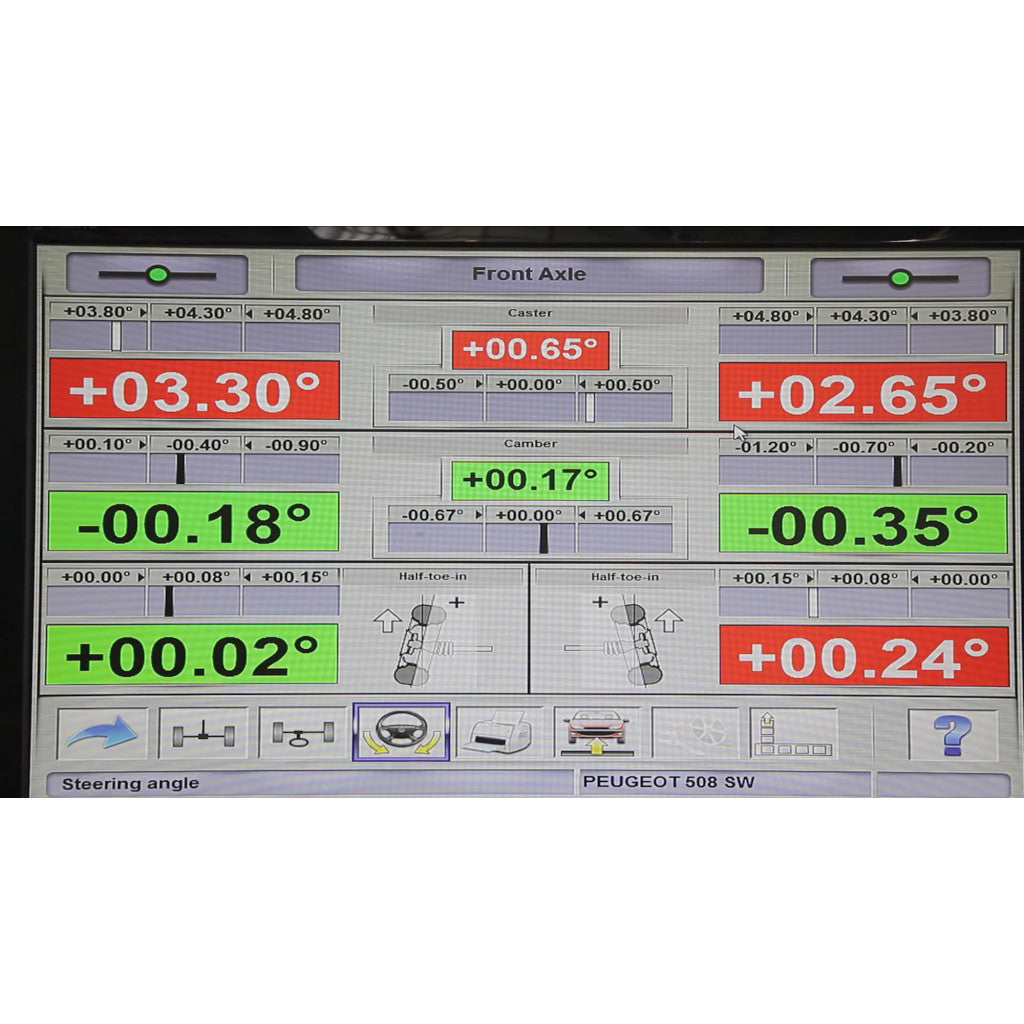

  • Live chassis measurements with graphic live indication. Graphic live measurement with graphic chassis measurement.
  • International database by regional area for easy selection. Select your area in the set up, but always have the rest of the world data available at your fingertips

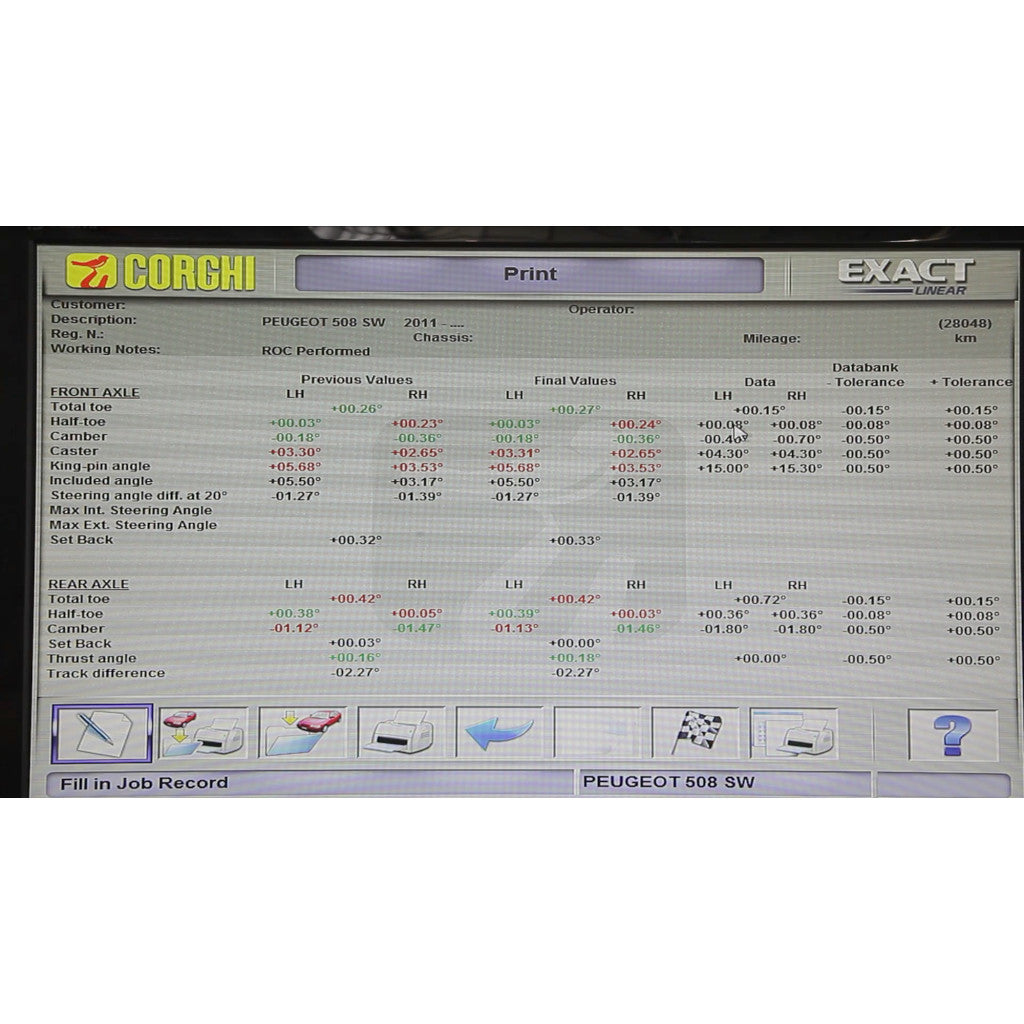

  • Selectable printout, color, black and white graphics only, or by file.

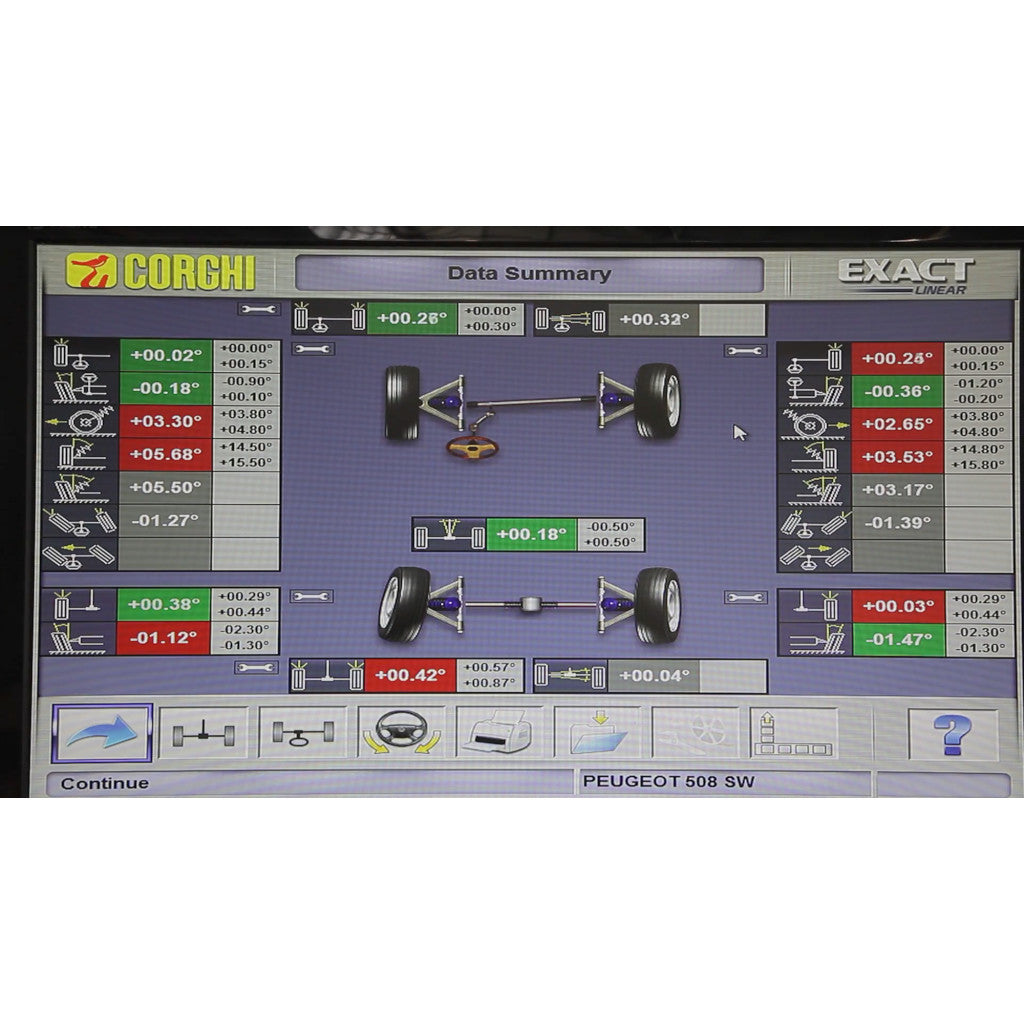

  • Live adjustment — all angle values indicated in real time.

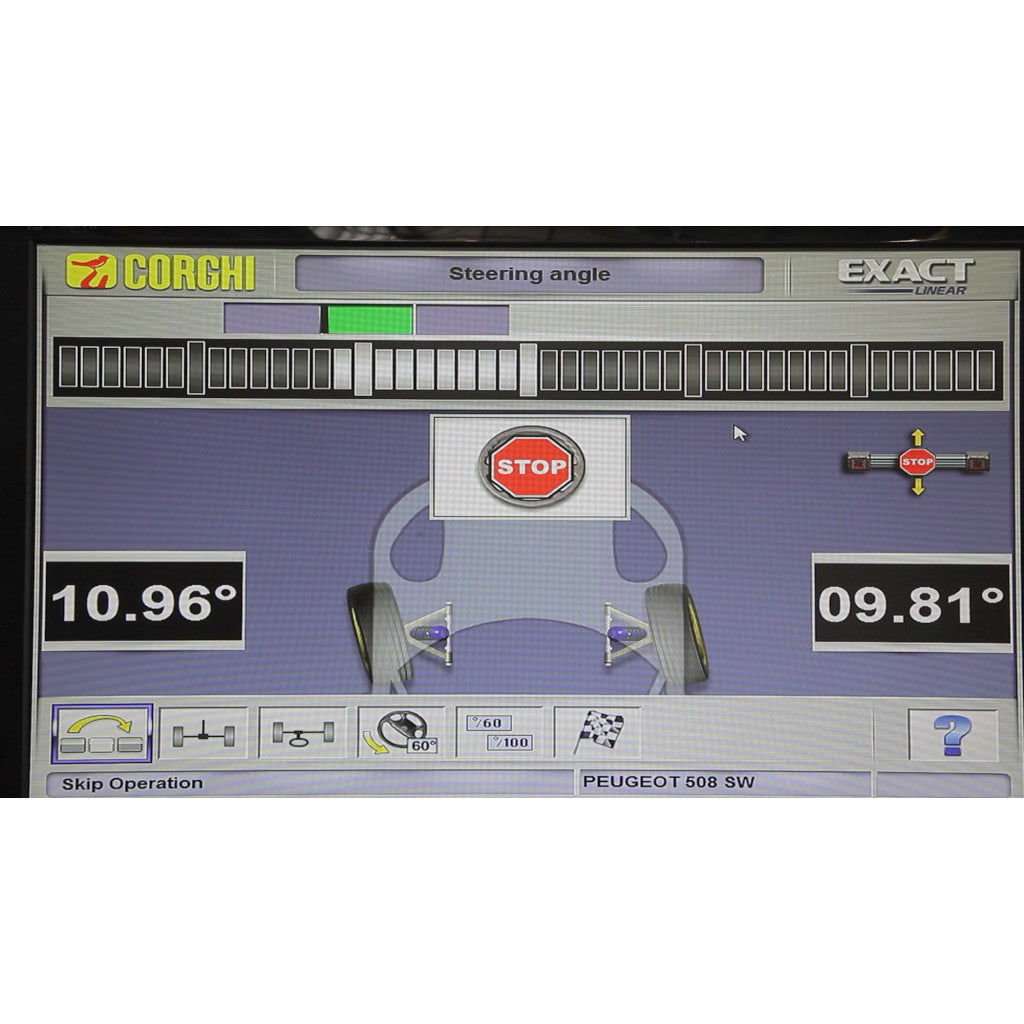

  • Selectable tutor online that follows the operator step by step with graphic indicator on how to proceed.

TECHNICAL DATA:

Measuring Ranges
Total Toe ± 20°
Half Toe

± 10°
Camber

± 10°
Caster

± 30°
King Pin

± 30°
Set Back

± 22°
Thrust Angle

± 10°
Steering Difference

± 20°
Power Supply
Power Supply Voltage 115-230 V / 50-60 Hz / 1ph
Power Absorption 500 W
PC Holder Weight 24.2 lbs (11 kg)
Camera Bean Weight 57.3 lbs (26 kg)
Column Weight 145.5 lbs (66 kg)
